XZB50-ZRFEH (2004)

Toyota Coaster

Production Aug 2004 - Aug 2007
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )N04C

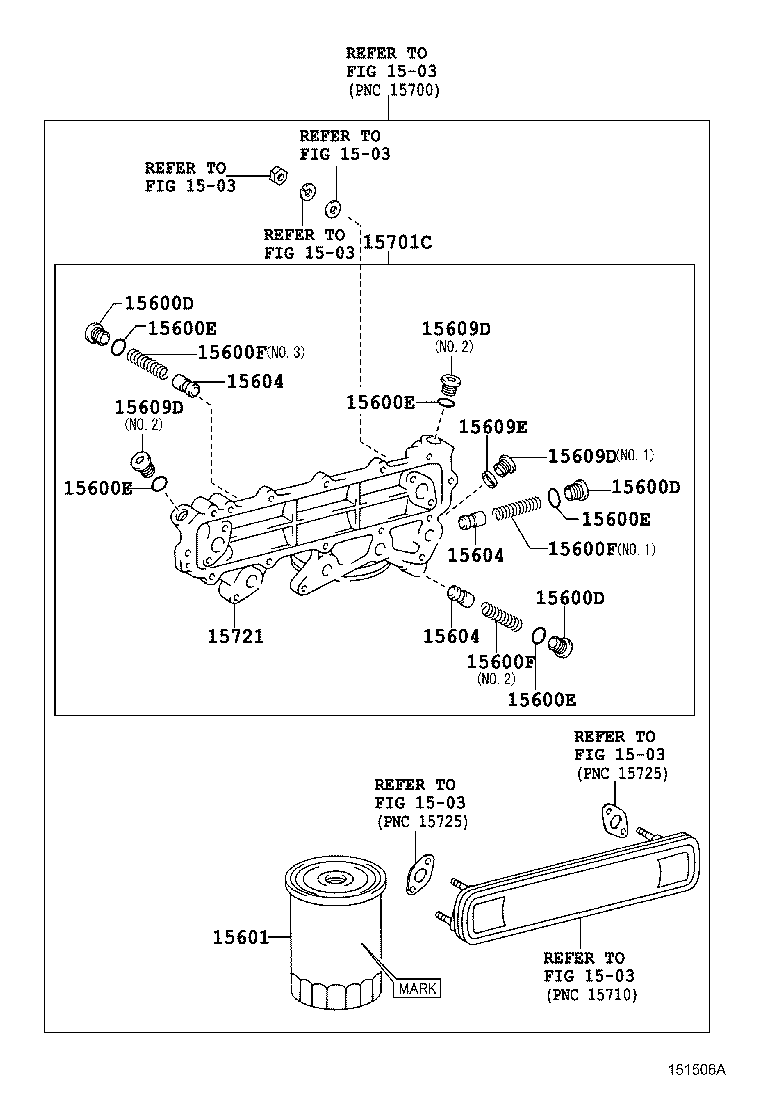

Click highlighted areas on diagram

diagram 1503 1503 1503 1503 1503 1503 1503 15600D 15600D 15600D 15600E 15600E 15600E 15600E 15600E 15600F 15600F 15600F 15601 15604 15604 15604 15609D 15609D 15609D 15609E 15701C 15721
Part # Description Qty Price
15600D - PLUG(FOR OIL FILTER)
15529-89107

N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 3
15600D - PLUG(FOR OIL FILTER)
15529-89107

N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 3
15600D - PLUG(FOR OIL FILTER)
15529-89107

N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 3
15600E - WASHER(FOR OIL FILTER)
90033-01053

N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 5
15600E - WASHER(FOR OIL FILTER)
90033-01053

N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 5
15600E - WASHER(FOR OIL FILTER)
90033-01053

N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 5
15600E - WASHER(FOR OIL FILTER)
90033-01053

N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 5
15600E - WASHER(FOR OIL FILTER)
90033-01053

N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 5
15601 - FILTER SUB-ASSY, OIL
15613-89105

N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD

*196

 1
15604 - VALVE SUB-ASSY, OIL SAFETY
15690-89101

N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 3
15604 - VALVE SUB-ASSY, OIL SAFETY
15690-89101

N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 3
15604 - VALVE SUB-ASSY, OIL SAFETY
15690-89101

N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 3
15609E - GASKET, W/HEAD STRAIGHT SCREW PLUG
90033-01067

N04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)

 1
15701C - COVER SUB-ASSY, OIL COOLER
15720-89104

N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD

*196

 1
15721 - COVER, OIL COOLER
15701-89106

N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD

*196

 1
Linked diagrams
1503
