XZB50-ZKTSY (2007)
Toyota Coaster
ILLUST NO. 3 OF 6(9301-1501)
ﾘﾔ ｴｱ ﾀﾞｸﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-60304 | ||||
| 91553-80822 | ||||
| 93540-54016 | ||||

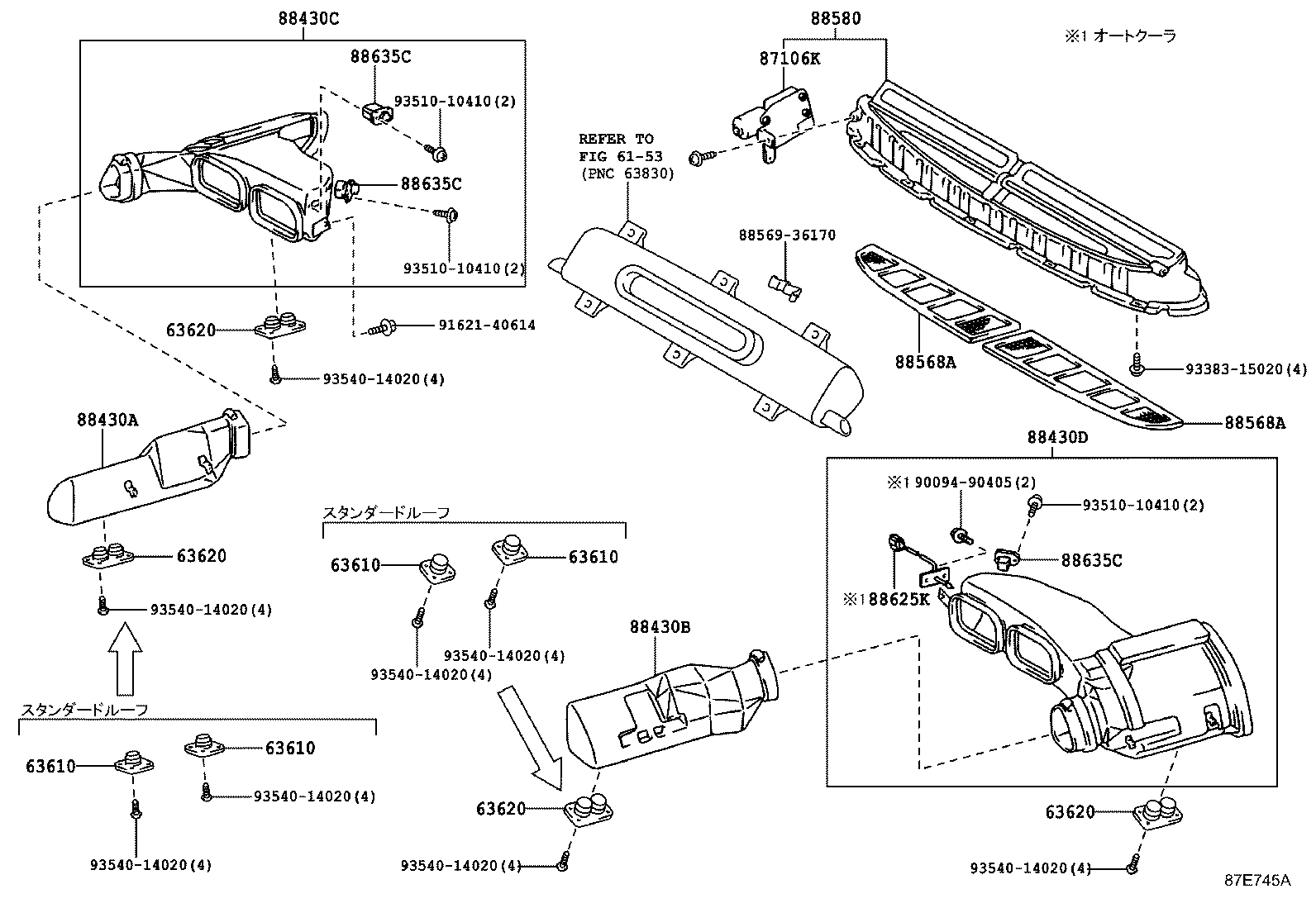

ILLUST NO. 4 OF 6(9301-1501)
ﾙ-ﾌ ｴｱﾀﾞｸﾄ & ﾀﾞﾝﾊﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87106K - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-36060 |
BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5) |
1 | ||
| 87106-36061 |
XZB4#,5# |
1 | ||
| 87106-36051 |
BZB40,50 |
1 | ||
| 88430A - DUCT ASSY, AIR, NO.1 | ||||
| 88430-36110 |
BZB40,50,XZB4#,5#..HRF |
1 | ||
| 88430B - DUCT ASSY, AIR, NO.2 | ||||
| 88430-36240 |
BZB40,50,XZB4#,5#..HRF |
1 | ||
| 88430C - DUCT ASSY, AIR, NO.3 | ||||
| 88430-36211 |
BZB40,50 |
1 | ||
| 88430-36031 |
XZB4#,50,56..HRF..(LX,STD) |
1 | ||
| 88430D - DUCT ASSY, AIR, NO.4 | ||||
| 88430-36221 |
BZB40,50 |
1 | ||
| 88430-36041 |
XZB4#,50,56..HRF..(LX,STD) |
1 | ||
| 88568A - FILTER, AIR | ||||
| 88568-36010 |
BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC |
2 | ||
| 88568-36011 |
BZB40,50,XZB4#,5# |
2 | ||
| 88568A - FILTER, AIR | ||||
| 88568-36010 |
BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC |
2 | ||
| 88568-36011 |
BZB40,50,XZB4#,5# |
2 | ||
| 88580 - DAMPER ASSY, AIR | ||||
| 88580-36011 |
BZB40,50 |
1 | ||
| 88580-36020 |
BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5) |
1 | ||
| 88580-36021 |
XZB4#,5# |
1 | ||
| 88635C - RESISTOR, COOLER AIR DUCT, NO.1 | ||||
| 88635-36090 |
HDB51..IV5;BB4#,5#,HZB40,5#..(LX,STD)..WC |
3 | ||
| 88635-36130 |
BZB40,50 |
3 | ||
| 88635-36090 |
XZB4#,50,56..LX,STD |
3 | ||
| 88635C - RESISTOR, COOLER AIR DUCT, NO.1 | ||||
| 88635-36090 |
HDB51..IV5;BB4#,5#,HZB40,5#..(LX,STD)..WC |
3 | ||
| 88635-36130 |
BZB40,50 |
3 | ||
| 88635-36090 |
XZB4#,50,56..LX,STD |
3 | ||
| 88635C - RESISTOR, COOLER AIR DUCT, NO.1 | ||||
| 88635-36090 |
HDB51..IV5;BB4#,5#,HZB40,5#..(LX,STD)..WC |
3 | ||
| 88635-36130 |
BZB40,50 |
3 | ||
| 88635-36090 |
XZB4#,50,56..LX,STD |
3 | ||
| Common parts | ||||
| 88569-36170 | ||||
| 90094-90405 | ||||
| 90099-00081 | ||||
| 91621-40614 | ||||
| 93383-15020 | ||||
| 93510-10410 | ||||

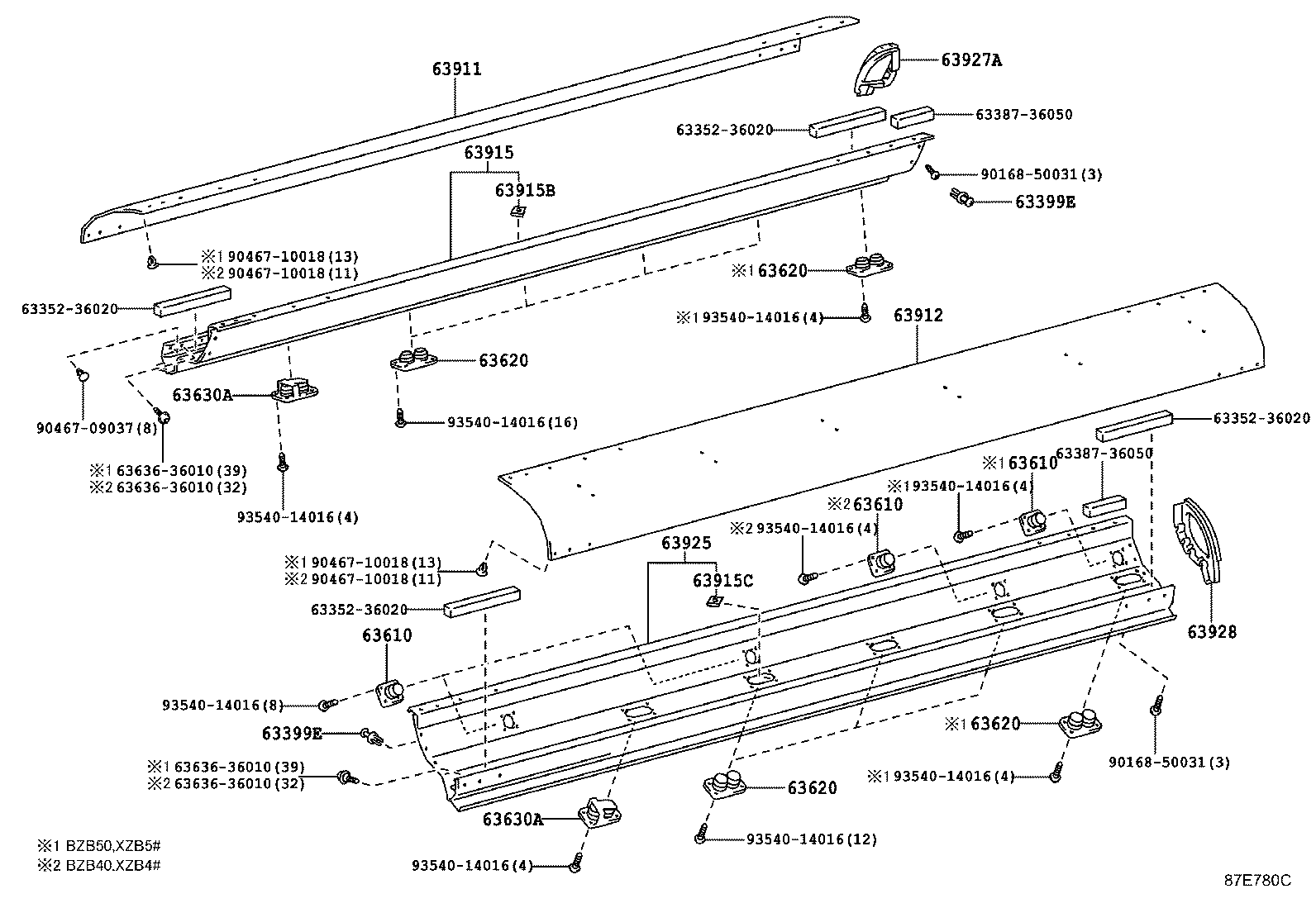

ILLUST NO. 5 OF 6(9301-1501)
ﾙ-ﾌ ｴｱ ﾀﾞｸﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63399E - CLIP, ROOF HEADLINING | ||||
| 63399-36030A0 |
BB4#,HDB5#,HZB4#,50..(EX,GX,LX,STD,SULNG)..WC IVORY,TRIM4# |
16 | ||
| 63399-36010B1 |
BZB40,50,XZB4#,50,56..HRF MD.CHARCOAL,TRIM1# |
16 | ||
| 63399E - CLIP, ROOF HEADLINING | ||||
| 63399-36030A0 |
BB4#,HDB5#,HZB4#,50..(EX,GX,LX,STD,SULNG)..WC IVORY,TRIM4# |
16 | ||
| 63399-36010B1 |
BZB40,50,XZB4#,50,56..HRF MD.CHARCOAL,TRIM1# |
16 | ||
| 63399E - CLIP, ROOF HEADLINING | ||||
| 63399-36030A0 |
BB4#,HDB5#,HZB4#,50..(EX,GX,LX,STD,SULNG)..WC IVORY,TRIM4# |
16 | ||
| 63399-36010B1 |
BZB40,50,XZB4#,50,56..HRF MD.CHARCOAL,TRIM1# |
16 | ||
| 63610 - REGISTER ASSY, AIR OUTLET, NO.1 | ||||
| 63610-90B00B0 |
BZB40,50,XZB4#,5#..HRF MD.CHARCOAL,TRIM1# |
3 | ||
| 63610 - REGISTER ASSY, AIR OUTLET, NO.1 | ||||
| 63610-90B00B0 |
BZB40,50,XZB4#,5#..HRF MD.CHARCOAL,TRIM1# |
3 | ||
| 63610 - REGISTER ASSY, AIR OUTLET, NO.1 | ||||
| 63610-90B00B0 |
BZB40,50,XZB4#,5#..HRF MD.CHARCOAL,TRIM1# |
3 | ||
| 63620 - REGISTER ASSY, AIR OUTLET, NO.2 | ||||
| 63640-36010B0 |
BZB50,XZB5#..HRF MD.CHARCOAL,TRIM1# |
13 | ||
| 63620 - REGISTER ASSY, AIR OUTLET, NO.2 | ||||
| 63640-36010B0 |
BZB50,XZB5#..HRF MD.CHARCOAL,TRIM1# |
13 | ||
| 63620 - REGISTER ASSY, AIR OUTLET, NO.2 | ||||
| 63640-36010B0 |
BZB50,XZB5#..HRF MD.CHARCOAL,TRIM1# |
13 | ||
| 63620 - REGISTER ASSY, AIR OUTLET, NO.2 | ||||
| 63640-36010B0 |
BZB50,XZB5#..HRF MD.CHARCOAL,TRIM1# |
13 | ||
| 63620 - REGISTER ASSY, AIR OUTLET, NO.2 | ||||
| 63640-36010B0 |
BZB50,XZB5#..HRF MD.CHARCOAL,TRIM1# |
13 | ||
| 63620 - REGISTER ASSY, AIR OUTLET, NO.2 | ||||
| 63640-36010B0 |
BZB50,XZB5#..HRF MD.CHARCOAL,TRIM1# |
13 | ||
| 63630A - REGISTER ASSY, AIR DUCT, NO.3 | ||||
| 63630-36010A0 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC IVORY,TRIM4# |
2 | ||
| 63630-36010B0 |
BZB40,50,XZB4#,5# MD.CHARCOAL,TRIM1# |
2 | ||
| 63630A - REGISTER ASSY, AIR DUCT, NO.3 | ||||
| 63630-36010A0 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC IVORY,TRIM4# |
2 | ||
| 63630-36010B0 |
BZB40,50,XZB4#,5# MD.CHARCOAL,TRIM1# |
2 | ||
| 63911 - DUCT, COOLER, OUTER RH | ||||
| 63911-36080 |
BZB50,XZB5#..HRF |
1 | ||
| 63912 - DUCT, COOLER, OUTER LH | ||||
| 63911-36080 |
BZB50,XZB5#..HRF |
1 | ||
| 63915 - DUCT, COOLER, INNER NO.1 RH | ||||
| 63915-36320B0 |
BZB50,XZB50,56..HRF..WC MD.CHARCOAL,TRIM1# |
1 | ||
| 63915-36330B0 |
BZB50,XZB50..HRF..WC ｱﾘ(ｶ-ﾃﾝ),MD.CHARCOAL,TRIM1# |
1 | ||
| 63915-36320B0 |
BZB50,XZB50,56..HRF MD.CHARCOAL,TRIM1# |
1 | ||
| 63915-36330B0 |
BZB50,XZB50..HRF ｱﾘ(ｶ-ﾃﾝ),MD.CHARCOAL,TRIM1# |
1 | ||
| 63925 - DUCT, COOLER, INNER NO.1 LH | ||||
| 63925-36320B0 |
BZB50,XZB50,56..HRF..WC MD.CHARCOAL,TRIM1# |
1 | ||
| 63925-36330B0 |
BZB50,XZB50..HRF..WC ｱﾘ(ｶ-ﾃﾝ),MD.CHARCOAL,TRIM1# |
1 | ||
| 63925-36330B0 |
BZB50,XZB50..HRF ｱﾘ(ｶ-ﾃﾝ),MD.CHARCOAL,TRIM1# |
1 | ||
| 63925-36320B0 |
BZB50,XZB50,56..HRF MD.CHARCOAL,TRIM1# |
1 | ||
| 63927A - COVER, COOLER DUCT END, NO.1 | ||||
| 63927-36040 |
BZB40,50,XZB4#,5#..HRF |
1 | ||
| 63928 - COVER, COOLER DUCT END, NO.2 | ||||
| 63928-36040 |
BZB40,50,XZB4#,5#..HRF |
1 | ||
| Common parts | ||||
| 63352-36020 | ||||
| 63387-36050 | ||||
| 63636-36010 | ||||
| 90168-50031 | ||||
| 90183-04056 | ||||
| 90467-09037 | ||||
| 90467-10018 | ||||
| 90468-04137 | ||||
| 93540-14016 | ||||
| 93540-14020 | ||||

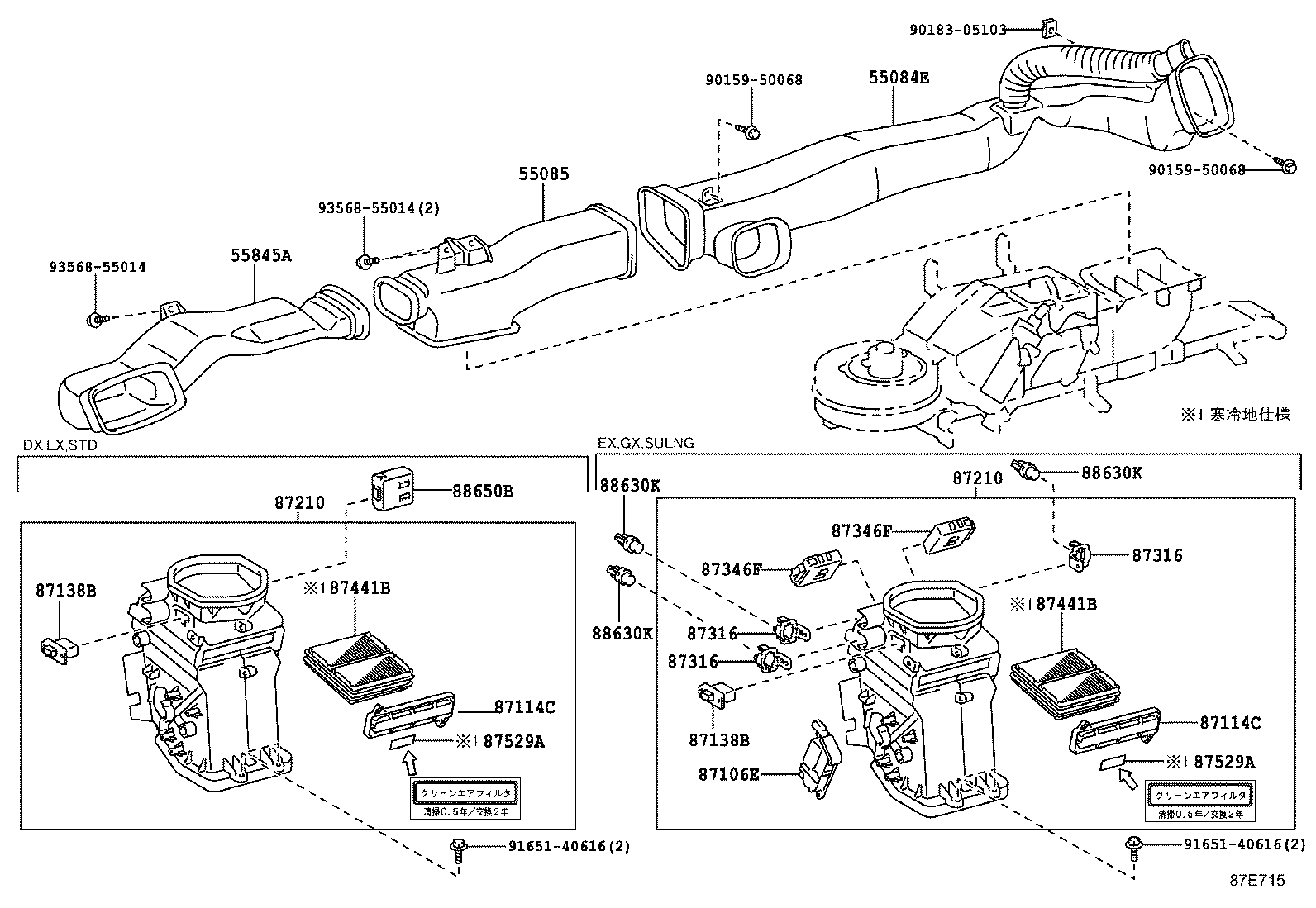

ILLUST NO. 2 OF 6(0708- )
ﾌﾛﾝﾄ ｴｱﾀﾞｸﾄ & ﾀﾞﾝﾊﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1 | ||||
| 55084-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 55084-36030 |
XZB50..WC;XZB40..CBU;XZB40..6FC..IV5;BZB40,50,XZB46,51,56..(EX,LX)..CBU |
1 | ||
| 55084-36030 |
BZB40,50,XZB4#,5# |
1 | ||
| 55084-36030 |
BZB40,50,XZB51..STD,SULNG |
1 | ||
| 55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2 | ||||
| 55085-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 55085-36020 |
BZB40,50,XZB4#,5# |
1 | ||
| 55085-36020 |
BZB40,50,XZB51..STD,SULNG |
1 | ||
| 55085-36020 |
XZB50..WC;XZB40..CBU;XZB40..6FC..IV5;BZB40,50,XZB46,51,56..(EX,LX)..CBU |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-36010 |
BZB40,50,XZB4#,5# |
1 | ||
| 55845-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 87114C - COVER, HEATER | ||||
| 87114-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 87114-36010 |
BZB40,50,XZB4#,5# |
1 | ||
| 87114C - COVER, HEATER | ||||
| 87114-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 87114-36010 |
BZB40,50,XZB4#,5# |
1 | ||
| 87138B - RESISTOR, HEATER BLOWER | ||||
| 87138-36190 |
BB4#,HZB40,5#..DX,LX,STD |
1 | ||
| 87138-36200 |
XZB4#,50,56..LX,STD ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87138-36210 |
BZB40,50 |
1 | ||
| 87138-36190 |
XZB4#,50,56..LX,STD |
1 | ||
| 87138B - RESISTOR, HEATER BLOWER | ||||
| 87138-36190 |
BB4#,HZB40,5#..DX,LX,STD |
1 | ||
| 87138-36200 |
XZB4#,50,56..LX,STD ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87138-36210 |
BZB40,50 |
1 | ||
| 87138-36190 |
XZB4#,50,56..LX,STD |
1 | ||
| 87210 - DAMPER ASSY, AIR | ||||
| 87210-36040 |
BB4#,HZB40,5#..DX,LX,STD ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87210-36060 |
HDB51..IV5;BB4#,HZB40,5#..DX,LX,STD |
1 | ||
| 87210-36102 |
BZB40,50..STD |
1 | ||
| 87210-36062 |
XZB40..6FC..IV5;XZB46,50,56..LX,STD;XZB40..(DX,LX,STD)..CBU |
1 | ||
| 87210-36042 |
XZB40..6FC..IV5;XZB46,50,56..LX,STD;XZB40..(DX,LX,STD)..CBU ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87210-36062 |
XZB4#,50,56..LX,STD |
1 | ||
| 87210-36042 |
XZB4#,50,56..LX,STD ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87210-36102 |
BZB40,50 |
1 | ||
| 87210 - DAMPER ASSY, AIR | ||||
| 87210-36040 |
BB4#,HZB40,5#..DX,LX,STD ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87210-36060 |
HDB51..IV5;BB4#,HZB40,5#..DX,LX,STD |
1 | ||
| 87210-36102 |
BZB40,50..STD |
1 | ||
| 87210-36062 |
XZB40..6FC..IV5;XZB46,50,56..LX,STD;XZB40..(DX,LX,STD)..CBU |
1 | ||
| 87210-36042 |
XZB40..6FC..IV5;XZB46,50,56..LX,STD;XZB40..(DX,LX,STD)..CBU ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87210-36062 |
XZB4#,50,56..LX,STD |
1 | ||
| 87210-36042 |
XZB4#,50,56..LX,STD ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87210-36102 |
BZB40,50 |
1 | ||
| 87316 - BRACKET, HEATER RELAY, NO.1 | ||||
| 85999-12050 |
HZB41..5F;HDB51..29S..5F;HDB51..20S,26S;HZB41..15S..4FC;BB4#,HDB50,HZB40,5# |
1 | ||
| 87316 - BRACKET, HEATER RELAY, NO.1 | ||||
| 85999-12050 |
HZB41..5F;HDB51..29S..5F;HDB51..20S,26S;HZB41..15S..4FC;BB4#,HDB50,HZB40,5# |
1 | ||
| 87316 - BRACKET, HEATER RELAY, NO.1 | ||||
| 85999-12050 |
HZB41..5F;HDB51..29S..5F;HDB51..20S,26S;HZB41..15S..4FC;BB4#,HDB50,HZB40,5# |
1 | ||
| 87441B - FILTER, HEATER AIR | ||||
| 87441-36010 |
BB4#,5#,HDB5#,HZB4#,5# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87441-36010 |
XZB4#,5# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87441B - FILTER, HEATER AIR | ||||
| 87441-36010 |
BB4#,5#,HDB5#,HZB4#,5# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87441-36010 |
XZB4#,5# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87529A - PLATE, AIR FILTER CAUTION | ||||
| 87529-36010 |
XZB4#,5# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87529-36010 |
BB4#,5#,HDB5#,HZB4#,5# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87529A - PLATE, AIR FILTER CAUTION | ||||
| 87529-36010 |
XZB4#,5# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87529-36010 |
BB4#,5#,HDB5#,HZB4#,5# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 88630K - RELAY ASSY | ||||
| 90987-02005 |
HDB51..IV5;BB4#,5#,HZB40,5#..(LX,STD)..WC |
1 | ||
| 88630K - RELAY ASSY | ||||
| 90987-02005 |
HDB51..IV5;BB4#,5#,HZB40,5#..(LX,STD)..WC |
1 | ||
| 88630K - RELAY ASSY | ||||
| 90987-02005 |
HDB51..IV5;BB4#,5#,HZB40,5#..(LX,STD)..WC |
1 | ||
| 88650B - AMPLIFIER ASSY, AIRCONDITIONER | ||||
| 88650-36100 |
BB4#,HZB40,5#..DX,LX,STD |
1 | ||
| 88650-36150 |
BZB40,50 |
1 | ||
| 88650-36140 |
XZB4#,50,56..LX,STD |
1 | ||
| Common parts | ||||
| 90159-50068 | ||||
| 90183-05103 | ||||
| 91651-40616 | ||||
| 93568-55014 | ||||

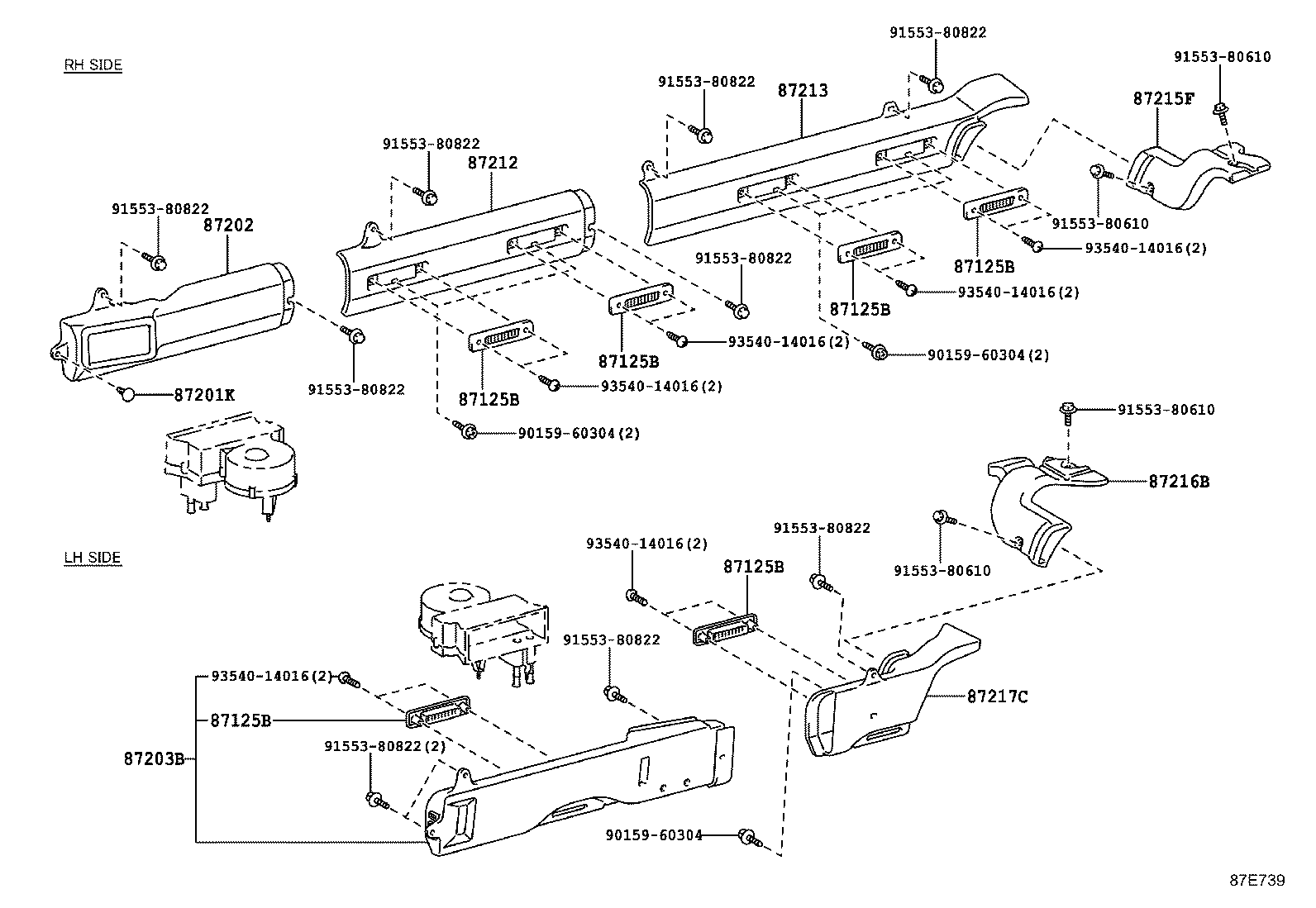

ILLUST NO. 3 OF 6(1501- )
ﾘﾔ ｴｱﾀﾞｸﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-60304 | ||||
| 91553-80610 | ||||
| 91553-80822 | ||||
| 93540-14016 | ||||
ILLUST NO. 4 OF 6(1501- )
ﾙ-ﾌ ｴｱﾀﾞｸﾄ & ﾀﾞﾝﾊﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63610 - REGISTER ASSY, AIR OUTLET, NO.1 | ||||
| 63610-90B00B0 |
BZB40,50,XZB4#,5#..HRF MD.CHARCOAL,TRIM1# |
3 | ||
| 63610 - REGISTER ASSY, AIR OUTLET, NO.1 | ||||
| 63610-90B00B0 |
BZB40,50,XZB4#,5#..HRF MD.CHARCOAL,TRIM1# |
3 | ||
| 63610 - REGISTER ASSY, AIR OUTLET, NO.1 | ||||
| 63610-90B00B0 |
BZB40,50,XZB4#,5#..HRF MD.CHARCOAL,TRIM1# |
3 | ||
| 63610 - REGISTER ASSY, AIR OUTLET, NO.1 | ||||
| 63610-90B00B0 |
BZB40,50,XZB4#,5#..HRF MD.CHARCOAL,TRIM1# |
3 | ||
| 63620 - REGISTER ASSY, AIR OUTLET, NO.2 | ||||
| 63640-36010B0 |
BZB50,XZB5#..HRF MD.CHARCOAL,TRIM1# |
13 | ||
| 63620 - REGISTER ASSY, AIR OUTLET, NO.2 | ||||
| 63640-36010B0 |
BZB50,XZB5#..HRF MD.CHARCOAL,TRIM1# |
13 | ||
| 63620 - REGISTER ASSY, AIR OUTLET, NO.2 | ||||
| 63640-36010B0 |
BZB50,XZB5#..HRF MD.CHARCOAL,TRIM1# |
13 | ||
| 63620 - REGISTER ASSY, AIR OUTLET, NO.2 | ||||
| 63640-36010B0 |
BZB50,XZB5#..HRF MD.CHARCOAL,TRIM1# |
13 | ||
| 87106K - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-36060 |
BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5) |
1 | ||
| 87106-36061 |
XZB4#,5# |
1 | ||
| 87106-36051 |
BZB40,50 |
1 | ||
| 88430A - DUCT ASSY, AIR, NO.1 | ||||
| 88430-36110 |
BZB40,50,XZB4#,5#..HRF |
1 | ||
| 88430B - DUCT ASSY, AIR, NO.2 | ||||
| 88430-36240 |
BZB40,50,XZB4#,5#..HRF |
1 | ||
| 88430C - DUCT ASSY, AIR, NO.3 | ||||
| 88430-36211 |
BZB40,50 |
1 | ||
| 88430-36031 |
XZB4#,50,56..HRF..(LX,STD) |
1 | ||
| 88430D - DUCT ASSY, AIR, NO.4 | ||||
| 88430-36221 |
BZB40,50 |
1 | ||
| 88430-36041 |
XZB4#,50,56..HRF..(LX,STD) |
1 | ||
| 88568A - FILTER, AIR | ||||
| 88568-36010 |
BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC |
2 | ||
| 88568-36011 |
BZB40,50,XZB4#,5# |
2 | ||
| 88568A - FILTER, AIR | ||||
| 88568-36010 |
BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC |
2 | ||
| 88568-36011 |
BZB40,50,XZB4#,5# |
2 | ||
| 88580 - DAMPER ASSY, AIR | ||||
| 88580-36011 |
BZB40,50 |
1 | ||
| 88580-36020 |
BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5) |
1 | ||
| 88580-36021 |
XZB4#,5# |
1 | ||
| 88635C - RESISTOR, COOLER AIR DUCT, NO.1 | ||||
| 88635-36090 |
HDB51..IV5;BB4#,5#,HZB40,5#..(LX,STD)..WC |
3 | ||
| 88635-36130 |
BZB40,50 |
3 | ||
| 88635-36090 |
XZB4#,50,56..LX,STD |
3 | ||
| 88635C - RESISTOR, COOLER AIR DUCT, NO.1 | ||||
| 88635-36090 |
HDB51..IV5;BB4#,5#,HZB40,5#..(LX,STD)..WC |
3 | ||
| 88635-36130 |
BZB40,50 |
3 | ||
| 88635-36090 |
XZB4#,50,56..LX,STD |
3 | ||
| 88635C - RESISTOR, COOLER AIR DUCT, NO.1 | ||||
| 88635-36090 |
HDB51..IV5;BB4#,5#,HZB40,5#..(LX,STD)..WC |
3 | ||
| 88635-36130 |
BZB40,50 |
3 | ||
| 88635-36090 |
XZB4#,50,56..LX,STD |
3 | ||
| Common parts | ||||
| 88569-36170 | ||||
| 90094-90405 | ||||
| 91621-40614 | ||||
| 93383-15020 | ||||
| 93510-10410 | ||||
| 93540-14020 | ||||
| Linked diagrams | ||||
| 6153 | ||||
ILLUST NO. 5 OF 6(1501- )HRF
ﾙ-ﾌ ｴｱ ﾀﾞｸﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63399E - CLIP, ROOF HEADLINING | ||||
| 63399-36030A0 |
BB4#,HDB5#,HZB4#,50..(EX,GX,LX,STD,SULNG)..WC IVORY,TRIM4# |
16 | ||
| 63399-36010B1 |
BZB40,50,XZB4#,50,56..HRF MD.CHARCOAL,TRIM1# |
16 | ||
| 63399E - CLIP, ROOF HEADLINING | ||||
| 63399-36030A0 |
BB4#,HDB5#,HZB4#,50..(EX,GX,LX,STD,SULNG)..WC IVORY,TRIM4# |
16 | ||
| 63399-36010B1 |
BZB40,50,XZB4#,50,56..HRF MD.CHARCOAL,TRIM1# |
16 | ||
| 63610 - REGISTER ASSY, AIR OUTLET, NO.1 | ||||
| 63610-90B00B0 |
BZB40,50,XZB4#,5#..HRF MD.CHARCOAL,TRIM1# |
3 | ||
| 63610 - REGISTER ASSY, AIR OUTLET, NO.1 | ||||
| 63610-90B00B0 |
BZB40,50,XZB4#,5#..HRF MD.CHARCOAL,TRIM1# |
3 | ||
| 63610 - REGISTER ASSY, AIR OUTLET, NO.1 | ||||
| 63610-90B00B0 |
BZB40,50,XZB4#,5#..HRF MD.CHARCOAL,TRIM1# |
3 | ||
| 63620 - REGISTER ASSY, AIR OUTLET, NO.2 | ||||
| 63640-36010B0 |
BZB50,XZB5#..HRF MD.CHARCOAL,TRIM1# |
13 | ||
| 63620 - REGISTER ASSY, AIR OUTLET, NO.2 | ||||
| 63640-36010B0 |
BZB50,XZB5#..HRF MD.CHARCOAL,TRIM1# |
13 | ||
| 63620 - REGISTER ASSY, AIR OUTLET, NO.2 | ||||
| 63640-36010B0 |
BZB50,XZB5#..HRF MD.CHARCOAL,TRIM1# |
13 | ||
| 63620 - REGISTER ASSY, AIR OUTLET, NO.2 | ||||
| 63640-36010B0 |
BZB50,XZB5#..HRF MD.CHARCOAL,TRIM1# |
13 | ||
| 63630A - REGISTER ASSY, AIR DUCT, NO.3 | ||||
| 63630-36010A0 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC IVORY,TRIM4# |
2 | ||
| 63630-36010B0 |
BZB40,50,XZB4#,5# MD.CHARCOAL,TRIM1# |
2 | ||
| 63630A - REGISTER ASSY, AIR DUCT, NO.3 | ||||
| 63630-36010A0 |
BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC IVORY,TRIM4# |
2 | ||
| 63630-36010B0 |
BZB40,50,XZB4#,5# MD.CHARCOAL,TRIM1# |
2 | ||
| 63911 - DUCT, COOLER, OUTER RH | ||||
| 63911-36080 |
BZB50,XZB5#..HRF |
1 | ||
| 63912 - DUCT, COOLER, OUTER LH | ||||
| 63911-36080 |
BZB50,XZB5#..HRF |
1 | ||
| 63915 - DUCT, COOLER, INNER NO.1 RH | ||||
| 63915-36320B0 |
BZB50,XZB50,56..HRF..WC MD.CHARCOAL,TRIM1# |
1 | ||
| 63915-36330B0 |
BZB50,XZB50..HRF..WC ｱﾘ(ｶ-ﾃﾝ),MD.CHARCOAL,TRIM1# |
1 | ||
| 63915-36320B0 |
BZB50,XZB50,56..HRF MD.CHARCOAL,TRIM1# |
1 | ||
| 63915-36330B0 |
BZB50,XZB50..HRF ｱﾘ(ｶ-ﾃﾝ),MD.CHARCOAL,TRIM1# |
1 | ||
| 63915B - NUT, SPRING | ||||
| 90183-04056 |
XZB40..SRF;BZB50,XZB5#..HRF |
24 | ||
| 90183-04056 |
BZB50,XZB50,51..HRF ｱﾘ(ｶ-ﾃﾝ) |
38 | ||
| 63915C - NUT, SPRING, NO.2 | ||||
| 90183-04056 |
BZB50,XZB50,51..HRF ｱﾘ(ｶ-ﾃﾝ) |
44 | ||
| 90183-04056 |
BZB50,XZB5#..HRF |
32 | ||
| 63925 - DUCT, COOLER, INNER NO.1 LH | ||||
| 63925-36320B0 |
BZB50,XZB50,56..HRF..WC MD.CHARCOAL,TRIM1# |
1 | ||
| 63925-36330B0 |
BZB50,XZB50..HRF..WC ｱﾘ(ｶ-ﾃﾝ),MD.CHARCOAL,TRIM1# |
1 | ||
| 63925-36330B0 |
BZB50,XZB50..HRF ｱﾘ(ｶ-ﾃﾝ),MD.CHARCOAL,TRIM1# |
1 | ||
| 63925-36320B0 |
BZB50,XZB50,56..HRF MD.CHARCOAL,TRIM1# |
1 | ||
| 63927A - COVER, COOLER DUCT END, NO.1 | ||||
| 63927-36040 |
BZB40,50,XZB4#,5#..HRF |
1 | ||
| 63928 - COVER, COOLER DUCT END, NO.2 | ||||
| 63928-36040 |
BZB40,50,XZB4#,5#..HRF |
1 | ||
| Common parts | ||||
| 63352-36020 | ||||
| 63387-36050 | ||||
| 63636-36010 | ||||
| 90168-50031 | ||||
| 90467-09037 | ||||
| 90467-10018 | ||||
| 93540-14016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
