Toyota Coaster XZB50 WIRING & CLAMP

XZB50-ZKTSY (2007)

Toyota Coaster

Production Aug 2007 - Dec 2016

Engine N04C

Transmission 6FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 5 OF 9(9301-1501)

Click highlighted areas on diagram

ﾙ-ﾌ, ﾄﾞｱ(ｶﾝﾉﾝﾀｲﾌﾟ)

Part #	Description	Period	Qty
82149 - WIRE, PILLAR, NO.3
82149-36011	XZB40,50..STD	08/2009 - 09/2012	1
82149-36012	XZB40,50..STD	01/2015 - 12/2999	1
82149-36012	XZB40,50..STD	09/2012 - 01/2015	1
82149-36011	BZB40,50..STD	08/2009 - 08/2011	1
82162 - WIRE, FLOOR, NO.2
82162-36093	BZB40,50	08/2011 - 01/2015	1
82162-36093	BZB40,50	01/2015 - 12/2999	1
82171 - WIRE, ROOF, NO.1
82171-36070	HZB40..5F;HDB51..EX..CBU;HZB40..LX..4FC..CBU;BB4#,5#,HDB50,HZB41,5#..HRF ｱﾘ(ｸﾛﾂｸ)	01/1993 - 07/1999	1
82171-36071	XZB40,50..HRF..(26S,49S)..(DX,STD) ｱﾘ(ｸﾛﾂｸ)	08/2007 - 08/2011	1
82171-36061	XZB40,50..HRF..(26S,49S)..(DX,STD)	08/2007 - 08/2011	1
82171-36072	BZB40,50,XZB40,50..HRF	08/2011 - 12/2012	1
82171-36074	BZB40,50,XZB4#,50,56..HRF	01/2015 - 12/2999	1
82171-36073	XZB51..6FC;BZB40,50,XZB4#,50,56..HRF	12/2012 - 01/2015	1
82172 - WIRE, ROOF, NO.2
82172-36050	BB40,5#,HDB5#,HZB4#,50..HRF..(CBU,IV5) ｱﾘ(4 ｽﾋﾟ-ｶ)	01/1993 - 07/1999	1
82172-36052	BZB40,50,XZB40,50,51..HRF	01/2015 - 12/2999	1
82172-36051	BZB40,50,XZB40,50,51..HRF	08/2011 - 01/2015	1
82173 - WIRE, ROOF, NO.3
82173-36010	BB4#,55,HDB5#,HZB4#,5# ｱﾘ(ﾃﾞｼﾞﾀﾙｸﾛﾂｸ)	01/1993 - 05/1997	1
82173-36011	BZB40,50,XZB4#,50,56..DX,LX,STD ｱﾘ(ﾃﾞｼﾞﾀﾙｸﾛﾂｸ)	08/2011 - 01/2015	1
82173-36012	BZB40,50,XZB4#,50,56..LX,STD ｱﾘ(ﾃﾞｼﾞﾀﾙｸﾛﾂｸ)	01/2015 - 12/2999	1
82174 - WIRE, ROOF, NO.4
82174-36020	HDB51..IV5;BB4#,5#,HZB40,5#..(LX,STD)..WC	01/1993 - 07/1999	1
82174-36050	BZB40,50	01/2015 - 12/2999	1
82174-36020	XZB4#,50,56..LX,STD	01/2015 - 12/2999	1
82184 - WIRE, BACK DOOR, NO.1
82184-36033	BZB50,XZB50..STD	08/2007 - 08/2009	1
82184-36036	XZB50..STD	08/2011 - 01/2015	1
82184-36035	BZB50,XZB50..STD	01/2011 - 08/2011	1
82184-36034	BZB50,XZB50..STD	08/2009 - 01/2011	1
82184-36036	XZB50..STD	01/2015 - 12/2999	1
82186 - WIRE, REAR WINDOW, NO.1
82186-36021	BZB40,50	08/2011 - 01/2015	1
82186-36031	BZB40,50,XZB51..STD,SULNG ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	01/2011 - 08/2011	1
82186-36031	XZB4#,5#..DX,EX,GX,LX,STD ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	01/2011 - 01/2015	1
82186-36021	BZB40,50	01/2015 - 12/2999	1
82186-36032	XZB4#,5# ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	01/2015 - 12/2999	1
82186 - WIRE, REAR WINDOW, NO.1
82186-36021	BZB40,50	08/2011 - 01/2015	1
82186-36031	BZB40,50,XZB51..STD,SULNG ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	01/2011 - 08/2011	1
82186-36031	XZB4#,5#..DX,EX,GX,LX,STD ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	01/2011 - 01/2015	1
82186-36021	BZB40,50	01/2015 - 12/2999	1
82186-36032	XZB4#,5# ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	01/2015 - 12/2999	1
82223 - WIRE, SWITCH
82223-36020	BB40,HZB40,50..39S,49S	01/1993 - 07/1999	1
82223-36020	XZB40,50..STD	01/2015 - 12/2999	1
82229 - WIRE, HEATER BLOWER SUB
82229-36010	BB40,HZB40,50..39S,49S	01/1993 - 07/1999	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-60040	BB40,HZB40,50..39S,49S	01/1993 - 07/1999	1
Common parts
82711-36130
82817-12630
90119-06915
90467-08043
90480-30033
90980-10789
90980-12350

ILLUST NO. 1 OF 9(0708-1501)

Click highlighted areas on diagram

ｴﾝｼﾞﾝﾙｰﾑ

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-36L40	XZB50..STD..6FC	07/2009 - 08/2009	1
82111-36J60	BZB40,50..STD	08/2007 - 08/2009	1
82111-36J30	XZB50..STD..6FC	08/2007 - 07/2009	1
82111-36J61	BZB40,50..STD	08/2009 - 08/2011	1
82111-36J31	XZB50..STD..6FC	08/2009 - 08/2011	1
82111-36J32	XZB50..STD..6FC	08/2011 - 09/2012	1
82111-36J52	BZB40,50	08/2011 - 09/2012	1
82111-36J33	XZB50..STD..6FC	09/2012 - 01/2015	1
82111-36J53	BZB40,50	09/2012 - 01/2015	1
82111-36J54	BZB40,50	01/2015 - 12/2999	1
82111-36J34	XZB50..STD..6FC	01/2015 - 12/2999	1
82169 - WIRE FRAME, NO.3
82169-36060	BZB40,50	01/2015 - 12/2016	1
82210C - FUSIBLE LINK
90982-08188	BB4#,5#,HDB5#,HZB4#,5# 30A,ﾒｽ端子,ﾋﾟﾝｸ,PACIFIC	01/1993 - 07/1999	1
90982-08246	BB4#,5#,HDB5#,HZB4#,5# 100A,ｵｽ端子,青	01/1993 - 07/1999	1
90982-08202	BB4#,5#,HDB5#,HZB4#,5# 60A,ｵｽ端子,黄	01/1993 - 07/1999	1
90982-08203	BB4#,5#,HDB5#,HZB4#,5# 80A,ｵｽ端子,黒	01/1993 - 07/1999	1
90982-08223	BB4#,5#,HDB5#,HZB4#,5# 30A,ｵｽ端子,ﾋﾟﾝｸ	01/1993 - 07/1999	1
90982-08280	BB4#,5#,HDB5#,HZB4#,5# 30A,ﾒｽ端子,桃,YAZAKI	01/1993 - 07/1999	1
90982-08228	BB4#,5#,HDB5#,HZB4#,5# 50A,ｵｽ端子,赤	01/1993 - 07/1999	1
90982-08228	BZB40,50..STD 50A,ｵｽ端子,赤	08/2007 - 08/2011	1
82210C - FUSIBLE LINK
90982-08188	BB4#,5#,HDB5#,HZB4#,5# 30A,ﾒｽ端子,ﾋﾟﾝｸ,PACIFIC	01/1993 - 07/1999	1
90982-08246	BB4#,5#,HDB5#,HZB4#,5# 100A,ｵｽ端子,青	01/1993 - 07/1999	1
90982-08202	BB4#,5#,HDB5#,HZB4#,5# 60A,ｵｽ端子,黄	01/1993 - 07/1999	1
90982-08203	BB4#,5#,HDB5#,HZB4#,5# 80A,ｵｽ端子,黒	01/1993 - 07/1999	1
90982-08223	BB4#,5#,HDB5#,HZB4#,5# 30A,ｵｽ端子,ﾋﾟﾝｸ	01/1993 - 07/1999	1
90982-08280	BB4#,5#,HDB5#,HZB4#,5# 30A,ﾒｽ端子,桃,YAZAKI	01/1993 - 07/1999	1
90982-08228	BB4#,5#,HDB5#,HZB4#,5# 50A,ｵｽ端子,赤	01/1993 - 07/1999	1
90982-08228	BZB40,50..STD 50A,ｵｽ端子,赤	08/2007 - 08/2011	1
82214A - WIRE, LAMP
82214-36271	BZB40,50,XZB40,50..STD	08/2009 - 08/2011	1
82214-36270	BZB40,50,XZB40,50..STD	08/2007 - 08/2009	1
82214-36272	XZB40,50..STD	08/2011 - 09/2012	1
82214-36342	BZB40,50	08/2011 - 01/2015	1
82214-36273	XZB40,50..STD	09/2012 - 01/2015	1
82214-36342	BZB40,50	01/2015 - 12/2999	1
82214-36273	XZB40,50..STD	01/2015 - 12/2999	1
82241C - WIRE, RELAY
82241-36152	XZB4#,50,56..DX,LX,STD	08/2011 - 01/2015	1
82241-36151	XZB40..6FC..IV5;XZB46,50,56..LX,STD;XZB40..(DX,LX,STD)..CBU	08/2007 - 08/2011	1
82345 - DIODE
82345-12050	BB4#,5#,HDB5#,HZB4#,5# NO.1	01/1993 - 07/1999	1
82345-12050	BZB40,50,XZB4#,5# NO.1	01/2015 - 12/2999	1
82345-32020	BB4#,5#,HDB5#,HZB4#,5# NO.2	01/1993 - 07/1999	1
82345-32020	BZB40,50,XZB4#,5# NO.2	01/2015 - 12/2999	1
82666N - HOLDER, CONNECTOR NO.10
82666-36080	XZB40,50..STD	08/2011 - 01/2015	1
82666-36080	XZB40,50..STD	01/2015 - 12/2999	1
82666N - HOLDER, CONNECTOR NO.10
82666-36080	XZB40,50..STD	08/2011 - 01/2015	1
82666-36080	XZB40,50..STD	01/2015 - 12/2999	1
82822 - BRACKET,CONNECTOR BLOCK
82822-36030	BB4#,55,HDB5#,HZB4#,5# NO.1	01/1993 - 05/1997	1
Common parts
90119-06915
90179-06200
91651-60616
Linked diagrams
8401

ILLUST NO. 3 OF 9(0708-1501)

Click highlighted areas on diagram

ｶｳﾙ & ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ

Part #	Description	Period	Qty
82131 - WIRE, COWL
82131-36J60	XZB4#,50,56..(LX,STD)..6FC	08/2007 - 12/2008	1
82131-36B70	BZB40,50	08/2007 - 08/2009	1
82131-36B71	BZB40,50	08/2009 - 08/2011	1
82131-36J62	XZB4#,50,56..(LX,STD)..6FC	08/2009 - 08/2011	1
82131-36J61	XZB4#,50,56..(LX,STD)..6FC	12/2008 - 08/2009	1
82131-36B72	BZB40,50	08/2011 - 09/2012	1
82131-36J63	XZB4#,50,56..(LX,STD)..6FC	08/2011 - 09/2012	1
82131-36B73	BZB40,50	09/2012 - 01/2015	1
82131-36B74	BZB40,50	01/2015 - 12/2999	1
82131-36J65	XZB4#,50,56..(LX,STD)..6FC	01/2015 - 12/2999	1
82131-36J64	XZB4#,50,56..(LX,STD)..6FC	09/2012 - 01/2015	1
82141 - WIRE, INSTRUMENT PANEL
82141-36213	BZB40,50	08/2007 - 08/2009	1
82141-36214	BZB40,50	08/2009 - 02/2011	1
82141-36303	XZB50,56..LX,STD	08/2009 - 02/2011	1
82141-36302	XZB50,56..DX,LX,STD	08/2007 - 08/2009	1
82141-36304	XZB50,56..LX,STD	02/2011 - 08/2011	1
82141-36215	BZB40,50	02/2011 - 08/2011	1
82141-36216	BZB40,50	08/2011 - 09/2012	1
82141-36218	BZB40,50	01/2015 - 12/2999	1
82141-36217	BZB40,50	09/2012 - 01/2015	1
82141-36306	XZB46,50,56..LX,STD	09/2012 - 01/2015	1
82141-36307	XZB50,56..LX,STD	01/2015 - 12/2999	1
82141-36305	XZB46,50,56..LX,STD	08/2011 - 09/2012	1
82142 - WIRE, INSTRUMENT PANEL, NO.2
82142-36035	XZB4#,50,56	08/2007 - 08/2009	1
82142-36183	BZB40,50	08/2007 - 08/2009	1
82142-36231	XZB40,50..(DX,LX,STD)..CBU ｱﾘ(ｵﾘﾀﾀﾐｻｲﾄﾞﾄﾞｱ)	08/2011 - 09/2012	1
82142-36230	XZB40,50..(DX,LX,STD)..CBU ｱﾘ(ｵﾘﾀﾀﾐｻｲﾄﾞﾄﾞｱ)	08/2009 - 08/2011	1
82142-36115	BZB40,50	01/2015 - 12/2999	1
82142-36232	XZB40,50..STD	01/2015 - 12/2999	1
82210C - FUSIBLE LINK
90982-08188	BB4#,5#,HDB5#,HZB4#,5# 30A,ﾒｽ端子,ﾋﾟﾝｸ,PACIFIC	01/1993 - 07/1999	1
90982-08246	BB4#,5#,HDB5#,HZB4#,5# 100A,ｵｽ端子,青	01/1993 - 07/1999	1
90982-08202	BB4#,5#,HDB5#,HZB4#,5# 60A,ｵｽ端子,黄	01/1993 - 07/1999	1
90982-08203	BB4#,5#,HDB5#,HZB4#,5# 80A,ｵｽ端子,黒	01/1993 - 07/1999	1
90982-08223	BB4#,5#,HDB5#,HZB4#,5# 30A,ｵｽ端子,ﾋﾟﾝｸ	01/1993 - 07/1999	1
90982-08280	BB4#,5#,HDB5#,HZB4#,5# 30A,ﾒｽ端子,桃,YAZAKI	01/1993 - 07/1999	1
90982-08228	BB4#,5#,HDB5#,HZB4#,5# 50A,ｵｽ端子,赤	01/1993 - 07/1999	1
90982-08228	BZB40,50..STD 50A,ｵｽ端子,赤	08/2007 - 08/2011	1
82241E - WIRE RELAY
82241-02010	XZB40,50..STD	01/2015 - 12/2999	1
82345 - DIODE
82345-12050	BB4#,5#,HDB5#,HZB4#,5# NO.1	01/1993 - 07/1999	1
82345-12050	BZB40,50,XZB4#,5# NO.1	01/2015 - 12/2999	1
82345-32020	BB4#,5#,HDB5#,HZB4#,5# NO.2	01/1993 - 07/1999	1
82345-32020	BZB40,50,XZB4#,5# NO.2	01/2015 - 12/2999	1
82345 - DIODE
82345-12050	BB4#,5#,HDB5#,HZB4#,5# NO.1	01/1993 - 07/1999	1
82345-12050	BZB40,50,XZB4#,5# NO.1	01/2015 - 12/2999	1
82345-32020	BB4#,5#,HDB5#,HZB4#,5# NO.2	01/1993 - 07/1999	1
82345-32020	BZB40,50,XZB4#,5# NO.2	01/2015 - 12/2999	1
82666A - HOLDER, CONNECTOR NO.2
82666-36011	BZB40,50,XZB4#,5#	01/2015 - 12/2999	1
82666-36010	BB4#,5#,HDB5#,HZB4#,5#	01/1993 - 07/1999	1
82666B - HOLDER, CONNECTOR NO.3
82666-36020	BB4#,5#,HDB5#,HZB4#,5#	01/1993 - 07/1999	1
82666-36030	BZB40,50,XZB4#,5#	01/2015 - 12/2999	1
82666L - HOLDER, CONNECTOR NO.9
82666-22070	BZB40,50,XZB51..STD,SULNG	02/2011 - 08/2011	1
82666-22070	BZB40,50,XZB4#,5#	01/2015 - 12/2999	1
82666-22070	XZB40,50;BZB40,50,XZB46,51,56..EX,LX	02/2011 - 01/2015	1
82824 - CONNECTOR, WIRING HARNESS
82824-30130	BZB40,50	01/2015 - 12/2999	1
82824H - CONNECTOR, WIRING HARNESS
82824-30130	BZB40,50,XZB4#,5#	01/2015 - 12/2999	2
85996A - BRACKET, RELAY, NO.2
85996-36010	BB4#,5#,HDB5#,HZB4#,5#	01/1993 - 11/1997	1
Common parts
85999-36100
90119-06100
90119-06915
90463-12008
91651-40616
91651-60616
93568-55014
Linked diagrams
8401

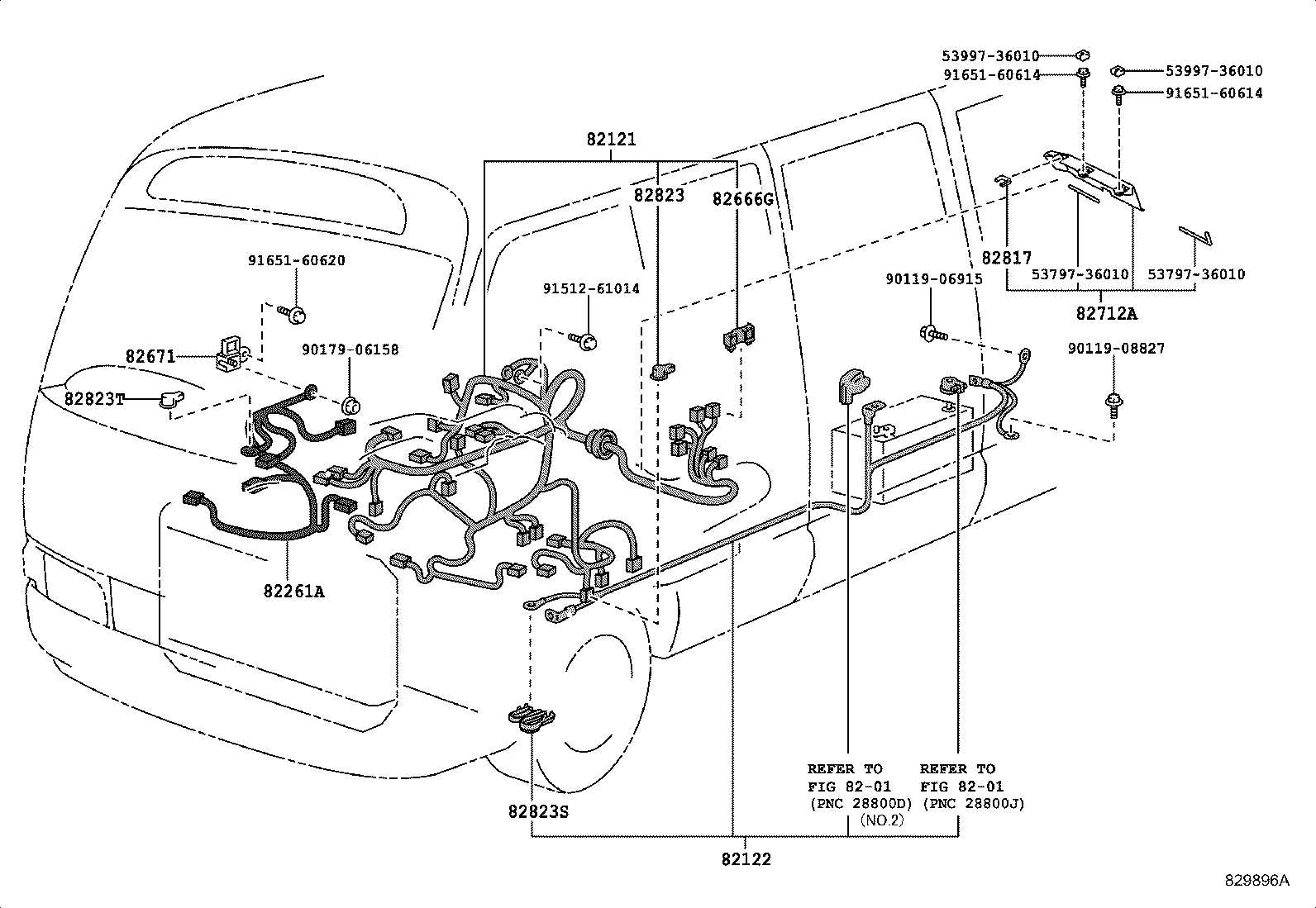

ILLUST NO. 2 OF 9(0708-1108)XZB4#,5#

Click highlighted areas on diagram

ｴﾝｼﾞﾝ

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-36551	BZB40,50	08/2011 - 01/2015	1
82121-36633	XZB40,50..STD..6FC	09/2012 - 01/2015	1
82121-36631	XZB40,50..STD..6FC	08/2009 - 08/2011	1
82121-36630	XZB40,50..STD..6FC	08/2007 - 08/2009	1
82121-36560	BZB40,50..STD	08/2007 - 08/2011	1
82121-36551	BZB40,50	01/2015 - 12/2999	1
82121-36634	XZB40,50..STD..6FC	01/2015 - 12/2999	1
82121-36632	XZB40,50..STD..6FC	08/2011 - 09/2012	1
82122 - WIRE, ENGINE, NO.2
82122-36251	XZB4#,5#..6FC	01/2015 - 12/2999	1
82122-36150	BZB40,50	01/2015 - 12/2999	1
82122-36020	HDB5#,HZB4#,5#	01/1993 - 05/1995	1
82122-36251	XZB4#,5#..6FC	08/2011 - 01/2015	1
82122-36250	XZB51..6FC..CBU;XZB4#,50,56..6FC	08/2007 - 08/2011	1
82124 - WIRE, ENGINE, NO.4
82124-36010	BB4#,HDB5#,HZB4#,5#	01/1993 - 05/1995	1
82124-36011	XZB4#,5#	08/2011 - 01/2015	1
82124-36040	XZB40,51..CBU;XZB46,50,56..WC;XZB40..6FC..IV5	08/2007 - 08/2011	1
82124-36011	XZB4#,5#	01/2015 - 12/2999	1
82219A - WIRE, SENSOR
82121-E1M52	XZB4#,5# NO.1	08/2011 - 01/2015	1
82121-36650	XZB46,50,56..WC;XZB40..6FC..IV5;XZB40,51..(26S,29S,39S)..CBU *197,NO.3	08/2007 - 01/2015	1
82121-36641	XZB40,51..CBU;XZB46,50,56..WC;XZB40..6FC..IV5 *197,NO.1	08/2007 - 08/2011	1
82121-E1M52	XZB4#,5# NO.1	01/2015 - 12/2999	1
82121-E0P50	XZB4#,5# NO.3	01/2015 - 12/2999	1
82121-E1Y50	XZB4#,5# NO.2	01/2015 - 12/2999	1
82219A - WIRE, SENSOR
82121-E1M52	XZB4#,5# NO.1	08/2011 - 01/2015	1
82121-36650	XZB46,50,56..WC;XZB40..6FC..IV5;XZB40,51..(26S,29S,39S)..CBU *197,NO.3	08/2007 - 01/2015	1
82121-36641	XZB40,51..CBU;XZB46,50,56..WC;XZB40..6FC..IV5 *197,NO.1	08/2007 - 08/2011	1
82121-E1M52	XZB4#,5# NO.1	01/2015 - 12/2999	1
82121-E0P50	XZB4#,5# NO.3	01/2015 - 12/2999	1
82121-E1Y50	XZB4#,5# NO.2	01/2015 - 12/2999	1
82219A - WIRE, SENSOR
82121-E1M52	XZB4#,5# NO.1	08/2011 - 01/2015	1
82121-36650	XZB46,50,56..WC;XZB40..6FC..IV5;XZB40,51..(26S,29S,39S)..CBU *197,NO.3	08/2007 - 01/2015	1
82121-36641	XZB40,51..CBU;XZB46,50,56..WC;XZB40..6FC..IV5 *197,NO.1	08/2007 - 08/2011	1
82121-E1M52	XZB4#,5# NO.1	01/2015 - 12/2999	1
82121-E0P50	XZB4#,5# NO.3	01/2015 - 12/2999	1
82121-E1Y50	XZB4#,5# NO.2	01/2015 - 12/2999	1
82261A - WIRE, ALTERNATOR
82261-36010	HDB50,HZB40,5#..(GX,LX,STD)..WC	01/1993 - 05/1995	1
82261-36150	BZB40,50	01/2015 - 12/2999	1
82670D - BLOCK ASSY, JUNCTION,NO.2
82670-25010	XZB46,50,56..WC;XZB40..6FC..IV5;XZB40,51..(26S,29S,39S)..CBU	08/2007 - 01/2015	1
82670-25010	XZB4#,5#	01/2015 - 12/2999	1
82671 - BLOCK, JUNCTION
82671-28010	BB55,HDB5#,HZB4#,5#	01/1993 - 07/1999	1
82671-28010	BZB40,50	01/2015 - 12/2999	1
82823 - CAP, TERMINAL, NO.1
82823-95401	BZB40,50,XZB4#,5#	01/2015 - 12/2999	1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050	BZB40,50,XZB4#,5#	01/2015 - 12/2016	1
Common parts
90119-06915
90119-08827
90179-06158
90179-08146
91651-60620
91651-60816
91651-B0820
94130-00802
Linked diagrams
8201

ILLUST NO. 2 OF 9(1108-1501)XZB4#,5#

Click highlighted areas on diagram

ｴﾝｼﾞﾝ

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-36551	BZB40,50	08/2011 - 01/2015	1
82121-36633	XZB40,50..STD..6FC	09/2012 - 01/2015	1
82121-36631	XZB40,50..STD..6FC	08/2009 - 08/2011	1
82121-36630	XZB40,50..STD..6FC	08/2007 - 08/2009	1
82121-36560	BZB40,50..STD	08/2007 - 08/2011	1
82121-36551	BZB40,50	01/2015 - 12/2999	1
82121-36634	XZB40,50..STD..6FC	01/2015 - 12/2999	1
82121-36632	XZB40,50..STD..6FC	08/2011 - 09/2012	1
82122 - WIRE, ENGINE, NO.2
82122-36251	XZB4#,5#..6FC	01/2015 - 12/2999	1
82122-36150	BZB40,50	01/2015 - 12/2999	1
82122-36020	HDB5#,HZB4#,5#	01/1993 - 05/1995	1
82122-36251	XZB4#,5#..6FC	08/2011 - 01/2015	1
82122-36250	XZB51..6FC..CBU;XZB4#,50,56..6FC	08/2007 - 08/2011	1
82124 - WIRE, ENGINE, NO.4
82124-36010	BB4#,HDB5#,HZB4#,5#	01/1993 - 05/1995	1
82124-36011	XZB4#,5#	08/2011 - 01/2015	1
82124-36040	XZB40,51..CBU;XZB46,50,56..WC;XZB40..6FC..IV5	08/2007 - 08/2011	1
82124-36011	XZB4#,5#	01/2015 - 12/2999	1
82219A - WIRE, SENSOR
82121-E1M52	XZB4#,5# NO.1	08/2011 - 01/2015	1
82121-36650	XZB46,50,56..WC;XZB40..6FC..IV5;XZB40,51..(26S,29S,39S)..CBU *197,NO.3	08/2007 - 01/2015	1
82121-36641	XZB40,51..CBU;XZB46,50,56..WC;XZB40..6FC..IV5 *197,NO.1	08/2007 - 08/2011	1
82121-E1M52	XZB4#,5# NO.1	01/2015 - 12/2999	1
82121-E0P50	XZB4#,5# NO.3	01/2015 - 12/2999	1
82121-E1Y50	XZB4#,5# NO.2	01/2015 - 12/2999	1
82219A - WIRE, SENSOR
82121-E1M52	XZB4#,5# NO.1	08/2011 - 01/2015	1
82121-36650	XZB46,50,56..WC;XZB40..6FC..IV5;XZB40,51..(26S,29S,39S)..CBU *197,NO.3	08/2007 - 01/2015	1
82121-36641	XZB40,51..CBU;XZB46,50,56..WC;XZB40..6FC..IV5 *197,NO.1	08/2007 - 08/2011	1
82121-E1M52	XZB4#,5# NO.1	01/2015 - 12/2999	1
82121-E0P50	XZB4#,5# NO.3	01/2015 - 12/2999	1
82121-E1Y50	XZB4#,5# NO.2	01/2015 - 12/2999	1
82219A - WIRE, SENSOR
82121-E1M52	XZB4#,5# NO.1	08/2011 - 01/2015	1
82121-36650	XZB46,50,56..WC;XZB40..6FC..IV5;XZB40,51..(26S,29S,39S)..CBU *197,NO.3	08/2007 - 01/2015	1
82121-36641	XZB40,51..CBU;XZB46,50,56..WC;XZB40..6FC..IV5 *197,NO.1	08/2007 - 08/2011	1
82121-E1M52	XZB4#,5# NO.1	01/2015 - 12/2999	1
82121-E0P50	XZB4#,5# NO.3	01/2015 - 12/2999	1
82121-E1Y50	XZB4#,5# NO.2	01/2015 - 12/2999	1
82219C - WIRE, SENSOR
82121-E1M10	XZB4#,5#	08/2011 - 01/2015	1
82121-E1M10	XZB4#,5#	01/2015 - 12/2999	1
82219E - WIRE, SENSOR
82121-E1M20	XZB4#,5#	08/2011 - 01/2015	1
82121-E1M20	XZB4#,5#	01/2015 - 12/2999	1
82261A - WIRE, ALTERNATOR
82261-36010	HDB50,HZB40,5#..(GX,LX,STD)..WC	01/1993 - 05/1995	1
82261-36150	BZB40,50	01/2015 - 12/2999	1
82670D - BLOCK ASSY, JUNCTION,NO.2
82670-25010	XZB46,50,56..WC;XZB40..6FC..IV5;XZB40,51..(26S,29S,39S)..CBU	08/2007 - 01/2015	1
82670-25010	XZB4#,5#	01/2015 - 12/2999	1
82823 - CAP, TERMINAL, NO.1
82823-95401	BZB40,50,XZB4#,5#	01/2015 - 12/2999	1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050	BZB40,50,XZB4#,5#	01/2015 - 12/2016	1
Common parts
90119-06915
90119-08103
90119-08827
90179-06158
90179-08146
91651-B0820
94130-00802
Linked diagrams
8201

ILLUST NO. 1 OF 9(1501- )

Click highlighted areas on diagram

ｴﾝｼﾞﾝﾙｰﾑ

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-36L40	XZB50..STD..6FC	07/2009 - 08/2009	1
82111-36J60	BZB40,50..STD	08/2007 - 08/2009	1
82111-36J30	XZB50..STD..6FC	08/2007 - 07/2009	1
82111-36J61	BZB40,50..STD	08/2009 - 08/2011	1
82111-36J31	XZB50..STD..6FC	08/2009 - 08/2011	1
82111-36J32	XZB50..STD..6FC	08/2011 - 09/2012	1
82111-36J52	BZB40,50	08/2011 - 09/2012	1
82111-36J33	XZB50..STD..6FC	09/2012 - 01/2015	1
82111-36J53	BZB40,50	09/2012 - 01/2015	1
82111-36J54	BZB40,50	01/2015 - 12/2999	1
82111-36J34	XZB50..STD..6FC	01/2015 - 12/2999	1
82149 - WIRE, PILLAR, NO.3
82149-36011	XZB40,50..STD	08/2009 - 09/2012	1
82149-36012	XZB40,50..STD	01/2015 - 12/2999	1
82149-36012	XZB40,50..STD	09/2012 - 01/2015	1
82149-36011	BZB40,50..STD	08/2009 - 08/2011	1
82169 - WIRE FRAME, NO.3
82169-36060	BZB40,50	01/2015 - 12/2016	1
82214A - WIRE, LAMP
82214-36271	BZB40,50,XZB40,50..STD	08/2009 - 08/2011	1
82214-36270	BZB40,50,XZB40,50..STD	08/2007 - 08/2009	1
82214-36272	XZB40,50..STD	08/2011 - 09/2012	1
82214-36342	BZB40,50	08/2011 - 01/2015	1
82214-36273	XZB40,50..STD	09/2012 - 01/2015	1
82214-36342	BZB40,50	01/2015 - 12/2999	1
82214-36273	XZB40,50..STD	01/2015 - 12/2999	1
82345 - DIODE
82345-12050	BB4#,5#,HDB5#,HZB4#,5# NO.1	01/1993 - 07/1999	1
82345-12050	BZB40,50,XZB4#,5# NO.1	01/2015 - 12/2999	1
82345-32020	BB4#,5#,HDB5#,HZB4#,5# NO.2	01/1993 - 07/1999	1
82345-32020	BZB40,50,XZB4#,5# NO.2	01/2015 - 12/2999	1
82666N - HOLDER, CONNECTOR NO.10
82666-36080	XZB40,50..STD	08/2011 - 01/2015	1
82666-36080	XZB40,50..STD	01/2015 - 12/2999	1
82666N - HOLDER, CONNECTOR NO.10
82666-36080	XZB40,50..STD	08/2011 - 01/2015	1
82666-36080	XZB40,50..STD	01/2015 - 12/2999	1
Common parts
90119-06915
91651-60616
Linked diagrams
8401

ILLUST NO. 2 OF 9(1501- )BZB40,50

Click highlighted areas on diagram

ｴﾝｼﾞﾝ

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-36551	BZB40,50	08/2011 - 01/2015	1
82121-36633	XZB40,50..STD..6FC	09/2012 - 01/2015	1
82121-36631	XZB40,50..STD..6FC	08/2009 - 08/2011	1
82121-36630	XZB40,50..STD..6FC	08/2007 - 08/2009	1
82121-36560	BZB40,50..STD	08/2007 - 08/2011	1
82121-36551	BZB40,50	01/2015 - 12/2999	1
82121-36634	XZB40,50..STD..6FC	01/2015 - 12/2999	1
82121-36632	XZB40,50..STD..6FC	08/2011 - 09/2012	1
82122 - WIRE, ENGINE, NO.2
82122-36251	XZB4#,5#..6FC	01/2015 - 12/2999	1
82122-36150	BZB40,50	01/2015 - 12/2999	1
82122-36020	HDB5#,HZB4#,5#	01/1993 - 05/1995	1
82122-36251	XZB4#,5#..6FC	08/2011 - 01/2015	1
82122-36250	XZB51..6FC..CBU;XZB4#,50,56..6FC	08/2007 - 08/2011	1
82261A - WIRE, ALTERNATOR
82261-36010	HDB50,HZB40,5#..(GX,LX,STD)..WC	01/1993 - 05/1995	1
82261-36150	BZB40,50	01/2015 - 12/2999	1
82671 - BLOCK, JUNCTION
82671-28010	BB55,HDB5#,HZB4#,5#	01/1993 - 07/1999	1
82671-28010	BZB40,50	01/2015 - 12/2999	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-60040	BB40,HZB40,50..39S,49S	01/1993 - 07/1999	1
82823 - CAP, TERMINAL, NO.1
82823-95401	BZB40,50,XZB4#,5#	01/2015 - 12/2999	1
82823S - CAP, STARTER TERMINAL
82823-30100	BZB40,50	01/2015 - 12/2016	1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050	BZB40,50,XZB4#,5#	01/2015 - 12/2016	1
Common parts
53797-36010
53997-36010
90119-06915
90119-08827
90179-06158
91512-61014
91651-60614
91651-60620
Linked diagrams
8201

ILLUST NO. 2 OF 9(1501- )XZB4#,5#

Click highlighted areas on diagram

ｴﾝｼﾞﾝ

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-36551	BZB40,50	08/2011 - 01/2015	1
82121-36633	XZB40,50..STD..6FC	09/2012 - 01/2015	1
82121-36631	XZB40,50..STD..6FC	08/2009 - 08/2011	1
82121-36630	XZB40,50..STD..6FC	08/2007 - 08/2009	1
82121-36560	BZB40,50..STD	08/2007 - 08/2011	1
82121-36551	BZB40,50	01/2015 - 12/2999	1
82121-36634	XZB40,50..STD..6FC	01/2015 - 12/2999	1
82121-36632	XZB40,50..STD..6FC	08/2011 - 09/2012	1
82122 - WIRE, ENGINE, NO.2
82122-36251	XZB4#,5#..6FC	01/2015 - 12/2999	1
82122-36150	BZB40,50	01/2015 - 12/2999	1
82122-36020	HDB5#,HZB4#,5#	01/1993 - 05/1995	1
82122-36251	XZB4#,5#..6FC	08/2011 - 01/2015	1
82122-36250	XZB51..6FC..CBU;XZB4#,50,56..6FC	08/2007 - 08/2011	1
82124 - WIRE, ENGINE, NO.4
82124-36010	BB4#,HDB5#,HZB4#,5#	01/1993 - 05/1995	1
82124-36011	XZB4#,5#	08/2011 - 01/2015	1
82124-36040	XZB40,51..CBU;XZB46,50,56..WC;XZB40..6FC..IV5	08/2007 - 08/2011	1
82124-36011	XZB4#,5#	01/2015 - 12/2999	1
82219A - WIRE, SENSOR
82121-E1M52	XZB4#,5# NO.1	08/2011 - 01/2015	1
82121-36650	XZB46,50,56..WC;XZB40..6FC..IV5;XZB40,51..(26S,29S,39S)..CBU *197,NO.3	08/2007 - 01/2015	1
82121-36641	XZB40,51..CBU;XZB46,50,56..WC;XZB40..6FC..IV5 *197,NO.1	08/2007 - 08/2011	1
82121-E1M52	XZB4#,5# NO.1	01/2015 - 12/2999	1
82121-E0P50	XZB4#,5# NO.3	01/2015 - 12/2999	1
82121-E1Y50	XZB4#,5# NO.2	01/2015 - 12/2999	1
82219A - WIRE, SENSOR
82121-E1M52	XZB4#,5# NO.1	08/2011 - 01/2015	1
82121-36650	XZB46,50,56..WC;XZB40..6FC..IV5;XZB40,51..(26S,29S,39S)..CBU *197,NO.3	08/2007 - 01/2015	1
82121-36641	XZB40,51..CBU;XZB46,50,56..WC;XZB40..6FC..IV5 *197,NO.1	08/2007 - 08/2011	1
82121-E1M52	XZB4#,5# NO.1	01/2015 - 12/2999	1
82121-E0P50	XZB4#,5# NO.3	01/2015 - 12/2999	1
82121-E1Y50	XZB4#,5# NO.2	01/2015 - 12/2999	1
82219A - WIRE, SENSOR
82121-E1M52	XZB4#,5# NO.1	08/2011 - 01/2015	1
82121-36650	XZB46,50,56..WC;XZB40..6FC..IV5;XZB40,51..(26S,29S,39S)..CBU *197,NO.3	08/2007 - 01/2015	1
82121-36641	XZB40,51..CBU;XZB46,50,56..WC;XZB40..6FC..IV5 *197,NO.1	08/2007 - 08/2011	1
82121-E1M52	XZB4#,5# NO.1	01/2015 - 12/2999	1
82121-E0P50	XZB4#,5# NO.3	01/2015 - 12/2999	1
82121-E1Y50	XZB4#,5# NO.2	01/2015 - 12/2999	1
82219C - WIRE, SENSOR
82121-E1M10	XZB4#,5#	08/2011 - 01/2015	1
82121-E1M10	XZB4#,5#	01/2015 - 12/2999	1
82219E - WIRE, SENSOR
82121-E1M20	XZB4#,5#	08/2011 - 01/2015	1
82121-E1M20	XZB4#,5#	01/2015 - 12/2999	1
82670D - BLOCK ASSY, JUNCTION,NO.2
82670-25010	XZB46,50,56..WC;XZB40..6FC..IV5;XZB40,51..(26S,29S,39S)..CBU	08/2007 - 01/2015	1
82670-25010	XZB4#,5#	01/2015 - 12/2999	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-60040	BB40,HZB40,50..39S,49S	01/1993 - 07/1999	1
82823 - CAP, TERMINAL, NO.1
82823-95401	BZB40,50,XZB4#,5#	01/2015 - 12/2999	1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050	BZB40,50,XZB4#,5#	01/2015 - 12/2016	1
Common parts
53797-36010
53997-36010
90119-06915
90119-08103
90119-08827
90179-06158
91651-60614
91651-B0820
Linked diagrams
8201

ILLUST NO. 3 OF 9(1501- )

Click highlighted areas on diagram

ｶｳﾙ & ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ

Part #	Description	Period	Qty
82131 - WIRE, COWL
82131-36J60	XZB4#,50,56..(LX,STD)..6FC	08/2007 - 12/2008	1
82131-36B70	BZB40,50	08/2007 - 08/2009	1
82131-36B71	BZB40,50	08/2009 - 08/2011	1
82131-36J62	XZB4#,50,56..(LX,STD)..6FC	08/2009 - 08/2011	1
82131-36J61	XZB4#,50,56..(LX,STD)..6FC	12/2008 - 08/2009	1
82131-36B72	BZB40,50	08/2011 - 09/2012	1
82131-36J63	XZB4#,50,56..(LX,STD)..6FC	08/2011 - 09/2012	1
82131-36B73	BZB40,50	09/2012 - 01/2015	1
82131-36B74	BZB40,50	01/2015 - 12/2999	1
82131-36J65	XZB4#,50,56..(LX,STD)..6FC	01/2015 - 12/2999	1
82131-36J64	XZB4#,50,56..(LX,STD)..6FC	09/2012 - 01/2015	1
82141 - WIRE, INSTRUMENT PANEL
82141-36213	BZB40,50	08/2007 - 08/2009	1
82141-36214	BZB40,50	08/2009 - 02/2011	1
82141-36303	XZB50,56..LX,STD	08/2009 - 02/2011	1
82141-36302	XZB50,56..DX,LX,STD	08/2007 - 08/2009	1
82141-36304	XZB50,56..LX,STD	02/2011 - 08/2011	1
82141-36215	BZB40,50	02/2011 - 08/2011	1
82141-36216	BZB40,50	08/2011 - 09/2012	1
82141-36218	BZB40,50	01/2015 - 12/2999	1
82141-36217	BZB40,50	09/2012 - 01/2015	1
82141-36306	XZB46,50,56..LX,STD	09/2012 - 01/2015	1
82141-36307	XZB50,56..LX,STD	01/2015 - 12/2999	1
82141-36305	XZB46,50,56..LX,STD	08/2011 - 09/2012	1
82142 - WIRE, INSTRUMENT PANEL, NO.2
82142-36035	XZB4#,50,56	08/2007 - 08/2009	1
82142-36183	BZB40,50	08/2007 - 08/2009	1
82142-36231	XZB40,50..(DX,LX,STD)..CBU ｱﾘ(ｵﾘﾀﾀﾐｻｲﾄﾞﾄﾞｱ)	08/2011 - 09/2012	1
82142-36230	XZB40,50..(DX,LX,STD)..CBU ｱﾘ(ｵﾘﾀﾀﾐｻｲﾄﾞﾄﾞｱ)	08/2009 - 08/2011	1
82142-36115	BZB40,50	01/2015 - 12/2999	1
82142-36232	XZB40,50..STD	01/2015 - 12/2999	1
82241E - WIRE RELAY
82241-02010	XZB40,50..STD	01/2015 - 12/2999	1
82345 - DIODE
82345-12050	BB4#,5#,HDB5#,HZB4#,5# NO.1	01/1993 - 07/1999	1
82345-12050	BZB40,50,XZB4#,5# NO.1	01/2015 - 12/2999	1
82345-32020	BB4#,5#,HDB5#,HZB4#,5# NO.2	01/1993 - 07/1999	1
82345-32020	BZB40,50,XZB4#,5# NO.2	01/2015 - 12/2999	1
82345 - DIODE
82345-12050	BB4#,5#,HDB5#,HZB4#,5# NO.1	01/1993 - 07/1999	1
82345-12050	BZB40,50,XZB4#,5# NO.1	01/2015 - 12/2999	1
82345-32020	BB4#,5#,HDB5#,HZB4#,5# NO.2	01/1993 - 07/1999	1
82345-32020	BZB40,50,XZB4#,5# NO.2	01/2015 - 12/2999	1
82345 - DIODE
82345-12050	BB4#,5#,HDB5#,HZB4#,5# NO.1	01/1993 - 07/1999	1
82345-12050	BZB40,50,XZB4#,5# NO.1	01/2015 - 12/2999	1
82345-32020	BB4#,5#,HDB5#,HZB4#,5# NO.2	01/1993 - 07/1999	1
82345-32020	BZB40,50,XZB4#,5# NO.2	01/2015 - 12/2999	1
82345 - DIODE
82345-12050	BB4#,5#,HDB5#,HZB4#,5# NO.1	01/1993 - 07/1999	1
82345-12050	BZB40,50,XZB4#,5# NO.1	01/2015 - 12/2999	1
82345-32020	BB4#,5#,HDB5#,HZB4#,5# NO.2	01/1993 - 07/1999	1
82345-32020	BZB40,50,XZB4#,5# NO.2	01/2015 - 12/2999	1
82345 - DIODE
82345-12050	BB4#,5#,HDB5#,HZB4#,5# NO.1	01/1993 - 07/1999	1
82345-12050	BZB40,50,XZB4#,5# NO.1	01/2015 - 12/2999	1
82345-32020	BB4#,5#,HDB5#,HZB4#,5# NO.2	01/1993 - 07/1999	1
82345-32020	BZB40,50,XZB4#,5# NO.2	01/2015 - 12/2999	1
82345 - DIODE
82345-12050	BB4#,5#,HDB5#,HZB4#,5# NO.1	01/1993 - 07/1999	1
82345-12050	BZB40,50,XZB4#,5# NO.1	01/2015 - 12/2999	1
82345-32020	BB4#,5#,HDB5#,HZB4#,5# NO.2	01/1993 - 07/1999	1
82345-32020	BZB40,50,XZB4#,5# NO.2	01/2015 - 12/2999	1
82666A - HOLDER, CONNECTOR NO.2
82666-36011	BZB40,50,XZB4#,5#	01/2015 - 12/2999	1
82666-36010	BB4#,5#,HDB5#,HZB4#,5#	01/1993 - 07/1999	1
82666B - HOLDER, CONNECTOR NO.3
82666-36020	BB4#,5#,HDB5#,HZB4#,5#	01/1993 - 07/1999	1
82666-36030	BZB40,50,XZB4#,5#	01/2015 - 12/2999	1
82666L - HOLDER, CONNECTOR NO.9
82666-22070	BZB40,50,XZB51..STD,SULNG	02/2011 - 08/2011	1
82666-22070	BZB40,50,XZB4#,5#	01/2015 - 12/2999	1
82666-22070	XZB40,50;BZB40,50,XZB46,51,56..EX,LX	02/2011 - 01/2015	1
82824 - CONNECTOR, WIRING HARNESS
82824-30130	BZB40,50	01/2015 - 12/2999	1
82824H - CONNECTOR, WIRING HARNESS
82824-30130	BZB40,50,XZB4#,5#	01/2015 - 12/2999	2
82824H - CONNECTOR, WIRING HARNESS
82824-30130	BZB40,50,XZB4#,5#	01/2015 - 12/2999	2
82824H - CONNECTOR, WIRING HARNESS
82824-30130	BZB40,50,XZB4#,5#	01/2015 - 12/2999	2
82824H - CONNECTOR, WIRING HARNESS
82824-30130	BZB40,50,XZB4#,5#	01/2015 - 12/2999	2
82824S - CONNECTOR, WIRING HARNESS
82824-28180	XZB4#,5#	01/2015 - 12/2999	1
82824S - CONNECTOR, WIRING HARNESS
82824-28180	XZB4#,5#	01/2015 - 12/2999	1
82824T - CONNECTOR, WIRING HARNESS
82824-44030	XZB46,51,56;XZB40,50..6FC;XZB40,50..GX..5F	01/2015 - 12/2999	1
82824T - CONNECTOR, WIRING HARNESS
82824-44030	XZB46,51,56;XZB40,50..6FC;XZB40,50..GX..5F	01/2015 - 12/2999	1
82824T - CONNECTOR, WIRING HARNESS
82824-44030	XZB46,51,56;XZB40,50..6FC;XZB40,50..GX..5F	01/2015 - 12/2999	1
Common parts
82712-36070
90119-06915
90159-50372
91651-40616
Linked diagrams
8401

ILLUST NO. 4 OF 9(1501- )

Click highlighted areas on diagram

ﾄﾞｱ

Part #	Description	Period	Qty
82184 - WIRE, BACK DOOR, NO.1
82184-36033	BZB50,XZB50..STD	08/2007 - 08/2009	1
82184-36036	XZB50..STD	08/2011 - 01/2015	1
82184-36035	BZB50,XZB50..STD	01/2011 - 08/2011	1
82184-36034	BZB50,XZB50..STD	08/2009 - 01/2011	1
82184-36036	XZB50..STD	01/2015 - 12/2999	1
82184 - WIRE, BACK DOOR, NO.1
82184-36033	BZB50,XZB50..STD	08/2007 - 08/2009	1
82184-36036	XZB50..STD	08/2011 - 01/2015	1
82184-36035	BZB50,XZB50..STD	01/2011 - 08/2011	1
82184-36034	BZB50,XZB50..STD	08/2009 - 01/2011	1
82184-36036	XZB50..STD	01/2015 - 12/2999	1
82186 - WIRE, REAR WINDOW, NO.1
82186-36021	BZB40,50	08/2011 - 01/2015	1
82186-36031	BZB40,50,XZB51..STD,SULNG ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	01/2011 - 08/2011	1
82186-36031	XZB4#,5#..DX,EX,GX,LX,STD ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	01/2011 - 01/2015	1
82186-36021	BZB40,50	01/2015 - 12/2999	1
82186-36032	XZB4#,5# ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	01/2015 - 12/2999	1
Common parts
82817-12630
90119-06915
90980-12350

ILLUST NO. 5 OF 9(1501- )

Click highlighted areas on diagram

ﾌﾛｱ & ﾙｰﾌ,ｱﾘ(ﾗｯｹﾞｰｼﾞﾄﾞｱ)

Part #	Description	Period	Qty
82132 - WIRE, COWL, NO.2
82132-36010	BB4#,55,HDB5#,HZB4#,5#..09S,20S,26S,29S,39S,49S	01/1993 - 05/1997	1
82132-36013	BZB40,50,XZB4#,5#	08/2009 - 08/2011	1
82132-36015	BZB40,50,XZB4#,5#	01/2015 - 12/2999	1
82132-36014	BZB40,50,XZB4#,5#	08/2011 - 01/2015	1
82159 - WIRE, PILLAR, NO.2
82159-36030	BZB40,50,XZB4#,50,56..LX,STD	01/2015 - 12/2999	1
82161 - WIRE, FLOOR
82161-36036	XZB50..IV5;XZB50,56..09S,49S	08/2009 - 08/2011	1
82161-36186	XZB50..IV5;XZB50,56..09S,49S ｱﾘ(ﾊﾟﾜｰﾋｰﾀ)	08/2009 - 08/2011	1
82161-36037	XZB50..IV5;XZB50..STD	08/2011 - 09/2012	1
82161-36187	XZB50..IV5;XZB50,56..09S,49S ｱﾘ(ﾊﾟﾜｰﾋｰﾀ)	08/2011 - 09/2012	1
82161-36038	XZB50..IV5;XZB50,56..09S,49S	09/2012 - 01/2015	1
82161-36039	XZB50..25S,49S	01/2015 - 12/2999	1
82161-36188	XZB50..IV5;XZB50,56..09S,49S ｱﾘ(ﾊﾟﾜｰﾋｰﾀ)	09/2012 - 01/2015	1
82161-36189	XZB50,56..09S,25S,49S ｱﾘ(ﾊﾟﾜｰﾋｰﾀ)	01/2015 - 12/2999	1
82162 - WIRE, FLOOR, NO.2
82162-36093	BZB40,50	08/2011 - 01/2015	1
82162-36093	BZB40,50	01/2015 - 12/2999	1
82163 - WIRE, FLOOR, NO.3
82163-36010	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	01/1993 - 07/1999	1
82163-36011	BZB50,XZB4#,5#	01/2015 - 12/2999	1
82164 - WIRE, FRAME
82164-36041	BZB40,50,XZB4#,50,56	01/2015 - 12/2999	1
82171 - WIRE, ROOF, NO.1
82171-36070	HZB40..5F;HDB51..EX..CBU;HZB40..LX..4FC..CBU;BB4#,5#,HDB50,HZB41,5#..HRF ｱﾘ(ｸﾛﾂｸ)	01/1993 - 07/1999	1
82171-36071	XZB40,50..HRF..(26S,49S)..(DX,STD) ｱﾘ(ｸﾛﾂｸ)	08/2007 - 08/2011	1
82171-36061	XZB40,50..HRF..(26S,49S)..(DX,STD)	08/2007 - 08/2011	1
82171-36072	BZB40,50,XZB40,50..HRF	08/2011 - 12/2012	1
82171-36074	BZB40,50,XZB4#,50,56..HRF	01/2015 - 12/2999	1
82171-36073	XZB51..6FC;BZB40,50,XZB4#,50,56..HRF	12/2012 - 01/2015	1
82172 - WIRE, ROOF, NO.2
82172-36050	BB40,5#,HDB5#,HZB4#,50..HRF..(CBU,IV5) ｱﾘ(4 ｽﾋﾟ-ｶ)	01/1993 - 07/1999	1
82172-36052	BZB40,50,XZB40,50,51..HRF	01/2015 - 12/2999	1
82172-36051	BZB40,50,XZB40,50,51..HRF	08/2011 - 01/2015	1
82173 - WIRE, ROOF, NO.3
82173-36010	BB4#,55,HDB5#,HZB4#,5# ｱﾘ(ﾃﾞｼﾞﾀﾙｸﾛﾂｸ)	01/1993 - 05/1997	1
82173-36011	BZB40,50,XZB4#,50,56..DX,LX,STD ｱﾘ(ﾃﾞｼﾞﾀﾙｸﾛﾂｸ)	08/2011 - 01/2015	1
82173-36012	BZB40,50,XZB4#,50,56..LX,STD ｱﾘ(ﾃﾞｼﾞﾀﾙｸﾛﾂｸ)	01/2015 - 12/2999	1
82174 - WIRE, ROOF, NO.4
82174-36020	HDB51..IV5;BB4#,5#,HZB40,5#..(LX,STD)..WC	01/1993 - 07/1999	1
82174-36050	BZB40,50	01/2015 - 12/2999	1
82174-36020	XZB4#,50,56..LX,STD	01/2015 - 12/2999	1
82184 - WIRE, BACK DOOR, NO.1
82184-36033	BZB50,XZB50..STD	08/2007 - 08/2009	1
82184-36036	XZB50..STD	08/2011 - 01/2015	1
82184-36035	BZB50,XZB50..STD	01/2011 - 08/2011	1
82184-36034	BZB50,XZB50..STD	08/2009 - 01/2011	1
82184-36036	XZB50..STD	01/2015 - 12/2999	1
82186 - WIRE, REAR WINDOW, NO.1
82186-36021	BZB40,50	08/2011 - 01/2015	1
82186-36031	BZB40,50,XZB51..STD,SULNG ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	01/2011 - 08/2011	1
82186-36031	XZB4#,5#..DX,EX,GX,LX,STD ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	01/2011 - 01/2015	1
82186-36021	BZB40,50	01/2015 - 12/2999	1
82186-36032	XZB4#,5# ｱﾘ(ｶﾝﾉﾝﾋﾞﾗｷﾊﾞﾂｸﾄﾞｱ)	01/2015 - 12/2999	1
82187 - WIRE, REAR WINDOW, NO.2
82187-36010	BZB40,50	01/2015 - 12/2999	1
82214B - WIRE, LAMP, REAR
82214-60010	XZB4#,5#	01/2015 - 12/2999	1
82214-36250	BZB40,50	01/2015 - 12/2999	1
82235 - WIRE, ROOM
82235-36051	BZB50,XZB50,51	08/2011 - 01/2015	1
82235-36050	XZB51..CBU;BZB50,XZB50..WC	08/2007 - 08/2011	1
82235-36051	BZB50,XZB50,51	01/2015 - 12/2999	1
82281 - WIRE, GAGE
82281-36020	BB4#,HDB50,HZB40,5#	01/1993 - 10/1995	1
82281-36070	XZB4#,5#	08/2011 - 01/2015	1
82281-36060	XZB4#,5#	08/2009 - 08/2011	1
82281-36090	XZB4#,5#	01/2015 - 12/2016	1
Common parts
90119-06915
90119-06923
90159-50138
Linked diagrams
8606

ILLUST NO. 5 OF 9(1501- )

Click highlighted areas on diagram

ﾌﾛｱ & ﾙｰﾌ,ｱﾘ(ｶﾝﾉﾝﾄﾋﾞﾗ OR ﾋｼﾞｮｳｸﾞﾁ)

Part #	Description	Period	Qty
82132 - WIRE, COWL, NO.2
82132-36010	BB4#,55,HDB5#,HZB4#,5#..09S,20S,26S,29S,39S,49S	01/1993 - 05/1997	1
82132-36013	BZB40,50,XZB4#,5#	08/2009 - 08/2011	1
82132-36015	BZB40,50,XZB4#,5#	01/2015 - 12/2999	1
82132-36014	BZB40,50,XZB4#,5#	08/2011 - 01/2015	1
82159 - WIRE, PILLAR, NO.2
82159-36030	BZB40,50,XZB4#,50,56..LX,STD	01/2015 - 12/2999	1
82161 - WIRE, FLOOR
82161-36036	XZB50..IV5;XZB50,56..09S,49S	08/2009 - 08/2011	1
82161-36186	XZB50..IV5;XZB50,56..09S,49S ｱﾘ(ﾊﾟﾜｰﾋｰﾀ)	08/2009 - 08/2011	1
82161-36037	XZB50..IV5;XZB50..STD	08/2011 - 09/2012	1
82161-36187	XZB50..IV5;XZB50,56..09S,49S ｱﾘ(ﾊﾟﾜｰﾋｰﾀ)	08/2011 - 09/2012	1
82161-36038	XZB50..IV5;XZB50,56..09S,49S	09/2012 - 01/2015	1
82161-36039	XZB50..25S,49S	01/2015 - 12/2999	1
82161-36188	XZB50..IV5;XZB50,56..09S,49S ｱﾘ(ﾊﾟﾜｰﾋｰﾀ)	09/2012 - 01/2015	1
82161-36189	XZB50,56..09S,25S,49S ｱﾘ(ﾊﾟﾜｰﾋｰﾀ)	01/2015 - 12/2999	1
82163 - WIRE, FLOOR, NO.3
82163-36010	BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)	01/1993 - 07/1999	1
82163-36011	BZB50,XZB4#,5#	01/2015 - 12/2999	1
82164 - WIRE, FRAME
82164-36041	BZB40,50,XZB4#,50,56	01/2015 - 12/2999	1
82171 - WIRE, ROOF, NO.1
82171-36070	HZB40..5F;HDB51..EX..CBU;HZB40..LX..4FC..CBU;BB4#,5#,HDB50,HZB41,5#..HRF ｱﾘ(ｸﾛﾂｸ)	01/1993 - 07/1999	1
82171-36071	XZB40,50..HRF..(26S,49S)..(DX,STD) ｱﾘ(ｸﾛﾂｸ)	08/2007 - 08/2011	1
82171-36061	XZB40,50..HRF..(26S,49S)..(DX,STD)	08/2007 - 08/2011	1
82171-36072	BZB40,50,XZB40,50..HRF	08/2011 - 12/2012	1
82171-36074	BZB40,50,XZB4#,50,56..HRF	01/2015 - 12/2999	1
82171-36073	XZB51..6FC;BZB40,50,XZB4#,50,56..HRF	12/2012 - 01/2015	1
82172 - WIRE, ROOF, NO.2
82172-36050	BB40,5#,HDB5#,HZB4#,50..HRF..(CBU,IV5) ｱﾘ(4 ｽﾋﾟ-ｶ)	01/1993 - 07/1999	1
82172-36052	BZB40,50,XZB40,50,51..HRF	01/2015 - 12/2999	1
82172-36051	BZB40,50,XZB40,50,51..HRF	08/2011 - 01/2015	1
82173 - WIRE, ROOF, NO.3
82173-36010	BB4#,55,HDB5#,HZB4#,5# ｱﾘ(ﾃﾞｼﾞﾀﾙｸﾛﾂｸ)	01/1993 - 05/1997	1
82173-36011	BZB40,50,XZB4#,50,56..DX,LX,STD ｱﾘ(ﾃﾞｼﾞﾀﾙｸﾛﾂｸ)	08/2011 - 01/2015	1
82173-36012	BZB40,50,XZB4#,50,56..LX,STD ｱﾘ(ﾃﾞｼﾞﾀﾙｸﾛﾂｸ)	01/2015 - 12/2999	1
82174 - WIRE, ROOF, NO.4
82174-36020	HDB51..IV5;BB4#,5#,HZB40,5#..(LX,STD)..WC	01/1993 - 07/1999	1
82174-36050	BZB40,50	01/2015 - 12/2999	1
82174-36020	XZB4#,50,56..LX,STD	01/2015 - 12/2999	1
82213B - WIRE, HEATER
82213-36010	XZB40,50..STD	01/2015 - 12/2999	1
82214B - WIRE, LAMP, REAR
82214-60010	XZB4#,5#	01/2015 - 12/2999	1
82214-36250	BZB40,50	01/2015 - 12/2999	1
82223 - WIRE, SWITCH
82223-36020	BB40,HZB40,50..39S,49S	01/1993 - 07/1999	1
82223-36020	XZB40,50..STD	01/2015 - 12/2999	1
82235 - WIRE, ROOM
82235-36051	BZB50,XZB50,51	08/2011 - 01/2015	1
82235-36050	XZB51..CBU;BZB50,XZB50..WC	08/2007 - 08/2011	1
82235-36051	BZB50,XZB50,51	01/2015 - 12/2999	1
82281 - WIRE, GAGE
82281-36020	BB4#,HDB50,HZB40,5#	01/1993 - 10/1995	1
82281-36070	XZB4#,5#	08/2011 - 01/2015	1
82281-36060	XZB4#,5#	08/2009 - 08/2011	1
82281-36090	XZB4#,5#	01/2015 - 12/2016	1
Common parts
90119-06915
90119-06923
Linked diagrams
8606

XZB50-ZKTSY (2007)

ILLUST NO. 5 OF 9(9301-1501)

ILLUST NO. 1 OF 9(0708-1501)

ILLUST NO. 3 OF 9(0708-1501)

ILLUST NO. 2 OF 9(0708-1108)XZB4#,5#

ILLUST NO. 2 OF 9(1108-1501)XZB4#,5#

ILLUST NO. 1 OF 9(1501- )

ILLUST NO. 2 OF 9(1501- )BZB40,50

ILLUST NO. 2 OF 9(1501- )XZB4#,5#

ILLUST NO. 3 OF 9(1501- )

ILLUST NO. 4 OF 9(1501- )

ILLUST NO. 5 OF 9(1501- )

ILLUST NO. 5 OF 9(1501- )

Part Price Details
