XZB50-ZKTSY (2007)
Toyota Coaster

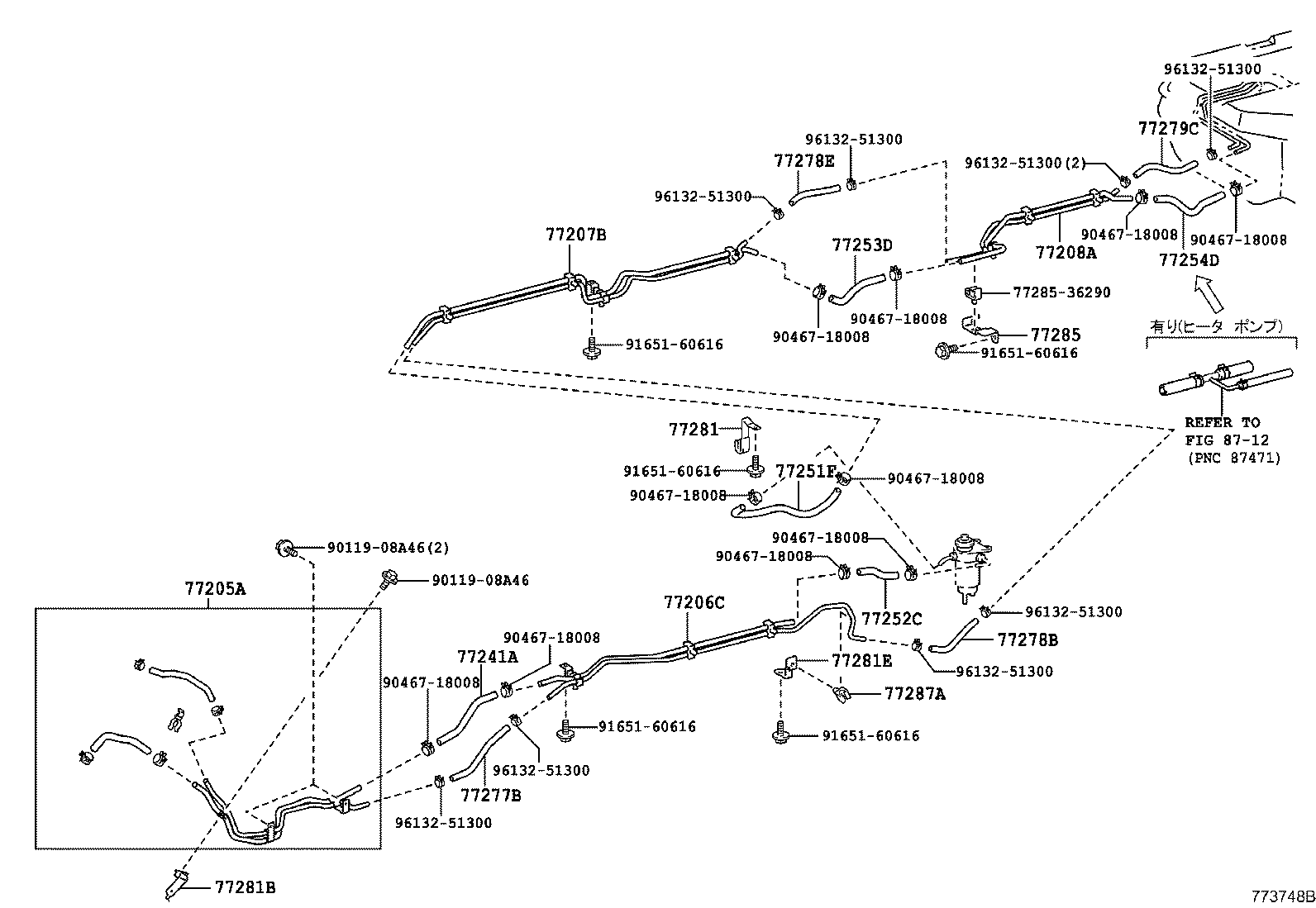

ILLUST NO. 2 OF 2(1501- )XZB5#
ﾌｭｰｴﾙﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77205A - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-36A40 |
XZB4#,5# |
1 | ||
| 77205-36A60 |
XZB4#,5# |
1 | ||
| 77205-3B221 |
BZB40,50 |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-36580 |
XZB4#,5# |
1 | ||
| 77207B - TUBE SUB-ASSY, FUEL MAIN, NO.3 | ||||
| 77207-36340 |
XZB5# |
1 | ||
| 77208A - TUBE SUB-ASSY, FUEL MAIN, NO.4 | ||||
| 77208-36260 |
XZB4#,5# |
1 | ||
| 77208-36140 |
HDB5#,HZB4#,5# |
1 | ||
| 77208-36150 |
BB4#,5# |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 77259-36450 |
XZB4#,5# |
1 | ||
| 95338-12020 |
XZB4#,5#..DX,EX,GX,LX,STD 長さ=200 |
1 | ||
| 77251F - HOSE, FUEL | ||||
| 77259-36150 |
HDB5#,HZB4#,5# |
1 | ||
| 77259-36181 |
XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 77259-36181 |
XZB4#,5# |
1 | ||
| 77252C - HOSE, FUEL, NO.2(FOR FUEL MAIN NO.2 TUBE) | ||||
| 95332-12015 |
HDB5#,HZB4#,5# |
1 | ||
| 77259-36460 |
XZB4#,5# |
1 | ||
| 77259-36191 |
XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 77253D - HOSE, FUEL | ||||
| 95338-12018 |
XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 95338-12026 |
XZB5# |
1 | ||
| 77254D - HOSE, FUEL | ||||
| 95332-12018 |
HDB5#,HZB4#,5# |
1 | ||
| 95332-10018 |
BB4#,5# |
1 | ||
| 95338-12018 |
XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 95338-12018 |
XZB4#,5# |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95337-08034 |
XZB4#,5#..DX,EX,GX,LX,STD 長さ=260 |
1 | ||
| 95337-08034 |
XZB4#,5# 長さ=260 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95333-06020 |
BB4#,HDB5#,HZB4#,5# *H,L=180 |
1 | ||
| 95337-08019 |
XZB4#,5# 長さ=190 |
1 | ||
| 95337-08015 |
XZB4#,5#..DX,EX,GX,LX,STD 長さ=160 |
1 | ||
| 77278E - HOSE, FUEL | ||||
| 95337-08034 |
XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 95337-08022 |
XZB5# |
1 | ||
| 77279C - HOSE, FUEL | ||||
| 95333-06020 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 95337-08034 |
XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 95337-08022 |
XZB4#,5# |
1 | ||
| 77281 - BRACKET, FUEL MAIN TUBE, NO.1 | ||||
| 77281-36030 |
XZB4#,5# |
1 | ||
| 77281B - CLAMP, FUEL HOSE(FOR REAR FUEL MAIN) | ||||
| 77281-36100 |
XZB4#,5# |
1 | ||
| 77281-36100 |
XZB4#,5# |
1 | ||
| 77281E - BRACKET, FUEL MAIN TUBE, NO.1 | ||||
| 77281-36130 |
XZB4#,5# |
1 | ||
| 77285 - BRACKET, FUEL TUBE | ||||
| 77281-36140 |
XZB4#,5# |
1 | ||
| 77287A - HOSE, FUEL | ||||
| 77285-35800 |
XZB4#,5# |
1 | ||
| Common parts | ||||
| 77285-36290 | ||||
| 90119-08A46 | ||||
| 90467-18008 | ||||
| 91651-60616 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 8712 | ||||
