XZB50-ZKTSY (2007)

Toyota Coaster

Production Aug 2007 - Dec 2016
Engine N04C
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1108- )N04C

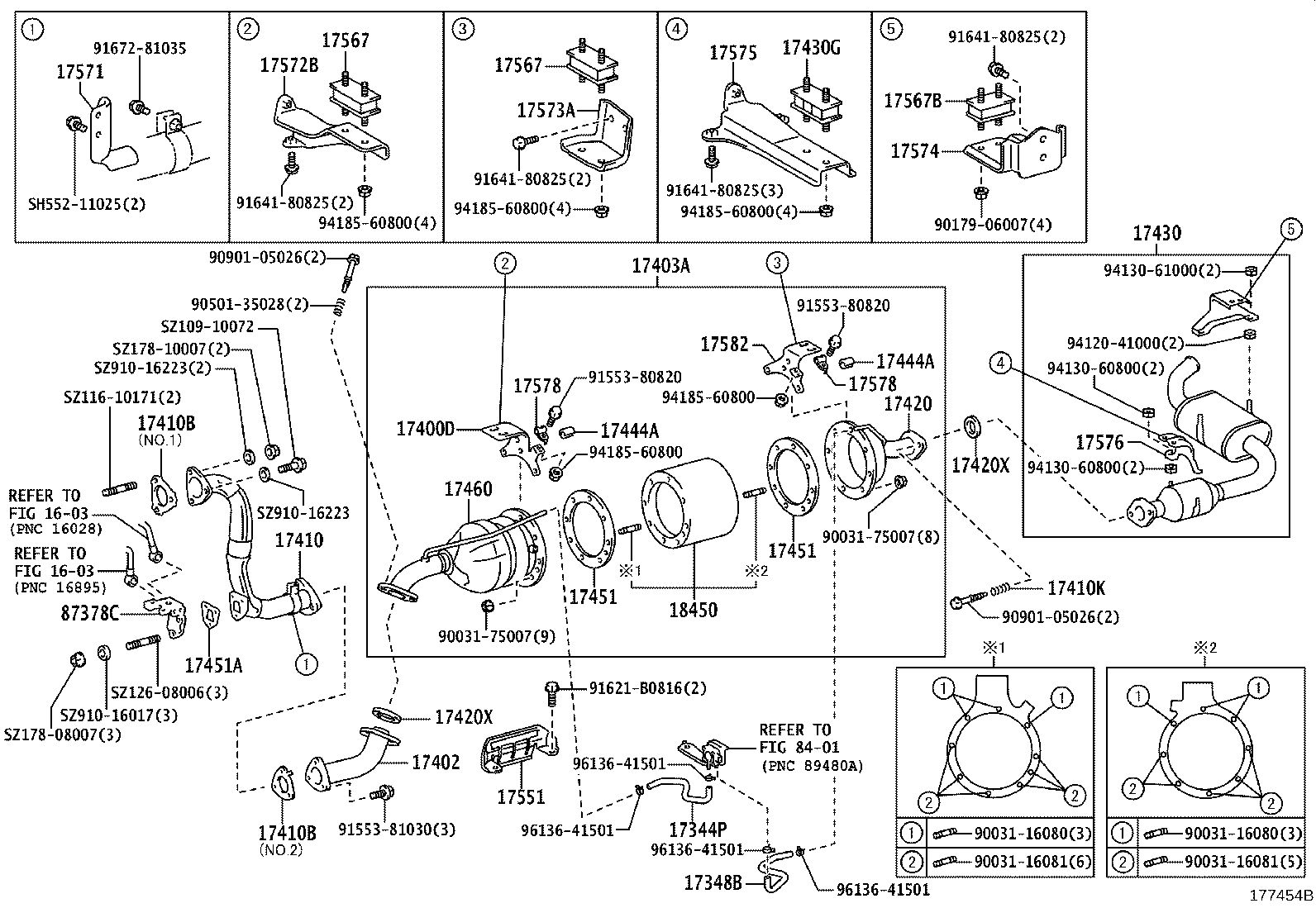

Click highlighted areas on diagram

diagram 1603 1603 17344P 17348B 17400D 17402 17403A 17410 17410B 17410B 17410K 17420 17420X 17420X 17430 17430G 17444A 17444A 17451 17451 17451A 17460 17551 17567 17567 17567B 17571 17572B 17573A 17574 17575 17576 17578 17578 17582 18450 8401 87378C 9003116080 9003116080 9003116081 9003116081 9003175007 9003175007 9017906007 9050135028 9090105026 9090105026 9155380820 9155380820 9155381030 91621B0816 9164180825 9164180825 9164180825 9164180825 9167281035 9412041000 9413060800 9413060800 9413061000 9418560800 9418560800 9418560800 9418560800 9418560800 9613641501 9613641501 9613641501 9613641501 SH55211025 SZ10910072 SZ11610171 SZ12608006 SZ17808007 SZ17810007 SZ91016017 SZ91016223 SZ91016223
Part # Description Qty Price
17344P - HOSE, AIR, NO.4(FOR EXHAUST PIPE)
17344-78260

N04C..XZB4#,5#

 1
17348B - HOSE, AIR, NO.8(FOR EXHAUST PIPE)
17348-78030

N04C..XZB4#,5#

 1
17400D - BRACKET, CATALYTIC CONVERTER SUPPORT
17581-78030

N04C..XZB4#,5#

 1
17402 - PIPE SUB-ASSY, EXHAUST, FRONT NO.2
17402-78150

N04C..XZB4#,5#

 1
17402-78150

N04C..XZB4#,5#

 1
17403A - PIPE SUB-ASSY, EXHAUST, CENTER NO.2
17403-78A70

N04C..XZB4#,5#

 1
17403-78A20

N04C..XZB4#,5#

 1
17403-78870

N04C..XZB4#,5#

 1
17403-78A71

N04C..XZB4#,5#

*114=TOYOTA/ZA6ZA7/Y

 1
17403-78B20

N04C..XZB4#,5#

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17401-E0S60

N04C..XZB4#,5#

 1
17401-E0S60

N04C..XZB4#,5#

 1
17410B - GASKET, EXHAUST PIPE
17451-78110

N04C..XZB4#,5#

NO.2

 1
17451-E0110

N04C..XZB4#,5#

NO.1

 1
17451-78110

N04C..XZB4#,5#

NO.2:ｲﾗｽﾄ参照

 1
17451-E0110

N04C..XZB4#,5#

NO.1:ｲﾗｽﾄ参照

 1
17410B - GASKET, EXHAUST PIPE
17451-78110

N04C..XZB4#,5#

NO.2

 1
17451-E0110

N04C..XZB4#,5#

NO.1

 1
17451-78110

N04C..XZB4#,5#

NO.2:ｲﾗｽﾄ参照

 1
17451-E0110

N04C..XZB4#,5#

NO.1:ｲﾗｽﾄ参照

 1
17410K - SPRING, EXHAUST PIPE
90501-35028

N04C,1BZFPE..BZB40,50,XZB4#,5#

 2
90501-35028

N04C..XZB4#,5#..DX,EX,GX,LX,STD

 2
17420 - PIPE ASSY, EXHAUST, CENTER
17404-78040

N04C..XZB4#,5#

 1
17404-78040

N04C..XZB4#,5#

 1
17420X - GASKET, EXHAUST PIPE, CENTER
17451-74040

N04C..XZB4#,5#

 2
17451-74040

N04C..XZB4#,5#

 2
17420X - GASKET, EXHAUST PIPE, CENTER
17451-74040

N04C..XZB4#,5#

 2
17451-74040

N04C..XZB4#,5#

 2
17430 - PIPE ASSY, EXHAUST, TAIL
17430-78060

N04C..XZB4#,5#

 1
17430-78060

N04C..XZB4#,5#

 1
17430G - CUSHION, EXHAUST TAIL PIPE(FOR CENTER)
17567-58010

N04C..XZB4#,5#

 1
17444A - SPACER, EXHAUST FRONT PIPE
17444-78020

N04C..XZB4#,5#

 2
17444A - SPACER, EXHAUST FRONT PIPE
17444-78020

N04C..XZB4#,5#

 2
17451 - GASKET, EXHAUST PIPE
17451-78020

N04C..XZB4#,5#

 2
17451-78020

N04C..XZB4#,5#

 2
17451 - GASKET, EXHAUST PIPE
17451-78020

N04C..XZB4#,5#

 2
17451-78020

N04C..XZB4#,5#

 2
17451A - GASKET, EXHAUST PIPE, NO.2
17451-E0121

N04C..XZB4#,5#

 1
17451-E0121

N04C..XZB4#,5#

 1
17460 - CONVERTER ASSY, CATALYTIC W/PIPE
17460-78020

N04C..XZB4#,5#

*114=TOYOTA/ZA1/Y

 1
17460-78040

N04C..XZB4#,5#

 1
17460-78050

N04C..XZB4#,5#

 1
17460-78030

N04C..XZB4#,5#

*114=TOYOTA/ZA6/Y

 1
17551 - INSULATOR, EXHAUST PIPE HEAT, NO.1
17551-78050

N04C..XZB4#,5#

 1
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-75050

N04C..XZB4#,5#

 2
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-75050

N04C..XZB4#,5#

 2
17567B - CUSHION, EXHAUST PIPE SUPPORT, NO.3
17567-75060

N04C..XZB4#,5#

 1
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-E0480

N04C..XZB4#,5#

 1
17571-E0480

N04C..XZB4#,5#

 1
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-78271

N04C..XZB4#,5#

 1
17572-78271

N04C..XZB4#,5#

 1
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17573-78290

N04C..XZB4#,5#

 1
17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4
17574-58170

N04C..XZB4#,5#

 1
17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5
17574-78120

N04C..XZB4#,5#

 1
17576 - BRACKET, MUFFLER CLAMP
17576-78130

N04C..XZB4#,5#

 1
17576-78130

N04C..XZB4#,5#

 1
17578 - CLAMP, PIPE
17578-78170

N04C..XZB4#,5#

 2
17578 - CLAMP, PIPE
17578-78170

N04C..XZB4#,5#

 2
17582 - BRACKET, CATALYTIC CONVERTER SUPPORT, UPPER
17582-78010

N04C..XZB4#,5#

 1
18450 - CONVERTER ASSY, MONOLITHIC
18450-78271

N04C..XZB4#,5#

*114=TOYOTA/ZA7/Y

 1
18450-78390

N04C..XZB4#,5#

 1
18450-78450

N04C..XZB4#,5#

 1
18450-78270

N04C..XZB4#,5#

*114=TOYOTA/ZA7/Y

 1
87378C - PIPE, EXHAUST
87378-E0032

XZB4#,5#

 1
87378-E0032

XZB4#,5#

 1
87378-E0033

XZB4#,5#

 1
Common parts
90031-16080
90031-16081
90031-75007
90179-06007
90501-35028
90901-05026
91553-80820
91553-81030
91621-B0816
91641-80825
91672-81035
94120-41000
94130-60800
94130-61000
94185-60800
96136-41501
SH552-11025
SZ109-10072
SZ116-10171
SZ126-08006
SZ178-08007
SZ178-10007
SZ910-16017
SZ910-16223
Linked diagrams
1603
8401
