XZB46V-ZRTNY (2007)
Toyota Coaster

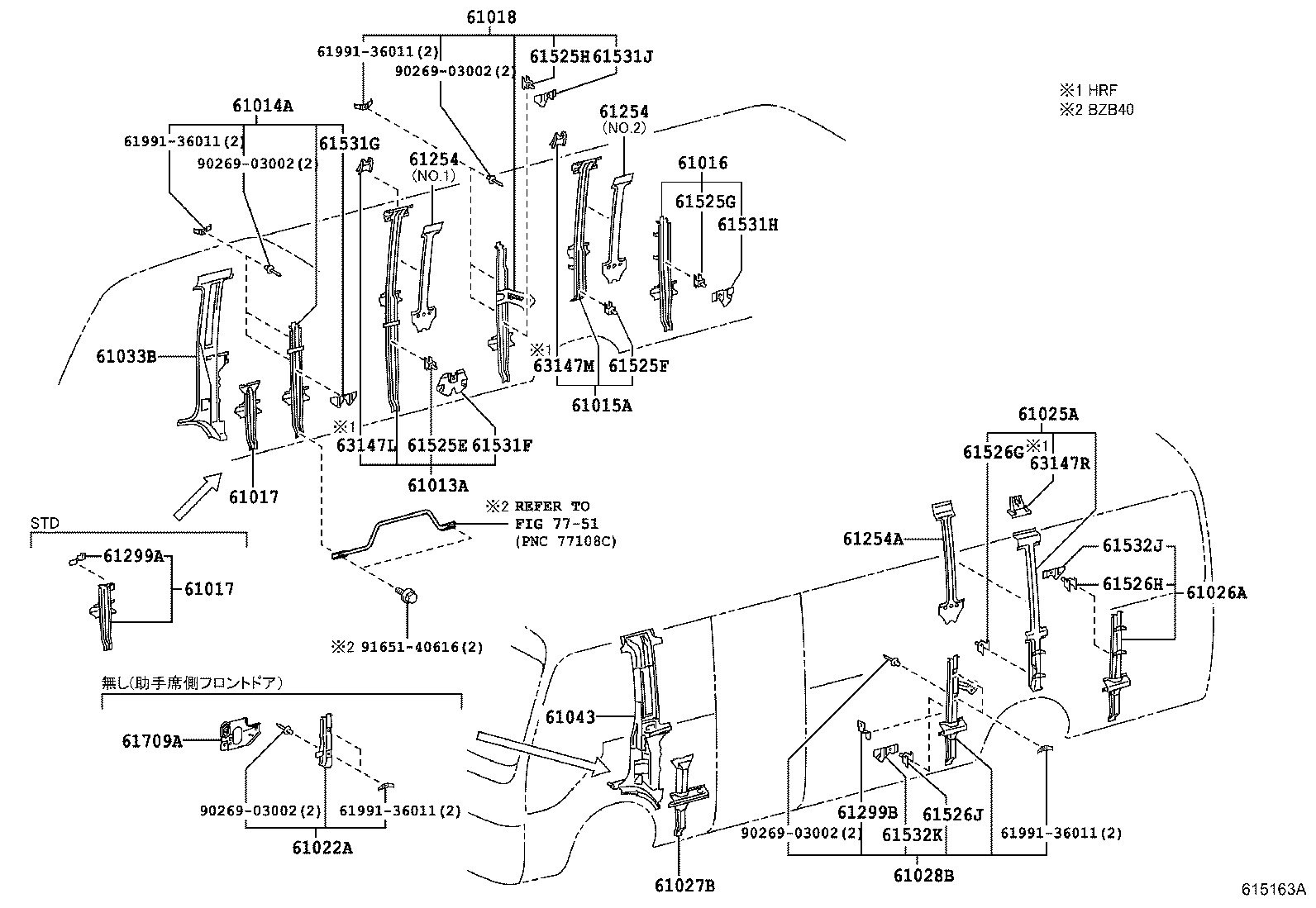

ILLUST NO. 4 OF 5(1501- )BZB40,XZB4#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61013A - PILLAR SUB-ASSY, NO.3 RH | ||||
| 61013-36211 |
XZB4#..HRF |
1 | ||
| 61014A - PILLAR SUB-ASSY, NO.4 RH | ||||
| 61014-36090 |
XZB4#,5#..EX,GX,LX |
1 | ||
| 61015A - PILLAR SUB-ASSY, NO.5 RH | ||||
| 61015-36140 |
BZB40,XZB4#..HRF |
1 | ||
| 61015-36220 |
XZB46 |
1 | ||
| 61016 - PILLAR SUB-ASSY, NO.6 RH | ||||
| 61016-36190 |
BZB40,XZB4# |
1 | ||
| 61016-36140 |
BZB40,XZB4#..09S,26S |
1 | ||
| 61017 - PILLAR SUB-ASSY, NO.7 RH | ||||
| 61017-36170 |
XZB4#,5#..EX,GX,LX |
1 | ||
| 61017-36130 |
XZB40..6FC..IV5;XZB46,50,56..GX,LX;XZB40,51..(26S,29S)..CBU |
1 | ||
| 61017 - PILLAR SUB-ASSY, NO.7 RH | ||||
| 61017-36170 |
XZB4#,5#..EX,GX,LX |
1 | ||
| 61017-36130 |
XZB40..6FC..IV5;XZB46,50,56..GX,LX;XZB40,51..(26S,29S)..CBU |
1 | ||
| 61018 - PILLAR SUB-ASSY, NO.8 RH | ||||
| 61018-36120 |
BZB40,XZB4#..09S,26S |
1 | ||
| 61018-36190 |
XZB4#..09S,39S |
1 | ||
| 61022A - PILLAR SUB-ASSY, NO.2 LH | ||||
| 61022-36030 |
BZB40,50,XZB4#,5# |
1 | ||
| 61025A - PILLAR SUB-ASSY, NO.5 LH | ||||
| 61025-36220 |
XZB46 |
1 | ||
| 61025-36140 |
BZB40,XZB4#..HRF |
1 | ||
| 61026A - PILLAR SUB-ASSY, NO.6 LH | ||||
| 61026-36200 |
BZB40,XZB4# |
1 | ||
| 61026-36120 |
BZB40,XZB4#..09S,26S |
1 | ||
| 61027B - PILLAR SUB-ASSY, NO.7, LH | ||||
| 61027-36090 |
XZB46,56 ｱﾘ(ｼﾞﾖｼﾕｾｷ ﾄﾞｱ) |
1 | ||
| 61027-36110 |
BZB40,50,XZB4#,5#..EX,GX,LX |
1 | ||
| 61028B - PILLAR SUB-ASSY, NO.8 LH | ||||
| 61028-36090 |
XZB4#..CBU;XZB40..6FC..IV5 |
1 | ||
| 61028-36130 |
BZB40,XZB4#..09S,26S |
1 | ||
| 61028-36210 |
XZB4#..09S,39S |
1 | ||
| 61033B - PILLAR SUB-ASSY, NO.2 INNER, RH | ||||
| 61033-36082 |
BZB40,50,XZB4#,5#..HRF..(EX,GX,LX) |
1 | ||
| 61043 - PILLAR SUB-ASSY, NO.2 INNER, LH | ||||
| 61043-36082 |
XZB46,56 |
1 | ||
| 61254 - PILLAR, NO.3 INNER, RH | ||||
| 61254-36051 |
XZB46 NO.1 |
1 | ||
| 61035-36051 |
XZB46 NO.2 |
1 | ||
| 61254 - PILLAR, NO.3 INNER, RH | ||||
| 61254-36051 |
XZB46 NO.1 |
1 | ||
| 61035-36051 |
XZB46 NO.2 |
1 | ||
| 61254A - PILLAR, NO.3 INNER, LH | ||||
| 61254-36051 |
XZB46 |
1 | ||
| 61299B - BRACKET, INNER PILLAR BLOWER, LH | ||||
| 61299-36010 |
BZB40,50,XZB4#,5# |
1 | ||
| 61525E - BRACKET, SEAT ANCHOR, RH | ||||
| 61525-36140 |
BZB40,50,XZB4#,5#..EX,GX,LX |
1 | ||
| 61525F - BRACKET, SEAT ANCHOR, RH | ||||
| 61525-36190 |
XZB4#,5#..09S,26S,29S ﾅｼ(ﾘﾔ ｼ-ﾄ) |
1 | ||
| 61525G - BRACKET, SEAT ANCHOR, RH | ||||
| 61525-36150 |
BZB40,50,XZB4#,5# |
1 | ||
| 61525H - BRACKET, SEAT ANCHOR, RH | ||||
| 61525-36150 |
XZB4#,5#..09S,26S,29S ﾅｼ(ﾘﾔ ｼ-ﾄ) |
1 | ||
| 61526G - BRACKET, SEAT ANCHOR, LH | ||||
| 61526-36200 |
XZB4#,50,56..09S,39S,49S |
1 | ||
| 61526H - BRACKET, SEAT ANCHOR, LH | ||||
| 61525-36150 |
BZB40,50,XZB4#,5# |
1 | ||
| 61526J - BRACKET, SEAT ANCHOR, LH | ||||
| 61525-36150 |
XZB4#,5#..09S,26S,29S ﾅｼ(ﾘﾔ ｼ-ﾄ) |
1 | ||
| 61531F - GUSSET, SEAT ANCHOR, RH | ||||
| 61532-36100 |
BZB40,50,XZB4#,5#..09S,26S,29S,39S,49S |
1 | ||
| 61531G - GUSSET, SEAT ANCHOR, RH | ||||
| 61531-36110 |
BZB40,50,XZB4#,5#..EX,GX,LX |
1 | ||
| 61531H - GUSSET, SEAT ANCHOR, RH | ||||
| 61532-36070 |
BZB40,50,XZB4#,5# |
1 | ||
| 61531J - GUSSET, SEAT ANCHOR, RH | ||||
| 61531-36070 |
BZB40,50,XZB4#,5# |
1 | ||
| 61532J - GUSSET, SEAT ANCHOR, LH | ||||
| 61531-36090 |
BZB40,50,XZB4#,5# |
1 | ||
| 61532K - GUSSET, SEAT ANCHOR, LH | ||||
| 61532-36080 |
BZB40,50,XZB4#,5# |
1 | ||
| 61709A - REINFORCEMENT SUB-ASSY, SEAT BELT ANCHOR, LH | ||||
| 61709-36020 |
BZB40,50,XZB4#,5# |
1 | ||
| 63147L - BRACKET, ROOF PANEL REINFORCEMENT | ||||
| 63147-36011 |
BZB40,50,XZB4#,5#..HRF |
1 | ||
| 63147M - BRACKET, ROOF PANEL REINFORCEMENT | ||||
| 63147-36011 |
BZB40,XZB4#..HRF |
1 | ||
| 63147R - BRACKET, ROOF PANEL REINFORCEMENT | ||||
| 63147-36011 |
BZB40,XZB4#..HRF |
1 | ||
| Common parts | ||||
| 61991-36011 | ||||
| 90269-03002 | ||||
| 91651-40616 | ||||
| Linked diagrams | ||||
| 7751 | ||||

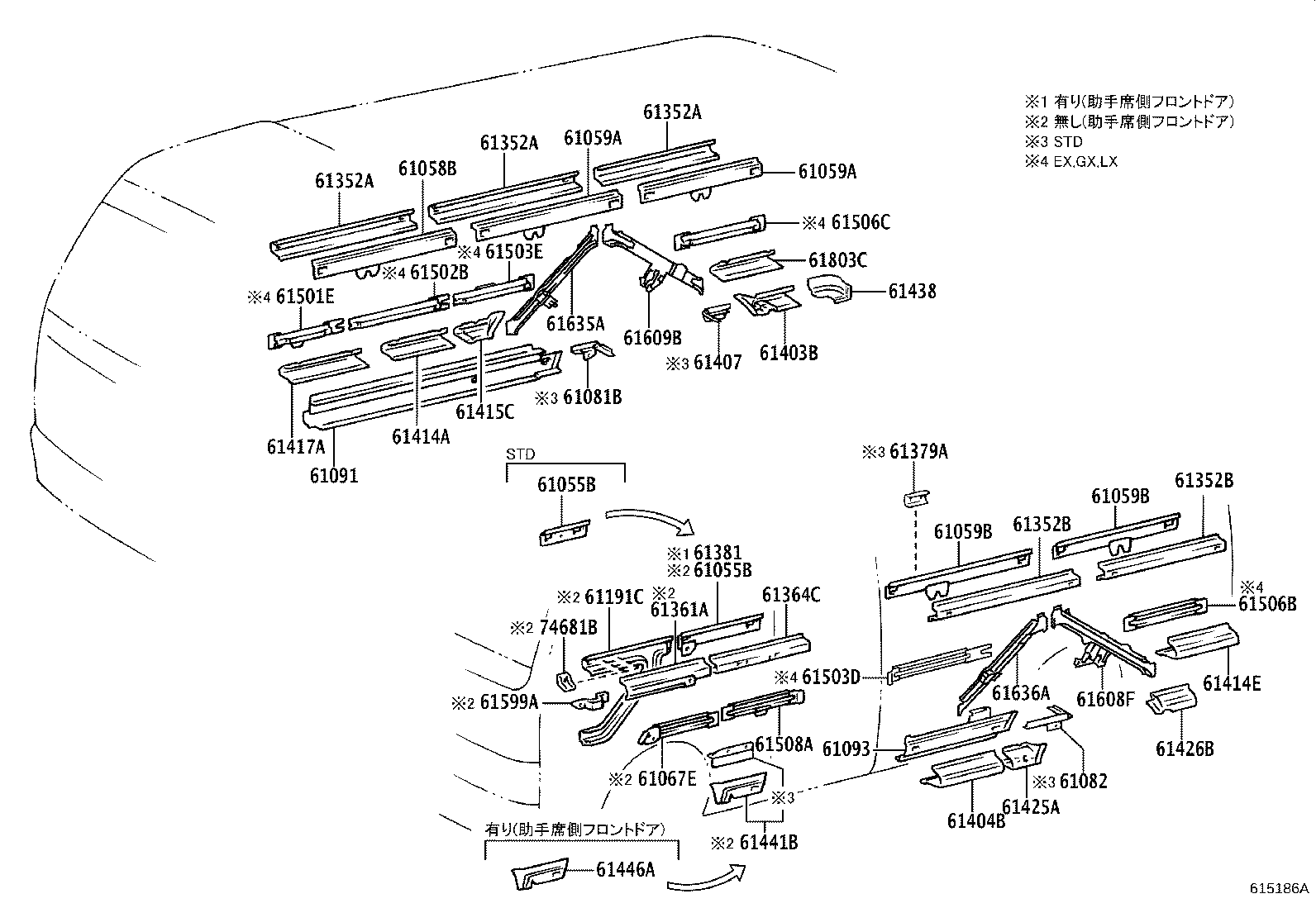

ILLUST NO. 5 OF 5(1501- )BZB40,XZB4#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61055B - RAIL SUB-ASSY, NO.2 CENTER, INNER, LH | ||||
| 61055-36031 |
BZB40,50,XZB4#,5#..EX,GX,LX |
1 | ||
| 61055B - RAIL SUB-ASSY, NO.2 CENTER, INNER, LH | ||||
| 61055-36031 |
BZB40,50,XZB4#,5#..EX,GX,LX |
1 | ||
| 61058B - RAIL SUB-ASSY, NO.3 CENTER, INNER, RH | ||||
| 61058-36010 |
BZB40,50,XZB4#,5# |
1 | ||
| 61059A - RAIL SUB-ASSY, NO.4 CENTER, INNER, RH | ||||
| 61059-36020 |
XZB46,56 |
2 | ||
| 61059A - RAIL SUB-ASSY, NO.4 CENTER, INNER, RH | ||||
| 61059-36020 |
XZB46,56 |
2 | ||
| 61059B - RAIL SUB-ASSY, NO.4 CENTER, INNER, LH | ||||
| 61059-36020 |
XZB46,56 |
2 | ||
| 61059B - RAIL SUB-ASSY, NO.4 CENTER, INNER, LH | ||||
| 61059-36020 |
XZB46,56 |
2 | ||
| 61067E - RAIL SUB-ASSY, NO.7 SEAT ANCHOR, LH | ||||
| 61067-36040 |
BZB40,50,XZB4#,5#..EX,GX,LX |
1 | ||
| 61091 - RAIL SUB-ASSY, NO.2 LOWER INNER, RH | ||||
| 61091-36010 |
BZB40,XZB4#..GX,LX |
1 | ||
| 61093 - RAIL SUB-ASSY, NO.2 LOWER INNER, LH | ||||
| 61442-36010 |
BZB40,XZB4#..GX,LX |
1 | ||
| 61191C - REINFORCEMENT, SIDE LOWER WINDOW, LH | ||||
| 61191-36010 |
BZB40,50,XZB4#,5# |
1 | ||
| 61352A - RAIL, NO.2 CENTER OUTER, RH | ||||
| 61352-36030 |
XZB46,56 ﾘﾔ |
2 | ||
| 61352-36030 |
XZB46,56 ﾘﾔ |
2 | ||
| 61352-36020 |
XZB46,56 ﾌﾛﾝﾄ |
1 | ||
| 61352-36020 |
XZB46,56 ﾌﾛﾝﾄ |
1 | ||
| 61352-36020 |
BZB40,50,XZB4#,5# |
3 | ||
| 61352A - RAIL, NO.2 CENTER OUTER, RH | ||||
| 61352-36030 |
XZB46,56 ﾘﾔ |
2 | ||
| 61352-36030 |
XZB46,56 ﾘﾔ |
2 | ||
| 61352-36020 |
XZB46,56 ﾌﾛﾝﾄ |
1 | ||
| 61352-36020 |
XZB46,56 ﾌﾛﾝﾄ |
1 | ||
| 61352-36020 |
BZB40,50,XZB4#,5# |
3 | ||
| 61352A - RAIL, NO.2 CENTER OUTER, RH | ||||
| 61352-36030 |
XZB46,56 ﾘﾔ |
2 | ||
| 61352-36030 |
XZB46,56 ﾘﾔ |
2 | ||
| 61352-36020 |
XZB46,56 ﾌﾛﾝﾄ |
1 | ||
| 61352-36020 |
XZB46,56 ﾌﾛﾝﾄ |
1 | ||
| 61352-36020 |
BZB40,50,XZB4#,5# |
3 | ||
| 61352B - RAIL, NO.2 CENTER OUTER, LH | ||||
| 61352-36030 |
XZB46,56 ｱﾘ(ﾘﾔｶﾞﾜ 4 ｳｲﾝﾄﾞｳ = ｺﾃｲ ｶﾞﾗｽ) |
2 | ||
| 61352-36020 |
BZB40,50,XZB4#,5#..EX,GX,LX |
2 | ||
| 61352-36030 |
XZB46,56 ｱﾘ(ﾘﾔｶﾞﾜ 4 ｳｲﾝﾄﾞｳ = ｺﾃｲ ｶﾞﾗｽ) |
2 | ||
| 61352B - RAIL, NO.2 CENTER OUTER, LH | ||||
| 61352-36030 |
XZB46,56 ｱﾘ(ﾘﾔｶﾞﾜ 4 ｳｲﾝﾄﾞｳ = ｺﾃｲ ｶﾞﾗｽ) |
2 | ||
| 61352-36020 |
BZB40,50,XZB4#,5#..EX,GX,LX |
2 | ||
| 61352-36030 |
XZB46,56 ｱﾘ(ﾘﾔｶﾞﾜ 4 ｳｲﾝﾄﾞｳ = ｺﾃｲ ｶﾞﾗｽ) |
2 | ||
| 61361A - RAIL, NO.1 CENTER OUTER, LH | ||||
| 61361-36010 |
BZB40,50,XZB4#,5# |
1 | ||
| 61364C - RAIL, NO.4 CENTER OUTER, LH | ||||
| 61354-36010 |
BZB40,50,XZB4#,5# |
1 | ||
| 61364-36010 |
XZB46,56 ｱﾘ(ｼﾞﾖｼﾕｾｷ ﾄﾞｱ) |
1 | ||
| 61381 - RAIL, NO.1 CENTER INNER, LH | ||||
| 61381-36040 |
XZB46,56 |
1 | ||
| 61403B - RAIL SUB-ASSY, NO.6 LOWER OUTER, RH | ||||
| 61403-36010 |
BZB40,50,XZB4#,5# |
1 | ||
| 61404B - RAIL SUB-ASSY, NO.6 LOWER OUTER, LH | ||||
| 61404-36031 |
XZB50..WC;XZB40..CBU;XZB40..6FC..IV5;BZB40,50,XZB46,51,56..(EX,LX)..CBU |
1 | ||
| 61404-36031 |
BZB40,50,XZB4#,5# |
1 | ||
| 61414A - RAIL,NO.4 LOWER OUTER, RH | ||||
| 61414-36010 |
BZB40,XZB4# |
1 | ||
| 61414E - RAIL, NO.4 LOWER OUTER, LH | ||||
| 61414-36010 |
BZB40,XZB4# |
1 | ||
| 61415C - RAIL, NO.5 LOWER OUTER, RH | ||||
| 61415-36010 |
BZB40,50,XZB4#,5# |
1 | ||
| 61417A - RAIL, NO.7 LOWER OUTER, RH | ||||
| 61417-36011 |
BZB40,50,XZB4#,5# |
1 | ||
| 61425A - RAIL, NO.5 LOWER OUTER, LH | ||||
| 61425-36010 |
BZB40,50,XZB4#,5# |
1 | ||
| 61426B - RAIL, NO.6 LOWER OUTER, LH | ||||
| 61426-36010 |
BZB40,50,XZB4#,5# |
1 | ||
| 61441B - RAIL, NO.1 LOWER INNER, LH | ||||
| 61441-36011 |
BZB40,50,XZB4#,5#..EX,GX,LX |
1 | ||
| 61446A - RAIL, NO.6 LOWER INNER, LH | ||||
| 61446-36011 |
XZB46,56 |
1 | ||
| 61501E - RAIL SUB-ASSY, SEAT ANCHOR, RH | ||||
| 61501-36070 |
BZB40,50,XZB4#,5#..09S,26S,29S |
1 | ||
| 61501-36060 |
XZB40..6FC..IV5;BZB40,50,XZB46,50,56..GX,LX;XZB40,51..(20S,26S,29S)..CBU |
1 | ||
| 61501-36101 |
BZB40,50,XZB4#,5#..EX,GX,LX |
1 | ||
| 61502B - RAIL SUB-ASSY, NO.2 SEAT ANCHOR, RH | ||||
| 61502-36070 |
BZB40,50,XZB4#,5#..09S,26S,29S |
1 | ||
| 61502-36081 |
BZB40,50,XZB4#,5#..09S,26S,29S |
1 | ||
| 61503D - RAIL SUB-ASSY, NO.3 SEAT ANCHOR | ||||
| 61503-36180 |
XZB40..6FC..IV5;XZB4#..(09S,26S)..CBU |
1 | ||
| 61503-36240 |
BZB40,XZB4#..09S,26S |
1 | ||
| 61503-36500 |
XZB46 |
1 | ||
| 61503E - RAIL SUB-ASSY, NO.3 SEAT ANCHOR, RH | ||||
| 61503-36210 |
BZB40,XZB4#..09S,26S |
1 | ||
| 61503-36390 |
XZB46 |
1 | ||
| 61506B - RAIL SUB-ASSY, NO.6 | ||||
| 61506-36070 |
BZB40,50,XZB4#,5#..09S,26S,29S |
1 | ||
| 61506-36140 |
XZB46,56 |
1 | ||
| 61506C - RAIL SUB-ASSY, NO.6, RH | ||||
| 61506-36090 |
XZB46,56 |
1 | ||
| 61506-36070 |
BZB40,50,XZB4#,5#..09S,26S,29S |
1 | ||
| 61508A - RAIL SUB-ASSY, NO.8 SEAT ANCHOR | ||||
| 61508-36101 |
XZB40..6FC..IV5;BZB40,50,XZB46,50,56..GX,LX;XZB40,51..(20S,26S,29S)..CBU |
1 | ||
| 61508-36200 |
BZB40,50,XZB4#,5#..09S,26S,29S |
1 | ||
| 61508-36170 |
XZB46,56 ｱﾘ(ｼﾞﾖｼﾕｾｷ ﾄﾞｱ) |
1 | ||
| 61508-36220 |
XZB46,56 ｱﾘ(ｼﾞﾖｼﾕｾｷ ﾄﾞｱ) |
1 | ||
| 61508-36231 |
BZB40,50,XZB4#,5#..EX,GX,LX |
1 | ||
| 61508-36241 |
XZB46,56 ｱﾘ(ｼﾞﾖｼﾕｾｷ ﾄﾞｱ) |
1 | ||
| 61599A - BRACKET, STIFFENER, NO.6, LH | ||||
| 61599-36010 |
BZB40,50,XZB4#,5# |
1 | ||
| 61608F - BRACE SUB-ASSY, QUARTER WHEEL HOUSE, LH | ||||
| 61608-36090 |
XZB46,56 |
1 | ||
| 61608-36021 |
XZB50..LX;BZB40,50,XZB4#,56..DX,GX,LX |
1 | ||
| 61609B - BRACE SUB-ASSY, QUARTER PANEL | ||||
| 61609-36021 |
XZB50..LX;BZB40,50,XZB4#,56..DX,GX,LX |
1 | ||
| 61609-36050 |
XZB46,56 |
1 | ||
| 61635A - BRACE, QUARTER WHEEL HOUSE, RH | ||||
| 61069-36080 |
XZB4#..GX,LX ﾅｼ(ﾘﾔ ｼ-ﾄ) |
1 | ||
| 61636A - BRACE, QUARTER WHEEL HOUSE, LH | ||||
| 61079-36070 |
XZB4#..09S,39S |
1 | ||
| 61803C - RAIL SUB-ASSY, NO.4 LOWER OUTER, RH | ||||
| 61803-36010 |
BZB40,50,XZB4#,5# |
1 | ||
| 74681B - RETAINER, ASSIST GRIP | ||||
| 74681-36010 |
BZB40,50,XZB4#,5#..EX,GX,LX |
2 | ||
