XZB40-ZRTNY5 (2007)
Toyota Coaster
(1108- )26S,29S

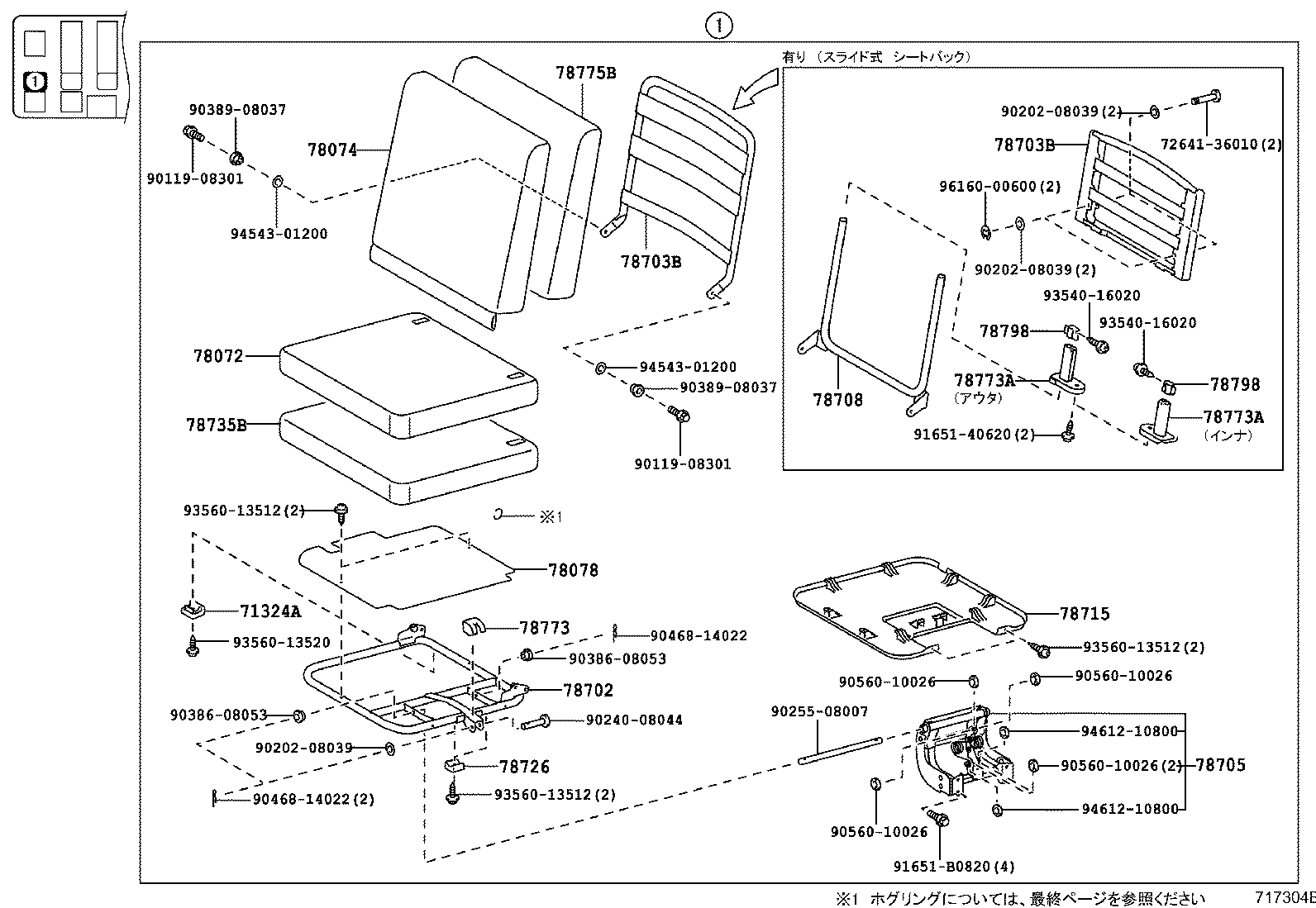

ﾎｼﾞｮｼｰﾄ NO.1
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71324A - CUSHION, REAR SEAT | ||||
| 71324-36040 |
BZB40,XZB40,50,51..26S,29S |
1 | ||
| 78072 - COVER SUB-ASSY, SUB SEAT CUSHION, LH | ||||
| 78072-36123K2 |
XZB40..6FC..IV5;BZB40,XZB50..GX,LX;XZB40,51..(26S,29S)..WC..CBU ｼ-ﾄ = TYPE C OR TYPE D-*104,PURPLE,TRIM1# |
1 | ||
| 78072-36180K0 |
XZB40..IV5 PURPLE,TRIM1# |
1 | ||
| 78072-36113B5 |
BZB40,XZB50..LX;XZB40..6FC..IV5;XZB40..(DX,LX)..CBU ｼ-ﾄ = TYPE B-*104,CHARCOAL GRAY,TRIM1# |
1 | ||
| 78074 - COVER SUB-ASSY, SUB SEAT BACK, LH | ||||
| 78073-36130K0 |
XZB40..IV5 PURPLE,TRIM1# |
1 | ||
| 78073-36043B5 |
BZB40,XZB50..LX;XZB40..6FC..IV5;XZB40..(DX,LX)..CBU ｼ-ﾄ = TYPE B-*104,CHARCOAL GRAY,TRIM1# |
1 | ||
| 78073-36083K2 |
XZB40..LX..CBU;BZB40,XZB50..LX;XZB40..6FC..IV5 ｼ-ﾄ = TYPE D-*104,PURPLE,TRIM1# |
1 | ||
| 78078 - BOARD SUB-ASSY, SUB SEAT CUSHION, LH | ||||
| 78078-36010E3 |
BB4#,55,HDB5#,HZB4#,5#..09S,26S,29S GREIGE,TRIM4# |
1 | ||
| 78705 - BRACKET SUB-ASSY, SUB SEAT CUSHION | ||||
| 78705-36060B0 |
BZB40,XZB40,50,51..26S,29S MD.CHARCOAL,TRIM1# |
1 | ||
| 78715 - PANEL, SUB SEAT CUSHION | ||||
| 78715-36070B0 |
BZB40,XZB40,50,51..26S,29S MD.CHARCOAL,TRIM1# |
1 | ||
| 78735B - PAD, SUB SEAT CUSHION, LH | ||||
| 78735-36100 |
BZB40,XZB40,50,51..26S,29S |
1 | ||
| Common parts | ||||
| 72641-36010 | ||||
| 90119-08301 | ||||
| 90202-08039 | ||||
| 90240-08044 | ||||
| 90255-08007 | ||||
| 90386-08053 | ||||
| 90389-08037 | ||||
| 90468-14022 | ||||
| 90560-10026 | ||||
| 91651-40620 | ||||
| 91651-B0820 | ||||
| 93540-16020 | ||||
| 93560-13512 | ||||
| 93560-13520 | ||||
| 94543-01200 | ||||
| 94612-10800 | ||||
| 96160-00600 | ||||
(1108- )DX,EX,GX,LX

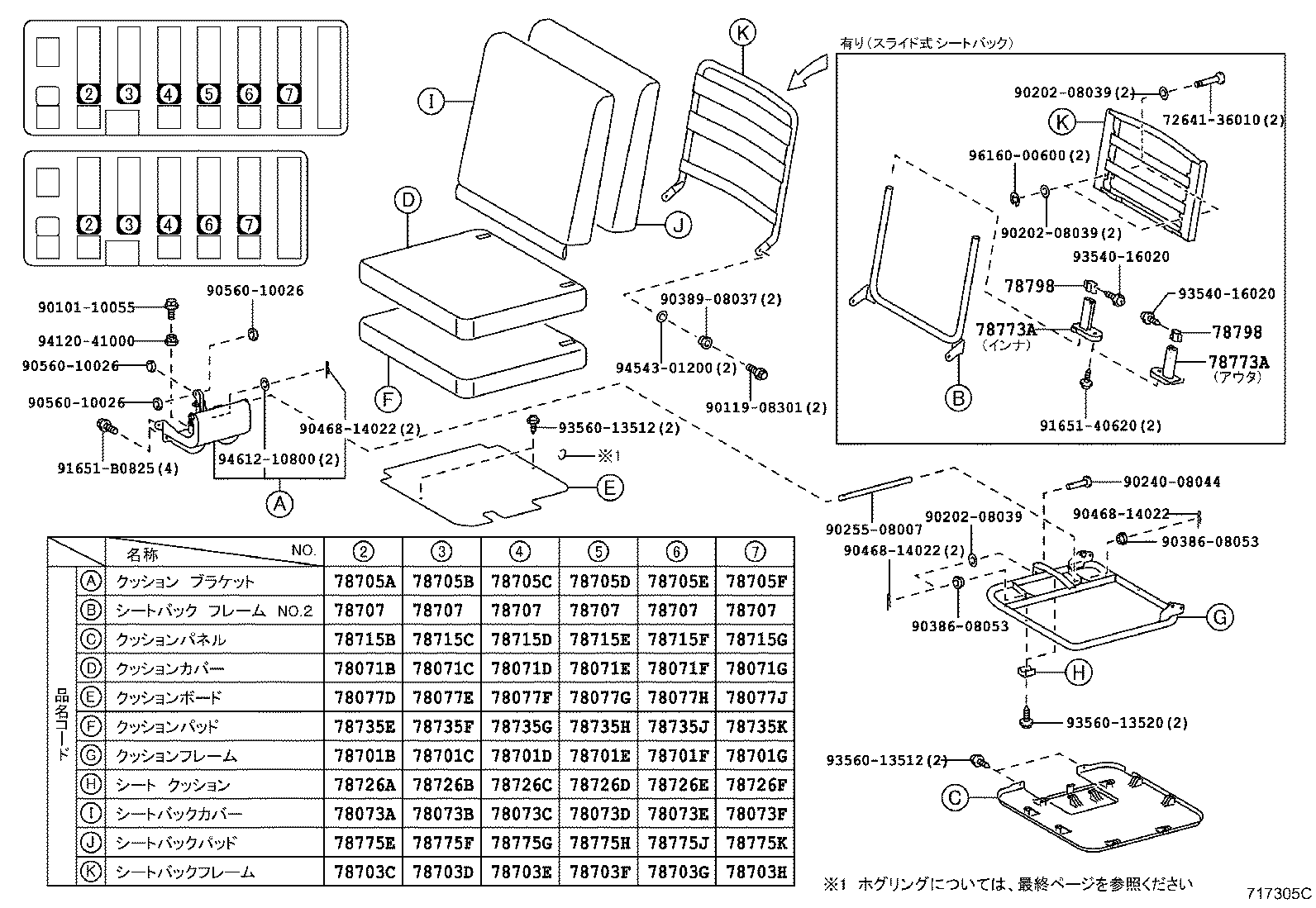

ﾎｼﾞｮｼｰﾄ NO.2-NO.7
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78071B - COVER SUB-ASSY, SUB SEAT CUSHION, RH NO.2 | ||||
| 78071-36180K0 |
XZB40..IV5 ｼ-ﾄ = TYPE C-*104,PURPLE,TRIM1# |
1 | ||
| 78071-36180K0 |
XZB40..26S..WC..CBU;BZB40,50,XZB46,5#..EX,GX,LX ｼ-ﾄ = TYPE C-*104,PURPLE,TRIM1# |
1 | ||
| 78071-36103B5 |
XZB50..IV5;BZB40,50,XZB4#,56..DX,LX CHARCOAL GRAY,TRIM1# |
1 | ||
| 78071C - COVER SUB-ASSY, SUB SEAT CUSHION, RH NO.3 | ||||
| 78071-36103B5 |
XZB40..6FC..IV5;XZB40..(DX,LX)..CBU;BZB40,50,XZB46,50,56..LX ｼ-ﾄ = TYPE B-*104,CHARCOAL GRAY,TRIM1# |
1 | ||
| 78071-36180K0 |
XZB40..IV5 ｼ-ﾄ = TYPE C-*104,PURPLE,TRIM1# |
1 | ||
| 78071-36113K2 |
XZB40..6FC..IV5;BZB40,50,XZB46,50,56..GX,LX;XZB40,51..(26S,29S)..WC..CBU ｼ-ﾄ = TYPE C OR TYPE D-*104,PURPLE,TRIM1# |
1 | ||
| 78071-36180K0 |
XZB40..26S..WC..CBU;BZB40,50,XZB46,5#..EX,GX,LX ｼ-ﾄ = TYPE C-*104,PURPLE,TRIM1# |
1 | ||
| 78071D - COVER SUB-ASSY, SUB SEAT CUSHION, RH NO.4 | ||||
| 78071-36113K2 |
XZB40..6FC..IV5;BZB40,50,XZB50..GX,LX;XZB40,51..(26S,29S)..WC..CBU ｼ-ﾄ = TYPE C OR TYPE D-*104,PURPLE,TRIM1# |
1 | ||
| 78071-36180K0 |
XZB40..IV5 ｼ-ﾄ = TYPE C-*104,PURPLE,TRIM1# |
1 | ||
| 78071-36103B5 |
XZB40..6FC..IV5;BZB40,50,XZB50..LX;XZB40..(DX,LX)..CBU ｼ-ﾄ = TYPE B-*104,CHARCOAL GRAY,TRIM1# |
1 | ||
| 78071F - COVER SUB-ASSY, SUB SEAT CUSHION, RH NO.6 | ||||
| 78071-36180K0 |
XZB40..IV5 ｼ-ﾄ = TYPE C-*104,PURPLE,TRIM1# |
1 | ||
| 78071-36103B5 |
XZB40..6FC..IV5;BZB40,50,XZB50..LX;XZB40..(DX,LX)..CBU ｼ-ﾄ = TYPE B-*104,CHARCOAL GRAY,TRIM1# |
1 | ||
| 78071-36113K2 |
XZB40..6FC..IV5;BZB40,50,XZB50..GX,LX;XZB40,51..(26S,29S)..WC..CBU ｼ-ﾄ = TYPE C OR TYPE D-*104,PURPLE,TRIM1# |
1 | ||
| 78073A - COVER SUB-ASSY, SUB SEAT BACK, RH NO.2 | ||||
| 78073-36130K0 |
XZB40..IV5 PURPLE,TRIM1# |
1 | ||
| 78073-36043B5 |
XZB50..IV5;BZB40,50,XZB4#,56..DX,LX CHARCOAL GRAY,TRIM1# |
1 | ||
| 78073B - COVER SUB-ASSY, SUB SEAT BACK, RH NO.3 | ||||
| 78073-36083K2 |
XZB40..LX..CBU;XZB40..6FC..IV5;BZB40,50,XZB46,50,56..LX ｼ-ﾄ = TYPE D-*104,PURPLE,TRIM1# |
1 | ||
| 78073-36130K0 |
XZB40..IV5 PURPLE,TRIM1# |
1 | ||
| 78073-36043B5 |
XZB40..6FC..IV5;XZB40..(DX,LX)..CBU;BZB40,50,XZB46,50,56..LX ｼ-ﾄ = TYPE B-*104,CHARCOAL GRAY,TRIM1# |
1 | ||
| 78073C - COVER SUB-ASSY, SUB SEAT BACK, RH NO.4 | ||||
| 78073-36130K0 |
XZB40..IV5 PURPLE,TRIM1# |
1 | ||
| 78073-36083K2 |
XZB40..LX..CBU;XZB40..6FC..IV5;BZB40,50,XZB50..LX ｼ-ﾄ = TYPE D-*104,PURPLE,TRIM1# |
1 | ||
| 78073-36043B5 |
XZB40..6FC..IV5;BZB40,50,XZB50..LX;XZB40..(DX,LX)..CBU ｼ-ﾄ = TYPE B-*104,CHARCOAL GRAY,TRIM1# |
1 | ||
| 78073E - COVER SUB-ASSY, SUB SEAT BACK, RH NO.6 | ||||
| 78073-36083K2 |
XZB40..LX..CBU;XZB40..6FC..IV5;BZB40,50,XZB50..LX ｼ-ﾄ = TYPE D-*104,PURPLE,TRIM1# |
1 | ||
| 78073-36130K0 |
XZB40..IV5 PURPLE,TRIM1# |
1 | ||
| 78073-36043B5 |
XZB40..6FC..IV5;BZB40,50,XZB50..LX;XZB40..(DX,LX)..CBU ｼ-ﾄ = TYPE B-*104,CHARCOAL GRAY,TRIM1# |
1 | ||
| 78077D - BOARD SUB-ASSY, SUB SEAT CUSHION, RH NO.2 | ||||
| 78077-36020 |
XZB50..IV5;BZB40,50,XZB4#,56..DX,GX,LX |
1 | ||
| 78701B - FRAME SUB-ASSY, SUB SEAT CUSHION, RH NO.2 | ||||
| 78701-36020B1 |
XZB50..IV5;BZB40,50,XZB4#,56..DX,GX,LX MD.CHARCOAL,TRIM1# |
1 | ||
| 78703C - FRAME SUB-ASSY, SUB SEAT BACK, RH NO.2 | ||||
| 78703-90B00B2 |
XZB50..IV5;BZB40,50,XZB4#,56..DX,LX MD.CHARCOAL,TRIM1# |
1 | ||
| 78715B - PANEL, SUB SEAT CUSHION NO.2 | ||||
| 78715-36060B0 |
BZB40,50,XZB4#,5#..09S,26S,29S MD.CHARCOAL,TRIM1# |
1 | ||
| 78715C - PANEL, SUB SEAT CUSHION NO.3 | ||||
| 78715-36060B0 |
BZB40,50,XZB4#,5#..09S,26S,29S MD.CHARCOAL,TRIM1# |
1 | ||
| 78715D - PANEL, SUB SEAT CUSHION NO.4 | ||||
| 78715-36060B0 |
BZB40,50,XZB40,50,51..26S,29S MD.CHARCOAL,TRIM1# |
1 | ||
| 78715F - PANEL, SUB SEAT CUSHION NO.6 | ||||
| 78715-36060B0 |
BZB40,50,XZB40,50,51..26S,29S MD.CHARCOAL,TRIM1# |
1 | ||
| 78735E - PAD, SUB SEAT CUSHION, RH NO.2 | ||||
| 78735-36090 |
BZB40,50,XZB4#,5#..09S,26S,29S |
1 | ||
| 78735F - PAD, SUB SEAT CUSHION, RH NO.3 | ||||
| 78735-36090 |
BZB40,50,XZB4#,5#..09S,26S,29S |
1 | ||
| 78735G - PAD, SUB SEAT CUSHION, RH NO.4 | ||||
| 78735-36090 |
BZB40,50,XZB40,50,51..26S,29S |
1 | ||
| 78735J - PAD, SUB SEAT CUSHION, RH NO.6 | ||||
| 78735-36090 |
BZB40,50,XZB40,50,51..26S,29S |
1 | ||
| 78775E - PAD, SUB SEAT BACK, RH NO.2 | ||||
| 78775-36040 |
XZB50..IV5;BZB40,50,XZB4#,56..DX,LX |
1 | ||
| Common parts | ||||
| 72641-36010 | ||||
| 90101-10055 | ||||
| 90119-08301 | ||||
| 90202-08039 | ||||
| 90240-08044 | ||||
| 90255-08007 | ||||
| 90386-08053 | ||||
| 90389-08037 | ||||
| 90468-14022 | ||||
| 90560-10026 | ||||
| 91651-40620 | ||||
| 91651-B0825 | ||||
| 93540-16020 | ||||
| 93560-13512 | ||||
| 93560-13520 | ||||
| 94120-41000 | ||||
| 94543-01200 | ||||
| 94612-10800 | ||||
| 96160-00600 | ||||

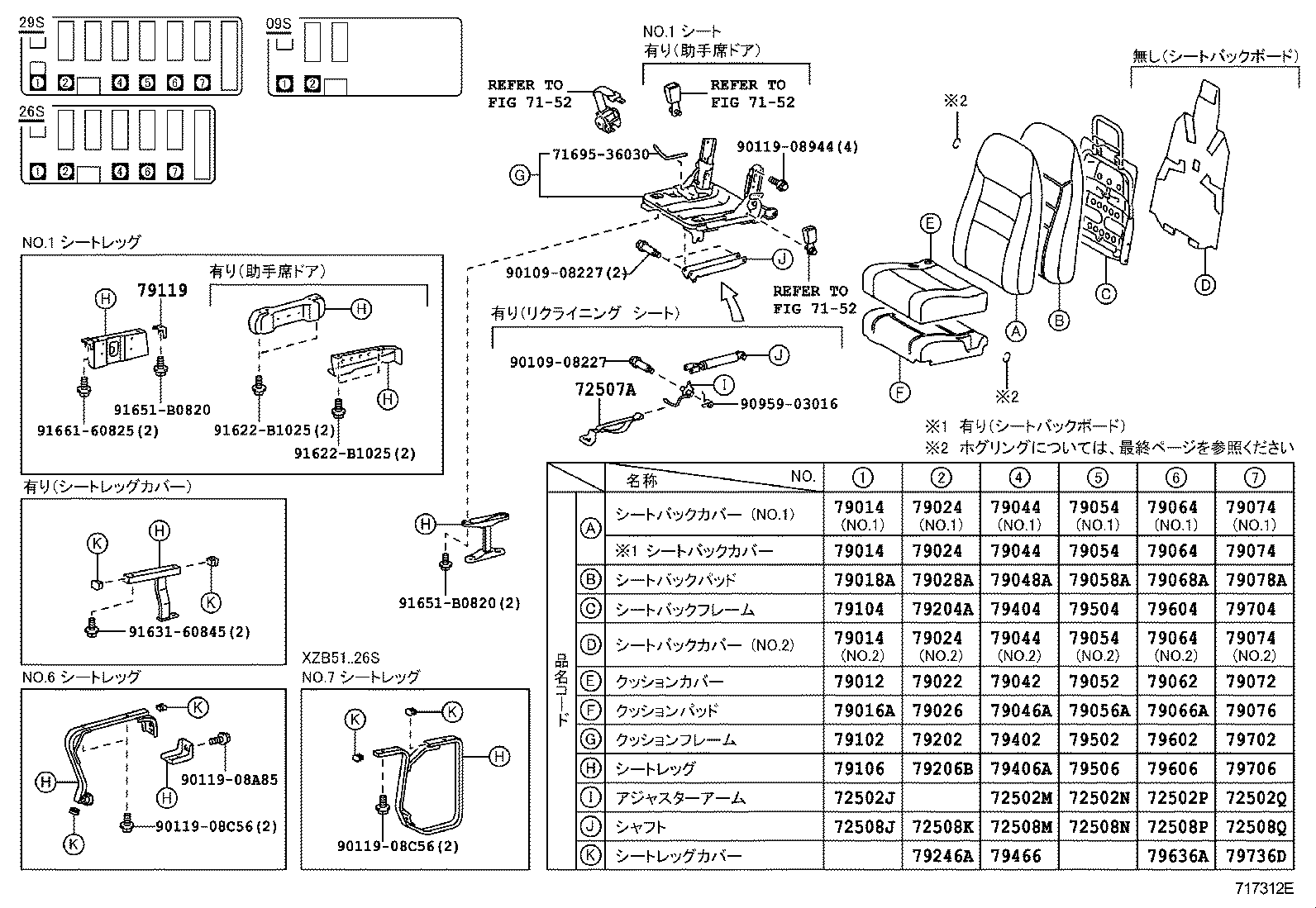

ILLUST NO. 1 OF 2(1108-1501)09S,26S,29S
ﾘﾔｼｰﾄ(ﾋﾀﾞﾘｶﾞﾜ) NO.1-NO.7
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72508J - SHAFT SUB-SEAT, NO.1 SEAT RECLINING ADJUSTING, LH | ||||
| 72508-36020 |
BB46..WC;BB40,HDB5#,HZB4#,5#..DX,EX,GX,LX |
1 | ||
| 72508-36090B0 |
XZB50..29S;BZB40,50,XZB4#,51,56..DX,EX,LX ﾅｼ(ﾘｸﾗｲﾆﾝｸﾞ ｼ-ﾄ),MD.CHARCOAL,TRIM1# |
1 | ||
| 72508K - SHAFT SUB-SEAT, NO.2 SEAT RECLINING ADJUSTING, LH | ||||
| 72508-36090B0 |
BZB40,50,XZB4#,5#..09S,26S,29S ﾅｼ(ﾘｸﾗｲﾆﾝｸﾞ ｼ-ﾄ),MD.CHARCOAL,TRIM1# |
1 | ||
| 72508M - SHAFT SUB-SEAT, NO.4 SEAT RECLINING ADJUSTING, LH | ||||
| 72508-36090B0 |
BZB40,50,XZB40,50..DX,LX ﾅｼ(ﾘｸﾗｲﾆﾝｸﾞ ｼ-ﾄ),MD.CHARCOAL,TRIM1# |
1 | ||
| 72508P - SHAFT SUB-SEAT, NO.6 SEAT RECLINING ADJUSTING, LH | ||||
| 72508-36110 |
BZB40,XZB40..DX,LX ｼ-ﾄ = TYPE C-*104 |
1 | ||
| 72508-36100 |
XZB40..IV5 ｼ-ﾄ = TYPE A OR TYPE B-*104 |
1 | ||
| 79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79012-36483B6 |
BZB40,XZB50..LX;XZB40..6FC..IV5;XZB40..(DX,LX)..CBU ｼ-ﾄ = TYPE B-*104 & TYPE B:ｲﾗｽﾄ ｻﾝｼｮｳ,CHARCOAL GRAY,TRIM1# |
1 | ||
| 79012-36572K2 |
XZB50..IV5;XZB40..6FC..IV5;BZB40,XZB40,51..26S..WC..CBU ｼ-ﾄ = TYPE C OR TYPE D-*104 & TYPE B:ｲﾗｽﾄ ｻﾝｼﾖｳ,PURPLE,TRIM1# |
1 | ||
| 79012-36670B0 |
BZB40,XZB40,50..DX,LX ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ｻﾌﾞｼ-ﾄ),MD.CHARCOAL,TRIM1# |
1 | ||
| 79012-36780K0 |
XZB40..IV5 ｼ-ﾄ = TYPE C-*104 & ｱﾘ(ｼ-ﾄﾊﾞﾂｸ ﾎﾞ-ﾄﾞ),PURPLE,TRIM1# |
1 | ||
| 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79013-36050E3 |
BB4#,HDB50,HZB40,5#..GX,LX GREIGE,TRIM4# |
1 | ||
| 79013-36153B6 |
XZB40..6FC..IV5;XZB40..(DX,LX)..CBU;BZB40,50,XZB46,50,56..LX ｼ-ﾄ = TYPE B-*104,CHARCOAL GRAY,TRIM1# |
1 | ||
| 79013-36163K2 |
XZB40..LX..CBU;XZB40..6FC..IV5;BZB40,50,XZB46,50,56..LX ｼ-ﾄ = TYPE D-*104,PURPLE,TRIM1# |
1 | ||
| 79013-36560K0 |
XZB40..IV5 ｼ-ﾄ = TYPE C-*104,PURPLE,TRIM1#,NO.1 |
1 | ||
| 79013-36560K0 |
XZB40..26S..WC..CBU;BZB40,50,XZB46,5#..EX,GX,LX ｼ-ﾄ = TYPE C-*104,PURPLE,TRIM1#,NO.1 |
1 | ||
| 79013-36580B0 |
BZB40,50,XZB4#,50,56..DX,LX ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1#,NO.1 |
1 | ||
| 79013-36620 |
BZB40,50,XZB4#,5#..09S,26S,29S NO.2 |
1 | ||
| 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79013-36050E3 |
BB4#,HDB50,HZB40,5#..GX,LX GREIGE,TRIM4# |
1 | ||
| 79013-36153B6 |
XZB40..6FC..IV5;XZB40..(DX,LX)..CBU;BZB40,50,XZB46,50,56..LX ｼ-ﾄ = TYPE B-*104,CHARCOAL GRAY,TRIM1# |
1 | ||
| 79013-36163K2 |
XZB40..LX..CBU;XZB40..6FC..IV5;BZB40,50,XZB46,50,56..LX ｼ-ﾄ = TYPE D-*104,PURPLE,TRIM1# |
1 | ||
| 79013-36560K0 |
XZB40..IV5 ｼ-ﾄ = TYPE C-*104,PURPLE,TRIM1#,NO.1 |
1 | ||
| 79013-36560K0 |
XZB40..26S..WC..CBU;BZB40,50,XZB46,5#..EX,GX,LX ｼ-ﾄ = TYPE C-*104,PURPLE,TRIM1#,NO.1 |
1 | ||
| 79013-36580B0 |
BZB40,50,XZB4#,50,56..DX,LX ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1#,NO.1 |
1 | ||
| 79013-36620 |
BZB40,50,XZB4#,5#..09S,26S,29S NO.2 |
1 | ||
| 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79013-36050E3 |
BB4#,HDB50,HZB40,5#..GX,LX GREIGE,TRIM4# |
1 | ||
| 79013-36153B6 |
XZB40..6FC..IV5;XZB40..(DX,LX)..CBU;BZB40,50,XZB46,50,56..LX ｼ-ﾄ = TYPE B-*104,CHARCOAL GRAY,TRIM1# |
1 | ||
| 79013-36163K2 |
XZB40..LX..CBU;XZB40..6FC..IV5;BZB40,50,XZB46,50,56..LX ｼ-ﾄ = TYPE D-*104,PURPLE,TRIM1# |
1 | ||
| 79013-36560K0 |
XZB40..IV5 ｼ-ﾄ = TYPE C-*104,PURPLE,TRIM1#,NO.1 |
1 | ||
| 79013-36560K0 |
XZB40..26S..WC..CBU;BZB40,50,XZB46,5#..EX,GX,LX ｼ-ﾄ = TYPE C-*104,PURPLE,TRIM1#,NO.1 |
1 | ||
| 79013-36580B0 |
BZB40,50,XZB4#,50,56..DX,LX ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1#,NO.1 |
1 | ||
| 79013-36620 |
BZB40,50,XZB4#,5#..09S,26S,29S NO.2 |
1 | ||
| 79016A - PAD SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79016-36010 |
BB46..WC;BB40,HZB40,5#..DX,LX ｱﾘ(*RRS) |
1 | ||
| 79016-36020 |
BB4#,55,HZB40,5#..(09S,26S,29S)..(DX,LX,STD) |
1 | ||
| 79016-36190 |
BZB40,XZB40,50,51..26S,29S ｱﾘ(ｻﾌﾞｼ-ﾄ) |
1 | ||
| 79018A - PAD SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79017-36070 |
BB46,HZB40..WC..5F;HZB40..LX..4FC..CBU;BB40,5#,HDB50,HZB5#..DX,GX,LX |
1 | ||
| 79017-36230 |
BZB40,50,XZB4#,5#..09S,26S,29S |
1 | ||
| 79022 - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79012-36190E1 |
BB46..WC;BB40,HDB50,HZB40,5#..DX,GX,LX ﾊｲﾊﾞﾂｸ ﾊ-ﾌﾆﾂﾄ ﾘﾔ-ｼ-ﾄ,GREIGE,TRIM4# |
1 | ||
| 79022-36072K2 |
XZB40..6FC..IV5;BZB40,50,XZB46,50,56..GX,LX;XZB40,51..(26S,29S)..WC..CBU ｼ-ﾄ = TYPE C OR TYPE D-*104,PURPLE,TRIM1# |
1 | ||
| 79012-36720K0 |
XZB40..26S..WC..CBU;BZB40,50,XZB46,5#..EX,GX,LX PURPLE,TRIM1# |
1 | ||
| 79012-36720K0 |
XZB40..IV5 PURPLE,TRIM1# |
1 | ||
| 79012-36730B0 |
BZB40,50,XZB4#,50,56..DX,LX MD.CHARCOAL,TRIM1# |
1 | ||
| 79012-36183B7 |
XZB40..6FC..IV5;XZB40..(DX,LX)..CBU;BZB40,50,XZB46,50,56..LX ｼ-ﾄ = TYPE B-*104,CHARCOAL GRAY,TRIM1# |
1 | ||
| 79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79013-36050E3 |
BB4#,HDB50,HZB40,5#..GX,LX GREIGE,TRIM4# |
1 | ||
| 79013-36163K2 |
XZB40..LX..CBU;XZB40..6FC..IV5;BZB40,50,XZB46,50,56..LX ｼ-ﾄ = TYPE D-*104,PURPLE,TRIM1# |
1 | ||
| 79013-36390K0 |
XZB40..IV5 PURPLE,TRIM1#,NO.1 |
1 | ||
| 79013-36153B6 |
XZB40..6FC..IV5;XZB40..(DX,LX)..CBU;BZB40,50,XZB46,50,56..LX ｼ-ﾄ = TYPE B-*104,CHARCOAL GRAY,TRIM1# |
1 | ||
| 79013-36620 |
BZB40,50,XZB4#,5#..09S,26S,29S NO.2 |
1 | ||
| 79013-36390K0 |
XZB40..26S..WC..CBU;BZB40,50,XZB46,5#..EX,GX,LX PURPLE,TRIM1#,NO.1 |
1 | ||
| 79013-36370B0 |
BZB40,50,XZB4#,50,56..DX,LX ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1#,NO.1 |
1 | ||
| 79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79013-36050E3 |
BB4#,HDB50,HZB40,5#..GX,LX GREIGE,TRIM4# |
1 | ||
| 79013-36163K2 |
XZB40..LX..CBU;XZB40..6FC..IV5;BZB40,50,XZB46,50,56..LX ｼ-ﾄ = TYPE D-*104,PURPLE,TRIM1# |
1 | ||
| 79013-36390K0 |
XZB40..IV5 PURPLE,TRIM1#,NO.1 |
1 | ||
| 79013-36153B6 |
XZB40..6FC..IV5;XZB40..(DX,LX)..CBU;BZB40,50,XZB46,50,56..LX ｼ-ﾄ = TYPE B-*104,CHARCOAL GRAY,TRIM1# |
1 | ||
| 79013-36620 |
BZB40,50,XZB4#,5#..09S,26S,29S NO.2 |
1 | ||
| 79013-36390K0 |
XZB40..26S..WC..CBU;BZB40,50,XZB46,5#..EX,GX,LX PURPLE,TRIM1#,NO.1 |
1 | ||
| 79013-36370B0 |
BZB40,50,XZB4#,50,56..DX,LX ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1#,NO.1 |
1 | ||
| 79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79013-36050E3 |
BB4#,HDB50,HZB40,5#..GX,LX GREIGE,TRIM4# |
1 | ||
| 79013-36163K2 |
XZB40..LX..CBU;XZB40..6FC..IV5;BZB40,50,XZB46,50,56..LX ｼ-ﾄ = TYPE D-*104,PURPLE,TRIM1# |
1 | ||
| 79013-36390K0 |
XZB40..IV5 PURPLE,TRIM1#,NO.1 |
1 | ||
| 79013-36153B6 |
XZB40..6FC..IV5;XZB40..(DX,LX)..CBU;BZB40,50,XZB46,50,56..LX ｼ-ﾄ = TYPE B-*104,CHARCOAL GRAY,TRIM1# |
1 | ||
| 79013-36620 |
BZB40,50,XZB4#,5#..09S,26S,29S NO.2 |
1 | ||
| 79013-36390K0 |
XZB40..26S..WC..CBU;BZB40,50,XZB46,5#..EX,GX,LX PURPLE,TRIM1#,NO.1 |
1 | ||
| 79013-36370B0 |
BZB40,50,XZB4#,50,56..DX,LX ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1#,NO.1 |
1 | ||
| 79026 - PAD SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79016-36010 |
BB46..WC;BB40,HZB40,5#..DX,LX ｱﾘ(ﾘｸﾗｲﾆﾝｸﾞ ﾘﾔｼ-ﾄ) |
1 | ||
| 79016-36020 |
BB4#,55,HZB40,5#..(09S,26S,29S)..(DX,LX,STD) |
1 | ||
| 79016-36230 |
BZB40,50,XZB4#,5#..09S,26S,29S |
1 | ||
| 79028A - PAD SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79017-36070 |
BB46,HZB40..WC..5F;HZB40..LX..4FC..CBU;BB40,5#,HDB50,HZB5#..DX,GX,LX |
1 | ||
| 79017-36170 |
BZB40,50,XZB4#,5#..09S,26S,29S |
1 | ||
| 79042 - COVER SUB-ASSY, NO.4 SEAT CUSHION, LH | ||||
| 79012-36183B7 |
XZB40..6FC..IV5;BZB40,50,XZB50..LX;XZB40..(DX,LX)..CBU ｼ-ﾄ = TYPE B-*104,CHARCOAL GRAY,TRIM1# |
1 | ||
| 79012-36532K2 |
XZB40..6FC..IV5;BZB40,50,XZB50..GX,LX;XZB40,51..(26S,29S)..WC..CBU ｼ-ﾄ = TYPE C OR TYPE D-*104,PURPLE,TRIM1# |
1 | ||
| 79012-36750K0 |
XZB40..IV5 PURPLE,TRIM1# |
1 | ||
| 79012-36740B0 |
BZB40,50,XZB40,50..DX,LX MD.CHARCOAL,TRIM1# |
1 | ||
| 79044 - COVER SUB-ASSY, NO.4 SEAT BACK, LH | ||||
| 79013-36153B6 |
XZB40..6FC..IV5;BZB40,50,XZB50..LX;XZB40..(DX,LX)..CBU ｼ-ﾄ = TYPE B-*104,CHARCOAL GRAY,TRIM1# |
1 | ||
| 79013-36163K2 |
XZB40..LX..CBU;XZB40..6FC..IV5;BZB40,50,XZB50..LX ｼ-ﾄ = TYPE D-*104,PURPLE,TRIM1# |
1 | ||
| 79013-36450K0 |
XZB40..IV5 ｼ-ﾄ = TYPE C-*104,PURPLE,TRIM1#,NO.1 |
1 | ||
| 79013-36620 |
BZB40,50,XZB40,50..26S,29S NO.2 |
1 | ||
| 79013-36430B0 |
BZB40,50,XZB40,50..DX,LX ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1#,NO.1 |
1 | ||
| 79044 - COVER SUB-ASSY, NO.4 SEAT BACK, LH | ||||
| 79013-36153B6 |
XZB40..6FC..IV5;BZB40,50,XZB50..LX;XZB40..(DX,LX)..CBU ｼ-ﾄ = TYPE B-*104,CHARCOAL GRAY,TRIM1# |
1 | ||
| 79013-36163K2 |
XZB40..LX..CBU;XZB40..6FC..IV5;BZB40,50,XZB50..LX ｼ-ﾄ = TYPE D-*104,PURPLE,TRIM1# |
1 | ||
| 79013-36450K0 |
XZB40..IV5 ｼ-ﾄ = TYPE C-*104,PURPLE,TRIM1#,NO.1 |
1 | ||
| 79013-36620 |
BZB40,50,XZB40,50..26S,29S NO.2 |
1 | ||
| 79013-36430B0 |
BZB40,50,XZB40,50..DX,LX ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1#,NO.1 |
1 | ||
| 79044 - COVER SUB-ASSY, NO.4 SEAT BACK, LH | ||||
| 79013-36153B6 |
XZB40..6FC..IV5;BZB40,50,XZB50..LX;XZB40..(DX,LX)..CBU ｼ-ﾄ = TYPE B-*104,CHARCOAL GRAY,TRIM1# |
1 | ||
| 79013-36163K2 |
XZB40..LX..CBU;XZB40..6FC..IV5;BZB40,50,XZB50..LX ｼ-ﾄ = TYPE D-*104,PURPLE,TRIM1# |
1 | ||
| 79013-36450K0 |
XZB40..IV5 ｼ-ﾄ = TYPE C-*104,PURPLE,TRIM1#,NO.1 |
1 | ||
| 79013-36620 |
BZB40,50,XZB40,50..26S,29S NO.2 |
1 | ||
| 79013-36430B0 |
BZB40,50,XZB40,50..DX,LX ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1#,NO.1 |
1 | ||
| 79046A - PAD SUB-ASSY, NO.4 SEAT CUSHION, LH | ||||
| 79016-36220 |
XZB51..29S;BZB40,50,XZB40,50..26S,29S |
1 | ||
| 79048A - PAD SUB-ASSY, NO.4 SEAT BACK, LH | ||||
| 79017-36070 |
HZB40..5F;HZB40..LX..4FC..CBU;BB40,5#,HDB50,HZB50..DX,GX,LX |
1 | ||
| 79017-36210 |
BZB40,50,XZB40,50..26S,29S |
1 | ||
| 79062 - COVER SUB-ASSY, NO.6 SEAT CUSHION, LH | ||||
| 79012-36562K2 |
XZB40..6FC..IV5;XZB51..29S..CBU;XZB40..26S..WC..CBU;BZB40,50,XZB50..GX,LX ｼ-ﾄ = TYPE C OR TYPE D-*104,PURPLE,TRIM1# |
1 | ||
| 79032-36123B7 |
XZB40..6FC..IV5;BZB40,50,XZB50..LX;XZB40..(DX,LX)..CBU ｼ-ﾄ = TYPE B-*104,CHARCOAL GRAY,TRIM1# |
1 | ||
| 79012-36830B0 |
BZB40,XZB40..DX,LX ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 79012-36700K0 |
XZB40..IV5 PURPLE,TRIM1# |
1 | ||
| 79064 - COVER SUB-ASSY, NO.6 SEAT BACK, LH | ||||
| 79013-36163K2 |
XZB40..LX..CBU;XZB40..6FC..IV5;BZB40,50,XZB50..LX ｼ-ﾄ = TYPE D-*104,PURPLE,TRIM1# |
1 | ||
| 79013-36390K0 |
XZB40..IV5 ｼ-ﾄ = TYPE C-*104,PURPLE,TRIM1#,NO.1 |
1 | ||
| 79013-36153B6 |
XZB40..6FC..IV5;BZB40,50,XZB50..LX;XZB40..(DX,LX)..CBU ｼ-ﾄ = TYPE B-*104,CHARCOAL GRAY,TRIM1# |
1 | ||
| 79013-36620 |
BZB40,50,XZB40,50..26S,29S NO.2 |
1 | ||
| 79013-36370B0 |
BZB40,50,XZB40,50..DX,LX ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1#,NO.1 |
1 | ||
| 79064 - COVER SUB-ASSY, NO.6 SEAT BACK, LH | ||||
| 79013-36163K2 |
XZB40..LX..CBU;XZB40..6FC..IV5;BZB40,50,XZB50..LX ｼ-ﾄ = TYPE D-*104,PURPLE,TRIM1# |
1 | ||
| 79013-36390K0 |
XZB40..IV5 ｼ-ﾄ = TYPE C-*104,PURPLE,TRIM1#,NO.1 |
1 | ||
| 79013-36153B6 |
XZB40..6FC..IV5;BZB40,50,XZB50..LX;XZB40..(DX,LX)..CBU ｼ-ﾄ = TYPE B-*104,CHARCOAL GRAY,TRIM1# |
1 | ||
| 79013-36620 |
BZB40,50,XZB40,50..26S,29S NO.2 |
1 | ||
| 79013-36370B0 |
BZB40,50,XZB40,50..DX,LX ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1#,NO.1 |
1 | ||
| 79064 - COVER SUB-ASSY, NO.6 SEAT BACK, LH | ||||
| 79013-36163K2 |
XZB40..LX..CBU;XZB40..6FC..IV5;BZB40,50,XZB50..LX ｼ-ﾄ = TYPE D-*104,PURPLE,TRIM1# |
1 | ||
| 79013-36390K0 |
XZB40..IV5 ｼ-ﾄ = TYPE C-*104,PURPLE,TRIM1#,NO.1 |
1 | ||
| 79013-36153B6 |
XZB40..6FC..IV5;BZB40,50,XZB50..LX;XZB40..(DX,LX)..CBU ｼ-ﾄ = TYPE B-*104,CHARCOAL GRAY,TRIM1# |
1 | ||
| 79013-36620 |
BZB40,50,XZB40,50..26S,29S NO.2 |
1 | ||
| 79013-36370B0 |
BZB40,50,XZB40,50..DX,LX ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1#,NO.1 |
1 | ||
| 79066A - PAD SUB-ASSY, NO.6 SEAT CUSHION, LH | ||||
| 79016-36230 |
BZB40,50,XZB40,50,51..26S,29S |
1 | ||
| 79068A - PAD SUB-ASSY, NO.6 SEAT BACK, LH | ||||
| 79017-36070 |
HZB40..5F;HZB40..LX..4FC..CBU;BB40,5#,HDB50,HZB50..DX,GX,LX |
1 | ||
| 79017-36170 |
BZB40,50,XZB40,50..26S,29S |
1 | ||
| 79102 - FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79102-36030E0 |
BB46..WC;BB40,HDB5#,HZB4#,5#..DX,EX,GX,LX ｱﾘ(ﾘｸﾗｲﾆﾝｸﾞｼ-ﾄ),GREIGE,TRIM4# |
1 | ||
| 79102-36250B0 |
BZB40,50,XZB4#,5#..09S,26S,29S MD.CHARCOAL,TRIM1# |
1 | ||
| 79104 - FRAME SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79104-36030 |
BB46..WC;BB40,HZB40,5#..DX,LX ｱﾘ(ﾘｸﾗｲﾆﾝｸﾞ ﾘﾔｼ-ﾄ) |
1 | ||
| 79103-36090 |
XZB40,50..IV5 ｱﾘ(ｶﾂﾌﾟﾎﾙﾀﾞ) |
1 | ||
| 79103-36210 |
BZB40,50,XZB4#,5#..09S,26S,29S |
1 | ||
| 79104-36090 |
XZB40,50..IV5 ｱﾘ(ｶﾂﾌﾟﾎﾙﾀﾞ & ﾘｸﾗｲﾆﾝｸﾞ ﾘﾔ ｼ-ﾄ) |
1 | ||
| 79106 - LEG SUB ASSY, NO.1 SEAT, LH | ||||
| 79106-36032B0 |
XZB40,50..LX..6FC ｼ-ﾄ = TYPE D-*104,MD.CHARCOAL,TRIM10 |
1 | ||
| 79106-36032B0 |
BZB40,50,XZB4#,50,56..DX,LX MD.CHARCOAL,TRIM1# |
1 | ||
| 79202 - FRAME SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79102-36230B0 |
BZB40,50,XZB4#,5#..09S,26S,29S MD.CHARCOAL,TRIM1# |
1 | ||
| 79204A - FRAME SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79103-36050 |
BB46,HZB40..WC..5F;HZB40..LX..4FC..CBU;BB40,5#,HDB50,HZB5#..DX,GX,LX |
1 | ||
| 79103-36210 |
BZB40,50,XZB4#,5#..09S,26S,29S |
1 | ||
| 79206B - LEG SUB-ASSY, NO.2 SEAT, LH | ||||
| 79206-36020E0 |
BB4#,HDB5#,HZB4#,5#..09S,26S,29S ｼ-ﾄ = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79206-36100B0 |
BZB40,50,XZB4#,50,56..LX MD.CHARCOAL,TRIM10 |
1 | ||
| 79206-36100C0 |
BZB40,50,XZB4#,50,56..LX BLACK,TRIM10 |
1 | ||
| 79246A - COVER, NO.2 SEAT LEG, NO.2 | ||||
| 79366-36040 |
BZB40,50,XZB4#,5#..09S,26S,29S |
2 | ||
| 79366-36020 |
BZB40,50,XZB4#,5#..09S,26S,29S |
2 | ||
| 79402 - FRAME SUB-ASSY, NO.4 SEAT CUSHION, LH | ||||
| 79102-36030E0 |
BB46..WC;BB40,HDB5#,HZB4#,5#..DX,EX,GX,LX ｱﾘ(*RRS),GREIGE,TRIM4# |
1 | ||
| 79102-36260B0 |
XZB51..29S;BZB40,50,XZB40,50..26S,29S MD.CHARCOAL,TRIM1# |
1 | ||
| 79404 - FRAME SUB-ASSY, NO.4 SEAT BACK, LH | ||||
| 79103-36090 |
XZB40,50..IV5 ｱﾘ(ｶﾂﾌﾟﾎﾙﾀﾞ) |
1 | ||
| 79103-36210 |
BZB40,50,XZB40,50..26S,29S |
1 | ||
| 79104-36090 |
XZB40,50..IV5 ｱﾘ(ｶﾂﾌﾟﾎﾙﾀﾞ & ﾘｸﾗｲﾆﾝｸﾞ ﾘﾔ ｼ-ﾄ) |
1 | ||
| 79406A - LEG SUB-ASSY, NO.4 SEAT, LH | ||||
| 79406-36050B0 |
BZB40,50,XZB40,50..LX MD.CHARCOAL,TRIM10 |
1 | ||
| 79406-36050C0 |
BZB40,50,XZB40,50..LX BLACK,TRIM10 |
1 | ||
| 79466 - COVER, NO.4 SEAT LEG, NO.1 | ||||
| 79366-36040 |
XZB51..29S;BZB40,50,XZB40,50..26S,29S |
2 | ||
| 79602 - FRAME SUB-ASSY, NO.6 SEAT CUSHION, LH | ||||
| 79102-36310B0 |
XZB51..29S;BZB40,50,XZB40,50..26S,29S MD.CHARCOAL,TRIM1# |
1 | ||
| 79604 - FRAME SUB-ASSY, NO.6 SEAT BACK, LH | ||||
| 79103-36210 |
BZB40,50,XZB40,50..26S,29S |
1 | ||
| 79104-36030 |
XZB40..LX..CBU;XZB40..6FC..IV5;BZB40,50,XZB50..LX ｱﾘ(ﾘｸﾗｲﾆﾝｸﾞ ﾘﾔｼ-ﾄ),左側 |
1 | ||
| 79104-36090 |
XZB40,50..IV5 ｱﾘ(ｶﾂﾌﾟﾎﾙﾀﾞ & ﾘｸﾗｲﾆﾝｸﾞ ﾘﾔ ｼ-ﾄ) |
1 | ||
| 79103-36090 |
XZB40,50..IV5 ｱﾘ(ｶﾂﾌﾟﾎﾙﾀﾞ) |
1 | ||
| 79606 - LEG SUB-ASSY, NO.6 SEAT, LH | ||||
| 79505-36150C0 |
BZB40,50,XZB40,50..LX BLACK,TRIM10,内側 |
1 | ||
| 79505-36150B0 |
BZB40,50,XZB40,50..LX MD.CHARCOAL,TRIM10,内側 |
1 | ||
| 79644-36010B0 |
XZB50,51..29S;BZB40,50,XZB40..DX,LX MD.CHARCOAL,TRIM1#,外側 |
1 | ||
| Common parts | ||||
| 71695-36030 | ||||
| 90109-08227 | ||||
| 90119-08944 | ||||
| 90119-08A85 | ||||
| 90119-08C56 | ||||
| 90959-03016 | ||||
| 91622-B1025 | ||||
| 91631-60845 | ||||
| 91651-B0820 | ||||
| 91661-60825 | ||||
| Linked diagrams | ||||
| 7152 | ||||

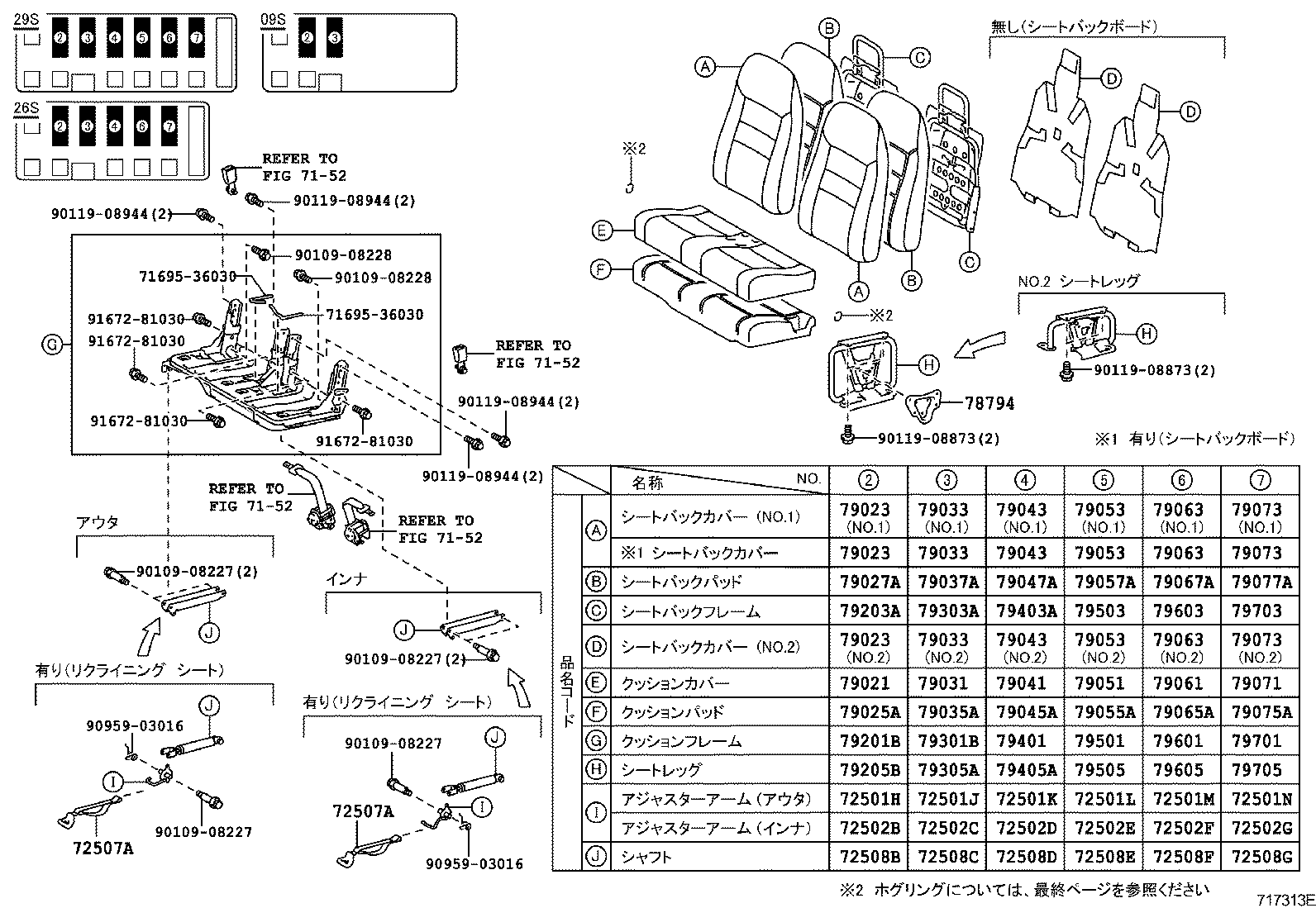

ILLUST NO. 1 OF 2(1108-1501)09S,26S,29S
ﾘﾔｼｰﾄ(ﾐｷﾞｶﾞﾜ) NO.2-NO.7
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72501H - ARM SUB-ASSY, NO.2 SEAT RECLINING ADJUSTER, UPPER NO.1 | ||||
| 72501-36010E0 |
BB46..WC;BB40,HDB50,HZB40,5#..DX,GX,LX GREIGE,TRIM4# |
1 | ||
| 72502B - ARM SUB-ASSY, NO.2 SEAT RECLINING ADJUSTER, UPPER NO.1 | ||||
| 72502-36020E0 |
BB46..WC;BB40,HDB50,HZB40,5#..DX,GX,LX GREIGE,TRIM4# |
1 | ||
| 72508B - SHAFT SUB-ASSY, NO.2 SEAT RECLINING ADJUSTING, RH | ||||
| 72508-36090B0 |
BZB40,50,XZB4#,50,56..DX,LX ﾅｼ(ﾘｸﾗｲﾆﾝｸﾞ ｼ-ﾄ),MD.CHARCOAL,TRIM1# |
2 | ||
| 72508C - SHAFT SUB-ASSY, NO.3 SEAT RECLINING ADJUSTING, RH | ||||
| 72508-36090B0 |
BZB40,50,XZB4#,50,56..DX,LX ﾅｼ(ﾘｸﾗｲﾆﾝｸﾞ ｼ-ﾄ),MD.CHARCOAL,TRIM1# |
2 | ||
| 72508D - SHAFT SUB-ASSY, NO.4 SEAT RECLINING ADJUSTING, RH | ||||
| 72508-36090B0 |
BZB40,50,XZB40,50..DX,LX ﾅｼ(ﾘｸﾗｲﾆﾝｸﾞ ｼ-ﾄ),MD.CHARCOAL,TRIM1# |
2 | ||
| 72508F - SHAFT SUB-ASSY, NO.6 SEAT RECLINING ADJUSTING, RH | ||||
| 72508-36100 |
XZB40..IV5 ｼ-ﾄ = TYPE C-*104 |
2 | ||
| 72508-36110 |
BZB40,XZB40..DX,LX ｼ-ﾄ = TYPE A OR TYPE B-*104 |
2 | ||
| 78794 - BRACKET, SUB SEAT, NO.1 | ||||
| 78724-36010B0 |
XZB40..26S..WC..CBU;BZB40,50,XZB46,5#..EX,GX,LX MD.CHARCOAL,TRIM1# |
1 | ||
| 78724-36010C0 |
BZB40,50,XZB4#,50,56..DX,LX BLACK,TRIM1# |
1 | ||
| 78724-36010B0 |
XZB40..IV5 MD.CHARCOAL,TRIM1# |
1 | ||
| 79021 - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79021-36190E3 |
BB46..WC;BB40,HZB40,5#..DX,LX ｱﾘ(*RRS),GREIGE,TRIM4# |
1 | ||
| 79021-36103B6 |
XZB40..6FC..IV5;XZB40..(DX,LX)..CBU;BZB40,50,XZB46,50,56..LX ｼ-ﾄ = TYPE B-*104,CHARCOAL GRAY,TRIM1# |
1 | ||
| 79021-36500K0 |
XZB40..IV5 ｼ-ﾄ = TYPE C-*104,PURPLE,TRIM1# |
1 | ||
| 79021-36392K2 |
XZB40..6FC..IV5;BZB40,50,XZB46,50,56..GX,LX;XZB40,51..(26S,29S)..WC..CBU ｼ-ﾄ = TYPE C OR TYPE D-*104,PURPLE,TRIM1# |
1 | ||
| 79021-36500K0 |
XZB40..26S..WC..CBU;BZB40,50,XZB46,5#..EX,GX,LX ｼ-ﾄ = TYPE C-*104,PURPLE,TRIM1# |
1 | ||
| 79021-36490B0 |
BZB40,50,XZB4#,50,56..DX,LX ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79014-36113B5 |
BZB40,50,XZB4#,50,56..DX,LX ｼ-ﾄ = TYPE B-*104,CHARCOAL GRAY,TRIM1# |
1 | ||
| 79013-36163K2 |
BZB40,50,XZB4#,50,56..LX ｼ-ﾄ = TYPE D-*104,PURPLE,TRIM1# |
2 | ||
| 79013-36380B0 |
BZB40,50,XZB4#,50,56..DX,LX ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1#,NO.1,外側 |
1 | ||
| 79013-36390K0 |
XZB40..IV5 ｼ-ﾄ = TYPE C-*104,PURPLE,TRIM1#,NO.1,内側 |
1 | ||
| 79013-36370B0 |
BZB40,50,XZB4#,50,56..DX,LX ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1#,NO.1,内側 |
1 | ||
| 79013-36400K0 |
XZB40..IV5 ｼ-ﾄ = TYPE C-*104,PURPLE,TRIM1#,NO.1,外側 |
1 | ||
| 79013-36620 |
BZB40,50,XZB4#,50,56..DX,GX,LX NO.2 |
2 | ||
| 79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79014-36113B5 |
BZB40,50,XZB4#,50,56..DX,LX ｼ-ﾄ = TYPE B-*104,CHARCOAL GRAY,TRIM1# |
1 | ||
| 79013-36163K2 |
BZB40,50,XZB4#,50,56..LX ｼ-ﾄ = TYPE D-*104,PURPLE,TRIM1# |
2 | ||
| 79013-36380B0 |
BZB40,50,XZB4#,50,56..DX,LX ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1#,NO.1,外側 |
1 | ||
| 79013-36390K0 |
XZB40..IV5 ｼ-ﾄ = TYPE C-*104,PURPLE,TRIM1#,NO.1,内側 |
1 | ||
| 79013-36370B0 |
BZB40,50,XZB4#,50,56..DX,LX ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1#,NO.1,内側 |
1 | ||
| 79013-36400K0 |
XZB40..IV5 ｼ-ﾄ = TYPE C-*104,PURPLE,TRIM1#,NO.1,外側 |
1 | ||
| 79013-36620 |
BZB40,50,XZB4#,50,56..DX,GX,LX NO.2 |
2 | ||
| 79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79014-36113B5 |
BZB40,50,XZB4#,50,56..DX,LX ｼ-ﾄ = TYPE B-*104,CHARCOAL GRAY,TRIM1# |
1 | ||
| 79013-36163K2 |
BZB40,50,XZB4#,50,56..LX ｼ-ﾄ = TYPE D-*104,PURPLE,TRIM1# |
2 | ||
| 79013-36380B0 |
BZB40,50,XZB4#,50,56..DX,LX ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1#,NO.1,外側 |
1 | ||
| 79013-36390K0 |
XZB40..IV5 ｼ-ﾄ = TYPE C-*104,PURPLE,TRIM1#,NO.1,内側 |
1 | ||
| 79013-36370B0 |
BZB40,50,XZB4#,50,56..DX,LX ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1#,NO.1,内側 |
1 | ||
| 79013-36400K0 |
XZB40..IV5 ｼ-ﾄ = TYPE C-*104,PURPLE,TRIM1#,NO.1,外側 |
1 | ||
| 79013-36620 |
BZB40,50,XZB4#,50,56..DX,GX,LX NO.2 |
2 | ||
| 79025A - PAD SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79035-36010 |
BB4#,HZB40,5#..(09S,26S,29S)..(DX,LX,STD) |
1 | ||
| 79035-36140 |
BZB40,50,XZB4#,5#..09S,26S,29S |
1 | ||
| 79027A - PAD SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79017-36180 |
BZB40,50,XZB4#,50,56..DX,GX,LX 外側 |
1 | ||
| 79017-36170 |
BZB40,50,XZB4#,50,56..DX,GX,LX 内側 |
1 | ||
| 79031 - COVER SUB-ASSY, NO.3 SEAT CUSHION, RH | ||||
| 79021-36530B0 |
BZB40,50,XZB4#,50,56..DX,LX ｼ-ﾄ = TYPE B-*104,CHARCOAL GRAY,TRIM1# |
1 | ||
| 79021-36392K2 |
XZB40..6FC..IV5;BZB40,50,XZB50..GX,LX;XZB40,51..(26S,29S)..WC..CBU ｼ-ﾄ = TYPE C OR TYPE D-*104,PURPLE,TRIM1# |
1 | ||
| 79021-36103B6 |
XZB40..6FC..IV5;XZB40..(DX,LX)..CBU;BZB40,50,XZB46,50,56..LX ｼ-ﾄ = TYPE B-*104,CHARCOAL GRAY,TRIM1# |
1 | ||
| 79021-36520K0 |
XZB40..IV5 ｼ-ﾄ = TYPE C-*104,PURPLE,TRIM1# |
1 | ||
| 79033 - COVER SUB-ASSY, NO.3 SEAT BACK, RH | ||||
| 79013-36050E3 |
HZB40..LX..CBU;BB40,5#,HDB50,HZB50..DX,GX,LX ﾊｲﾊﾞﾂｸ ﾊ-ﾌﾆﾂﾄ ﾘﾔ-ｼ-ﾄ,GREIGE,TRIM4# |
1 | ||
| 79013-36163K2 |
BZB40,50,XZB40,50..LX ｼ-ﾄ = TYPE D-*104,PURPLE,TRIM1# |
2 | ||
| 79013-36390K0 |
XZB40..IV5 ｼ-ﾄ = TYPE C-*104,PURPLE,TRIM1#,NO.1 |
2 | ||
| 79014-36113B5 |
BZB40,50,XZB4#,50,56..DX,LX ｼ-ﾄ = TYPE B-*104,CHARCOAL GRAY,TRIM1# |
1 | ||
| 79013-36370B0 |
BZB40,50,XZB4#,50,56..DX,LX ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1#,NO.1 |
2 | ||
| 79013-36620 |
BZB40,50,XZB4#,50,56..DX,GX,LX NO.2 |
2 | ||
| 79033 - COVER SUB-ASSY, NO.3 SEAT BACK, RH | ||||
| 79013-36050E3 |
HZB40..LX..CBU;BB40,5#,HDB50,HZB50..DX,GX,LX ﾊｲﾊﾞﾂｸ ﾊ-ﾌﾆﾂﾄ ﾘﾔ-ｼ-ﾄ,GREIGE,TRIM4# |
1 | ||
| 79013-36163K2 |
BZB40,50,XZB40,50..LX ｼ-ﾄ = TYPE D-*104,PURPLE,TRIM1# |
2 | ||
| 79013-36390K0 |
XZB40..IV5 ｼ-ﾄ = TYPE C-*104,PURPLE,TRIM1#,NO.1 |
2 | ||
| 79014-36113B5 |
BZB40,50,XZB4#,50,56..DX,LX ｼ-ﾄ = TYPE B-*104,CHARCOAL GRAY,TRIM1# |
1 | ||
| 79013-36370B0 |
BZB40,50,XZB4#,50,56..DX,LX ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1#,NO.1 |
2 | ||
| 79013-36620 |
BZB40,50,XZB4#,50,56..DX,GX,LX NO.2 |
2 | ||
| 79033 - COVER SUB-ASSY, NO.3 SEAT BACK, RH | ||||
| 79013-36050E3 |
HZB40..LX..CBU;BB40,5#,HDB50,HZB50..DX,GX,LX ﾊｲﾊﾞﾂｸ ﾊ-ﾌﾆﾂﾄ ﾘﾔ-ｼ-ﾄ,GREIGE,TRIM4# |
1 | ||
| 79013-36163K2 |
BZB40,50,XZB40,50..LX ｼ-ﾄ = TYPE D-*104,PURPLE,TRIM1# |
2 | ||
| 79013-36390K0 |
XZB40..IV5 ｼ-ﾄ = TYPE C-*104,PURPLE,TRIM1#,NO.1 |
2 | ||
| 79014-36113B5 |
BZB40,50,XZB4#,50,56..DX,LX ｼ-ﾄ = TYPE B-*104,CHARCOAL GRAY,TRIM1# |
1 | ||
| 79013-36370B0 |
BZB40,50,XZB4#,50,56..DX,LX ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1#,NO.1 |
2 | ||
| 79013-36620 |
BZB40,50,XZB4#,50,56..DX,GX,LX NO.2 |
2 | ||
| 79035A - PAD SUB-ASSY, NO.3 SEAT CUSHION, RH | ||||
| 79035-36010 |
BB4#,55,HZB40,5#..(09S,26S,29S)..(DX,LX,STD) |
1 | ||
| 79035-36150 |
BZB40,50,XZB4#,5#..09S,26S,29S |
1 | ||
| 79037A - PAD SUB-ASSY, NO.3 SEAT BACK, RH | ||||
| 79037-36020 |
BB46..WC;BB40,HZB40,5#..DX,LX |
1 | ||
| 79017-36170 |
BZB40,50,XZB4#,50,56..DX,GX,LX |
2 | ||
| 79041 - COVER SUB-ASSY, NO.4 SEAT CUSHION, RH | ||||
| 79021-36520K0 |
XZB40..IV5 ｼ-ﾄ = TYPE C-*104,PURPLE,TRIM1# |
1 | ||
| 79021-36392K2 |
XZB40..6FC..IV5;BZB40,50,XZB50..GX,LX;XZB40,51..(26S,29S)..WC..CBU ｼ-ﾄ = TYPE C OR TYPE D-*104,PURPLE,TRIM1# |
1 | ||
| 79021-36530B0 |
BZB40,50,XZB40,50..DX,LX ｼ-ﾄ = TYPE B-*104,CHARCOAL GRAY,TRIM1# |
1 | ||
| 79021-36103B6 |
XZB40..LX..CBU;XZB40..6FC..IV5;BZB40,50,XZB50..LX ｼ-ﾄ = TYPE B-*104,CHARCOAL GRAY,TRIM1# |
1 | ||
| 79043 - COVER SUB-ASSY, NO.4 SEAT BACK, RH | ||||
| 79013-36050E3 |
HZB40..LX..CBU;BB40,5#,HDB50,HZB50..DX,GX,LX ﾊｲﾊﾞﾂｸ ﾊ-ﾌﾆﾂﾄ ﾘﾔ-ｼ-ﾄ,GREIGE,TRIM4# |
1 | ||
| 79013-36163K2 |
BZB40,50,XZB40,50..LX ｼ-ﾄ = TYPE D-*104,PURPLE,TRIM1# |
2 | ||
| 79014-36113B5 |
BZB40,50,XZB40,50..DX,LX ｼ-ﾄ = TYPE B-*104,CHARCOAL GRAY,TRIM1# |
1 | ||
| 79013-36370B0 |
BZB40,50,XZB40,50..DX,LX ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1#,NO.1 |
2 | ||
| 79013-36390K0 |
XZB40..IV5 PURPLE,TRIM1#,NO.1 |
2 | ||
| 79013-36620 |
BZB40,50,XZB40,50..26S,29S NO.2 |
2 | ||
| 79043 - COVER SUB-ASSY, NO.4 SEAT BACK, RH | ||||
| 79013-36050E3 |
HZB40..LX..CBU;BB40,5#,HDB50,HZB50..DX,GX,LX ﾊｲﾊﾞﾂｸ ﾊ-ﾌﾆﾂﾄ ﾘﾔ-ｼ-ﾄ,GREIGE,TRIM4# |
1 | ||
| 79013-36163K2 |
BZB40,50,XZB40,50..LX ｼ-ﾄ = TYPE D-*104,PURPLE,TRIM1# |
2 | ||
| 79014-36113B5 |
BZB40,50,XZB40,50..DX,LX ｼ-ﾄ = TYPE B-*104,CHARCOAL GRAY,TRIM1# |
1 | ||
| 79013-36370B0 |
BZB40,50,XZB40,50..DX,LX ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1#,NO.1 |
2 | ||
| 79013-36390K0 |
XZB40..IV5 PURPLE,TRIM1#,NO.1 |
2 | ||
| 79013-36620 |
BZB40,50,XZB40,50..26S,29S NO.2 |
2 | ||
| 79043 - COVER SUB-ASSY, NO.4 SEAT BACK, RH | ||||
| 79013-36050E3 |
HZB40..LX..CBU;BB40,5#,HDB50,HZB50..DX,GX,LX ﾊｲﾊﾞﾂｸ ﾊ-ﾌﾆﾂﾄ ﾘﾔ-ｼ-ﾄ,GREIGE,TRIM4# |
1 | ||
| 79013-36163K2 |
BZB40,50,XZB40,50..LX ｼ-ﾄ = TYPE D-*104,PURPLE,TRIM1# |
2 | ||
| 79014-36113B5 |
BZB40,50,XZB40,50..DX,LX ｼ-ﾄ = TYPE B-*104,CHARCOAL GRAY,TRIM1# |
1 | ||
| 79013-36370B0 |
BZB40,50,XZB40,50..DX,LX ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1#,NO.1 |
2 | ||
| 79013-36390K0 |
XZB40..IV5 PURPLE,TRIM1#,NO.1 |
2 | ||
| 79013-36620 |
BZB40,50,XZB40,50..26S,29S NO.2 |
2 | ||
| 79045A - PAD SUB-ASSY, NO.4 SEAT CUSHION, RH | ||||
| 79035-36150 |
BZB40,50,XZB40,50,51..26S,29S |
1 | ||
| 79047A - PAD SUB-ASSY, NO.4 SEAT BACK, RH | ||||
| 79017-36170 |
BZB40,50,XZB40,50..26S,29S |
2 | ||
| 79061 - COVER SUB-ASSY, NO.6 SEAT CUSHION, RH | ||||
| 79021-36392K2 |
XZB40..6FC..IV5;BZB40,50,XZB50..GX,LX;XZB40,51..(26S,29S)..WC..CBU ｼ-ﾄ = TYPE C OR TYPE D-*104,PURPLE,TRIM1# |
1 | ||
| 79021-36103B6 |
XZB40..6FC..IV5;BZB40,50,XZB50..LX;XZB40..(DX,LX)..CBU ｼ-ﾄ = TYPE B-*104,CHARCOAL GRAY,TRIM1# |
1 | ||
| 79021-36520K0 |
XZB40..IV5 ｼ-ﾄ = TYPE C-*104,PURPLE,TRIM1# |
1 | ||
| 79021-36590B0 |
BZB40,XZB40..DX,LX ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 79063 - COVER SUB-ASSY, NO.6 SEAT BACK, RH | ||||
| 79013-36163K2 |
BZB40,50,XZB40,50..LX ｼ-ﾄ = TYPE D-*104,PURPLE,TRIM1# |
2 | ||
| 79014-36113B5 |
BZB40,50,XZB40,50..DX,LX ｼ-ﾄ = TYPE B-*104,CHARCOAL GRAY,TRIM1# |
1 | ||
| 79013-36390K0 |
XZB40..IV5 PURPLE,TRIM1#,NO.1 |
2 | ||
| 79013-36370B0 |
BZB40,50,XZB40,50..DX,LX ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1#,NO.1 |
2 | ||
| 79013-36620 |
BZB40,50,XZB40,50..26S,29S NO.2 |
2 | ||
| 79063 - COVER SUB-ASSY, NO.6 SEAT BACK, RH | ||||
| 79013-36163K2 |
BZB40,50,XZB40,50..LX ｼ-ﾄ = TYPE D-*104,PURPLE,TRIM1# |
2 | ||
| 79014-36113B5 |
BZB40,50,XZB40,50..DX,LX ｼ-ﾄ = TYPE B-*104,CHARCOAL GRAY,TRIM1# |
1 | ||
| 79013-36390K0 |
XZB40..IV5 PURPLE,TRIM1#,NO.1 |
2 | ||
| 79013-36370B0 |
BZB40,50,XZB40,50..DX,LX ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1#,NO.1 |
2 | ||
| 79013-36620 |
BZB40,50,XZB40,50..26S,29S NO.2 |
2 | ||
| 79063 - COVER SUB-ASSY, NO.6 SEAT BACK, RH | ||||
| 79013-36163K2 |
BZB40,50,XZB40,50..LX ｼ-ﾄ = TYPE D-*104,PURPLE,TRIM1# |
2 | ||
| 79014-36113B5 |
BZB40,50,XZB40,50..DX,LX ｼ-ﾄ = TYPE B-*104,CHARCOAL GRAY,TRIM1# |
1 | ||
| 79013-36390K0 |
XZB40..IV5 PURPLE,TRIM1#,NO.1 |
2 | ||
| 79013-36370B0 |
BZB40,50,XZB40,50..DX,LX ｼ-ﾄ = TYPE B-*104,MD.CHARCOAL,TRIM1#,NO.1 |
2 | ||
| 79013-36620 |
BZB40,50,XZB40,50..26S,29S NO.2 |
2 | ||
| 79065A - PAD SUB-ASSY, NO.6 SEAT CUSHION, RH | ||||
| 79035-36150 |
BZB40,50,XZB40,50,51..26S,29S |
1 | ||
| 79067A - PAD SUB-ASSY, NO.6 SEAT BACK, RH | ||||
| 79017-36170 |
BZB40,50,XZB40,50..26S,29S |
2 | ||
| 79201B - FRAME SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79101-36300B0 |
BZB40,50,XZB4#,5#..09S,26S,29S MD.CHARCOAL,TRIM1# |
1 | ||
| 79203A - FRAME SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79103-36020 |
BB46..WC;BB40,HZB40,5#..DX,LX |
1 | ||
| 79104-36090 |
XZB40,50..IV5 ｱﾘ(ｶﾂﾌﾟﾎﾙﾀﾞ),左側 |
1 | ||
| 79103-36090 |
XZB40,50..IV5 ｱﾘ(ｶﾂﾌﾟﾎﾙﾀﾞ & ﾘｸﾗｲﾆﾝｸﾞ ﾘﾔ ｼ-ﾄ),右側 |
1 | ||
| 79103-36100 |
XZB40,50..IV5 ｱﾘ(ｶﾂﾌﾟﾎﾙﾀﾞ) |
1 | ||
| 79103-36210 |
BZB40,50,XZB4#,50,56..DX,GX,LX 内側 |
1 | ||
| 79205B - LEG SUB-ASSY, NO.2 SEAT, RH | ||||
| 79505-36010E0 |
BB4#,HDB5#,HZB4#,5#..09S,26S,29S ｼ-ﾄ = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79305-36140C0 |
XZB4#,50,56..LX BLACK,TRIM10 |
1 | ||
| 79305-36140B0 |
XZB4#,50,56..LX MD.CHARCOAL,TRIM10 |
1 | ||
| 79301B - FRAME SUB-ASSY, NO.3 SEAT CUSHION, RH | ||||
| 79101-36030E0 |
HDB51,HZB40..(EX,LX)..CBU;BB40,5#,HDB50,HZB41,50..DX,EX,GX,LX ｱﾘ(*RRS),GREIGE,TRIM4# |
1 | ||
| 79101-36310B0 |
BZB40,50,XZB4#,5#..09S,26S,29S MD.CHARCOAL,TRIM1# |
1 | ||
| 79303A - FRAME SUB-ASSY, NO.3 SEAT BACK, RH | ||||
| 79103-36020 |
BB46..WC;BB40,HZB40,5#..DX,LX |
1 | ||
| 79103-36090 |
XZB40,50..IV5 ｱﾘ(ｶﾂﾌﾟﾎﾙﾀﾞ),右側 |
1 | ||
| 79104-36090 |
XZB40,50..IV5 ｱﾘ(ｶﾂﾌﾟﾎﾙﾀﾞ),左側 |
1 | ||
| 79103-36100 |
XZB40,50..IV5 ｺﾃｲ ｼ-ﾄ & ｱﾘ(ｶﾂﾌﾟﾎﾙﾀﾞ) |
1 | ||
| 79103-36210 |
BZB40,50,XZB4#,50,56..DX,GX,LX |
2 | ||
| 79305A - LEG SUB-ASSY, NO.3 SEAT, RH | ||||
| 79305-36010E0 |
BB4#,HDB5#,HZB4#,5#..09S,26S,29S ｼ-ﾄ = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79305-36150C0 |
BZB40,50,XZB4#,50,56..LX BLACK,TRIM10 |
1 | ||
| 79305-36150B0 |
BZB40,50,XZB4#,50,56..LX MD.CHARCOAL,TRIM10 |
1 | ||
| 79401 - FRAME SUB-ASSY, NO.4 SEAT CUSHION, RH | ||||
| 79101-36310B0 |
BZB40,50,XZB40,50,51..26S,29S MD.CHARCOAL,TRIM1# |
1 | ||
| 79403A - FRAME SUB-ASSY, NO.4 SEAT BACK, RH | ||||
| 79103-36100 |
XZB40,50..IV5 ｺﾃｲ ｼ-ﾄ & ｱﾘ(ｶﾂﾌﾟﾎﾙﾀﾞ) |
1 | ||
| 79103-36090 |
XZB40,50..IV5 ｱﾘ(ｶﾂﾌﾟﾎﾙﾀﾞ),右側 |
1 | ||
| 79103-36210 |
BZB40,50,XZB40,50..26S,29S |
2 | ||
| 79104-36090 |
XZB40,50..IV5 ｱﾘ(ｶﾂﾌﾟﾎﾙﾀﾞ),左側 |
1 | ||
| 79405A - LEG SUB-ASSY, NO.4 SEAT, RH | ||||
| 79305-36150B0 |
BZB40,50,XZB40,50..LX MD.CHARCOAL,TRIM10 |
1 | ||
| 79305-36150C0 |
BZB40,50,XZB40,50..LX BLACK,TRIM10 |
1 | ||
| 79601 - FRAME SUB-ASSY, NO.6 SEAT CUSHION, RH | ||||
| 79101-36320B0 |
XZB51..29S;BZB40,50,XZB40,50..26S,29S MD.CHARCOAL,TRIM1# |
1 | ||
| 79603 - FRAME SUB-ASSY, NO.6 SEAT BACK, RH | ||||
| 79104-36090 |
XZB40,50..IV5 ｱﾘ(ｶﾂﾌﾟﾎﾙﾀﾞ),左側 |
1 | ||
| 79103-36090 |
XZB40,50..IV5 ｱﾘ(ｶﾂﾌﾟﾎﾙﾀﾞ),右側 |
1 | ||
| 79103-36210 |
BZB40,50,XZB40,50..26S,29S |
2 | ||
| 79103-36100 |
XZB40,50..IV5 ｺﾃｲ ｼ-ﾄ & ｱﾘ(ｶﾂﾌﾟﾎﾙﾀﾞ) |
1 | ||
| 79605 - LEG SUB-ASSY, NO.6 SEAT, RH | ||||
| 79605-36010E0 |
HZB40..LX..CBU;BB40,5#,HDB50,HZB41,50..26S,29S ｱﾘ(ｻﾌﾞｼ-ﾄ);ｼ-ﾄ = TYPE A OR TYPE B-*104,GREIGE,TRIM4# |
1 | ||
| 79305-36160C0 |
BZB40,50,XZB40,50..LX BLACK,TRIM10 |
1 | ||
| 79305-36160B0 |
BZB40,50,XZB40,50..LX MD.CHARCOAL,TRIM10 |
1 | ||
| Common parts | ||||
| 71695-36030 | ||||
| 90109-08227 | ||||
| 90109-08228 | ||||
| 90119-08873 | ||||
| 90119-08944 | ||||
| 90959-03016 | ||||
| 91672-81030 | ||||
| Linked diagrams | ||||
| 7152 | ||||

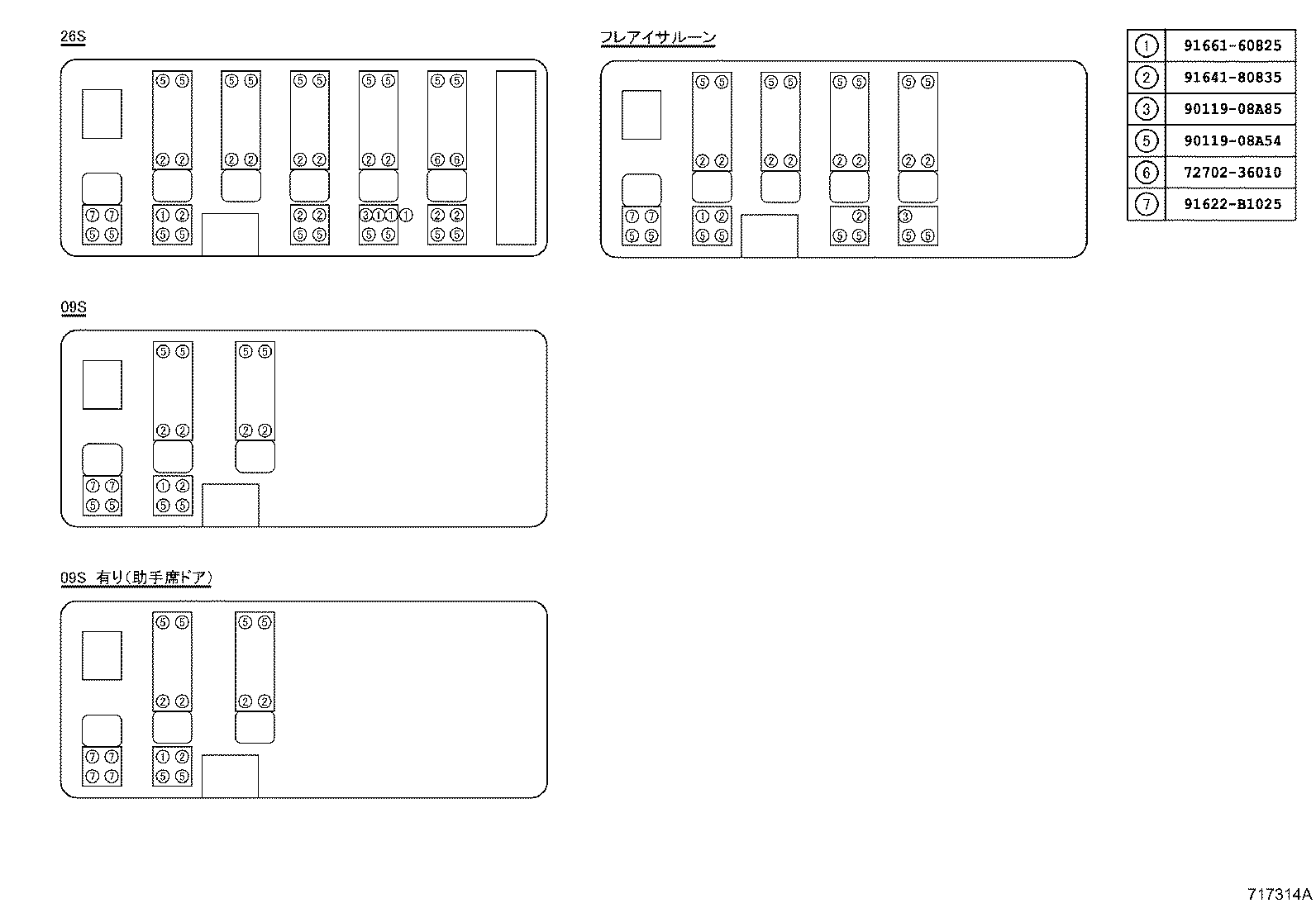

(1108-1501)BZB40,XZB4#..09S,26S
ﾘﾔｼｰﾄﾄﾘﾂｹﾖｳﾌﾞﾋﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 72702-36010 | ||||
| 90119-08A54 | ||||
| 90119-08A85 | ||||
| 91622-B1025 | ||||
| 91641-80835 | ||||
| 91661-60825 | ||||

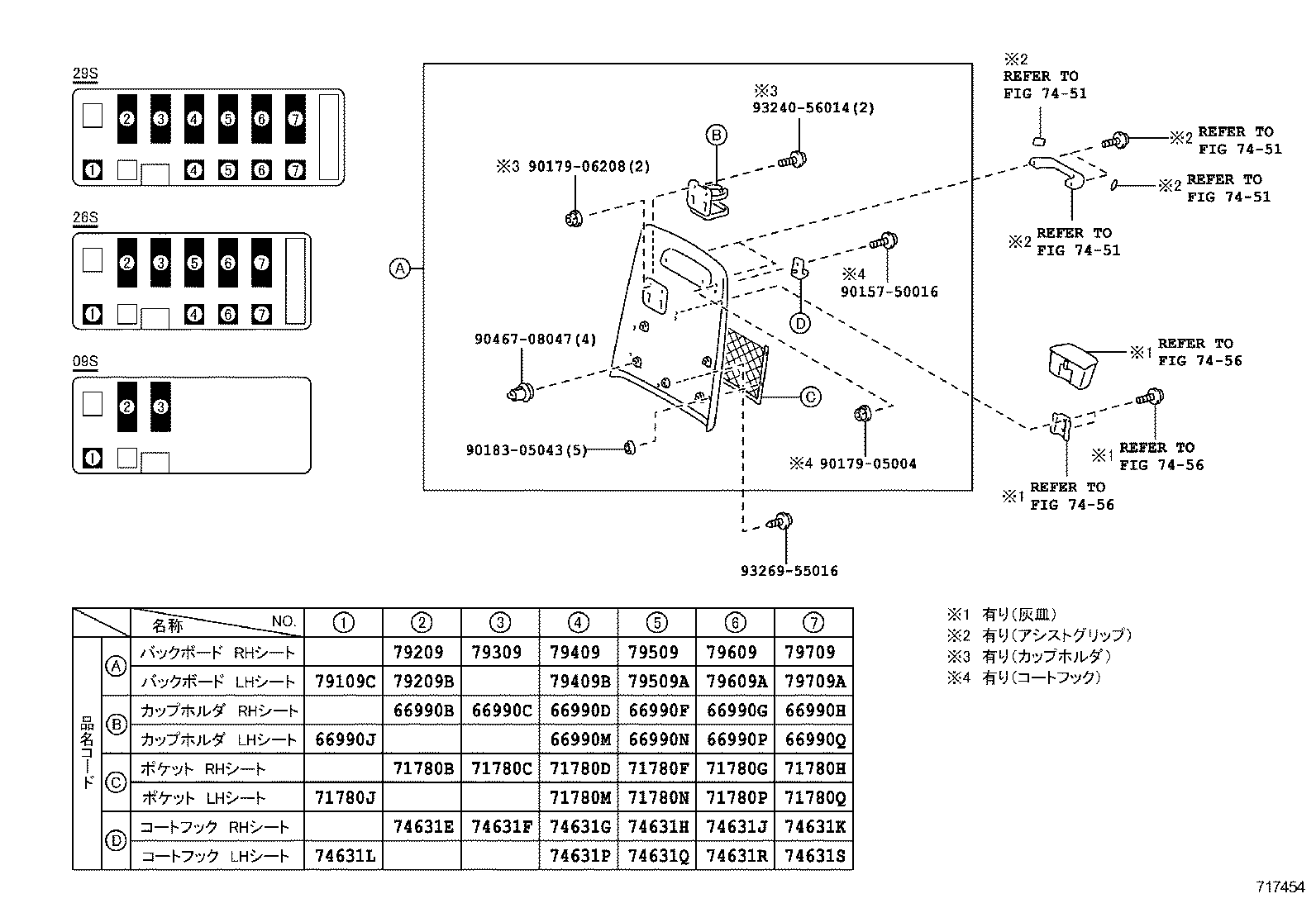

ILLUST NO. 2 OF 2(1108-1501)09S,26S,29S
ﾘﾔｼｰﾄ ﾊﾞｯｸﾎﾞｰﾄﾞ NO.1-NO.7
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 66990B - HOLDER ASSY, CUP, NO.2 RH | ||||
| 66990-36020B0 |
XZB40,50..IV5 MD.CHARCOAL,TRIM1# |
2 | ||
| 66990C - HOLDER ASSY, CUP, NO.3 RH | ||||
| 66990-36020B0 |
XZB40,50..IV5 MD.CHARCOAL,TRIM1# |
2 | ||
| 66990D - HOLDER ASSY, CUP, NO.4 RH | ||||
| 66990-36020B0 |
XZB40,50..IV5 MD.CHARCOAL,TRIM1# |
2 | ||
| 66990G - HOLDER ASSY, CUP, NO.6 RH | ||||
| 66990-36020B0 |
XZB40,50..IV5 MD.CHARCOAL,TRIM1# |
2 | ||
| 66990J - HOLDER ASSY, CUP, NO.1 LH | ||||
| 66990-36020B0 |
XZB40,50..IV5 MD.CHARCOAL,TRIM1# |
1 | ||
| 66990M - HOLDER ASSY, CUP, NO.4 LH | ||||
| 66990-36020B0 |
XZB40,50..IV5 MD.CHARCOAL,TRIM1# |
1 | ||
| 66990P - HOLDER ASSY, CUP, NO.6 LH | ||||
| 66990-36020B0 |
XZB40,50..IV5 MD.CHARCOAL,TRIM1# |
1 | ||
| Common parts | ||||
| 90157-50016 | ||||
| 90179-05004 | ||||
| 90179-06208 | ||||
| 90183-05043 | ||||
| 90467-08047 | ||||
| 93240-56014 | ||||
| 93269-55016 | ||||
| Linked diagrams | ||||
| 7451 | ||||
| 7456 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
