XZB40-ZRTNY5 (2007)

Toyota Coaster

Production Aug 2007 - Jan 2015
Engine N04C
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

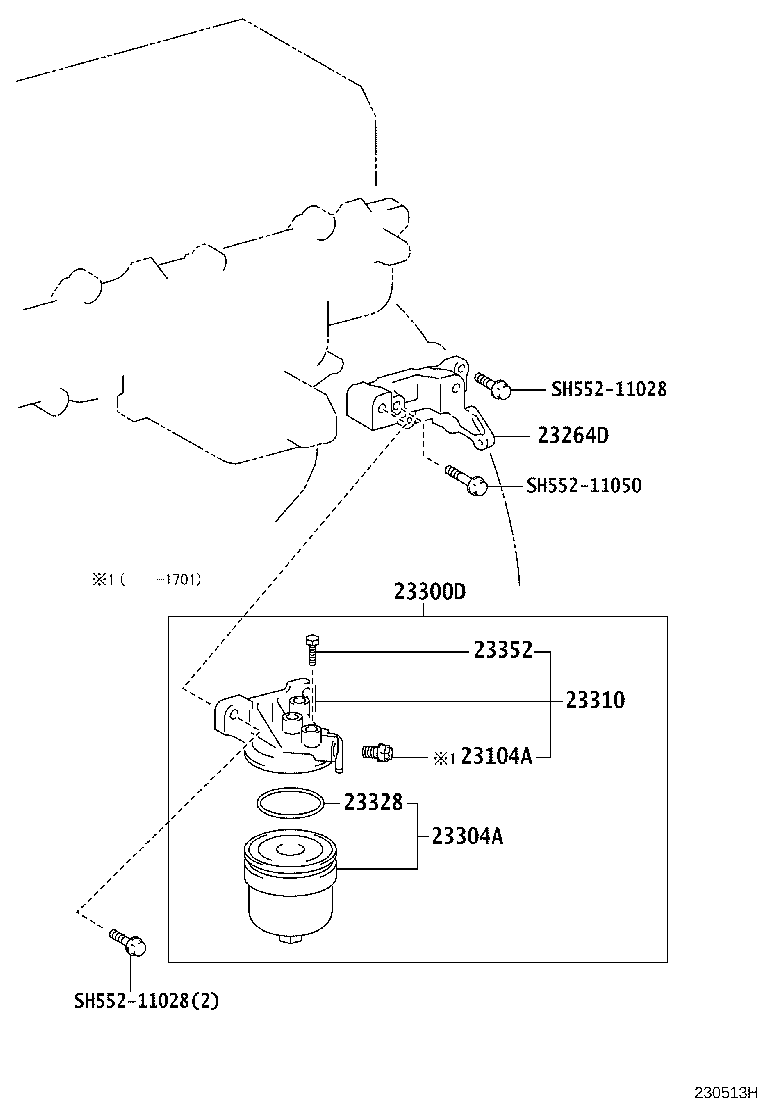

ILLUST NO. 2 OF 2(1108- )N04C

Click highlighted areas on diagram

ｴﾝｼﾞﾝ ｻｲﾄﾞ

diagram 23104A 23264D 23300D 23304A 23310 23328 23352 SH55211028 SH55211028 SH55211050
Part # Description Qty Price
23104A - VALVE SUB-ASSY
23104-EV010

N04C..XZB4#,5#

 1
23264D - BRACKET, FUEL FILTER
23264-78081

N04C..XZB4#,5#

 1
23300D - FILTER ASSY, FUEL(FOR DIESEL)
23300-E0382

N04C..XZB4#,5#

 1
23300-E0570

N04C..XZB4#,5#

 1
23300-E0381

N04C..XZB4#,5#

 1
23304A - ELEMENT SET, FUEL FILTER
23304-EV280

N04C..XZB4#,5#

 1
23310 - BODY, FUEL FILTER, UPPER
23310-EV091

N04C..XZB4#,5#

 1
23310-EV090

N04C..XZB4#,5#

 1
23328 - GASKET(FOR FUEL FILTER)
23385-E0020

N04C..XZB4#,5#

 1
23352 - PLUG, BLEEDER
S2331-61040

N04C..XZB4#,5#

 1
Common parts
SH552-11028
SH552-11050
