XZB40-ZRTNY5 (2007)

Toyota Coaster

Production Aug 2007 - Jan 2015
Engine N04C
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

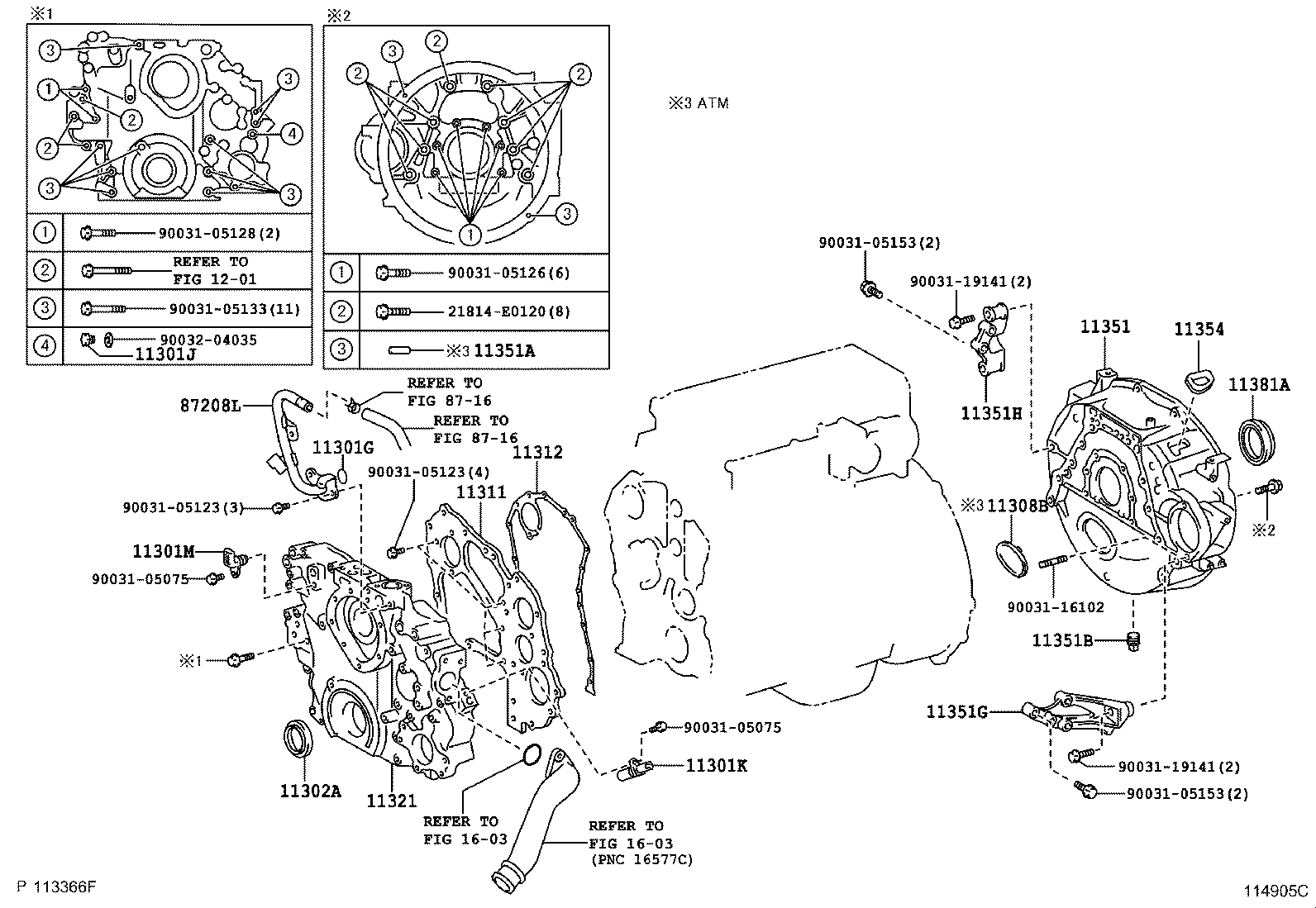

(0708-1108)N04C

Click highlighted areas on diagram

diagram 11301G 11301J 11301K 11301M 11302A 11308B 11311 11312 11321 11351 11351A 11351B 11351G 11351H 11354 11381A 1201 1603 1603 21814E0120 8716 8716 87208L 9003105075 9003105075 9003105123 9003105123 9003105126 9003105128 9003105133 9003105153 9003105153 9003116102 9003119141 9003119141 9003204035
Part # Description Qty Price
11301G - RING, O(FOR TIMING GEAR CASE, UPPER)
90033-01105

N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5;N04C..XZB40,51..(26S,29S,39S)..CBU

 1
11301K - SENSOR, CRANK POSITION
89411-E0040

N04C..XZB4#,5#

 1
11301M - SENSOR, CAM POSITION
S8941-01570

N04C..XZB4#,5#

 1
11308B - COVER(FOR FLYWHEEL HOUSING)
S1136-11570

N04C..XZB4#,5#..6FC

 1
11311 - PLATE, FRONT END
S1140-51090

N04C..XZB4#,5#..DX,EX,GX,LX,STD

 1
11312 - GASKET, FRONT END PLATE
S1131-21170

N04C..XZB4#,5#..DX,EX,GX,LX,STD

 1
11321 - CASE, TIMING GEAR
11310-78070

N04C..XZB4#,5#

 1
11310-E0150

N04C..XZB4#,5#

 1
11310-78071

N04C..XZB4#,5#..DX,EX,GX,LX,STD

 1
11310-78012

N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5

*197

 1
11310-E0151

N04C..XZB4#,5#

 1
11351 - HOUSING, FLYWHEEL
11351-E0G92

N04C..XZB4#,5#..6FC

 1
11351-E0A50

N04C..XZB4#,5#..6FC

 1
11351-E0G93

N04C..XZB4#,5#..6FC

 1
11351G - STAY, LH(FOR FLYWHEEL HOUSING)
11353-E0060

N04C..XZB4#,5#..DX,EX,GX,LX,STD

 1
11351H - STAY, RH(FOR FLYWHEEL HOUSING)
S1135-62030

N04C..XZB4#,5#..DX,EX,GX,LX,STD

 1
11354 - SEAL, FLYWHEEL HOUSING DUST
11354-E0060

N04C..XZB4#,5#..DX,EX,GX,LX,STD

 1
87208L - PIPE SUB-ASSY, WATER
16206-E0100

XZB4#,5#..DX,EX,GX,LX,STD

 1
Common parts
21814-E0120
90031-05075
90031-05123
90031-05126
90031-05128
90031-05133
90031-05153
90031-16102
90031-19141
90032-04035
Linked diagrams
1201
1603
8716

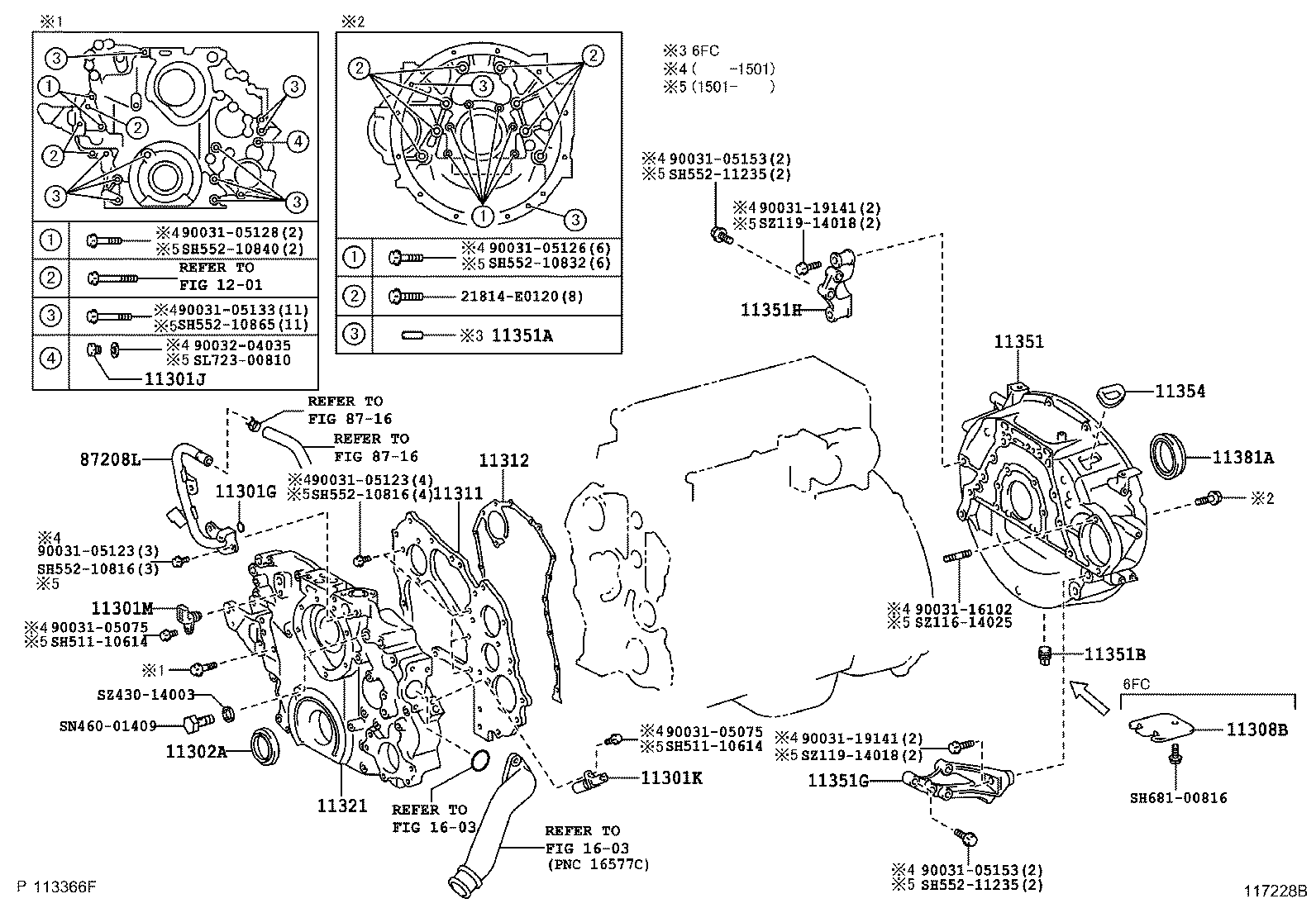

(1108- )N04C

Click highlighted areas on diagram

diagram 11301G 11301J 11301K 11301M 11302A 11308B 11311 11312 11321 11351 11351A 11351B 11351G 11351H 11354 11381A 1201 1603 1603 21814E0120 8716 8716 87208L 9003105075 9003105075 9003105123 9003105123 9003105126 9003105128 9003105133 9003105153 9003105153 9003116102 9003119141 9003119141 9003204035 SH51110614 SH51110614 SH55210816 SH55210816 SH55210832 SH55210840 SH55210865 SH55211235 SH55211235 SH68100816 SL72300810 SN46001409 SZ11614025 SZ11914018 SZ11914018 SZ43014003
Part # Description Qty Price
11301G - RING, O(FOR TIMING GEAR CASE, UPPER)
90033-01105

N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5;N04C..XZB40,51..(26S,29S,39S)..CBU

 1
11301K - SENSOR, CRANK POSITION
89411-E0040

N04C..XZB4#,5#

 1
11301M - SENSOR, CAM POSITION
S8941-01570

N04C..XZB4#,5#

 1
11308B - COVER(FOR FLYWHEEL HOUSING)
S1136-11570

N04C..XZB4#,5#..6FC

 1
11311 - PLATE, FRONT END
S1140-51090

N04C..XZB4#,5#..DX,EX,GX,LX,STD

 1
11312 - GASKET, FRONT END PLATE
S1131-21170

N04C..XZB4#,5#..DX,EX,GX,LX,STD

 1
11321 - CASE, TIMING GEAR
11310-78070

N04C..XZB4#,5#

 1
11310-E0150

N04C..XZB4#,5#

 1
11310-78071

N04C..XZB4#,5#..DX,EX,GX,LX,STD

 1
11310-78012

N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5

*197

 1
11310-E0151

N04C..XZB4#,5#

 1
11351 - HOUSING, FLYWHEEL
11351-E0G92

N04C..XZB4#,5#..6FC

 1
11351-E0A50

N04C..XZB4#,5#..6FC

 1
11351-E0G93

N04C..XZB4#,5#..6FC

 1
11351G - STAY, LH(FOR FLYWHEEL HOUSING)
11353-E0060

N04C..XZB4#,5#..DX,EX,GX,LX,STD

 1
11351H - STAY, RH(FOR FLYWHEEL HOUSING)
S1135-62030

N04C..XZB4#,5#..DX,EX,GX,LX,STD

 1
11354 - SEAL, FLYWHEEL HOUSING DUST
11354-E0060

N04C..XZB4#,5#..DX,EX,GX,LX,STD

 1
87208L - PIPE SUB-ASSY, WATER
16206-E0100

XZB4#,5#..DX,EX,GX,LX,STD

 1
Common parts
21814-E0120
90031-05075
90031-05123
90031-05126
90031-05128
90031-05133
90031-05153
90031-16102
90031-19141
90032-04035
SH511-10614
SH552-10816
SH552-10832
SH552-10840
SH552-10865
SH552-11235
SH681-00816
SL723-00810
SN460-01409
SZ116-14025
SZ119-14018
SZ430-14003
Linked diagrams
1201
1603
8716
