XZB40-ZRTNY (2007)

Toyota Coaster

Production Aug 2007 - Dec 2016
Engine N04C
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

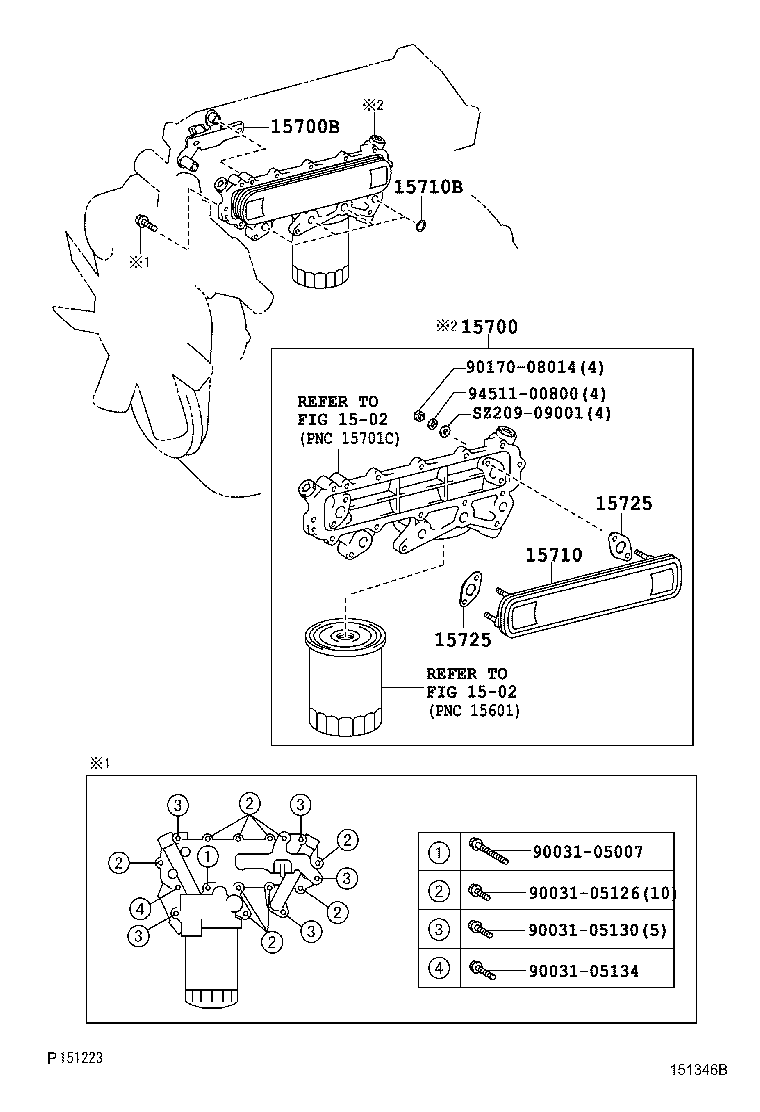

(0708-1108)N04C

Click highlighted areas on diagram

diagram 1502 1502 15700 15700B 15710 15710B 15725 15725 9003105007 9003105126 9003105130 9003105134 9017008014 9451100800 SZ20909001
Part # Description Qty Price
15700 - COOLER ASSY, OIL W/BRACKET
15700-78173

N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5

 1
15700-78172

N04C..XZB4#,5#

 1
15700-E0023

N04C..XZB4#,5#..DCR

 1
15700-78171

N04C..XZB4#,5#

 1
15700-E0023

N04C..XZB4#,5#..DCR

 1
15700-78170

N04C..XZB4#,5#

*197

 1
15700B - BRACKET(FOR OIL COOLER)
16269-78030

N04C..XZB4#,5#

 1
16269-78030

N04C..XZB4#,5#

 1
23211-78401

N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5

*197

 1
15710 - COOLER ASSY, OIL
15710-78060

N04C..XZB4#,5#

*197

 1
S1571-22260

N04C..XZB4#,5#..DCR

 1
15710-78060

N04C..XZB50..WC..DCR;N04C..XZB40..6FC..IV5;N04C..XZB4#,51,56..DCR..CBU

 1
S1571-22260

N04C..XZB4#,5#..DCR

 1
15710B - RING, O(FOR OIL COOLER)
90033-01101

N04C..XZB4#,5#

無し(PNC 15710C)

 4
SZ301-19018

N04C..XZB4#,5#

有り(PNC 15710C)

 4
SZ301-19018

N04C..XZB4#,5#

 4
15725 - GASKET, OIL COOLER COVER
15785-EV010

N04C..XZB4#,5#

 2
S1571-71270

N04C..XZB4#,5#..DX,EX,GX,LX,STD

 2
15785-EV010

N04C..XZB4#,5#

 2
15725 - GASKET, OIL COOLER COVER
15785-EV010

N04C..XZB4#,5#

 2
S1571-71270

N04C..XZB4#,5#..DX,EX,GX,LX,STD

 2
15785-EV010

N04C..XZB4#,5#

 2
Common parts
90031-05007
90031-05126
90031-05130
90031-05134
90170-08014
94511-00800
SZ209-09001
Linked diagrams
1502

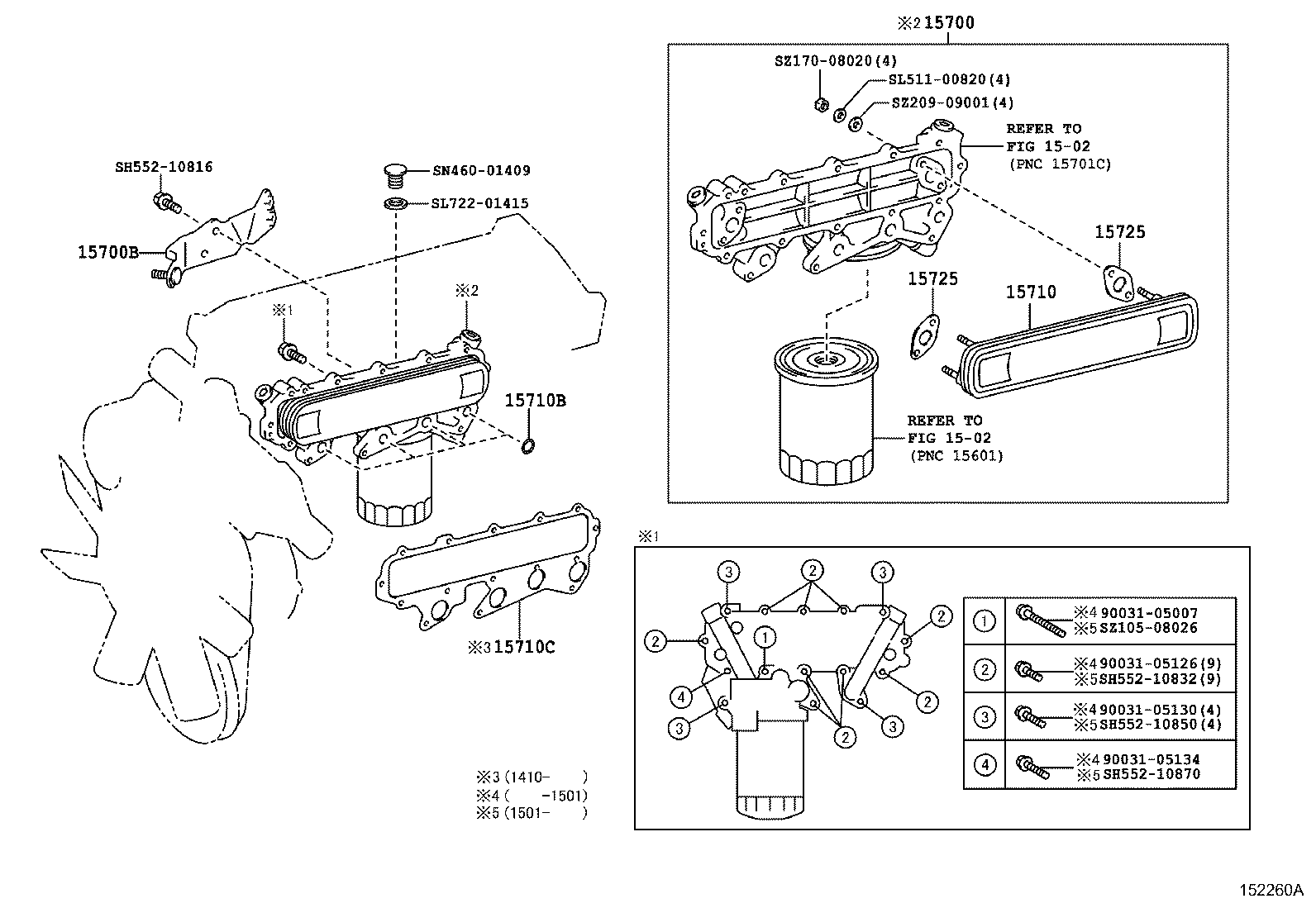

(1108-1605)N04C

Click highlighted areas on diagram

diagram 1502 1502 15700 15700B 15710 15710B 15710C 15725 15725 9003105007 9003105126 9003105130 9003105134 SH55210816 SH55210832 SH55210850 SH55210870 SL51100820 SL72201415 SN46001409 SZ10508026 SZ17008020 SZ20909001
Part # Description Qty Price
15700 - COOLER ASSY, OIL W/BRACKET
15700-78173

N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5

 1
15700-78172

N04C..XZB4#,5#

 1
15700-E0023

N04C..XZB4#,5#..DCR

 1
15700-78171

N04C..XZB4#,5#

 1
15700-E0023

N04C..XZB4#,5#..DCR

 1
15700-78170

N04C..XZB4#,5#

*197

 1
15700B - BRACKET(FOR OIL COOLER)
16269-78030

N04C..XZB4#,5#

 1
16269-78030

N04C..XZB4#,5#

 1
23211-78401

N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5

*197

 1
15710 - COOLER ASSY, OIL
15710-78060

N04C..XZB4#,5#

*197

 1
S1571-22260

N04C..XZB4#,5#..DCR

 1
15710-78060

N04C..XZB50..WC..DCR;N04C..XZB40..6FC..IV5;N04C..XZB4#,51,56..DCR..CBU

 1
S1571-22260

N04C..XZB4#,5#..DCR

 1
15710B - RING, O(FOR OIL COOLER)
90033-01101

N04C..XZB4#,5#

無し(PNC 15710C)

 4
SZ301-19018

N04C..XZB4#,5#

有り(PNC 15710C)

 4
SZ301-19018

N04C..XZB4#,5#

 4
15710C - GASKET(FOR OIL COOLER)
15725-E0020

N04C..XZB4#,5#

 1
15725-E0020

N04C..XZB4#,5#

 1
15725 - GASKET, OIL COOLER COVER
15785-EV010

N04C..XZB4#,5#

 2
S1571-71270

N04C..XZB4#,5#..DX,EX,GX,LX,STD

 2
15785-EV010

N04C..XZB4#,5#

 2
15725 - GASKET, OIL COOLER COVER
15785-EV010

N04C..XZB4#,5#

 2
S1571-71270

N04C..XZB4#,5#..DX,EX,GX,LX,STD

 2
15785-EV010

N04C..XZB4#,5#

 2
Common parts
90031-05007
90031-05126
90031-05130
90031-05134
SH552-10816
SH552-10832
SH552-10850
SH552-10870
SL511-00820
SL722-01415
SN460-01409
SZ105-08026
SZ170-08020
SZ209-09001
Linked diagrams
1502

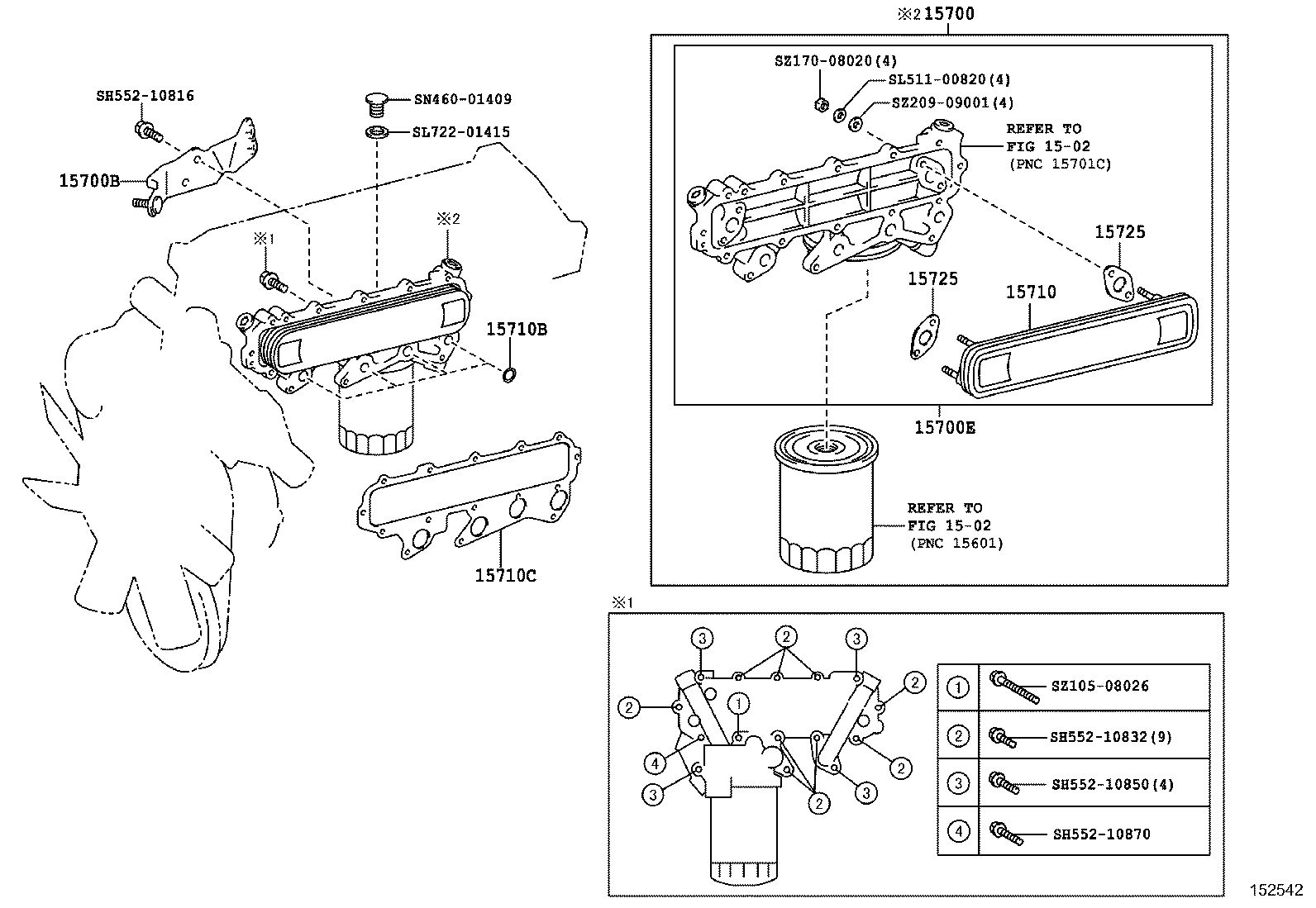

(1605- )N04C

Click highlighted areas on diagram

diagram 1502 1502 15700 15700B 15700E 15710 15710B 15710C 15725 15725 SH55210816 SH55210832 SH55210850 SH55210870 SL51100820 SL72201415 SN46001409 SZ10508026 SZ17008020 SZ20909001
Part # Description Qty Price
15700 - COOLER ASSY, OIL W/BRACKET
15700-78173

N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5

 1
15700-78172

N04C..XZB4#,5#

 1
15700-E0023

N04C..XZB4#,5#..DCR

 1
15700-78171

N04C..XZB4#,5#

 1
15700-E0023

N04C..XZB4#,5#..DCR

 1
15700-78170

N04C..XZB4#,5#

*197

 1
15700B - BRACKET(FOR OIL COOLER)
16269-78030

N04C..XZB4#,5#

 1
16269-78030

N04C..XZB4#,5#

 1
23211-78401

N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5

*197

 1
15700E - COOLER SUB-ASSY, OIL, W/O OIL FILTER
S1570-EV030

N04C..XZB4#,5#..DCR

 1
15710 - COOLER ASSY, OIL
15710-78060

N04C..XZB4#,5#

*197

 1
S1571-22260

N04C..XZB4#,5#..DCR

 1
15710-78060

N04C..XZB50..WC..DCR;N04C..XZB40..6FC..IV5;N04C..XZB4#,51,56..DCR..CBU

 1
S1571-22260

N04C..XZB4#,5#..DCR

 1
15710B - RING, O(FOR OIL COOLER)
90033-01101

N04C..XZB4#,5#

無し(PNC 15710C)

 4
SZ301-19018

N04C..XZB4#,5#

有り(PNC 15710C)

 4
SZ301-19018

N04C..XZB4#,5#

 4
15710C - GASKET(FOR OIL COOLER)
15725-E0020

N04C..XZB4#,5#

 1
15725-E0020

N04C..XZB4#,5#

 1
15725 - GASKET, OIL COOLER COVER
15785-EV010

N04C..XZB4#,5#

 2
S1571-71270

N04C..XZB4#,5#..DX,EX,GX,LX,STD

 2
15785-EV010

N04C..XZB4#,5#

 2
15725 - GASKET, OIL COOLER COVER
15785-EV010

N04C..XZB4#,5#

 2
S1571-71270

N04C..XZB4#,5#..DX,EX,GX,LX,STD

 2
15785-EV010

N04C..XZB4#,5#

 2
Common parts
SH552-10816
SH552-10832
SH552-10850
SH552-10870
SL511-00820
SL722-01415
SN460-01409
SZ105-08026
SZ170-08020
SZ209-09001
Linked diagrams
1502
