XZB40-ZRMEY (2004)

Toyota Coaster

Production Aug 2004 - Dec 2016
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 4(0408- )XZB4#,5#

Click highlighted areas on diagram

diagram 8719 88374B 88375B 88539L 88539M 8856936080 8856936090 8856936100 8856936100 8856936190 8856936260 8856936270 88578D 88578D 88578D 88578D 88711 88712 88715F 88716C 88716C 88716D 88716E 88717A 88718 88720A 88720B 88723B 88897T 9003105107 9011906100 9017906206 9017906206 9017906206 9046310337 9046310337 9046310337 9046310337 9046310337 9046400277 9046719021 9046721152 9046721152 9048001301 9162140616 9162140616 9162140616 91631B0630 9165160616 9165160616 9165160616 91651B0822 91651B0822
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

XZB4#,5#..WC

 1
88374-30010

HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC

 1
88374-30010

BZB40,50,XZB4#,5#

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

BZB40,50,XZB4#,5#

 1
88375-30290

XZB4#,5#..WC

 1
88539L - HOSE, DRAIN COOLER
88539-36150

BB4#,5#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG)..(CBU,IV5)

 1
88539-36150

BZB40,50,XZB4#,5#..HRF

 1
88539-36150

XZB40..6FC..IV5;XZB50..HRF..WC..(5F,6FC);BZB40,50,XZB4#,51,56..HRF..(EX,GX,LX)..(5F,6FC)..CBU

 1
88539M - HOSE, DRAIN COOLER, NO.2
88539-36170

BB4#,5#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG)..(CBU,IV5)

 1
88539-36170

XZB40..6FC..IV5;XZB50..HRF..WC..(5F,6FC);BZB40,50,XZB4#,51,56..HRF..(EX,GX,LX)..(5F,6FC)..CBU

 1
88539-36170

BZB40,50,XZB4#,5#..HRF

 1
88578D - PACKING, COOLER PIPE, NO.1
88578-90B01

BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)

 4
88578-90B01

XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..WC..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU

 4
88578-90B01

BZB40,50,XZB4#,5#

 4
88578D - PACKING, COOLER PIPE, NO.1
88578-90B01

BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)

 4
88578-90B01

XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..WC..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU

 4
88578-90B01

BZB40,50,XZB4#,5#

 4
88578D - PACKING, COOLER PIPE, NO.1
88578-90B01

BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)

 4
88578-90B01

XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..WC..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU

 4
88578-90B01

BZB40,50,XZB4#,5#

 4
88578D - PACKING, COOLER PIPE, NO.1
88578-90B01

BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)

 4
88578-90B01

XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..WC..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU

 4
88578-90B01

BZB40,50,XZB4#,5#

 4
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-36150

HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC

 1
88711-36731

XZB4#,5#..WC

 1
88711-36730

XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..WC..(5F,6FC)..CBU

 1
88711-36732

XZB4#,5#..WC

 1
88711-36732

XZB4#,5#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-36150

HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)

 1
88712-36692

XZB4#,5#

 1
88712-36692

XZB4#,5#..WC

 1
88712-36691

XZB4#,5#..WC

 1
88712-36690

XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..WC..(5F,6FC)..CBU

 1
88715F - PIPE, COOLER REFRIGERANT DISCHARGE, F
88715-36130

BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)

 1
88715-36130

XZB4#,5#

 1
88715-36130

XZB4#,5#..WC

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-36140

BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC

NO.1

 1
88716-36320

XZB4#,5#

NO.1

 1
88716-36320

XZB4#,5#..WC

NO.1

 1
88716-36260

XZB4#,5#

NO.2

 1
88716-36260

XZB4#,5#..WC

NO.2

 1
88716-36260

BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)

NO.2

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-36140

BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC

NO.1

 1
88716-36320

XZB4#,5#

NO.1

 1
88716-36320

XZB4#,5#..WC

NO.1

 1
88716-36260

XZB4#,5#

NO.2

 1
88716-36260

XZB4#,5#..WC

NO.2

 1
88716-36260

BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)

NO.2

 1
88716D - PIPE, COOLER REFRIGERANT LIQUID, D
88716-36150

XZB4#,5#

 1
88716-36150

XZB4#,5#..WC

 1
88716-36150

BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-36220

BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG)..(CBU,IV5)

 1
88716-36220

BZB40,50,XZB4#,5#..HRF..WC

 1
88716-36220

BZB40,50,XZB4#,5#..HRF

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-36110

BB4#,5#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG)..(CBU,IV5)

 1
88717-36110

XZB40..6FC..IV5;XZB50..HRF..WC..(5F,6FC);BZB40,50,XZB4#,51,56..HRF..(EX,GX,LX)..(5F,6FC)..CBU

 1
88717-36110

BZB40,50,XZB4#,5#..HRF

 1
88718 - PIPE, COOLER REFRIGERANT SUCTION, NO.2
88710-36470

XZB4#,5#

 1
88710-36430

XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..WC..(5F,6FC)..CBU

 1
88710-36470

XZB4#,5#..WC

 1
88720A - HOSE & ACCESSORY, AIR CONDITIONER
88720-36111

XZB4#,5#..WC

 1
88720-36111

XZB4#,5#

 1
88720-36110

XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..WC..(5F,6FC)..CBU

 1
88720B - HOSE & ACCESSORY, AIR CONDITIONER
88720-36120

XZB4#,5#

 1
88720-36120

XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(EX,GX,LX,STD)..(5F,6FC)..CBU

 1
88723B - LABEL, COOLER SERVICE CAUTION
88733-36020

BZB40,50,XZB4#,5#

 1
88723-20030

BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)

 1
88733-36020

XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..WC..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU

 1
88897T - GROMMET, COOLER
88897-36040

BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)

 1
88897-36040

XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..WC..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU

 1
88897-36040

BZB40,50,XZB4#,5#

 1
Common parts
88569-36080
88569-36090
88569-36100
88569-36190
88569-36260
88569-36270
90031-05107
90119-06100
90179-06206
90463-10337
90464-00277
90467-19021
90467-21152
90480-01301
91621-40616
91631-B0630
91651-60616
91651-B0822
Linked diagrams
8719

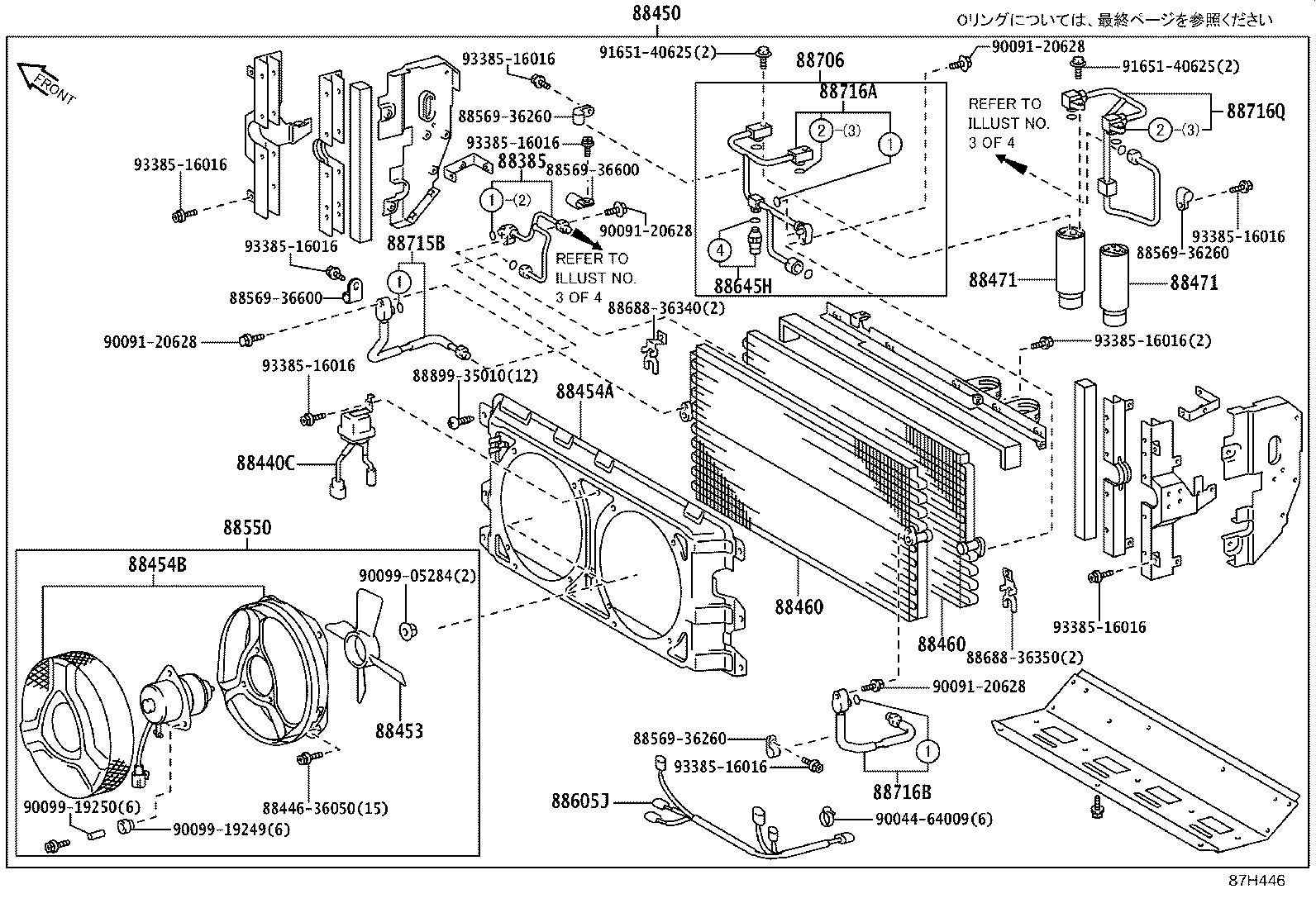

ILLUST NO. 2 OF 4(0408-1501)XZB4#,5#

Click highlighted areas on diagram

diagram 88385 88440C 8844636050 88450 88453 88454A 88454B 88460 88460 88471 88471 88550 8856936260 8856936260 8856936260 8856936600 8856936600 88605J 88645H 8868836340 8868836350 88706 88715B 88716A 88716B 88716Q 8889935010 9004464009 9009120628 9009120628 9009120628 9009120628 9009905284 9009919249 9009919250 9165140625 9165140625 9338516016 9338516016 9338516016 9338516016 9338516016 9338516016 9338516016 9338516016 9338516016
Part # Description Qty Price
88385 - PIPE, COOLER REFRIGERANT DISCHARGE, NO.1
88715-36081

XZB4#,5#..WC

 1
88715-36081

XZB4#,5#

 1
88715-36080

BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC

 1
88440C - RELAY ASSY, COOLER CONDENSER FAN
88440-36160

XZB4#,5#..WC

 1
88440-36160

XZB4#,5#

 1
88440-36160

BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)

 1
88450 - CONDENSER ASSY, W/RECEIVER
88450-36101

BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC

 1
88450-36200

XZB4#,5#..WC

 1
88450-36310

XZB4#,5#

 1
88453 - FAN, COOLING (FOR CONDENSER)
16361-13030

BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5)

 2
16361-13030

BZB40,50,XZB4#,5#

 2
16361-13030

XZB4#,5#..WC

 6
88454A - SHROUD, FAN
88454-36070

BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC

 1
88454-36150

XZB4#,5#

 1
88454-36071

XZB4#,5#..WC

 1
88454B - SHROUD, FAN
88454-36081

XZB4#,5#..WC

 6
88454-36081

XZB4#,5#

 2
88454-36080

BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC

 2
88460 - CONDENSER ASSY, COOLER
88340-36010

BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC

 2
88340-36070

XZB4#,5#..WC

 2
88340-36070

XZB4#,5#

 2
88460 - CONDENSER ASSY, COOLER
88340-36010

BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC

 2
88340-36070

XZB4#,5#..WC

 2
88340-36070

XZB4#,5#

 2
88471 - TANK, RECEIVER AIR CONDITIONER
88471-30370

BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC

 2
88471-50020

BZB40,50,XZB4#,5#..WC

 2
88471-50020

BZB40,50,XZB4#,5#

 2
88471 - TANK, RECEIVER AIR CONDITIONER
88471-30370

BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC

 2
88471-50020

BZB40,50,XZB4#,5#..WC

 2
88471-50020

BZB40,50,XZB4#,5#

 2
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-36030

BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC

TYPE A:ｲﾗｽﾄ参照

 2
88306-36080

XZB4#,5#..WC

 2
88550-36031

XZB4#,5#

TYPE B:ｲﾗｽﾄ参照

 2
88605J - HARNESS SUB-ASSY, AIR CONDITIONER WIRING
88605-36170

BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC

 1
88605-36171

XZB4#,5#..WC

 1
88605-36380

XZB4#,5#

 1
88645H - SWITCH, PRESSURE NO.1
88645-60030

BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC

 1
88645-36050

BZB40,50,XZB4#,5#

 1
88645-36050

BZB40,50,XZB4#,5#..WC

 1
88706 - PIPE SUB-ASSY, LIQUID
88706-36042

XZB4#,5#..WC

 1
88706-36040

BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC

 1
88706-36042

XZB4#,5#

 1
88715B - PIPE, COOLER REFRIGERANT DISCHARGE, B
88715-36090

BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC

 1
88715-36091

XZB4#,5#..WC

 1
88715-36091

XZB4#,5#

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-36160

BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC

 1
88716-36161

XZB4#,5#

 1
88716-36161

XZB4#,5#..WC

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-36171

XZB4#,5#..WC

 1
88716-36170

BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC

 1
88716-36171

XZB4#,5#

 1
88716Q - PIPE, COOLER REFRIGERANT LIQUID, Q
88716-36290

BB4#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC

 1
88716-36292

XZB4#,5#

 1
88716-36292

XZB4#,5#..WC

 1
Common parts
88446-36050
88569-36260
88569-36600
88688-36340
88688-36350
88899-35010
90044-64009
90091-20628
90099-05284
90099-19249
90099-19250
91651-40625
93385-16016
