XZB40-ZRMEY (2004)

Toyota Coaster

Production Aug 2004 - Dec 2016
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )EX,GX,SULNG

Click highlighted areas on diagram

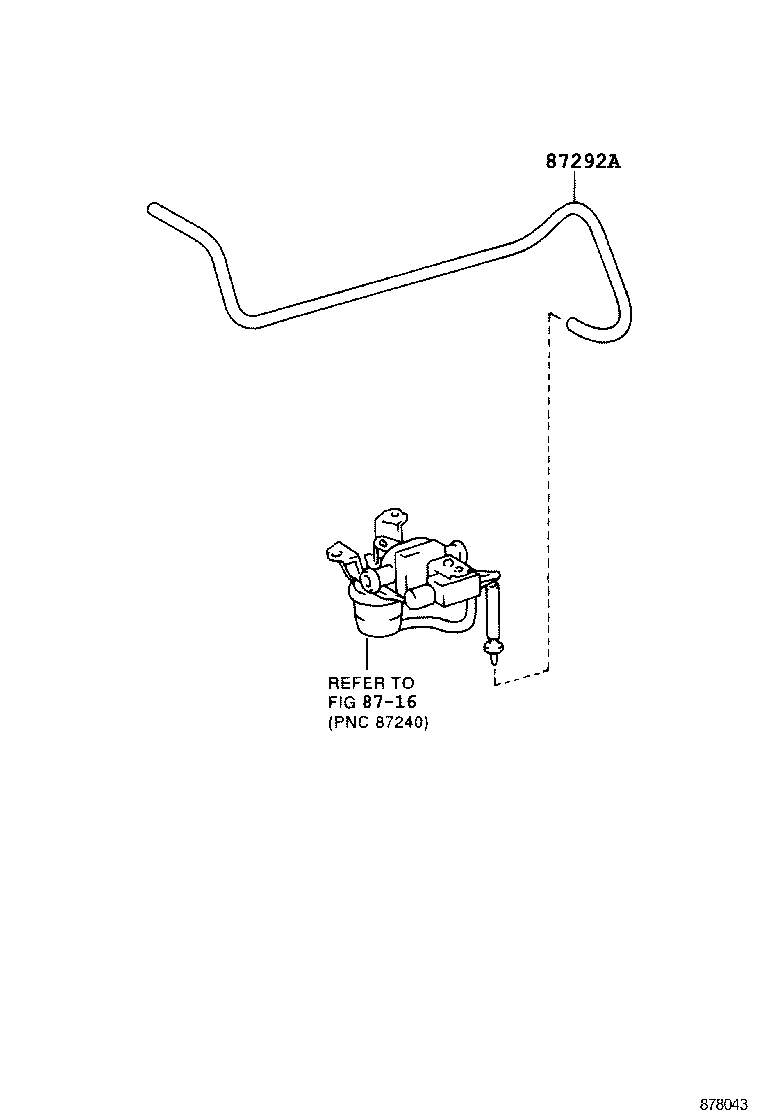

diagram 8716 87292A
Part # Description Qty Price
87292A - HOSE, VACUUM TANK
90999-92003

XZB40,50,51..EX,GX

 1
90999-92003

XZB40,50,51..(EX,GX)..(5F,6FC)..CBU

 1
Linked diagrams
8716
