XZB40-ZRMEY (2004)
Toyota Coaster

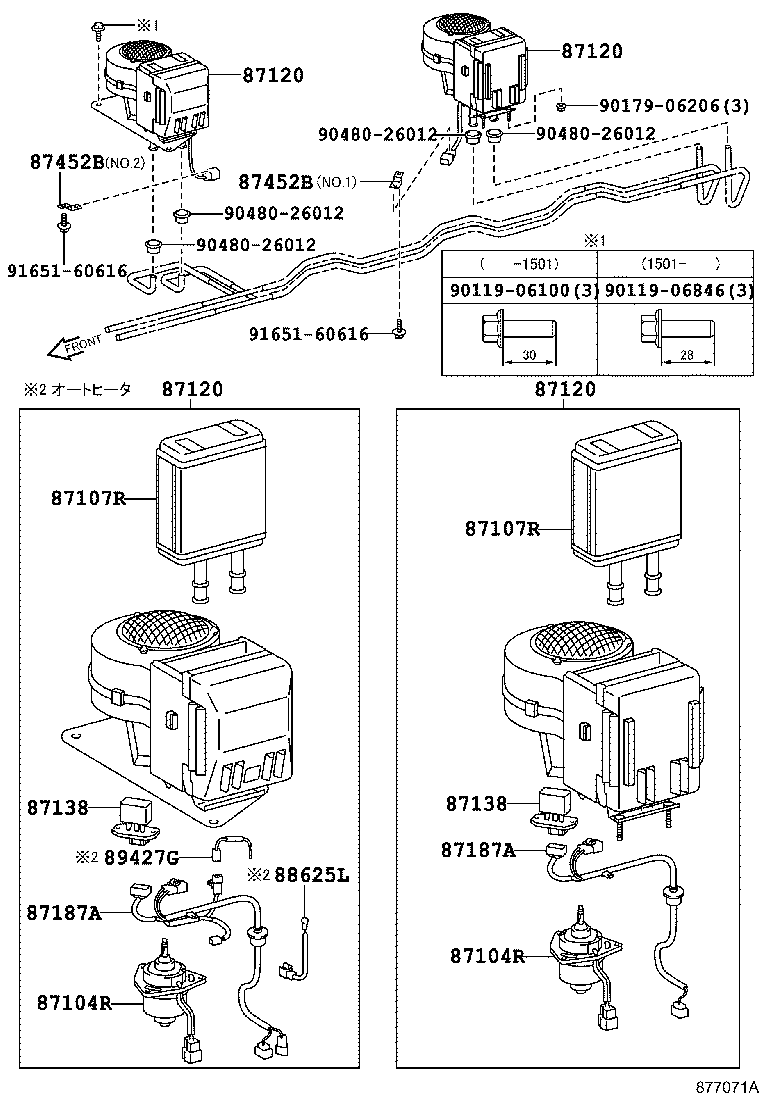

ILLUST NO. 2 OF 3(0408-1501)BZB40,XZB4#,50..DX,LX ; (1501- )XZB50..LX ; (1501- )XZB40..26S
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104R - MOTOR SUB-ASSY, REAR HEATER BLOWER | ||||
| 87104-36300 |
XZB40..GX..(5F,6FC) |
2 | ||
| 87104-36310 |
XZB40..GX..(5F,6FC) ｱﾘ(ﾊﾟﾜ- ﾋ-ﾀ) |
2 | ||
| 87104-36300 |
XZB40..GX |
2 | ||
| 87104-36310 |
XZB40..GX ｱﾘ(ﾊﾟﾜ- ﾋ-ﾀ) |
2 | ||
| 87104R - MOTOR SUB-ASSY, REAR HEATER BLOWER | ||||
| 87104-36300 |
XZB40..GX..(5F,6FC) |
2 | ||
| 87104-36310 |
XZB40..GX..(5F,6FC) ｱﾘ(ﾊﾟﾜ- ﾋ-ﾀ) |
2 | ||
| 87104-36300 |
XZB40..GX |
2 | ||
| 87104-36310 |
XZB40..GX ｱﾘ(ﾊﾟﾜ- ﾋ-ﾀ) |
2 | ||
| 87107R - UNIT SUB-ASSY, REAR HEATER | ||||
| 87107-36210 |
XZB50..LX;BZB40,50,XZB40..GX,LX |
2 | ||
| 87107-36210 |
XZB40..6FC..IV5;XZB50..LX..(5F,6FC);BZB40,50,XZB40..(26S,29S)..(5F,6FC)..CBU |
2 | ||
| 87107R - UNIT SUB-ASSY, REAR HEATER | ||||
| 87107-36210 |
XZB50..LX;BZB40,50,XZB40..GX,LX |
2 | ||
| 87107-36210 |
XZB40..6FC..IV5;XZB50..LX..(5F,6FC);BZB40,50,XZB40..(26S,29S)..(5F,6FC)..CBU |
2 | ||
| 87120 - HEATER ASSY, REAR | ||||
| 87110-36311 |
XZB40..GX..5F ｱﾘ(ﾊﾟﾜｰ ﾋｰﾀ),ﾘﾔ |
1 | ||
| 87110-36331 |
XZB40..GX..(5F,6FC) ﾘﾔ |
1 | ||
| 87110-36670 |
XZB40..GX..(5F,6FC) ｱﾘ(ﾊﾟﾜｰ ﾋｰﾀ),ﾌﾛﾝﾄ |
1 | ||
| 87110-36680 |
XZB40..GX..(5F,6FC) ﾌﾛﾝﾄ |
1 | ||
| 87110-36312 |
XZB40..GX ｱﾘ(ﾊﾟﾜｰ ﾋｰﾀ),ﾘﾔ |
1 | ||
| 87110-36332 |
XZB40..GX ﾘﾔ |
1 | ||
| 87110-36820 |
XZB40..GX ｱﾘ(ﾊﾟﾜｰ ﾋｰﾀ),ﾌﾛﾝﾄ |
1 | ||
| 87110-36830 |
XZB40..GX ﾌﾛﾝﾄ |
1 | ||
| 87110-36A40 |
XZB40..GX ﾘﾔ |
1 | ||
| 87110-36A10 |
XZB40..GX ｱﾘ(ﾊﾟﾜｰ ﾋｰﾀ),ﾘﾔ |
1 | ||
| 87120 - HEATER ASSY, REAR | ||||
| 87110-36311 |
XZB40..GX..5F ｱﾘ(ﾊﾟﾜｰ ﾋｰﾀ),ﾘﾔ |
1 | ||
| 87110-36331 |
XZB40..GX..(5F,6FC) ﾘﾔ |
1 | ||
| 87110-36670 |
XZB40..GX..(5F,6FC) ｱﾘ(ﾊﾟﾜｰ ﾋｰﾀ),ﾌﾛﾝﾄ |
1 | ||
| 87110-36680 |
XZB40..GX..(5F,6FC) ﾌﾛﾝﾄ |
1 | ||
| 87110-36312 |
XZB40..GX ｱﾘ(ﾊﾟﾜｰ ﾋｰﾀ),ﾘﾔ |
1 | ||
| 87110-36332 |
XZB40..GX ﾘﾔ |
1 | ||
| 87110-36820 |
XZB40..GX ｱﾘ(ﾊﾟﾜｰ ﾋｰﾀ),ﾌﾛﾝﾄ |
1 | ||
| 87110-36830 |
XZB40..GX ﾌﾛﾝﾄ |
1 | ||
| 87110-36A40 |
XZB40..GX ﾘﾔ |
1 | ||
| 87110-36A10 |
XZB40..GX ｱﾘ(ﾊﾟﾜｰ ﾋｰﾀ),ﾘﾔ |
1 | ||
| 87120 - HEATER ASSY, REAR | ||||
| 87110-36311 |
XZB40..GX..5F ｱﾘ(ﾊﾟﾜｰ ﾋｰﾀ),ﾘﾔ |
1 | ||
| 87110-36331 |
XZB40..GX..(5F,6FC) ﾘﾔ |
1 | ||
| 87110-36670 |
XZB40..GX..(5F,6FC) ｱﾘ(ﾊﾟﾜｰ ﾋｰﾀ),ﾌﾛﾝﾄ |
1 | ||
| 87110-36680 |
XZB40..GX..(5F,6FC) ﾌﾛﾝﾄ |
1 | ||
| 87110-36312 |
XZB40..GX ｱﾘ(ﾊﾟﾜｰ ﾋｰﾀ),ﾘﾔ |
1 | ||
| 87110-36332 |
XZB40..GX ﾘﾔ |
1 | ||
| 87110-36820 |
XZB40..GX ｱﾘ(ﾊﾟﾜｰ ﾋｰﾀ),ﾌﾛﾝﾄ |
1 | ||
| 87110-36830 |
XZB40..GX ﾌﾛﾝﾄ |
1 | ||
| 87110-36A40 |
XZB40..GX ﾘﾔ |
1 | ||
| 87110-36A10 |
XZB40..GX ｱﾘ(ﾊﾟﾜｰ ﾋｰﾀ),ﾘﾔ |
1 | ||
| 87120 - HEATER ASSY, REAR | ||||
| 87110-36311 |
XZB40..GX..5F ｱﾘ(ﾊﾟﾜｰ ﾋｰﾀ),ﾘﾔ |
1 | ||
| 87110-36331 |
XZB40..GX..(5F,6FC) ﾘﾔ |
1 | ||
| 87110-36670 |
XZB40..GX..(5F,6FC) ｱﾘ(ﾊﾟﾜｰ ﾋｰﾀ),ﾌﾛﾝﾄ |
1 | ||
| 87110-36680 |
XZB40..GX..(5F,6FC) ﾌﾛﾝﾄ |
1 | ||
| 87110-36312 |
XZB40..GX ｱﾘ(ﾊﾟﾜｰ ﾋｰﾀ),ﾘﾔ |
1 | ||
| 87110-36332 |
XZB40..GX ﾘﾔ |
1 | ||
| 87110-36820 |
XZB40..GX ｱﾘ(ﾊﾟﾜｰ ﾋｰﾀ),ﾌﾛﾝﾄ |
1 | ||
| 87110-36830 |
XZB40..GX ﾌﾛﾝﾄ |
1 | ||
| 87110-36A40 |
XZB40..GX ﾘﾔ |
1 | ||
| 87110-36A10 |
XZB40..GX ｱﾘ(ﾊﾟﾜｰ ﾋｰﾀ),ﾘﾔ |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-36240 |
XZB40,50,51..(EX,GX)..(5F,6FC)..CBU ｱﾘ(ﾊﾟﾜｰ ﾋｰﾀ) |
2 | ||
| 87138-36170 |
XZB40,50,51..(EX,GX)..(5F,6FC)..CBU |
2 | ||
| 87138-36240 |
XZB40,50,51..EX,GX ｱﾘ(ﾊﾟﾜｰ ﾋｰﾀ) |
2 | ||
| 87138-36170 |
XZB40,50,51..EX,GX |
2 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-36240 |
XZB40,50,51..(EX,GX)..(5F,6FC)..CBU ｱﾘ(ﾊﾟﾜｰ ﾋｰﾀ) |
2 | ||
| 87138-36170 |
XZB40,50,51..(EX,GX)..(5F,6FC)..CBU |
2 | ||
| 87138-36240 |
XZB40,50,51..EX,GX ｱﾘ(ﾊﾟﾜｰ ﾋｰﾀ) |
2 | ||
| 87138-36170 |
XZB40,50,51..EX,GX |
2 | ||
| 87187A - WIRE, BLOWER MOTOR LEAD | ||||
| 87187-36150 |
XZB40..GX..(5F,6FC) ﾌﾛﾝﾄ |
1 | ||
| 87187-36030 |
XZB40..GX ﾘﾔ |
1 | ||
| 87187-36030 |
XZB40..GX..(5F,6FC) ﾘﾔ |
1 | ||
| 87187-36340 |
XZB40..GX ﾌﾛﾝﾄ |
1 | ||
| 87187A - WIRE, BLOWER MOTOR LEAD | ||||
| 87187-36150 |
XZB40..GX..(5F,6FC) ﾌﾛﾝﾄ |
1 | ||
| 87187-36030 |
XZB40..GX ﾘﾔ |
1 | ||
| 87187-36030 |
XZB40..GX..(5F,6FC) ﾘﾔ |
1 | ||
| 87187-36340 |
XZB40..GX ﾌﾛﾝﾄ |
1 | ||
| 87452B - BRACKET, HEATER, REAR | ||||
| 87452-36100 |
BB4#,5#,HDB5#,HZB4#,5#..09S,15S,20S,26S,29S |
2 | ||
| 87452-36100 |
XZB50..LX..(5F,6FC)..CBU;XZB40..26S..(5F,6FC)..CBU NO.1 |
1 | ||
| 87452-36400 |
XZB50..LX..(5F,6FC)..CBU;XZB40..26S..(5F,6FC)..CBU NO.2 |
1 | ||
| 87452-36100 |
XZB50..LX;BZB40,50,XZB40..GX,LX NO.1 |
1 | ||
| 87452-36400 |
XZB50..LX;BZB40,50,XZB40..GX,LX NO.2 |
1 | ||
| 87452B - BRACKET, HEATER, REAR | ||||
| 87452-36100 |
BB4#,5#,HDB5#,HZB4#,5#..09S,15S,20S,26S,29S |
2 | ||
| 87452-36100 |
XZB50..LX..(5F,6FC)..CBU;XZB40..26S..(5F,6FC)..CBU NO.1 |
1 | ||
| 87452-36400 |
XZB50..LX..(5F,6FC)..CBU;XZB40..26S..(5F,6FC)..CBU NO.2 |
1 | ||
| 87452-36100 |
XZB50..LX;BZB40,50,XZB40..GX,LX NO.1 |
1 | ||
| 87452-36400 |
XZB50..LX;BZB40,50,XZB40..GX,LX NO.2 |
1 | ||
| 88625L - THERMISTOR, COOLER | ||||
| 88625-36061 |
XZB40,50,51..(EX,GX)..(5F,6FC)..CBU |
1 | ||
| 88625-36061 |
XZB40,50,51..EX,GX |
1 | ||
| 89427G - SWITCH, TEMPERATURE | ||||
| 89427-36011 |
XZB40..GX |
1 | ||
| 89427-36011 |
XZB40..GX..(5F,6FC) |
1 | ||
| Common parts | ||||
| 90119-06100 | ||||
| 90119-06846 | ||||
| 90179-06206 | ||||
| 90480-26012 | ||||
| 91651-60616 | ||||

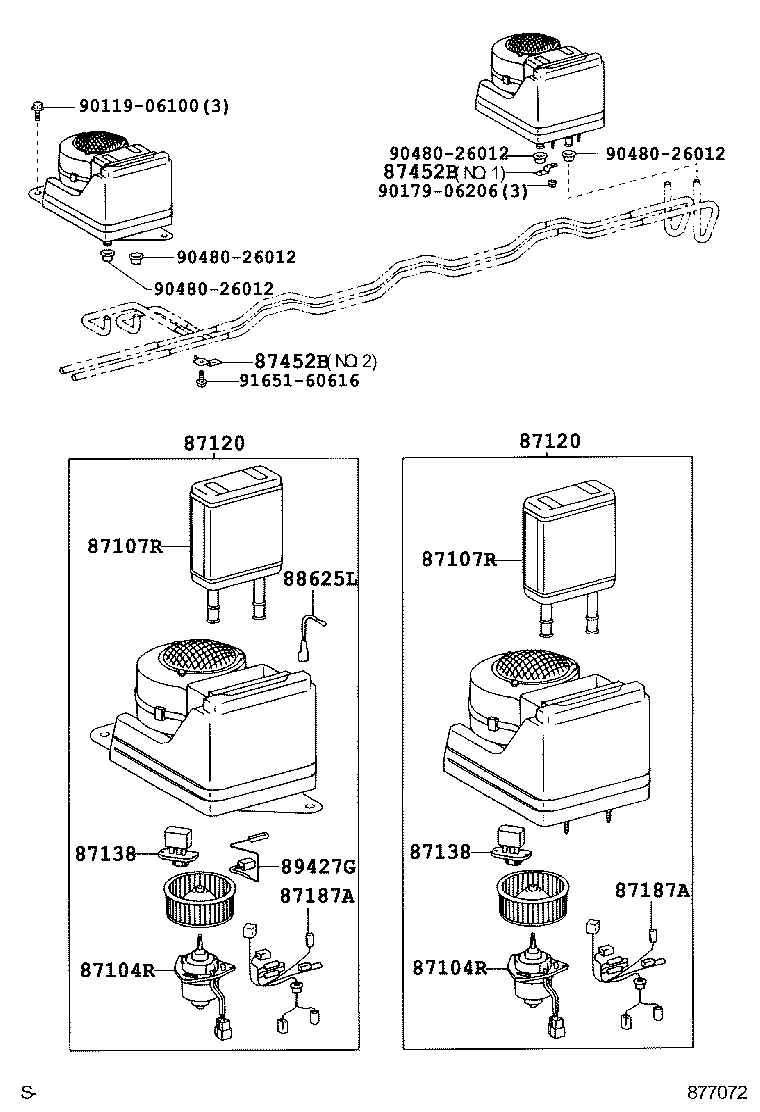

ILLUST NO. 2 OF 3(0408-1501)XZB40..GX ; (0408-1501)XZB51..IV5
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104R - MOTOR SUB-ASSY, REAR HEATER BLOWER | ||||
| 87104-36300 |
XZB40..GX..(5F,6FC) |
2 | ||
| 87104-36310 |
XZB40..GX..(5F,6FC) ｱﾘ(ﾊﾟﾜ- ﾋ-ﾀ) |
2 | ||
| 87104-36300 |
XZB40..GX |
2 | ||
| 87104-36310 |
XZB40..GX ｱﾘ(ﾊﾟﾜ- ﾋ-ﾀ) |
2 | ||
| 87104R - MOTOR SUB-ASSY, REAR HEATER BLOWER | ||||
| 87104-36300 |
XZB40..GX..(5F,6FC) |
2 | ||
| 87104-36310 |
XZB40..GX..(5F,6FC) ｱﾘ(ﾊﾟﾜ- ﾋ-ﾀ) |
2 | ||
| 87104-36300 |
XZB40..GX |
2 | ||
| 87104-36310 |
XZB40..GX ｱﾘ(ﾊﾟﾜ- ﾋ-ﾀ) |
2 | ||
| 87107R - UNIT SUB-ASSY, REAR HEATER | ||||
| 87107-36210 |
XZB50..LX;BZB40,50,XZB40..GX,LX |
2 | ||
| 87107-36210 |
XZB40..6FC..IV5;XZB50..LX..(5F,6FC);BZB40,50,XZB40..(26S,29S)..(5F,6FC)..CBU |
2 | ||
| 87107R - UNIT SUB-ASSY, REAR HEATER | ||||
| 87107-36210 |
XZB50..LX;BZB40,50,XZB40..GX,LX |
2 | ||
| 87107-36210 |
XZB40..6FC..IV5;XZB50..LX..(5F,6FC);BZB40,50,XZB40..(26S,29S)..(5F,6FC)..CBU |
2 | ||
| 87120 - HEATER ASSY, REAR | ||||
| 87110-36311 |
XZB40..GX..5F ｱﾘ(ﾊﾟﾜｰ ﾋｰﾀ),ﾘﾔ |
1 | ||
| 87110-36331 |
XZB40..GX..(5F,6FC) ﾘﾔ |
1 | ||
| 87110-36670 |
XZB40..GX..(5F,6FC) ｱﾘ(ﾊﾟﾜｰ ﾋｰﾀ),ﾌﾛﾝﾄ |
1 | ||
| 87110-36680 |
XZB40..GX..(5F,6FC) ﾌﾛﾝﾄ |
1 | ||
| 87110-36312 |
XZB40..GX ｱﾘ(ﾊﾟﾜｰ ﾋｰﾀ),ﾘﾔ |
1 | ||
| 87110-36332 |
XZB40..GX ﾘﾔ |
1 | ||
| 87110-36820 |
XZB40..GX ｱﾘ(ﾊﾟﾜｰ ﾋｰﾀ),ﾌﾛﾝﾄ |
1 | ||
| 87110-36830 |
XZB40..GX ﾌﾛﾝﾄ |
1 | ||
| 87110-36A40 |
XZB40..GX ﾘﾔ |
1 | ||
| 87110-36A10 |
XZB40..GX ｱﾘ(ﾊﾟﾜｰ ﾋｰﾀ),ﾘﾔ |
1 | ||
| 87120 - HEATER ASSY, REAR | ||||
| 87110-36311 |
XZB40..GX..5F ｱﾘ(ﾊﾟﾜｰ ﾋｰﾀ),ﾘﾔ |
1 | ||
| 87110-36331 |
XZB40..GX..(5F,6FC) ﾘﾔ |
1 | ||
| 87110-36670 |
XZB40..GX..(5F,6FC) ｱﾘ(ﾊﾟﾜｰ ﾋｰﾀ),ﾌﾛﾝﾄ |
1 | ||
| 87110-36680 |
XZB40..GX..(5F,6FC) ﾌﾛﾝﾄ |
1 | ||
| 87110-36312 |
XZB40..GX ｱﾘ(ﾊﾟﾜｰ ﾋｰﾀ),ﾘﾔ |
1 | ||
| 87110-36332 |
XZB40..GX ﾘﾔ |
1 | ||
| 87110-36820 |
XZB40..GX ｱﾘ(ﾊﾟﾜｰ ﾋｰﾀ),ﾌﾛﾝﾄ |
1 | ||
| 87110-36830 |
XZB40..GX ﾌﾛﾝﾄ |
1 | ||
| 87110-36A40 |
XZB40..GX ﾘﾔ |
1 | ||
| 87110-36A10 |
XZB40..GX ｱﾘ(ﾊﾟﾜｰ ﾋｰﾀ),ﾘﾔ |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-36240 |
XZB40,50,51..(EX,GX)..(5F,6FC)..CBU ｱﾘ(ﾊﾟﾜｰ ﾋｰﾀ) |
2 | ||
| 87138-36170 |
XZB40,50,51..(EX,GX)..(5F,6FC)..CBU |
2 | ||
| 87138-36240 |
XZB40,50,51..EX,GX ｱﾘ(ﾊﾟﾜｰ ﾋｰﾀ) |
2 | ||
| 87138-36170 |
XZB40,50,51..EX,GX |
2 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-36240 |
XZB40,50,51..(EX,GX)..(5F,6FC)..CBU ｱﾘ(ﾊﾟﾜｰ ﾋｰﾀ) |
2 | ||
| 87138-36170 |
XZB40,50,51..(EX,GX)..(5F,6FC)..CBU |
2 | ||
| 87138-36240 |
XZB40,50,51..EX,GX ｱﾘ(ﾊﾟﾜｰ ﾋｰﾀ) |
2 | ||
| 87138-36170 |
XZB40,50,51..EX,GX |
2 | ||
| 87187A - WIRE, BLOWER MOTOR LEAD | ||||
| 87187-36150 |
XZB40..GX..(5F,6FC) ﾌﾛﾝﾄ |
1 | ||
| 87187-36030 |
XZB40..GX ﾘﾔ |
1 | ||
| 87187-36030 |
XZB40..GX..(5F,6FC) ﾘﾔ |
1 | ||
| 87187-36340 |
XZB40..GX ﾌﾛﾝﾄ |
1 | ||
| 87187A - WIRE, BLOWER MOTOR LEAD | ||||
| 87187-36150 |
XZB40..GX..(5F,6FC) ﾌﾛﾝﾄ |
1 | ||
| 87187-36030 |
XZB40..GX ﾘﾔ |
1 | ||
| 87187-36030 |
XZB40..GX..(5F,6FC) ﾘﾔ |
1 | ||
| 87187-36340 |
XZB40..GX ﾌﾛﾝﾄ |
1 | ||
| 87452B - BRACKET, HEATER, REAR | ||||
| 87452-36100 |
BB4#,5#,HDB5#,HZB4#,5#..09S,15S,20S,26S,29S |
2 | ||
| 87452-36100 |
XZB50..LX..(5F,6FC)..CBU;XZB40..26S..(5F,6FC)..CBU NO.1 |
1 | ||
| 87452-36400 |
XZB50..LX..(5F,6FC)..CBU;XZB40..26S..(5F,6FC)..CBU NO.2 |
1 | ||
| 87452-36100 |
XZB50..LX;BZB40,50,XZB40..GX,LX NO.1 |
1 | ||
| 87452-36400 |
XZB50..LX;BZB40,50,XZB40..GX,LX NO.2 |
1 | ||
| 87452B - BRACKET, HEATER, REAR | ||||
| 87452-36100 |
BB4#,5#,HDB5#,HZB4#,5#..09S,15S,20S,26S,29S |
2 | ||
| 87452-36100 |
XZB50..LX..(5F,6FC)..CBU;XZB40..26S..(5F,6FC)..CBU NO.1 |
1 | ||
| 87452-36400 |
XZB50..LX..(5F,6FC)..CBU;XZB40..26S..(5F,6FC)..CBU NO.2 |
1 | ||
| 87452-36100 |
XZB50..LX;BZB40,50,XZB40..GX,LX NO.1 |
1 | ||
| 87452-36400 |
XZB50..LX;BZB40,50,XZB40..GX,LX NO.2 |
1 | ||
| 88625L - THERMISTOR, COOLER | ||||
| 88625-36061 |
XZB40,50,51..(EX,GX)..(5F,6FC)..CBU |
1 | ||
| 88625-36061 |
XZB40,50,51..EX,GX |
1 | ||
| 89427G - SWITCH, TEMPERATURE | ||||
| 89427-36011 |
XZB40..GX |
1 | ||
| 89427-36011 |
XZB40..GX..(5F,6FC) |
1 | ||
| Common parts | ||||
| 90119-06100 | ||||
| 90179-06206 | ||||
| 90480-26012 | ||||
| 91651-60616 | ||||

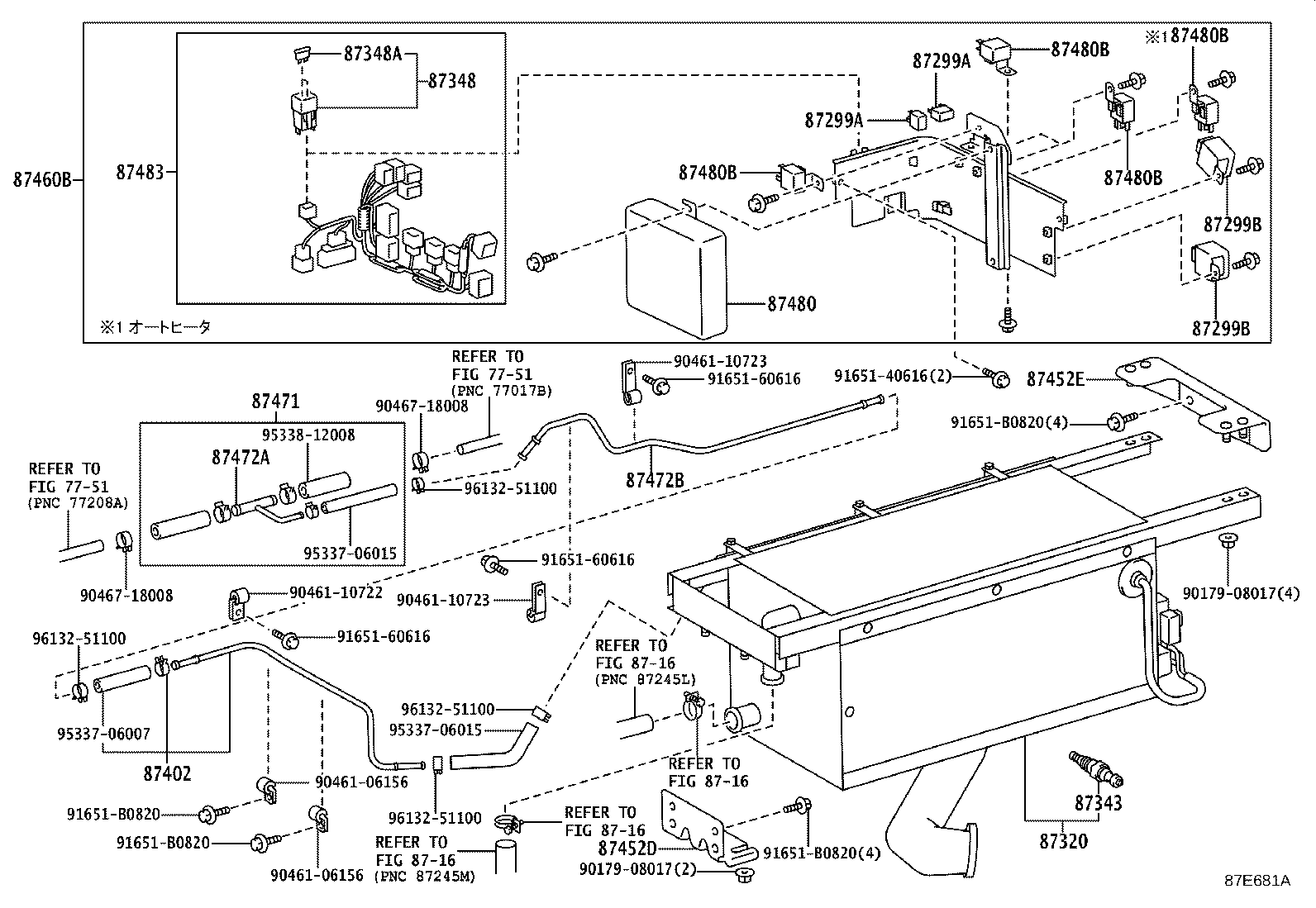

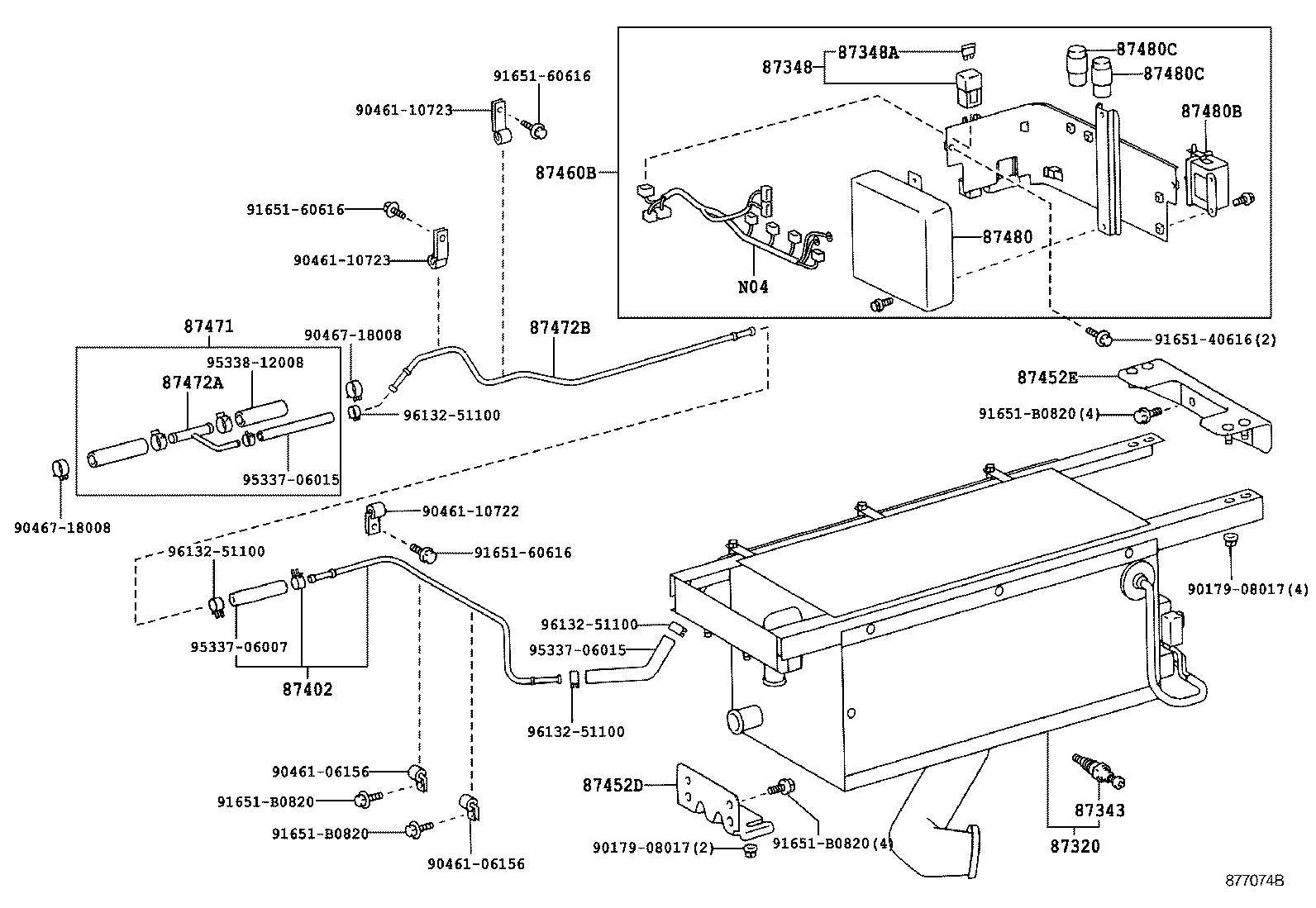

ILLUST NO. 3 OF 3(0408-1501)XZB51..CBU ; (0408-1501)XZB51..4FC..IV5 ; (0408-1501)XZB4#,50,56..09S,26
ﾋｰﾀ ﾎﾟﾝﾌﾟ ﾂｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87320 - EXCHANGER ASSY, HEATER HEAT | ||||
| 87320-36040 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87320-36040 |
XZB51;XZB4#,50,56..09S,26S,29S,39S,49S |
1 | ||
| 87320-36041 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 87320-36041 |
XZB4#,5# |
1 | ||
| 87343 - PLUG, COMBUSTION HEATER GLOW | ||||
| 87343-90B00 |
XZB4#,5# |
1 | ||
| 87343-90B00 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 87348 - BLOCK, FUSE, NO.1 | ||||
| 87348-36030 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87348-36030 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 87348-36030 |
XZB4#,5# |
1 | ||
| 87348A - FUSE | ||||
| 90982-09002 |
XZB51..SULNG..6FC;XZB4#,5#..09S,26S,29S,39S,49S |
1 | ||
| 90982-09002 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 90982-09002 |
XZB4#,5# |
2 | ||
| 90982-09002 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
2 | ||
| 87402 - PIPE SUB-ASSY, HEATER FUEL | ||||
| 87402-36020 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87402-36020 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 87402-36020 |
XZB4#,5# |
1 | ||
| 87452D - BRACKET, POWER HEATER, NO.1 | ||||
| 87452-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87452-36010 |
XZB4#,5# |
1 | ||
| 87452-36010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 87452E - BRACKET, POWER HEATER, NO.2 | ||||
| 87452-36020 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87452-36020 |
XZB4#,5# |
1 | ||
| 87452-36020 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 87460B - PARTS ASSY, ELECTRICAL | ||||
| 87460-36040 |
XZB40,50,51..EX,GX,SULNG ｵ-ﾄ |
1 | ||
| 87460-36041 |
XZB51..SULNG..6FC;XZB40,50,51..EX,GX ｵ-ﾄ |
1 | ||
| 87460-36042 |
XZB40,50,51..(EX,GX)..(5F,6FC)..CBU ｵ-ﾄ |
1 | ||
| 87460-36060 |
XZB40,50,51..EX,GX |
1 | ||
| 87471 - JOINT, COMBUSTION HEATER FUEL | ||||
| 87471-36020 |
BB4#,5# |
1 | ||
| 87471-36010 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87471-36011 |
XZB51..CBU;XZB51..4FC..IV5;XZB4#,50,56..09S,26S,29S,39S,49S |
1 | ||
| 87471-36011 |
XZB4#,5# |
1 | ||
| 87472A - PIPE, HEATER FUEL, NO.1 | ||||
| 87472-36110 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 87472-36110 |
XZB4#,5# |
1 | ||
| 87472B - PIPE, HEATER FUEL, NO.2 | ||||
| 87472-36091 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 87472-36091 |
XZB4#,5# |
1 | ||
| 87472-36091 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87480 - AMPLIFIER ASSY, HEATER CONTROL (FOR COMBUSTION HEATER) | ||||
| 87480-36010 |
XZB51;XZB4#,50,56..09S,26S,29S,39S,49S |
1 | ||
| 87480-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87480-36011 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 87480-36011 |
XZB4#,5# |
1 | ||
| 87480B - RELAY ASSY, HEATER CONTROL | ||||
| 88630-90B01 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 88630-90B01 |
XZB51;XZB4#,50,56..09S,26S,29S,39S,49S |
1 | ||
| 88630-36220 |
XZB40,50,51..(EX,GX)..(5F,6FC)..CBU |
5 | ||
| 88630-36220 |
XZB51..SULNG..6FC;XZB40,50,51..EX,GX |
4 | ||
| 88630-36220 |
XZB40,50,51..EX,GX |
5 | ||
| 87480C - RELAY, HEATER CONTROL | ||||
| 90987-02005 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
3 | ||
| 90987-02005 |
XZB40,50,51..EX,GX,SULNG |
3 | ||
| 87480C - RELAY, HEATER CONTROL | ||||
| 90987-02005 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
3 | ||
| 90987-02005 |
XZB40,50,51..EX,GX,SULNG |
3 | ||
| Common parts | ||||
| 90179-08017 | ||||
| 90461-06156 | ||||
| 90461-10722 | ||||
| 90461-10723 | ||||
| 90467-18008 | ||||
| 91651-40616 | ||||
| 91651-60616 | ||||
| 91651-B0820 | ||||
| 95337-06007 | ||||
| 95337-06015 | ||||
| 95338-12008 | ||||
| 96132-51100 | ||||
ILLUST NO. 3 OF 3(1501- )XZB4#,5#
ﾊﾟﾜｰﾋｰﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87299A - RELAY, HEATER NO.1 | ||||
| 87299-36030 |
XZB4#,5# |
2 | ||
| 87299A - RELAY, HEATER NO.1 | ||||
| 87299-36030 |
XZB4#,5# |
2 | ||
| 87299B - RELAY, HEATER NO.2 | ||||
| 87299-36040 |
XZB4#,5# |
2 | ||
| 87299B - RELAY, HEATER NO.2 | ||||
| 87299-36040 |
XZB4#,5# |
2 | ||
| 87320 - EXCHANGER ASSY, HEATER HEAT | ||||
| 87320-36040 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87320-36040 |
XZB51;XZB4#,50,56..09S,26S,29S,39S,49S |
1 | ||
| 87320-36041 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 87320-36041 |
XZB4#,5# |
1 | ||
| 87343 - PLUG, COMBUSTION HEATER GLOW | ||||
| 87343-90B00 |
XZB4#,5# |
1 | ||
| 87343-90B00 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 87348 - BLOCK, FUSE, NO.1 | ||||
| 87348-36030 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87348-36030 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 87348-36030 |
XZB4#,5# |
1 | ||
| 87348A - FUSE | ||||
| 90982-09002 |
XZB51..SULNG..6FC;XZB4#,5#..09S,26S,29S,39S,49S |
1 | ||
| 90982-09002 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 90982-09002 |
XZB4#,5# |
2 | ||
| 90982-09002 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
2 | ||
| 87402 - PIPE SUB-ASSY, HEATER FUEL | ||||
| 87402-36020 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87402-36020 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 87402-36020 |
XZB4#,5# |
1 | ||
| 87452D - BRACKET, POWER HEATER, NO.1 | ||||
| 87452-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87452-36010 |
XZB4#,5# |
1 | ||
| 87452-36010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 87452E - BRACKET, POWER HEATER, NO.2 | ||||
| 87452-36020 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87452-36020 |
XZB4#,5# |
1 | ||
| 87452-36020 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 87460B - PARTS ASSY, ELECTRICAL | ||||
| 87460-36040 |
XZB40,50,51..EX,GX,SULNG ｵ-ﾄ |
1 | ||
| 87460-36041 |
XZB51..SULNG..6FC;XZB40,50,51..EX,GX ｵ-ﾄ |
1 | ||
| 87460-36042 |
XZB40,50,51..(EX,GX)..(5F,6FC)..CBU ｵ-ﾄ |
1 | ||
| 87460-36060 |
XZB40,50,51..EX,GX |
1 | ||
| 87471 - JOINT, COMBUSTION HEATER FUEL | ||||
| 87471-36020 |
BB4#,5# |
1 | ||
| 87471-36010 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87471-36011 |
XZB51..CBU;XZB51..4FC..IV5;XZB4#,50,56..09S,26S,29S,39S,49S |
1 | ||
| 87471-36011 |
XZB4#,5# |
1 | ||
| 87472A - PIPE, HEATER FUEL, NO.1 | ||||
| 87472-36110 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 87472-36110 |
XZB4#,5# |
1 | ||
| 87472B - PIPE, HEATER FUEL, NO.2 | ||||
| 87472-36091 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 87472-36091 |
XZB4#,5# |
1 | ||
| 87472-36091 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87480 - AMPLIFIER ASSY, HEATER CONTROL (FOR COMBUSTION HEATER) | ||||
| 87480-36010 |
XZB51;XZB4#,50,56..09S,26S,29S,39S,49S |
1 | ||
| 87480-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87480-36011 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 87480-36011 |
XZB4#,5# |
1 | ||
| 87480B - RELAY ASSY, HEATER CONTROL | ||||
| 88630-36220 |
XZB40,50,51..(EX,GX)..(5F,6FC)..CBU |
5 | ||
| 88630-90B01 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 88630-90B01 |
XZB51;XZB4#,50,56..09S,26S,29S,39S,49S |
1 | ||
| 88630-36220 |
XZB51..SULNG..6FC;XZB40,50,51..EX,GX |
4 | ||
| 88630-36220 |
XZB40,50,51..EX,GX |
5 | ||
| 87480B - RELAY ASSY, HEATER CONTROL | ||||
| 88630-90B01 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 88630-90B01 |
XZB51;XZB4#,50,56..09S,26S,29S,39S,49S |
1 | ||
| 88630-36220 |
XZB40,50,51..(EX,GX)..(5F,6FC)..CBU |
5 | ||
| 88630-36220 |
XZB51..SULNG..6FC;XZB40,50,51..EX,GX |
4 | ||
| 88630-36220 |
XZB40,50,51..EX,GX |
5 | ||
| 87480B - RELAY ASSY, HEATER CONTROL | ||||
| 88630-90B01 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 88630-90B01 |
XZB51;XZB4#,50,56..09S,26S,29S,39S,49S |
1 | ||
| 88630-36220 |
XZB40,50,51..(EX,GX)..(5F,6FC)..CBU |
5 | ||
| 88630-36220 |
XZB51..SULNG..6FC;XZB40,50,51..EX,GX |
4 | ||
| 88630-36220 |
XZB40,50,51..EX,GX |
5 | ||
| 87480B - RELAY ASSY, HEATER CONTROL | ||||
| 88630-90B01 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 88630-90B01 |
XZB51;XZB4#,50,56..09S,26S,29S,39S,49S |
1 | ||
| 88630-36220 |
XZB40,50,51..(EX,GX)..(5F,6FC)..CBU |
5 | ||
| 88630-36220 |
XZB51..SULNG..6FC;XZB40,50,51..EX,GX |
4 | ||
| 88630-36220 |
XZB40,50,51..EX,GX |
5 | ||
| 87483 - WIRE, HEATER | ||||
| 87483-36020 |
XZB40,50,51..EX,GX |
1 | ||
| Common parts | ||||
| 90179-08017 | ||||
| 90461-06156 | ||||
| 90461-10722 | ||||
| 90461-10723 | ||||
| 90467-18008 | ||||
| 91651-40616 | ||||
| 91651-60616 | ||||
| 91651-B0820 | ||||
| 95337-06007 | ||||
| 95337-06015 | ||||
| 95338-12008 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 7751 | ||||
| 8716 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
