XZB40-ZRMEY (2004)
Toyota Coaster
ILLUST NO. 1 OF 4(9301-1209)
ｸﾞﾗｲﾄﾞ ｼｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85450F - MOTOR ASSY, DOOR CONTROL | ||||
| 85450-36040 |
XZB40..6FC..IV5;XZB50..29S..WC..(5F,6FC);XZB4#,51,56..(EX,GX,LX)..(5F,6FC)..CBU |
1 | ||
| 85450-36040 |
XZB4#,5#..EX,GX,LX |
1 | ||
| 85610A - ACTUATOR ASSY, ACCEL INTER LOCK | ||||
| 85610-36060 |
XZB4#,5# |
1 | ||
| 85610-36060 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 85610-36020 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 85638A - SPACER, AUTOMATIC DOOR | ||||
| 85638-36010 |
XZB40..6FC..IV5;XZB50..29S..WC..(5F,6FC);BZB40,50,XZB4#,51,56..(EX,GX,LX)..(5F,6FC)..CBU |
1 | ||
| 85638-36010 |
BZB40,50,XZB4#,5#..EX,GX,LX |
1 | ||
| 85980B - RELAY ASSY, DOOR CONTROL (FOR AUTOMATIC DOOR) | ||||
| 85980-36090 |
BB58..WC;BB4#,55,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 85980-36111 |
XZB46,50,56..WC;XZB40..6FC..IV5;XZB40,51..(26S,29S,39S)..CBU 24V |
1 | ||
| 85980-36111 |
XZB4#,5# |
1 | ||
| 85980-36110 |
XZB4#,5#..5F,6FC 24V |
1 | ||
| 85980B - RELAY ASSY, DOOR CONTROL (FOR AUTOMATIC DOOR) | ||||
| 85980-36090 |
BB58..WC;BB4#,55,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 85980-36111 |
XZB46,50,56..WC;XZB40..6FC..IV5;XZB40,51..(26S,29S,39S)..CBU 24V |
1 | ||
| 85980-36111 |
XZB4#,5# |
1 | ||
| 85980-36110 |
XZB4#,5#..5F,6FC 24V |
1 | ||
| 86650D - BUZZER ASSY | ||||
| 86650-36060 |
XZB40..6FC..IV5;XZB50..29S..WC..(5F,6FC);XZB4#,51,56..(EX,GX,LX)..(5F,6FC)..CBU 24V |
1 | ||
| 86650-36060 |
XZB4#,5#..EX,GX,LX |
1 | ||
| 86659C - BRACKET, BUZZER, AUTOMATIC DOOR | ||||
| 86659-36010 |
XZB40..6FC..IV5;XZB50..29S..WC..(5F,6FC);BZB40,50,XZB4#,51,56..(EX,GX,LX)..(5F,6FC)..CBU |
1 | ||
| 86659-36010 |
BZB40,50,XZB4#,5#..EX,GX,LX |
1 | ||
| Common parts | ||||
| 90109-06122 | ||||
| 90119-06255 | ||||
| 90119-08511 | ||||
| 90202-08039 | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
| Linked diagrams | ||||
| 7851 | ||||
ILLUST NO. 1 OF 4(9301-1209)
ｵﾘﾄﾞ ｼｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85610A - ACTUATOR ASSY, ACCEL INTER LOCK | ||||
| 85610-36060 |
XZB4#,5# |
1 | ||
| 85610-36060 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 85610-36020 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 85980B - RELAY ASSY, DOOR CONTROL (FOR AUTOMATIC DOOR) | ||||
| 85980-36090 |
BB58..WC;BB4#,55,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 85980-36111 |
XZB46,50,56..WC;XZB40..6FC..IV5;XZB40,51..(26S,29S,39S)..CBU 24V |
1 | ||
| 85980-36111 |
XZB4#,5# |
1 | ||
| 85980-36110 |
XZB4#,5#..5F,6FC 24V |
1 | ||
| 85980B - RELAY ASSY, DOOR CONTROL (FOR AUTOMATIC DOOR) | ||||
| 85980-36090 |
BB58..WC;BB4#,55,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 85980-36111 |
XZB46,50,56..WC;XZB40..6FC..IV5;XZB40,51..(26S,29S,39S)..CBU 24V |
1 | ||
| 85980-36111 |
XZB4#,5# |
1 | ||
| 85980-36110 |
XZB4#,5#..5F,6FC 24V |
1 | ||
| 86650D - BUZZER ASSY | ||||
| 86650-36060 |
XZB40..6FC..IV5;XZB50..29S..WC..(5F,6FC);XZB4#,51,56..(EX,GX,LX)..(5F,6FC)..CBU 24V |
1 | ||
| 86650-36060 |
XZB4#,5#..EX,GX,LX |
1 | ||
| 86659C - BRACKET, BUZZER, AUTOMATIC DOOR | ||||
| 86659-36010 |
XZB40..6FC..IV5;XZB50..29S..WC..(5F,6FC);BZB40,50,XZB4#,51,56..(EX,GX,LX)..(5F,6FC)..CBU |
1 | ||
| 86659-36010 |
BZB40,50,XZB4#,5#..EX,GX,LX |
1 | ||
| Common parts | ||||
| 90119-06255 | ||||
| 90119-08354 | ||||
| 90119-08357 | ||||
| 91651-40616 | ||||
| 91651-60835 | ||||
| Linked diagrams | ||||
| 7851 | ||||
ILLUST NO. 2 OF 4(9301-1209)
ｵﾘﾄﾞ ｼｷ ﾕﾆｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85069 - HOUSING SUB-ASSY, AUTO DOOR | ||||
| 85069-36010 |
BZB40,50,XZB4#,5#..EX,GX,LX |
1 | ||
| 85069-36010 |
XZB40..6FC..IV5;XZB50..29S..WC..(5F,6FC);BZB40,50,XZB4#,51,56..(EX,GX,LX)..(5F,6FC)..CBU ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ |
1 | ||
| 85607 - GEAR SUB-ASSY, IDLE | ||||
| 85607-36020 |
XZB40..6FC..IV5;XZB50..29S..WC..(5F,6FC);BZB40,50,XZB4#,51,56..(EX,GX,LX)..(5F,6FC)..CBU ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ |
1 | ||
| 85607-36020 |
BZB40,50,XZB4#,5#..EX,GX,LX |
1 | ||
| 85620 - MOTOR ASSY, AUTOMATIC DOOR REGULATOR | ||||
| 85620-36221 |
XZB4#,5#..(EX,GX,LX,SULNG)..(5F,6FC) ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ |
1 | ||
| 85620-36220 |
XZB51..SULNG..6FC;XZB4#,5#..(09S,20S,26S,29S)..(EX,GX,LX) ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ |
1 | ||
| 85620-36410 |
XZB4#,5#..EX,GX,LX ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ |
1 | ||
| 85620-36411 |
XZB4#,5#..EX,GX,LX ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ |
1 | ||
| 85620-36411 |
XZB4#,5#..EX,GX,LX ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ |
1 | ||
| 85621 - MOTOR & LINK, AUTOMATIC DOOR REGULATOR | ||||
| 85621-36012 |
BZB40,50,XZB4#,5#..EX,GX,LX |
1 | ||
| 85621-36011 |
XZB51..SULNG..6FC;BZB40,50,XZB4#,5#..(09S,20S,26S,29S)..(EX,GX,LX) ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ |
1 | ||
| 85621-36012 |
XZB40..6FC..IV5;XZB50..29S..WC..(5F,6FC);BZB40,50,XZB4#,51,56..(EX,GX,LX)..(5F,6FC)..CBU ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ |
1 | ||
| 85622 - MOTOR & GEAR, AUTOMATIC DOOR REGULATOR | ||||
| 85622-36020 |
XZB4#,5#..EX,GX,LX ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ |
1 | ||
| 85622-36020 |
XZB40..6FC..IV5;XZB50..29S..WC..(5F,6FC);XZB4#,51,56..(EX,GX,LX)..(5F,6FC)..CBU ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ |
1 | ||
| 85623 - LINK, AUTOMATIC DOOR REGULATOR | ||||
| 85623-36011 |
XZB40..6FC..IV5;XZB50..29S..WC..(5F,6FC);BZB40,50,XZB4#,51,56..(EX,GX,LX)..(5F,6FC)..CBU ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ |
1 | ||
| 85623-36011 |
BZB40,50,XZB4#,5#..EX,GX,LX ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ |
1 | ||
| 85624 - LEVER, AUTOMATIC DOOR REGULATOR, NO.1 | ||||
| 85624-90B00 |
BZB40,50,XZB4#,5#..EX,GX,LX |
1 | ||
| 85624-90B00 |
XZB40..6FC..IV5;XZB50..29S..WC..(5F,6FC);BZB40,50,XZB4#,51,56..(EX,GX,LX)..(5F,6FC)..CBU ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ |
1 | ||
| 85625A - RACK, AUTOMATIC DOOR | ||||
| 85625-36010 |
BZB40,50,XZB4#,5#..EX,GX,LX ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ |
1 | ||
| 85625-36010 |
XZB40..6FC..IV5;XZB50..29S..WC..(5F,6FC);BZB40,50,XZB4#,51,56..(EX,GX,LX)..(5F,6FC)..CBU ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ |
1 | ||
| 85637 - REMOVER, AUTOMATIC DOOR | ||||
| 85637-90B00 |
XZB40..6FC..IV5;XZB50..29S..WC..(5F,6FC);BZB40,50,XZB4#,51,56..(EX,GX,LX)..(5F,6FC)..CBU |
1 | ||
| 85637-90B00 |
BZB40,50,XZB4#,5#..EX,GX,LX |
1 | ||
| 85980C - RELAY ASSY, DOOR CONTROL, NO.2 (FOR AUTOMATIC DOOR) | ||||
| 85980-36031 |
XZB4#,5#..EX,GX,LX ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ |
1 | ||
| 85980-36031 |
XZB40..6FC..IV5;XZB50..29S..WC..(5F,6FC);XZB4#,51,56..(EX,GX,LX)..(5F,6FC)..CBU ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ |
1 | ||
| 85980D - RELAY ASSY, DOOR CONTROL, NO.3 (FOR AUTOMATIC DOOR) | ||||
| 85980-36091 |
XZB40..6FC..IV5;XZB46,50,56..GX,LX;XZB40,51..(26S,29S)..WC..CBU ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ |
1 | ||
| 85980-36090 |
XZB4#,5#..(EX,GX,LX,SULNG)..(5F,6FC) ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ |
1 | ||
| 85980-36091 |
XZB4#,5#..EX,GX,LX |
1 | ||
| 85980D - RELAY ASSY, DOOR CONTROL, NO.3 (FOR AUTOMATIC DOOR) | ||||
| 85980-36091 |
XZB40..6FC..IV5;XZB46,50,56..GX,LX;XZB40,51..(26S,29S)..WC..CBU ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ |
1 | ||
| 85980-36090 |
XZB4#,5#..(EX,GX,LX,SULNG)..(5F,6FC) ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ |
1 | ||
| 85980-36091 |
XZB4#,5#..EX,GX,LX |
1 | ||
| Common parts | ||||
| 90463-12005 | ||||
| 96150-01600 | ||||

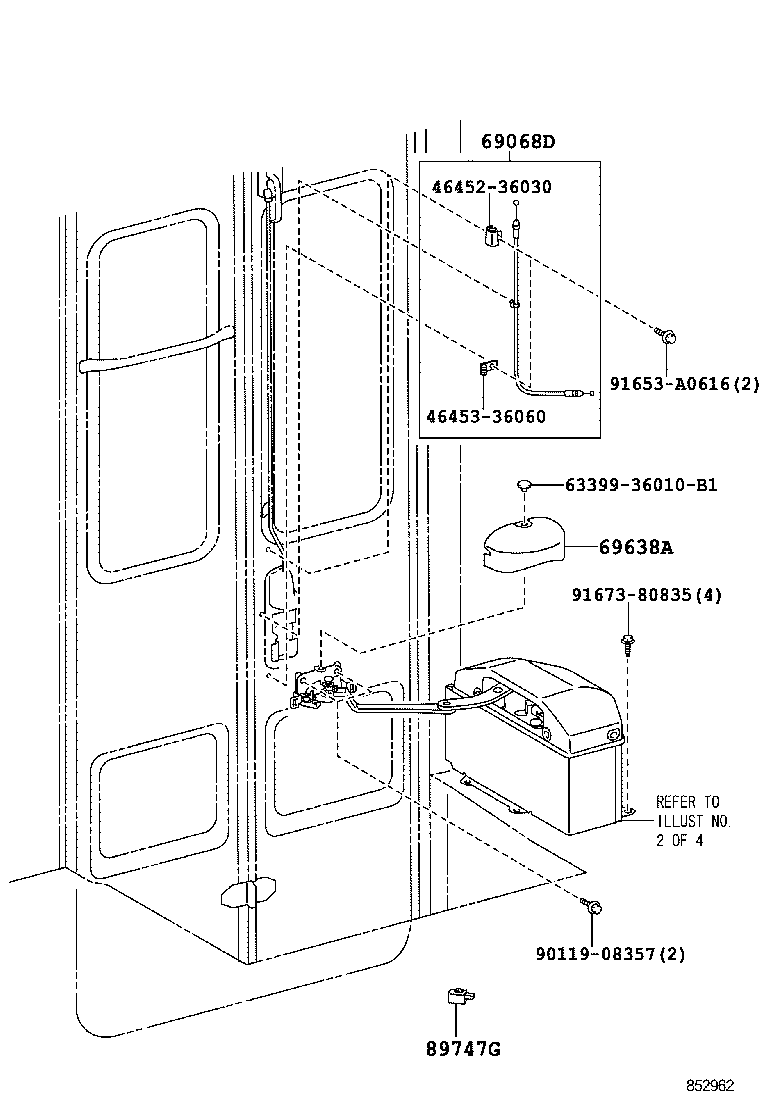

ILLUST NO. 1 OF 4(1209- )
ｵﾘﾄﾞ ｼｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 46452-36030 | ||||
| 46453-36060 | ||||
| 63399-36010B1 | ||||
| 90119-08357 | ||||
| 91653-A0616 | ||||
| 91673-80835 | ||||

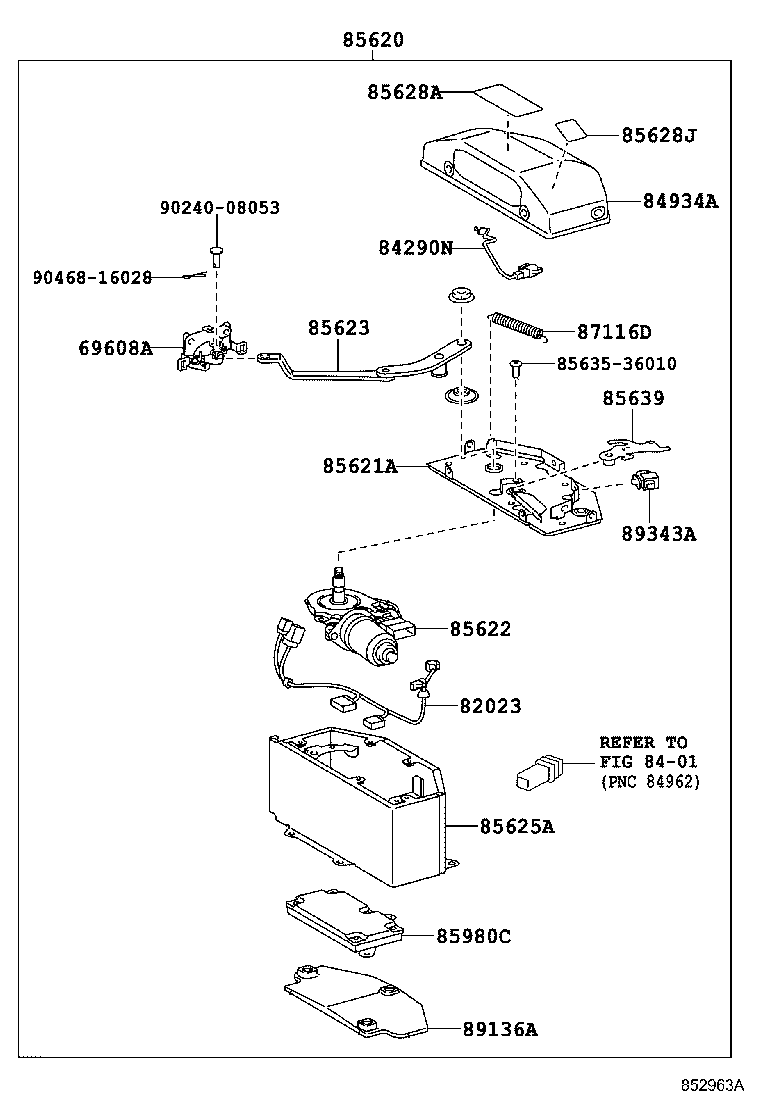

ILLUST NO. 2 OF 4(1209- )
ｵﾘﾄﾞ ｼｷ ﾕﾆｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85620 - MOTOR ASSY, AUTOMATIC DOOR REGULATOR | ||||
| 85620-36221 |
XZB4#,5#..(EX,GX,LX,SULNG)..(5F,6FC) ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ |
1 | ||
| 85620-36220 |
XZB51..SULNG..6FC;XZB4#,5#..(09S,20S,26S,29S)..(EX,GX,LX) ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ |
1 | ||
| 85620-36410 |
XZB4#,5#..EX,GX,LX ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ |
1 | ||
| 85620-36411 |
XZB4#,5#..EX,GX,LX ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ |
1 | ||
| 85620-36411 |
XZB4#,5#..EX,GX,LX ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ |
1 | ||
| 85622 - MOTOR & GEAR, AUTOMATIC DOOR REGULATOR | ||||
| 85622-36020 |
XZB4#,5#..EX,GX,LX ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ |
1 | ||
| 85622-36020 |
XZB40..6FC..IV5;XZB50..29S..WC..(5F,6FC);XZB4#,51,56..(EX,GX,LX)..(5F,6FC)..CBU ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ |
1 | ||
| 85623 - LINK, AUTOMATIC DOOR REGULATOR | ||||
| 85623-36011 |
XZB40..6FC..IV5;XZB50..29S..WC..(5F,6FC);BZB40,50,XZB4#,51,56..(EX,GX,LX)..(5F,6FC)..CBU ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ |
1 | ||
| 85623-36011 |
BZB40,50,XZB4#,5#..EX,GX,LX ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ |
1 | ||
| 85625A - RACK, AUTOMATIC DOOR | ||||
| 85625-36010 |
BZB40,50,XZB4#,5#..EX,GX,LX ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ |
1 | ||
| 85625-36010 |
XZB40..6FC..IV5;XZB50..29S..WC..(5F,6FC);BZB40,50,XZB4#,51,56..(EX,GX,LX)..(5F,6FC)..CBU ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ |
1 | ||
| 85628A - LABEL, AUTOMATIC DOOR, NO.2 | ||||
| 85628-36070 |
XZB40..6FC..IV5;XZB50..29S..WC..(5F,6FC);BZB40,50,XZB4#,51,56..(EX,GX,LX)..(5F,6FC)..CBU ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ |
1 | ||
| 85628-36070 |
BZB40,50,XZB4#,5#..EX,GX,LX ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ |
1 | ||
| 85980C - RELAY ASSY, DOOR CONTROL, NO.2 (FOR AUTOMATIC DOOR) | ||||
| 85980-36031 |
XZB4#,5#..EX,GX,LX ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ |
1 | ||
| 85980-36031 |
XZB40..6FC..IV5;XZB50..29S..WC..(5F,6FC);XZB4#,51,56..(EX,GX,LX)..(5F,6FC)..CBU ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ |
1 | ||
| Common parts | ||||
| 85635-36010 | ||||
| 90240-08053 | ||||
| 90468-16028 | ||||
| Linked diagrams | ||||
| 8401 | ||||

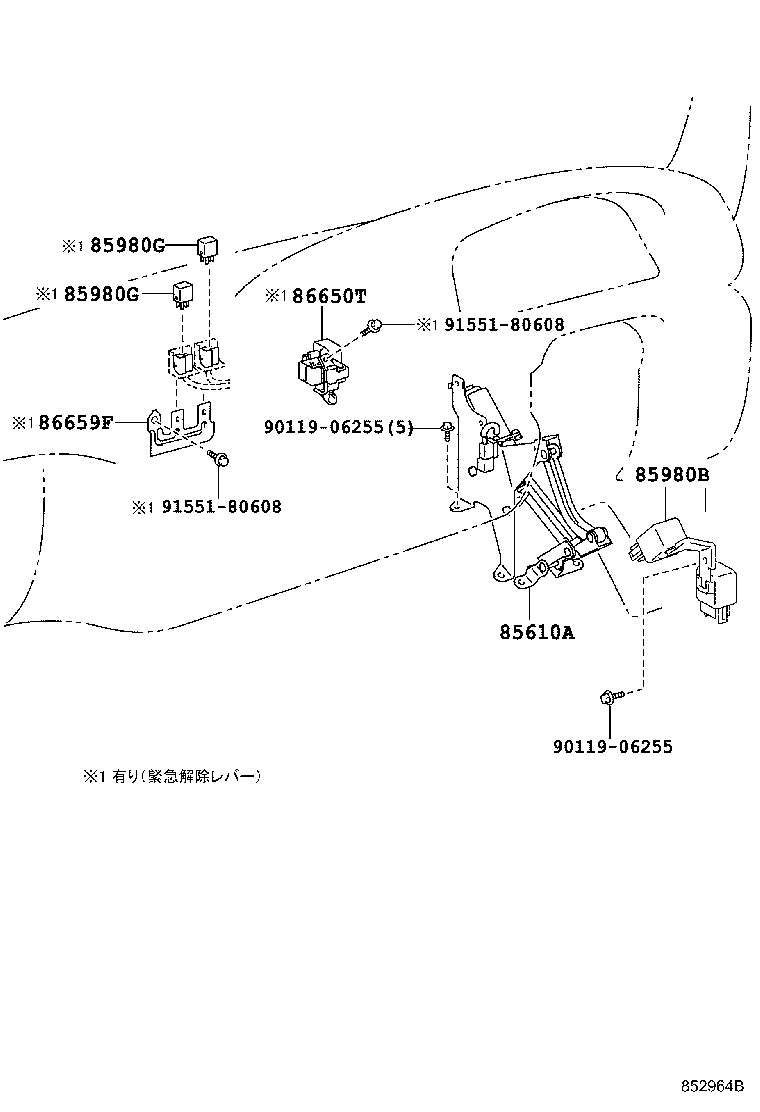

ILLUST NO. 4 OF 4(1209- )
ｱｸｾﾙｲﾝﾀｰﾛｯｸ & ﾘﾚｰ & ｼﾂﾅｲﾌﾞｻﾞｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85610A - ACTUATOR ASSY, ACCEL INTER LOCK | ||||
| 85610-36060 |
XZB4#,5# |
1 | ||
| 85610-36060 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 85610-36020 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 85980B - RELAY ASSY, DOOR CONTROL (FOR AUTOMATIC DOOR) | ||||
| 85980-36090 |
BB58..WC;BB4#,55,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 85980-36111 |
XZB46,50,56..WC;XZB40..6FC..IV5;XZB40,51..(26S,29S,39S)..CBU 24V |
1 | ||
| 85980-36111 |
XZB4#,5# |
1 | ||
| 85980-36110 |
XZB4#,5#..5F,6FC 24V |
1 | ||
| Common parts | ||||
| 90119-06255 | ||||
| 91551-80608 | ||||
ILLUST NO. 1 OF 4(1209- )
ｸﾞﾗｲﾄﾞ ｼｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85450F - MOTOR ASSY, DOOR CONTROL | ||||
| 85450-36040 |
XZB40..6FC..IV5;XZB50..29S..WC..(5F,6FC);XZB4#,51,56..(EX,GX,LX)..(5F,6FC)..CBU |
1 | ||
| 85450-36040 |
XZB4#,5#..EX,GX,LX |
1 | ||
| 85638A - SPACER, AUTOMATIC DOOR | ||||
| 85638-36010 |
XZB40..6FC..IV5;XZB50..29S..WC..(5F,6FC);BZB40,50,XZB4#,51,56..(EX,GX,LX)..(5F,6FC)..CBU |
1 | ||
| 85638-36010 |
BZB40,50,XZB4#,5#..EX,GX,LX |
1 | ||
| 86650D - BUZZER ASSY | ||||
| 86650-36060 |
XZB40..6FC..IV5;XZB50..29S..WC..(5F,6FC);XZB4#,51,56..(EX,GX,LX)..(5F,6FC)..CBU 24V |
1 | ||
| 86650-36060 |
XZB4#,5#..EX,GX,LX |
1 | ||
| 86659C - BRACKET, BUZZER, AUTOMATIC DOOR | ||||
| 86659-36010 |
XZB40..6FC..IV5;XZB50..29S..WC..(5F,6FC);BZB40,50,XZB4#,51,56..(EX,GX,LX)..(5F,6FC)..CBU |
1 | ||
| 86659-36010 |
BZB40,50,XZB4#,5#..EX,GX,LX |
1 | ||
| Common parts | ||||
| 90109-06122 | ||||
| 90119-08511 | ||||
| 90202-08039 | ||||
| 91511-B0614 | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
