XZB40-ZRMEY (2004)

Toyota Coaster

Production Aug 2004 - Dec 2016
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0708-1108)

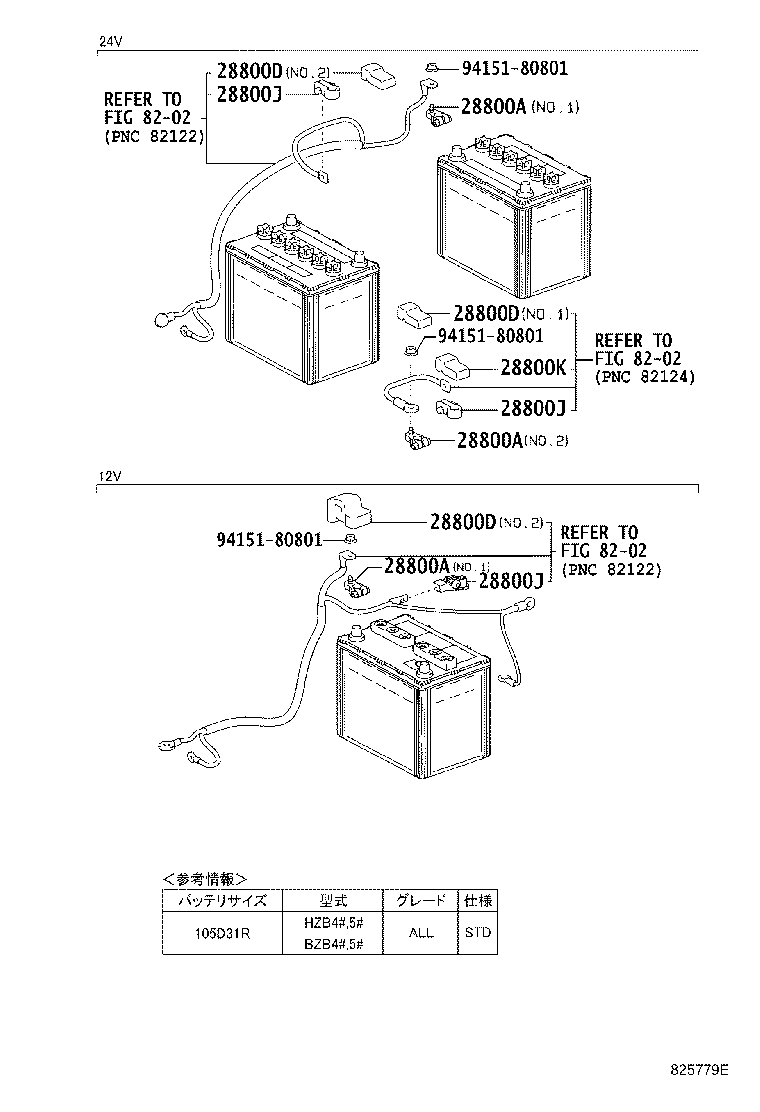

Click highlighted areas on diagram

diagram 28800A 28800A 28800A 28800D 28800D 28800D 28800J 28800J 28800J 28800K 8202 8202 8202 9415180801 9415180801 9415180801
Part # Description Qty Price
28800A - TERMINAL, BATTERY POSITIVE
90982-05058

N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5;N04C..XZB40,51..(26S,29S,39S)..CBU

NO.1

 1
90982-05035

N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD

NO.2

 1
90982-05053

N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5;N04C..XZB40,51..(26S,29S,39S)..CBU

NO.2

 1
90982-05037

N04C..XZB51..SULNG..6FC;N04C,1BZFPE..BZB40,50,XZB4#,5#..DX,EX,GX,LX,STD

NO.1

 1
90982-05058

N04C,1BZFPE..BZB40,50,XZB4#,5#

NO.1

 1
90982-05053

N04C..XZB4#,5#

NO.2

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05058

N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5;N04C..XZB40,51..(26S,29S,39S)..CBU

NO.1

 1
90982-05035

N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD

NO.2

 1
90982-05053

N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5;N04C..XZB40,51..(26S,29S,39S)..CBU

NO.2

 1
90982-05037

N04C..XZB51..SULNG..6FC;N04C,1BZFPE..BZB40,50,XZB4#,5#..DX,EX,GX,LX,STD

NO.1

 1
90982-05058

N04C,1BZFPE..BZB40,50,XZB4#,5#

NO.1

 1
90982-05053

N04C..XZB4#,5#

NO.2

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05058

N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5;N04C..XZB40,51..(26S,29S,39S)..CBU

NO.1

 1
90982-05035

N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD

NO.2

 1
90982-05053

N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5;N04C..XZB40,51..(26S,29S,39S)..CBU

NO.2

 1
90982-05037

N04C..XZB51..SULNG..6FC;N04C,1BZFPE..BZB40,50,XZB4#,5#..DX,EX,GX,LX,STD

NO.1

 1
90982-05058

N04C,1BZFPE..BZB40,50,XZB4#,5#

NO.1

 1
90982-05053

N04C..XZB4#,5#

NO.2

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-22110

N04C,1BZFPE..BZB40,50,XZB4#,5#..5F,6FC

NO.2

 1
82821-12150

N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU

NO.1

 1
82821-12150

N04C..XZB4#,5#

NO.1

 1
82821-24010

N04C..XZB40,50;N04C,1BZFPE..BZB40,50,XZB46,51,56..EX,LX

NO.2

 1
82821-24010

N04C,1BZFPE..BZB40,50,XZB4#,5#

NO.2

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-22110

N04C,1BZFPE..BZB40,50,XZB4#,5#..5F,6FC

NO.2

 1
82821-12150

N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU

NO.1

 1
82821-12150

N04C..XZB4#,5#

NO.1

 1
82821-24010

N04C..XZB40,50;N04C,1BZFPE..BZB40,50,XZB46,51,56..EX,LX

NO.2

 1
82821-24010

N04C,1BZFPE..BZB40,50,XZB4#,5#

NO.2

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-22110

N04C,1BZFPE..BZB40,50,XZB4#,5#..5F,6FC

NO.2

 1
82821-12150

N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU

NO.1

 1
82821-12150

N04C..XZB4#,5#

NO.1

 1
82821-24010

N04C..XZB40,50;N04C,1BZFPE..BZB40,50,XZB46,51,56..EX,LX

NO.2

 1
82821-24010

N04C,1BZFPE..BZB40,50,XZB4#,5#

NO.2

 1
28800J - TERMINAL, BATTERY NEGATIVE
90982-06013

N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD

 2
90982-06039

N04C..XZB40..6FC..IV5;N04C..XZB46,50,56..6FC;N04C..XZB40,51..(26S,29S,39S)..CBU

 2
90982-06039

N04C..XZB4#,5#

 2
28800J - TERMINAL, BATTERY NEGATIVE
90982-06013

N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD

 2
90982-06039

N04C..XZB40..6FC..IV5;N04C..XZB46,50,56..6FC;N04C..XZB40,51..(26S,29S,39S)..CBU

 2
90982-06039

N04C..XZB4#,5#

 2
28800J - TERMINAL, BATTERY NEGATIVE
90982-06013

N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD

 2
90982-06039

N04C..XZB40..6FC..IV5;N04C..XZB46,50,56..6FC;N04C..XZB40,51..(26S,29S,39S)..CBU

 2
90982-06039

N04C..XZB4#,5#

 2
28800K - COVER, CONNECTOR(FOR BATTERY TERMINAL NEGATIVE)
82821-12150

N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU

 1
82821-12150

N04C..XZB4#,5#

 1
Common parts
94151-80801
Linked diagrams
8202
