XZB40-ZRMEY (2004)
Toyota Coaster
ILLUST NO. 1 OF 2(0408-0602)XZB4#,5#
ﾌｭｰｴﾙ ﾀﾝｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-12130 |
XZB51..SULNG..6FC;XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 77011-36020 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 77011-12130 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 77011-36020 |
XZB4#,5# |
1 | ||
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-36430 |
HDB5#,HZB4#,5# |
1 | ||
| 77017-36440 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 77017-36440 |
XZB4#,5# |
1 | ||
| 77017-36420 |
BB4#,5# |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-36010 |
BB4#,5# |
1 | ||
| 77023-60010 |
XZB4#,5# |
1 | ||
| 77023-60010 |
HDB5#,HZB4#,5# |
1 | ||
| 77023-60010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-36020 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 77026-36020 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 77026-36020 |
XZB4#,5# |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-36023 |
XZB4# |
1 | ||
| 77035-36023 |
XZB4# |
1 | ||
| 77035-36022 |
XZB40..6FC..IV5;XZB4#..(5F,6FC)..CBU |
1 | ||
| 77035-36024 |
XZB4# |
1 | ||
| 77035-36022 |
XZB4# |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-12050 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77037-12050 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 77037-12050 |
BZB40,50,XZB4#,5# |
1 | ||
| 77051 - LEVER SUB-ASSY, FUEL LID OPEN | ||||
| 77051-30060B3 |
BZB40,50,XZB4#,5# DK.CHARCOAL,TRIM1# |
1 | ||
| 77051-30060E1 |
BB4#,HDB5#,HZB4#,5# GREIGE,TRIM4# |
1 | ||
| 77051-30060B3 |
BZB40,50,XZB4#,5# DK.CHARCOAL,TRIM1# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-3B260 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 77001-3B261 |
XZB4#,5#..5F,6FC |
1 | ||
| 77001-3B260 |
XZB4#,5# |
1 | ||
| 77001-3B262 |
XZB46,50,56..WC;XZB40..6FC..IV5;XZB40,51..(26S,29S,39S)..CBU |
1 | ||
| 77001-3B262 |
XZB4#,5# |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 90105-12116 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 90105-12116 |
XZB4#,5# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
XZB4#,5# |
1 | ||
| 90430-12245 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 90430-12245 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 77135 - BRACKET, CHECK VALVE | ||||
| 77135-36040 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 77135-36040 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 77135-36040 |
XZB4#,5# |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-14020 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 77169-14020 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 77169-14020 |
XZB4#,5# |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20030 |
XZB51..SULNG..6FC;XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 77178-20030 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 77178-34010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 77178-34010 |
XZB4#,5# |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-26010 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 77179-26011 |
XZB4#,5# |
2 | ||
| 77179-26010 |
XZB4#,5# |
2 | ||
| 77179-26010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
2 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-26010 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 77179-26011 |
XZB4#,5# |
2 | ||
| 77179-26010 |
XZB4#,5# |
2 | ||
| 77179-26010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
2 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-36170 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 77201-36180 |
BB4#,5#,HDB5#,HZB4#,5# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 77201-36180 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 77201-36180 |
XZB4#,5# |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-36090 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 77213-36090 |
XZB4#,5# |
1 | ||
| 77213-36090 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 77259A - HOSE, FUEL(FOR BREATHER TUBE) | ||||
| 77259-36070 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 77259-36070 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 77259-36070 |
XZB4#,5# |
1 | ||
| 77259C - HOSE, FUEL | ||||
| 77259-36090 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 77259-36090 |
XZB4#,5# |
1 | ||
| 77259-36090 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-12060 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77291-12060 |
BZB40,50,XZB4#,5# |
1 | ||
| 77291-12060 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-12030 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 77293-12030 |
BZB40,50,XZB4#,5# |
1 | ||
| 77293-12030 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-35110 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 77300-52030 |
XZB46,50,56..WC;XZB40..6FC..IV5;XZB40,51..(26S,29S,39S)..CBU |
1 | ||
| 77300-20020 |
XZB4#,5# |
1 | ||
| 77310-12150 |
XZB51..SULNG..6FC;XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 77316-52040 |
XZB4#,5# |
1 | ||
| 77316-16010 |
XZB51..SULNG..6FC;XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 77316-52040 |
XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77350-36010 |
XZB51..SULNG..6FC;BZB40,50,XZB4#,5#..DX,EX,GX,LX,STD NO.1 |
1 | ||
| 77350-36011 |
BZB40,50,XZB4#,5# NO.1 |
1 | ||
| 77350-36011 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU NO.1 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-36010 |
BZB40,50,XZB4#,5# |
1 | ||
| 77360-36010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 77360-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-20030 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77377-20030 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU NO.1 |
1 | ||
| 77377-20030 |
BZB40,50,XZB4#,5# NO.1 |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 77380-26010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 77380-26010 |
XZB4#,5# |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-14020 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77391-14020 |
BZB40,50,XZB4#,5# |
1 | ||
| 77391-14020 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 77420 - VALVE ASSY, FUEL CUT OFF, NO.2 | ||||
| 77420-26010 |
XZB4#,5# |
1 | ||
| 77420-26010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 77420-26010 |
XZB4#,5# |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-36120 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 77601-36120 |
XZB4#,5# |
2 | ||
| 77601-36120 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-36120 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 77601-36120 |
XZB4#,5# |
2 | ||
| 77601-36120 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90240-08047 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 90240-08047 |
XZB4#,5# |
2 | ||
| 90240-08047 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
2 | ||
| 77613A - BRACKET, FUEL TANK BAND, NO.1 | ||||
| 77613-36030 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 77613-36030 |
XZB4#,5# |
2 | ||
| 77613-36030 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
2 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-36130 |
BB4#,5#,HDB5#,HZB4#,5# |
3 | ||
| 77651-36130 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
3 | ||
| 77651-36130 |
XZB4#,5# |
3 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-36130 |
BB4#,5#,HDB5#,HZB4#,5# |
3 | ||
| 77651-36130 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
3 | ||
| 77651-36130 |
XZB4#,5# |
3 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-36130 |
BB4#,5#,HDB5#,HZB4#,5# |
3 | ||
| 77651-36130 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
3 | ||
| 77651-36130 |
XZB4#,5# |
3 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-36010 |
XZB4#,5# |
2 | ||
| 77652-36010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
2 | ||
| 77652-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-36010 |
XZB4#,5# |
2 | ||
| 77652-36010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
2 | ||
| 77652-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-36010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
2 | ||
| 77653-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
4 | ||
| 77653-36010 |
XZB4#,5# |
4 | ||
| 77653-36010 |
XZB4#,5# |
2 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-36010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
2 | ||
| 77653-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
4 | ||
| 77653-36010 |
XZB4#,5# |
4 | ||
| 77653-36010 |
XZB4#,5# |
2 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-36010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
2 | ||
| 77653-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
4 | ||
| 77653-36010 |
XZB4#,5# |
4 | ||
| 77653-36010 |
XZB4#,5# |
2 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-36010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
2 | ||
| 77653-36010 |
XZB4#,5# |
4 | ||
| 77653-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
4 | ||
| 77653-36010 |
XZB4#,5# |
2 | ||
| 77655 - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-36020 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
2 | ||
| 77653-36020 |
XZB4#,5# |
2 | ||
| 77655 - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-36020 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
2 | ||
| 77653-36020 |
XZB4#,5# |
2 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-36050 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 77681-36050 |
XZB4#,5# |
2 | ||
| 77681-36050 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
2 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-36050 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 77681-36050 |
XZB4#,5# |
2 | ||
| 77681-36050 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
2 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10020 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 90917-10020 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 90917-10020 |
XZB4#,5# |
1 | ||
| Common parts | ||||
| 82711-33170 | ||||
| 90159-50217 | ||||
| 90159-50219 | ||||
| 90159-50278 | ||||
| 90159-60008 | ||||
| 90179-05011 | ||||
| 90179-05042 | ||||
| 90179-10074 | ||||
| 90183-05094 | ||||
| 90189-06099 | ||||
| 90460-22002 | ||||
| 90460-46005 | ||||
| 90467-09007 | ||||
| 90468-14004 | ||||
| 90480-14003 | ||||
| 91651-60616 | ||||
| 91651-61025 | ||||
| 91651-A0816 | ||||
| 91655-B1040 | ||||
| 93319-A4010 | ||||
| 93568-55014 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 8401 | ||||

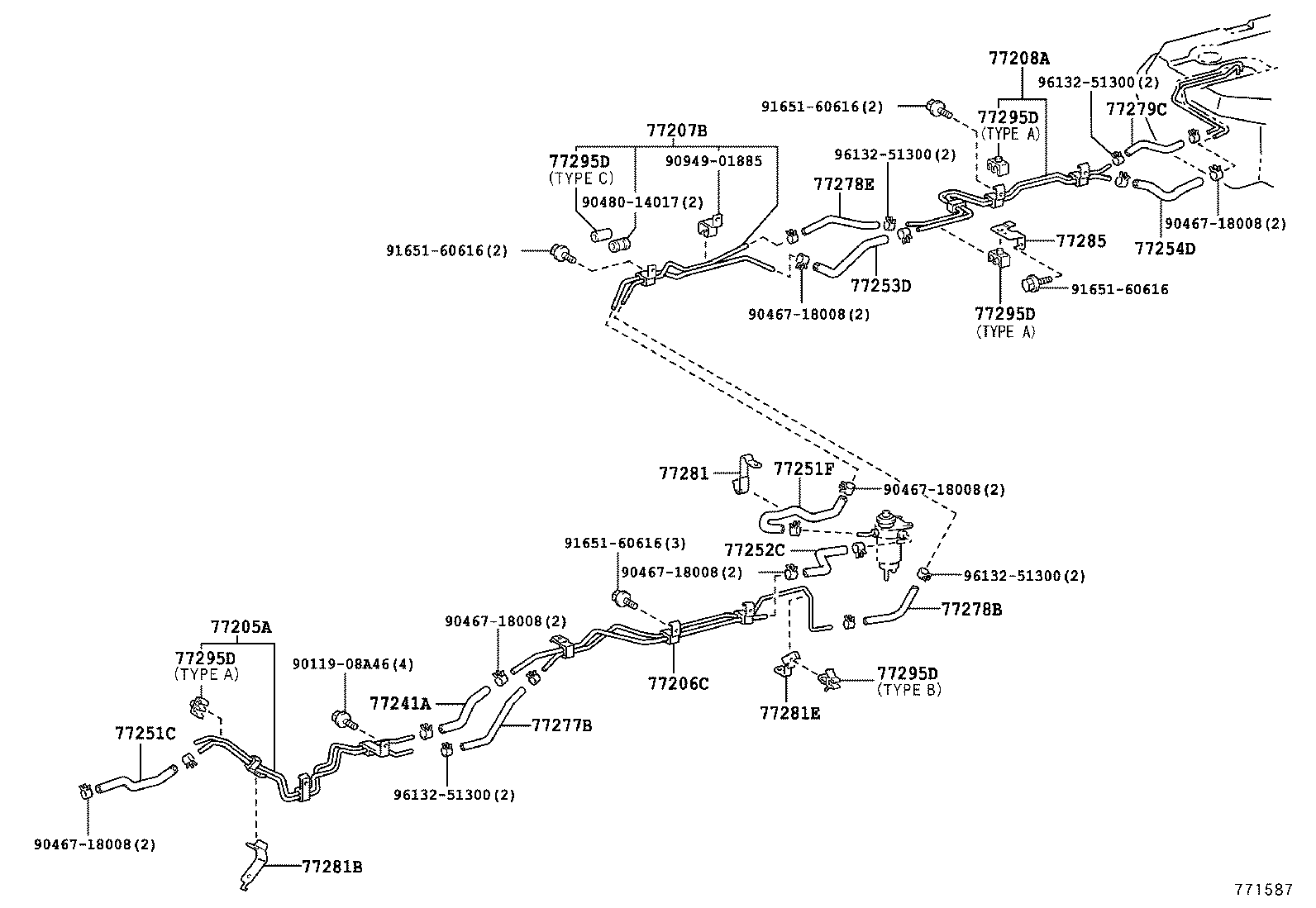

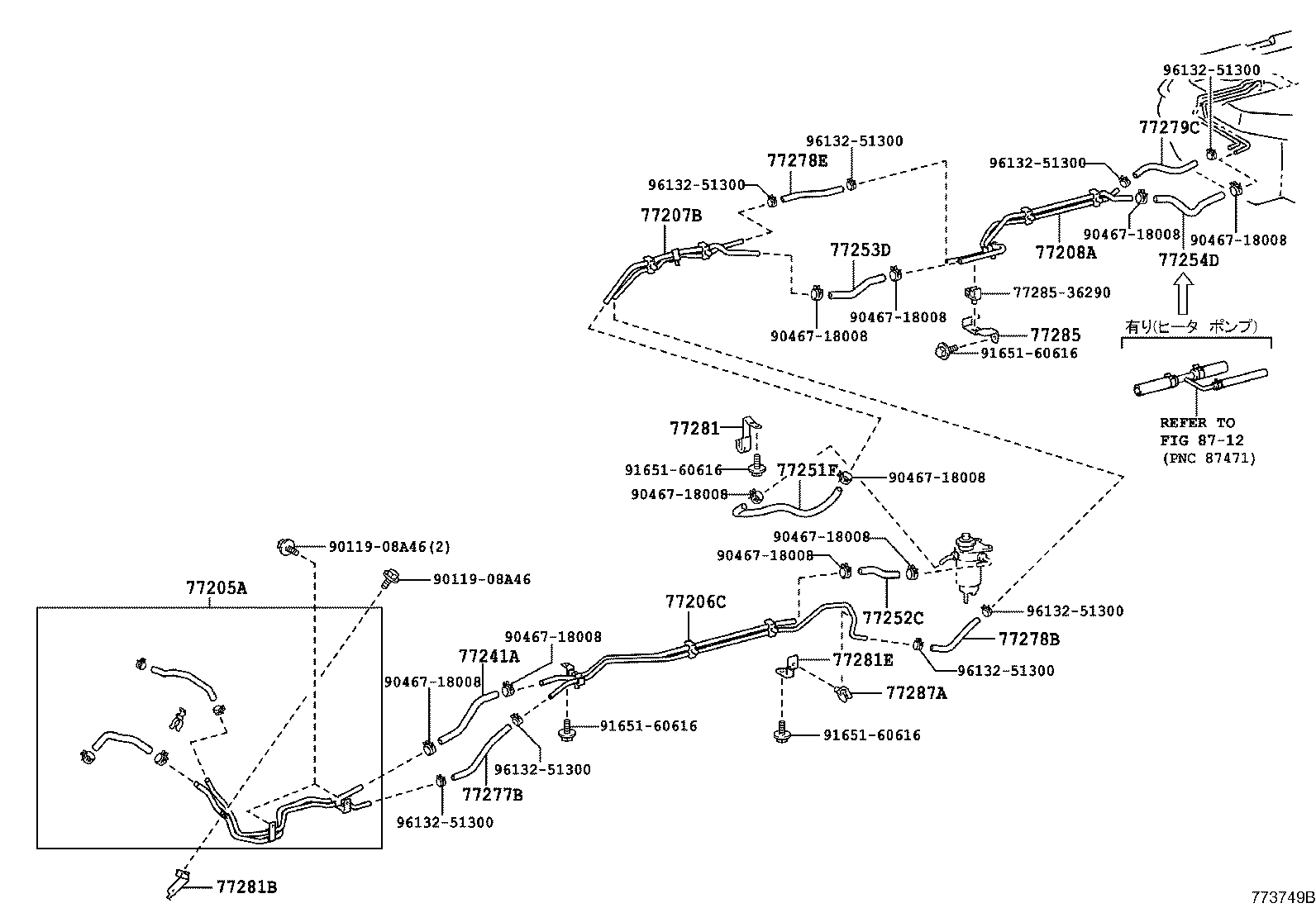

ILLUST NO. 2 OF 2(0408-1501)XZB4#
ﾌｭｰｴﾙ ﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77205A - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-36780 |
HDB5#,HZB4#,5#..4FC,5F |
1 | ||
| 77205-36A40 |
XZB4#,5# |
1 | ||
| 77205-36A60 |
XZB4#,5# |
1 | ||
| 77205-36A00 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(5F,6FC)..CBU |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-36540 |
XZB4#,5# |
1 | ||
| 77206-36580 |
XZB4#,5# |
1 | ||
| 77206-36541 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 77207B - TUBE SUB-ASSY, FUEL MAIN, NO.3 | ||||
| 77207-36260 |
XZB40..6FC..IV5;XZB4#..(5F,6FC)..CBU |
1 | ||
| 77207-36350 |
XZB4# |
1 | ||
| 77208A - TUBE SUB-ASSY, FUEL MAIN, NO.4 | ||||
| 77208-36180 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 77208-36260 |
XZB4#,5# |
1 | ||
| 77208-36140 |
HDB5#,HZB4#,5# |
1 | ||
| 77208-36150 |
BB4#,5# |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 77259-36450 |
XZB4#,5# |
1 | ||
| 95338-12020 |
XZB4#,5#..DX,EX,GX,LX,STD 長さ=200 |
1 | ||
| 95332-12020 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(5F,6FC)..CBU *H,L=200,内径=12 |
1 | ||
| 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) | ||||
| 77259-36231 |
XZB4#,5# |
1 | ||
| 77259-36230 |
XZB4#,5# |
1 | ||
| 77251F - HOSE, FUEL | ||||
| 77259-36150 |
HDB5#,HZB4#,5# |
1 | ||
| 77259-36181 |
XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 77259-36181 |
XZB4#,5# |
1 | ||
| 77259-36180 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(5F,6FC)..CBU |
1 | ||
| 77252C - HOSE, FUEL, NO.2(FOR FUEL MAIN NO.2 TUBE) | ||||
| 95332-12015 |
HDB5#,HZB4#,5# |
1 | ||
| 77259-36190 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(5F,6FC)..CBU |
1 | ||
| 77259-36460 |
XZB4#,5# |
1 | ||
| 77259-36191 |
XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 77253D - HOSE, FUEL | ||||
| 95332-12018 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(5F,6FC)..CBU |
1 | ||
| 95338-12018 |
XZB4# |
1 | ||
| 95338-12018 |
XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 77254D - HOSE, FUEL | ||||
| 95332-12018 |
HDB5#,HZB4#,5# |
1 | ||
| 95332-10018 |
BB4#,5# |
1 | ||
| 95332-12018 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(5F,6FC)..CBU |
1 | ||
| 95338-12018 |
XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 95338-12018 |
XZB4#,5# |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95337-08034 |
XZB4#,5#..DX,EX,GX,LX,STD 長さ=260 |
1 | ||
| 95333-08030 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(5F,6FC)..CBU *H,L=260,内径=7.6 |
1 | ||
| 95337-08034 |
XZB4#,5# 長さ=260 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95333-06020 |
BB4#,HDB5#,HZB4#,5# *H,L=180 |
1 | ||
| 95337-08020 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(5F,6FC)..CBU *H,L=150,内径=7.6 |
1 | ||
| 95337-08019 |
XZB4#,5# 長さ=190 |
1 | ||
| 95337-08015 |
XZB4#,5#..DX,EX,GX,LX,STD 長さ=160 |
1 | ||
| 77278E - HOSE, FUEL | ||||
| 95337-08020 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(5F,6FC)..CBU |
1 | ||
| 95337-08019 |
XZB4# |
1 | ||
| 95337-08034 |
XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 77279C - HOSE, FUEL | ||||
| 95333-06020 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 95337-08034 |
XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 95337-08020 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(5F,6FC)..CBU |
1 | ||
| 95337-08022 |
XZB4#,5# |
1 | ||
| 77281 - BRACKET, FUEL MAIN TUBE, NO.1 | ||||
| 77281-36030 |
XZB4#,5# |
1 | ||
| 77281-36030 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 77281B - CLAMP, FUEL HOSE(FOR REAR FUEL MAIN) | ||||
| 77281-36060 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(5F,6FC)..CBU |
1 | ||
| 77281-36100 |
XZB4#,5# |
1 | ||
| 77281-36100 |
XZB4#,5# |
1 | ||
| 77281E - BRACKET, FUEL MAIN TUBE, NO.1 | ||||
| 77281-36040 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 77281-36130 |
XZB4#,5# |
1 | ||
| 77285 - BRACKET, FUEL TUBE | ||||
| 77281-36140 |
XZB4#,5# |
1 | ||
| 77281-36010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 77295D - GROMMET, FUEL TUBE | ||||
| 77295-36050 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 77295-36040 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 77295-36070 |
XZB40..6FC..IV5;XZB4#..(5F,6FC)..CBU TYPE C:ｲﾗｽﾄ参照 |
2 | ||
| 77295D - GROMMET, FUEL TUBE | ||||
| 77295-36050 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 77295-36040 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 77295-36070 |
XZB40..6FC..IV5;XZB4#..(5F,6FC)..CBU TYPE C:ｲﾗｽﾄ参照 |
2 | ||
| 77295D - GROMMET, FUEL TUBE | ||||
| 77295-36050 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 77295-36040 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 77295-36070 |
XZB40..6FC..IV5;XZB4#..(5F,6FC)..CBU TYPE C:ｲﾗｽﾄ参照 |
2 | ||
| 77295D - GROMMET, FUEL TUBE | ||||
| 77295-36050 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 77295-36040 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 77295-36070 |
XZB40..6FC..IV5;XZB4#..(5F,6FC)..CBU TYPE C:ｲﾗｽﾄ参照 |
2 | ||
| 77295D - GROMMET, FUEL TUBE | ||||
| 77295-36050 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 77295-36040 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 77295-36070 |
XZB40..6FC..IV5;XZB4#..(5F,6FC)..CBU TYPE C:ｲﾗｽﾄ参照 |
2 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90467-18008 | ||||
| 90480-14017 | ||||
| 90949-01885 | ||||
| 91651-60616 | ||||
| 96132-51300 | ||||
ILLUST NO. 1 OF 2(0602- )XZB4#,5#
ﾌｭｰｴﾙ ﾀﾝｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-12130 |
XZB51..SULNG..6FC;XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 77011-36020 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 77011-12130 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 77011-36020 |
XZB4#,5# |
1 | ||
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-36430 |
HDB5#,HZB4#,5# |
1 | ||
| 77017-36440 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 77017-36440 |
XZB4#,5# |
1 | ||
| 77017-36420 |
BB4#,5# |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-36010 |
BB4#,5# |
1 | ||
| 77023-60010 |
XZB4#,5# |
1 | ||
| 77023-60010 |
HDB5#,HZB4#,5# |
1 | ||
| 77023-60010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-36020 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 77026-36020 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 77026-36020 |
XZB4#,5# |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-36023 |
XZB4# |
1 | ||
| 77035-36023 |
XZB4# |
1 | ||
| 77035-36022 |
XZB40..6FC..IV5;XZB4#..(5F,6FC)..CBU |
1 | ||
| 77035-36024 |
XZB4# |
1 | ||
| 77035-36022 |
XZB4# |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-12050 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77037-12050 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 77037-12050 |
BZB40,50,XZB4#,5# |
1 | ||
| 77051 - LEVER SUB-ASSY, FUEL LID OPEN | ||||
| 77051-30060B3 |
BZB40,50,XZB4#,5# DK.CHARCOAL,TRIM1# |
1 | ||
| 77051-30060E1 |
BB4#,HDB5#,HZB4#,5# GREIGE,TRIM4# |
1 | ||
| 77051-30060B3 |
BZB40,50,XZB4#,5# DK.CHARCOAL,TRIM1# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-3B260 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 77001-3B261 |
XZB4#,5#..5F,6FC |
1 | ||
| 77001-3B260 |
XZB4#,5# |
1 | ||
| 77001-3B262 |
XZB46,50,56..WC;XZB40..6FC..IV5;XZB40,51..(26S,29S,39S)..CBU |
1 | ||
| 77001-3B262 |
XZB4#,5# |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 90105-12116 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 90105-12116 |
XZB4#,5# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
XZB4#,5# |
1 | ||
| 90430-12245 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 90430-12245 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 77135 - BRACKET, CHECK VALVE | ||||
| 77135-36040 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 77135-36040 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 77135-36040 |
XZB4#,5# |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-14020 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 77169-14020 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 77169-14020 |
XZB4#,5# |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20030 |
XZB51..SULNG..6FC;XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 77178-20030 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 77178-34010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 77178-34010 |
XZB4#,5# |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-26010 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 77179-26011 |
XZB4#,5# |
2 | ||
| 77179-26010 |
XZB4#,5# |
2 | ||
| 77179-26010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
2 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-26010 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 77179-26011 |
XZB4#,5# |
2 | ||
| 77179-26010 |
XZB4#,5# |
2 | ||
| 77179-26010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
2 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-36170 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 77201-36180 |
BB4#,5#,HDB5#,HZB4#,5# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 77201-36180 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 77201-36180 |
XZB4#,5# |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-36090 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 77213-36090 |
XZB4#,5# |
1 | ||
| 77213-36090 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 77259A - HOSE, FUEL(FOR BREATHER TUBE) | ||||
| 77259-36070 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 77259-36070 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 77259-36070 |
XZB4#,5# |
1 | ||
| 77259C - HOSE, FUEL | ||||
| 77259-36090 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 77259-36090 |
XZB4#,5# |
1 | ||
| 77259-36090 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-12060 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77291-12060 |
BZB40,50,XZB4#,5# |
1 | ||
| 77291-12060 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-12030 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 77293-12030 |
BZB40,50,XZB4#,5# |
1 | ||
| 77293-12030 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-35110 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 77300-52030 |
XZB46,50,56..WC;XZB40..6FC..IV5;XZB40,51..(26S,29S,39S)..CBU |
1 | ||
| 77300-20020 |
XZB4#,5# |
1 | ||
| 77310-12150 |
XZB51..SULNG..6FC;XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 77316-52040 |
XZB4#,5# |
1 | ||
| 77316-16010 |
XZB51..SULNG..6FC;XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 77316-52040 |
XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77350-36010 |
XZB51..SULNG..6FC;BZB40,50,XZB4#,5#..DX,EX,GX,LX,STD NO.1 |
1 | ||
| 77350-36011 |
BZB40,50,XZB4#,5# NO.1 |
1 | ||
| 77350-36011 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU NO.1 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-36010 |
BZB40,50,XZB4#,5# |
1 | ||
| 77360-36010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 77360-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-20030 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77377-20030 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU NO.1 |
1 | ||
| 77377-20030 |
BZB40,50,XZB4#,5# NO.1 |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 77380-26010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 77380-26010 |
XZB4#,5# |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-14020 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 77391-14020 |
BZB40,50,XZB4#,5# |
1 | ||
| 77391-14020 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 77420 - VALVE ASSY, FUEL CUT OFF, NO.2 | ||||
| 77420-26010 |
XZB4#,5# |
1 | ||
| 77420-26010 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 77420-26010 |
XZB4#,5# |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-36120 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 77601-36120 |
XZB4#,5# |
2 | ||
| 77601-36120 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-36120 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 77601-36120 |
XZB4#,5# |
2 | ||
| 77601-36120 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90240-08047 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 90240-08047 |
XZB4#,5# |
2 | ||
| 90240-08047 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
2 | ||
| 77613A - BRACKET, FUEL TANK BAND, NO.1 | ||||
| 77613-36030 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 77613-36030 |
XZB4#,5# |
2 | ||
| 77613-36030 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
2 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-36130 |
BB4#,5#,HDB5#,HZB4#,5# |
3 | ||
| 77651-36130 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
3 | ||
| 77651-36130 |
XZB4#,5# |
3 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-36130 |
BB4#,5#,HDB5#,HZB4#,5# |
3 | ||
| 77651-36130 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
3 | ||
| 77651-36130 |
XZB4#,5# |
3 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-36130 |
BB4#,5#,HDB5#,HZB4#,5# |
3 | ||
| 77651-36130 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
3 | ||
| 77651-36130 |
XZB4#,5# |
3 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-36010 |
XZB4#,5# |
2 | ||
| 77652-36010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
2 | ||
| 77652-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-36010 |
XZB4#,5# |
2 | ||
| 77652-36010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
2 | ||
| 77652-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-36010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
2 | ||
| 77653-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
4 | ||
| 77653-36010 |
XZB4#,5# |
4 | ||
| 77653-36010 |
XZB4#,5# |
2 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-36010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
2 | ||
| 77653-36010 |
BB4#,5#,HDB5#,HZB4#,5# |
4 | ||
| 77653-36010 |
XZB4#,5# |
4 | ||
| 77653-36010 |
XZB4#,5# |
2 | ||
| 77655 - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-36020 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
2 | ||
| 77653-36020 |
XZB4#,5# |
2 | ||
| 77655 - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-36020 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
2 | ||
| 77653-36020 |
XZB4#,5# |
2 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-36050 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 77681-36050 |
XZB4#,5# |
2 | ||
| 77681-36050 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
2 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-36050 |
BB4#,5#,HDB5#,HZB4#,5# |
2 | ||
| 77681-36050 |
XZB4#,5# |
2 | ||
| 77681-36050 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
2 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10020 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 90917-10020 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 90917-10020 |
XZB4#,5# |
1 | ||
| Common parts | ||||
| 82711-33170 | ||||
| 90159-50217 | ||||
| 90159-50219 | ||||
| 90159-50278 | ||||
| 90159-60008 | ||||
| 90179-05011 | ||||
| 90179-05042 | ||||
| 90179-10074 | ||||
| 90183-05094 | ||||
| 90189-06099 | ||||
| 90460-22002 | ||||
| 90460-46005 | ||||
| 90467-09007 | ||||
| 90468-14004 | ||||
| 90480-14003 | ||||
| 91651-60616 | ||||
| 91651-61025 | ||||
| 91651-A0816 | ||||
| 91655-B1040 | ||||
| 93319-A4010 | ||||
| 93568-55014 | ||||
| 96133-41101 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(1501- )XZB4#
ﾌｭｰｴﾙﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77205A - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-36780 |
HDB5#,HZB4#,5#..4FC,5F |
1 | ||
| 77205-36A40 |
XZB4#,5# |
1 | ||
| 77205-36A60 |
XZB4#,5# |
1 | ||
| 77205-36A00 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(5F,6FC)..CBU |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-36540 |
XZB4#,5# |
1 | ||
| 77206-36580 |
XZB4#,5# |
1 | ||
| 77206-36541 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 77207B - TUBE SUB-ASSY, FUEL MAIN, NO.3 | ||||
| 77207-36260 |
XZB40..6FC..IV5;XZB4#..(5F,6FC)..CBU |
1 | ||
| 77207-36350 |
XZB4# |
1 | ||
| 77208A - TUBE SUB-ASSY, FUEL MAIN, NO.4 | ||||
| 77208-36180 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 77208-36260 |
XZB4#,5# |
1 | ||
| 77208-36140 |
HDB5#,HZB4#,5# |
1 | ||
| 77208-36150 |
BB4#,5# |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 77259-36450 |
XZB4#,5# |
1 | ||
| 95338-12020 |
XZB4#,5#..DX,EX,GX,LX,STD 長さ=200 |
1 | ||
| 95332-12020 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(5F,6FC)..CBU *H,L=200,内径=12 |
1 | ||
| 77251F - HOSE, FUEL | ||||
| 77259-36150 |
HDB5#,HZB4#,5# |
1 | ||
| 77259-36181 |
XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 77259-36181 |
XZB4#,5# |
1 | ||
| 77259-36180 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(5F,6FC)..CBU |
1 | ||
| 77252C - HOSE, FUEL, NO.2(FOR FUEL MAIN NO.2 TUBE) | ||||
| 95332-12015 |
HDB5#,HZB4#,5# |
1 | ||
| 77259-36190 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(5F,6FC)..CBU |
1 | ||
| 77259-36460 |
XZB4#,5# |
1 | ||
| 77259-36191 |
XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 77253D - HOSE, FUEL | ||||
| 95332-12018 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(5F,6FC)..CBU |
1 | ||
| 95338-12018 |
XZB4# |
1 | ||
| 95338-12018 |
XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 77254D - HOSE, FUEL | ||||
| 95332-12018 |
HDB5#,HZB4#,5# |
1 | ||
| 95332-10018 |
BB4#,5# |
1 | ||
| 95332-12018 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(5F,6FC)..CBU |
1 | ||
| 95338-12018 |
XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 95338-12018 |
XZB4#,5# |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95337-08034 |
XZB4#,5#..DX,EX,GX,LX,STD 長さ=260 |
1 | ||
| 95333-08030 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(5F,6FC)..CBU *H,L=260,内径=7.6 |
1 | ||
| 95337-08034 |
XZB4#,5# 長さ=260 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95333-06020 |
BB4#,HDB5#,HZB4#,5# *H,L=180 |
1 | ||
| 95337-08020 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(5F,6FC)..CBU *H,L=150,内径=7.6 |
1 | ||
| 95337-08019 |
XZB4#,5# 長さ=190 |
1 | ||
| 95337-08015 |
XZB4#,5#..DX,EX,GX,LX,STD 長さ=160 |
1 | ||
| 77278E - HOSE, FUEL | ||||
| 95337-08020 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(5F,6FC)..CBU |
1 | ||
| 95337-08019 |
XZB4# |
1 | ||
| 95337-08034 |
XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 77279C - HOSE, FUEL | ||||
| 95333-06020 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 95337-08034 |
XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 95337-08020 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(5F,6FC)..CBU |
1 | ||
| 95337-08022 |
XZB4#,5# |
1 | ||
| 77281 - BRACKET, FUEL MAIN TUBE, NO.1 | ||||
| 77281-36030 |
XZB4#,5# |
1 | ||
| 77281-36030 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 77281B - CLAMP, FUEL HOSE(FOR REAR FUEL MAIN) | ||||
| 77281-36060 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(5F,6FC)..CBU |
1 | ||
| 77281-36100 |
XZB4#,5# |
1 | ||
| 77281-36100 |
XZB4#,5# |
1 | ||
| 77281E - BRACKET, FUEL MAIN TUBE, NO.1 | ||||
| 77281-36040 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 77281-36130 |
XZB4#,5# |
1 | ||
| 77285 - BRACKET, FUEL TUBE | ||||
| 77281-36140 |
XZB4#,5# |
1 | ||
| 77281-36010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 77287A - HOSE, FUEL | ||||
| 77285-35800 |
XZB4#,5# |
1 | ||
| Common parts | ||||
| 77285-36290 | ||||
| 90119-08A46 | ||||
| 90467-18008 | ||||
| 91651-60616 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 8712 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
