XZB40-ZRMEY (2004)
Toyota Coaster
(9301-1501)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-36030A0 |
BB4#,HDB50,HZB40,5# ﾋﾞﾆ-ﾙ ﾚｻﾞ-,IVORY,TRIM4# |
1 | ||
| 74310-36131B0 |
XZB4#,50,56 MD.CHARCOAL,TRIM1# |
1 | ||
| 74310-36120B0 |
XZB51..SULNG..6FC;XZB40,50,51..EX,GX ｼﾖｸﾓｳ ﾀｲﾌﾟ,ME. CHARCOAL,TRIM1# |
1 | ||
| 74310-36180B0 |
XZB40,50..GX ｱﾘ(ｵｰﾅｰｽﾞ ﾎﾞｰﾄﾞ),ME. CHARCOAL,TRIM1# |
1 | ||
| 74310-36131B0 |
XZB4#,50,56 MD.CHARCOAL,TRIM1# |
1 | ||
| 74310-36110B0 |
XZB4#,50,56 MD.CHARCOAL,TRIM1# |
1 | ||
| 74317 - COVER, VISOR BRACKET, RH | ||||
| 74317-36010A1 |
BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5) IVORY,TRIM4# |
1 | ||
| 74317-36010B0 |
BZB40,50,XZB4#,5# MD.CHARCOAL,TRIM1# |
1 | ||
| 74317-36010B0 |
BZB40,50,XZB4#,5#..WC MD.CHARCOAL,TRIM1# |
1 | ||
| 74318 - COVER, VISOR BRACKET, LH | ||||
| 74317-36010A0 |
BB4#,HDB5#,HZB4#,5#..EX,GX,LX,SULNG IVORY,TRIM4# |
1 | ||
| 74317-36010B0 |
BZB40,50,XZB4#,5#..EX,GX,LX MD.CHARCOAL,TRIM1# |
1 | ||
| 74317-36010B0 |
BZB40,50,XZB4#,5#..EX,GX,LX,SULNG MD.CHARCOAL,TRIM1# |
1 | ||
| 74318 - COVER, VISOR BRACKET, LH | ||||
| 74317-36010A0 |
BB4#,HDB5#,HZB4#,5#..EX,GX,LX,SULNG IVORY,TRIM4# |
1 | ||
| 74317-36010B0 |
BZB40,50,XZB4#,5#..EX,GX,LX MD.CHARCOAL,TRIM1# |
1 | ||
| 74317-36010B0 |
BZB40,50,XZB4#,5#..EX,GX,LX,SULNG MD.CHARCOAL,TRIM1# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-36030A0 |
BB4#,HDB50,HZB40,5#..09S,26S,29S IVORY,TRIM4# |
1 | ||
| 74320-36050 |
BZB40,50,XZB40,50,51..HRF..(EX,GX,LX) ｱﾘ(ｵ-ﾅ-ｽﾞ ﾎﾞ-ﾄﾞ) |
1 | ||
| 74320-36050 |
XZB40,50,51..(EX,GX,SULNG)..CBU ｱﾘ(ｵ-ﾅ-ｽﾞ ﾎﾞ-ﾄﾞ) |
1 | ||
| 74320-36030B0 |
BZB40,50,XZB4#,50,56..DX,GX,LX MD.CHARCOAL,TRIM1# |
1 | ||
| 74320-36030B0 |
BZB40,50,XZB4#,50,56..GX,LX MD.CHARCOAL,TRIM1# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-36030A0 |
BB4#,HDB50,HZB40,5#..09S,26S,29S IVORY,TRIM4# |
1 | ||
| 74320-36050 |
BZB40,50,XZB40,50,51..HRF..(EX,GX,LX) ｱﾘ(ｵ-ﾅ-ｽﾞ ﾎﾞ-ﾄﾞ) |
1 | ||
| 74320-36050 |
XZB40,50,51..(EX,GX,SULNG)..CBU ｱﾘ(ｵ-ﾅ-ｽﾞ ﾎﾞ-ﾄﾞ) |
1 | ||
| 74320-36030B0 |
BZB40,50,XZB4#,50,56..DX,GX,LX MD.CHARCOAL,TRIM1# |
1 | ||
| 74320-36030B0 |
BZB40,50,XZB4#,50,56..GX,LX MD.CHARCOAL,TRIM1# |
1 | ||
| 74603 - GRIP SUB-ASSY, ASSIST, FRONT | ||||
| 74610-60010A0 |
BB4#,HDB5#,HZB4#,5# IVORY,TRIM4# |
1 | ||
| 74610-36020B0 |
BZB40,50,XZB4#,5# MD.CHARCOAL,TRIM1# |
1 | ||
| 74610-36020B0 |
BZB40,50,XZB4#,5# MD.CHARCOAL,TRIM1# |
1 | ||
| 74610-60010B0 |
BZB40,50,XZB4#,5# MD.CHARCOAL,TRIM1# |
1 | ||
| 74603 - GRIP SUB-ASSY, ASSIST, FRONT | ||||
| 74610-60010A0 |
BB4#,HDB5#,HZB4#,5# IVORY,TRIM4# |
1 | ||
| 74610-36020B0 |
BZB40,50,XZB4#,5# MD.CHARCOAL,TRIM1# |
1 | ||
| 74610-36020B0 |
BZB40,50,XZB4#,5# MD.CHARCOAL,TRIM1# |
1 | ||
| 74610-60010B0 |
BZB40,50,XZB4#,5# MD.CHARCOAL,TRIM1# |
1 | ||

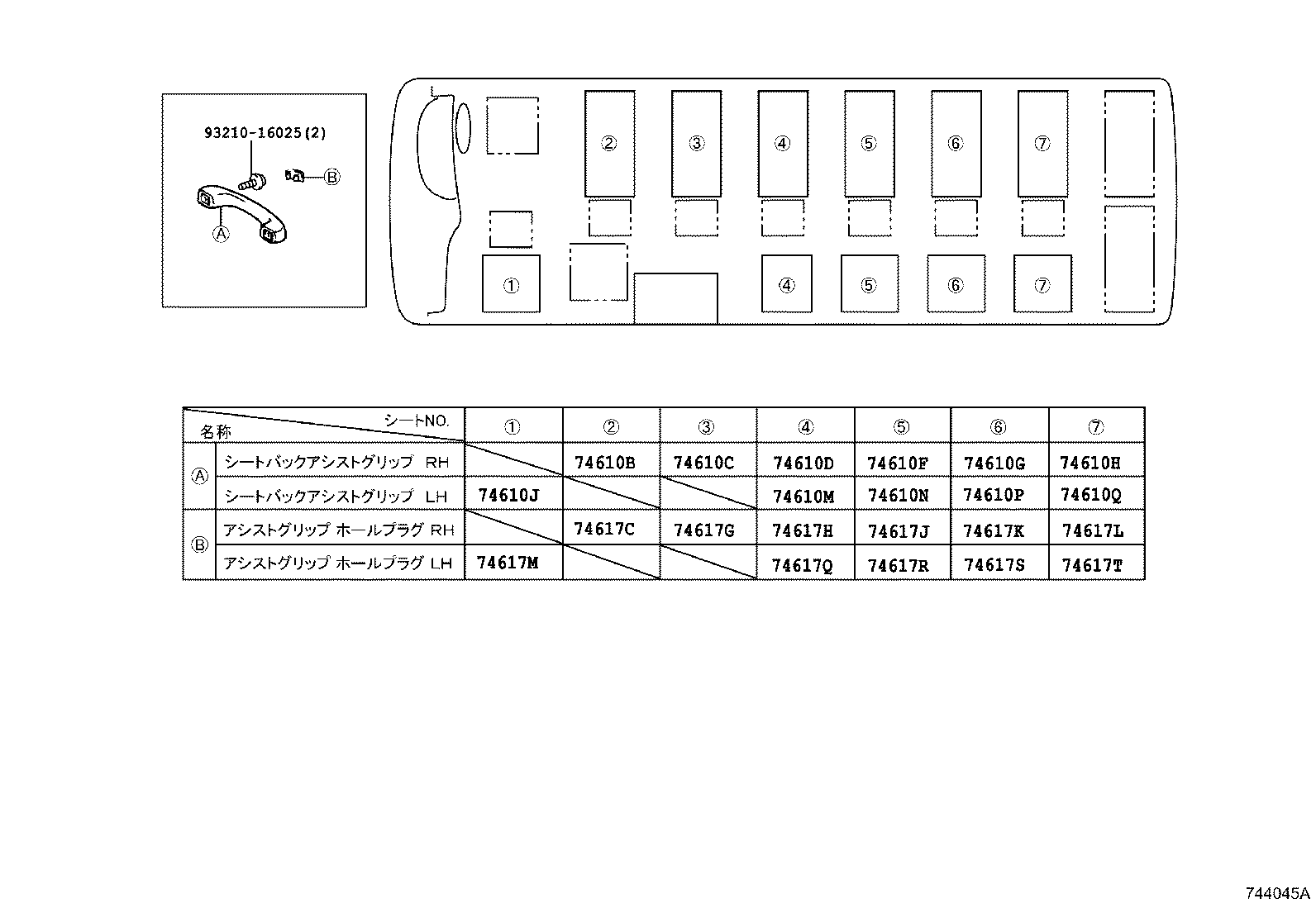

| 74610B - GRIP ASSY, ASSIST, NO.2 RH | ||||
| 74610-10020E1 |
HDB51..SULNG..TD2;HDB51,HZB40..HRF..(DSL2,TD4)..CBU;BB4#,HDB50,HZB41,5#..(09S,26S,29S)..(DX,EX,GX,LX) GREIGE,TRIM41 |
2 | ||
| 74610-10020B3 |
BZB40,50,XZB4#,5#..DX,EX,GX,LX,SULNG MD.CHARCOAL,TRIM1# |
2 | ||
| 74610-60060B6 |
BZB40,50,XZB4#,5#..09S,26S,29S MD.CHARCOAL,TRIM1# |
2 | ||
| 74690-36010B0 |
BZB40,50,XZB4#,5#..EX,GX,LX MD.CHARCOAL,TRIM1# |
2 | ||
| 74610C - GRIP ASSY, ASSIST, NO.3 RH | ||||
| 74610-10020E1 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG GREIGE,TRIM41 |
2 | ||
| 74610-10020B3 |
BZB40,50,XZB40,50,51..20S,26S,29S MD.CHARCOAL,TRIM1# |
2 | ||
| 74610-60060B6 |
BZB40,50,XZB40,50,51..26S,29S MD.CHARCOAL,TRIM1# |
2 | ||
| 74690-36010B0 |
BZB40,50,XZB40,50,51..EX,GX,LX MD.CHARCOAL,TRIM1# |
2 | ||
| 74610D - GRIP ASSY, ASSIST, NO.4 RH | ||||
| 74610-10020B3 |
BZB40,50,XZB40,50,51..20S,26S,29S MD.CHARCOAL,TRIM1# |
2 | ||
| 74610-60060B6 |
BZB40,50,XZB40,50,51..26S,29S MD.CHARCOAL,TRIM1# |
2 | ||
| 74690-36010B0 |
BZB40,50,XZB40,50,51..EX,GX,LX MD.CHARCOAL,TRIM1# |
2 | ||
| 74610G - GRIP ASSY, ASSIST, NO.6 RH | ||||
| 74610-10020B3 |
BZB40,50,XZB40,50,51..20S,26S,29S MD.CHARCOAL,TRIM1# |
2 | ||
| 74610-60060B6 |
BZB40,50,XZB40,50,51..26S,29S MD.CHARCOAL,TRIM1# |
2 | ||
| 74690-36010B0 |
BZB40,50,XZB40,50,51..EX,GX,LX MD.CHARCOAL,TRIM1# |
2 | ||
| 74610H - GRIP ASSY, ASSIST, NO.7 RH | ||||
| 74610-10020B3 |
XZB40..26S..CBU;BZB40,50,XZB50,51..(20S,26S,29S)..CBU MD.CHARCOAL,TRIM1# |
2 | ||
| 74690-36010B0 |
BZB40,50,XZB40,50,51..26S,29S MD.CHARCOAL,TRIM1# |
2 | ||
| 74610-60060B6 |
BZB40,50,XZB40,50,51..(26S,29S)..CBU MD.CHARCOAL,TRIM1# |
2 | ||
| 74610J - GRIP ASSY, ASSIST, NO.1 LH | ||||
| 74610-10020E1 |
HZB40..5F;HZB40..LX..4FC..CBU;BB4#,58,HDB5#,HZB41,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) GREIGE,TRIM41 |
1 | ||
| 74610-10020B3 |
BZB40,50,XZB4#,5#..DX,EX,GX,LX,SULNG MD.CHARCOAL,TRIM1# |
1 | ||
| 74610-60060B6 |
BZB40,50,XZB4#,5#..09S,26S,29S MD.CHARCOAL,TRIM1# |
1 | ||
| 74690-36010B0 |
BZB40,50,XZB4#,5#..EX,GX,LX MD.CHARCOAL,TRIM1# |
1 | ||
| 74610M - GRIP ASSY, ASSIST, NO.4 LH | ||||
| 74690-36010B0 |
BZB40,50,XZB40,50,51..EX,GX,LX MD.CHARCOAL,TRIM1# |
1 | ||
| 74610-10020B3 |
BZB40,50,XZB40,50,51..20S,26S,29S MD.CHARCOAL,TRIM1# |
1 | ||
| 74610-60060B6 |
BZB40,50,XZB40,50,51..26S,29S MD.CHARCOAL,TRIM1# |
1 | ||
| 74610P - GRIP ASSY, ASSIST, NO.6 LH | ||||
| 74610-10020B3 |
XZB51;BZB40,50,XZB40,50..26S,29S MD.CHARCOAL,TRIM1# |
1 | ||
| 74610-60060B6 |
BZB40,50,XZB40,50,51..26S,29S MD.CHARCOAL,TRIM1# |
1 | ||
| 74690-36010B0 |
BZB40,50,XZB40,50,51..EX,GX,LX MD.CHARCOAL,TRIM1# |
1 | ||
| 74610Q - GRIP ASSY, ASSIST, NO.7 LH | ||||
| 74610-10020B3 |
XZB40..26S..CBU;BZB40,50,XZB50,51..(20S,26S,29S)..CBU MD.CHARCOAL,TRIM1# |
1 | ||
| 74610-60060B6 |
BZB40,50,XZB40,50,51..(26S,29S)..CBU MD.CHARCOAL,TRIM1# |
1 | ||
| 74690-36010B0 |
BZB40,50,XZB40,50,51..26S,29S MD.CHARCOAL,TRIM1# |
1 | ||
| 74611B - GRIP, ASSIST | ||||
| 74610-10020B3 |
XZB4#,5#..EX,GX,LX MD.CHARCOAL,TRIM1# |
1 | ||
| 74610-10020B3 |
XZB4#,5#..DX,EX,GX,LX,SULNG MD.CHARCOAL,TRIM1# |
1 | ||
| 74613 - PLUG, ASSIST GRIP | ||||
| 74617-14010B3 |
XZB4#,5#..EX,GX,LX MD.CHARCOAL,TRIM1# |
2 | ||
| 74617-14010B3 |
XZB4#,5#..DX,EX,GX,LX,SULNG MD.CHARCOAL,TRIM1# |
2 | ||
| 74615E - PLUG, FRONT ASSIST GRIP, NO.1 RH | ||||
| 74615-60010A0 |
BB4#,HDB5#,HZB4#,5# IVORY,TRIM4# |
1 | ||
| 74615-60011B0 |
BZB40,50,XZB4#,5# MD.CHARCOAL,TRIM1# |
1 | ||
| 74615-60010B0 |
BZB40,50,XZB4#,5# MD.CHARCOAL,TRIM1# |
1 | ||
| 74615-60011B0 |
BZB40,50,XZB4#,5# MD.CHARCOAL,TRIM1# |
1 | ||
| 74615E - PLUG, FRONT ASSIST GRIP, NO.1 RH | ||||
| 74615-60010A0 |
BB4#,HDB5#,HZB4#,5# IVORY,TRIM4# |
1 | ||
| 74615-60011B0 |
BZB40,50,XZB4#,5# MD.CHARCOAL,TRIM1# |
1 | ||
| 74615-60010B0 |
BZB40,50,XZB4#,5# MD.CHARCOAL,TRIM1# |
1 | ||
| 74615-60011B0 |
BZB40,50,XZB4#,5# MD.CHARCOAL,TRIM1# |
1 | ||
| 74616C - PLUG, FRONT ASSIST GRIP, NO.1 LH | ||||
| 74616-60010A0 |
BB4#,HDB5#,HZB4#,5# IVORY,TRIM4# |
1 | ||
| 74616-60010B0 |
BZB40,50,XZB4#,5# MD.CHARCOAL,TRIM1# |
1 | ||
| 74616-60011B0 |
BZB40,50,XZB4#,5# MD.CHARCOAL,TRIM1# |
1 | ||
| 74616-60011B0 |
BZB40,50,XZB4#,5# MD.CHARCOAL,TRIM1# |
1 | ||
| 74616C - PLUG, FRONT ASSIST GRIP, NO.1 LH | ||||
| 74616-60010A0 |
BB4#,HDB5#,HZB4#,5# IVORY,TRIM4# |
1 | ||
| 74616-60010B0 |
BZB40,50,XZB4#,5# MD.CHARCOAL,TRIM1# |
1 | ||
| 74616-60011B0 |
BZB40,50,XZB4#,5# MD.CHARCOAL,TRIM1# |
1 | ||
| 74616-60011B0 |
BZB40,50,XZB4#,5# MD.CHARCOAL,TRIM1# |
1 | ||
| 74617C - PLUG, ASSIST GRIP | ||||
| 74617-14010E1 |
HDB51..SULNG..TD2;HDB51,HZB40..HRF..(DSL2,TD4)..CBU;BB4#,HDB50,HZB41,5#..(09S,26S,29S)..(DX,EX,GX,LX) GREIGE,TRIM41 |
4 | ||
| 74617-14010B3 |
BZB40,50,XZB4#,5#..DX,EX,GX,LX,SULNG MD.CHARCOAL,TRIM1# |
4 | ||
| 74617-60010B5 |
BZB40,50,XZB4#,5#..09S,26S,29S MD.CHARCOAL,TRIM1# |
4 | ||
| 74617-36010B0 |
BZB40,50,XZB4#,5#..EX,GX,LX MD.CHARCOAL,TRIM1# |
4 | ||
| 74617G - PLUG, ASSIST GRIP, NO.3 RH | ||||
| 74617-14010E1 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG GREIGE,TRIM41 |
4 | ||
| 74617-36010B0 |
BZB40,50,XZB40,50,51..EX,GX,LX MD.CHARCOAL,TRIM1# |
4 | ||
| 74617-60010B5 |
BZB40,50,XZB40,50,51..26S,29S MD.CHARCOAL,TRIM1# |
4 | ||
| 74617-14010B3 |
BZB40,50,XZB40,50,51..20S,26S,29S MD.CHARCOAL,TRIM1# |
4 | ||
| 74617H - PLUG, ASSIST GRIP, NO.4 RH | ||||
| 74617-14010B3 |
BZB40,50,XZB40,50,51..20S,26S,29S MD.CHARCOAL,TRIM1# |
4 | ||
| 74617-36010B0 |
BZB40,50,XZB40,50,51..EX,GX,LX MD.CHARCOAL,TRIM1# |
4 | ||
| 74617-60010B5 |
BZB40,50,XZB40,50,51..26S,29S MD.CHARCOAL,TRIM1# |
4 | ||
| 74617K - PLUG, ASSIST GRIP, NO.6 RH | ||||
| 74617-60010B5 |
BZB40,50,XZB40,50,51..26S,29S MD.CHARCOAL,TRIM1# |
4 | ||
| 74617-36010B0 |
BZB40,50,XZB40,50,51..EX,GX,LX MD.CHARCOAL,TRIM1# |
4 | ||
| 74617-14010B3 |
BZB40,50,XZB40,50,51..20S,26S,29S MD.CHARCOAL,TRIM1# |
4 | ||
| 74617L - PLUG, ASSIST GRIP, NO.7 RH | ||||
| 74617-60010B5 |
BZB40,50,XZB40,50,51..(26S,29S)..CBU MD.CHARCOAL,TRIM1# |
4 | ||
| 74617-36010B0 |
BZB40,50,XZB40,50,51..26S,29S MD.CHARCOAL,TRIM1# |
4 | ||
| 74617-14010B3 |
XZB40..26S..CBU;BZB40,50,XZB50,51..(20S,26S,29S)..CBU MD.CHARCOAL,TRIM1# |
4 | ||
| 74617M - PLUG, ASSIST GRIP, NO.1 LH | ||||
| 74617-14010E1 |
HZB40..5F;HZB40..LX..4FC..CBU;BB4#,58,HDB5#,HZB41,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) GREIGE,TRIM41 |
2 | ||
| 74617-14010B3 |
BZB40,50,XZB4#,5#..DX,EX,GX,LX,SULNG MD.CHARCOAL,TRIM1# |
2 | ||
| 74617-36010B0 |
BZB40,50,XZB4#,5#..EX,GX,LX MD.CHARCOAL,TRIM1# |
2 | ||
| 74617-60010B5 |
BZB40,50,XZB4#,5#..09S,26S,29S MD.CHARCOAL,TRIM1# |
2 | ||
| 74617N - PLUG, ASSIST GRIP, NO.2 LH | ||||
| 74617-14010E1 |
BB4#,HDB5#,HZB4#,5#..09S,15S,20S,26S,29S GREIGE,TRIM4# |
2 | ||
| 74617-14010A0 |
BB4#,HDB5#,HZB4#,5#..09S,15S,20S,26S,29S IVORY,TRIM4# |
2 | ||
| 74617Q - PLUG, ASSIST GRIP, NO.4 LH | ||||
| 74617-14010B3 |
BZB40,50,XZB40,50,51..20S,26S,29S MD.CHARCOAL,TRIM1# |
2 | ||
| 74617-60010B5 |
BZB40,50,XZB40,50,51..26S,29S MD.CHARCOAL,TRIM1# |
2 | ||
| 74617-36010B0 |
BZB40,50,XZB40,50,51..EX,GX,LX MD.CHARCOAL,TRIM1# |
2 | ||
| 74617S - PLUG, ASSIST GRIP, NO.6 LH | ||||
| 74617-36010B0 |
BZB40,50,XZB40,50,51..EX,GX,LX MD.CHARCOAL,TRIM1# |
2 | ||
| 74617-60010B5 |
BZB40,50,XZB40,50,51..26S,29S MD.CHARCOAL,TRIM1# |
2 | ||
| 74617-14010B3 |
XZB51;BZB40,50,XZB40,50..26S,29S MD.CHARCOAL,TRIM1# |
2 | ||
| 74617T - PLUG, ASSIST GRIP, NO.7 LH | ||||
| 74617-60010B5 |
BZB40,50,XZB40,50,51..(26S,29S)..CBU MD.CHARCOAL,TRIM1# |
2 | ||
| 74617-36010B0 |
BZB40,50,XZB40,50,51..26S,29S MD.CHARCOAL,TRIM1# |
2 | ||
| 74617-14010B3 |
XZB40..26S..CBU;BZB40,50,XZB50,51..(20S,26S,29S)..CBU MD.CHARCOAL,TRIM1# |
2 | ||
| 74620B - GRIP ASSY, ASSIST, REAR | ||||
| 74620-60041B1 |
BZB40,50,XZB4#,5#..EX,GX,LX MD.CHARCOAL,TRIM1# |
1 | ||
| 74620-60041B1 |
BZB40,50,XZB4#,5#..DX,EX,GX,LX,SULNG MD.CHARCOAL,TRIM1# |
1 | ||
| 74627 - PLUG, REAR ASSIST GRIP | ||||
| 74627-60020B1 |
BZB40,50,XZB4#,5#..EX,GX,LX MD.CHARCOAL,TRIM1# |
2 | ||
| 74627-60020B1 |
BZB40,50,XZB4#,5#..DX,EX,GX,LX,SULNG MD.CHARCOAL,TRIM1# |
2 | ||
| 74710 - EXTINGUISHER ASSY | ||||
| 74710-36010 |
BB40,5#,HDB5#,HZB4#,50..(15S,20S,26S,29S)..(CBU,IV5) |
1 | ||
| 74710-36011 |
XZB40..6FC..IV5;XZB50..29S..WC..(5F,6FC);BZB40,50,XZB40,51..(26S,29S)..(5F,6FC)..CBU |
1 | ||
| 74710-36010 |
BZB40,50,XZB40,50,51..20S,26S,29S |
1 | ||
| 74710-36012 |
BZB40,50,XZB40,50,51..26S,29S |
1 | ||
| 74710-36012 |
BZB40,50,XZB40,50,51..EX,GX,LX |
1 | ||
| 74716A - RETAINER, EXTINGUISHER, NO.2 | ||||
| 74716-90K00 |
BB40,5#,HDB5#,HZB4#,50..CBU,IV5 |
2 | ||
| 74716-90K00 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB51..(EX,LX)..(5F,6FC)..CBU |
2 | ||
| 74716-90K00 |
BZB40,50,XZB40,50,51 |
2 | ||
| Common parts | ||||
| 89639-36010 | ||||
| 90164-30003 | ||||
| 90167-50060 | ||||
| 90167-60015 | ||||
| 90189-06006 | ||||
| 91611-B0616 | ||||
| 91631-B0616 | ||||
| 93210-16020 | ||||
| 93210-16025 | ||||
| 93260-56020 | ||||
| 93260-56025 | ||||
| 93311-16014 | ||||
| 93311-56035 | ||||
| 93510-16025 | ||||
ILLUST NO. 2 OF 2(1501- )EX,GX,LX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74610B - GRIP ASSY, ASSIST, NO.2 RH | ||||
| 74610-10020E1 |
HDB51..SULNG..TD2;HDB51,HZB40..HRF..(DSL2,TD4)..CBU;BB4#,HDB50,HZB41,5#..(09S,26S,29S)..(DX,EX,GX,LX) GREIGE,TRIM41 |
2 | ||
| 74610-10020B3 |
BZB40,50,XZB4#,5#..DX,EX,GX,LX,SULNG MD.CHARCOAL,TRIM1# |
2 | ||
| 74610-60060B6 |
BZB40,50,XZB4#,5#..09S,26S,29S MD.CHARCOAL,TRIM1# |
2 | ||
| 74690-36010B0 |
BZB40,50,XZB4#,5#..EX,GX,LX MD.CHARCOAL,TRIM1# |
2 | ||
| 74610C - GRIP ASSY, ASSIST, NO.3 RH | ||||
| 74610-10020E1 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG GREIGE,TRIM41 |
2 | ||
| 74610-10020B3 |
BZB40,50,XZB40,50,51..20S,26S,29S MD.CHARCOAL,TRIM1# |
2 | ||
| 74610-60060B6 |
BZB40,50,XZB40,50,51..26S,29S MD.CHARCOAL,TRIM1# |
2 | ||
| 74690-36010B0 |
BZB40,50,XZB40,50,51..EX,GX,LX MD.CHARCOAL,TRIM1# |
2 | ||
| 74610D - GRIP ASSY, ASSIST, NO.4 RH | ||||
| 74610-10020B3 |
BZB40,50,XZB40,50,51..20S,26S,29S MD.CHARCOAL,TRIM1# |
2 | ||
| 74610-60060B6 |
BZB40,50,XZB40,50,51..26S,29S MD.CHARCOAL,TRIM1# |
2 | ||
| 74690-36010B0 |
BZB40,50,XZB40,50,51..EX,GX,LX MD.CHARCOAL,TRIM1# |
2 | ||
| 74610G - GRIP ASSY, ASSIST, NO.6 RH | ||||
| 74610-10020B3 |
BZB40,50,XZB40,50,51..20S,26S,29S MD.CHARCOAL,TRIM1# |
2 | ||
| 74610-60060B6 |
BZB40,50,XZB40,50,51..26S,29S MD.CHARCOAL,TRIM1# |
2 | ||
| 74690-36010B0 |
BZB40,50,XZB40,50,51..EX,GX,LX MD.CHARCOAL,TRIM1# |
2 | ||
| 74610H - GRIP ASSY, ASSIST, NO.7 RH | ||||
| 74610-10020B3 |
XZB40..26S..CBU;BZB40,50,XZB50,51..(20S,26S,29S)..CBU MD.CHARCOAL,TRIM1# |
2 | ||
| 74690-36010B0 |
BZB40,50,XZB40,50,51..26S,29S MD.CHARCOAL,TRIM1# |
2 | ||
| 74610-60060B6 |
BZB40,50,XZB40,50,51..(26S,29S)..CBU MD.CHARCOAL,TRIM1# |
2 | ||
| 74610J - GRIP ASSY, ASSIST, NO.1 LH | ||||
| 74610-10020E1 |
HZB40..5F;HZB40..LX..4FC..CBU;BB4#,58,HDB5#,HZB41,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) GREIGE,TRIM41 |
1 | ||
| 74610-10020B3 |
BZB40,50,XZB4#,5#..DX,EX,GX,LX,SULNG MD.CHARCOAL,TRIM1# |
1 | ||
| 74610-60060B6 |
BZB40,50,XZB4#,5#..09S,26S,29S MD.CHARCOAL,TRIM1# |
1 | ||
| 74690-36010B0 |
BZB40,50,XZB4#,5#..EX,GX,LX MD.CHARCOAL,TRIM1# |
1 | ||
| 74610M - GRIP ASSY, ASSIST, NO.4 LH | ||||
| 74690-36010B0 |
BZB40,50,XZB40,50,51..EX,GX,LX MD.CHARCOAL,TRIM1# |
1 | ||
| 74610-10020B3 |
BZB40,50,XZB40,50,51..20S,26S,29S MD.CHARCOAL,TRIM1# |
1 | ||
| 74610-60060B6 |
BZB40,50,XZB40,50,51..26S,29S MD.CHARCOAL,TRIM1# |
1 | ||
| 74610P - GRIP ASSY, ASSIST, NO.6 LH | ||||
| 74610-10020B3 |
XZB51;BZB40,50,XZB40,50..26S,29S MD.CHARCOAL,TRIM1# |
1 | ||
| 74610-60060B6 |
BZB40,50,XZB40,50,51..26S,29S MD.CHARCOAL,TRIM1# |
1 | ||
| 74690-36010B0 |
BZB40,50,XZB40,50,51..EX,GX,LX MD.CHARCOAL,TRIM1# |
1 | ||
| 74610Q - GRIP ASSY, ASSIST, NO.7 LH | ||||
| 74610-10020B3 |
XZB40..26S..CBU;BZB40,50,XZB50,51..(20S,26S,29S)..CBU MD.CHARCOAL,TRIM1# |
1 | ||
| 74610-60060B6 |
BZB40,50,XZB40,50,51..(26S,29S)..CBU MD.CHARCOAL,TRIM1# |
1 | ||
| 74690-36010B0 |
BZB40,50,XZB40,50,51..26S,29S MD.CHARCOAL,TRIM1# |
1 | ||
| 74617C - PLUG, ASSIST GRIP | ||||
| 74617-14010E1 |
HDB51..SULNG..TD2;HDB51,HZB40..HRF..(DSL2,TD4)..CBU;BB4#,HDB50,HZB41,5#..(09S,26S,29S)..(DX,EX,GX,LX) GREIGE,TRIM41 |
4 | ||
| 74617-14010B3 |
BZB40,50,XZB4#,5#..DX,EX,GX,LX,SULNG MD.CHARCOAL,TRIM1# |
4 | ||
| 74617-60010B5 |
BZB40,50,XZB4#,5#..09S,26S,29S MD.CHARCOAL,TRIM1# |
4 | ||
| 74617-36010B0 |
BZB40,50,XZB4#,5#..EX,GX,LX MD.CHARCOAL,TRIM1# |
4 | ||
| 74617G - PLUG, ASSIST GRIP, NO.3 RH | ||||
| 74617-14010E1 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,SULNG GREIGE,TRIM41 |
4 | ||
| 74617-36010B0 |
BZB40,50,XZB40,50,51..EX,GX,LX MD.CHARCOAL,TRIM1# |
4 | ||
| 74617-60010B5 |
BZB40,50,XZB40,50,51..26S,29S MD.CHARCOAL,TRIM1# |
4 | ||
| 74617-14010B3 |
BZB40,50,XZB40,50,51..20S,26S,29S MD.CHARCOAL,TRIM1# |
4 | ||
| 74617H - PLUG, ASSIST GRIP, NO.4 RH | ||||
| 74617-14010B3 |
BZB40,50,XZB40,50,51..20S,26S,29S MD.CHARCOAL,TRIM1# |
4 | ||
| 74617-36010B0 |
BZB40,50,XZB40,50,51..EX,GX,LX MD.CHARCOAL,TRIM1# |
4 | ||
| 74617-60010B5 |
BZB40,50,XZB40,50,51..26S,29S MD.CHARCOAL,TRIM1# |
4 | ||
| 74617K - PLUG, ASSIST GRIP, NO.6 RH | ||||
| 74617-60010B5 |
BZB40,50,XZB40,50,51..26S,29S MD.CHARCOAL,TRIM1# |
4 | ||
| 74617-36010B0 |
BZB40,50,XZB40,50,51..EX,GX,LX MD.CHARCOAL,TRIM1# |
4 | ||
| 74617-14010B3 |
BZB40,50,XZB40,50,51..20S,26S,29S MD.CHARCOAL,TRIM1# |
4 | ||
| 74617L - PLUG, ASSIST GRIP, NO.7 RH | ||||
| 74617-60010B5 |
BZB40,50,XZB40,50,51..(26S,29S)..CBU MD.CHARCOAL,TRIM1# |
4 | ||
| 74617-36010B0 |
BZB40,50,XZB40,50,51..26S,29S MD.CHARCOAL,TRIM1# |
4 | ||
| 74617-14010B3 |
XZB40..26S..CBU;BZB40,50,XZB50,51..(20S,26S,29S)..CBU MD.CHARCOAL,TRIM1# |
4 | ||
| 74617M - PLUG, ASSIST GRIP, NO.1 LH | ||||
| 74617-14010E1 |
HZB40..5F;HZB40..LX..4FC..CBU;BB4#,58,HDB5#,HZB41,5#..(DX,EX,GX,LX,SULNG)..(CBU,IV5) GREIGE,TRIM41 |
2 | ||
| 74617-14010B3 |
BZB40,50,XZB4#,5#..DX,EX,GX,LX,SULNG MD.CHARCOAL,TRIM1# |
2 | ||
| 74617-36010B0 |
BZB40,50,XZB4#,5#..EX,GX,LX MD.CHARCOAL,TRIM1# |
2 | ||
| 74617-60010B5 |
BZB40,50,XZB4#,5#..09S,26S,29S MD.CHARCOAL,TRIM1# |
2 | ||
| 74617Q - PLUG, ASSIST GRIP, NO.4 LH | ||||
| 74617-14010B3 |
BZB40,50,XZB40,50,51..20S,26S,29S MD.CHARCOAL,TRIM1# |
2 | ||
| 74617-60010B5 |
BZB40,50,XZB40,50,51..26S,29S MD.CHARCOAL,TRIM1# |
2 | ||
| 74617-36010B0 |
BZB40,50,XZB40,50,51..EX,GX,LX MD.CHARCOAL,TRIM1# |
2 | ||
| 74617S - PLUG, ASSIST GRIP, NO.6 LH | ||||
| 74617-36010B0 |
BZB40,50,XZB40,50,51..EX,GX,LX MD.CHARCOAL,TRIM1# |
2 | ||
| 74617-60010B5 |
BZB40,50,XZB40,50,51..26S,29S MD.CHARCOAL,TRIM1# |
2 | ||
| 74617-14010B3 |
XZB51;BZB40,50,XZB40,50..26S,29S MD.CHARCOAL,TRIM1# |
2 | ||
| 74617T - PLUG, ASSIST GRIP, NO.7 LH | ||||
| 74617-60010B5 |
BZB40,50,XZB40,50,51..(26S,29S)..CBU MD.CHARCOAL,TRIM1# |
2 | ||
| 74617-36010B0 |
BZB40,50,XZB40,50,51..26S,29S MD.CHARCOAL,TRIM1# |
2 | ||
| 74617-14010B3 |
XZB40..26S..CBU;BZB40,50,XZB50,51..(20S,26S,29S)..CBU MD.CHARCOAL,TRIM1# |
2 | ||
| Common parts | ||||
| 93210-16025 | ||||
ILLUST NO. 1 OF 2(1501- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-36030A0 |
BB4#,HDB50,HZB40,5# ﾋﾞﾆ-ﾙ ﾚｻﾞ-,IVORY,TRIM4# |
1 | ||
| 74310-36131B0 |
XZB4#,50,56 MD.CHARCOAL,TRIM1# |
1 | ||
| 74310-36120B0 |
XZB51..SULNG..6FC;XZB40,50,51..EX,GX ｼﾖｸﾓｳ ﾀｲﾌﾟ,ME. CHARCOAL,TRIM1# |
1 | ||
| 74310-36180B0 |
XZB40,50..GX ｱﾘ(ｵｰﾅｰｽﾞ ﾎﾞｰﾄﾞ),ME. CHARCOAL,TRIM1# |
1 | ||
| 74310-36131B0 |
XZB4#,50,56 MD.CHARCOAL,TRIM1# |
1 | ||
| 74310-36110B0 |
XZB4#,50,56 MD.CHARCOAL,TRIM1# |
1 | ||
| 74317 - COVER, VISOR BRACKET, RH | ||||
| 74317-36010A1 |
BB4#,5#,HDB5#,HZB4#,5#..(EX,GX,LX,STD,SULNG)..WC..(CBU,IV5) IVORY,TRIM4# |
1 | ||
| 74317-36010B0 |
BZB40,50,XZB4#,5# MD.CHARCOAL,TRIM1# |
1 | ||
| 74317-36010B0 |
BZB40,50,XZB4#,5#..WC MD.CHARCOAL,TRIM1# |
1 | ||
| 74318 - COVER, VISOR BRACKET, LH | ||||
| 74317-36010A0 |
BB4#,HDB5#,HZB4#,5#..EX,GX,LX,SULNG IVORY,TRIM4# |
1 | ||
| 74317-36010B0 |
BZB40,50,XZB4#,5#..EX,GX,LX MD.CHARCOAL,TRIM1# |
1 | ||
| 74317-36010B0 |
BZB40,50,XZB4#,5#..EX,GX,LX,SULNG MD.CHARCOAL,TRIM1# |
1 | ||
| 74318 - COVER, VISOR BRACKET, LH | ||||
| 74317-36010A0 |
BB4#,HDB5#,HZB4#,5#..EX,GX,LX,SULNG IVORY,TRIM4# |
1 | ||
| 74317-36010B0 |
BZB40,50,XZB4#,5#..EX,GX,LX MD.CHARCOAL,TRIM1# |
1 | ||
| 74317-36010B0 |
BZB40,50,XZB4#,5#..EX,GX,LX,SULNG MD.CHARCOAL,TRIM1# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-36030A0 |
BB4#,HDB50,HZB40,5#..09S,26S,29S IVORY,TRIM4# |
1 | ||
| 74320-36050 |
BZB40,50,XZB40,50,51..HRF..(EX,GX,LX) ｱﾘ(ｵ-ﾅ-ｽﾞ ﾎﾞ-ﾄﾞ) |
1 | ||
| 74320-36050 |
XZB40,50,51..(EX,GX,SULNG)..CBU ｱﾘ(ｵ-ﾅ-ｽﾞ ﾎﾞ-ﾄﾞ) |
1 | ||
| 74320-36030B0 |
BZB40,50,XZB4#,50,56..DX,GX,LX MD.CHARCOAL,TRIM1# |
1 | ||
| 74320-36030B0 |
BZB40,50,XZB4#,50,56..GX,LX MD.CHARCOAL,TRIM1# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-36030A0 |
BB4#,HDB50,HZB40,5#..09S,26S,29S IVORY,TRIM4# |
1 | ||
| 74320-36050 |
BZB40,50,XZB40,50,51..HRF..(EX,GX,LX) ｱﾘ(ｵ-ﾅ-ｽﾞ ﾎﾞ-ﾄﾞ) |
1 | ||
| 74320-36050 |
XZB40,50,51..(EX,GX,SULNG)..CBU ｱﾘ(ｵ-ﾅ-ｽﾞ ﾎﾞ-ﾄﾞ) |
1 | ||
| 74320-36030B0 |
BZB40,50,XZB4#,50,56..DX,GX,LX MD.CHARCOAL,TRIM1# |
1 | ||
| 74320-36030B0 |
BZB40,50,XZB4#,50,56..GX,LX MD.CHARCOAL,TRIM1# |
1 | ||
| 74603 - GRIP SUB-ASSY, ASSIST, FRONT | ||||
| 74610-60010A0 |
BB4#,HDB5#,HZB4#,5# IVORY,TRIM4# |
1 | ||
| 74610-36020B0 |
BZB40,50,XZB4#,5# MD.CHARCOAL,TRIM1# |
1 | ||
| 74610-36020B0 |
BZB40,50,XZB4#,5# MD.CHARCOAL,TRIM1# |
1 | ||
| 74610-60010B0 |
BZB40,50,XZB4#,5# MD.CHARCOAL,TRIM1# |
1 | ||
| 74603 - GRIP SUB-ASSY, ASSIST, FRONT | ||||
| 74610-60010A0 |
BB4#,HDB5#,HZB4#,5# IVORY,TRIM4# |
1 | ||
| 74610-36020B0 |
BZB40,50,XZB4#,5# MD.CHARCOAL,TRIM1# |
1 | ||
| 74610-36020B0 |
BZB40,50,XZB4#,5# MD.CHARCOAL,TRIM1# |
1 | ||
| 74610-60010B0 |
BZB40,50,XZB4#,5# MD.CHARCOAL,TRIM1# |
1 | ||
| 74611B - GRIP, ASSIST | ||||
| 74610-10020B3 |
XZB4#,5#..EX,GX,LX MD.CHARCOAL,TRIM1# |
1 | ||
| 74610-10020B3 |
XZB4#,5#..DX,EX,GX,LX,SULNG MD.CHARCOAL,TRIM1# |
1 | ||
| 74613 - PLUG, ASSIST GRIP | ||||
| 74617-14010B3 |
XZB4#,5#..EX,GX,LX MD.CHARCOAL,TRIM1# |
2 | ||
| 74617-14010B3 |
XZB4#,5#..DX,EX,GX,LX,SULNG MD.CHARCOAL,TRIM1# |
2 | ||
| 74615E - PLUG, FRONT ASSIST GRIP, NO.1 RH | ||||
| 74615-60010A0 |
BB4#,HDB5#,HZB4#,5# IVORY,TRIM4# |
1 | ||
| 74615-60011B0 |
BZB40,50,XZB4#,5# MD.CHARCOAL,TRIM1# |
1 | ||
| 74615-60010B0 |
BZB40,50,XZB4#,5# MD.CHARCOAL,TRIM1# |
1 | ||
| 74615-60011B0 |
BZB40,50,XZB4#,5# MD.CHARCOAL,TRIM1# |
1 | ||
| 74615E - PLUG, FRONT ASSIST GRIP, NO.1 RH | ||||
| 74615-60010A0 |
BB4#,HDB5#,HZB4#,5# IVORY,TRIM4# |
1 | ||
| 74615-60011B0 |
BZB40,50,XZB4#,5# MD.CHARCOAL,TRIM1# |
1 | ||
| 74615-60010B0 |
BZB40,50,XZB4#,5# MD.CHARCOAL,TRIM1# |
1 | ||
| 74615-60011B0 |
BZB40,50,XZB4#,5# MD.CHARCOAL,TRIM1# |
1 | ||
| 74616C - PLUG, FRONT ASSIST GRIP, NO.1 LH | ||||
| 74616-60010A0 |
BB4#,HDB5#,HZB4#,5# IVORY,TRIM4# |
1 | ||
| 74616-60010B0 |
BZB40,50,XZB4#,5# MD.CHARCOAL,TRIM1# |
1 | ||
| 74616-60011B0 |
BZB40,50,XZB4#,5# MD.CHARCOAL,TRIM1# |
1 | ||
| 74616-60011B0 |
BZB40,50,XZB4#,5# MD.CHARCOAL,TRIM1# |
1 | ||
| 74616C - PLUG, FRONT ASSIST GRIP, NO.1 LH | ||||
| 74616-60010A0 |
BB4#,HDB5#,HZB4#,5# IVORY,TRIM4# |
1 | ||
| 74616-60010B0 |
BZB40,50,XZB4#,5# MD.CHARCOAL,TRIM1# |
1 | ||
| 74616-60011B0 |
BZB40,50,XZB4#,5# MD.CHARCOAL,TRIM1# |
1 | ||
| 74616-60011B0 |
BZB40,50,XZB4#,5# MD.CHARCOAL,TRIM1# |
1 | ||
| 74620B - GRIP ASSY, ASSIST, REAR | ||||
| 74620-60041B1 |
BZB40,50,XZB4#,5#..EX,GX,LX MD.CHARCOAL,TRIM1# |
1 | ||
| 74620-60041B1 |
BZB40,50,XZB4#,5#..DX,EX,GX,LX,SULNG MD.CHARCOAL,TRIM1# |
1 | ||
| 74627 - PLUG, REAR ASSIST GRIP | ||||
| 74627-60020B1 |
BZB40,50,XZB4#,5#..EX,GX,LX MD.CHARCOAL,TRIM1# |
2 | ||
| 74627-60020B1 |
BZB40,50,XZB4#,5#..DX,EX,GX,LX,SULNG MD.CHARCOAL,TRIM1# |
2 | ||
| 74710 - EXTINGUISHER ASSY | ||||
| 74710-36010 |
BB40,5#,HDB5#,HZB4#,50..(15S,20S,26S,29S)..(CBU,IV5) |
1 | ||
| 74710-36011 |
XZB40..6FC..IV5;XZB50..29S..WC..(5F,6FC);BZB40,50,XZB40,51..(26S,29S)..(5F,6FC)..CBU |
1 | ||
| 74710-36010 |
BZB40,50,XZB40,50,51..20S,26S,29S |
1 | ||
| 74710-36012 |
BZB40,50,XZB40,50,51..26S,29S |
1 | ||
| 74710-36012 |
BZB40,50,XZB40,50,51..EX,GX,LX |
1 | ||
| 74716A - RETAINER, EXTINGUISHER, NO.2 | ||||
| 74716-90K00 |
BB40,5#,HDB5#,HZB4#,50..CBU,IV5 |
2 | ||
| 74716-90K00 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB51..(EX,LX)..(5F,6FC)..CBU |
2 | ||
| 74716-90K00 |
BZB40,50,XZB40,50,51 |
2 | ||
| Common parts | ||||
| 89639-36010 | ||||
| 90167-50060 | ||||
| 90167-60015 | ||||
| 90189-06006 | ||||
| 91611-B0616 | ||||
| 91631-B0616 | ||||
| 93311-16014 | ||||
| 93311-56035 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
