XZB40-ZRMEY (2004)
Toyota Coaster

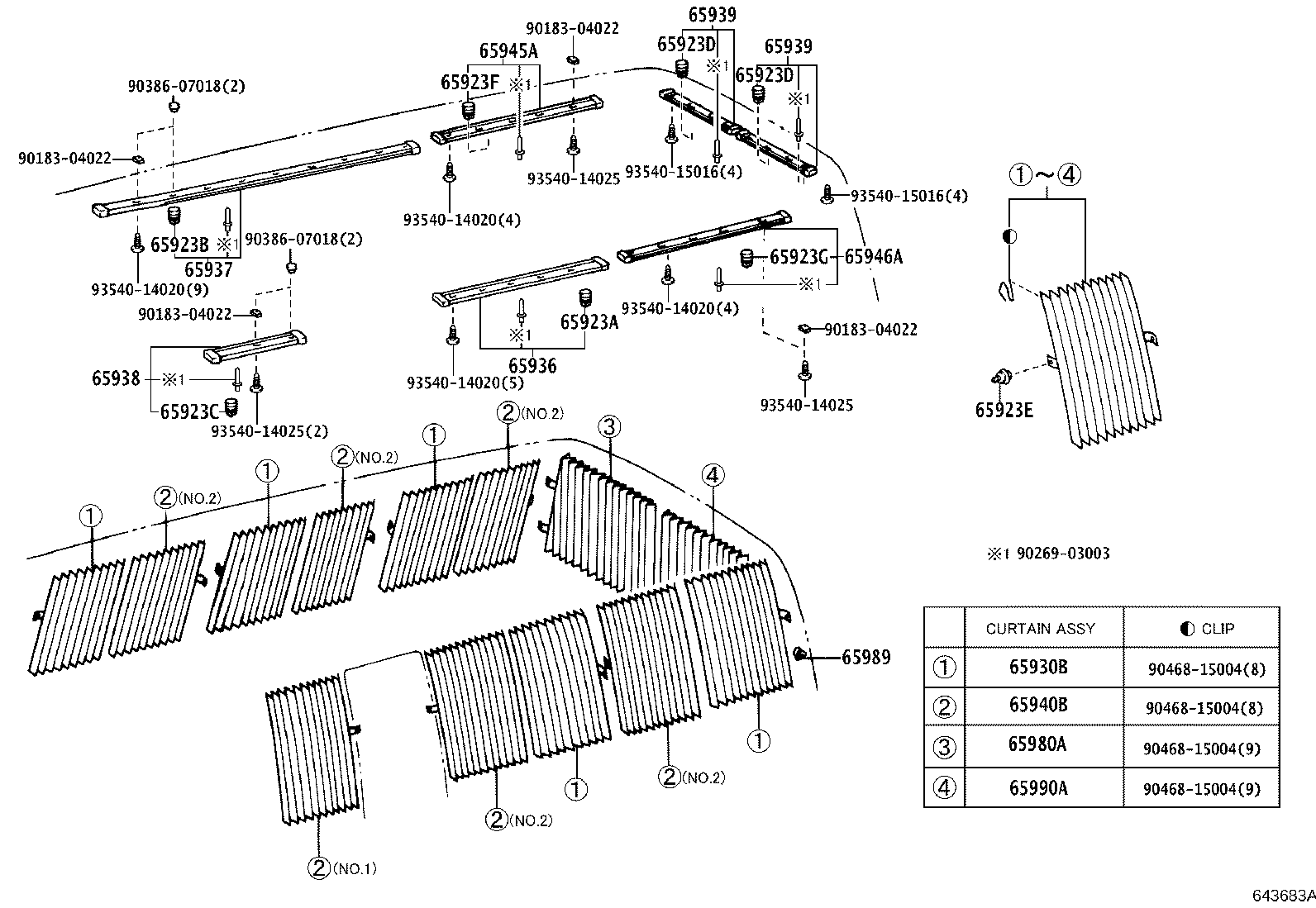

ILLUST NO. 2 OF 2(9301-1501)BB4#,BZB40,HZB4#,XZB4#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65923A - HOOK, CURTAIN, NO.1 | ||||
| 65923-36010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..WC..(5F,6FC)..CBU;BZB40,50,XZB51..(EX,LX)..(5F,6FC)..CBU |
14 | ||
| 65923-36010 |
BZB40,50,XZB40,50,51 |
14 | ||
| 65923B - HOOK, CURTAIN, NO.2 | ||||
| 65923-36010 |
BZB40,50,XZB40,50,51 |
28 | ||
| 65923-36010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..WC..(5F,6FC)..CBU;BZB40,50,XZB51..(EX,LX)..(5F,6FC)..CBU |
28 | ||
| 65923C - HOOK, CURTAIN, NO.3 | ||||
| 65923-36010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..WC..(5F,6FC)..CBU;BZB40,50,XZB51..(EX,LX)..(5F,6FC)..CBU |
7 | ||
| 65923-36010 |
BZB40,50,XZB40,50,51 |
7 | ||
| 65923D - HOOK, CURTAIN, NO.4 | ||||
| 65923-36010 |
BZB40,50,XZB40,50,51..(26S,29S)..WC..(5F,6FC)..CBU |
16 | ||
| 65923-36010 |
BZB40,50,XZB40,50,51..26S,29S |
16 | ||
| 65923D - HOOK, CURTAIN, NO.4 | ||||
| 65923-36010 |
BZB40,50,XZB40,50,51..(26S,29S)..WC..(5F,6FC)..CBU |
16 | ||
| 65923-36010 |
BZB40,50,XZB40,50,51..26S,29S |
16 | ||
| 65923E - HOOK, CURTAIN | ||||
| 65923-36020 |
BB58,HZB40..LX;BB4#,55,HDB5#,HZB41,5#..CBU,IV5 |
18 | ||
| 65923-36020 |
XZB40 ｱﾘ(*SOBD) |
10 | ||
| 65923-36020 |
XZB40..6FC..IV5;XZB40..WC..(5F,6FC)..CBU ｱﾘ(*SOBD) |
10 | ||
| 65923-36020 |
BZB40,XZB40..26S ｱﾘ(ﾗﾂｹﾞ-ｼﾞ ﾄﾞｱ) |
14 | ||
| 65923-36020 |
BZB40,XZB40..26S..WC..(5F,6FC)..CBU |
14 | ||
| 65923F - HOOK, CURTAIN, NO.5 | ||||
| 65923-36010 |
BZB40..LX;XZB40..6FC..IV5;XZB40..WC..(5F,6FC)..CBU |
14 | ||
| 65923-36010 |
BZB40,XZB40 |
14 | ||
| 65923G - HOOK, CURTAIN, NO.6 | ||||
| 65923-36010 |
BZB40,XZB40 |
14 | ||
| 65923-36010 |
BZB40..LX;XZB40..6FC..IV5;XZB40..WC..(5F,6FC)..CBU |
14 | ||
| 65930B - CURTAIN ASSY, SIDE WINDOW, FRONT RH | ||||
| 65930-36041B0 |
BZB40,50,XZB40,50,51 MEDIUM CHARCOAL,TRIM1# |
5 | ||
| 65930-36041B0 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..WC..(5F,6FC)..CBU;BZB40,50,XZB51..(EX,LX)..(5F,6FC)..CBU MEDIUM CHARCOAL,TRIM1# |
5 | ||
| 65936 - RAIL, CURTAIN, NO.1 | ||||
| 65096-36031B0 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..WC..(5F,6FC)..CBU;BZB40,50,XZB51..(EX,LX)..(5F,6FC)..CBU MD.CHARCOAL,TRIM1# |
1 | ||
| 65096-36031B0 |
BZB40,50,XZB40,50,51 MD.CHARCOAL,TRIM1# |
1 | ||
| 65937 - RAIL, CURTAIN, NO.2 | ||||
| 85051-36021B0 |
BZB40,50,XZB40,50,51 MD.CHARCOAL,TRIM1# |
1 | ||
| 85051-36021B0 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..WC..(5F,6FC)..CBU;BZB40,50,XZB51..(EX,LX)..(5F,6FC)..CBU MD.CHARCOAL,TRIM1# |
1 | ||
| 65938 - RAIL, CURTAIN, NO.3 | ||||
| 85052-36011B0 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..WC..(5F,6FC)..CBU;BZB40,50,XZB51..(EX,LX)..(5F,6FC)..CBU MD.CHARCOAL,TRIM1# |
1 | ||
| 85052-36011B0 |
BZB40,50,XZB40,50,51 MD.CHARCOAL,TRIM1# |
1 | ||
| 65939 - RAIL, CURTAIN, NO.4 | ||||
| 85055-36010B0 |
BZB40,50,XZB40,50,51..26S,29S MD.CHARCOAL,TRIM1# |
2 | ||
| 85055-36010B0 |
BZB40,50,XZB40,50,51..(26S,29S)..WC..(5F,6FC)..CBU MD.CHARCOAL,TRIM1# |
2 | ||
| 65939 - RAIL, CURTAIN, NO.4 | ||||
| 85055-36010B0 |
BZB40,50,XZB40,50,51..26S,29S MD.CHARCOAL,TRIM1# |
2 | ||
| 85055-36010B0 |
BZB40,50,XZB40,50,51..(26S,29S)..WC..(5F,6FC)..CBU MD.CHARCOAL,TRIM1# |
2 | ||
| 65940B - CURTAIN ASSY, SIDE WINDOW, FRONT LH | ||||
| 65940-36050B0 |
BZB40,50,XZB40,50,51 MEDIUM CHARCOAL,TRIM1#,NO.1 |
1 | ||
| 65940-36031B0 |
BZB40,50,XZB40,50,51 MEDIUM CHARCOAL,TRIM1#,NO.2 |
5 | ||
| 65940-36040B0 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..WC..(5F,6FC)..CBU;BZB40,50,XZB51..(EX,LX)..(5F,6FC)..CBU MEDIUM CHARCOAL,TRIM1#,NO.1 |
1 | ||
| 65940-36031B0 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..WC..(5F,6FC)..CBU;BZB40,50,XZB51..(EX,LX)..(5F,6FC)..CBU MEDIUM CHARCOAL,TRIM1#,NO.2 |
5 | ||
| 65945A - RAIL, CURTAIN, NO.5 | ||||
| 85053-36021B0 |
BZB40,XZB40 MD.CHARCOAL,TRIM1# |
1 | ||
| 85053-36021B0 |
BZB40..LX;XZB40..6FC..IV5;XZB40..WC..(5F,6FC)..CBU MD.CHARCOAL,TRIM1# |
1 | ||
| 65946A - RAIL SUB-ASSY, CURTAIN, REAR LH | ||||
| 85054-36021B0 |
BZB40..LX;XZB40..6FC..IV5;XZB40..WC..(5F,6FC)..CBU MD.CHARCOAL,TRIM1# |
1 | ||
| 85054-36021B0 |
BZB40,XZB40 MD.CHARCOAL,TRIM1# |
1 | ||
| 65980A - CURTAIN ASSY, BACK WINDOW, RH | ||||
| 65980-36010A0 |
BB40,5#,HDB5#,HZB4#,50..(EX,GX,LX,SULNG)..CBU IVORY,TRIM4# |
1 | ||
| 65980-36021B0 |
BZB40,50,XZB40,50,51..(26S,29S)..WC..(5F,6FC)..CBU MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 65980-36021B0 |
BZB40,50,XZB40,50,51..26S,29S MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 65989 - CAP, CURTAIN RAIL | ||||
| 65989-36020B0 |
XZB40,50,51 MD.CHARCOAL,TRIM1# |
4 | ||
| 65989-36020B0 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40,51..(26S,29S,39S)..WC..(5F,6FC)..CBU MD.CHARCOAL,TRIM1# |
4 | ||
| 65990A - CURTAIN ASSY, BACK WINDOW, LH | ||||
| 65990-36010A0 |
BB40,5#,HDB5#,HZB4#,50..(EX,GX,LX,SULNG)..CBU IVORY,TRIM4# |
1 | ||
| 65990-36021B0 |
BZB40,50,XZB40,50,51..(26S,29S)..WC..(5F,6FC)..CBU MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 65990-36021B0 |
BZB40,50,XZB40,50,51..26S,29S MEDIUM CHARCOAL,TRIM1# |
1 | ||
| Common parts | ||||
| 90183-04022 | ||||
| 90269-03003 | ||||
| 90386-07018 | ||||
| 90468-15004 | ||||
| 93540-14020 | ||||
| 93540-14025 | ||||
| 93540-15016 | ||||
| 93540-24020 | ||||
| 93540-24025 | ||||
| 93540-25016 | ||||
ILLUST NO. 2 OF 2(1501- )BZB40,XZB40
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65923A - HOOK, CURTAIN, NO.1 | ||||
| 65923-36010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..WC..(5F,6FC)..CBU;BZB40,50,XZB51..(EX,LX)..(5F,6FC)..CBU |
14 | ||
| 65923-36010 |
BZB40,50,XZB40,50,51 |
14 | ||
| 65923B - HOOK, CURTAIN, NO.2 | ||||
| 65923-36010 |
BZB40,50,XZB40,50,51 |
28 | ||
| 65923-36010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..WC..(5F,6FC)..CBU;BZB40,50,XZB51..(EX,LX)..(5F,6FC)..CBU |
28 | ||
| 65923C - HOOK, CURTAIN, NO.3 | ||||
| 65923-36010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..WC..(5F,6FC)..CBU;BZB40,50,XZB51..(EX,LX)..(5F,6FC)..CBU |
7 | ||
| 65923-36010 |
BZB40,50,XZB40,50,51 |
7 | ||
| 65923D - HOOK, CURTAIN, NO.4 | ||||
| 65923-36010 |
BZB40,50,XZB40,50,51..(26S,29S)..WC..(5F,6FC)..CBU |
16 | ||
| 65923-36010 |
BZB40,50,XZB40,50,51..26S,29S |
16 | ||
| 65923D - HOOK, CURTAIN, NO.4 | ||||
| 65923-36010 |
BZB40,50,XZB40,50,51..(26S,29S)..WC..(5F,6FC)..CBU |
16 | ||
| 65923-36010 |
BZB40,50,XZB40,50,51..26S,29S |
16 | ||
| 65923E - HOOK, CURTAIN | ||||
| 65923-36020 |
BB58,HZB40..LX;BB4#,55,HDB5#,HZB41,5#..CBU,IV5 |
18 | ||
| 65923-36020 |
XZB40 ｱﾘ(*SOBD) |
10 | ||
| 65923-36020 |
XZB40..6FC..IV5;XZB40..WC..(5F,6FC)..CBU ｱﾘ(*SOBD) |
10 | ||
| 65923-36020 |
BZB40,XZB40..26S ｱﾘ(ﾗﾂｹﾞ-ｼﾞ ﾄﾞｱ) |
14 | ||
| 65923-36020 |
BZB40,XZB40..26S..WC..(5F,6FC)..CBU |
14 | ||
| 65923F - HOOK, CURTAIN, NO.5 | ||||
| 65923-36010 |
BZB40..LX;XZB40..6FC..IV5;XZB40..WC..(5F,6FC)..CBU |
14 | ||
| 65923-36010 |
BZB40,XZB40 |
14 | ||
| 65923G - HOOK, CURTAIN, NO.6 | ||||
| 65923-36010 |
BZB40,XZB40 |
14 | ||
| 65923-36010 |
BZB40..LX;XZB40..6FC..IV5;XZB40..WC..(5F,6FC)..CBU |
14 | ||
| 65930B - CURTAIN ASSY, SIDE WINDOW, FRONT RH | ||||
| 65930-36041B0 |
BZB40,50,XZB40,50,51 MEDIUM CHARCOAL,TRIM1# |
5 | ||
| 65930-36041B0 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..WC..(5F,6FC)..CBU;BZB40,50,XZB51..(EX,LX)..(5F,6FC)..CBU MEDIUM CHARCOAL,TRIM1# |
5 | ||
| 65936 - RAIL, CURTAIN, NO.1 | ||||
| 65096-36031B0 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..WC..(5F,6FC)..CBU;BZB40,50,XZB51..(EX,LX)..(5F,6FC)..CBU MD.CHARCOAL,TRIM1# |
1 | ||
| 65096-36031B0 |
BZB40,50,XZB40,50,51 MD.CHARCOAL,TRIM1# |
1 | ||
| 65937 - RAIL, CURTAIN, NO.2 | ||||
| 85051-36021B0 |
BZB40,50,XZB40,50,51 MD.CHARCOAL,TRIM1# |
1 | ||
| 85051-36021B0 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..WC..(5F,6FC)..CBU;BZB40,50,XZB51..(EX,LX)..(5F,6FC)..CBU MD.CHARCOAL,TRIM1# |
1 | ||
| 65938 - RAIL, CURTAIN, NO.3 | ||||
| 85052-36011B0 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..WC..(5F,6FC)..CBU;BZB40,50,XZB51..(EX,LX)..(5F,6FC)..CBU MD.CHARCOAL,TRIM1# |
1 | ||
| 85052-36011B0 |
BZB40,50,XZB40,50,51 MD.CHARCOAL,TRIM1# |
1 | ||
| 65939 - RAIL, CURTAIN, NO.4 | ||||
| 85055-36010B0 |
BZB40,50,XZB40,50,51..26S,29S MD.CHARCOAL,TRIM1# |
2 | ||
| 85055-36010B0 |
BZB40,50,XZB40,50,51..(26S,29S)..WC..(5F,6FC)..CBU MD.CHARCOAL,TRIM1# |
2 | ||
| 65939 - RAIL, CURTAIN, NO.4 | ||||
| 85055-36010B0 |
BZB40,50,XZB40,50,51..26S,29S MD.CHARCOAL,TRIM1# |
2 | ||
| 85055-36010B0 |
BZB40,50,XZB40,50,51..(26S,29S)..WC..(5F,6FC)..CBU MD.CHARCOAL,TRIM1# |
2 | ||
| 65940B - CURTAIN ASSY, SIDE WINDOW, FRONT LH | ||||
| 65940-36050B0 |
BZB40,50,XZB40,50,51 MEDIUM CHARCOAL,TRIM1#,NO.1 |
1 | ||
| 65940-36031B0 |
BZB40,50,XZB40,50,51 MEDIUM CHARCOAL,TRIM1#,NO.2 |
5 | ||
| 65940-36040B0 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..WC..(5F,6FC)..CBU;BZB40,50,XZB51..(EX,LX)..(5F,6FC)..CBU MEDIUM CHARCOAL,TRIM1#,NO.1 |
1 | ||
| 65940-36031B0 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..WC..(5F,6FC)..CBU;BZB40,50,XZB51..(EX,LX)..(5F,6FC)..CBU MEDIUM CHARCOAL,TRIM1#,NO.2 |
5 | ||
| 65945A - RAIL, CURTAIN, NO.5 | ||||
| 85053-36021B0 |
BZB40,XZB40 MD.CHARCOAL,TRIM1# |
1 | ||
| 85053-36021B0 |
BZB40..LX;XZB40..6FC..IV5;XZB40..WC..(5F,6FC)..CBU MD.CHARCOAL,TRIM1# |
1 | ||
| 65946A - RAIL SUB-ASSY, CURTAIN, REAR LH | ||||
| 85054-36021B0 |
BZB40..LX;XZB40..6FC..IV5;XZB40..WC..(5F,6FC)..CBU MD.CHARCOAL,TRIM1# |
1 | ||
| 85054-36021B0 |
BZB40,XZB40 MD.CHARCOAL,TRIM1# |
1 | ||
| 65980A - CURTAIN ASSY, BACK WINDOW, RH | ||||
| 65980-36010A0 |
BB40,5#,HDB5#,HZB4#,50..(EX,GX,LX,SULNG)..CBU IVORY,TRIM4# |
1 | ||
| 65980-36021B0 |
BZB40,50,XZB40,50,51..(26S,29S)..WC..(5F,6FC)..CBU MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 65980-36021B0 |
BZB40,50,XZB40,50,51..26S,29S MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 65989 - CAP, CURTAIN RAIL | ||||
| 65989-36020B0 |
XZB40,50,51 MD.CHARCOAL,TRIM1# |
4 | ||
| 65989-36020B0 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40,51..(26S,29S,39S)..WC..(5F,6FC)..CBU MD.CHARCOAL,TRIM1# |
4 | ||
| 65990A - CURTAIN ASSY, BACK WINDOW, LH | ||||
| 65990-36010A0 |
BB40,5#,HDB5#,HZB4#,50..(EX,GX,LX,SULNG)..CBU IVORY,TRIM4# |
1 | ||
| 65990-36021B0 |
BZB40,50,XZB40,50,51..(26S,29S)..WC..(5F,6FC)..CBU MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 65990-36021B0 |
BZB40,50,XZB40,50,51..26S,29S MEDIUM CHARCOAL,TRIM1# |
1 | ||
| Common parts | ||||
| 90183-04022 | ||||
| 90269-03003 | ||||
| 90386-07018 | ||||
| 90468-15004 | ||||
| 93540-14020 | ||||
| 93540-14025 | ||||
| 93540-15016 | ||||
