XZB40-ZRMEY (2004)
Toyota Coaster
(1108-1501)26S,29S
ｶﾞｰﾄﾞﾊﾞｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62897 - TUBE, SIDE WINDOW GUARD | ||||
| 62897-36010B0 |
BZB40,50,XZB40,50,51..26S,29S MD.CHARCOAL,TRIM1# |
1 | ||
| 62898A - TUBE, SIDE WINDOW GUARD, LH | ||||
| 62898-36010B0 |
BZB40,50,XZB40,50,51..26S,29S MD.CHARCOAL,TRIM1# |
1 | ||
| Common parts | ||||
| 93260-56035 | ||||

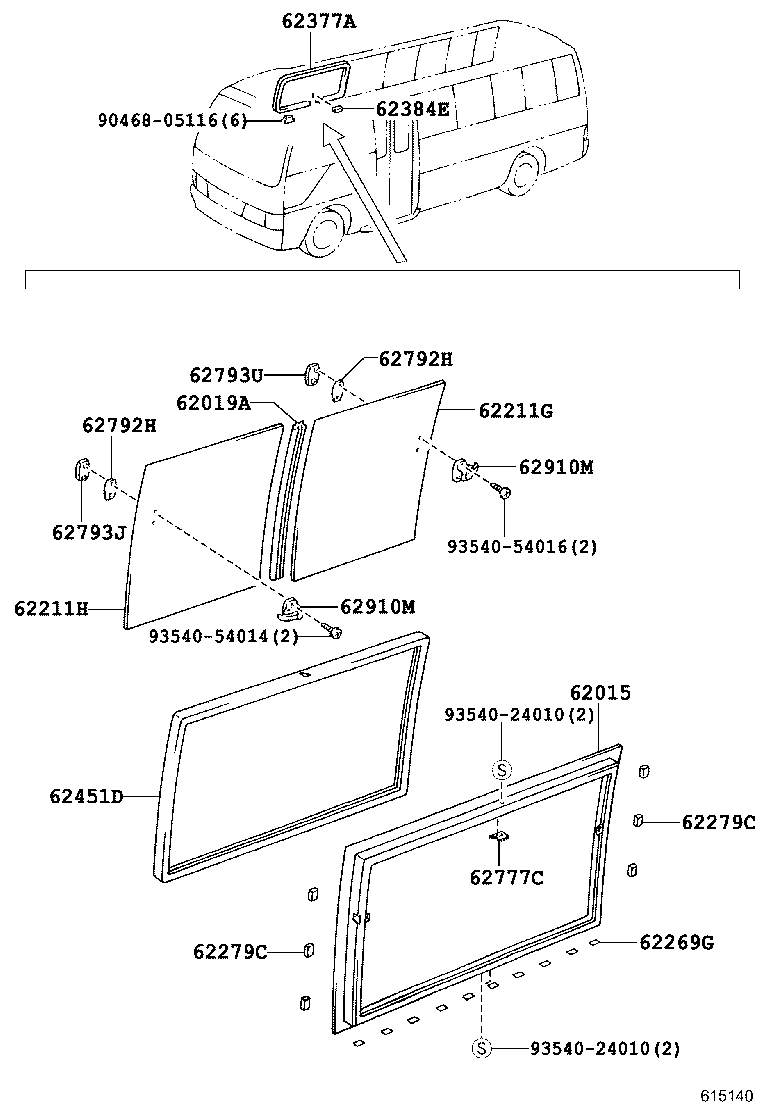

ILLUST NO. 2 OF 7(1501- )EX,GX,LX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62015 - FRAME SUB-ASSY, SIDE WINDOW, RH | ||||
| 62015-36010 |
BB4#,HDB50,HZB40,5#..09S,26S,29S |
1 | ||
| 62015-36030 |
BB4#,HDB50,HZB40,5#..DX,GX,LX ｱﾘ(ﾌﾞﾛﾝｽﾞ ｶﾞﾗｽ) |
1 | ||
| 62015-36032 |
BZB40,50,XZB4#,5#..09S,26S,29S ﾌﾞﾗﾂｸ |
1 | ||
| 62015-36031 |
XZB40..6FC..IV5;XZB50..29S..WC..(5F,6FC);BZB40,50,XZB4#,51,56..(09S,26S,29S)..(5F,6FC)..CBU ﾌﾞﾗﾂｸ |
1 | ||
| 62015-36032 |
BZB40,50,XZB4#,5#..EX,GX,LX ﾌﾞﾗﾂｸ |
1 | ||
| 62019A - FRAME SUB-ASSY, SIDE WINDOW, CENTER RH | ||||
| 62019-36044 |
BZB40,50,XZB4#,5#..EX,GX,LX |
1 | ||
| 62019-36010 |
BB4#,55,HDB50,HZB40,5# |
1 | ||
| 62211G - GLASS, SIDE WINDOW, REAR RH | ||||
| 62221-36030 |
BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX *TEM,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 62221-36100 |
XZB40..6FC..IV5;XZB50..29S..WC..(5F,6FC);BZB40,50,XZB4#,51,56..(09S,26S,29S)..(5F,6FC)..CBU *TT,厚さ=5.0,ﾀﾞｰｸｸﾞﾘｰﾝ |
1 | ||
| 62221-36110 |
BZB40,50,XZB4#,5#..09S,26S,29S *TT,厚さ=5.0,ﾀﾞｰｸｸﾞﾚｰ |
1 | ||
| 62221-36110 |
BZB40,50,XZB4#,5#..EX,GX,LX ﾀﾞｰｸ ｸﾞﾚｰ |
1 | ||
| 62211H - GLASS, SIDE WINDOW, FRONT RH | ||||
| 62211-36030 |
BB4#,55,HDB5#,HZB4#,5#..DX,EX,GX,LX *TEM,厚さ=5.0,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 62211-36110 |
BZB40,50,XZB4#,5#..09S,26S,29S *TT,厚さ=5.0,ﾀﾞｰｸｸﾞﾚｰ |
1 | ||
| 62211-36070 |
XZB40..6FC..IV5;XZB50..29S..WC..(5F,6FC);BZB40,50,XZB4#,51,56..(09S,26S,29S)..(5F,6FC)..CBU *TT,厚さ=5.0,ﾀﾞｰｸｸﾞﾘｰﾝ |
1 | ||
| 62211-36110 |
BZB40,50,XZB4#,5#..EX,GX,LX ﾀﾞｰｸ ｸﾞﾚｰ |
1 | ||
| 62269G - FILM, SIDE WINDOW FRAME | ||||
| 62269-90K01 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
10 | ||
| 62269-90K01 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);BZB40,50,XZB4#,51,56..(DX,EX,GX,LX,STD)..(5F,6FC)..CBU |
10 | ||
| 62269-90K01 |
XZB40,50;BZB40,50,XZB46,51,56..EX,LX |
8 | ||
| 62269-90K01 |
BZB40,50,XZB4#,5# |
8 | ||
| 62279C - SPACER, SIDE WINDOW FRAME, RH | ||||
| 62279-36010 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
6 | ||
| 62279-36010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
6 | ||
| 62279-36010 |
BZB40,50,XZB4#,5# |
6 | ||
| 62279C - SPACER, SIDE WINDOW FRAME, RH | ||||
| 62279-36010 |
BB4#,5#,HDB5#,HZB4#,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
6 | ||
| 62279-36010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
6 | ||
| 62279-36010 |
BZB40,50,XZB4#,5# |
6 | ||
| 62377A - CLIP, SIDE WINDOW, NO.3 | ||||
| 62376-36010B0 |
BZB40,50,XZB4#,5#..09S,26S,29S,39S,49S MD.CHARCOAL,TRIM1# |
5 | ||
| 62376-36010A0 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD IVORY,TRIM4# |
5 | ||
| 62376-36010B0 |
BZB40,50,XZB4#,5# MD.CHARCOAL,TRIM1# |
5 | ||
| 62384E - CAP, SIDE WINDOW | ||||
| 62384-36010A0 |
BB4#,HDB5#,HZB4#,5#..DX,EX,GX,LX,STD IVORY,TRIM4# |
5 | ||
| 62427-36010B0 |
BZB40,50,XZB4#,5# MD.CHARCOAL,TRIM1# |
5 | ||
| 62427-36010B0 |
BZB40,50,XZB4#,5#..09S,26S,29S,39S,49S MD.CHARCOAL,TRIM1# |
5 | ||
| 62451D - RUN, REAR SIDE WINDOW, RH | ||||
| 62451-36030 |
BB4#,HDB5#,HZB4#,5#..(09S,15S,26S,29S)..(CBU,IV5) |
1 | ||
| 62451-36120 |
BZB40,50,XZB4#,5#..EX,GX,LX |
1 | ||
| 62451-36120 |
XZB40..6FC..IV5;XZB50..29S..WC..(5F,6FC);BZB40,50,XZB4#,51,56..(09S,26S,29S)..(5F,6FC)..CBU |
1 | ||
| 62777C - CAP, SIDE WINDOW CENTER SASH | ||||
| 62777-36010 |
BB4#,55,HDB50,HZB40,5# |
1 | ||
| 62777-36030 |
BZB40,50,XZB4#,5# |
1 | ||
| 62792H - PACKING, SIDE WINDOW LOCK | ||||
| 62792-95A00 |
BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,26S,29S)..(CBU,IV5) |
1 | ||
| 62792-95A00 |
XZB40..6FC..IV5;XZB50..29S..WC..(5F,6FC);BZB40,50,XZB4#,51,56..(09S,26S,29S)..(5F,6FC)..CBU |
1 | ||
| 62792-95A00 |
BZB40,50,XZB4#,5# |
2 | ||
| 62792H - PACKING, SIDE WINDOW LOCK | ||||
| 62792-95A00 |
BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,26S,29S)..(CBU,IV5) |
1 | ||
| 62792-95A00 |
XZB40..6FC..IV5;XZB50..29S..WC..(5F,6FC);BZB40,50,XZB4#,51,56..(09S,26S,29S)..(5F,6FC)..CBU |
1 | ||
| 62792-95A00 |
BZB40,50,XZB4#,5# |
2 | ||
| 62793J - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-95J00 |
BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,26S,29S)..(CBU,IV5) |
1 | ||
| 62793-95J00 |
XZB40..6FC..IV5;XZB50..29S..WC..(5F,6FC);BZB40,50,XZB4#,51,56..(09S,26S,29S)..(5F,6FC)..CBU |
1 | ||
| 62793-95J00 |
BZB40,50,XZB4#,5#..EX,GX,LX |
1 | ||
| 62793U - RETAINER, SIDE WINDOW LOCK | ||||
| 62793-36010 |
BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,26S,29S)..(CBU,IV5) |
1 | ||
| 62793-36010 |
XZB40..6FC..IV5;XZB50..29S..WC..(5F,6FC);BZB40,50,XZB4#,51,56..(09S,26S,29S)..(5F,6FC)..CBU |
1 | ||
| 62793-36010 |
BZB40,50,XZB4#,5#..EX,GX,LX |
1 | ||
| 62910M - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,26S,29S)..(CBU,IV5) |
1 | ||
| 62910-95702 |
XZB40..6FC..IV5;XZB50..29S..WC..(5F,6FC);BZB40,50,XZB4#,51,56..(09S,26S,29S)..(5F,6FC)..CBU |
1 | ||
| 62910-95702 |
BZB40,50,XZB4#,5# |
2 | ||
| 62910M - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
BB4#,5#,HDB5#,HZB4#,5#..(09S,15S,26S,29S)..(CBU,IV5) |
1 | ||
| 62910-95702 |
XZB40..6FC..IV5;XZB50..29S..WC..(5F,6FC);BZB40,50,XZB4#,51,56..(09S,26S,29S)..(5F,6FC)..CBU |
1 | ||
| 62910-95702 |
BZB40,50,XZB4#,5# |
2 | ||
| Common parts | ||||
| 90468-05116 | ||||
| 93540-24010 | ||||
| 93540-54014 | ||||
| 93540-54016 | ||||
