XZB40-ZRMEY (2004)

Toyota Coaster

Production Aug 2004 - Dec 2016
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0408-1501) ; (1501- )BZB40,50

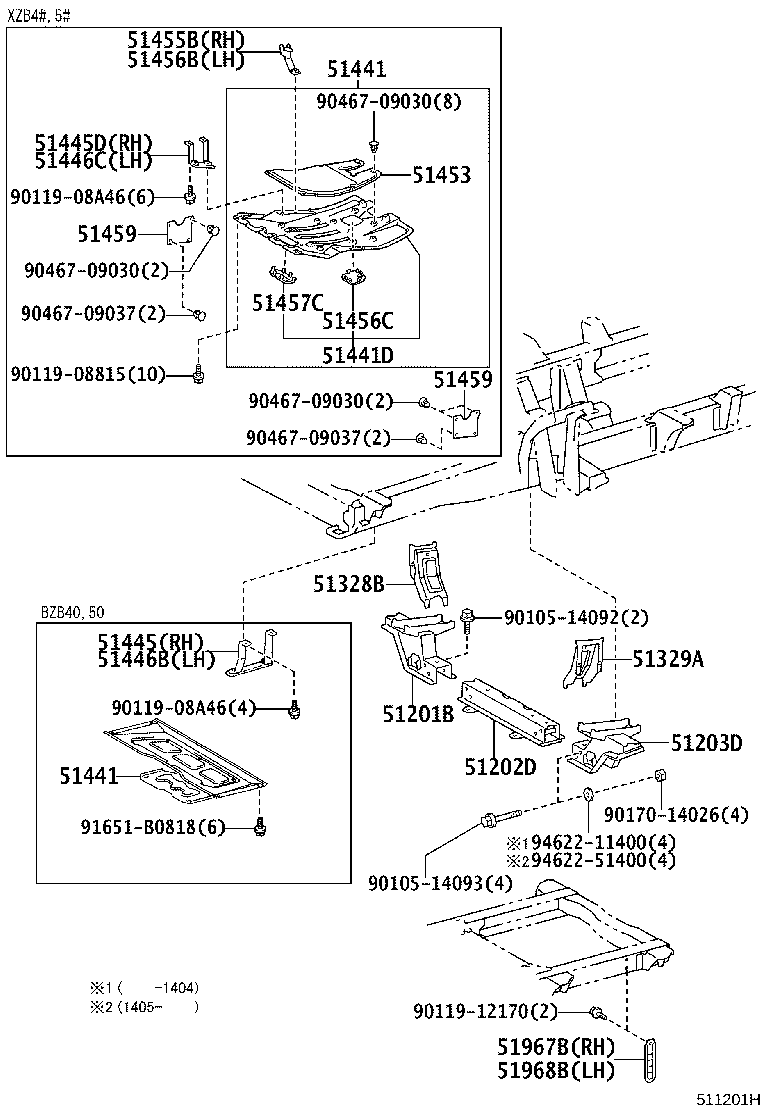

Click highlighted areas on diagram

diagram 51201B 51202D 51203D 51328B 51329A 51441 51441 51441D 51445 51445D 51446B 51446C 51453 51455B 51456B 51456C 51457C 51459 51459 51967B 51968B 9010514092 9010514093 9011908815 9011908A46 9011908A46 9011912170 9017014026 9046709030 9046709030 9046709030 9046709037 9046709037 91651B0818 9462211400 9462251400
Part # Description Qty Price
51201B - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION, RH
51201-36160

BZB40,50,XZB4#,5#

 1
51201-36160

BB4#,HDB5#,HZB4#,5#

 1
51201-36160

XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU

 1
51202D - CROSSMENBER SUB-ASSY, FRONT SUSPENSION, LOWER
51202-36170

XZB51..SULNG..6FC;BZB40,50,XZB4#,5#..09S,26S,29S,39S,49S

 1
51202-36170

BB4#,HDB5#,HZB4#,5#

 1
51202-36171

XZB4#,5#

 1
51202-36171

XZB46,50,56..WC;XZB40..6FC..IV5;XZB40,51..(26S,29S,39S)..CBU

 1
51203D - CROSSMENBER SUB-ASSY, FRONT SUSPENSION, LH
51203-36330

BB4#,HDB5#,HZB4#,5#

 1
51203-36330

BZB40,50,XZB4#,5#

 1
51203-36330

XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU

 1
51328B - SUPPORT, FRONT SUSPENSION MEMBER, RH
51328-36020

BB4#,HDB5#,HZB4#,5#

 1
51328-36020

BZB40,50,XZB4#,5#

 1
51328-36020

XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU

 1
51329A - SUPPORT, FRONT SUSPENSION MEMBER, LH
51329-36010

XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU

 1
51329-36010

BZB40,50,XZB4#,5#

 1
51329-36010

BB4#,HDB5#,HZB4#,5#

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-36250

HDB5#,HZB4#,5#

 1
51405-36070

XZB4#,5#

 1
51405-36060

XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-36250

HDB5#,HZB4#,5#

 1
51405-36070

XZB4#,5#

 1
51405-36060

XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU

 1
51441D - COVER, ENGINE UNDER
51441-36311

XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU

 1
51441-36350

XZB4#,5#

 1
51445 - BRACKET, ENGINE UNDER COVER
51445-36040

HDB5#,HZB4#,5#

 1
51445D - BRACKET, ENGINE UNDER COVER, RH
51445-36080

XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU

 1
51445-36080

XZB4#,5#

 1
51446B - BRACKET, ENGINE UNDER COVER, NO.2
51446-36040

HDB5#,HZB4#,5#

 1
51446C - BRACKET, ENGINE UNDER COVER, LH
51446-36060

XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU

 1
51446-36060

XZB4#,5#

 1
51453 - SILENCER, ENGINE UNDER COVER, FRONT
51453-36090

XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU

 1
51453-36100

XZB4#,5#

 1
51455B - BRACKET, ENGINE UNDER COVER, REAR RH
51455-36030

XZB4#,5#

 1
51455-36030

XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU

 1
51456B - BRACKET, ENGINE UNDER COVER, REAR LH
51456-36070

XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU

 1
51456-36070

XZB4#,5#

 1
51456C - SEAL, ENGINE UNDER COVER, NO.2
51456-36081

XZB4#,5#

 1
51456-36081

XZB4#,5#

 1
51456-36080

XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU

 1
51457C - SEAL, ENGINE UNDER COVER, NO.3
51457-35030

XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU

 1
51459 - STAY, ENGINE SIDE COVER
51459-36040

XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU

 2
51459-36040

XZB4#,5#

 2
51459 - STAY, ENGINE SIDE COVER
51459-36040

XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU

 2
51459-36040

XZB4#,5#

 2
51967B - HOOK, TRANSPORT, REAR RH
51963-36060

BZB40,50,XZB4#,5#

 1
51963-36060

BB4#,55,HDB5#,HZB4#,5#

 1
51963-36060

XZB51;BZB40,50,XZB4#,50,56..09S,26S,29S,39S,49S

 1
51968B - HOOK, TRANSPORT, REAR LH
51963-36060

XZB51;BZB40,50,XZB4#,50,56..09S,26S,29S,39S,49S

 1
51963-36060

BZB40,50,XZB4#,5#

 1
51963-36060

BB4#,55,HDB5#,HZB4#,5#

 1
Common parts
90105-14092
90105-14093
90119-08815
90119-08A46
90119-12170
90170-14026
90467-09030
90467-09037
91651-B0818
94622-11400
94622-51400

(1501- )XZB4#,5#

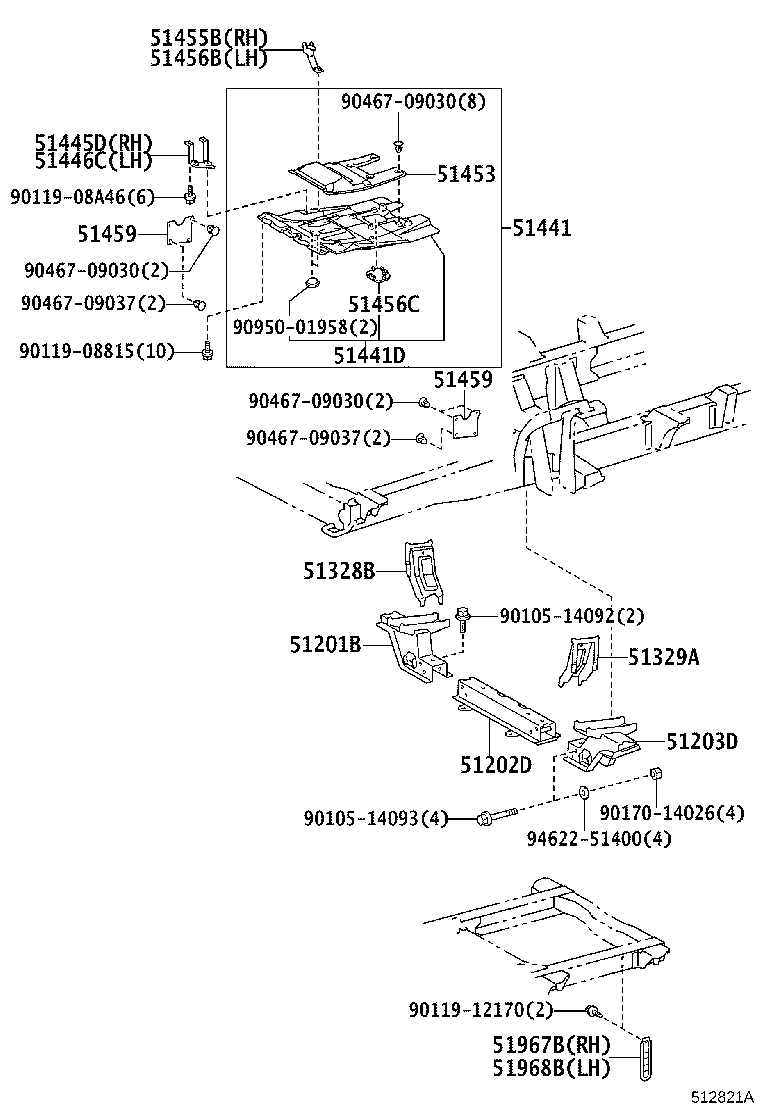

Click highlighted areas on diagram

diagram 51201B 51202D 51203D 51328B 51329A 51441 51441D 51445D 51446C 51453 51455B 51456B 51456C 51459 51459 51967B 51968B 9010514092 9010514093 9011908815 9011908A46 9011912170 9017014026 9046709030 9046709030 9046709030 9046709037 9046709037 9095001958 9462251400
Part # Description Qty Price
51201B - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION, RH
51201-36160

BZB40,50,XZB4#,5#

 1
51201-36160

BB4#,HDB5#,HZB4#,5#

 1
51201-36160

XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU

 1
51202D - CROSSMENBER SUB-ASSY, FRONT SUSPENSION, LOWER
51202-36170

XZB51..SULNG..6FC;BZB40,50,XZB4#,5#..09S,26S,29S,39S,49S

 1
51202-36170

BB4#,HDB5#,HZB4#,5#

 1
51202-36171

XZB4#,5#

 1
51202-36171

XZB46,50,56..WC;XZB40..6FC..IV5;XZB40,51..(26S,29S,39S)..CBU

 1
51203D - CROSSMENBER SUB-ASSY, FRONT SUSPENSION, LH
51203-36330

BB4#,HDB5#,HZB4#,5#

 1
51203-36330

BZB40,50,XZB4#,5#

 1
51203-36330

XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU

 1
51328B - SUPPORT, FRONT SUSPENSION MEMBER, RH
51328-36020

BB4#,HDB5#,HZB4#,5#

 1
51328-36020

BZB40,50,XZB4#,5#

 1
51328-36020

XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU

 1
51329A - SUPPORT, FRONT SUSPENSION MEMBER, LH
51329-36010

XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU

 1
51329-36010

BZB40,50,XZB4#,5#

 1
51329-36010

BB4#,HDB5#,HZB4#,5#

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-36250

HDB5#,HZB4#,5#

 1
51405-36070

XZB4#,5#

 1
51405-36060

XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU

 1
51441D - COVER, ENGINE UNDER
51441-36311

XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU

 1
51441-36350

XZB4#,5#

 1
51445D - BRACKET, ENGINE UNDER COVER, RH
51445-36080

XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU

 1
51445-36080

XZB4#,5#

 1
51446C - BRACKET, ENGINE UNDER COVER, LH
51446-36060

XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU

 1
51446-36060

XZB4#,5#

 1
51453 - SILENCER, ENGINE UNDER COVER, FRONT
51453-36090

XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU

 1
51453-36100

XZB4#,5#

 1
51455B - BRACKET, ENGINE UNDER COVER, REAR RH
51455-36030

XZB4#,5#

 1
51455-36030

XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU

 1
51456B - BRACKET, ENGINE UNDER COVER, REAR LH
51456-36070

XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU

 1
51456-36070

XZB4#,5#

 1
51456C - SEAL, ENGINE UNDER COVER, NO.2
51456-36081

XZB4#,5#

 1
51456-36081

XZB4#,5#

 1
51456-36080

XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU

 1
51459 - STAY, ENGINE SIDE COVER
51459-36040

XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU

 2
51459-36040

XZB4#,5#

 2
51459 - STAY, ENGINE SIDE COVER
51459-36040

XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU

 2
51459-36040

XZB4#,5#

 2
51967B - HOOK, TRANSPORT, REAR RH
51963-36060

BZB40,50,XZB4#,5#

 1
51963-36060

BB4#,55,HDB5#,HZB4#,5#

 1
51963-36060

XZB51;BZB40,50,XZB4#,50,56..09S,26S,29S,39S,49S

 1
51968B - HOOK, TRANSPORT, REAR LH
51963-36060

XZB51;BZB40,50,XZB4#,50,56..09S,26S,29S,39S,49S

 1
51963-36060

BZB40,50,XZB4#,5#

 1
51963-36060

BB4#,55,HDB5#,HZB4#,5#

 1
Common parts
90105-14092
90105-14093
90119-08815
90119-08A46
90119-12170
90170-14026
90467-09030
90467-09037
90950-01958
94622-51400
