XZB40-ZRMEY (2004)
Toyota Coaster
(0408- )XZB4#

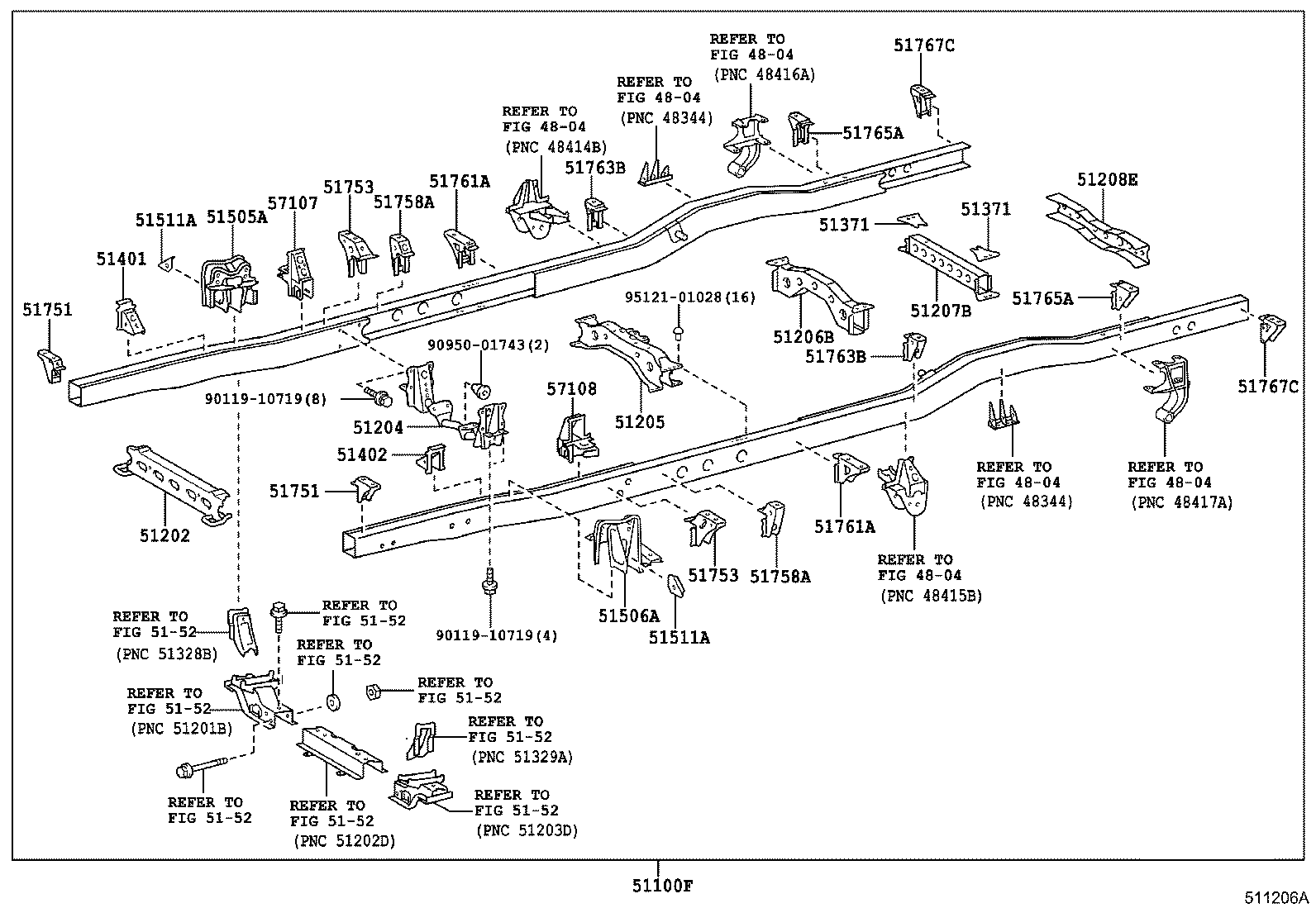

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51100F - FRAME SUB-ASSY | ||||
| 51001-36A10 |
XZB4#..(09S,26S,39S)..(4FC,5F) |
1 | ||
| 51001-36A10 |
XZB40..5F |
1 | ||
| 51202 - CROSSMEMBER SUB-ASSY, FRAME, NO.1 | ||||
| 51201-36150 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 51201-36150 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 51201-36150 |
BZB40,50,XZB4#,5# |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51203-36320 |
BB4#,HDB5#,HZB4#,5#..4FC,5F |
1 | ||
| 51203-36360 |
XZB50..WC..5F;XZB40,51..5F..CBU |
1 | ||
| 51203-36360 |
XZB40,50,51..5F |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51204-36190 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 51204-36193 |
BZB40,50,XZB4#,5# |
1 | ||
| 51204-36193 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 51206B - CROSSMEMBER SUB-ASSY, FRAME, NO.6 | ||||
| 51206-36090 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 51206-36090 |
BZB40,50,XZB4#,5# |
1 | ||
| 51206-36090 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 51207B - CROSSMEMBER SUB-ASSY, FRAME, NO.7 | ||||
| 51207-36110 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 51207-36111 |
BZB40,50,XZB4#,5# |
1 | ||
| 51207-36111 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 51208E - CROSSMEMBER SUB-ASSY, FRAME, NO.8 | ||||
| 51281-36030 |
BB4#,HDB50,HZB40,5# |
1 | ||
| 51281-36030 |
XZB50..LX,STD;BZB40,50,XZB4#,56 |
1 | ||
| 51281-36030 |
XZB40..6FC..IV5;XZB40..(5F,6FC)..CBU;XZB50..(LX,STD)..(5F,6FC);BZB40,50,XZB46,56..LX..(5F,6FC) |
1 | ||
| 51371 - GUSSET, FRAME NO.7 CROSSMEMBER, NO.1 | ||||
| 51371-36070 |
BZB40,50,XZB4#,5# |
2 | ||
| 51371-36070 |
BB4#,HDB5#,HZB4#,5# |
2 | ||
| 51371-36070 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
2 | ||
| 51371 - GUSSET, FRAME NO.7 CROSSMEMBER, NO.1 | ||||
| 51371-36070 |
BZB40,50,XZB4#,5# |
2 | ||
| 51371-36070 |
BB4#,HDB5#,HZB4#,5# |
2 | ||
| 51371-36070 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
2 | ||
| 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH | ||||
| 51421-36210 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 51421-36210 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 51421-36210 |
BZB40,50,XZB4#,5# |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51421-36210 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 51421-36210 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 51421-36210 |
BZB40,50,XZB4#,5# |
1 | ||
| 51505A - SUPPORT SUB-ASSY, UPPER CONTROL ARM | ||||
| 51505-36030 |
BB4#,HDB50,HZB40,5# |
1 | ||
| 51505-36030 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,56..LX..(5F,6FC) |
1 | ||
| 51505-36030 |
BZB40,50,XZB4#,50,56 |
1 | ||
| 51506A - SUPPORT SUB-ASSY, UPPER CONTROL ARM, LH | ||||
| 51506-36120 |
BB4#,HDB50,HZB40,5# |
1 | ||
| 51506-36120 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,56..LX..(5F,6FC) |
1 | ||
| 51506-36120 |
BZB40,50,XZB4#,50,56 |
1 | ||
| 51511A - SEAT, FRONT SPRING SUPPORT | ||||
| 51511-36080 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
2 | ||
| 51511-36080 |
BB4#,HDB5#,HZB4#,5# |
2 | ||
| 51511-36080 |
BZB40,50,XZB4#,5# |
2 | ||
| 51511A - SEAT, FRONT SPRING SUPPORT | ||||
| 51511-36080 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
2 | ||
| 51511-36080 |
BB4#,HDB5#,HZB4#,5# |
2 | ||
| 51511-36080 |
BZB40,50,XZB4#,5# |
2 | ||
| 51751 - BRACKET, BODY SUPPORT, NO.1 | ||||
| 51751-36060 |
BZB40,50,XZB4#,5# |
2 | ||
| 51751-36060 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
2 | ||
| 51751-36060 |
BB4#,HDB5#,HZB4#,5# |
2 | ||
| 51751 - BRACKET, BODY SUPPORT, NO.1 | ||||
| 51751-36060 |
BZB40,50,XZB4#,5# |
2 | ||
| 51751-36060 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
2 | ||
| 51751-36060 |
BB4#,HDB5#,HZB4#,5# |
2 | ||
| 51753 - BRACKET, BODY SUPPORT, NO.2 | ||||
| 51753-36050 |
BB4#,HDB5#,HZB4#,5# |
2 | ||
| 51753-36051 |
BZB40,50,XZB4#,5# |
2 | ||
| 51753-36051 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
2 | ||
| 51753 - BRACKET, BODY SUPPORT, NO.2 | ||||
| 51753-36050 |
BB4#,HDB5#,HZB4#,5# |
2 | ||
| 51753-36051 |
BZB40,50,XZB4#,5# |
2 | ||
| 51753-36051 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
2 | ||
| 51758A - BRACKET, BODY SUPPORT, NO.4 LH | ||||
| 51758-36020 |
XZB40..6FC..IV5;XZB40..(5F,6FC)..CBU;BZB40,XZB46..LX..(5F,6FC) |
2 | ||
| 51758-36020 |
BZB40,XZB4# |
2 | ||
| 51758A - BRACKET, BODY SUPPORT, NO.4 LH | ||||
| 51758-36020 |
XZB40..6FC..IV5;XZB40..(5F,6FC)..CBU;BZB40,XZB46..LX..(5F,6FC) |
2 | ||
| 51758-36020 |
BZB40,XZB4# |
2 | ||
| 51761A - BRACKET, BODY SUPPORT, NO.5 RH | ||||
| 51761-36040 |
BB4#,HDB5#,HZB4#,5# |
2 | ||
| 51761-36041 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
2 | ||
| 51761-36041 |
XZB4#,5# |
2 | ||
| 51761A - BRACKET, BODY SUPPORT, NO.5 RH | ||||
| 51761-36040 |
BB4#,HDB5#,HZB4#,5# |
2 | ||
| 51761-36041 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
2 | ||
| 51761-36041 |
XZB4#,5# |
2 | ||
| 51763B - BRACKET, BODY SUPPORT, NO.6 | ||||
| 51763-36060 |
BB4#,HDB50,HZB40,5# |
2 | ||
| 51763-36061 |
XZB40..6FC..IV5;XZB40..(5F,6FC)..CBU;BZB40,XZB46,50,56..(09S,26S,29S,49S)..(LX,STD)..(5F,6FC) |
2 | ||
| 51763-36061 |
XZB50..LX,STD;BZB40,XZB4#,56 |
2 | ||
| 51763B - BRACKET, BODY SUPPORT, NO.6 | ||||
| 51763-36060 |
BB4#,HDB50,HZB40,5# |
2 | ||
| 51763-36061 |
XZB40..6FC..IV5;XZB40..(5F,6FC)..CBU;BZB40,XZB46,50,56..(09S,26S,29S,49S)..(LX,STD)..(5F,6FC) |
2 | ||
| 51763-36061 |
XZB50..LX,STD;BZB40,XZB4#,56 |
2 | ||
| 51765A - BRACKET, FRAME BODY MOUNTING, NO.7 RH | ||||
| 51765-36050 |
BB4#,HDB50,HZB40,5# |
2 | ||
| 51765-36051 |
XZB40..6FC..IV5;XZB40..(5F,6FC)..CBU;XZB50..(LX,STD)..(5F,6FC);BZB40,50,XZB46,56..LX..(5F,6FC) |
2 | ||
| 51765-36051 |
XZB50..LX,STD;BZB40,50,XZB4#,56 |
2 | ||
| 51765A - BRACKET, FRAME BODY MOUNTING, NO.7 RH | ||||
| 51765-36050 |
BB4#,HDB50,HZB40,5# |
2 | ||
| 51765-36051 |
XZB40..6FC..IV5;XZB40..(5F,6FC)..CBU;XZB50..(LX,STD)..(5F,6FC);BZB40,50,XZB46,56..LX..(5F,6FC) |
2 | ||
| 51765-36051 |
XZB50..LX,STD;BZB40,50,XZB4#,56 |
2 | ||
| 51767C - BRACKET, FRAME BODY MOUNTING, NO.8 RH | ||||
| 51767-36150 |
BB4#,HDB50,HZB40,5# |
2 | ||
| 51767-36150 |
XZB40..6FC..IV5;XZB40..(5F,6FC)..CBU;XZB50..(LX,STD)..(5F,6FC);BZB40,50,XZB46,56..LX..(5F,6FC) |
2 | ||
| 51767-36150 |
XZB50..LX,STD;BZB40,50,XZB4#,56 |
2 | ||
| 51767C - BRACKET, FRAME BODY MOUNTING, NO.8 RH | ||||
| 51767-36150 |
BB4#,HDB50,HZB40,5# |
2 | ||
| 51767-36150 |
XZB40..6FC..IV5;XZB40..(5F,6FC)..CBU;XZB50..(LX,STD)..(5F,6FC);BZB40,50,XZB46,56..LX..(5F,6FC) |
2 | ||
| 51767-36150 |
XZB50..LX,STD;BZB40,50,XZB4#,56 |
2 | ||
| 57107 - BRACKET SUB-ASSY, STRUT BAR, RH | ||||
| 57121-36020 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 57121-36020 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 57121-36020 |
BZB40,50,XZB4#,5# |
1 | ||
| 57108 - BRACKET SUB-ASSY, STRUT BAR, LH | ||||
| 57122-36020 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 57122-36020 |
BZB40,50,XZB4#,5# |
1 | ||
| 57122-36020 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| Common parts | ||||
| 90119-10719 | ||||
| 90950-01743 | ||||
| 95121-01028 | ||||
| Linked diagrams | ||||
| 4804 | ||||
| 5152 | ||||
