Toyota Coaster XZB40 EXHAUST BRAKE TUBE & CLAMP

Manufacturers Home
Toyota
JP
COASTER
XZB40-ZRMEY (2004)
4710 - EXHAUST BRAKE TUBE & CLAMP

XZB40-ZRMEY (2004)

Toyota Coaster

Production Aug 2004 - Dec 2016

Engine N04C

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

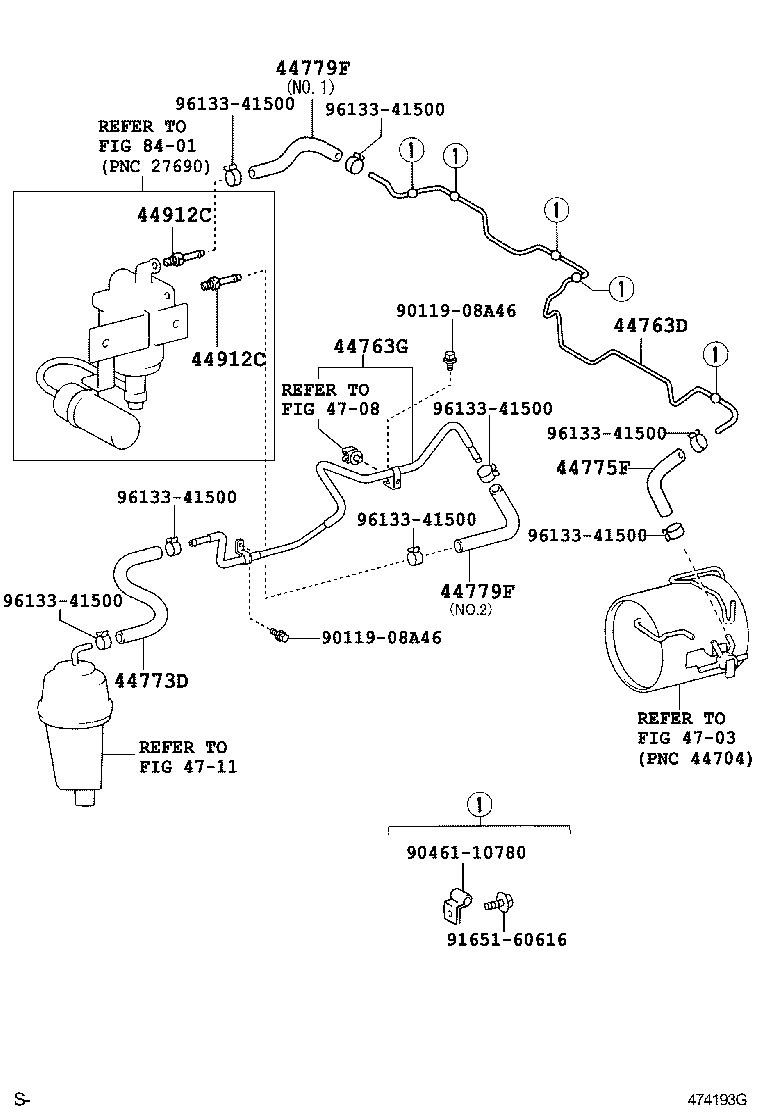

(0408-1108)XZB4#,5#

Click highlighted areas on diagram

Part #	Description	Period	Qty
44763D - TUBE, HOSE TO HOSE, NO.1
44763-36040	XZB4#,5#	08/2004 - 12/2005	1
44763-36041	XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU	12/2005 - 01/2015	1
44763-36040	BB4#,HDB5#,HZB4#,5#	01/1993 - 07/1999	1
44763-36042	XZB4#,5#	01/2015 - 12/2999	1
44763G - TUBE, HOSE TO HOSE, NO.2
44763-36080	XZB4#,5#	01/2015 - 12/2999	1
44763-36080	XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU	08/2004 - 01/2015	1
44773D - HOSE, SOLENOIDO TO RETARDER
44773-36160	BB4#,HDB5#,HZB4#,5#	01/1993 - 07/1999	1
44773-36170	XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(5F,6FC)..CBU	08/2004 - 08/2011	1
44773-36190	XZB4#,5#	08/2011 - 01/2015	1
44773-36190	XZB4#,5#	01/2015 - 12/2999	1
44775F - HOSE, WAY TO CONNECTOR
44775-36030	BB4#,HDB5#,HZB4#,5#	01/1993 - 07/1999	1
44775-36100	XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU	04/2007 - 01/2015	1
44775-36030	XZB51..SULNG..6FC;XZB4#,5#..DX,EX,GX,LX,STD	08/2004 - 03/2007	1
44775-36100	XZB4#,5#	01/2015 - 12/2999	1
44779F - HOSE, CONNECTOR TUBE TO SOLENOID, NO.1
44779-36100	XZB51..SULNG..6FC;XZB4#,5#..DX,EX,GX,LX,STD NO.1	08/2004 - 03/2007	1
44779-36100	BB4#,HDB5#,HZB4#,5#	01/1993 - 07/1999	1
44779-36110	XZB4#,5# NO.2	01/2015 - 12/2999	1
44779-36120	XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU NO.1	04/2007 - 01/2015	1
44779-36110	XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU NO.2	08/2004 - 01/2015	1
44779-36121	XZB4#,5# NO.1	01/2015 - 12/2999	1
44779F - HOSE, CONNECTOR TUBE TO SOLENOID, NO.1
44779-36100	XZB51..SULNG..6FC;XZB4#,5#..DX,EX,GX,LX,STD NO.1	08/2004 - 03/2007	1
44779-36100	BB4#,HDB5#,HZB4#,5#	01/1993 - 07/1999	1
44779-36110	XZB4#,5# NO.2	01/2015 - 12/2999	1
44779-36120	XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU NO.1	04/2007 - 01/2015	1
44779-36110	XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU NO.2	08/2004 - 01/2015	1
44779-36121	XZB4#,5# NO.1	01/2015 - 12/2999	1
44912C - UNION(FOR 3 WAY TO MAGNETIC VALVE TUBE)
90404-51319	XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU	08/2004 - 01/2015	2
90404-51319	BB4#,HDB5#,HZB4#,5#	01/1993 - 07/1999	2
90404-51319	XZB4#,5#	01/2015 - 12/2999	2
44912C - UNION(FOR 3 WAY TO MAGNETIC VALVE TUBE)
90404-51319	XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU	08/2004 - 01/2015	2
90404-51319	BB4#,HDB5#,HZB4#,5#	01/1993 - 07/1999	2
90404-51319	XZB4#,5#	01/2015 - 12/2999	2
Common parts
90119-08A46
90461-10780
91651-60616
96133-41500
Linked diagrams
4703
4708
4711
8401

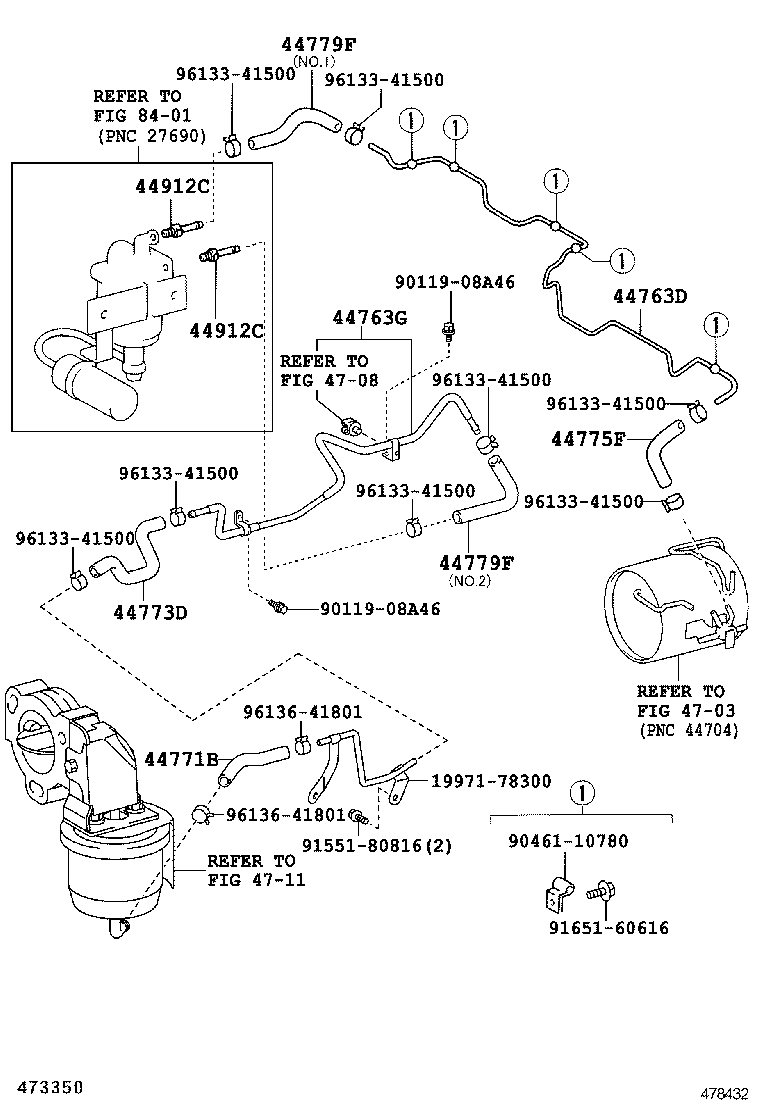

(1108- )XZB4#,5#

Click highlighted areas on diagram

Part #	Description	Period	Qty
44763D - TUBE, HOSE TO HOSE, NO.1
44763-36040	XZB4#,5#	08/2004 - 12/2005	1
44763-36041	XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU	12/2005 - 01/2015	1
44763-36040	BB4#,HDB5#,HZB4#,5#	01/1993 - 07/1999	1
44763-36042	XZB4#,5#	01/2015 - 12/2999	1
44763G - TUBE, HOSE TO HOSE, NO.2
44763-36080	XZB4#,5#	01/2015 - 12/2999	1
44763-36080	XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU	08/2004 - 01/2015	1
44771B - HOSE, VACUUM TUBE CONNECTOR
44771-36330	XZB4#,5#	08/2011 - 10/2012	1
44771-36331	XZB4#,5#	01/2015 - 12/2999	1
44771-36331	XZB4#,5#	10/2012 - 01/2015	1
44773D - HOSE, SOLENOIDO TO RETARDER
44773-36160	BB4#,HDB5#,HZB4#,5#	01/1993 - 07/1999	1
44773-36170	XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(5F,6FC)..CBU	08/2004 - 08/2011	1
44773-36190	XZB4#,5#	08/2011 - 01/2015	1
44773-36190	XZB4#,5#	01/2015 - 12/2999	1
44775F - HOSE, WAY TO CONNECTOR
44775-36030	BB4#,HDB5#,HZB4#,5#	01/1993 - 07/1999	1
44775-36100	XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU	04/2007 - 01/2015	1
44775-36030	XZB51..SULNG..6FC;XZB4#,5#..DX,EX,GX,LX,STD	08/2004 - 03/2007	1
44775-36100	XZB4#,5#	01/2015 - 12/2999	1
44779F - HOSE, CONNECTOR TUBE TO SOLENOID, NO.1
44779-36100	XZB51..SULNG..6FC;XZB4#,5#..DX,EX,GX,LX,STD NO.1	08/2004 - 03/2007	1
44779-36100	BB4#,HDB5#,HZB4#,5#	01/1993 - 07/1999	1
44779-36110	XZB4#,5# NO.2	01/2015 - 12/2999	1
44779-36120	XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU NO.1	04/2007 - 01/2015	1
44779-36110	XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU NO.2	08/2004 - 01/2015	1
44779-36121	XZB4#,5# NO.1	01/2015 - 12/2999	1
44779F - HOSE, CONNECTOR TUBE TO SOLENOID, NO.1
44779-36100	XZB51..SULNG..6FC;XZB4#,5#..DX,EX,GX,LX,STD NO.1	08/2004 - 03/2007	1
44779-36100	BB4#,HDB5#,HZB4#,5#	01/1993 - 07/1999	1
44779-36110	XZB4#,5# NO.2	01/2015 - 12/2999	1
44779-36120	XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU NO.1	04/2007 - 01/2015	1
44779-36110	XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU NO.2	08/2004 - 01/2015	1
44779-36121	XZB4#,5# NO.1	01/2015 - 12/2999	1
44912C - UNION(FOR 3 WAY TO MAGNETIC VALVE TUBE)
90404-51319	XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU	08/2004 - 01/2015	2
90404-51319	BB4#,HDB5#,HZB4#,5#	01/1993 - 07/1999	2
90404-51319	XZB4#,5#	01/2015 - 12/2999	2
44912C - UNION(FOR 3 WAY TO MAGNETIC VALVE TUBE)
90404-51319	XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU	08/2004 - 01/2015	2
90404-51319	BB4#,HDB5#,HZB4#,5#	01/1993 - 07/1999	2
90404-51319	XZB4#,5#	01/2015 - 12/2999	2
Common parts
19971-78300
90119-08A46
90461-10780
91551-80816
91651-60616
96133-41500
96136-41801
Linked diagrams
4703
4708
4711
8401
