Toyota Coaster XZB40 VANE PUMP & RESERVOIR (POWER STEERING)

Manufacturers Home
Toyota
JP
COASTER
XZB40-ZRMEY (2004)
4502 - VANE PUMP & RESERVOIR (POWER STEERING)

XZB40-ZRMEY (2004)

Toyota Coaster

Production Aug 2004 - Dec 2016

Engine N04C

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

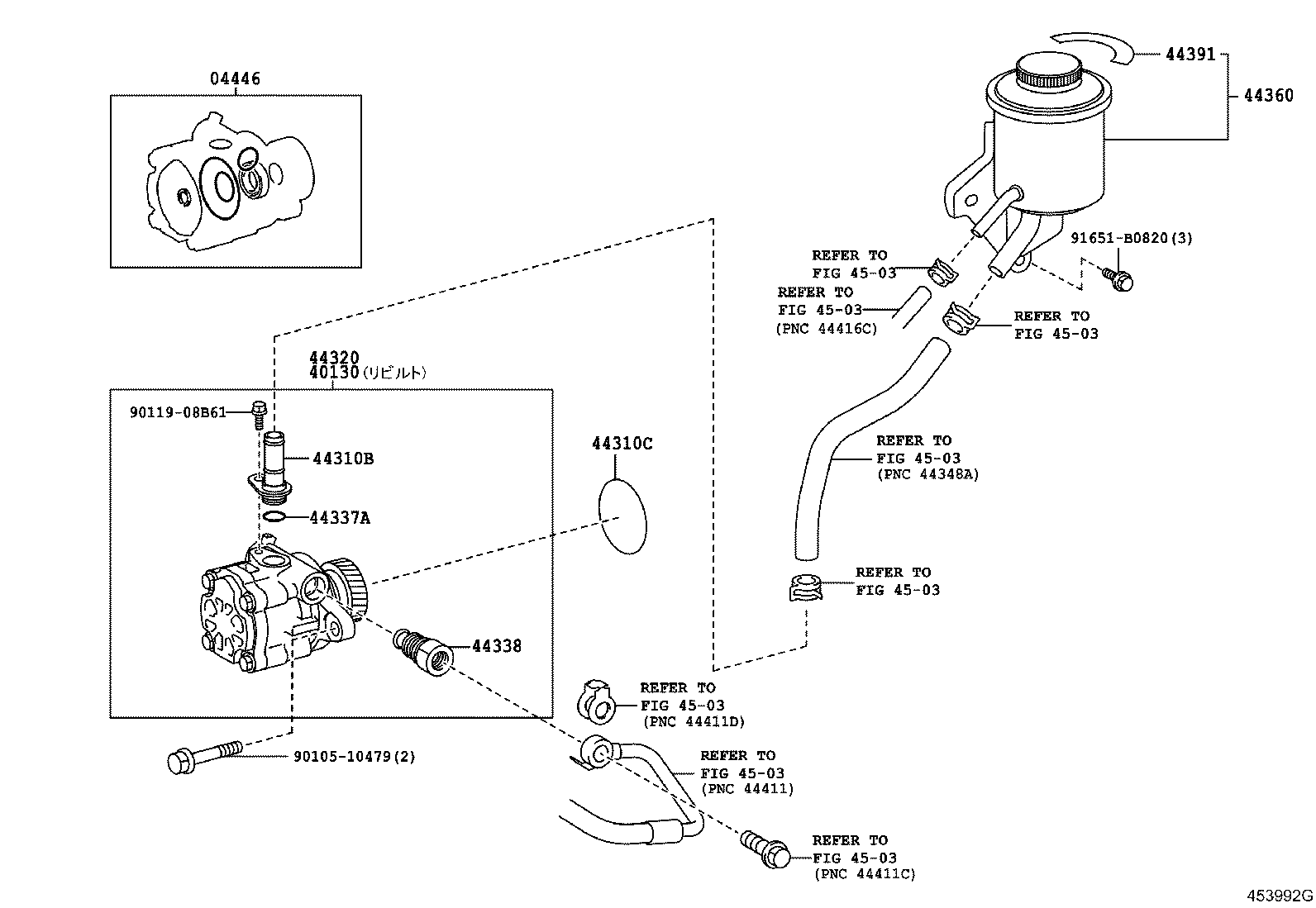

(0408-1108)XZB4#,5#

Click highlighted areas on diagram

Part #	Description	Period	Qty
04446 - GASKET KIT, POWER STEERING PUMP
04446-36090	HDB5#,HZB4#,5#	01/1993 - 07/1999	1
04446-60130	XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU	08/2004 - 01/2015	1
04446-60130	XZB4#,5#	01/2015 - 12/2999	1
40130 - PUMP ASSY,VANE REBUILT
40130-36310	XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU	08/2004 - 01/2015	1
40130-36310	XZB4#,5#	01/2015 - 12/2999	1
44310B - UNION(FOR VANE PUMP)
90405-16031	HDB5#,HZB4#,5#	01/1993 - 07/1999	1
44337-60170	XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU	08/2004 - 01/2015	1
44337-60170	XZB4#,5#	01/2015 - 12/2999	1
44310C - RING, O(FOR VANE PUMP)
90301-60002	XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU	08/2004 - 01/2015	1
90301-60002	BB4#,5#,HDB5#,HZB4#,5#	01/1993 - 07/1999	1
90301-60002	BZB40,50,XZB4#,5#	01/2015 - 12/2999	1
44320 - PUMP ASSY, VANE
44320-36240	HDB5#,HZB4#,5#	01/1993 - 07/1999	1
44310-36310	XZB4#,5#	01/2015 - 12/2999	1
44310-36310	XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU	08/2004 - 01/2015	1
44337A - RING, O(FOR POWER STEERING SUCTION PORT)
90301-15025	XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU	08/2004 - 01/2015	1
90301-15025	XZB4#,5#	01/2015 - 12/2999	1
44338 - UNION, PRESSURE PORT
44338-36020	XZB4#,5#	01/2015 - 12/2999	1
44308-36010	XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(5F,6FC)..CBU	08/2004 - 04/2011	1
44338-36020	XZB4#,5#..DX,EX,GX,LX,STD	04/2011 - 01/2015	1
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-36330	HDB5#,HZB4#,5#	01/1993 - 07/1997	1
44360-36420	XZB4#,5#..5F,6FC	08/2004 - 01/2008	1
44360-36450	XZB4#,5#	08/2011 - 01/2015	1
44360-36421	XZB40,51..CBU;XZB46,50,56..WC;XZB40..6FC..IV5	02/2008 - 08/2011	1
44360-36450	XZB4#,5#	01/2015 - 12/2999	1
44391 - PLATE, POWER STEERING OIL RESERVOIR CAUTION
44391-36020	BB4#,5#,HDB5#,HZB4#,5#	01/1993 - 07/1999	1
44391-36040	XZB50..WC;XZB40..CBU;XZB40..6FC..IV5;BZB40,50,XZB46,51,56..(EX,LX)..CBU	02/2008 - 01/2015	1
44391-36020	BZB40,50,XZB4#,5#..5F,6FC	08/2004 - 01/2008	1
44391-36040	BZB40,50,XZB4#,5#	01/2015 - 12/2999	1
Common parts
90105-10479
90119-08B61
91651-B0820
Linked diagrams
4503

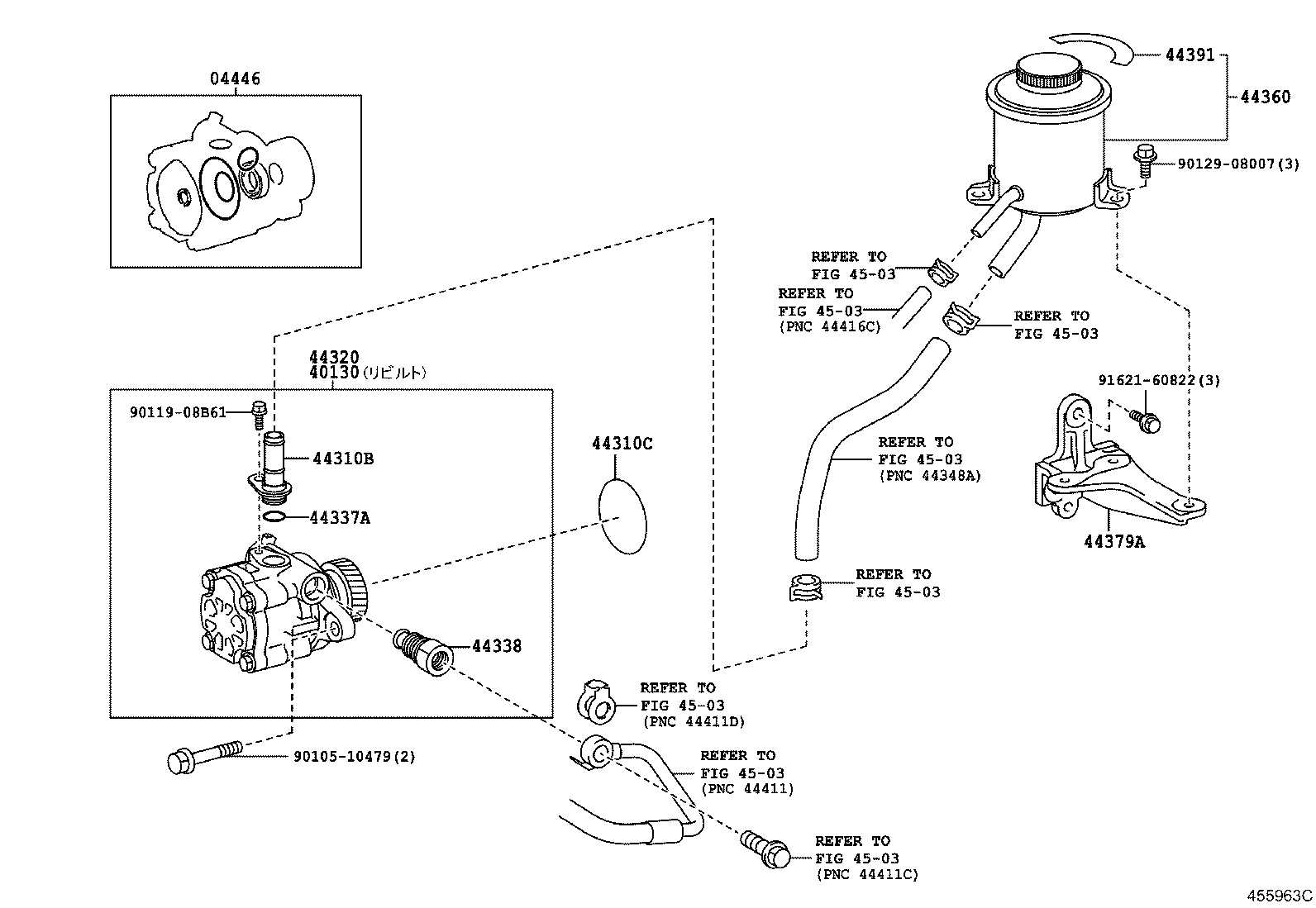

(1108- )XZB4#,5#

Click highlighted areas on diagram

Part #	Description	Period	Qty
04446 - GASKET KIT, POWER STEERING PUMP
04446-36090	HDB5#,HZB4#,5#	01/1993 - 07/1999	1
04446-60130	XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU	08/2004 - 01/2015	1
04446-60130	XZB4#,5#	01/2015 - 12/2999	1
40130 - PUMP ASSY,VANE REBUILT
40130-36310	XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU	08/2004 - 01/2015	1
40130-36310	XZB4#,5#	01/2015 - 12/2999	1
44310B - UNION(FOR VANE PUMP)
90405-16031	HDB5#,HZB4#,5#	01/1993 - 07/1999	1
44337-60170	XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU	08/2004 - 01/2015	1
44337-60170	XZB4#,5#	01/2015 - 12/2999	1
44310C - RING, O(FOR VANE PUMP)
90301-60002	XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU	08/2004 - 01/2015	1
90301-60002	BB4#,5#,HDB5#,HZB4#,5#	01/1993 - 07/1999	1
90301-60002	BZB40,50,XZB4#,5#	01/2015 - 12/2999	1
44320 - PUMP ASSY, VANE
44320-36240	HDB5#,HZB4#,5#	01/1993 - 07/1999	1
44310-36310	XZB4#,5#	01/2015 - 12/2999	1
44310-36310	XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU	08/2004 - 01/2015	1
44337A - RING, O(FOR POWER STEERING SUCTION PORT)
90301-15025	XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU	08/2004 - 01/2015	1
90301-15025	XZB4#,5#	01/2015 - 12/2999	1
44338 - UNION, PRESSURE PORT
44338-36020	XZB4#,5#	01/2015 - 12/2999	1
44308-36010	XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(5F,6FC)..CBU	08/2004 - 04/2011	1
44338-36020	XZB4#,5#..DX,EX,GX,LX,STD	04/2011 - 01/2015	1
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-36330	HDB5#,HZB4#,5#	01/1993 - 07/1997	1
44360-36420	XZB4#,5#..5F,6FC	08/2004 - 01/2008	1
44360-36450	XZB4#,5#	08/2011 - 01/2015	1
44360-36421	XZB40,51..CBU;XZB46,50,56..WC;XZB40..6FC..IV5	02/2008 - 08/2011	1
44360-36450	XZB4#,5#	01/2015 - 12/2999	1
44379A - BRACKET, OIL RESERVOIR, NO.2
44379-36200	XZB4#,5#	08/2011 - 01/2015	1
44379-36200	XZB4#,5#	01/2015 - 12/2999	1
44391 - PLATE, POWER STEERING OIL RESERVOIR CAUTION
44391-36020	BB4#,5#,HDB5#,HZB4#,5#	01/1993 - 07/1999	1
44391-36040	XZB50..WC;XZB40..CBU;XZB40..6FC..IV5;BZB40,50,XZB46,51,56..(EX,LX)..CBU	02/2008 - 01/2015	1
44391-36020	BZB40,50,XZB4#,5#..5F,6FC	08/2004 - 01/2008	1
44391-36040	BZB40,50,XZB4#,5#	01/2015 - 12/2999	1
Common parts
90105-10479
90119-08B61
90129-08007
91621-60822
Linked diagrams
4503

XZB40-ZRMEY (2004)

(0408-1108)XZB4#,5#

(1108- )XZB4#,5#
