XZB40-ZRMEY (2004)
Toyota Coaster
(0408-0708)N04C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22100 - PUMP ASSY, INJECTION OR SUPPLY | ||||
| 22100-78183 |
N04C..XZB4#,5# *196 |
1 | ||
| 22100-78182 |
N04C..XZB4#,5# |
1 | ||
| 22100-78181 |
N04C..XZB4#,5# |
1 | ||
| 22100-78231 |
N04C..XZB4#,5# *197 |
1 | ||
| 22100-E0540 |
N04C..XZB4#,5# |
1 | ||
| 22100-E0540 |
N04C..XZB4#,5# |
1 | ||
| 22100-78232 |
N04C..XZB4#,5# |
1 | ||
| 22100-78180 |
N04C..XZB4#,5# |
1 | ||
| 22100-78235 |
N04C..XZB4#,5# |
1 | ||
| 22100-78236 |
N04C..XZB4#,5# |
1 | ||
| 22100-78234 |
N04C..XZB4#,5# |
1 | ||
| 22100-78237 |
N04C..XZB4#,5# |
1 | ||
| 22100-78233 |
N04C..XZB4#,5# |
1 | ||
| 22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER) | ||||
| 23271-78302 |
N04C..XZB4#,5# |
1 | ||
| 23271-78300 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 23271-78301 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU |
1 | ||
| 22100C - CLAMP, FUEL HOSE, NO.2 | ||||
| 96132-51300 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU |
2 | ||
| 22100C - CLAMP, FUEL HOSE, NO.2 | ||||
| 96132-51300 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU |
2 | ||
| 22100S - HOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE) | ||||
| 23273-78310 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 23273-78311 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU |
1 | ||
| 22100U - CLIP, HOSE FUEL(FOR INJECTION PUMP) | ||||
| 90467-18008 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU |
2 | ||
| 22100U - CLIP, HOSE FUEL(FOR INJECTION PUMP) | ||||
| 90467-18008 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU |
2 | ||
| 22100V - RING, O(FOR INJECTION PUMP) | ||||
| 90033-01075 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| SN732-10493 |
N04C..XZB4#,5# |
1 | ||
| 22811D - STAY, INJECTION PUMP, NO.2 | ||||
| S2251-22060 |
N04C..XZB4#,5# |
1 | ||
| 22811-78110 |
N04C..XZB4#,5# |
1 | ||
| S2251-22060 |
N04C..XZB4#,5# |
1 | ||
| 22812A - RING, O | ||||
| 90033-01076 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| SN732-10793 |
N04C..XZB4#,5# |
1 | ||
| 23083 - PIPE SUB-ASSY, NOZZLE LEAKAGE, NO.3 | ||||
| 23803-78150 |
N04C..XZB4#,5# *196 |
1 | ||
| 23816-78010 |
N04C..XZB4#,5# *197 |
1 | ||
| 23816-E0331 |
N04C..XZB4#,5# |
1 | ||
| 23816-E0011 |
N04C..XZB4#,5# |
1 | ||
| 23816-E0330 |
N04C..XZB4#,5# |
1 | ||
| 23083A - CLAMP, NOZZLE LEAKAGE | ||||
| 90034-68024 |
N04C..XZB4#,5#..5F,6FC |
2 | ||
| S7990-43390 |
N04C..XZB4#,5# |
2 | ||
| S7990-43390 |
N04C..XZB4#,5# |
2 | ||
| 23083A - CLAMP, NOZZLE LEAKAGE | ||||
| 90034-68024 |
N04C..XZB4#,5#..5F,6FC |
2 | ||
| S7990-43390 |
N04C..XZB4#,5# |
2 | ||
| S7990-43390 |
N04C..XZB4#,5# |
2 | ||
| 23083C - GASKET(NOZZLE LEKAGE PIPE NO.3) | ||||
| 90032-09020 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
2 | ||
| SZ430-08013 |
N04C..XZB4#,5# |
2 | ||
| 23083C - GASKET(NOZZLE LEKAGE PIPE NO.3) | ||||
| 90032-09020 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
2 | ||
| SZ430-08013 |
N04C..XZB4#,5# |
2 | ||
| 23083D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90034-01009 |
N04C..XZB4#,5#..5F,6FC |
2 | ||
| 21811-E0060 |
N04C..XZB4#,5# |
2 | ||
| 21811-E0060 |
N04C..XZB4#,5# |
2 | ||
| 90034-01019 |
N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5;N04C..XZB40,51..(26S,29S,39S)..CBU |
2 | ||
| 23083D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90034-01009 |
N04C..XZB4#,5#..5F,6FC |
2 | ||
| 21811-E0060 |
N04C..XZB4#,5# |
2 | ||
| 21811-E0060 |
N04C..XZB4#,5# |
2 | ||
| 90034-01019 |
N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5;N04C..XZB40,51..(26S,29S,39S)..CBU |
2 | ||
| 23211A - BRACKET(FOR INJECTION PIPE NO.3) | ||||
| 23849-78110 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
1 | ||
| 23290 - DAMPER ASSY, FUEL SUCTION | ||||
| 23290-17020 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 23701 - PIPE SUB-ASSY, INJECTION, NO.1 | ||||
| 23701-78090 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
1 | ||
| 23701-78131 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 *197 |
1 | ||
| 23701-78160 |
N04C..XZB4#,5# |
1 | ||
| 23701-E0012 |
N04C..XZB4#,5# |
1 | ||
| 23701-78160 |
N04C..XZB4#,5# |
1 | ||
| 23702 - PIPE SUB-ASSY, INJECTION, NO.2 | ||||
| 23702-E0012 |
N04C..XZB4#,5# |
1 | ||
| 23702-78090 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
1 | ||
| 23702-78131 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 *197 |
1 | ||
| 23702-78160 |
N04C..XZB4#,5# |
1 | ||
| 23702-78160 |
N04C..XZB4#,5# |
1 | ||
| 23703 - PIPE SUB-ASSY, INJECTION, NO.3 | ||||
| 23703-78150 |
N04C..XZB4#,5# |
1 | ||
| 23703-78151 |
N04C..XZB4#,5# |
1 | ||
| 23703-78090 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
1 | ||
| 23703-78121 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 *197 |
1 | ||
| 23703-E0012 |
N04C..XZB4#,5# |
1 | ||
| 23703-78150 |
N04C..XZB4#,5# |
1 | ||
| 23704 - PIPE SUB-ASSY, INJECTION, NO.4 | ||||
| 23704-78121 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 *197 |
1 | ||
| 23704-78150 |
N04C..XZB4#,5# |
1 | ||
| 23704-78080 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
1 | ||
| 23704-78150 |
N04C..XZB4#,5# |
1 | ||
| 23704-E0012 |
N04C..XZB4#,5# |
1 | ||
| 23704-78151 |
N04C..XZB4#,5# |
1 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 90034-68032 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
2 | ||
| S7990-41240 |
N04C..XZB4#,5# |
2 | ||
| 90034-68024 |
N04C..XZB4#,5# |
2 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 90034-68032 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
2 | ||
| S7990-41240 |
N04C..XZB4#,5# |
2 | ||
| 90034-68024 |
N04C..XZB4#,5# |
2 | ||
| 23741B - CLAMP, INJECTION PIPE | ||||
| S2304-E0010 |
N04C..XZB4#,5# |
4 | ||
| S2304-E0010 |
N04C..XZB4#,5# |
4 | ||
| 23741-78010 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
4 | ||
| 23742-66020 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 *197 |
4 | ||
| 23741B - CLAMP, INJECTION PIPE | ||||
| S2304-E0010 |
N04C..XZB4#,5# |
4 | ||
| S2304-E0010 |
N04C..XZB4#,5# |
4 | ||
| 23741-78010 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
4 | ||
| 23742-66020 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 *197 |
4 | ||
| 23741B - CLAMP, INJECTION PIPE | ||||
| S2304-E0010 |
N04C..XZB4#,5# |
4 | ||
| S2304-E0010 |
N04C..XZB4#,5# |
4 | ||
| 23741-78010 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
4 | ||
| 23742-66020 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 *197 |
4 | ||
| 23741B - CLAMP, INJECTION PIPE | ||||
| S2304-E0010 |
N04C..XZB4#,5# |
4 | ||
| S2304-E0010 |
N04C..XZB4#,5# |
4 | ||
| 23741-78010 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
4 | ||
| 23742-66020 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 *197 |
4 | ||
| 23803H - PIPE SUB-ASSY, FUEL RETURN | ||||
| 23803-78220 |
N04C..XZB4#,5# *196 |
1 | ||
| 23816-E0341 |
N04C..XZB4#,5# |
1 | ||
| 23816-E0020 |
N04C..XZB4#,5# |
1 | ||
| 23816-E0342 |
N04C..XZB4#,5# |
1 | ||
| 23816-E0340 |
N04C..XZB4#,5# |
1 | ||
| 23816-78020 |
N04C..XZB4#,5# *197 |
1 | ||
| 23803J - BOLT, UNION(FOR FUEL RETURN PIPE) | ||||
| 90401-10017 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 *197 |
1 | ||
| 90031-09074 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
1 | ||
| 21811-E0070 |
N04C..XZB4#,5# |
1 | ||
| 90031-09075 |
N04C..XZB4#,5# |
1 | ||
| SZ401-10004 |
N04C..XZB4#,5# |
1 | ||
| 23803K - GASKET(FOR FUEL RETURN PIPE) | ||||
| 90032-09021 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU |
1 | ||
| 23804D - PIPE SUB-ASSY, FUEL, NO.4 | ||||
| 23803-78180 |
N04C..XZB4#,5# *197 |
1 | ||
| 23816-78170 |
N04C..XZB4#,5# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 23803-78160 |
N04C..XZB4#,5# *196 |
1 | ||
| 23803-E0060 |
N04C..XZB4#,5# |
1 | ||
| 23816-78160 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 23803-E0880 |
N04C..XZB4#,5# NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 23803-E0881 |
N04C..XZB4#,5# NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 23816-E0352 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 23816-78151 |
N04C..XZB4#,5# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 23803-E0882 |
N04C..XZB4#,5# NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 23803-E0882 |
N04C..XZB4#,5# NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 23804F - GASKET(FOR FUEL PIPE NO.4) | ||||
| 90032-09021 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 90202-10011 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 *197,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 90034-30040 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196,NO.1:ｲﾗｽﾄ参照 |
3 | ||
| 90032-09021 |
N04C..XZB4#,5# |
1 | ||
| SZ430-10011 |
N04C..XZB4#,5# |
1 | ||
| 23804F - GASKET(FOR FUEL PIPE NO.4) | ||||
| 90032-09021 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 90202-10011 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 *197,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 90034-30040 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196,NO.1:ｲﾗｽﾄ参照 |
3 | ||
| 90032-09021 |
N04C..XZB4#,5# |
1 | ||
| SZ430-10011 |
N04C..XZB4#,5# |
1 | ||
| 23804F - GASKET(FOR FUEL PIPE NO.4) | ||||
| 90032-09021 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 90202-10011 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 *197,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 90034-30040 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196,NO.1:ｲﾗｽﾄ参照 |
3 | ||
| 90032-09021 |
N04C..XZB4#,5# |
1 | ||
| SZ430-10011 |
N04C..XZB4#,5# |
1 | ||
| 23804F - GASKET(FOR FUEL PIPE NO.4) | ||||
| 90032-09021 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 90202-10011 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 *197,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 90034-30040 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196,NO.1:ｲﾗｽﾄ参照 |
3 | ||
| 90032-09021 |
N04C..XZB4#,5# |
1 | ||
| SZ430-10011 |
N04C..XZB4#,5# |
1 | ||
| 23810A - RAIL ASSY, COMMON | ||||
| 23810-78020 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
1 | ||
| 23810-78040 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 *197 |
1 | ||
| 23810-78041 |
N04C..XZB4#,5# |
1 | ||
| 23810-E0240 |
N04C..XZB4#,5# |
1 | ||
| 23810-E0240 |
N04C..XZB4#,5# |
1 | ||
| 23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP) | ||||
| 23801-78040 |
N04C..XZB4#,5# *197 |
1 | ||
| 23801-E0390 |
N04C..XZB4#,5# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 23811-E0852 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 23811-E0A40 |
N04C..XZB4#,5# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 23811-E0853 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 23811-78120 |
N04C..XZB4#,5# *196 |
1 | ||
| 23801-E0390 |
N04C..XZB4#,5# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 23801-E0021 |
N04C..XZB4#,5# |
1 | ||
| 23811-E0851 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 23811-E0K50 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 23849G - SUPPORT, FUEL PIPE | ||||
| 23809-78120 |
N04C..XZB4#,5# |
1 | ||
| 23849-78160 |
N04C..XZB4#,5# *197 |
1 | ||
| 23809-E0400 |
N04C..XZB4#,5# |
1 | ||
| 23809-E0400 |
N04C..XZB4#,5# |
1 | ||
| 23849-78060 |
N04C..XZB4#,5# *196 |
1 | ||
| 23849J - SUPPORT, FUEL PIPE(FOR RAIL ASSY, COMMON) | ||||
| 23849-78050 |
N04C..XZB4#,5# *196 |
1 | ||
| 23849-78150 |
N04C..XZB4#,5# *197 |
1 | ||
| 23849-78220 |
N04C..XZB4#,5# |
1 | ||
| 23849-78220 |
N04C..XZB4#,5# |
1 | ||
| 82702E - BRACKET SUB-ASSY, WIRING HARNESS | ||||
| 82702-37350 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(5F,6FC)..CBU |
1 | ||
| Common parts | ||||
| 23807-78020 | ||||
| 90031-05124 | ||||
| 90031-05126 | ||||
| 90031-05128 | ||||
| 90031-05133 | ||||
| 90031-05141 | ||||
| 90031-05143 | ||||
| 90031-05145 | ||||
| 90031-75001 | ||||
| 90034-05022 | ||||
| 90034-30040 | ||||
| 90099-01502 | ||||
| 90099-18005 | ||||
| 90099-18010 | ||||
| 90341-12010 | ||||
| 91641-H0820 | ||||
| Linked diagrams | ||||
| 1302 | ||||
| 7751 | ||||

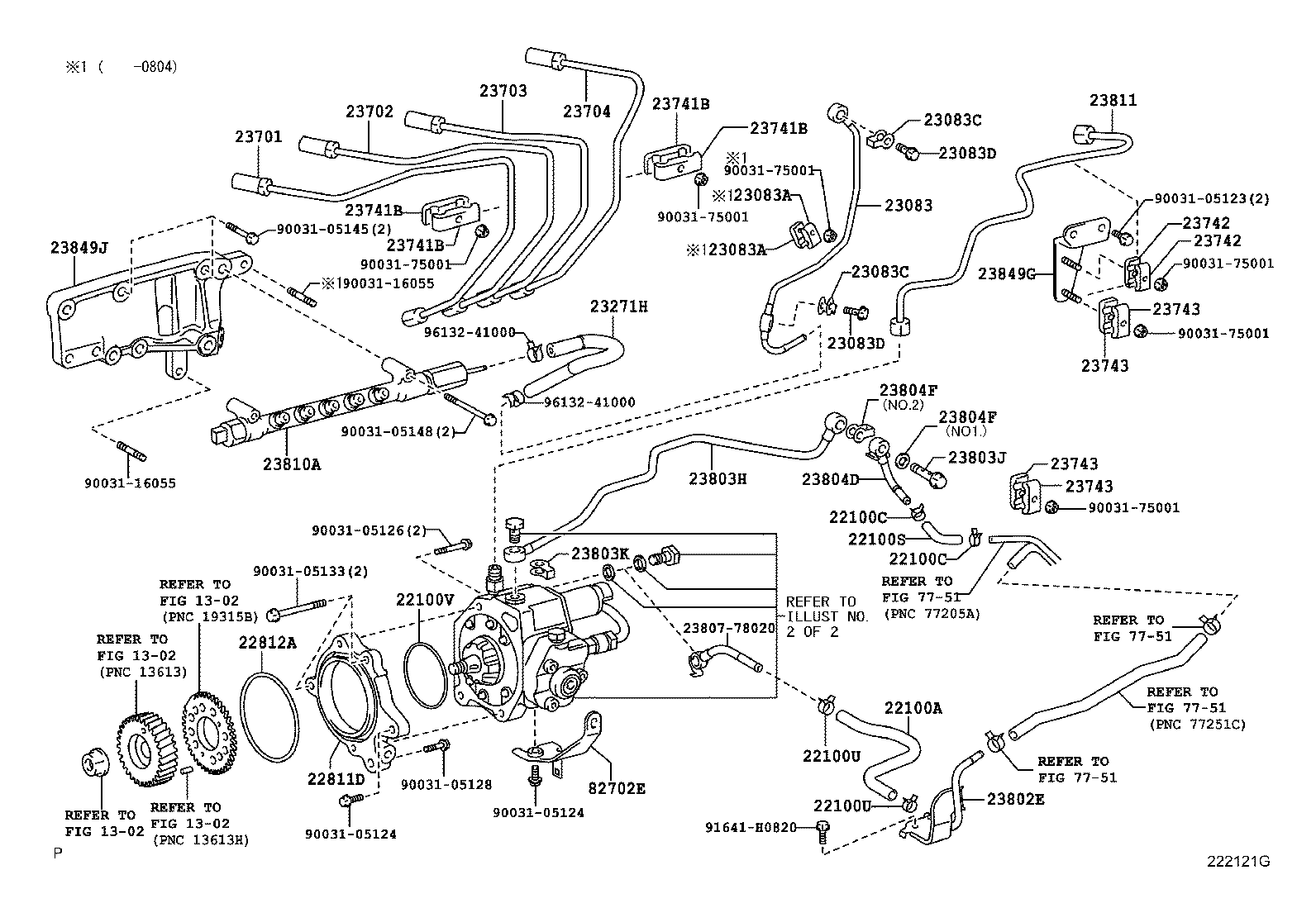

ILLUST NO. 1 OF 2(0708-1108)N04C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER) | ||||
| 23271-78302 |
N04C..XZB4#,5# |
1 | ||
| 23271-78300 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 23271-78301 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU |
1 | ||
| 22100C - CLAMP, FUEL HOSE, NO.2 | ||||
| 96132-51300 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU |
2 | ||
| 22100C - CLAMP, FUEL HOSE, NO.2 | ||||
| 96132-51300 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU |
2 | ||
| 22100S - HOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE) | ||||
| 23273-78310 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 23273-78311 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU |
1 | ||
| 22100U - CLIP, HOSE FUEL(FOR INJECTION PUMP) | ||||
| 90467-18008 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU |
2 | ||
| 22100U - CLIP, HOSE FUEL(FOR INJECTION PUMP) | ||||
| 90467-18008 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU |
2 | ||
| 22100V - RING, O(FOR INJECTION PUMP) | ||||
| 90033-01075 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| SN732-10493 |
N04C..XZB4#,5# |
1 | ||
| 22811D - STAY, INJECTION PUMP, NO.2 | ||||
| S2251-22060 |
N04C..XZB4#,5# |
1 | ||
| 22811-78110 |
N04C..XZB4#,5# |
1 | ||
| S2251-22060 |
N04C..XZB4#,5# |
1 | ||
| 22812A - RING, O | ||||
| 90033-01076 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| SN732-10793 |
N04C..XZB4#,5# |
1 | ||
| 23083 - PIPE SUB-ASSY, NOZZLE LEAKAGE, NO.3 | ||||
| 23803-78150 |
N04C..XZB4#,5# *196 |
1 | ||
| 23816-78010 |
N04C..XZB4#,5# *197 |
1 | ||
| 23816-E0331 |
N04C..XZB4#,5# |
1 | ||
| 23816-E0011 |
N04C..XZB4#,5# |
1 | ||
| 23816-E0330 |
N04C..XZB4#,5# |
1 | ||
| 23083A - CLAMP, NOZZLE LEAKAGE | ||||
| 90034-68024 |
N04C..XZB4#,5#..5F,6FC |
2 | ||
| S7990-43390 |
N04C..XZB4#,5# |
2 | ||
| S7990-43390 |
N04C..XZB4#,5# |
2 | ||
| 23083A - CLAMP, NOZZLE LEAKAGE | ||||
| 90034-68024 |
N04C..XZB4#,5#..5F,6FC |
2 | ||
| S7990-43390 |
N04C..XZB4#,5# |
2 | ||
| S7990-43390 |
N04C..XZB4#,5# |
2 | ||
| 23083C - GASKET(NOZZLE LEKAGE PIPE NO.3) | ||||
| 90032-09020 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
2 | ||
| SZ430-08013 |
N04C..XZB4#,5# |
2 | ||
| 23083C - GASKET(NOZZLE LEKAGE PIPE NO.3) | ||||
| 90032-09020 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
2 | ||
| SZ430-08013 |
N04C..XZB4#,5# |
2 | ||
| 23083D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90034-01009 |
N04C..XZB4#,5#..5F,6FC |
2 | ||
| 21811-E0060 |
N04C..XZB4#,5# |
2 | ||
| 21811-E0060 |
N04C..XZB4#,5# |
2 | ||
| 90034-01019 |
N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5;N04C..XZB40,51..(26S,29S,39S)..CBU |
2 | ||
| 23083D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90034-01009 |
N04C..XZB4#,5#..5F,6FC |
2 | ||
| 21811-E0060 |
N04C..XZB4#,5# |
2 | ||
| 21811-E0060 |
N04C..XZB4#,5# |
2 | ||
| 90034-01019 |
N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5;N04C..XZB40,51..(26S,29S,39S)..CBU |
2 | ||
| 23271H - HOSE, FUEL, NO.1 | ||||
| 23271-E0540 |
N04C..XZB4#,5# |
1 | ||
| SZ920-31083 |
N04C..XZB4#,5# |
1 | ||
| 23271-78430 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 |
1 | ||
| 23271-E0540 |
N04C..XZB4#,5# |
1 | ||
| 23701 - PIPE SUB-ASSY, INJECTION, NO.1 | ||||
| 23701-78090 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
1 | ||
| 23701-78131 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 *197 |
1 | ||
| 23701-78160 |
N04C..XZB4#,5# |
1 | ||
| 23701-E0012 |
N04C..XZB4#,5# |
1 | ||
| 23701-78160 |
N04C..XZB4#,5# |
1 | ||
| 23702 - PIPE SUB-ASSY, INJECTION, NO.2 | ||||
| 23702-E0012 |
N04C..XZB4#,5# |
1 | ||
| 23702-78090 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
1 | ||
| 23702-78131 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 *197 |
1 | ||
| 23702-78160 |
N04C..XZB4#,5# |
1 | ||
| 23702-78160 |
N04C..XZB4#,5# |
1 | ||
| 23703 - PIPE SUB-ASSY, INJECTION, NO.3 | ||||
| 23703-78150 |
N04C..XZB4#,5# |
1 | ||
| 23703-78151 |
N04C..XZB4#,5# |
1 | ||
| 23703-78090 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
1 | ||
| 23703-78121 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 *197 |
1 | ||
| 23703-E0012 |
N04C..XZB4#,5# |
1 | ||
| 23703-78150 |
N04C..XZB4#,5# |
1 | ||
| 23704 - PIPE SUB-ASSY, INJECTION, NO.4 | ||||
| 23704-78121 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 *197 |
1 | ||
| 23704-78150 |
N04C..XZB4#,5# |
1 | ||
| 23704-78080 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
1 | ||
| 23704-78150 |
N04C..XZB4#,5# |
1 | ||
| 23704-E0012 |
N04C..XZB4#,5# |
1 | ||
| 23704-78151 |
N04C..XZB4#,5# |
1 | ||
| 23741B - CLAMP, INJECTION PIPE | ||||
| S2304-E0010 |
N04C..XZB4#,5# |
4 | ||
| S2304-E0010 |
N04C..XZB4#,5# |
4 | ||
| 23741-78010 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
4 | ||
| 23742-66020 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 *197 |
4 | ||
| 23741B - CLAMP, INJECTION PIPE | ||||
| S2304-E0010 |
N04C..XZB4#,5# |
4 | ||
| S2304-E0010 |
N04C..XZB4#,5# |
4 | ||
| 23741-78010 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
4 | ||
| 23742-66020 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 *197 |
4 | ||
| 23741B - CLAMP, INJECTION PIPE | ||||
| S2304-E0010 |
N04C..XZB4#,5# |
4 | ||
| S2304-E0010 |
N04C..XZB4#,5# |
4 | ||
| 23741-78010 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
4 | ||
| 23742-66020 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 *197 |
4 | ||
| 23741B - CLAMP, INJECTION PIPE | ||||
| S2304-E0010 |
N04C..XZB4#,5# |
4 | ||
| S2304-E0010 |
N04C..XZB4#,5# |
4 | ||
| 23741-78010 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
4 | ||
| 23742-66020 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 *197 |
4 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-66020 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 *197 |
2 | ||
| S2304-E0020 |
N04C..XZB4#,5# |
2 | ||
| S2304-E0020 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 90034-68026 |
N04C..XZB4#,5# NO.2:ｲﾗｽﾄ参照 |
2 | ||
| S7990-41021 |
N04C..XZB4#,5# |
2 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-66020 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 *197 |
2 | ||
| S2304-E0020 |
N04C..XZB4#,5# |
2 | ||
| S2304-E0020 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 90034-68026 |
N04C..XZB4#,5# NO.2:ｲﾗｽﾄ参照 |
2 | ||
| S7990-41021 |
N04C..XZB4#,5# |
2 | ||
| 23743 - CLAMP, INJECTION PIPE, NO.3 | ||||
| 90034-68033 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 *197 |
4 | ||
| 23743 - CLAMP, INJECTION PIPE, NO.3 | ||||
| 90034-68033 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 *197 |
4 | ||
| 23743 - CLAMP, INJECTION PIPE, NO.3 | ||||
| 90034-68033 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 *197 |
4 | ||
| 23743 - CLAMP, INJECTION PIPE, NO.3 | ||||
| 90034-68033 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 *197 |
4 | ||
| 23802E - PIPE SUB-ASSY, FUEL | ||||
| 23801-78050 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 |
1 | ||
| 23803H - PIPE SUB-ASSY, FUEL RETURN | ||||
| 23803-78220 |
N04C..XZB4#,5# *196 |
1 | ||
| 23816-E0341 |
N04C..XZB4#,5# |
1 | ||
| 23816-E0020 |
N04C..XZB4#,5# |
1 | ||
| 23816-E0342 |
N04C..XZB4#,5# |
1 | ||
| 23816-E0340 |
N04C..XZB4#,5# |
1 | ||
| 23816-78020 |
N04C..XZB4#,5# *197 |
1 | ||
| 23803J - BOLT, UNION(FOR FUEL RETURN PIPE) | ||||
| 90401-10017 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 *197 |
1 | ||
| 90031-09074 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
1 | ||
| 21811-E0070 |
N04C..XZB4#,5# |
1 | ||
| 90031-09075 |
N04C..XZB4#,5# |
1 | ||
| SZ401-10004 |
N04C..XZB4#,5# |
1 | ||
| 23803K - GASKET(FOR FUEL RETURN PIPE) | ||||
| 90032-09021 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU |
1 | ||
| 23804D - PIPE SUB-ASSY, FUEL, NO.4 | ||||
| 23803-78180 |
N04C..XZB4#,5# *197 |
1 | ||
| 23816-78170 |
N04C..XZB4#,5# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 23803-78160 |
N04C..XZB4#,5# *196 |
1 | ||
| 23803-E0060 |
N04C..XZB4#,5# |
1 | ||
| 23816-78160 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 23803-E0880 |
N04C..XZB4#,5# NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 23803-E0881 |
N04C..XZB4#,5# NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 23816-E0352 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 23816-78151 |
N04C..XZB4#,5# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 23803-E0882 |
N04C..XZB4#,5# NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 23803-E0882 |
N04C..XZB4#,5# NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 23804F - GASKET(FOR FUEL PIPE NO.4) | ||||
| 90032-09021 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 90202-10011 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 *197,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 90034-30040 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196,NO.1:ｲﾗｽﾄ参照 |
3 | ||
| 90032-09021 |
N04C..XZB4#,5# |
1 | ||
| SZ430-10011 |
N04C..XZB4#,5# |
1 | ||
| 23804F - GASKET(FOR FUEL PIPE NO.4) | ||||
| 90032-09021 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 90202-10011 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 *197,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 90034-30040 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196,NO.1:ｲﾗｽﾄ参照 |
3 | ||
| 90032-09021 |
N04C..XZB4#,5# |
1 | ||
| SZ430-10011 |
N04C..XZB4#,5# |
1 | ||
| 23810A - RAIL ASSY, COMMON | ||||
| 23810-78020 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
1 | ||
| 23810-78040 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 *197 |
1 | ||
| 23810-78041 |
N04C..XZB4#,5# |
1 | ||
| 23810-E0240 |
N04C..XZB4#,5# |
1 | ||
| 23810-E0240 |
N04C..XZB4#,5# |
1 | ||
| 23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP) | ||||
| 23801-78040 |
N04C..XZB4#,5# *197 |
1 | ||
| 23801-E0390 |
N04C..XZB4#,5# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 23811-E0852 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 23811-E0A40 |
N04C..XZB4#,5# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 23811-E0853 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 23811-78120 |
N04C..XZB4#,5# *196 |
1 | ||
| 23801-E0390 |
N04C..XZB4#,5# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 23801-E0021 |
N04C..XZB4#,5# |
1 | ||
| 23811-E0851 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 23811-E0K50 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 23849G - SUPPORT, FUEL PIPE | ||||
| 23809-78120 |
N04C..XZB4#,5# |
1 | ||
| 23849-78160 |
N04C..XZB4#,5# *197 |
1 | ||
| 23809-E0400 |
N04C..XZB4#,5# |
1 | ||
| 23809-E0400 |
N04C..XZB4#,5# |
1 | ||
| 23849-78060 |
N04C..XZB4#,5# *196 |
1 | ||
| 23849J - SUPPORT, FUEL PIPE(FOR RAIL ASSY, COMMON) | ||||
| 23849-78050 |
N04C..XZB4#,5# *196 |
1 | ||
| 23849-78150 |
N04C..XZB4#,5# *197 |
1 | ||
| 23849-78220 |
N04C..XZB4#,5# |
1 | ||
| 23849-78220 |
N04C..XZB4#,5# |
1 | ||
| 82702E - BRACKET SUB-ASSY, WIRING HARNESS | ||||
| 82702-37350 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(5F,6FC)..CBU |
1 | ||
| Common parts | ||||
| 23807-78020 | ||||
| 90031-05123 | ||||
| 90031-05124 | ||||
| 90031-05126 | ||||
| 90031-05128 | ||||
| 90031-05133 | ||||
| 90031-05145 | ||||
| 90031-05148 | ||||
| 90031-16055 | ||||
| 90031-75001 | ||||
| 91641-H0820 | ||||
| 96132-41000 | ||||
| Linked diagrams | ||||
| 1302 | ||||
| 7751 | ||||

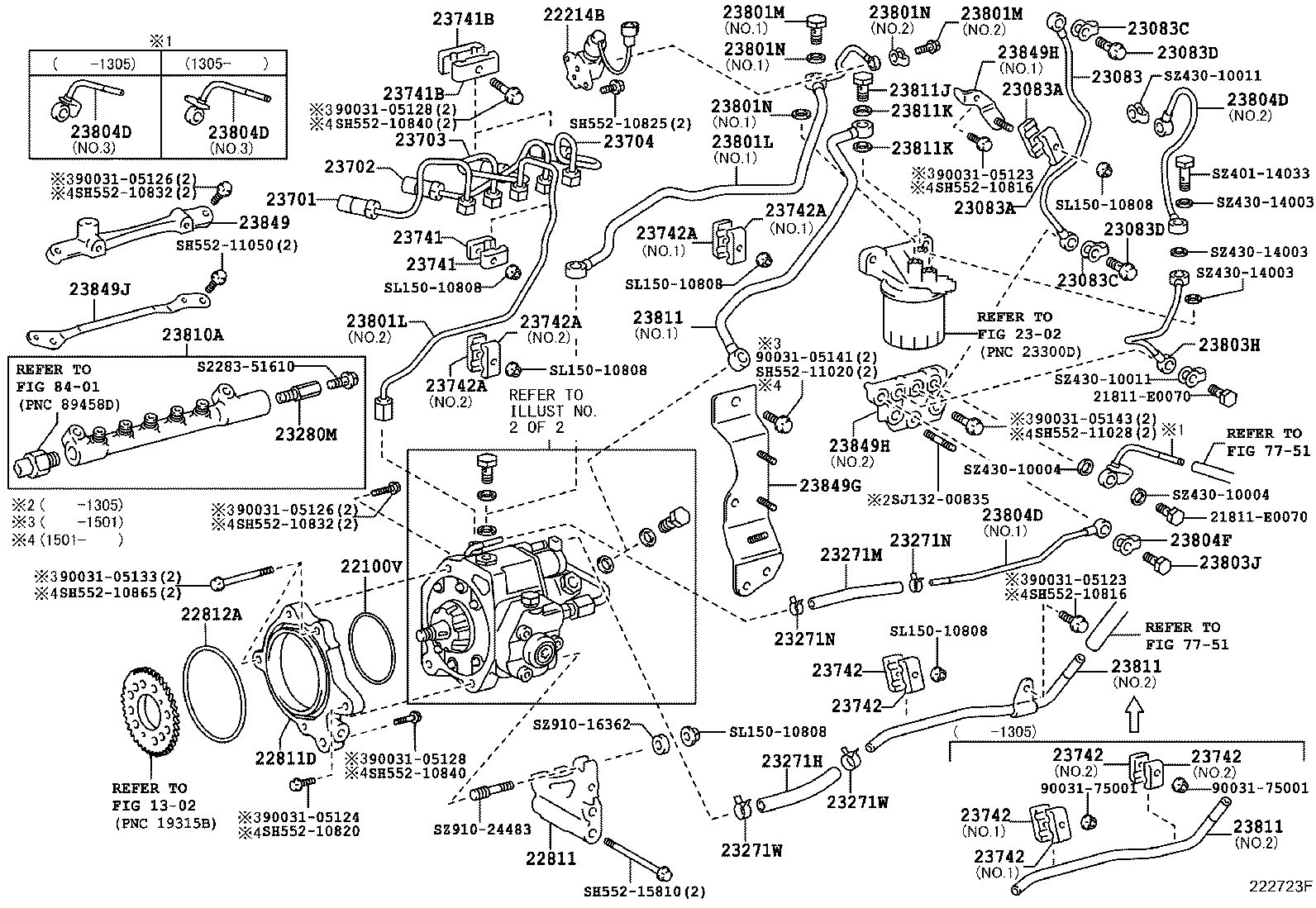

ILLUST NO. 1 OF 2(1108- )N04C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22100V - RING, O(FOR INJECTION PUMP) | ||||
| 90033-01075 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| SN732-10493 |
N04C..XZB4#,5# |
1 | ||
| 22214B - VALVE ASSY, FUEL ADDITION CUT | ||||
| S2210-E0022 |
N04C..XZB4#,5# |
1 | ||
| S2210-E0021 |
N04C..XZB4#,5# |
1 | ||
| S2210-E0024 |
N04C..XZB4#,5# |
1 | ||
| S2210-E0024 |
N04C..XZB4#,5# |
1 | ||
| S2210-E0023 |
N04C..XZB4#,5# |
1 | ||
| S2210-E0110 |
N04C..XZB4#,5# |
1 | ||
| 22811 - STAY, INJECTION PUMP, NO.1 | ||||
| 22811-78141 |
N04C..XZB4#,5# |
1 | ||
| 22811-78141 |
N04C..XZB4#,5# |
1 | ||
| 22811D - STAY, INJECTION PUMP, NO.2 | ||||
| S2251-22060 |
N04C..XZB4#,5# |
1 | ||
| 22811-78110 |
N04C..XZB4#,5# |
1 | ||
| S2251-22060 |
N04C..XZB4#,5# |
1 | ||
| 22812A - RING, O | ||||
| 90033-01076 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| SN732-10793 |
N04C..XZB4#,5# |
1 | ||
| 23083 - PIPE SUB-ASSY, NOZZLE LEAKAGE, NO.3 | ||||
| 23803-78150 |
N04C..XZB4#,5# *196 |
1 | ||
| 23816-78010 |
N04C..XZB4#,5# *197 |
1 | ||
| 23816-E0331 |
N04C..XZB4#,5# |
1 | ||
| 23816-E0011 |
N04C..XZB4#,5# |
1 | ||
| 23816-E0330 |
N04C..XZB4#,5# |
1 | ||
| 23083A - CLAMP, NOZZLE LEAKAGE | ||||
| 90034-68024 |
N04C..XZB4#,5#..5F,6FC |
2 | ||
| S7990-43390 |
N04C..XZB4#,5# |
2 | ||
| S7990-43390 |
N04C..XZB4#,5# |
2 | ||
| 23083A - CLAMP, NOZZLE LEAKAGE | ||||
| 90034-68024 |
N04C..XZB4#,5#..5F,6FC |
2 | ||
| S7990-43390 |
N04C..XZB4#,5# |
2 | ||
| S7990-43390 |
N04C..XZB4#,5# |
2 | ||
| 23083C - GASKET(NOZZLE LEKAGE PIPE NO.3) | ||||
| 90032-09020 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
2 | ||
| SZ430-08013 |
N04C..XZB4#,5# |
2 | ||
| 23083C - GASKET(NOZZLE LEKAGE PIPE NO.3) | ||||
| 90032-09020 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
2 | ||
| SZ430-08013 |
N04C..XZB4#,5# |
2 | ||
| 23083D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90034-01009 |
N04C..XZB4#,5#..5F,6FC |
2 | ||
| 21811-E0060 |
N04C..XZB4#,5# |
2 | ||
| 21811-E0060 |
N04C..XZB4#,5# |
2 | ||
| 90034-01019 |
N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5;N04C..XZB40,51..(26S,29S,39S)..CBU |
2 | ||
| 23083D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90034-01009 |
N04C..XZB4#,5#..5F,6FC |
2 | ||
| 21811-E0060 |
N04C..XZB4#,5# |
2 | ||
| 21811-E0060 |
N04C..XZB4#,5# |
2 | ||
| 90034-01019 |
N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5;N04C..XZB40,51..(26S,29S,39S)..CBU |
2 | ||
| 23271H - HOSE, FUEL, NO.1 | ||||
| 23271-E0540 |
N04C..XZB4#,5# |
1 | ||
| SZ920-31083 |
N04C..XZB4#,5# |
1 | ||
| 23271-78430 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 |
1 | ||
| 23271-E0540 |
N04C..XZB4#,5# |
1 | ||
| 23271M - HOSE, FUEL | ||||
| 95337-06012 |
N04C..XZB4#,5# |
1 | ||
| 95337-06012 |
N04C..XZB4#,5# |
1 | ||
| 23271N - CLIP, HOSE | ||||
| 21576-E0170 |
N04C..XZB4#,5# |
2 | ||
| 21576-E0170 |
N04C..XZB4#,5# |
2 | ||
| 23271N - CLIP, HOSE | ||||
| 21576-E0170 |
N04C..XZB4#,5# |
2 | ||
| 21576-E0170 |
N04C..XZB4#,5# |
2 | ||
| 23271W - CLIP(FOR FUEL HOSE NO.1) | ||||
| 90034-68044 |
N04C..XZB4#,5# |
2 | ||
| SZ466-18001 |
N04C..XZB4#,5# |
2 | ||
| 23271W - CLIP(FOR FUEL HOSE NO.1) | ||||
| 90034-68044 |
N04C..XZB4#,5# |
2 | ||
| SZ466-18001 |
N04C..XZB4#,5# |
2 | ||
| 23280M - LIMITTER ASSY, FUEL PRESSURE | ||||
| 23280-E0020 |
N04C..XZB4#,5# |
1 | ||
| 23280-E0020 |
N04C..XZB4#,5# |
1 | ||
| 23701 - PIPE SUB-ASSY, INJECTION, NO.1 | ||||
| 23701-78090 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
1 | ||
| 23701-78131 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 *197 |
1 | ||
| 23701-78160 |
N04C..XZB4#,5# |
1 | ||
| 23701-E0012 |
N04C..XZB4#,5# |
1 | ||
| 23701-78160 |
N04C..XZB4#,5# |
1 | ||
| 23702 - PIPE SUB-ASSY, INJECTION, NO.2 | ||||
| 23702-E0012 |
N04C..XZB4#,5# |
1 | ||
| 23702-78090 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
1 | ||
| 23702-78131 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 *197 |
1 | ||
| 23702-78160 |
N04C..XZB4#,5# |
1 | ||
| 23702-78160 |
N04C..XZB4#,5# |
1 | ||
| 23703 - PIPE SUB-ASSY, INJECTION, NO.3 | ||||
| 23703-78150 |
N04C..XZB4#,5# |
1 | ||
| 23703-78151 |
N04C..XZB4#,5# |
1 | ||
| 23703-78090 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
1 | ||
| 23703-78121 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 *197 |
1 | ||
| 23703-E0012 |
N04C..XZB4#,5# |
1 | ||
| 23703-78150 |
N04C..XZB4#,5# |
1 | ||
| 23704 - PIPE SUB-ASSY, INJECTION, NO.4 | ||||
| 23704-78121 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 *197 |
1 | ||
| 23704-78150 |
N04C..XZB4#,5# |
1 | ||
| 23704-78080 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
1 | ||
| 23704-78150 |
N04C..XZB4#,5# |
1 | ||
| 23704-E0012 |
N04C..XZB4#,5# |
1 | ||
| 23704-78151 |
N04C..XZB4#,5# |
1 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 90034-68032 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
2 | ||
| S7990-41240 |
N04C..XZB4#,5# |
2 | ||
| 90034-68024 |
N04C..XZB4#,5# |
2 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 90034-68032 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
2 | ||
| S7990-41240 |
N04C..XZB4#,5# |
2 | ||
| 90034-68024 |
N04C..XZB4#,5# |
2 | ||
| 23741B - CLAMP, INJECTION PIPE | ||||
| S2304-E0010 |
N04C..XZB4#,5# |
4 | ||
| S2304-E0010 |
N04C..XZB4#,5# |
4 | ||
| 23741-78010 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
4 | ||
| 23742-66020 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 *197 |
4 | ||
| 23741B - CLAMP, INJECTION PIPE | ||||
| S2304-E0010 |
N04C..XZB4#,5# |
4 | ||
| S2304-E0010 |
N04C..XZB4#,5# |
4 | ||
| 23741-78010 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
4 | ||
| 23742-66020 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 *197 |
4 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-66020 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 *197 |
2 | ||
| S2304-E0020 |
N04C..XZB4#,5# |
2 | ||
| S2304-E0020 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 90034-68026 |
N04C..XZB4#,5# NO.2:ｲﾗｽﾄ参照 |
2 | ||
| S7990-41021 |
N04C..XZB4#,5# |
2 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-66020 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 *197 |
2 | ||
| S2304-E0020 |
N04C..XZB4#,5# |
2 | ||
| S2304-E0020 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 90034-68026 |
N04C..XZB4#,5# NO.2:ｲﾗｽﾄ参照 |
2 | ||
| S7990-41021 |
N04C..XZB4#,5# |
2 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-66020 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 *197 |
2 | ||
| S2304-E0020 |
N04C..XZB4#,5# |
2 | ||
| S2304-E0020 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 90034-68026 |
N04C..XZB4#,5# NO.2:ｲﾗｽﾄ参照 |
2 | ||
| S7990-41021 |
N04C..XZB4#,5# |
2 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-66020 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 *197 |
2 | ||
| S2304-E0020 |
N04C..XZB4#,5# |
2 | ||
| S2304-E0020 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 90034-68026 |
N04C..XZB4#,5# NO.2:ｲﾗｽﾄ参照 |
2 | ||
| S7990-41021 |
N04C..XZB4#,5# |
2 | ||
| 23742A - CLAMP, INJECTION PIPE, NO.3 | ||||
| S7990-43390 |
N04C..XZB4#,5# NO.2:ｲﾗｽﾄ参照 |
2 | ||
| S7990-43390 |
N04C..XZB4#,5# NO.2:ｲﾗｽﾄ参照 |
2 | ||
| S7990-42150 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
2 | ||
| S7990-42150 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 23742A - CLAMP, INJECTION PIPE, NO.3 | ||||
| S7990-43390 |
N04C..XZB4#,5# NO.2:ｲﾗｽﾄ参照 |
2 | ||
| S7990-43390 |
N04C..XZB4#,5# NO.2:ｲﾗｽﾄ参照 |
2 | ||
| S7990-42150 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
2 | ||
| S7990-42150 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 23742A - CLAMP, INJECTION PIPE, NO.3 | ||||
| S7990-43390 |
N04C..XZB4#,5# NO.2:ｲﾗｽﾄ参照 |
2 | ||
| S7990-43390 |
N04C..XZB4#,5# NO.2:ｲﾗｽﾄ参照 |
2 | ||
| S7990-42150 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
2 | ||
| S7990-42150 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 23742A - CLAMP, INJECTION PIPE, NO.3 | ||||
| S7990-43390 |
N04C..XZB4#,5# NO.2:ｲﾗｽﾄ参照 |
2 | ||
| S7990-43390 |
N04C..XZB4#,5# NO.2:ｲﾗｽﾄ参照 |
2 | ||
| S7990-42150 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
2 | ||
| S7990-42150 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 23801L - PIPE SUB-ASSY, FUEL(FOR FUEL FILTER TO INJECTION PUMP) | ||||
| 23801-78162 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 23801-78163 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 23801-78180 |
N04C..XZB4#,5# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 23801-78210 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 23801-78164 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 23801-78180 |
N04C..XZB4#,5# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 23801-78150 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 23801L - PIPE SUB-ASSY, FUEL(FOR FUEL FILTER TO INJECTION PUMP) | ||||
| 23801-78162 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 23801-78163 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 23801-78180 |
N04C..XZB4#,5# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 23801-78210 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 23801-78164 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 23801-78180 |
N04C..XZB4#,5# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 23801-78150 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 23801M - BOLT, UNION | ||||
| SZ401-14004 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 90034-01012 |
N04C..XZB4#,5# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 90034-01010 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| SZ401-10019 |
N04C..XZB4#,5# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 23801M - BOLT, UNION | ||||
| SZ401-14004 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 90034-01012 |
N04C..XZB4#,5# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 90034-01010 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| SZ401-10019 |
N04C..XZB4#,5# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 23801N - GASKET | ||||
| SZ430-10011 |
N04C..XZB4#,5# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| SZ430-14003 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 90032-09021 |
N04C..XZB4#,5# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 90202-14004 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 23801N - GASKET | ||||
| SZ430-10011 |
N04C..XZB4#,5# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| SZ430-14003 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 90032-09021 |
N04C..XZB4#,5# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 90202-14004 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 23801N - GASKET | ||||
| SZ430-10011 |
N04C..XZB4#,5# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| SZ430-14003 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 90032-09021 |
N04C..XZB4#,5# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 90202-14004 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 23803H - PIPE SUB-ASSY, FUEL RETURN | ||||
| 23803-78220 |
N04C..XZB4#,5# *196 |
1 | ||
| 23816-E0341 |
N04C..XZB4#,5# |
1 | ||
| 23816-E0020 |
N04C..XZB4#,5# |
1 | ||
| 23816-E0342 |
N04C..XZB4#,5# |
1 | ||
| 23816-E0340 |
N04C..XZB4#,5# |
1 | ||
| 23816-78020 |
N04C..XZB4#,5# *197 |
1 | ||
| 23803J - BOLT, UNION(FOR FUEL RETURN PIPE) | ||||
| 90401-10017 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 *197 |
1 | ||
| 90031-09074 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
1 | ||
| 21811-E0070 |
N04C..XZB4#,5# |
1 | ||
| 90031-09075 |
N04C..XZB4#,5# |
1 | ||
| SZ401-10004 |
N04C..XZB4#,5# |
1 | ||
| 23804D - PIPE SUB-ASSY, FUEL, NO.4 | ||||
| 23803-78180 |
N04C..XZB4#,5# *197 |
1 | ||
| 23816-78170 |
N04C..XZB4#,5# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 23803-78160 |
N04C..XZB4#,5# *196 |
1 | ||
| 23803-E0060 |
N04C..XZB4#,5# |
1 | ||
| 23816-78160 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 23803-E0880 |
N04C..XZB4#,5# NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 23803-E0881 |
N04C..XZB4#,5# NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 23816-E0352 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 23816-78151 |
N04C..XZB4#,5# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 23803-E0882 |
N04C..XZB4#,5# NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 23803-E0882 |
N04C..XZB4#,5# NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 23804D - PIPE SUB-ASSY, FUEL, NO.4 | ||||
| 23803-78180 |
N04C..XZB4#,5# *197 |
1 | ||
| 23816-78170 |
N04C..XZB4#,5# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 23803-78160 |
N04C..XZB4#,5# *196 |
1 | ||
| 23803-E0060 |
N04C..XZB4#,5# |
1 | ||
| 23816-78160 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 23803-E0880 |
N04C..XZB4#,5# NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 23803-E0881 |
N04C..XZB4#,5# NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 23816-E0352 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 23816-78151 |
N04C..XZB4#,5# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 23803-E0882 |
N04C..XZB4#,5# NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 23803-E0882 |
N04C..XZB4#,5# NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 23804D - PIPE SUB-ASSY, FUEL, NO.4 | ||||
| 23803-78180 |
N04C..XZB4#,5# *197 |
1 | ||
| 23816-78170 |
N04C..XZB4#,5# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 23803-78160 |
N04C..XZB4#,5# *196 |
1 | ||
| 23803-E0060 |
N04C..XZB4#,5# |
1 | ||
| 23816-78160 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 23803-E0880 |
N04C..XZB4#,5# NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 23803-E0881 |
N04C..XZB4#,5# NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 23816-E0352 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 23816-78151 |
N04C..XZB4#,5# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 23803-E0882 |
N04C..XZB4#,5# NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 23803-E0882 |
N04C..XZB4#,5# NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 23804D - PIPE SUB-ASSY, FUEL, NO.4 | ||||
| 23803-78180 |
N04C..XZB4#,5# *197 |
1 | ||
| 23816-78170 |
N04C..XZB4#,5# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 23803-78160 |
N04C..XZB4#,5# *196 |
1 | ||
| 23803-E0060 |
N04C..XZB4#,5# |
1 | ||
| 23816-78160 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 23803-E0880 |
N04C..XZB4#,5# NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 23803-E0881 |
N04C..XZB4#,5# NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 23816-E0352 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 23816-78151 |
N04C..XZB4#,5# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 23803-E0882 |
N04C..XZB4#,5# NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 23803-E0882 |
N04C..XZB4#,5# NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 23804F - GASKET(FOR FUEL PIPE NO.4) | ||||
| 90032-09021 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 90202-10011 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 *197,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 90034-30040 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196,NO.1:ｲﾗｽﾄ参照 |
3 | ||
| 90032-09021 |
N04C..XZB4#,5# |
1 | ||
| SZ430-10011 |
N04C..XZB4#,5# |
1 | ||
| 23810A - RAIL ASSY, COMMON | ||||
| 23810-78020 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
1 | ||
| 23810-78040 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 *197 |
1 | ||
| 23810-78041 |
N04C..XZB4#,5# |
1 | ||
| 23810-E0240 |
N04C..XZB4#,5# |
1 | ||
| 23810-E0240 |
N04C..XZB4#,5# |
1 | ||
| 23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP) | ||||
| 23801-78040 |
N04C..XZB4#,5# *197 |
1 | ||
| 23801-E0390 |
N04C..XZB4#,5# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 23811-E0852 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 23811-E0A40 |
N04C..XZB4#,5# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 23811-E0853 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 23811-78120 |
N04C..XZB4#,5# *196 |
1 | ||
| 23801-E0390 |
N04C..XZB4#,5# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 23801-E0021 |
N04C..XZB4#,5# |
1 | ||
| 23811-E0851 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 23811-E0K50 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP) | ||||
| 23801-78040 |
N04C..XZB4#,5# *197 |
1 | ||
| 23801-E0390 |
N04C..XZB4#,5# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 23811-E0852 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 23811-E0A40 |
N04C..XZB4#,5# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 23811-E0853 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 23811-78120 |
N04C..XZB4#,5# *196 |
1 | ||
| 23801-E0390 |
N04C..XZB4#,5# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 23801-E0021 |
N04C..XZB4#,5# |
1 | ||
| 23811-E0851 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 23811-E0K50 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP) | ||||
| 23801-78040 |
N04C..XZB4#,5# *197 |
1 | ||
| 23801-E0390 |
N04C..XZB4#,5# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 23811-E0852 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 23811-E0A40 |
N04C..XZB4#,5# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 23811-E0853 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 23811-78120 |
N04C..XZB4#,5# *196 |
1 | ||
| 23801-E0390 |
N04C..XZB4#,5# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 23801-E0021 |
N04C..XZB4#,5# |
1 | ||
| 23811-E0851 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 23811-E0K50 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 23811J - BOLT, UNION | ||||
| 90034-01010 |
N04C..XZB4#,5# |
1 | ||
| SZ401-14004 |
N04C..XZB4#,5# |
1 | ||
| 23811K - GASKET | ||||
| SZ430-14003 |
N04C..XZB4#,5# |
2 | ||
| 90202-14004 |
N04C..XZB4#,5# |
2 | ||
| 23811K - GASKET | ||||
| SZ430-14003 |
N04C..XZB4#,5# |
2 | ||
| 90202-14004 |
N04C..XZB4#,5# |
2 | ||
| 23849 - SUPPORT, FUEL | ||||
| 23849-E0600 |
N04C..XZB4#,5# |
1 | ||
| 23849-E0600 |
N04C..XZB4#,5# |
1 | ||
| 23849G - SUPPORT, FUEL PIPE | ||||
| 23809-78120 |
N04C..XZB4#,5# |
1 | ||
| 23849-78160 |
N04C..XZB4#,5# *197 |
1 | ||
| 23809-E0400 |
N04C..XZB4#,5# |
1 | ||
| 23809-E0400 |
N04C..XZB4#,5# |
1 | ||
| 23849-78060 |
N04C..XZB4#,5# *196 |
1 | ||
| 23849H - SUPPORT, FUEL PIPE | ||||
| 23849-78210 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 23849-78210 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 23809-78100 |
N04C..XZB4#,5# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 23809-78100 |
N04C..XZB4#,5# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 23849H - SUPPORT, FUEL PIPE | ||||
| 23849-78210 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 23849-78210 |
N04C..XZB4#,5# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 23809-78100 |
N04C..XZB4#,5# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 23809-78100 |
N04C..XZB4#,5# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 23849J - SUPPORT, FUEL PIPE(FOR RAIL ASSY, COMMON) | ||||
| 23849-78050 |
N04C..XZB4#,5# *196 |
1 | ||
| 23849-78150 |
N04C..XZB4#,5# *197 |
1 | ||
| 23849-78220 |
N04C..XZB4#,5# |
1 | ||
| 23849-78220 |
N04C..XZB4#,5# |
1 | ||
| Common parts | ||||
| 21811-E0070 | ||||
| 90031-05123 | ||||
| 90031-05124 | ||||
| 90031-05126 | ||||
| 90031-05128 | ||||
| 90031-05133 | ||||
| 90031-05141 | ||||
| 90031-05143 | ||||
| 90031-75001 | ||||
| S2283-51610 | ||||
| SH552-10816 | ||||
| SH552-10820 | ||||
| SH552-10825 | ||||
| SH552-10832 | ||||
| SH552-10840 | ||||
| SH552-10865 | ||||
| SH552-11020 | ||||
| SH552-11028 | ||||
| SH552-11050 | ||||
| SH552-15810 | ||||
| SJ132-00835 | ||||
| SL150-10808 | ||||
| SZ401-14033 | ||||
| SZ430-10004 | ||||
| SZ430-10011 | ||||
| SZ430-14003 | ||||
| SZ910-16362 | ||||
| SZ910-24483 | ||||
| Linked diagrams | ||||
| 1302 | ||||
| 2302 | ||||
| 7751 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(1108- )N04C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04226 - VALVE KIT, SUCTION CONTROL | ||||
| 04226-78033 |
N04C..XZB4#,5# |
1 | ||
| 04226-E0110 |
N04C..XZB4#,5# |
1 | ||
| 04226-78024 |
N04C..XZB4#,5# |
1 | ||
| 04226-E0110 |
N04C..XZB4#,5# |
1 | ||
| 22100 - PUMP ASSY, INJECTION OR SUPPLY | ||||
| 22100-78183 |
N04C..XZB4#,5# *196 |
1 | ||
| 22100-78182 |
N04C..XZB4#,5# |
1 | ||
| 22100-78181 |
N04C..XZB4#,5# |
1 | ||
| 22100-78231 |
N04C..XZB4#,5# *197 |
1 | ||
| 22100-E0540 |
N04C..XZB4#,5# |
1 | ||
| 22100-E0540 |
N04C..XZB4#,5# |
1 | ||
| 22100-78232 |
N04C..XZB4#,5# |
1 | ||
| 22100-78180 |
N04C..XZB4#,5# |
1 | ||
| 22100-78235 |
N04C..XZB4#,5# |
1 | ||
| 22100-78236 |
N04C..XZB4#,5# |
1 | ||
| 22100-78234 |
N04C..XZB4#,5# |
1 | ||
| 22100-78237 |
N04C..XZB4#,5# |
1 | ||
| 22100-78233 |
N04C..XZB4#,5# |
1 | ||
| Common parts | ||||
| 22196-E0030 | ||||
| 26223-E0010 | ||||
| 69516-E0010 | ||||
| S2287-71100 | ||||
| Linked diagrams | ||||
| 1302 | ||||
ILLUST NO. 2 OF 2(0708-1108)N04C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04226 - VALVE KIT, SUCTION CONTROL | ||||
| 04226-78033 |
N04C..XZB4#,5# |
1 | ||
| 04226-E0110 |
N04C..XZB4#,5# |
1 | ||
| 04226-78024 |
N04C..XZB4#,5# |
1 | ||
| 04226-E0110 |
N04C..XZB4#,5# |
1 | ||
| 04226 - VALVE KIT, SUCTION CONTROL | ||||
| 04226-78033 |
N04C..XZB4#,5# |
1 | ||
| 04226-E0110 |
N04C..XZB4#,5# |
1 | ||
| 04226-78024 |
N04C..XZB4#,5# |
1 | ||
| 04226-E0110 |
N04C..XZB4#,5# |
1 | ||
| 22100 - PUMP ASSY, INJECTION OR SUPPLY | ||||
| 22100-78183 |
N04C..XZB4#,5# *196 |
1 | ||
| 22100-78182 |
N04C..XZB4#,5# |
1 | ||
| 22100-78181 |
N04C..XZB4#,5# |
1 | ||
| 22100-78231 |
N04C..XZB4#,5# *197 |
1 | ||
| 22100-E0540 |
N04C..XZB4#,5# |
1 | ||
| 22100-E0540 |
N04C..XZB4#,5# |
1 | ||
| 22100-78232 |
N04C..XZB4#,5# |
1 | ||
| 22100-78180 |
N04C..XZB4#,5# |
1 | ||
| 22100-78235 |
N04C..XZB4#,5# |
1 | ||
| 22100-78236 |
N04C..XZB4#,5# |
1 | ||
| 22100-78234 |
N04C..XZB4#,5# |
1 | ||
| 22100-78237 |
N04C..XZB4#,5# |
1 | ||
| 22100-78233 |
N04C..XZB4#,5# |
1 | ||
| Common parts | ||||
| 90099-01502 | ||||
| 90099-18005 | ||||
| 90099-18010 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
