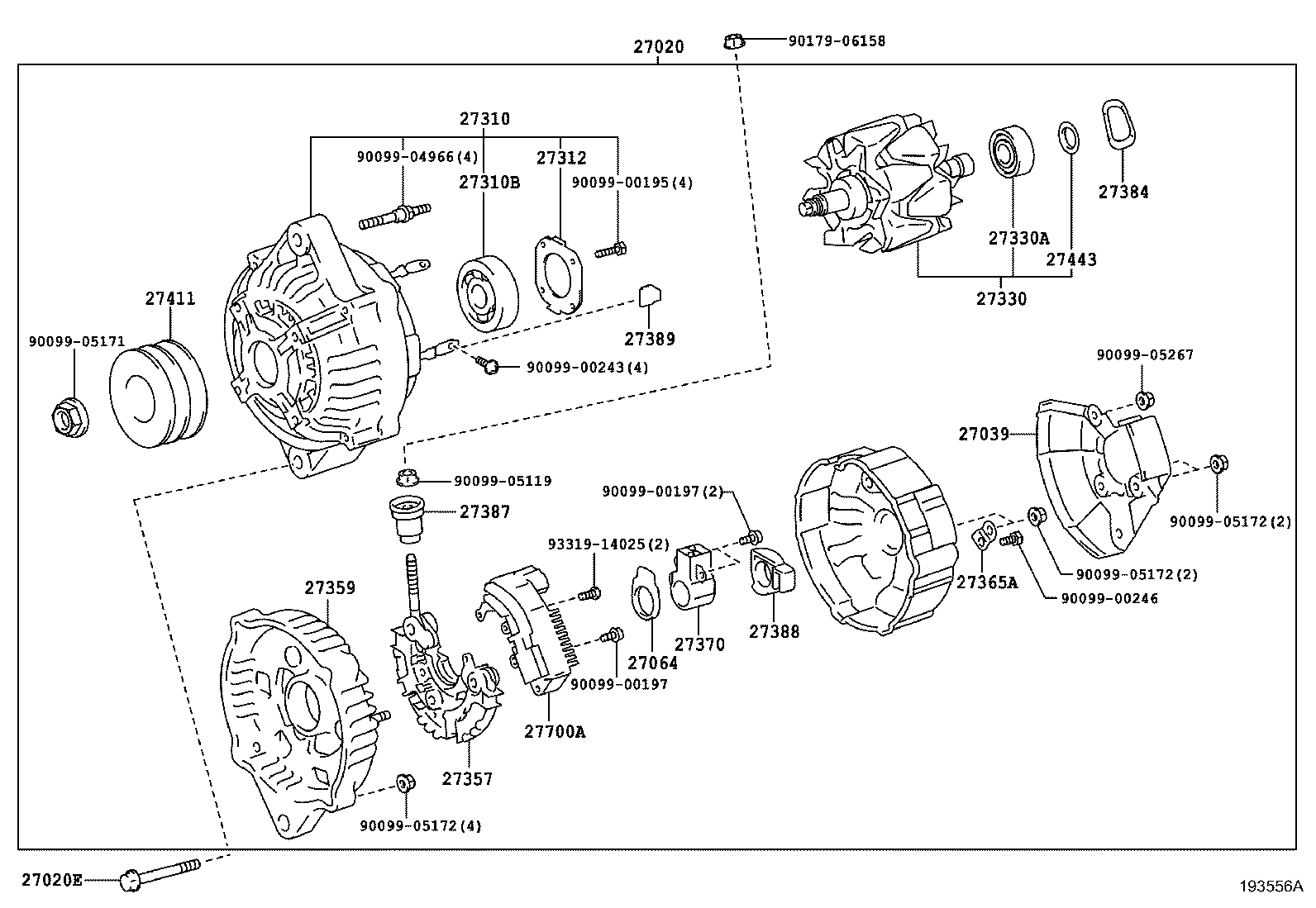

XZB40-ZRMEY (2004)
Toyota Coaster
(0408-1010)N04C..CBU
24V 60A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-78140 |
N04C..XZB50..WC..(5F,6FC)..CBU;N04C..XZB4#,51,56..(5F,6FC)..CBU 24V 60A |
1 | ||
| 27060-78101 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..(DX,EX,GX,LX,STD)..CBU 24V 60A |
1 | ||
| 27060-78190 |
N04C..XZB4#,5#..(DX,EX,GX,LX,STD)..CBU 24V 60A |
1 | ||
| 27060-78180 |
N04C..XZB4#,5#..HRF..(EX,GX,LX) 24V 80A |
1 | ||
| 27060-78110 |
N04C..XZB40..6FC..IV5;N04C..XZB50..29S..WC..(5F,6FC);N04C..XZB4#,51,56..HRF..WC..(5F,6FC)..CBU 24V 80A |
1 | ||
| 27060-E0320 |
N04C..XZB4#,5#..EX,GX,LX 24V 80A |
1 | ||
| 27060-E0310 |
N04C..XZB4#,5# 24V 60A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| SZ105-10067 |
N04C..XZB4#,5# |
1 | ||
| 90031-05093 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-89108 |
N04C..XZB4#,5#..HRF..(EX,GX,LX,SULNG)..CBU 24V 80A |
1 | ||
| S2733-02010 |
N04C..XZB4#,5#..HRF..(EX,GX,LX) 24V 80A |
1 | ||
| 27330-17240 |
N04C..XZB40..SRF..6FC;N04C..XZB50..6FC..CBU;N04C..XZB50..29S..WC..5F..CBU;N04C..XZB4#,51,56..HRF..(EX,GX,LX)..(5F,6FC)..CBU |
1 | ||
| S2733-01960 |
N04C..XZB4#,5# |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-17080 |
N04C..XZB40..SRF..6FC;N04C..XZB50..6FC..CBU;N04C..XZB50..29S..WC..5F..CBU;N04C..XZB4#,51,56..HRF..(EX,GX,LX)..(5F,6FC)..CBU |
1 | ||
| 27356-89104 |
N04C..XZB4#,5#..HRF..(EX,GX,LX,SULNG)..CBU 24V 80A |
1 | ||
| S2735-61461 |
N04C..XZB4#,5#..HRF..(EX,GX,LX) 24V 80A |
1 | ||
| S2735-61350 |
N04C..XZB4#,5# |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| S2737-01370 |
N04C..XZB4#,5#..EX,GX,LX 24V 80A |
1 | ||
| 27370-75060 |
N04C..XZB50..WC..(5F,6FC)..CBU;N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU 24V 60A |
1 | ||
| S2737-01320 |
N04C..XZB4#,5# 24V 60A |
1 | ||
| 27370-58460 |
N04C..XZB40..6FC..IV5;N04C..XZB50..29S..WC..(5F,6FC);N04C..XZB4#,51,56..HRF..(EX,GX,LX)..(5F,6FC)..CBU 24V 80A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-89109 |
N04C..XZB40..6FC..IV5;N04C..XZB50..29S..WC..(5F,6FC);N04C..XZB4#,51,56..HRF..WC..(5F,6FC)..CBU 24V 80A |
1 | ||
| 27411-89108 |
N04C..XZB50..WC..(5F,6FC)..CBU;N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU 24V 60A |
1 | ||
| S2743-11810 |
N04C..XZB4#,5#..HRF..(EX,GX,LX) |
1 | ||
| S2743-11800 |
N04C..XZB4#,5# 24V 60A |
1 | ||
| S2743-11810 |
N04C..XZB4#,5#..EX,GX,LX 24V 80A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-58060 |
N04C..XZB40..5F..CBU;N04C..XZB50..WC..5F..CBU;N04C..XZB50,51..(EX,GX)..HDCR..6FC..CBU 24V 60A |
1 | ||
| S2770-01890 |
N04C..XZB4#,5# |
1 | ||
| Common parts | ||||
| 90179-06158 | ||||

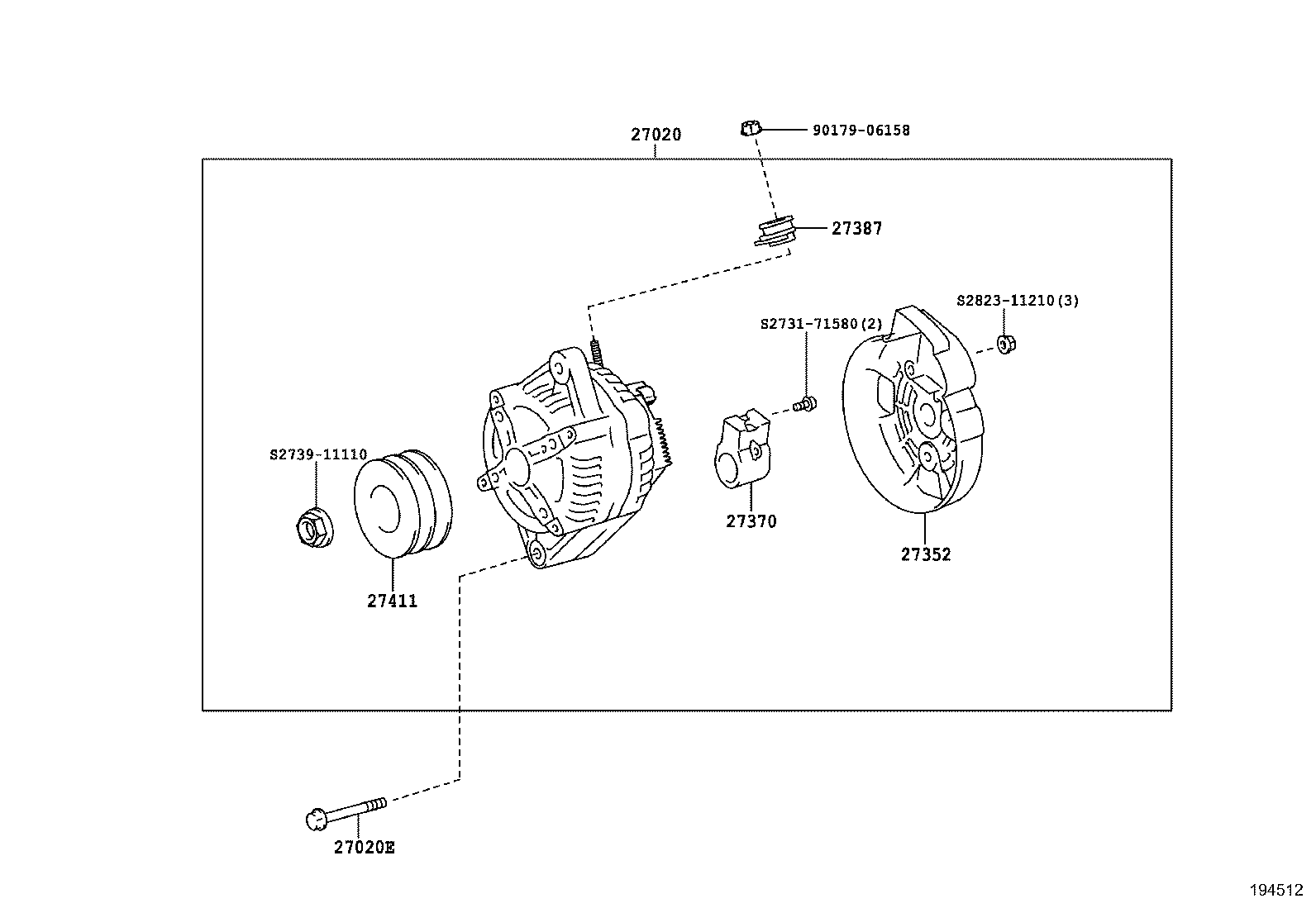

(0408-1010)N04C..HRF..EX,GX,LX,SULNG
24V 80A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-78140 |
N04C..XZB50..WC..(5F,6FC)..CBU;N04C..XZB4#,51,56..(5F,6FC)..CBU 24V 60A |
1 | ||
| 27060-78101 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..(DX,EX,GX,LX,STD)..CBU 24V 60A |
1 | ||
| 27060-78190 |
N04C..XZB4#,5#..(DX,EX,GX,LX,STD)..CBU 24V 60A |
1 | ||
| 27060-78180 |
N04C..XZB4#,5#..HRF..(EX,GX,LX) 24V 80A |
1 | ||
| 27060-78110 |
N04C..XZB40..6FC..IV5;N04C..XZB50..29S..WC..(5F,6FC);N04C..XZB4#,51,56..HRF..WC..(5F,6FC)..CBU 24V 80A |
1 | ||
| 27060-E0320 |
N04C..XZB4#,5#..EX,GX,LX 24V 80A |
1 | ||
| 27060-E0310 |
N04C..XZB4#,5# 24V 60A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| SZ105-10067 |
N04C..XZB4#,5# |
1 | ||
| 90031-05093 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 27352 - COVER, FRAME BRUSH | ||||
| 27352-89104 |
N04C..XZB40..6FC..IV5;N04C..XZB50..29S..WC..(5F,6FC);N04C..XZB4#,51,56..HRF..WC..(5F,6FC)..CBU |
1 | ||
| S2735-21152 |
N04C..XZB4#,5#..EX,GX,LX 24V 80A |
1 | ||
| S2735-21152 |
N04C..XZB4#,5#..HRF..(EX,GX,LX) |
1 | ||
| S2735-21160 |
N04C..XZB4#,5# 24V 60A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| S2737-01370 |
N04C..XZB4#,5#..EX,GX,LX 24V 80A |
1 | ||
| 27370-75060 |
N04C..XZB50..WC..(5F,6FC)..CBU;N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU 24V 60A |
1 | ||
| S2737-01320 |
N04C..XZB4#,5# 24V 60A |
1 | ||
| 27370-58460 |
N04C..XZB40..6FC..IV5;N04C..XZB50..29S..WC..(5F,6FC);N04C..XZB4#,51,56..HRF..(EX,GX,LX)..(5F,6FC)..CBU 24V 80A |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-20130 |
N04C..XZB40..6FC..IV5;N04C..XZB50..29S..WC..(5F,6FC);N04C..XZB4#,51,56..HRF..(EX,GX,LX)..(5F,6FC)..CBU |
1 | ||
| S2738-71300 |
N04C..XZB4#,5# 24V 60A |
1 | ||
| 27387-42021 |
N04C..XZB4#,5#..HRF..(EX,GX,LX)..CBU 24V 60A |
1 | ||
| S2738-71350 |
N04C..XZB4#,5#..EX,GX,LX 24V 80A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-89109 |
N04C..XZB40..6FC..IV5;N04C..XZB50..29S..WC..(5F,6FC);N04C..XZB4#,51,56..HRF..WC..(5F,6FC)..CBU 24V 80A |
1 | ||
| 27411-89108 |
N04C..XZB50..WC..(5F,6FC)..CBU;N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU 24V 60A |
1 | ||
| S2743-11810 |
N04C..XZB4#,5#..HRF..(EX,GX,LX) |
1 | ||
| S2743-11800 |
N04C..XZB4#,5# 24V 60A |
1 | ||
| S2743-11810 |
N04C..XZB4#,5#..EX,GX,LX 24V 80A |
1 | ||
| Common parts | ||||
| 90099-05171 | ||||
| 90099-05284 | ||||
| 90179-06158 | ||||

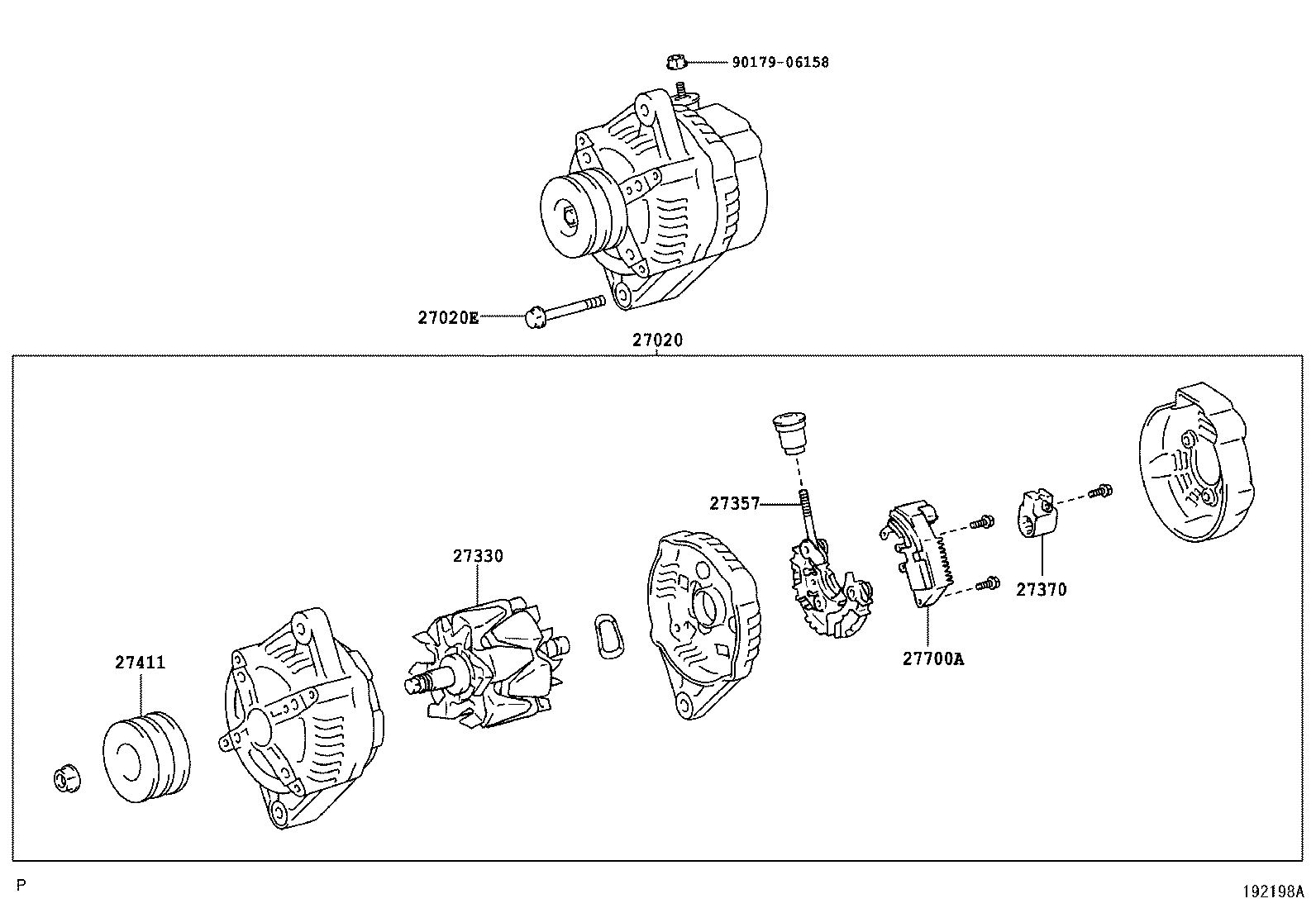

(1010-1501)N04C..EX,GX,LX,SULNG
24V 80A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-78140 |
N04C..XZB50..WC..(5F,6FC)..CBU;N04C..XZB4#,51,56..(5F,6FC)..CBU 24V 60A |
1 | ||
| 27060-78101 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..(DX,EX,GX,LX,STD)..CBU 24V 60A |
1 | ||
| 27060-78190 |
N04C..XZB4#,5#..(DX,EX,GX,LX,STD)..CBU 24V 60A |
1 | ||
| 27060-78180 |
N04C..XZB4#,5#..HRF..(EX,GX,LX) 24V 80A |
1 | ||
| 27060-78110 |
N04C..XZB40..6FC..IV5;N04C..XZB50..29S..WC..(5F,6FC);N04C..XZB4#,51,56..HRF..WC..(5F,6FC)..CBU 24V 80A |
1 | ||
| 27060-E0320 |
N04C..XZB4#,5#..EX,GX,LX 24V 80A |
1 | ||
| 27060-E0310 |
N04C..XZB4#,5# 24V 60A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| SZ105-10067 |
N04C..XZB4#,5# |
1 | ||
| 90031-05093 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-78180 |
N04C..XZB4#,5#..HRF..(EX,GX,LX) 24V 80A |
1 | ||
| 27310-EV010 |
N04C..XZB4#,5# |
1 | ||
| 27310-78190 |
N04C..XZB4#,5#..(DX,EX,GX,LX,STD)..CBU 24V 60A |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-72100 |
N04C..XZB4#,5#..HRF..(EX,GX,LX)..CBU 24V 80A |
1 | ||
| S2731-21620 |
N04C..XZB4#,5# |
1 | ||
| 27312-42010 |
N04C..XZB4#,5#..(DX,EX,GX,LX,STD)..CBU 24V 60A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-89108 |
N04C..XZB4#,5#..HRF..(EX,GX,LX,SULNG)..CBU 24V 80A |
1 | ||
| S2733-02010 |
N04C..XZB4#,5#..HRF..(EX,GX,LX) 24V 80A |
1 | ||
| 27330-17240 |
N04C..XZB40..SRF..6FC;N04C..XZB50..6FC..CBU;N04C..XZB50..29S..WC..5F..CBU;N04C..XZB4#,51,56..HRF..(EX,GX,LX)..(5F,6FC)..CBU |
1 | ||
| S2733-01960 |
N04C..XZB4#,5# |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10222 |
N04C..XZB4#,5#..HRF..(EX,GX,LX) |
1 | ||
| S2825-21820 |
N04C..XZB4#,5# |
1 | ||
| 90099-10140 |
N04C..XZB4#,5#..(DX,EX,GX,LX,STD)..CBU |
1 | ||
| 27352 - COVER, FRAME BRUSH | ||||
| 27352-89104 |
N04C..XZB40..6FC..IV5;N04C..XZB50..29S..WC..(5F,6FC);N04C..XZB4#,51,56..HRF..WC..(5F,6FC)..CBU |
1 | ||
| S2735-21152 |
N04C..XZB4#,5#..EX,GX,LX 24V 80A |
1 | ||
| S2735-21152 |
N04C..XZB4#,5#..HRF..(EX,GX,LX) |
1 | ||
| S2735-21160 |
N04C..XZB4#,5# 24V 60A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-17080 |
N04C..XZB40..SRF..6FC;N04C..XZB50..6FC..CBU;N04C..XZB50..29S..WC..5F..CBU;N04C..XZB4#,51,56..HRF..(EX,GX,LX)..(5F,6FC)..CBU |
1 | ||
| 27356-89104 |
N04C..XZB4#,5#..HRF..(EX,GX,LX,SULNG)..CBU 24V 80A |
1 | ||
| S2735-61461 |
N04C..XZB4#,5#..HRF..(EX,GX,LX) 24V 80A |
1 | ||
| S2735-61350 |
N04C..XZB4#,5# |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| S2737-01370 |
N04C..XZB4#,5#..EX,GX,LX 24V 80A |
1 | ||
| 27370-75060 |
N04C..XZB50..WC..(5F,6FC)..CBU;N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU 24V 60A |
1 | ||
| S2737-01320 |
N04C..XZB4#,5# 24V 60A |
1 | ||
| 27370-58460 |
N04C..XZB40..6FC..IV5;N04C..XZB50..29S..WC..(5F,6FC);N04C..XZB4#,51,56..HRF..(EX,GX,LX)..(5F,6FC)..CBU 24V 80A |
1 | ||
| 27384 - WASHER | ||||
| 27384-50030 |
N04C..XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| S2738-41310 |
N04C..XZB4#,5# |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-20130 |
N04C..XZB40..6FC..IV5;N04C..XZB50..29S..WC..(5F,6FC);N04C..XZB4#,51,56..HRF..(EX,GX,LX)..(5F,6FC)..CBU |
1 | ||
| S2738-71300 |
N04C..XZB4#,5# 24V 60A |
1 | ||
| 27387-42021 |
N04C..XZB4#,5#..HRF..(EX,GX,LX)..CBU 24V 60A |
1 | ||
| S2738-71350 |
N04C..XZB4#,5#..EX,GX,LX 24V 80A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-89109 |
N04C..XZB40..6FC..IV5;N04C..XZB50..29S..WC..(5F,6FC);N04C..XZB4#,51,56..HRF..WC..(5F,6FC)..CBU 24V 80A |
1 | ||
| 27411-89108 |
N04C..XZB50..WC..(5F,6FC)..CBU;N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU 24V 60A |
1 | ||
| S2743-11810 |
N04C..XZB4#,5#..HRF..(EX,GX,LX) |
1 | ||
| S2743-11800 |
N04C..XZB4#,5# 24V 60A |
1 | ||
| S2743-11810 |
N04C..XZB4#,5#..EX,GX,LX 24V 80A |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
N04C..XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| S2744-31070 |
N04C..XZB4#,5# |
1 | ||
| Common parts | ||||
| 90099-00197 | ||||
| 90099-00268 | ||||
| 90099-04539 | ||||
| 90099-05171 | ||||
| 90099-05284 | ||||
| 90179-06158 | ||||

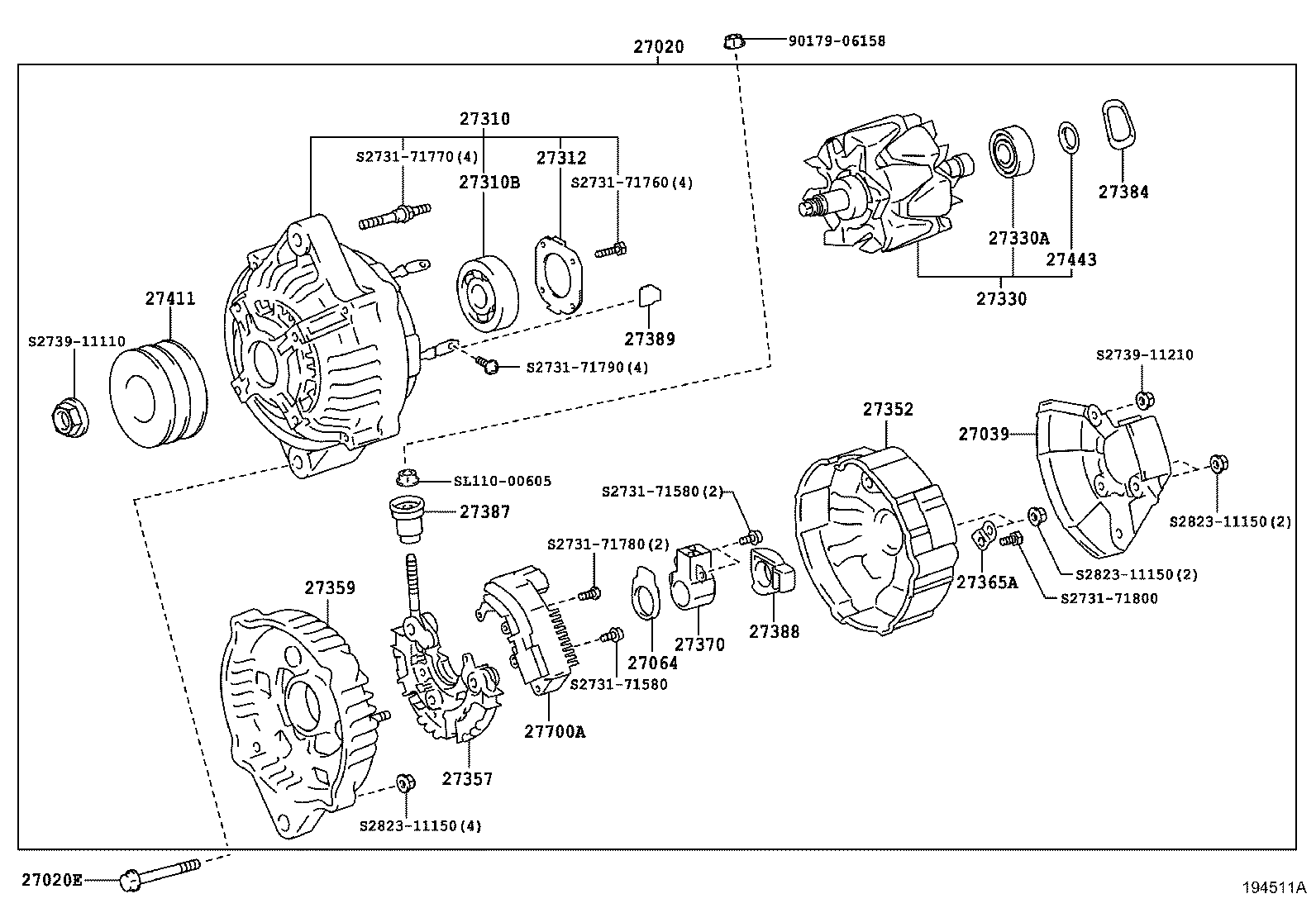

(1010-1501)N04C..CBU
24V 60A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-78140 |
N04C..XZB50..WC..(5F,6FC)..CBU;N04C..XZB4#,51,56..(5F,6FC)..CBU 24V 60A |
1 | ||
| 27060-78101 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..(DX,EX,GX,LX,STD)..CBU 24V 60A |
1 | ||
| 27060-78190 |
N04C..XZB4#,5#..(DX,EX,GX,LX,STD)..CBU 24V 60A |
1 | ||
| 27060-78180 |
N04C..XZB4#,5#..HRF..(EX,GX,LX) 24V 80A |
1 | ||
| 27060-78110 |
N04C..XZB40..6FC..IV5;N04C..XZB50..29S..WC..(5F,6FC);N04C..XZB4#,51,56..HRF..WC..(5F,6FC)..CBU 24V 80A |
1 | ||
| 27060-E0320 |
N04C..XZB4#,5#..EX,GX,LX 24V 80A |
1 | ||
| 27060-E0310 |
N04C..XZB4#,5# 24V 60A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| SZ105-10067 |
N04C..XZB4#,5# |
1 | ||
| 90031-05093 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-58330 |
N04C..XZB4#,5#..(DX,EX,GX,LX,STD)..CBU |
1 | ||
| S2739-21420 |
N04C..XZB4#,5# |
1 | ||
| 27064 - SEAL, ALTERNATOR PLATE | ||||
| S2936-71090 |
N04C..XZB4#,5# |
1 | ||
| 27064-42010 |
N04C..XZB4#,5#..(DX,EX,GX,LX,STD)..CBU |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-78180 |
N04C..XZB4#,5#..HRF..(EX,GX,LX) 24V 80A |
1 | ||
| 27310-EV010 |
N04C..XZB4#,5# |
1 | ||
| 27310-78190 |
N04C..XZB4#,5#..(DX,EX,GX,LX,STD)..CBU 24V 60A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| S2825-22180 |
N04C..XZB4#,5# |
1 | ||
| 90099-10219 |
N04C..XZB4#,5#..(DX,EX,GX,LX,STD)..CBU |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-72100 |
N04C..XZB4#,5#..HRF..(EX,GX,LX)..CBU 24V 80A |
1 | ||
| S2731-21620 |
N04C..XZB4#,5# |
1 | ||
| 27312-42010 |
N04C..XZB4#,5#..(DX,EX,GX,LX,STD)..CBU 24V 60A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-89108 |
N04C..XZB4#,5#..HRF..(EX,GX,LX,SULNG)..CBU 24V 80A |
1 | ||
| S2733-02010 |
N04C..XZB4#,5#..HRF..(EX,GX,LX) 24V 80A |
1 | ||
| 27330-17240 |
N04C..XZB40..SRF..6FC;N04C..XZB50..6FC..CBU;N04C..XZB50..29S..WC..5F..CBU;N04C..XZB4#,51,56..HRF..(EX,GX,LX)..(5F,6FC)..CBU |
1 | ||
| S2733-01960 |
N04C..XZB4#,5# |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10222 |
N04C..XZB4#,5#..HRF..(EX,GX,LX) |
1 | ||
| S2825-21820 |
N04C..XZB4#,5# |
1 | ||
| 90099-10140 |
N04C..XZB4#,5#..(DX,EX,GX,LX,STD)..CBU |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-17080 |
N04C..XZB40..SRF..6FC;N04C..XZB50..6FC..CBU;N04C..XZB50..29S..WC..5F..CBU;N04C..XZB4#,51,56..HRF..(EX,GX,LX)..(5F,6FC)..CBU |
1 | ||
| 27356-89104 |
N04C..XZB4#,5#..HRF..(EX,GX,LX,SULNG)..CBU 24V 80A |
1 | ||
| S2735-61461 |
N04C..XZB4#,5#..HRF..(EX,GX,LX) 24V 80A |
1 | ||
| S2735-61350 |
N04C..XZB4#,5# |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| S2744-11260 |
N04C..XZB4#,5# |
1 | ||
| 27359-58050 |
N04C..XZB4#,5#..(DX,EX,GX,LX,STD)..CBU |
1 | ||
| 27365A - PLATE, RECTIFIER | ||||
| 27365-55080 |
N04C..XZB4#,5#..(DX,EX,GX,LX,STD)..CBU |
1 | ||
| S2736-11050 |
N04C..XZB4#,5# |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| S2737-01370 |
N04C..XZB4#,5#..EX,GX,LX 24V 80A |
1 | ||
| 27370-75060 |
N04C..XZB50..WC..(5F,6FC)..CBU;N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU 24V 60A |
1 | ||
| S2737-01320 |
N04C..XZB4#,5# 24V 60A |
1 | ||
| 27370-58460 |
N04C..XZB40..6FC..IV5;N04C..XZB50..29S..WC..(5F,6FC);N04C..XZB4#,51,56..HRF..(EX,GX,LX)..(5F,6FC)..CBU 24V 80A |
1 | ||
| 27384 - WASHER | ||||
| 27384-50030 |
N04C..XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| S2738-41310 |
N04C..XZB4#,5# |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-20130 |
N04C..XZB40..6FC..IV5;N04C..XZB50..29S..WC..(5F,6FC);N04C..XZB4#,51,56..HRF..(EX,GX,LX)..(5F,6FC)..CBU |
1 | ||
| S2738-71300 |
N04C..XZB4#,5# 24V 60A |
1 | ||
| 27387-42021 |
N04C..XZB4#,5#..HRF..(EX,GX,LX)..CBU 24V 60A |
1 | ||
| S2738-71350 |
N04C..XZB4#,5#..EX,GX,LX 24V 80A |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| S2936-71130 |
N04C..XZB4#,5# |
1 | ||
| 27388-46220 |
N04C..XZB4#,5#..(DX,EX,GX,LX,STD)..CBU |
1 | ||
| 27389 - INSULATOR, TERMINAL | ||||
| 27389-42010 |
N04C..XZB4#,5#..(DX,EX,GX,LX,STD)..CBU |
4 | ||
| S2738-71250 |
N04C..XZB4#,5# |
4 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-89109 |
N04C..XZB40..6FC..IV5;N04C..XZB50..29S..WC..(5F,6FC);N04C..XZB4#,51,56..HRF..WC..(5F,6FC)..CBU 24V 80A |
1 | ||
| 27411-89108 |
N04C..XZB50..WC..(5F,6FC)..CBU;N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU 24V 60A |
1 | ||
| S2743-11810 |
N04C..XZB4#,5#..HRF..(EX,GX,LX) |
1 | ||
| S2743-11800 |
N04C..XZB4#,5# 24V 60A |
1 | ||
| S2743-11810 |
N04C..XZB4#,5#..EX,GX,LX 24V 80A |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
N04C..XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| S2744-31070 |
N04C..XZB4#,5# |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-58060 |
N04C..XZB40..5F..CBU;N04C..XZB50..WC..5F..CBU;N04C..XZB50,51..(EX,GX)..HDCR..6FC..CBU 24V 60A |
1 | ||
| S2770-01890 |
N04C..XZB4#,5# |
1 | ||
| Common parts | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-00243 | ||||
| 90099-00246 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90099-05267 | ||||
| 90179-06158 | ||||
| 93319-14025 | ||||
(1501- )N04C
24V 60A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-78140 |
N04C..XZB50..WC..(5F,6FC)..CBU;N04C..XZB4#,51,56..(5F,6FC)..CBU 24V 60A |
1 | ||
| 27060-78101 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..(DX,EX,GX,LX,STD)..CBU 24V 60A |
1 | ||
| 27060-78190 |
N04C..XZB4#,5#..(DX,EX,GX,LX,STD)..CBU 24V 60A |
1 | ||
| 27060-78180 |
N04C..XZB4#,5#..HRF..(EX,GX,LX) 24V 80A |
1 | ||
| 27060-78110 |
N04C..XZB40..6FC..IV5;N04C..XZB50..29S..WC..(5F,6FC);N04C..XZB4#,51,56..HRF..WC..(5F,6FC)..CBU 24V 80A |
1 | ||
| 27060-E0320 |
N04C..XZB4#,5#..EX,GX,LX 24V 80A |
1 | ||
| 27060-E0310 |
N04C..XZB4#,5# 24V 60A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| SZ105-10067 |
N04C..XZB4#,5# |
1 | ||
| 90031-05093 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-58330 |
N04C..XZB4#,5#..(DX,EX,GX,LX,STD)..CBU |
1 | ||
| S2739-21420 |
N04C..XZB4#,5# |
1 | ||
| 27064 - SEAL, ALTERNATOR PLATE | ||||
| S2936-71090 |
N04C..XZB4#,5# |
1 | ||
| 27064-42010 |
N04C..XZB4#,5#..(DX,EX,GX,LX,STD)..CBU |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-78180 |
N04C..XZB4#,5#..HRF..(EX,GX,LX) 24V 80A |
1 | ||
| 27310-EV010 |
N04C..XZB4#,5# |
1 | ||
| 27310-78190 |
N04C..XZB4#,5#..(DX,EX,GX,LX,STD)..CBU 24V 60A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| S2825-22180 |
N04C..XZB4#,5# |
1 | ||
| 90099-10219 |
N04C..XZB4#,5#..(DX,EX,GX,LX,STD)..CBU |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-72100 |
N04C..XZB4#,5#..HRF..(EX,GX,LX)..CBU 24V 80A |
1 | ||
| S2731-21620 |
N04C..XZB4#,5# |
1 | ||
| 27312-42010 |
N04C..XZB4#,5#..(DX,EX,GX,LX,STD)..CBU 24V 60A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-89108 |
N04C..XZB4#,5#..HRF..(EX,GX,LX,SULNG)..CBU 24V 80A |
1 | ||
| S2733-02010 |
N04C..XZB4#,5#..HRF..(EX,GX,LX) 24V 80A |
1 | ||
| 27330-17240 |
N04C..XZB40..SRF..6FC;N04C..XZB50..6FC..CBU;N04C..XZB50..29S..WC..5F..CBU;N04C..XZB4#,51,56..HRF..(EX,GX,LX)..(5F,6FC)..CBU |
1 | ||
| S2733-01960 |
N04C..XZB4#,5# |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10222 |
N04C..XZB4#,5#..HRF..(EX,GX,LX) |
1 | ||
| S2825-21820 |
N04C..XZB4#,5# |
1 | ||
| 90099-10140 |
N04C..XZB4#,5#..(DX,EX,GX,LX,STD)..CBU |
1 | ||
| 27352 - COVER, FRAME BRUSH | ||||
| 27352-89104 |
N04C..XZB40..6FC..IV5;N04C..XZB50..29S..WC..(5F,6FC);N04C..XZB4#,51,56..HRF..WC..(5F,6FC)..CBU |
1 | ||
| S2735-21152 |
N04C..XZB4#,5#..EX,GX,LX 24V 80A |
1 | ||
| S2735-21152 |
N04C..XZB4#,5#..HRF..(EX,GX,LX) |
1 | ||
| S2735-21160 |
N04C..XZB4#,5# 24V 60A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-17080 |
N04C..XZB40..SRF..6FC;N04C..XZB50..6FC..CBU;N04C..XZB50..29S..WC..5F..CBU;N04C..XZB4#,51,56..HRF..(EX,GX,LX)..(5F,6FC)..CBU |
1 | ||
| 27356-89104 |
N04C..XZB4#,5#..HRF..(EX,GX,LX,SULNG)..CBU 24V 80A |
1 | ||
| S2735-61461 |
N04C..XZB4#,5#..HRF..(EX,GX,LX) 24V 80A |
1 | ||
| S2735-61350 |
N04C..XZB4#,5# |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| S2744-11260 |
N04C..XZB4#,5# |
1 | ||
| 27359-58050 |
N04C..XZB4#,5#..(DX,EX,GX,LX,STD)..CBU |
1 | ||
| 27365A - PLATE, RECTIFIER | ||||
| 27365-55080 |
N04C..XZB4#,5#..(DX,EX,GX,LX,STD)..CBU |
1 | ||
| S2736-11050 |
N04C..XZB4#,5# |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| S2737-01370 |
N04C..XZB4#,5#..EX,GX,LX 24V 80A |
1 | ||
| 27370-75060 |
N04C..XZB50..WC..(5F,6FC)..CBU;N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU 24V 60A |
1 | ||
| S2737-01320 |
N04C..XZB4#,5# 24V 60A |
1 | ||
| 27370-58460 |
N04C..XZB40..6FC..IV5;N04C..XZB50..29S..WC..(5F,6FC);N04C..XZB4#,51,56..HRF..(EX,GX,LX)..(5F,6FC)..CBU 24V 80A |
1 | ||
| 27384 - WASHER | ||||
| 27384-50030 |
N04C..XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| S2738-41310 |
N04C..XZB4#,5# |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-20130 |
N04C..XZB40..6FC..IV5;N04C..XZB50..29S..WC..(5F,6FC);N04C..XZB4#,51,56..HRF..(EX,GX,LX)..(5F,6FC)..CBU |
1 | ||
| S2738-71300 |
N04C..XZB4#,5# 24V 60A |
1 | ||
| 27387-42021 |
N04C..XZB4#,5#..HRF..(EX,GX,LX)..CBU 24V 60A |
1 | ||
| S2738-71350 |
N04C..XZB4#,5#..EX,GX,LX 24V 80A |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| S2936-71130 |
N04C..XZB4#,5# |
1 | ||
| 27388-46220 |
N04C..XZB4#,5#..(DX,EX,GX,LX,STD)..CBU |
1 | ||
| 27389 - INSULATOR, TERMINAL | ||||
| 27389-42010 |
N04C..XZB4#,5#..(DX,EX,GX,LX,STD)..CBU |
4 | ||
| S2738-71250 |
N04C..XZB4#,5# |
4 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-89109 |
N04C..XZB40..6FC..IV5;N04C..XZB50..29S..WC..(5F,6FC);N04C..XZB4#,51,56..HRF..WC..(5F,6FC)..CBU 24V 80A |
1 | ||
| 27411-89108 |
N04C..XZB50..WC..(5F,6FC)..CBU;N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU 24V 60A |
1 | ||
| S2743-11810 |
N04C..XZB4#,5#..HRF..(EX,GX,LX) |
1 | ||
| S2743-11800 |
N04C..XZB4#,5# 24V 60A |
1 | ||
| S2743-11810 |
N04C..XZB4#,5#..EX,GX,LX 24V 80A |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
N04C..XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| S2744-31070 |
N04C..XZB4#,5# |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-58060 |
N04C..XZB40..5F..CBU;N04C..XZB50..WC..5F..CBU;N04C..XZB50,51..(EX,GX)..HDCR..6FC..CBU 24V 60A |
1 | ||
| S2770-01890 |
N04C..XZB4#,5# |
1 | ||
| Common parts | ||||
| 90179-06158 | ||||
| S2731-71580 | ||||
| S2731-71760 | ||||
| S2731-71770 | ||||
| S2731-71780 | ||||
| S2731-71790 | ||||
| S2731-71800 | ||||
| S2739-11110 | ||||
| S2739-11210 | ||||
| S2823-11150 | ||||
| SL110-00605 | ||||
(1501- )N04C..EX,GX,LX
24V 80A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-78140 |
N04C..XZB50..WC..(5F,6FC)..CBU;N04C..XZB4#,51,56..(5F,6FC)..CBU 24V 60A |
1 | ||
| 27060-78101 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..(DX,EX,GX,LX,STD)..CBU 24V 60A |
1 | ||
| 27060-78190 |
N04C..XZB4#,5#..(DX,EX,GX,LX,STD)..CBU 24V 60A |
1 | ||
| 27060-78180 |
N04C..XZB4#,5#..HRF..(EX,GX,LX) 24V 80A |
1 | ||
| 27060-78110 |
N04C..XZB40..6FC..IV5;N04C..XZB50..29S..WC..(5F,6FC);N04C..XZB4#,51,56..HRF..WC..(5F,6FC)..CBU 24V 80A |
1 | ||
| 27060-E0320 |
N04C..XZB4#,5#..EX,GX,LX 24V 80A |
1 | ||
| 27060-E0310 |
N04C..XZB4#,5# 24V 60A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| SZ105-10067 |
N04C..XZB4#,5# |
1 | ||
| 90031-05093 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 27352 - COVER, FRAME BRUSH | ||||
| 27352-89104 |
N04C..XZB40..6FC..IV5;N04C..XZB50..29S..WC..(5F,6FC);N04C..XZB4#,51,56..HRF..WC..(5F,6FC)..CBU |
1 | ||
| S2735-21152 |
N04C..XZB4#,5#..EX,GX,LX 24V 80A |
1 | ||
| S2735-21152 |
N04C..XZB4#,5#..HRF..(EX,GX,LX) |
1 | ||
| S2735-21160 |
N04C..XZB4#,5# 24V 60A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| S2737-01370 |
N04C..XZB4#,5#..EX,GX,LX 24V 80A |
1 | ||
| 27370-75060 |
N04C..XZB50..WC..(5F,6FC)..CBU;N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU 24V 60A |
1 | ||
| S2737-01320 |
N04C..XZB4#,5# 24V 60A |
1 | ||
| 27370-58460 |
N04C..XZB40..6FC..IV5;N04C..XZB50..29S..WC..(5F,6FC);N04C..XZB4#,51,56..HRF..(EX,GX,LX)..(5F,6FC)..CBU 24V 80A |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-20130 |
N04C..XZB40..6FC..IV5;N04C..XZB50..29S..WC..(5F,6FC);N04C..XZB4#,51,56..HRF..(EX,GX,LX)..(5F,6FC)..CBU |
1 | ||
| S2738-71300 |
N04C..XZB4#,5# 24V 60A |
1 | ||
| 27387-42021 |
N04C..XZB4#,5#..HRF..(EX,GX,LX)..CBU 24V 60A |
1 | ||
| S2738-71350 |
N04C..XZB4#,5#..EX,GX,LX 24V 80A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-89109 |
N04C..XZB40..6FC..IV5;N04C..XZB50..29S..WC..(5F,6FC);N04C..XZB4#,51,56..HRF..WC..(5F,6FC)..CBU 24V 80A |
1 | ||
| 27411-89108 |
N04C..XZB50..WC..(5F,6FC)..CBU;N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU 24V 60A |
1 | ||
| S2743-11810 |
N04C..XZB4#,5#..HRF..(EX,GX,LX) |
1 | ||
| S2743-11800 |
N04C..XZB4#,5# 24V 60A |
1 | ||
| S2743-11810 |
N04C..XZB4#,5#..EX,GX,LX 24V 80A |
1 | ||
| Common parts | ||||
| 90179-06158 | ||||
| S2731-71580 | ||||
| S2739-11110 | ||||
| S2823-11210 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
