XZB40-ZRMEY (2004)
Toyota Coaster
(0408-0708)N04C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15407 - PIPE SUB-ASSY, TURBO OIL INLET | ||||
| 15407-E0250 |
N04C..XZB4#,5# |
1 | ||
| 29601-78090 |
N04C..XZB4#,5#..DCR *197 |
1 | ||
| 15407-E0250 |
N04C..XZB4#,5# |
1 | ||
| 15407-E0252 |
N04C..XZB4#,5# |
1 | ||
| 29601-78100 |
N04C..XZB4#,5# *196 |
1 | ||
| 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) | ||||
| SZ401-12001 |
N04C..XZB4#,5# NO.1 |
1 | ||
| 90034-01010 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU NO.2 |
1 | ||
| 90031-09073 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU NO.1 |
1 | ||
| SZ401-14004 |
N04C..XZB4#,5# NO.2 |
1 | ||
| 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) | ||||
| SZ401-12001 |
N04C..XZB4#,5# NO.1 |
1 | ||
| 90034-01010 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU NO.2 |
1 | ||
| 90031-09073 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU NO.1 |
1 | ||
| SZ401-14004 |
N04C..XZB4#,5# NO.2 |
1 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90201-14014 |
N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5;N04C..XZB40,51..(26S,29S,39S)..CBU *197,NO.2 |
2 | ||
| 90202-14004 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196,NO.2 |
2 | ||
| 90201-12030 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU NO.1 |
2 | ||
| SL722-01210 |
N04C..XZB4#,5# NO.1 |
2 | ||
| SL722-01415 |
N04C..XZB4#,5# NO.2 |
2 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90201-14014 |
N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5;N04C..XZB40,51..(26S,29S,39S)..CBU *197,NO.2 |
2 | ||
| 90202-14004 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196,NO.2 |
2 | ||
| 90201-12030 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU NO.1 |
2 | ||
| SL722-01210 |
N04C..XZB4#,5# NO.1 |
2 | ||
| SL722-01415 |
N04C..XZB4#,5# NO.2 |
2 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90201-14014 |
N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5;N04C..XZB40,51..(26S,29S,39S)..CBU *197,NO.2 |
2 | ||
| 90202-14004 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196,NO.2 |
2 | ||
| 90201-12030 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU NO.1 |
2 | ||
| SL722-01210 |
N04C..XZB4#,5# NO.1 |
2 | ||
| SL722-01415 |
N04C..XZB4#,5# NO.2 |
2 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90201-14014 |
N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5;N04C..XZB40,51..(26S,29S,39S)..CBU *197,NO.2 |
2 | ||
| 90202-14004 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196,NO.2 |
2 | ||
| 90201-12030 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU NO.1 |
2 | ||
| SL722-01210 |
N04C..XZB4#,5# NO.1 |
2 | ||
| SL722-01415 |
N04C..XZB4#,5# NO.2 |
2 | ||
| 15472 - GASKET, TURBO OIL OUTLET, NO.1 | ||||
| 15472-78011 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
1 | ||
| S2413-51161 |
N04C..XZB4#,5# |
1 | ||
| 15472-78010 |
N04C..XZB4#,5# |
1 | ||
| S2413-51161 |
N04C..XZB4#,5# |
1 | ||
| 15473 - GASKET, TURBO OIL OUTLET, NO.2 | ||||
| 15471-78010 |
N04C..XZB4#,5# |
1 | ||
| S2413-51181 |
N04C..XZB4#,5# |
1 | ||
| 15471-78011 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 15472-E0050 |
N04C..XZB4#,5# |
1 | ||
| 15471-78011 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 |
2 | ||
| 15474 - PIPE, TURBO OIL OUTLET | ||||
| 29601-78120 |
N04C..XZB4#,5# *196 |
1 | ||
| 29601-78110 |
N04C..XZB4#,5# *197 |
1 | ||
| 15407-E0270 |
N04C..XZB4#,5# |
1 | ||
| 15407-E0270 |
N04C..XZB4#,5# |
1 | ||
| 17107 - INSULATOR SUB-ASSY, EXHAUST MANIFOLD HEAT | ||||
| 17107-78060 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 17107-E0012 |
N04C..XZB4#,5# |
1 | ||
| 17107-78061 |
N04C..XZB4#,5# *196 |
1 | ||
| 17107-78162 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 |
1 | ||
| 17107-78161 |
N04C..XZB4#,5# *197 |
1 | ||
| 17107-E0012 |
N04C..XZB4#,5# |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17111-78050 |
N04C..XZB4#,5# |
1 | ||
| 17111-E0351 |
N04C..XZB4#,5# |
1 | ||
| 17111-E0351 |
N04C..XZB4#,5# |
1 | ||
| 17111-E0352 |
N04C..XZB4#,5# |
1 | ||
| 17113 - PIPE, INTAKE | ||||
| 17113-78122 |
N04C..XZB4#,5# NO.2 |
1 | ||
| 17103-78101 |
N04C..XZB4#,5# NO.1 |
1 | ||
| 17103-78100 |
N04C..XZB4#,5# NO.1 |
1 | ||
| 17103-E0J90 |
N04C..XZB4#,5# |
1 | ||
| 17113-78121 |
N04C..XZB4#,5# NO.2 |
1 | ||
| 17103-78140 |
N04C..XZB4#,5# |
1 | ||
| 17113 - PIPE, INTAKE | ||||
| 17113-78122 |
N04C..XZB4#,5# NO.2 |
1 | ||
| 17103-78101 |
N04C..XZB4#,5# NO.1 |
1 | ||
| 17103-78100 |
N04C..XZB4#,5# NO.1 |
1 | ||
| 17103-E0J90 |
N04C..XZB4#,5# |
1 | ||
| 17113-78121 |
N04C..XZB4#,5# NO.2 |
1 | ||
| 17103-78140 |
N04C..XZB4#,5# |
1 | ||
| 17113C - INSULATOR, INTAKE PIPE | ||||
| 17107-78080 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
1 | ||
| 17113D - PIPE, INTAKE, NO.1 | ||||
| 17113-78201 |
N04C..XZB4#,5# *196 |
1 | ||
| 17113-78200 |
N04C..XZB4#,5# |
1 | ||
| 17113-E0Y80 |
N04C..XZB4#,5# |
1 | ||
| 17113-78312 |
N04C..XZB4#,5#..DCR *197 |
1 | ||
| 17113-E0Y80 |
N04C..XZB4#,5# |
1 | ||
| 17138A - STAY, INTAKE PIPE | ||||
| 17138-78160 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
1 | ||
| 17138-E0441 |
N04C..XZB4#,5# |
1 | ||
| 17138-78281 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 *197 |
1 | ||
| 17138-E0441 |
N04C..XZB4#,5# |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-78081 |
N04C..XZB4#,5#..(DX,EX,GX,LX,STD)..(4FC,5F,6F) *196 |
1 | ||
| 17141-E0370 |
N04C..XZB4#,5#..DCR |
1 | ||
| 17141-78100 |
N04C..XZB50..WC..DCR;N04C..XZB40..6FC..IV5;N04C..XZB4#,51,56..DCR..CBU *197 |
1 | ||
| 17141-E0370 |
N04C..XZB4#,5#..DCR |
1 | ||
| 17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD) | ||||
| SZ126-10012 |
N04C..XZB4#,5# |
4 | ||
| 90031-16069 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
6 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90031-16091 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU |
3 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90031-16085 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU NO.2 |
2 | ||
| SZ126-10006 |
N04C..XZB4#,5# NO.1 |
4 | ||
| 90031-16069 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU NO.1 |
2 | ||
| 90031-16109 |
N04C..XZB4#,5# NO.1 |
2 | ||
| SZ126-08007 |
N04C..XZB4#,5# NO.2 |
2 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90031-16085 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU NO.2 |
2 | ||
| SZ126-10006 |
N04C..XZB4#,5# NO.1 |
4 | ||
| 90031-16069 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU NO.1 |
2 | ||
| 90031-16109 |
N04C..XZB4#,5# NO.1 |
2 | ||
| SZ126-08007 |
N04C..XZB4#,5# NO.2 |
2 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-78040 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU |
4 | ||
| S1710-41880 |
N04C..XZB4#,5# |
4 | ||
| S1710-41880 |
N04C..XZB4#,5# |
4 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-78040 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU |
4 | ||
| S1710-41880 |
N04C..XZB4#,5# |
4 | ||
| S1710-41880 |
N04C..XZB4#,5# |
4 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-78040 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU |
4 | ||
| S1710-41880 |
N04C..XZB4#,5# |
4 | ||
| S1710-41880 |
N04C..XZB4#,5# |
4 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-78040 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU |
4 | ||
| S1710-41880 |
N04C..XZB4#,5# |
4 | ||
| S1710-41880 |
N04C..XZB4#,5# |
4 | ||

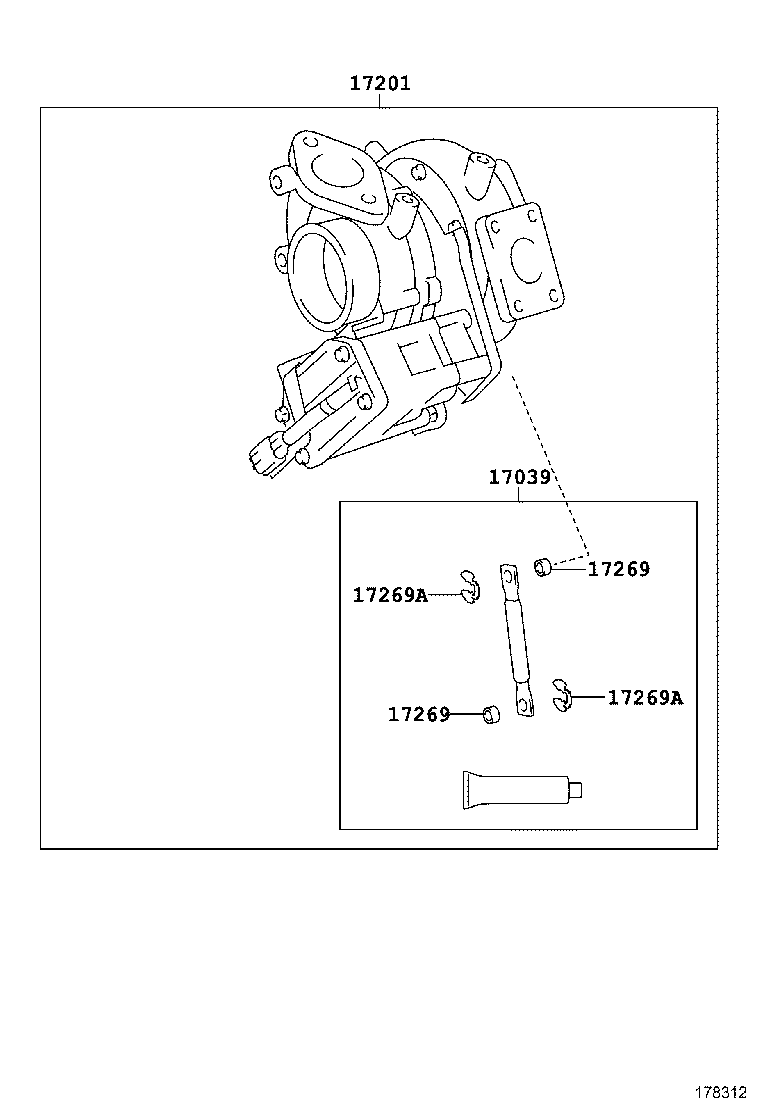

| 17201 - TURBOCHARGER SUB-ASSY | ||||
| 17201-78080 |
N04C..XZB4#,5# |
1 | ||
| 17201-78100 |
N04C..XZB4#,5#..4FC,5F,6F *196 |
1 | ||
| 17201-78212 |
N04C..XZB4#,5#..DCR |
1 | ||
| 17201-78210 |
N04C..XZB4#,5#..DCR *197 |
1 | ||
| 17201-78211 |
N04C..XZB4#,5#..DCR |
1 | ||
| 17201-E0761 |
N04C..XZB4#,5#..DCR |
1 | ||
| 17201-E0760 |
N04C..XZB4#,5#..DCR |
1 | ||
| 17201-E0762 |
N04C..XZB4#,5#..DCR |
1 | ||
| 17201-E0763 |
N04C..XZB4#,5#..DCR |
1 | ||
| 17201-78213 |
N04C..XZB4#,5#..DCR |
1 | ||
| 17201-E0764 |
N04C..XZB4#,5#..DCR |
1 | ||
| 17201-E0763 |
N04C..XZB4#,5#..DCR |
1 | ||
| 17201-E0765 |
N04C..XZB4#,5#..DCR |
1 | ||
| 17271 - INSULATOR, TURBO, NO.1 | ||||
| 17271-78050 |
N04C..XZB4#,5# *197 |
1 | ||
| 17271-78030 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
1 | ||
| 17271-78070 |
N04C..XZB4#,5# |
1 | ||
| 17271-E0310 |
N04C..XZB4#,5# NO.2 |
1 | ||
| 17271-E0320 |
N04C..XZB4#,5# NO.3 |
1 | ||
| 17271-E0300 |
N04C..XZB4#,5# NO.1 |
1 | ||
| 17271-E0320 |
N04C..XZB4#,5# NO.3 |
1 | ||
| 17271-E0310 |
N04C..XZB4#,5# NO.2 |
1 | ||
| 17271-E0300 |
N04C..XZB4#,5# NO.1 |
1 | ||
| 17277 - GASKET, COMPRESSOR OUTLET | ||||
| S2417-91430 |
N04C..XZB4#,5# |
1 | ||
| 17277-78010 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU |
1 | ||
| S2417-91430 |
N04C..XZB4#,5# |
1 | ||
| 17278 - GASKET, TURBO TO EXHAUST MANIFOLD | ||||
| S2410-91860 |
N04C..XZB4#,5# |
1 | ||
| 17278-78020 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU |
1 | ||
| S2410-91860 |
N04C..XZB4#,5# |
1 | ||
| 17279 - GASKET, TURBINE OUTLET ELBOW | ||||
| 90917-06087 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 *197 |
1 | ||
| 17278-78030 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
1 | ||
| 17291 - ELBOW, TURBINE OUTLET | ||||
| 17291-78100 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 *197 |
1 | ||
| 17291-78080 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
1 | ||
| 17293 - STAY, TURBOCHARGER | ||||
| 17455-78190 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU |
1 | ||
| Common parts | ||||
| 90031-01187 | ||||
| 90031-05081 | ||||
| 90031-05123 | ||||
| 90031-05124 | ||||
| 90031-05125 | ||||
| 90031-05126 | ||||
| 90031-05131 | ||||
| 90031-05171 | ||||
| 90031-16055 | ||||
| 90031-16085 | ||||
| 90031-16086 | ||||
| 90031-16090 | ||||
| 90031-16091 | ||||
| 90031-19155 | ||||
| 90031-75001 | ||||
| 90031-75006 | ||||
| 90031-75007 | ||||
| 90035-60055 | ||||
| 90035-60074 | ||||
| 94613-10800 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 1703 | ||||
| 2501 | ||||

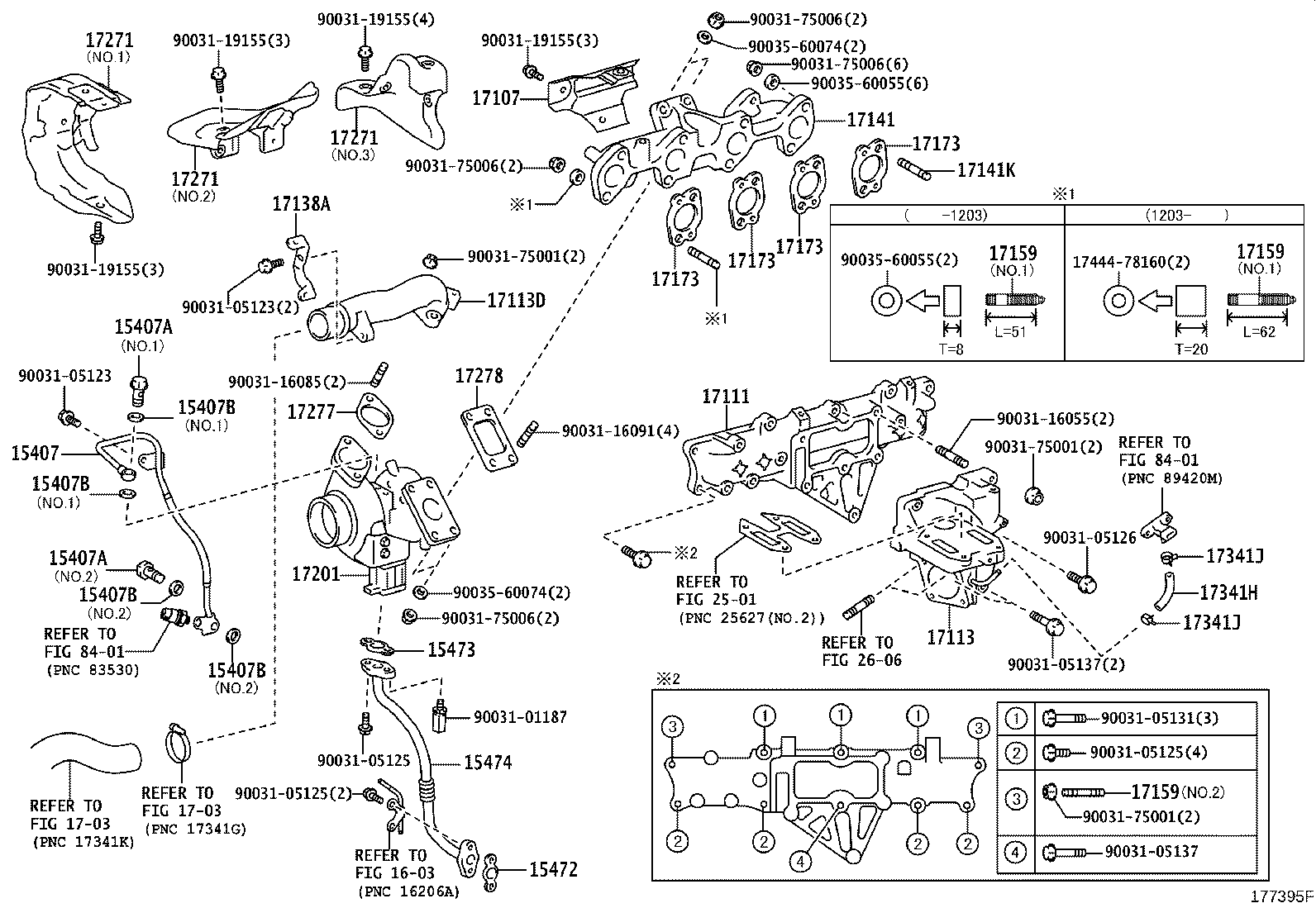

ILLUST NO. 1 OF 2(0708-1108)N04C..DCR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15407 - PIPE SUB-ASSY, TURBO OIL INLET | ||||
| 15407-E0250 |
N04C..XZB4#,5# |
1 | ||
| 29601-78090 |
N04C..XZB4#,5#..DCR *197 |
1 | ||
| 15407-E0250 |
N04C..XZB4#,5# |
1 | ||
| 15407-E0252 |
N04C..XZB4#,5# |
1 | ||
| 29601-78100 |
N04C..XZB4#,5# *196 |
1 | ||
| 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) | ||||
| SZ401-12001 |
N04C..XZB4#,5# NO.1 |
1 | ||
| 90034-01010 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU NO.2 |
1 | ||
| 90031-09073 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU NO.1 |
1 | ||
| SZ401-14004 |
N04C..XZB4#,5# NO.2 |
1 | ||
| 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) | ||||
| SZ401-12001 |
N04C..XZB4#,5# NO.1 |
1 | ||
| 90034-01010 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU NO.2 |
1 | ||
| 90031-09073 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU NO.1 |
1 | ||
| SZ401-14004 |
N04C..XZB4#,5# NO.2 |
1 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90201-14014 |
N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5;N04C..XZB40,51..(26S,29S,39S)..CBU *197,NO.2 |
2 | ||
| 90202-14004 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196,NO.2 |
2 | ||
| 90201-12030 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU NO.1 |
2 | ||
| SL722-01210 |
N04C..XZB4#,5# NO.1 |
2 | ||
| SL722-01415 |
N04C..XZB4#,5# NO.2 |
2 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90201-14014 |
N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5;N04C..XZB40,51..(26S,29S,39S)..CBU *197,NO.2 |
2 | ||
| 90202-14004 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196,NO.2 |
2 | ||
| 90201-12030 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU NO.1 |
2 | ||
| SL722-01210 |
N04C..XZB4#,5# NO.1 |
2 | ||
| SL722-01415 |
N04C..XZB4#,5# NO.2 |
2 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90201-14014 |
N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5;N04C..XZB40,51..(26S,29S,39S)..CBU *197,NO.2 |
2 | ||
| 90202-14004 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196,NO.2 |
2 | ||
| 90201-12030 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU NO.1 |
2 | ||
| SL722-01210 |
N04C..XZB4#,5# NO.1 |
2 | ||
| SL722-01415 |
N04C..XZB4#,5# NO.2 |
2 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90201-14014 |
N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5;N04C..XZB40,51..(26S,29S,39S)..CBU *197,NO.2 |
2 | ||
| 90202-14004 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196,NO.2 |
2 | ||
| 90201-12030 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU NO.1 |
2 | ||
| SL722-01210 |
N04C..XZB4#,5# NO.1 |
2 | ||
| SL722-01415 |
N04C..XZB4#,5# NO.2 |
2 | ||
| 15473 - GASKET, TURBO OIL OUTLET, NO.2 | ||||
| 15471-78010 |
N04C..XZB4#,5# |
1 | ||
| S2413-51181 |
N04C..XZB4#,5# |
1 | ||
| 15471-78011 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 15472-E0050 |
N04C..XZB4#,5# |
1 | ||
| 15471-78011 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 |
2 | ||
| 15473 - GASKET, TURBO OIL OUTLET, NO.2 | ||||
| 15471-78010 |
N04C..XZB4#,5# |
1 | ||
| S2413-51181 |
N04C..XZB4#,5# |
1 | ||
| 15471-78011 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 15472-E0050 |
N04C..XZB4#,5# |
1 | ||
| 15471-78011 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 |
2 | ||
| 15474 - PIPE, TURBO OIL OUTLET | ||||
| 29601-78120 |
N04C..XZB4#,5# *196 |
1 | ||
| 29601-78110 |
N04C..XZB4#,5# *197 |
1 | ||
| 15407-E0270 |
N04C..XZB4#,5# |
1 | ||
| 15407-E0270 |
N04C..XZB4#,5# |
1 | ||
| 17107 - INSULATOR SUB-ASSY, EXHAUST MANIFOLD HEAT | ||||
| 17107-78060 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 17107-E0012 |
N04C..XZB4#,5# |
1 | ||
| 17107-78061 |
N04C..XZB4#,5# *196 |
1 | ||
| 17107-78162 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 |
1 | ||
| 17107-78161 |
N04C..XZB4#,5# *197 |
1 | ||
| 17107-E0012 |
N04C..XZB4#,5# |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17111-78050 |
N04C..XZB4#,5# |
1 | ||
| 17111-E0351 |
N04C..XZB4#,5# |
1 | ||
| 17111-E0351 |
N04C..XZB4#,5# |
1 | ||
| 17111-E0352 |
N04C..XZB4#,5# |
1 | ||
| 17113 - PIPE, INTAKE | ||||
| 17113-78122 |
N04C..XZB4#,5# NO.2 |
1 | ||
| 17103-78101 |
N04C..XZB4#,5# NO.1 |
1 | ||
| 17103-78100 |
N04C..XZB4#,5# NO.1 |
1 | ||
| 17103-E0J90 |
N04C..XZB4#,5# |
1 | ||
| 17113-78121 |
N04C..XZB4#,5# NO.2 |
1 | ||
| 17103-78140 |
N04C..XZB4#,5# |
1 | ||
| 17113 - PIPE, INTAKE | ||||
| 17113-78122 |
N04C..XZB4#,5# NO.2 |
1 | ||
| 17103-78101 |
N04C..XZB4#,5# NO.1 |
1 | ||
| 17103-78100 |
N04C..XZB4#,5# NO.1 |
1 | ||
| 17103-E0J90 |
N04C..XZB4#,5# |
1 | ||
| 17113-78121 |
N04C..XZB4#,5# NO.2 |
1 | ||
| 17103-78140 |
N04C..XZB4#,5# |
1 | ||
| 17113D - PIPE, INTAKE, NO.1 | ||||
| 17113-78201 |
N04C..XZB4#,5# *196 |
1 | ||
| 17113-78200 |
N04C..XZB4#,5# |
1 | ||
| 17113-E0Y80 |
N04C..XZB4#,5# |
1 | ||
| 17113-78312 |
N04C..XZB4#,5#..DCR *197 |
1 | ||
| 17113-E0Y80 |
N04C..XZB4#,5# |
1 | ||
| 17138A - STAY, INTAKE PIPE | ||||
| 17138-78160 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
1 | ||
| 17138-E0441 |
N04C..XZB4#,5# |
1 | ||
| 17138-78281 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 *197 |
1 | ||
| 17138-E0441 |
N04C..XZB4#,5# |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-78081 |
N04C..XZB4#,5#..(DX,EX,GX,LX,STD)..(4FC,5F,6F) *196 |
1 | ||
| 17141-E0370 |
N04C..XZB4#,5#..DCR |
1 | ||
| 17141-78100 |
N04C..XZB50..WC..DCR;N04C..XZB40..6FC..IV5;N04C..XZB4#,51,56..DCR..CBU *197 |
1 | ||
| 17141-E0370 |
N04C..XZB4#,5#..DCR |
1 | ||
| 17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD) | ||||
| SZ126-10012 |
N04C..XZB4#,5# |
4 | ||
| 90031-16069 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
6 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90031-16091 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU |
3 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90031-16085 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU NO.2 |
2 | ||
| SZ126-10006 |
N04C..XZB4#,5# NO.1 |
4 | ||
| 90031-16069 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU NO.1 |
2 | ||
| 90031-16109 |
N04C..XZB4#,5# NO.1 |
2 | ||
| SZ126-08007 |
N04C..XZB4#,5# NO.2 |
2 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90031-16085 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU NO.2 |
2 | ||
| SZ126-10006 |
N04C..XZB4#,5# NO.1 |
4 | ||
| 90031-16069 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU NO.1 |
2 | ||
| 90031-16109 |
N04C..XZB4#,5# NO.1 |
2 | ||
| SZ126-08007 |
N04C..XZB4#,5# NO.2 |
2 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-78040 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU |
4 | ||
| S1710-41880 |
N04C..XZB4#,5# |
4 | ||
| S1710-41880 |
N04C..XZB4#,5# |
4 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-78040 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU |
4 | ||
| S1710-41880 |
N04C..XZB4#,5# |
4 | ||
| S1710-41880 |
N04C..XZB4#,5# |
4 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-78040 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU |
4 | ||
| S1710-41880 |
N04C..XZB4#,5# |
4 | ||
| S1710-41880 |
N04C..XZB4#,5# |
4 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-78040 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU |
4 | ||
| S1710-41880 |
N04C..XZB4#,5# |
4 | ||
| S1710-41880 |
N04C..XZB4#,5# |
4 | ||
| 17271 - INSULATOR, TURBO, NO.1 | ||||
| 17271-78050 |
N04C..XZB4#,5# *197 |
1 | ||
| 17271-78030 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
1 | ||
| 17271-78070 |
N04C..XZB4#,5# |
1 | ||
| 17271-E0310 |
N04C..XZB4#,5# NO.2 |
1 | ||
| 17271-E0320 |
N04C..XZB4#,5# NO.3 |
1 | ||
| 17271-E0300 |
N04C..XZB4#,5# NO.1 |
1 | ||
| 17271-E0320 |
N04C..XZB4#,5# NO.3 |
1 | ||
| 17271-E0310 |
N04C..XZB4#,5# NO.2 |
1 | ||
| 17271-E0300 |
N04C..XZB4#,5# NO.1 |
1 | ||
| 17277 - GASKET, COMPRESSOR OUTLET | ||||
| S2417-91430 |
N04C..XZB4#,5# |
1 | ||
| 17277-78010 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU |
1 | ||
| S2417-91430 |
N04C..XZB4#,5# |
1 | ||
| 17278 - GASKET, TURBO TO EXHAUST MANIFOLD | ||||
| S2410-91860 |
N04C..XZB4#,5# |
1 | ||
| 17278-78020 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU |
1 | ||
| S2410-91860 |
N04C..XZB4#,5# |
1 | ||
| 17279 - GASKET, TURBINE OUTLET ELBOW | ||||
| 90917-06087 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 *197 |
1 | ||
| 17278-78030 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
1 | ||
| 17291 - ELBOW, TURBINE OUTLET | ||||
| 17291-78100 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 *197 |
1 | ||
| 17291-78080 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
1 | ||
| 17293 - STAY, TURBOCHARGER | ||||
| 17455-78190 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU |
1 | ||
| Common parts | ||||
| 90031-01187 | ||||
| 90031-05123 | ||||
| 90031-05124 | ||||
| 90031-05125 | ||||
| 90031-05126 | ||||
| 90031-05131 | ||||
| 90031-05171 | ||||
| 90031-16055 | ||||
| 90031-16085 | ||||
| 90031-16086 | ||||
| 90031-16091 | ||||
| 90031-16107 | ||||
| 90031-19155 | ||||
| 90031-75001 | ||||
| 90031-75006 | ||||
| 90035-60055 | ||||
| 90035-60074 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 1703 | ||||
| 2501 | ||||

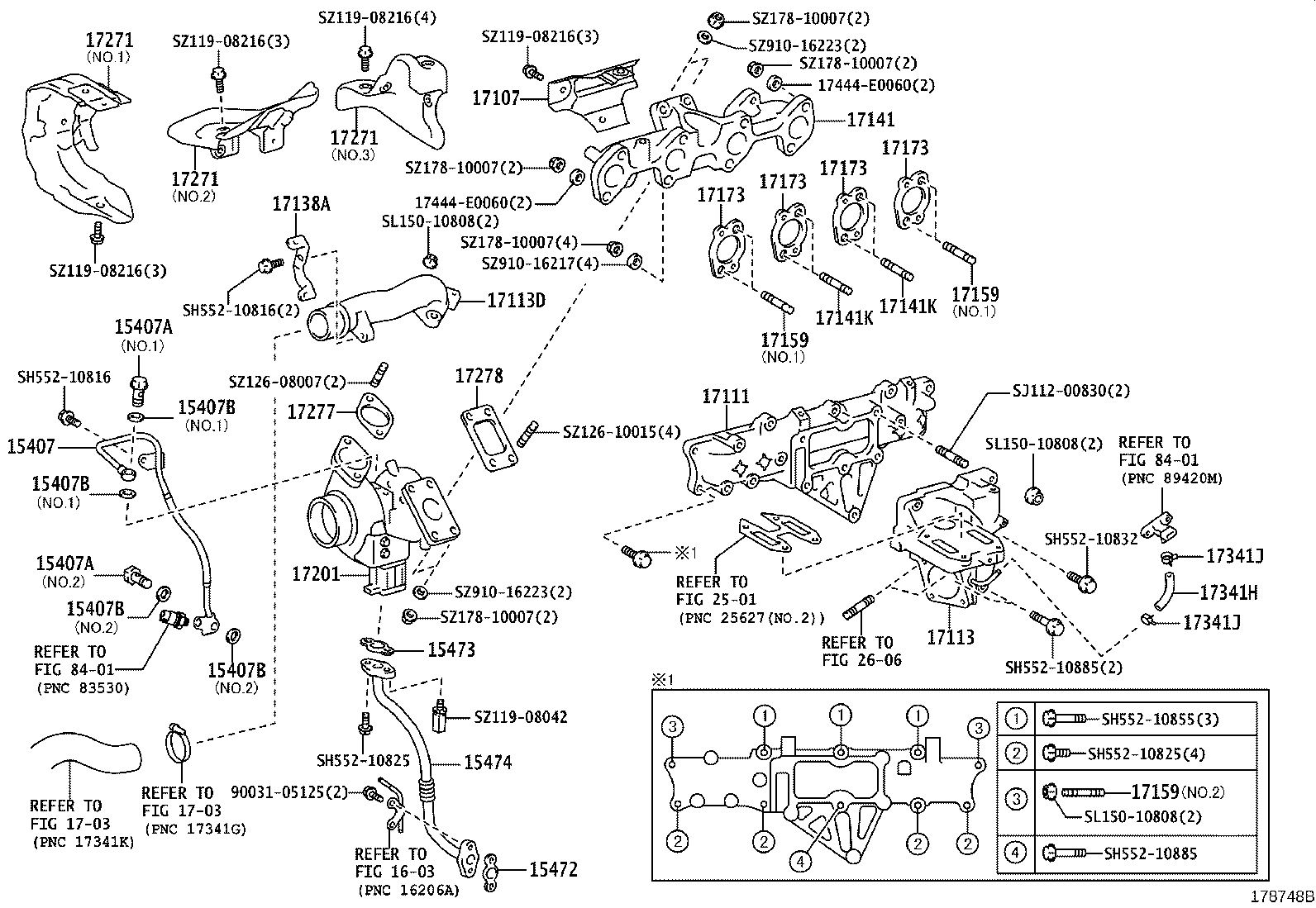

(1108-1501)N04C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15407 - PIPE SUB-ASSY, TURBO OIL INLET | ||||
| 15407-E0250 |
N04C..XZB4#,5# |
1 | ||
| 29601-78090 |
N04C..XZB4#,5#..DCR *197 |
1 | ||
| 15407-E0250 |
N04C..XZB4#,5# |
1 | ||
| 15407-E0252 |
N04C..XZB4#,5# |
1 | ||
| 29601-78100 |
N04C..XZB4#,5# *196 |
1 | ||
| 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) | ||||
| SZ401-12001 |
N04C..XZB4#,5# NO.1 |
1 | ||
| 90034-01010 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU NO.2 |
1 | ||
| 90031-09073 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU NO.1 |
1 | ||
| SZ401-14004 |
N04C..XZB4#,5# NO.2 |
1 | ||
| 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) | ||||
| SZ401-12001 |
N04C..XZB4#,5# NO.1 |
1 | ||
| 90034-01010 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU NO.2 |
1 | ||
| 90031-09073 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU NO.1 |
1 | ||
| SZ401-14004 |
N04C..XZB4#,5# NO.2 |
1 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90201-14014 |
N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5;N04C..XZB40,51..(26S,29S,39S)..CBU *197,NO.2 |
2 | ||
| 90202-14004 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196,NO.2 |
2 | ||
| 90201-12030 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU NO.1 |
2 | ||
| SL722-01210 |
N04C..XZB4#,5# NO.1 |
2 | ||
| SL722-01415 |
N04C..XZB4#,5# NO.2 |
2 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90201-14014 |
N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5;N04C..XZB40,51..(26S,29S,39S)..CBU *197,NO.2 |
2 | ||
| 90202-14004 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196,NO.2 |
2 | ||
| 90201-12030 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU NO.1 |
2 | ||
| SL722-01210 |
N04C..XZB4#,5# NO.1 |
2 | ||
| SL722-01415 |
N04C..XZB4#,5# NO.2 |
2 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90201-14014 |
N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5;N04C..XZB40,51..(26S,29S,39S)..CBU *197,NO.2 |
2 | ||
| 90202-14004 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196,NO.2 |
2 | ||
| 90201-12030 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU NO.1 |
2 | ||
| SL722-01210 |
N04C..XZB4#,5# NO.1 |
2 | ||
| SL722-01415 |
N04C..XZB4#,5# NO.2 |
2 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90201-14014 |
N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5;N04C..XZB40,51..(26S,29S,39S)..CBU *197,NO.2 |
2 | ||
| 90202-14004 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196,NO.2 |
2 | ||
| 90201-12030 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU NO.1 |
2 | ||
| SL722-01210 |
N04C..XZB4#,5# NO.1 |
2 | ||
| SL722-01415 |
N04C..XZB4#,5# NO.2 |
2 | ||
| 15472 - GASKET, TURBO OIL OUTLET, NO.1 | ||||
| 15472-78011 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
1 | ||
| S2413-51161 |
N04C..XZB4#,5# |
1 | ||
| 15472-78010 |
N04C..XZB4#,5# |
1 | ||
| S2413-51161 |
N04C..XZB4#,5# |
1 | ||
| 15473 - GASKET, TURBO OIL OUTLET, NO.2 | ||||
| 15471-78010 |
N04C..XZB4#,5# |
1 | ||
| S2413-51181 |
N04C..XZB4#,5# |
1 | ||
| 15471-78011 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 15472-E0050 |
N04C..XZB4#,5# |
1 | ||
| 15471-78011 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 |
2 | ||
| 15474 - PIPE, TURBO OIL OUTLET | ||||
| 29601-78120 |
N04C..XZB4#,5# *196 |
1 | ||
| 29601-78110 |
N04C..XZB4#,5# *197 |
1 | ||
| 15407-E0270 |
N04C..XZB4#,5# |
1 | ||
| 15407-E0270 |
N04C..XZB4#,5# |
1 | ||
| 17107 - INSULATOR SUB-ASSY, EXHAUST MANIFOLD HEAT | ||||
| 17107-78060 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 17107-E0012 |
N04C..XZB4#,5# |
1 | ||
| 17107-78061 |
N04C..XZB4#,5# *196 |
1 | ||
| 17107-78162 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 |
1 | ||
| 17107-78161 |
N04C..XZB4#,5# *197 |
1 | ||
| 17107-E0012 |
N04C..XZB4#,5# |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17111-78050 |
N04C..XZB4#,5# |
1 | ||
| 17111-E0351 |
N04C..XZB4#,5# |
1 | ||
| 17111-E0351 |
N04C..XZB4#,5# |
1 | ||
| 17111-E0352 |
N04C..XZB4#,5# |
1 | ||
| 17113 - PIPE, INTAKE | ||||
| 17113-78122 |
N04C..XZB4#,5# NO.2 |
1 | ||
| 17103-78101 |
N04C..XZB4#,5# NO.1 |
1 | ||
| 17103-78100 |
N04C..XZB4#,5# NO.1 |
1 | ||
| 17103-E0J90 |
N04C..XZB4#,5# |
1 | ||
| 17113-78121 |
N04C..XZB4#,5# NO.2 |
1 | ||
| 17103-78140 |
N04C..XZB4#,5# |
1 | ||
| 17113D - PIPE, INTAKE, NO.1 | ||||
| 17113-78201 |
N04C..XZB4#,5# *196 |
1 | ||
| 17113-78200 |
N04C..XZB4#,5# |
1 | ||
| 17113-E0Y80 |
N04C..XZB4#,5# |
1 | ||
| 17113-78312 |
N04C..XZB4#,5#..DCR *197 |
1 | ||
| 17113-E0Y80 |
N04C..XZB4#,5# |
1 | ||
| 17138A - STAY, INTAKE PIPE | ||||
| 17138-78160 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
1 | ||
| 17138-E0441 |
N04C..XZB4#,5# |
1 | ||
| 17138-78281 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 *197 |
1 | ||
| 17138-E0441 |
N04C..XZB4#,5# |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-78081 |
N04C..XZB4#,5#..(DX,EX,GX,LX,STD)..(4FC,5F,6F) *196 |
1 | ||
| 17141-E0370 |
N04C..XZB4#,5#..DCR |
1 | ||
| 17141-78100 |
N04C..XZB50..WC..DCR;N04C..XZB40..6FC..IV5;N04C..XZB4#,51,56..DCR..CBU *197 |
1 | ||
| 17141-E0370 |
N04C..XZB4#,5#..DCR |
1 | ||
| 17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD) | ||||
| SZ126-10012 |
N04C..XZB4#,5# |
4 | ||
| 90031-16069 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
6 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90031-16085 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU NO.2 |
2 | ||
| SZ126-10006 |
N04C..XZB4#,5# NO.1 |
4 | ||
| 90031-16069 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU NO.1 |
2 | ||
| 90031-16109 |
N04C..XZB4#,5# NO.1 |
2 | ||
| SZ126-08007 |
N04C..XZB4#,5# NO.2 |
2 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90031-16085 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU NO.2 |
2 | ||
| SZ126-10006 |
N04C..XZB4#,5# NO.1 |
4 | ||
| 90031-16069 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU NO.1 |
2 | ||
| 90031-16109 |
N04C..XZB4#,5# NO.1 |
2 | ||
| SZ126-08007 |
N04C..XZB4#,5# NO.2 |
2 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90031-16085 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU NO.2 |
2 | ||
| SZ126-10006 |
N04C..XZB4#,5# NO.1 |
4 | ||
| 90031-16069 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU NO.1 |
2 | ||
| 90031-16109 |
N04C..XZB4#,5# NO.1 |
2 | ||
| SZ126-08007 |
N04C..XZB4#,5# NO.2 |
2 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-78040 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU |
4 | ||
| S1710-41880 |
N04C..XZB4#,5# |
4 | ||
| S1710-41880 |
N04C..XZB4#,5# |
4 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-78040 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU |
4 | ||
| S1710-41880 |
N04C..XZB4#,5# |
4 | ||
| S1710-41880 |
N04C..XZB4#,5# |
4 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-78040 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU |
4 | ||
| S1710-41880 |
N04C..XZB4#,5# |
4 | ||
| S1710-41880 |
N04C..XZB4#,5# |
4 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-78040 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU |
4 | ||
| S1710-41880 |
N04C..XZB4#,5# |
4 | ||
| S1710-41880 |
N04C..XZB4#,5# |
4 | ||
| 17201 - TURBOCHARGER SUB-ASSY | ||||
| 17201-78080 |
N04C..XZB4#,5# |
1 | ||
| 17201-78100 |
N04C..XZB4#,5#..4FC,5F,6F *196 |
1 | ||
| 17201-78212 |
N04C..XZB4#,5#..DCR |
1 | ||
| 17201-78210 |
N04C..XZB4#,5#..DCR *197 |
1 | ||
| 17201-78211 |
N04C..XZB4#,5#..DCR |
1 | ||
| 17201-E0761 |
N04C..XZB4#,5#..DCR |
1 | ||
| 17201-E0760 |
N04C..XZB4#,5#..DCR |
1 | ||
| 17201-E0762 |
N04C..XZB4#,5#..DCR |
1 | ||
| 17201-E0763 |
N04C..XZB4#,5#..DCR |
1 | ||
| 17201-78213 |
N04C..XZB4#,5#..DCR |
1 | ||
| 17201-E0764 |
N04C..XZB4#,5#..DCR |
1 | ||
| 17201-E0763 |
N04C..XZB4#,5#..DCR |
1 | ||
| 17201-E0765 |
N04C..XZB4#,5#..DCR |
1 | ||
| 17271 - INSULATOR, TURBO, NO.1 | ||||
| 17271-78050 |
N04C..XZB4#,5# *197 |
1 | ||
| 17271-78030 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
1 | ||
| 17271-78070 |
N04C..XZB4#,5# |
1 | ||
| 17271-E0310 |
N04C..XZB4#,5# NO.2 |
1 | ||
| 17271-E0320 |
N04C..XZB4#,5# NO.3 |
1 | ||
| 17271-E0300 |
N04C..XZB4#,5# NO.1 |
1 | ||
| 17271-E0320 |
N04C..XZB4#,5# NO.3 |
1 | ||
| 17271-E0310 |
N04C..XZB4#,5# NO.2 |
1 | ||
| 17271-E0300 |
N04C..XZB4#,5# NO.1 |
1 | ||
| 17271 - INSULATOR, TURBO, NO.1 | ||||
| 17271-78050 |
N04C..XZB4#,5# *197 |
1 | ||
| 17271-78030 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
1 | ||
| 17271-78070 |
N04C..XZB4#,5# |
1 | ||
| 17271-E0310 |
N04C..XZB4#,5# NO.2 |
1 | ||
| 17271-E0320 |
N04C..XZB4#,5# NO.3 |
1 | ||
| 17271-E0300 |
N04C..XZB4#,5# NO.1 |
1 | ||
| 17271-E0320 |
N04C..XZB4#,5# NO.3 |
1 | ||
| 17271-E0310 |
N04C..XZB4#,5# NO.2 |
1 | ||
| 17271-E0300 |
N04C..XZB4#,5# NO.1 |
1 | ||
| 17271 - INSULATOR, TURBO, NO.1 | ||||
| 17271-78050 |
N04C..XZB4#,5# *197 |
1 | ||
| 17271-78030 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
1 | ||
| 17271-78070 |
N04C..XZB4#,5# |
1 | ||
| 17271-E0310 |
N04C..XZB4#,5# NO.2 |
1 | ||
| 17271-E0320 |
N04C..XZB4#,5# NO.3 |
1 | ||
| 17271-E0300 |
N04C..XZB4#,5# NO.1 |
1 | ||
| 17271-E0320 |
N04C..XZB4#,5# NO.3 |
1 | ||
| 17271-E0310 |
N04C..XZB4#,5# NO.2 |
1 | ||
| 17271-E0300 |
N04C..XZB4#,5# NO.1 |
1 | ||
| 17277 - GASKET, COMPRESSOR OUTLET | ||||
| S2417-91430 |
N04C..XZB4#,5# |
1 | ||
| 17277-78010 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU |
1 | ||
| S2417-91430 |
N04C..XZB4#,5# |
1 | ||
| 17278 - GASKET, TURBO TO EXHAUST MANIFOLD | ||||
| S2410-91860 |
N04C..XZB4#,5# |
1 | ||
| 17278-78020 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU |
1 | ||
| S2410-91860 |
N04C..XZB4#,5# |
1 | ||
| 17341H - HOSE, AIR | ||||
| SZ920-33B09 |
N04C..XZB4#,5# |
1 | ||
| SZ920-33B09 |
N04C..XZB4#,5# |
1 | ||
| 17341J - CLAMP, HOSE | ||||
| SZ466-12003 |
N04C..XZB4#,5# |
2 | ||
| 90034-67024 |
N04C..XZB4#,5# |
2 | ||
| 17341J - CLAMP, HOSE | ||||
| SZ466-12003 |
N04C..XZB4#,5# |
2 | ||
| 90034-67024 |
N04C..XZB4#,5# |
2 | ||
| Common parts | ||||
| 17444-78160 | ||||
| 90031-01187 | ||||
| 90031-05123 | ||||
| 90031-05125 | ||||
| 90031-05126 | ||||
| 90031-05131 | ||||
| 90031-05137 | ||||
| 90031-16055 | ||||
| 90031-16085 | ||||
| 90031-16091 | ||||
| 90031-19155 | ||||
| 90031-75001 | ||||
| 90031-75006 | ||||
| 90035-60055 | ||||
| 90035-60074 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 1703 | ||||
| 2501 | ||||
| 2606 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(0708-1108)N04C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17039 - LINK SET, TURBOCHARGER VANE CONTROL | ||||
| S1190-E0L01 |
N04C..XZB4#,5#..DCR *197 |
1 | ||
| S1190-E0L01 |
N04C..XZB50..WC..DCR;N04C..XZB40..6FC..IV5;N04C..XZB4#,51,56..DCR..CBU |
1 | ||
| 17201 - TURBOCHARGER SUB-ASSY | ||||
| 17201-78080 |
N04C..XZB4#,5# |
1 | ||
| 17201-78100 |
N04C..XZB4#,5#..4FC,5F,6F *196 |
1 | ||
| 17201-78212 |
N04C..XZB4#,5#..DCR |
1 | ||
| 17201-78210 |
N04C..XZB4#,5#..DCR *197 |
1 | ||
| 17201-78211 |
N04C..XZB4#,5#..DCR |
1 | ||
| 17201-E0761 |
N04C..XZB4#,5#..DCR |
1 | ||
| 17201-E0760 |
N04C..XZB4#,5#..DCR |
1 | ||
| 17201-E0762 |
N04C..XZB4#,5#..DCR |
1 | ||
| 17201-E0763 |
N04C..XZB4#,5#..DCR |
1 | ||
| 17201-78213 |
N04C..XZB4#,5#..DCR |
1 | ||
| 17201-E0764 |
N04C..XZB4#,5#..DCR |
1 | ||
| 17201-E0763 |
N04C..XZB4#,5#..DCR |
1 | ||
| 17201-E0765 |
N04C..XZB4#,5#..DCR |
1 | ||
| 17269 - BUSH, TURBOCHARGER NOZZLE VANE CONTROL | ||||
| 17269-E0010 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 |
2 | ||
| 17269-E0010 |
N04C..XZB4#,5# *197 |
2 | ||
| 17269 - BUSH, TURBOCHARGER NOZZLE VANE CONTROL | ||||
| 17269-E0010 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 |
2 | ||
| 17269-E0010 |
N04C..XZB4#,5# *197 |
2 | ||
| 17269A - RING, RETAINER(FOR TURBOCHARGER) | ||||
| 21794-E0010 |
N04C..XZB4#,5# *197 |
2 | ||
| 21794-E0010 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 |
2 | ||
| 17269A - RING, RETAINER(FOR TURBOCHARGER) | ||||
| 21794-E0010 |
N04C..XZB4#,5# *197 |
2 | ||
| 21794-E0010 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 |
2 | ||

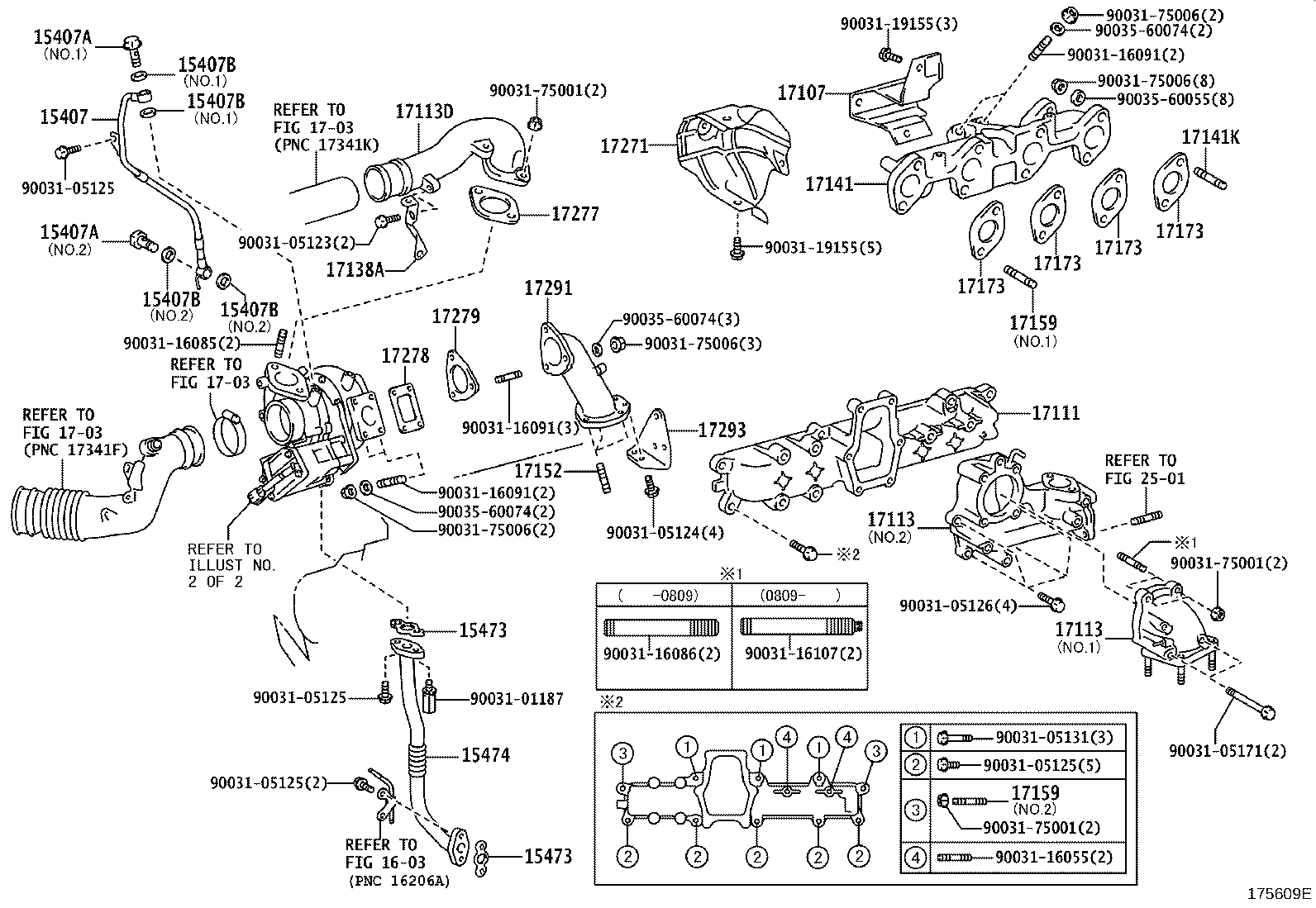

(1501- )N04C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15407 - PIPE SUB-ASSY, TURBO OIL INLET | ||||
| 15407-E0250 |
N04C..XZB4#,5# |
1 | ||
| 29601-78090 |
N04C..XZB4#,5#..DCR *197 |
1 | ||
| 15407-E0250 |
N04C..XZB4#,5# |
1 | ||
| 15407-E0252 |
N04C..XZB4#,5# |
1 | ||
| 29601-78100 |
N04C..XZB4#,5# *196 |
1 | ||
| 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) | ||||
| SZ401-12001 |
N04C..XZB4#,5# NO.1 |
1 | ||
| 90034-01010 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU NO.2 |
1 | ||
| 90031-09073 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU NO.1 |
1 | ||
| SZ401-14004 |
N04C..XZB4#,5# NO.2 |
1 | ||
| 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) | ||||
| SZ401-12001 |
N04C..XZB4#,5# NO.1 |
1 | ||
| 90034-01010 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU NO.2 |
1 | ||
| 90031-09073 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU NO.1 |
1 | ||
| SZ401-14004 |
N04C..XZB4#,5# NO.2 |
1 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90201-14014 |
N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5;N04C..XZB40,51..(26S,29S,39S)..CBU *197,NO.2 |
2 | ||
| 90202-14004 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196,NO.2 |
2 | ||
| 90201-12030 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU NO.1 |
2 | ||
| SL722-01210 |
N04C..XZB4#,5# NO.1 |
2 | ||
| SL722-01415 |
N04C..XZB4#,5# NO.2 |
2 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90201-14014 |
N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5;N04C..XZB40,51..(26S,29S,39S)..CBU *197,NO.2 |
2 | ||
| 90202-14004 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196,NO.2 |
2 | ||
| 90201-12030 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU NO.1 |
2 | ||
| SL722-01210 |
N04C..XZB4#,5# NO.1 |
2 | ||
| SL722-01415 |
N04C..XZB4#,5# NO.2 |
2 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90201-14014 |
N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5;N04C..XZB40,51..(26S,29S,39S)..CBU *197,NO.2 |
2 | ||
| 90202-14004 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196,NO.2 |
2 | ||
| 90201-12030 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU NO.1 |
2 | ||
| SL722-01210 |
N04C..XZB4#,5# NO.1 |
2 | ||
| SL722-01415 |
N04C..XZB4#,5# NO.2 |
2 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90201-14014 |
N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5;N04C..XZB40,51..(26S,29S,39S)..CBU *197,NO.2 |
2 | ||
| 90202-14004 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196,NO.2 |
2 | ||
| 90201-12030 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU NO.1 |
2 | ||
| SL722-01210 |
N04C..XZB4#,5# NO.1 |
2 | ||
| SL722-01415 |
N04C..XZB4#,5# NO.2 |
2 | ||
| 15472 - GASKET, TURBO OIL OUTLET, NO.1 | ||||
| 15472-78011 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
1 | ||
| S2413-51161 |
N04C..XZB4#,5# |
1 | ||
| 15472-78010 |
N04C..XZB4#,5# |
1 | ||
| S2413-51161 |
N04C..XZB4#,5# |
1 | ||
| 15473 - GASKET, TURBO OIL OUTLET, NO.2 | ||||
| 15471-78010 |
N04C..XZB4#,5# |
1 | ||
| S2413-51181 |
N04C..XZB4#,5# |
1 | ||
| 15471-78011 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 15472-E0050 |
N04C..XZB4#,5# |
1 | ||
| 15471-78011 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 |
2 | ||
| 15474 - PIPE, TURBO OIL OUTLET | ||||
| 29601-78120 |
N04C..XZB4#,5# *196 |
1 | ||
| 29601-78110 |
N04C..XZB4#,5# *197 |
1 | ||
| 15407-E0270 |
N04C..XZB4#,5# |
1 | ||
| 15407-E0270 |
N04C..XZB4#,5# |
1 | ||
| 17107 - INSULATOR SUB-ASSY, EXHAUST MANIFOLD HEAT | ||||
| 17107-78060 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 17107-E0012 |
N04C..XZB4#,5# |
1 | ||
| 17107-78061 |
N04C..XZB4#,5# *196 |
1 | ||
| 17107-78162 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 |
1 | ||
| 17107-78161 |
N04C..XZB4#,5# *197 |
1 | ||
| 17107-E0012 |
N04C..XZB4#,5# |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17111-78050 |
N04C..XZB4#,5# |
1 | ||
| 17111-E0351 |
N04C..XZB4#,5# |
1 | ||
| 17111-E0351 |
N04C..XZB4#,5# |
1 | ||
| 17111-E0352 |
N04C..XZB4#,5# |
1 | ||
| 17113 - PIPE, INTAKE | ||||
| 17113-78122 |
N04C..XZB4#,5# NO.2 |
1 | ||
| 17103-78101 |
N04C..XZB4#,5# NO.1 |
1 | ||
| 17103-78100 |
N04C..XZB4#,5# NO.1 |
1 | ||
| 17103-E0J90 |
N04C..XZB4#,5# |
1 | ||
| 17113-78121 |
N04C..XZB4#,5# NO.2 |
1 | ||
| 17103-78140 |
N04C..XZB4#,5# |
1 | ||
| 17113D - PIPE, INTAKE, NO.1 | ||||
| 17113-78201 |
N04C..XZB4#,5# *196 |
1 | ||
| 17113-78200 |
N04C..XZB4#,5# |
1 | ||
| 17113-E0Y80 |
N04C..XZB4#,5# |
1 | ||
| 17113-78312 |
N04C..XZB4#,5#..DCR *197 |
1 | ||
| 17113-E0Y80 |
N04C..XZB4#,5# |
1 | ||
| 17138A - STAY, INTAKE PIPE | ||||
| 17138-78160 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
1 | ||
| 17138-E0441 |
N04C..XZB4#,5# |
1 | ||
| 17138-78281 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 *197 |
1 | ||
| 17138-E0441 |
N04C..XZB4#,5# |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-78081 |
N04C..XZB4#,5#..(DX,EX,GX,LX,STD)..(4FC,5F,6F) *196 |
1 | ||
| 17141-E0370 |
N04C..XZB4#,5#..DCR |
1 | ||
| 17141-78100 |
N04C..XZB50..WC..DCR;N04C..XZB40..6FC..IV5;N04C..XZB4#,51,56..DCR..CBU *197 |
1 | ||
| 17141-E0370 |
N04C..XZB4#,5#..DCR |
1 | ||
| 17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD) | ||||
| SZ126-10012 |
N04C..XZB4#,5# |
4 | ||
| 90031-16069 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
6 | ||
| 17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD) | ||||
| SZ126-10012 |
N04C..XZB4#,5# |
4 | ||
| 90031-16069 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
6 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90031-16085 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU NO.2 |
2 | ||
| SZ126-10006 |
N04C..XZB4#,5# NO.1 |
4 | ||
| 90031-16069 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU NO.1 |
2 | ||
| 90031-16109 |
N04C..XZB4#,5# NO.1 |
2 | ||
| SZ126-08007 |
N04C..XZB4#,5# NO.2 |
2 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90031-16085 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU NO.2 |
2 | ||
| SZ126-10006 |
N04C..XZB4#,5# NO.1 |
4 | ||
| 90031-16069 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU NO.1 |
2 | ||
| 90031-16109 |
N04C..XZB4#,5# NO.1 |
2 | ||
| SZ126-08007 |
N04C..XZB4#,5# NO.2 |
2 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90031-16085 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU NO.2 |
2 | ||
| SZ126-10006 |
N04C..XZB4#,5# NO.1 |
4 | ||
| 90031-16069 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU NO.1 |
2 | ||
| 90031-16109 |
N04C..XZB4#,5# NO.1 |
2 | ||
| SZ126-08007 |
N04C..XZB4#,5# NO.2 |
2 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-78040 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU |
4 | ||
| S1710-41880 |
N04C..XZB4#,5# |
4 | ||
| S1710-41880 |
N04C..XZB4#,5# |
4 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-78040 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU |
4 | ||
| S1710-41880 |
N04C..XZB4#,5# |
4 | ||
| S1710-41880 |
N04C..XZB4#,5# |
4 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-78040 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU |
4 | ||
| S1710-41880 |
N04C..XZB4#,5# |
4 | ||
| S1710-41880 |
N04C..XZB4#,5# |
4 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-78040 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU |
4 | ||
| S1710-41880 |
N04C..XZB4#,5# |
4 | ||
| S1710-41880 |
N04C..XZB4#,5# |
4 | ||
| 17201 - TURBOCHARGER SUB-ASSY | ||||
| 17201-78080 |
N04C..XZB4#,5# |
1 | ||
| 17201-78100 |
N04C..XZB4#,5#..4FC,5F,6F *196 |
1 | ||
| 17201-78212 |
N04C..XZB4#,5#..DCR |
1 | ||
| 17201-78210 |
N04C..XZB4#,5#..DCR *197 |
1 | ||
| 17201-78211 |
N04C..XZB4#,5#..DCR |
1 | ||
| 17201-E0761 |
N04C..XZB4#,5#..DCR |
1 | ||
| 17201-E0760 |
N04C..XZB4#,5#..DCR |
1 | ||
| 17201-E0762 |
N04C..XZB4#,5#..DCR |
1 | ||
| 17201-E0763 |
N04C..XZB4#,5#..DCR |
1 | ||
| 17201-78213 |
N04C..XZB4#,5#..DCR |
1 | ||
| 17201-E0764 |
N04C..XZB4#,5#..DCR |
1 | ||
| 17201-E0763 |
N04C..XZB4#,5#..DCR |
1 | ||
| 17201-E0765 |
N04C..XZB4#,5#..DCR |
1 | ||
| 17271 - INSULATOR, TURBO, NO.1 | ||||
| 17271-78050 |
N04C..XZB4#,5# *197 |
1 | ||
| 17271-78030 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
1 | ||
| 17271-78070 |
N04C..XZB4#,5# |
1 | ||
| 17271-E0310 |
N04C..XZB4#,5# NO.2 |
1 | ||
| 17271-E0320 |
N04C..XZB4#,5# NO.3 |
1 | ||
| 17271-E0300 |
N04C..XZB4#,5# NO.1 |
1 | ||
| 17271-E0320 |
N04C..XZB4#,5# NO.3 |
1 | ||
| 17271-E0310 |
N04C..XZB4#,5# NO.2 |
1 | ||
| 17271-E0300 |
N04C..XZB4#,5# NO.1 |
1 | ||
| 17271 - INSULATOR, TURBO, NO.1 | ||||
| 17271-78050 |
N04C..XZB4#,5# *197 |
1 | ||
| 17271-78030 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
1 | ||
| 17271-78070 |
N04C..XZB4#,5# |
1 | ||
| 17271-E0310 |
N04C..XZB4#,5# NO.2 |
1 | ||
| 17271-E0320 |
N04C..XZB4#,5# NO.3 |
1 | ||
| 17271-E0300 |
N04C..XZB4#,5# NO.1 |
1 | ||
| 17271-E0320 |
N04C..XZB4#,5# NO.3 |
1 | ||
| 17271-E0310 |
N04C..XZB4#,5# NO.2 |
1 | ||
| 17271-E0300 |
N04C..XZB4#,5# NO.1 |
1 | ||
| 17271 - INSULATOR, TURBO, NO.1 | ||||
| 17271-78050 |
N04C..XZB4#,5# *197 |
1 | ||
| 17271-78030 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196 |
1 | ||
| 17271-78070 |
N04C..XZB4#,5# |
1 | ||
| 17271-E0310 |
N04C..XZB4#,5# NO.2 |
1 | ||
| 17271-E0320 |
N04C..XZB4#,5# NO.3 |
1 | ||
| 17271-E0300 |
N04C..XZB4#,5# NO.1 |
1 | ||
| 17271-E0320 |
N04C..XZB4#,5# NO.3 |
1 | ||
| 17271-E0310 |
N04C..XZB4#,5# NO.2 |
1 | ||
| 17271-E0300 |
N04C..XZB4#,5# NO.1 |
1 | ||
| 17277 - GASKET, COMPRESSOR OUTLET | ||||
| S2417-91430 |
N04C..XZB4#,5# |
1 | ||
| 17277-78010 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU |
1 | ||
| S2417-91430 |
N04C..XZB4#,5# |
1 | ||
| 17278 - GASKET, TURBO TO EXHAUST MANIFOLD | ||||
| S2410-91860 |
N04C..XZB4#,5# |
1 | ||
| 17278-78020 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU |
1 | ||
| S2410-91860 |
N04C..XZB4#,5# |
1 | ||
| 17341H - HOSE, AIR | ||||
| SZ920-33B09 |
N04C..XZB4#,5# |
1 | ||
| SZ920-33B09 |
N04C..XZB4#,5# |
1 | ||
| 17341J - CLAMP, HOSE | ||||
| SZ466-12003 |
N04C..XZB4#,5# |
2 | ||
| 90034-67024 |
N04C..XZB4#,5# |
2 | ||
| 17341J - CLAMP, HOSE | ||||
| SZ466-12003 |
N04C..XZB4#,5# |
2 | ||
| 90034-67024 |
N04C..XZB4#,5# |
2 | ||
| Common parts | ||||
| 17444-E0060 | ||||
| 90031-05125 | ||||
| SH552-10816 | ||||
| SH552-10825 | ||||
| SH552-10832 | ||||
| SH552-10855 | ||||
| SH552-10885 | ||||
| SJ112-00830 | ||||
| SL150-10808 | ||||
| SZ119-08042 | ||||
| SZ119-08216 | ||||
| SZ126-08007 | ||||
| SZ126-10015 | ||||
| SZ178-10007 | ||||
| SZ910-16217 | ||||
| SZ910-16223 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 1703 | ||||
| 2501 | ||||
| 2606 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
