XZB40-ZRMEY (2004)
Toyota Coaster
(0803-1008)N04C ; (1008-1106)N04C..6FC

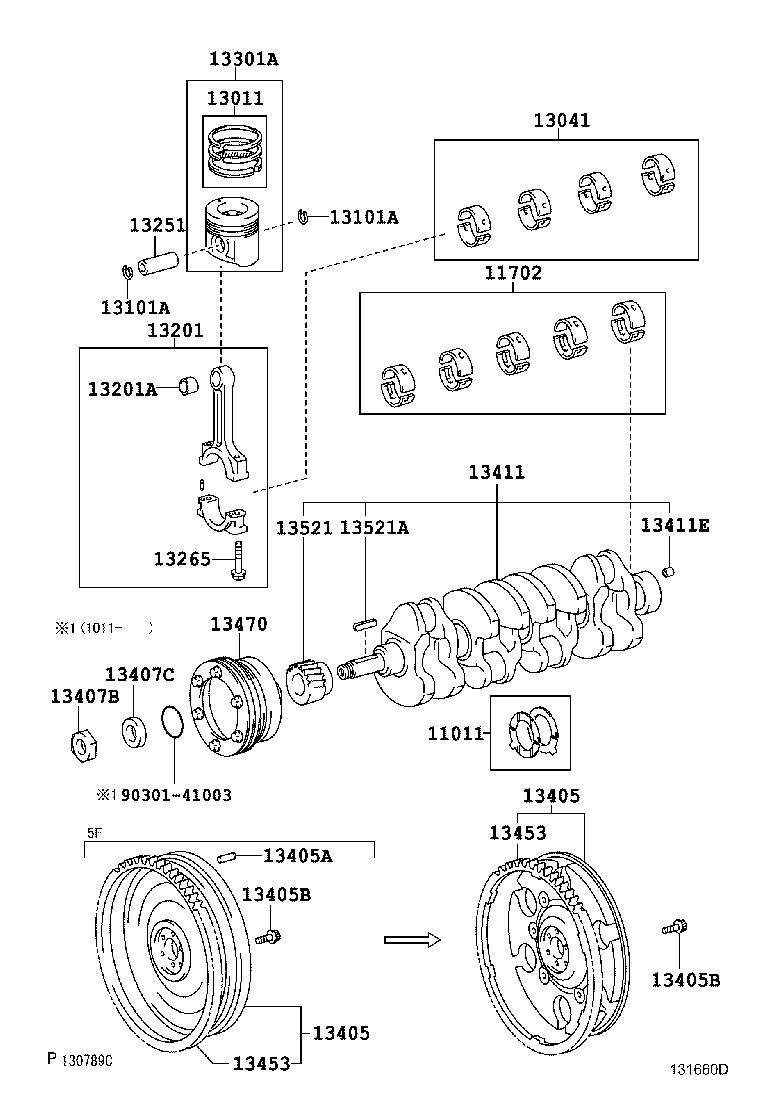

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-78010 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU STD |
1 | ||
| 11011-E0030 |
N04C..XZB4#,5#..DX,EX,GX,LX,STD STD |
1 | ||
| 11011-E0030 |
N04C..XZB4#,5# STD |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11701-78100 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU STD |
1 | ||
| 11708-78020 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU U/S 0.50 |
1 | ||
| 11708-78030 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU U/S 0.75 |
1 | ||
| 11701-E0040 |
N04C..XZB4#,5#..DX,EX,GX,LX,STD STD |
1 | ||
| 11707-E0010 |
N04C..XZB4#,5# U/S 1.00 |
1 | ||
| 11705-E0010 |
N04C..XZB4#,5# U/S 0.50 |
1 | ||
| 11708-78010 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU U/S 0.25 |
1 | ||
| 11706-E0010 |
N04C..XZB4#,5# U/S 0.75 |
1 | ||
| 11701-E0070 |
N04C..XZB4#,5# STD |
1 | ||
| 11708-78040 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU U/S 1.00 |
1 | ||
| 11701-E0070 |
N04C..XZB4#,5# STD |
1 | ||
| 11704-E0040 |
N04C..XZB4#,5# U/S 0.25 |
1 | ||
| 11705-E0040 |
N04C..XZB4#,5# U/S 0.50 |
1 | ||
| 11707-E0020 |
N04C..XZB4#,5# U/S 1.00 |
1 | ||
| 11704-E0010 |
N04C..XZB4#,5# U/S 0.25 |
1 | ||
| 11706-E0020 |
N04C..XZB4#,5# U/S 0.75 |
1 | ||
| 11704-E0040 |
N04C..XZB4#,5# U/S 0.25 |
1 | ||
| 11705-E0040 |
N04C..XZB4#,5# U/S 0.50 |
1 | ||
| 11706-E0020 |
N04C..XZB4#,5# U/S 0.75 |
1 | ||
| 11707-E0020 |
N04C..XZB4#,5# U/S 1.00 |
1 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-78230 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..DCR..(5F,6FC);N04C..XZB4#,51,56..DCR..(5F,6FC)..CBU STD |
4 | ||
| 13011-78190 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD STD |
4 | ||
| S1304-E0020 |
N04C..XZB4#,5# STD |
4 | ||
| S1304-E0020 |
N04C..XZB4#,5#..DCR STD |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-78060 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU |
1 | ||
| 13041-E0610 |
N04C..XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 13041-E0690 |
N04C..XZB4#,5# |
1 | ||
| 13041-E0690 |
N04C..XZB4#,5# |
1 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| SZ520-37001 |
N04C..XZB4#,5# |
8 | ||
| 90035-21020 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
8 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| SZ520-37001 |
N04C..XZB4#,5# |
8 | ||
| 90035-21020 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13260-E0050 |
N04C..XZB4#,5#..DX,EX,GX,LX,STD |
4 | ||
| 13260-E0050 |
N04C..XZB4#,5# |
4 | ||
| 13201-78030 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU |
4 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| S1327-21400 |
N04C..XZB4#,5#..DX,EX,GX,LX,STD |
4 | ||
| 13271-89102 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU |
4 | ||
| S1327-21400 |
N04C..XZB4#,5# |
4 | ||
| 13251 - PIN, PISTON | ||||
| 13251-E0070 |
N04C..XZB4#,5#..DCR |
4 | ||
| 13251-89101 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..DCR..(5F,6FC);N04C..XZB4#,51,56..DCR..(5F,6FC)..CBU |
4 | ||
| 13251-E0120 |
N04C..XZB4#,5# |
4 | ||
| 13251-E0120 |
N04C..XZB4#,5# |
4 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-89103 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
8 | ||
| 13265-E0010 |
N04C..XZB4#,5# |
8 | ||
| 13301A - PISTON SET, W/PISTON RING | ||||
| 13301-78010 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..DCR..(5F,6FC);N04C..XZB4#,51,56..DCR..(5F,6FC)..CBU |
4 | ||
| S130B-E0M50 |
N04C..XZB4#,5#..DCR |
4 | ||
| S130B-E0140 |
N04C..XZB4#,5#..DCR |
4 | ||
| S130B-E0140 |
N04C..XZB4#,5#..DCR |
4 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13450-78060 |
N04C..XZB40,50,51..MTM |
1 | ||
| 13450-78062 |
N04C..XZB50..WC..5F;N04C..XZB40,51..5F..CBU |
1 | ||
| 13450-78061 |
N04C..XZB40,50,51..5F |
1 | ||
| 13450-E0L50 |
N04C..XZB40,50,51..5F |
1 | ||
| 13450-78120 |
N04C..XZB40,50,51..5F |
1 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13450-78060 |
N04C..XZB40,50,51..MTM |
1 | ||
| 13450-78062 |
N04C..XZB50..WC..5F;N04C..XZB40,51..5F..CBU |
1 | ||
| 13450-78061 |
N04C..XZB40,50,51..5F |
1 | ||
| 13450-E0L50 |
N04C..XZB40,50,51..5F |
1 | ||
| 13450-78120 |
N04C..XZB40,50,51..5F |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| SM212-01024 |
N04C..XZB40,50,51..5F 長さ=24,外径=10 |
2 | ||
| 90250-10008 |
N04C..XZB50..WC..5F;N04C..XZB40,51..5F..CBU 長さ=24,外径=10 |
2 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90031-05112 |
N04C..XZB40,50,51..5F |
8 | ||
| S1345-51820 |
N04C..XZB40,50,51..5F |
8 | ||
| 90031-05112 |
N04C..XZB50..WC..5F;N04C..XZB40,51..5F..CBU |
6 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90031-05112 |
N04C..XZB40,50,51..5F |
8 | ||
| S1345-51820 |
N04C..XZB40,50,51..5F |
8 | ||
| 90031-05112 |
N04C..XZB50..WC..5F;N04C..XZB40,51..5F..CBU |
6 | ||
| 13407B - NUT, HEXAGON(FOR CRANKSHAFT DAMPER) | ||||
| SZ170-27001 |
N04C..XZB4#,5# |
1 | ||
| 90170-27001 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 13407C - SPACER(FOR CRANKSHAFT DAMPER) | ||||
| SZ910-16034 |
N04C..XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 13478-78020 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 |
1 | ||
| SZ910-16034 |
N04C..XZB4#,5# |
1 | ||
| 90560-27006 |
N04C..XZB4#,5#..5F,6FC |
1 | ||
| 13411 - CRANKSHAFT | ||||
| 13400-78080 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 |
1 | ||
| 13411-78011 |
N04C..XZB4#,5#..5F,6FC |
1 | ||
| 13411-78081 |
N04C..XZB40,50,51..5F |
1 | ||
| 13411-E0071 |
N04C..XZB4#,5# |
1 | ||
| 13411E - COLLAR(FOR CRANKSHAFT) | ||||
| 90387-14013 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| SZ910-29013 |
N04C..XZB4#,5# |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-78020 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 |
1 | ||
| 13453-E0080 |
N04C..XZB4#,5# |
1 | ||
| 13453-89102 |
N04C..XZB4#,5#..5F,6FC |
1 | ||
| 13453-E0080 |
N04C..XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-78020 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 |
1 | ||
| 13453-E0080 |
N04C..XZB4#,5# |
1 | ||
| 13453-89102 |
N04C..XZB4#,5#..5F,6FC |
1 | ||
| 13453-E0080 |
N04C..XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 13470 - PULLEY ASSY, CRANKSHAFT | ||||
| 13470-78170 |
N04C..XZB4#,5# |
1 | ||
| 13470-78150 |
N04C..XZB4#,5# |
1 | ||
| 13470-E0361 |
N04C..XZB4#,5# |
1 | ||
| 13470-78171 |
N04C..XZB4#,5# |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-78090 |
N04C..XZB40,50,51..5F |
1 | ||
| S1352-11660 |
N04C..XZB40,50,51..5F |
1 | ||
| S1352-11660 |
N04C..XZB4#,5# |
1 | ||
| 13521-78090 |
N04C..XZB50..WC..5F;N04C..XZB40,51..5F..CBU |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 90281-06001 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU |
1 | ||
| 90032-81009 |
N04C..XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| SM171-01028 |
N04C..XZB4#,5# |
1 | ||
| Common parts | ||||
| 90301-41003 | ||||
(0408-0803)N04C ; (1008-1106)N04C..XZB40,50,51..5F ; (1106- )N04C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-78010 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU STD |
1 | ||
| 11011-E0030 |
N04C..XZB4#,5#..DX,EX,GX,LX,STD STD |
1 | ||
| 11011-E0030 |
N04C..XZB4#,5# STD |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11701-78100 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU STD |
1 | ||
| 11708-78020 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU U/S 0.50 |
1 | ||
| 11708-78030 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU U/S 0.75 |
1 | ||
| 11701-E0040 |
N04C..XZB4#,5#..DX,EX,GX,LX,STD STD |
1 | ||
| 11707-E0010 |
N04C..XZB4#,5# U/S 1.00 |
1 | ||
| 11705-E0010 |
N04C..XZB4#,5# U/S 0.50 |
1 | ||
| 11708-78010 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU U/S 0.25 |
1 | ||
| 11706-E0010 |
N04C..XZB4#,5# U/S 0.75 |
1 | ||
| 11701-E0070 |
N04C..XZB4#,5# STD |
1 | ||
| 11708-78040 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU U/S 1.00 |
1 | ||
| 11701-E0070 |
N04C..XZB4#,5# STD |
1 | ||
| 11704-E0040 |
N04C..XZB4#,5# U/S 0.25 |
1 | ||
| 11705-E0040 |
N04C..XZB4#,5# U/S 0.50 |
1 | ||
| 11707-E0020 |
N04C..XZB4#,5# U/S 1.00 |
1 | ||
| 11704-E0010 |
N04C..XZB4#,5# U/S 0.25 |
1 | ||
| 11706-E0020 |
N04C..XZB4#,5# U/S 0.75 |
1 | ||
| 11704-E0040 |
N04C..XZB4#,5# U/S 0.25 |
1 | ||
| 11705-E0040 |
N04C..XZB4#,5# U/S 0.50 |
1 | ||
| 11706-E0020 |
N04C..XZB4#,5# U/S 0.75 |
1 | ||
| 11707-E0020 |
N04C..XZB4#,5# U/S 1.00 |
1 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-78230 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..DCR..(5F,6FC);N04C..XZB4#,51,56..DCR..(5F,6FC)..CBU STD |
4 | ||
| 13011-78190 |
N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD STD |
4 | ||
| S1304-E0020 |
N04C..XZB4#,5# STD |
4 | ||
| S1304-E0020 |
N04C..XZB4#,5#..DCR STD |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-78060 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU |
1 | ||
| 13041-E0610 |
N04C..XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 13041-E0690 |
N04C..XZB4#,5# |
1 | ||
| 13041-E0690 |
N04C..XZB4#,5# |
1 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| SZ520-37001 |
N04C..XZB4#,5# |
8 | ||
| 90035-21020 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
8 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| SZ520-37001 |
N04C..XZB4#,5# |
8 | ||
| 90035-21020 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13260-E0050 |
N04C..XZB4#,5#..DX,EX,GX,LX,STD |
4 | ||
| 13260-E0050 |
N04C..XZB4#,5# |
4 | ||
| 13201-78030 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU |
4 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| S1327-21400 |
N04C..XZB4#,5#..DX,EX,GX,LX,STD |
4 | ||
| 13271-89102 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU |
4 | ||
| S1327-21400 |
N04C..XZB4#,5# |
4 | ||
| 13211 - PISTON | ||||
| 13211-78170 |
N04C..XZB4#,50,56..DCR |
4 | ||
| 13251 - PIN, PISTON | ||||
| 13251-E0070 |
N04C..XZB4#,5#..DCR |
4 | ||
| 13251-89101 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..DCR..(5F,6FC);N04C..XZB4#,51,56..DCR..(5F,6FC)..CBU |
4 | ||
| 13251-E0120 |
N04C..XZB4#,5# |
4 | ||
| 13251-E0120 |
N04C..XZB4#,5# |
4 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-89103 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
8 | ||
| 13265-E0010 |
N04C..XZB4#,5# |
8 | ||
| 13301A - PISTON SET, W/PISTON RING | ||||
| 13301-78010 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..DCR..(5F,6FC);N04C..XZB4#,51,56..DCR..(5F,6FC)..CBU |
4 | ||
| S130B-E0M50 |
N04C..XZB4#,5#..DCR |
4 | ||
| S130B-E0140 |
N04C..XZB4#,5#..DCR |
4 | ||
| S130B-E0140 |
N04C..XZB4#,5#..DCR |
4 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13450-78060 |
N04C..XZB40,50,51..MTM |
1 | ||
| 13450-78062 |
N04C..XZB50..WC..5F;N04C..XZB40,51..5F..CBU |
1 | ||
| 13450-78061 |
N04C..XZB40,50,51..5F |
1 | ||
| 13450-E0L50 |
N04C..XZB40,50,51..5F |
1 | ||
| 13450-78120 |
N04C..XZB40,50,51..5F |
1 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13450-78060 |
N04C..XZB40,50,51..MTM |
1 | ||
| 13450-78062 |
N04C..XZB50..WC..5F;N04C..XZB40,51..5F..CBU |
1 | ||
| 13450-78061 |
N04C..XZB40,50,51..5F |
1 | ||
| 13450-E0L50 |
N04C..XZB40,50,51..5F |
1 | ||
| 13450-78120 |
N04C..XZB40,50,51..5F |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| SM212-01024 |
N04C..XZB40,50,51..5F 長さ=24,外径=10 |
2 | ||
| 90250-10008 |
N04C..XZB50..WC..5F;N04C..XZB40,51..5F..CBU 長さ=24,外径=10 |
2 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90031-05112 |
N04C..XZB40,50,51..5F |
8 | ||
| S1345-51820 |
N04C..XZB40,50,51..5F |
8 | ||
| 90031-05112 |
N04C..XZB50..WC..5F;N04C..XZB40,51..5F..CBU |
6 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90031-05112 |
N04C..XZB40,50,51..5F |
8 | ||
| S1345-51820 |
N04C..XZB40,50,51..5F |
8 | ||
| 90031-05112 |
N04C..XZB50..WC..5F;N04C..XZB40,51..5F..CBU |
6 | ||
| 13407B - NUT, HEXAGON(FOR CRANKSHAFT DAMPER) | ||||
| SZ170-27001 |
N04C..XZB4#,5# |
1 | ||
| 90170-27001 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 13407C - SPACER(FOR CRANKSHAFT DAMPER) | ||||
| SZ910-16034 |
N04C..XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 13478-78020 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 |
1 | ||
| SZ910-16034 |
N04C..XZB4#,5# |
1 | ||
| 90560-27006 |
N04C..XZB4#,5#..5F,6FC |
1 | ||
| 13411 - CRANKSHAFT | ||||
| 13400-78080 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 |
1 | ||
| 13411-78011 |
N04C..XZB4#,5#..5F,6FC |
1 | ||
| 13411-78081 |
N04C..XZB40,50,51..5F |
1 | ||
| 13411-E0071 |
N04C..XZB4#,5# |
1 | ||
| 13411E - COLLAR(FOR CRANKSHAFT) | ||||
| 90387-14013 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| SZ910-29013 |
N04C..XZB4#,5# |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-78020 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 |
1 | ||
| 13453-E0080 |
N04C..XZB4#,5# |
1 | ||
| 13453-89102 |
N04C..XZB4#,5#..5F,6FC |
1 | ||
| 13453-E0080 |
N04C..XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-78020 |
N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 |
1 | ||
| 13453-E0080 |
N04C..XZB4#,5# |
1 | ||
| 13453-89102 |
N04C..XZB4#,5#..5F,6FC |
1 | ||
| 13453-E0080 |
N04C..XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 13470 - PULLEY ASSY, CRANKSHAFT | ||||
| 13470-78170 |
N04C..XZB4#,5# |
1 | ||
| 13470-78150 |
N04C..XZB4#,5# |
1 | ||
| 13470-E0361 |
N04C..XZB4#,5# |
1 | ||
| 13470-78171 |
N04C..XZB4#,5# |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-78090 |
N04C..XZB40,50,51..5F |
1 | ||
| S1352-11660 |
N04C..XZB40,50,51..5F |
1 | ||
| S1352-11660 |
N04C..XZB4#,5# |
1 | ||
| 13521-78090 |
N04C..XZB50..WC..5F;N04C..XZB40,51..5F..CBU |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 90281-06001 |
N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU |
1 | ||
| 90032-81009 |
N04C..XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| SM171-01028 |
N04C..XZB4#,5# |
1 | ||
| Common parts | ||||
| 90301-41003 | ||||
| SM212-00408 | ||||
| SZ301-41001 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
