XZB40-ZRMDY (2004)
Toyota Coaster

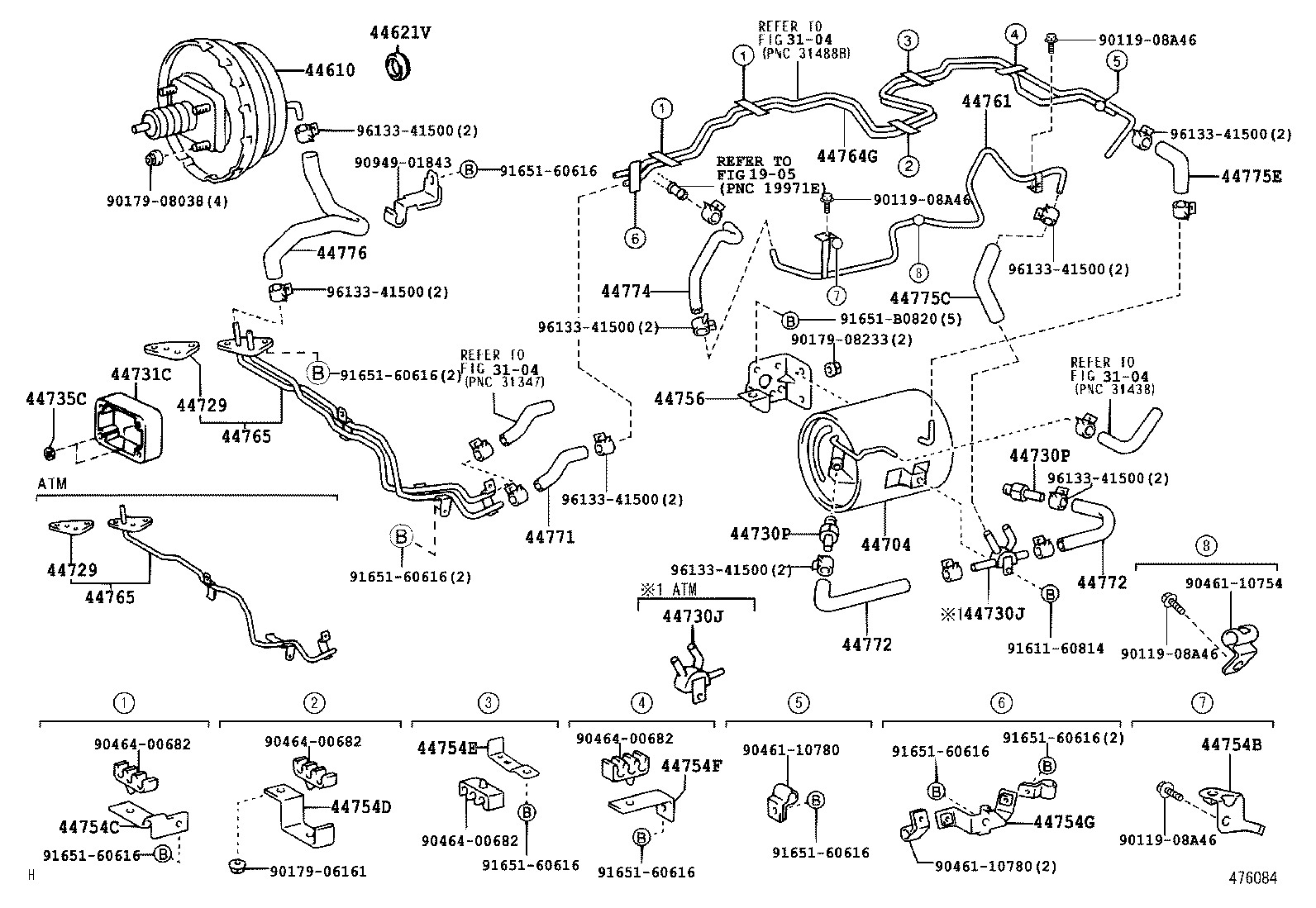

(0408- )XZB4#,5#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-36520 |
BB5#,HDB5#,HZB41,5# |
1 | ||
| 44610-36600 |
XZB40..6FC..IV5;XZB40..(DX,LX,STD)..(5F,6FC)..CBU |
1 | ||
| 44610-36620 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU ｱﾘ(ABS) |
1 | ||
| 44621V - SEAL, BOOSTER BODY | ||||
| 44621-36070 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU ｱﾘ(ABS) |
1 | ||
| 44621-36050 |
XZB40..6FC..IV5;XZB40..(DX,LX,STD)..(5F,6FC)..CBU |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-36270 |
BB4#,5#;HDB5#,HZB4#,5#..4FC |
1 | ||
| 44704-36260 |
HDB5#,HZB4#,5#..MTM |
1 | ||
| 44704-36260 |
XZB50..WC..5F;XZB40..5F..CBU;BZB40,50,XZB51..HRF..5F |
1 | ||
| 44729 - GASKET, VACUUM TUBE | ||||
| 44729-36020 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 44729-36020 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 44729 - GASKET, VACUUM TUBE | ||||
| 44729-36020 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 44729-36020 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 90445-08353 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
2 | ||
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 90445-08353 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
2 | ||
| 44730J - WAY(FOR BOOSTER VACUUM) | ||||
| 90413-09037 |
BB4#,5#;HDB5#,HZB4#,5#..4FC |
1 | ||
| 90414-09001 |
HDB5#,HZB4#,5#..MTM |
1 | ||
| 90414-09001 |
XZB50..WC..5F;XZB40,51..5F..CBU |
1 | ||
| 44730J - WAY(FOR BOOSTER VACUUM) | ||||
| 90413-09037 |
BB4#,5#;HDB5#,HZB4#,5#..4FC |
1 | ||
| 90414-09001 |
HDB5#,HZB4#,5#..MTM |
1 | ||
| 90414-09001 |
XZB50..WC..5F;XZB40,51..5F..CBU |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-60050 |
BB4#,5#;HDB5#,HZB4#,5#..4FC |
1 | ||
| 44730-60050 |
HDB5#,HZB4#,5#..MTM |
2 | ||
| 44730-60050 |
XZB50..WC..5F;XZB40..5F..CBU;BZB40,50,XZB51..HRF..5F |
2 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-60050 |
BB4#,5#;HDB5#,HZB4#,5#..4FC |
1 | ||
| 44730-60050 |
HDB5#,HZB4#,5#..MTM |
2 | ||
| 44730-60050 |
XZB50..WC..5F;XZB40..5F..CBU;BZB40,50,XZB51..HRF..5F |
2 | ||
| 44731C - BRACKET, BRAKE BOOSTER | ||||
| 44731-35120 |
XZB40..6FC..IV5;XZB40..(DX,LX,STD)..(5F,6FC)..CBU |
1 | ||
| 44735C - RING, BOOSTER BRACKET STOPPER | ||||
| 44735-30010 |
XZB40..6FC..IV5;XZB40..(DX,LX,STD)..(5F,6FC)..CBU |
2 | ||
| 44754B - BRACKET, VACUUM TUBE | ||||
| 44754-36180 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 44754C - BRACKET, VACUUM TUBE, NO.1 | ||||
| 44754-36090 |
BB4#,HDB5#,HZB4#,5# |
2 | ||
| 44754-36090 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
2 | ||
| 44754D - BRACKET, VACUUM TUBE, NO.2 | ||||
| 44754-36110 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 44754-36110 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 44754E - BRACKET, VACUUM TUBE, NO.3 | ||||
| 44754-36120 |
BB4#,HDB5#,HZB4#,5#..4FC,5F |
1 | ||
| 44754-36150 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 44754F - BRACKET, VACUUM TUBE, NO.4 | ||||
| 44754-36130 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 44754-36130 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 44754G - BRACKET, VACUUM TUBE, NO.5 | ||||
| 44754-36140 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 44754-36140 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 44756 - BRACKET, VACUUM RESERVOIR | ||||
| 44757-36060 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 44757-36060 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-36260 |
XZB51..SULNG..6FC;XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 44761-36140 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 44761-36261 |
XZB4#,5#..5F,6FC |
1 | ||
| 44761-36262 |
XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 44764F - WAY(FOR BOOSTER VACUUM TUBE) | ||||
| 90414-10043 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 44764G - TUBE, CONNECTOR TO BRAKE BOOSTER | ||||
| 44764-36480 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 44764-36600 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 44765 - TUBE, CONNECTOR TO BRAKE BOOSTER, NO.2 | ||||
| 44765-36200 |
HDB5#,HZB4#,5#..5F |
1 | ||
| 44765-36351 |
XZB40,50,51..5F |
1 | ||
| 44765-36380 |
XZB40,50,51..5F |
1 | ||
| 44765 - TUBE, CONNECTOR TO BRAKE BOOSTER, NO.2 | ||||
| 44765-36200 |
HDB5#,HZB4#,5#..5F |
1 | ||
| 44765-36351 |
XZB40,50,51..5F |
1 | ||
| 44765-36380 |
XZB40,50,51..5F |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-36240 |
HDB5#,HZB4#,5# |
1 | ||
| 90445-17141 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 44772-36090 |
HDB5#,HZB4#,5#..MTM |
2 | ||
| 44772-36090 |
BZB40,50,XZB40,50,51..MTM |
2 | ||
| 44772-36090 |
BB4#,5#;HDB5#,HZB4#,5#..4FC |
1 | ||
| 44772-36100 |
XZB50..WC..5F;XZB40..5F..CBU;BZB40,50,XZB51..HRF..5F |
2 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 44772-36090 |
HDB5#,HZB4#,5#..MTM |
2 | ||
| 44772-36090 |
BZB40,50,XZB40,50,51..MTM |
2 | ||
| 44772-36090 |
BB4#,5#;HDB5#,HZB4#,5#..4FC |
1 | ||
| 44772-36100 |
XZB50..WC..5F;XZB40..5F..CBU;BZB40,50,XZB51..HRF..5F |
2 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-36230 |
HDB5#,HZB4#,5# |
1 | ||
| 44774-36380 |
XZB40,50,51..5F,6F,6FC |
1 | ||
| 44774-36440 |
XZB4#,5# |
1 | ||
| 44774-36430 |
XZB4#,5# |
1 | ||
| 44774-36400 |
XZB4#,5#..5F,6FC |
1 | ||
| 44775C - HOSE, CONNECTOR TO WAY | ||||
| 44775-36030 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 44775-36030 |
BZB40,50,XZB40,50,51..5F,6F,6FC |
1 | ||
| 44775-36100 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 44775E - HOSE, WAY TO CONNECTOR | ||||
| 44775-36060 |
XZB51..SULNG..6FC;XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 44775-36030 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 44775-36090 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-36090 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 44776-36170 |
XZB40..6FC..IV5;XZB40..(DX,LX,STD)..(5F,6FC)..CBU |
1 | ||
| 44776-36120 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU ｱﾘ(ABS) |
1 | ||
| 44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER | ||||
| 44776-36130 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90179-06161 | ||||
| 90179-08038 | ||||
| 90179-08233 | ||||
| 90461-10754 | ||||
| 90461-10780 | ||||
| 90464-00682 | ||||
| 90464-00756 | ||||
| 90949-01843 | ||||
| 91611-60814 | ||||
| 91651-60616 | ||||
| 91651-B0820 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 1905 | ||||
| 3104 | ||||

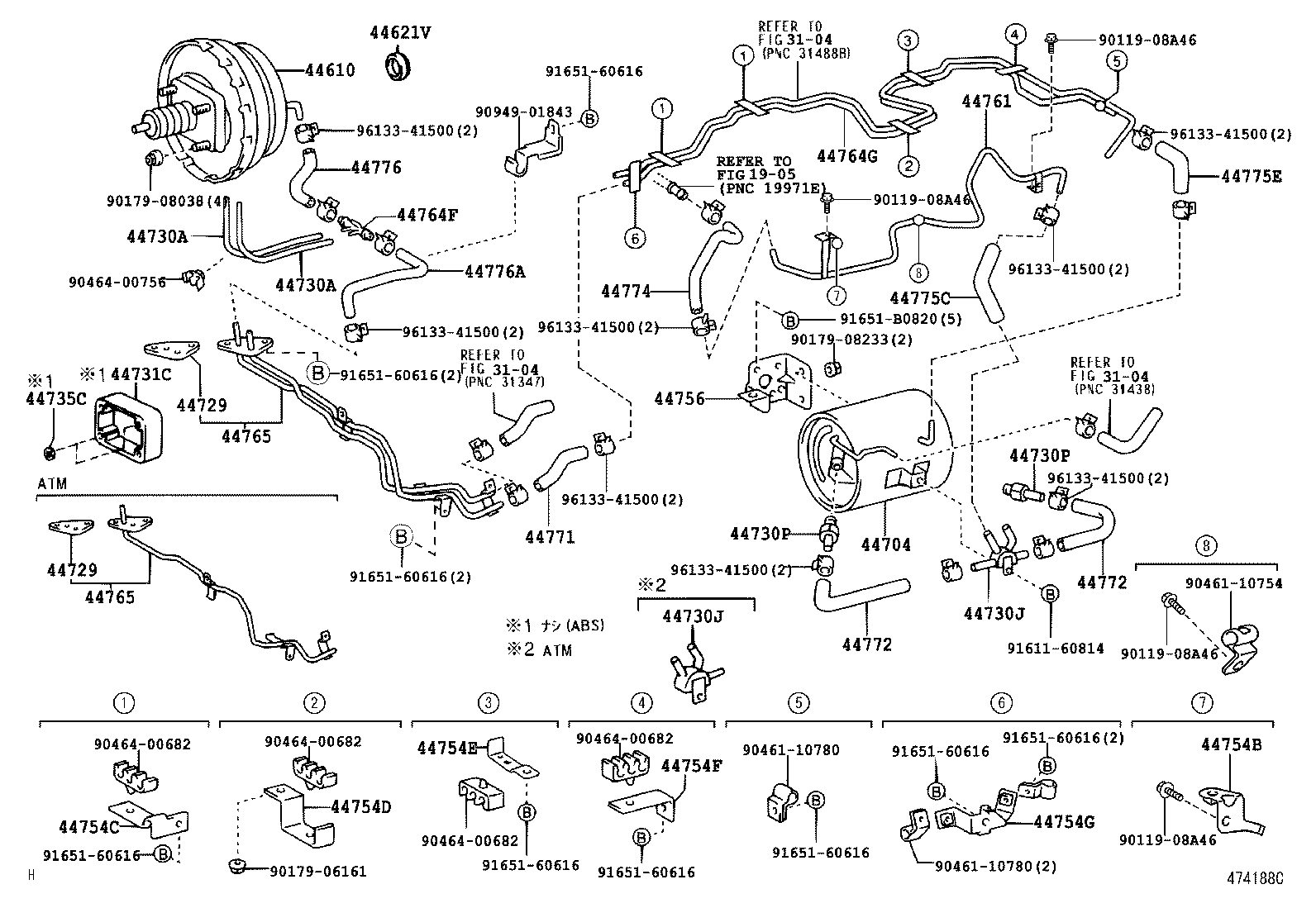

(0408- )XZB4#..DX,LX,STD
ﾅｼ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-36520 |
BB5#,HDB5#,HZB41,5# |
1 | ||
| 44610-36600 |
XZB40..6FC..IV5;XZB40..(DX,LX,STD)..(5F,6FC)..CBU |
1 | ||
| 44610-36620 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU ｱﾘ(ABS) |
1 | ||
| 44621V - SEAL, BOOSTER BODY | ||||
| 44621-36070 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU ｱﾘ(ABS) |
1 | ||
| 44621-36050 |
XZB40..6FC..IV5;XZB40..(DX,LX,STD)..(5F,6FC)..CBU |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-36270 |
BB4#,5#;HDB5#,HZB4#,5#..4FC |
1 | ||
| 44704-36260 |
HDB5#,HZB4#,5#..MTM |
1 | ||
| 44704-36260 |
XZB50..WC..5F;XZB40..5F..CBU;BZB40,50,XZB51..HRF..5F |
1 | ||
| 44729 - GASKET, VACUUM TUBE | ||||
| 44729-36020 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 44729-36020 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 44729 - GASKET, VACUUM TUBE | ||||
| 44729-36020 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 44729-36020 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 44730J - WAY(FOR BOOSTER VACUUM) | ||||
| 90413-09037 |
BB4#,5#;HDB5#,HZB4#,5#..4FC |
1 | ||
| 90414-09001 |
HDB5#,HZB4#,5#..MTM |
1 | ||
| 90414-09001 |
XZB50..WC..5F;XZB40,51..5F..CBU |
1 | ||
| 44730J - WAY(FOR BOOSTER VACUUM) | ||||
| 90413-09037 |
BB4#,5#;HDB5#,HZB4#,5#..4FC |
1 | ||
| 90414-09001 |
HDB5#,HZB4#,5#..MTM |
1 | ||
| 90414-09001 |
XZB50..WC..5F;XZB40,51..5F..CBU |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-60050 |
BB4#,5#;HDB5#,HZB4#,5#..4FC |
1 | ||
| 44730-60050 |
HDB5#,HZB4#,5#..MTM |
2 | ||
| 44730-60050 |
XZB50..WC..5F;XZB40..5F..CBU;BZB40,50,XZB51..HRF..5F |
2 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-60050 |
BB4#,5#;HDB5#,HZB4#,5#..4FC |
1 | ||
| 44730-60050 |
HDB5#,HZB4#,5#..MTM |
2 | ||
| 44730-60050 |
XZB50..WC..5F;XZB40..5F..CBU;BZB40,50,XZB51..HRF..5F |
2 | ||
| 44731C - BRACKET, BRAKE BOOSTER | ||||
| 44731-35120 |
XZB40..6FC..IV5;XZB40..(DX,LX,STD)..(5F,6FC)..CBU |
1 | ||
| 44735C - RING, BOOSTER BRACKET STOPPER | ||||
| 44735-30010 |
XZB40..6FC..IV5;XZB40..(DX,LX,STD)..(5F,6FC)..CBU |
2 | ||
| 44754B - BRACKET, VACUUM TUBE | ||||
| 44754-36180 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 44754C - BRACKET, VACUUM TUBE, NO.1 | ||||
| 44754-36090 |
BB4#,HDB5#,HZB4#,5# |
2 | ||
| 44754-36090 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
2 | ||
| 44754D - BRACKET, VACUUM TUBE, NO.2 | ||||
| 44754-36110 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 44754-36110 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 44754E - BRACKET, VACUUM TUBE, NO.3 | ||||
| 44754-36120 |
BB4#,HDB5#,HZB4#,5#..4FC,5F |
1 | ||
| 44754-36150 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 44754F - BRACKET, VACUUM TUBE, NO.4 | ||||
| 44754-36130 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 44754-36130 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 44754G - BRACKET, VACUUM TUBE, NO.5 | ||||
| 44754-36140 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 44754-36140 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 44756 - BRACKET, VACUUM RESERVOIR | ||||
| 44757-36060 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 44757-36060 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-36260 |
XZB51..SULNG..6FC;XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 44761-36140 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 44761-36261 |
XZB4#,5#..5F,6FC |
1 | ||
| 44761-36262 |
XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 44764G - TUBE, CONNECTOR TO BRAKE BOOSTER | ||||
| 44764-36480 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 44764-36600 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 44765 - TUBE, CONNECTOR TO BRAKE BOOSTER, NO.2 | ||||
| 44765-36200 |
HDB5#,HZB4#,5#..5F |
1 | ||
| 44765-36351 |
XZB40,50,51..5F |
1 | ||
| 44765-36380 |
XZB40,50,51..5F |
1 | ||
| 44765 - TUBE, CONNECTOR TO BRAKE BOOSTER, NO.2 | ||||
| 44765-36200 |
HDB5#,HZB4#,5#..5F |
1 | ||
| 44765-36351 |
XZB40,50,51..5F |
1 | ||
| 44765-36380 |
XZB40,50,51..5F |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-36240 |
HDB5#,HZB4#,5# |
1 | ||
| 90445-17141 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 44772-36090 |
HDB5#,HZB4#,5#..MTM |
2 | ||
| 44772-36090 |
BZB40,50,XZB40,50,51..MTM |
2 | ||
| 44772-36090 |
BB4#,5#;HDB5#,HZB4#,5#..4FC |
1 | ||
| 44772-36100 |
XZB50..WC..5F;XZB40..5F..CBU;BZB40,50,XZB51..HRF..5F |
2 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 44772-36090 |
HDB5#,HZB4#,5#..MTM |
2 | ||
| 44772-36090 |
BZB40,50,XZB40,50,51..MTM |
2 | ||
| 44772-36090 |
BB4#,5#;HDB5#,HZB4#,5#..4FC |
1 | ||
| 44772-36100 |
XZB50..WC..5F;XZB40..5F..CBU;BZB40,50,XZB51..HRF..5F |
2 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-36230 |
HDB5#,HZB4#,5# |
1 | ||
| 44774-36380 |
XZB40,50,51..5F,6F,6FC |
1 | ||
| 44774-36440 |
XZB4#,5# |
1 | ||
| 44774-36430 |
XZB4#,5# |
1 | ||
| 44774-36400 |
XZB4#,5#..5F,6FC |
1 | ||
| 44775C - HOSE, CONNECTOR TO WAY | ||||
| 44775-36030 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 44775-36030 |
BZB40,50,XZB40,50,51..5F,6F,6FC |
1 | ||
| 44775-36100 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 44775E - HOSE, WAY TO CONNECTOR | ||||
| 44775-36060 |
XZB51..SULNG..6FC;XZB4#,5#..DX,EX,GX,LX,STD |
1 | ||
| 44775-36030 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 44775-36090 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-36090 |
BB4#,5#,HDB5#,HZB4#,5# |
1 | ||
| 44776-36170 |
XZB40..6FC..IV5;XZB40..(DX,LX,STD)..(5F,6FC)..CBU |
1 | ||
| 44776-36120 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU ｱﾘ(ABS) |
1 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90179-06161 | ||||
| 90179-08038 | ||||
| 90179-08233 | ||||
| 90461-10754 | ||||
| 90461-10780 | ||||
| 90464-00682 | ||||
| 90949-01843 | ||||
| 91611-60814 | ||||
| 91651-60616 | ||||
| 91651-B0820 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 1905 | ||||
| 3104 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
