Toyota Coaster XZB40 VACUUM PUMP

XZB40-ZRMDY (2004)

Toyota Coaster

Production Aug 2004 - Jan 2015

Engine N04C

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

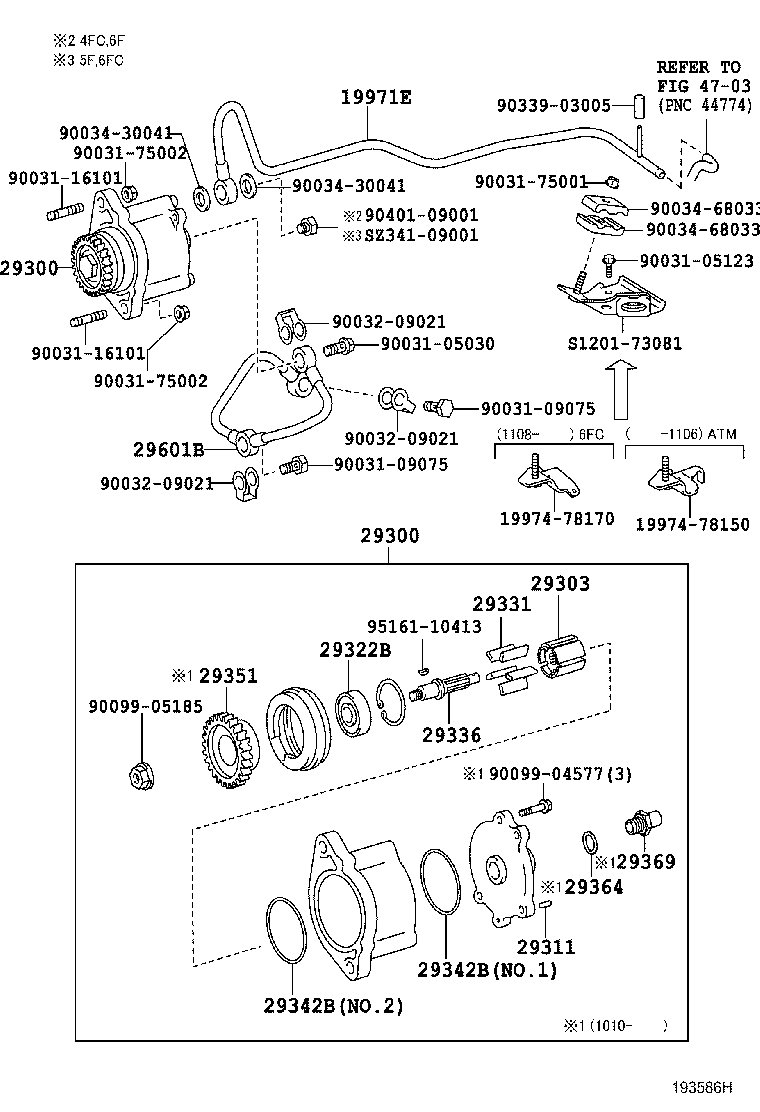

(0408-1202)N04C

Click highlighted areas on diagram

Part #	Description	Period	Qty
19971E - PIPE, VACUUM
87207-E0081	N04C..XZB4#,5# *197	06/2011 - 08/2011	1
87207-E0170	N04C..XZB4#,5#	08/2011 - 01/2014	1
19971-78260	N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 *197	08/2007 - 06/2011	1
87207-E0240	N04C..XZB4#,5#	02/2014 - 01/2015	1
19971-78220	N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196	08/2004 - 08/2007	1
29300 - PUMP ASSY, VACUUM
29300-78061	N04C..XZB4#,5#	10/2010 - 02/2012	1
29300-E0051	N04C..XZB4#,5#	09/2013 - 01/2015	1
29300-78060	N04C..XZB4#,5#	08/2004 - 10/2010	1
29300-E0100	N04C..XZB4#,5#	02/2012 - 09/2013	1
29300 - PUMP ASSY, VACUUM
29300-78061	N04C..XZB4#,5#	10/2010 - 02/2012	1
29300-E0051	N04C..XZB4#,5#	09/2013 - 01/2015	1
29300-78060	N04C..XZB4#,5#	08/2004 - 10/2010	1
29300-E0100	N04C..XZB4#,5#	02/2012 - 09/2013	1
29303 - ROTOR SUB-ASSY, VACUUM PUMP
29303-67020	N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU	08/2004 - 02/2012	1
S2930-31020	N04C..XZB4#,5#	09/2013 - 01/2015	1
29311 - PIN, VACUUM PUMP DOWEL, NO.1
SM212-00518	N04C..XZB4#,5#	09/2013 - 01/2015	2
29311-76010	N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU	08/2004 - 02/2012	2
29322B - BEARING, VACUUM PUMP
S2917-21160	N04C..XZB4#,5#	09/2013 - 01/2015	1
90099-10185	N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU	08/2004 - 02/2012	1
29331 - BLADE, VACUUM PUMP, A
S2933-11100	N04C..XZB4#,5#	09/2013 - 01/2015	5
29331-67020	N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU	08/2004 - 02/2012	5
29336 - SHAFT, VACUUM PUMP
S2933-61030	N04C..XZB4#,5#	09/2013 - 01/2015	1
29336-58050	N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU	08/2004 - 02/2012	1
29342B - RING, O
29342-17010	N04C..XZB4#,5# NO.2	08/2004 - 02/2012	1
29342-58010	N04C..XZB4#,5# NO.1	08/2004 - 02/2012	1
SZ010-46051	N04C..XZB4#,5#	09/2013 - 01/2015	1
29342B - RING, O
29342-17010	N04C..XZB4#,5# NO.2	08/2004 - 02/2012	1
29342-58010	N04C..XZB4#,5# NO.1	08/2004 - 02/2012	1
SZ010-46051	N04C..XZB4#,5#	09/2013 - 01/2015	1
29351 - GEAR, VACUUM PUMP
S1363-31050	N04C..XZB4#,5#	09/2013 - 01/2015	1
29351-78061	N04C..XZB4#,5#..DX,EX,GX,LX,STD	10/2010 - 02/2012	1
29364 - WASHER, VACUUM PUMP
29364-66010	N04C..XZB4#,5#..DX,EX,GX,LX,STD	10/2010 - 02/2012	1
29364-66010	N04C..XZB4#,5#	09/2013 - 01/2015	1
29369 - VALVE SUB-ASSY, CHECK
S2930-11270	N04C..XZB4#,5#	09/2013 - 01/2015	1
29369-EV020	N04C..XZB4#,5#	02/2012 - 09/2013	1
29369-64030	N04C..XZB4#,5#..DX,EX,GX,LX,STD	10/2010 - 02/2012	1
29601B - PIPE SUB-ASSY, OIL(FOR VACUUM PUMP)
29601-78080	N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD	08/2004 - 07/2007	1
29601-78081	N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU	07/2007 - 06/2011	1
29601-E0320	N04C..XZB4#,5#..DX,EX,GX,LX,STD	06/2011 - 01/2015	1
Common parts
19974-78150
19974-78170
90031-05030
90031-05123
90031-09075
90031-16101
90031-75001
90031-75002
90032-09021
90034-30041
90034-68033
90099-04577
90099-05185
90339-03005
90401-09001
95161-10413
S1201-73081
SZ341-09001
Linked diagrams
4703

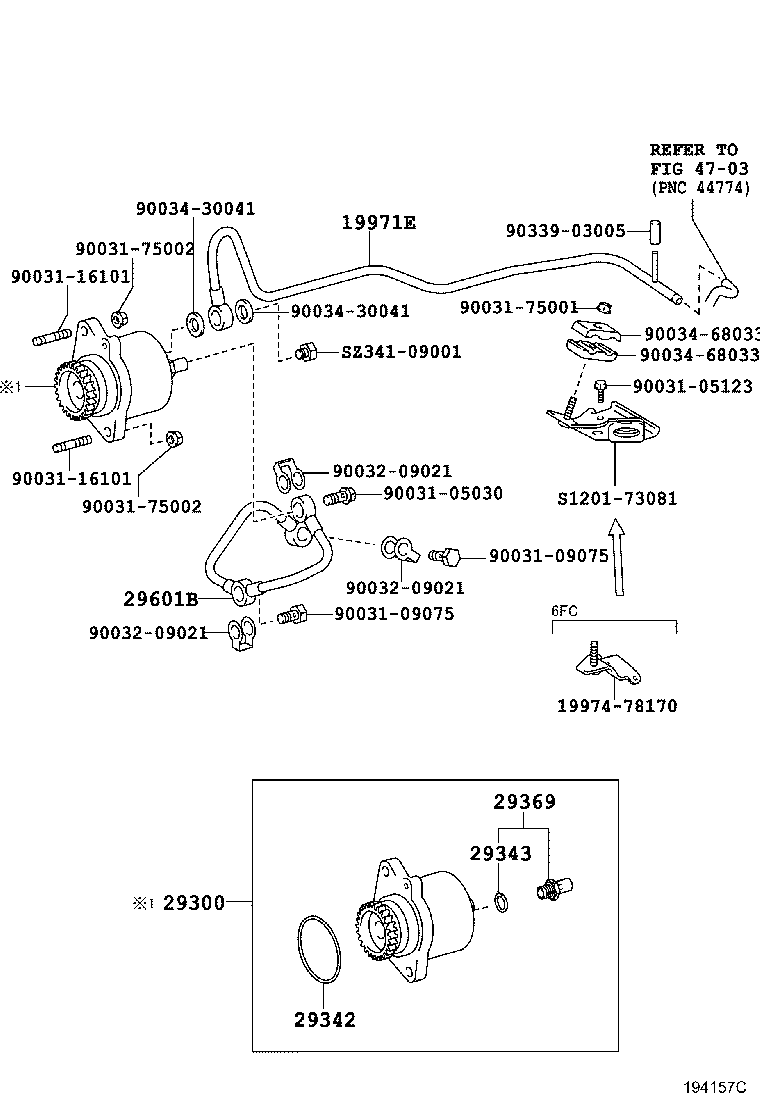

(1202-1309)N04C

Click highlighted areas on diagram

Part #	Description	Period	Qty
19971E - PIPE, VACUUM
87207-E0081	N04C..XZB4#,5# *197	06/2011 - 08/2011	1
87207-E0170	N04C..XZB4#,5#	08/2011 - 01/2014	1
19971-78260	N04C..XZB40,51..CBU;N04C..XZB46,50,56..WC;N04C..XZB40..6FC..IV5 *197	08/2007 - 06/2011	1
87207-E0240	N04C..XZB4#,5#	02/2014 - 01/2015	1
19971-78220	N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD *196	08/2004 - 08/2007	1
29300 - PUMP ASSY, VACUUM
29300-78061	N04C..XZB4#,5#	10/2010 - 02/2012	1
29300-E0051	N04C..XZB4#,5#	09/2013 - 01/2015	1
29300-78060	N04C..XZB4#,5#	08/2004 - 10/2010	1
29300-E0100	N04C..XZB4#,5#	02/2012 - 09/2013	1
29342 - PACKING, VACUUM PUMP
29343-EV020	N04C..XZB4#,5#	02/2012 - 09/2013	1
SZ010-46050	N04C..XZB4#,5#	09/2013 - 01/2015	1
29343 - RING, O VACUUM PUMP, NO.1
29342-EV010	N04C..XZB4#,5#	02/2012 - 09/2013	1
29369 - VALVE SUB-ASSY, CHECK
S2930-11270	N04C..XZB4#,5#	09/2013 - 01/2015	1
29369-EV020	N04C..XZB4#,5#	02/2012 - 09/2013	1
29369-64030	N04C..XZB4#,5#..DX,EX,GX,LX,STD	10/2010 - 02/2012	1
29601B - PIPE SUB-ASSY, OIL(FOR VACUUM PUMP)
29601-78080	N04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..DX,EX,GX,LX,STD	08/2004 - 07/2007	1
29601-78081	N04C..XZB40..6FC..IV5;N04C..XZB50..WC..(5F,6FC);N04C..XZB4#,51,56..(5F,6FC)..CBU	07/2007 - 06/2011	1
29601-E0320	N04C..XZB4#,5#..DX,EX,GX,LX,STD	06/2011 - 01/2015	1
Common parts
19974-78170
90031-05030
90031-05123
90031-09075
90031-16101
90031-75001
90031-75002
90032-09021
90034-30041
90034-68033
90339-03005
S1201-73081
SZ341-09001
Linked diagrams
4703
