XZB40-BKMSY (2004)
Toyota Coaster
ILLUST NO. 3 OF 3(1501- )XZB4#,5#
ﾊﾟﾜｰﾋｰﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87299A - RELAY, HEATER NO.1 | ||||
| 87299-36030 |
XZB4#,5# |
2 | ||
| 87299A - RELAY, HEATER NO.1 | ||||
| 87299-36030 |
XZB4#,5# |
2 | ||
| 87299B - RELAY, HEATER NO.2 | ||||
| 87299-36040 |
XZB4#,5# |
2 | ||
| 87299B - RELAY, HEATER NO.2 | ||||
| 87299-36040 |
XZB4#,5# |
2 | ||
| 87320 - EXCHANGER ASSY, HEATER HEAT | ||||
| 87320-36040 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87320-36040 |
XZB51;XZB4#,50,56..09S,26S,29S,39S,49S |
1 | ||
| 87320-36041 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 87320-36041 |
XZB4#,5# |
1 | ||
| 87343 - PLUG, COMBUSTION HEATER GLOW | ||||
| 87343-90B00 |
XZB4#,5# |
1 | ||
| 87343-90B00 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 87348 - BLOCK, FUSE, NO.1 | ||||
| 87348-36030 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87348-36030 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 87348-36030 |
XZB4#,5# |
1 | ||
| 87348A - FUSE | ||||
| 90982-09002 |
XZB51..SULNG..6FC;XZB4#,5#..09S,26S,29S,39S,49S |
1 | ||
| 90982-09002 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 90982-09002 |
XZB4#,5# |
2 | ||
| 90982-09002 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
2 | ||
| 87402 - PIPE SUB-ASSY, HEATER FUEL | ||||
| 87402-36020 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87402-36020 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 87402-36020 |
XZB4#,5# |
1 | ||
| 87452D - BRACKET, POWER HEATER, NO.1 | ||||
| 87452-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87452-36010 |
XZB4#,5# |
1 | ||
| 87452-36010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 87452E - BRACKET, POWER HEATER, NO.2 | ||||
| 87452-36020 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87452-36020 |
XZB4#,5# |
1 | ||
| 87452-36020 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 87460B - PARTS ASSY, ELECTRICAL | ||||
| 87460-36030 |
HDB51..29S..TD4..4FC;BB4#,55,HZB40,5#..DX,LX,STD |
1 | ||
| 87460-36030 |
XZB4#,50,56..(09S,26S,29S,39S,49S)..(DX,LX,STD) ﾏﾆﾕｱﾙ |
1 | ||
| 87460-36032 |
XZB40..6FC..IV5;XZB50..(LX,STD)..(5F,6FC);XZB4#,56..(DX,LX,STD)..(5F,6FC)..CBU ﾏﾆﾕｱﾙ |
1 | ||
| 87460-36050 |
XZB4#,50,56..LX,STD |
1 | ||
| 87460-36031 |
XZB4#,50,56..(09S,26S,29S,39S,49S)..(DX,LX,STD) ﾏﾆﾕｱﾙ |
1 | ||
| 87471 - JOINT, COMBUSTION HEATER FUEL | ||||
| 87471-36020 |
BB4#,5# |
1 | ||
| 87471-36010 |
HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87471-36011 |
XZB51..CBU;XZB51..4FC..IV5;XZB4#,50,56..09S,26S,29S,39S,49S |
1 | ||
| 87471-36011 |
XZB4#,5# |
1 | ||
| 87472A - PIPE, HEATER FUEL, NO.1 | ||||
| 87472-36110 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 87472-36110 |
XZB4#,5# |
1 | ||
| 87472B - PIPE, HEATER FUEL, NO.2 | ||||
| 87472-36091 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 87472-36091 |
XZB4#,5# |
1 | ||
| 87472-36091 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87480 - AMPLIFIER ASSY, HEATER CONTROL (FOR COMBUSTION HEATER) | ||||
| 87480-36010 |
XZB51;XZB4#,50,56..09S,26S,29S,39S,49S |
1 | ||
| 87480-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 87480-36011 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB4#,51,56..(09S,26S,29S,39S)..(5F,6FC)..CBU |
1 | ||
| 87480-36011 |
XZB4#,5# |
1 | ||
| 87480B - RELAY ASSY, HEATER CONTROL | ||||
| 88630-90B01 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 88630-36220 |
XZB50..(LX,STD)..5F;XZB40..(DX,LX,STD)..5F..CBU |
4 | ||
| 88630-36220 |
XZB4#,50,56..(09S,26S,29S,39S,49S)..(DX,LX,STD) |
3 | ||
| 88630-90B01 |
XZB51;XZB4#,50,56..09S,26S,29S,39S,49S |
1 | ||
| 88630-36220 |
XZB4#,50,56..LX,STD |
4 | ||
| 87480B - RELAY ASSY, HEATER CONTROL | ||||
| 88630-90B01 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 88630-36220 |
XZB50..(LX,STD)..5F;XZB40..(DX,LX,STD)..5F..CBU |
4 | ||
| 88630-36220 |
XZB4#,50,56..(09S,26S,29S,39S,49S)..(DX,LX,STD) |
3 | ||
| 88630-90B01 |
XZB51;XZB4#,50,56..09S,26S,29S,39S,49S |
1 | ||
| 88630-36220 |
XZB4#,50,56..LX,STD |
4 | ||
| 87480B - RELAY ASSY, HEATER CONTROL | ||||
| 88630-90B01 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 88630-36220 |
XZB50..(LX,STD)..5F;XZB40..(DX,LX,STD)..5F..CBU |
4 | ||
| 88630-36220 |
XZB4#,50,56..(09S,26S,29S,39S,49S)..(DX,LX,STD) |
3 | ||
| 88630-90B01 |
XZB51;XZB4#,50,56..09S,26S,29S,39S,49S |
1 | ||
| 88630-36220 |
XZB4#,50,56..LX,STD |
4 | ||
| 87480B - RELAY ASSY, HEATER CONTROL | ||||
| 88630-90B01 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 88630-36220 |
XZB50..(LX,STD)..5F;XZB40..(DX,LX,STD)..5F..CBU |
4 | ||
| 88630-36220 |
XZB4#,50,56..(09S,26S,29S,39S,49S)..(DX,LX,STD) |
3 | ||
| 88630-90B01 |
XZB51;XZB4#,50,56..09S,26S,29S,39S,49S |
1 | ||
| 88630-36220 |
XZB4#,50,56..LX,STD |
4 | ||
| 87483 - WIRE, HEATER | ||||
| 87483-36010 |
XZB4#,50,56..LX,STD |
1 | ||
| Common parts | ||||
| 90179-08017 | ||||
| 90461-06156 | ||||
| 90461-10722 | ||||
| 90461-10723 | ||||
| 90467-18008 | ||||
| 91651-40616 | ||||
| 91651-60616 | ||||
| 91651-B0820 | ||||
| 95337-06007 | ||||
| 95337-06015 | ||||
| 95338-12008 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 7751 | ||||
| 8716 | ||||

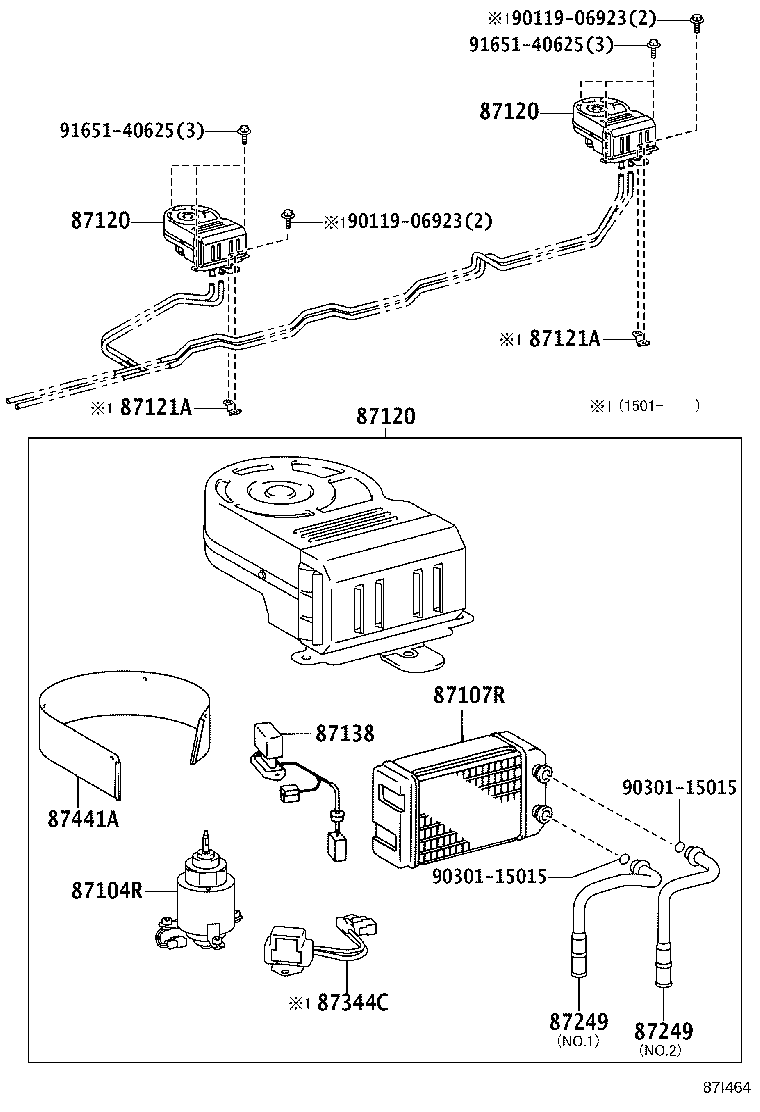

ILLUST NO. 2 OF 3(9301-1501)39S,49S ; (1501- )STD
ﾘﾔ(ﾖｳｼﾞｼｬ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104R - MOTOR SUB-ASSY, REAR HEATER BLOWER | ||||
| 87104-36280 |
XZB40,50..STD |
2 | ||
| 87104-36280 |
XZB40,50..STD..(5F,6FC) |
2 | ||
| 87107R - UNIT SUB-ASSY, REAR HEATER | ||||
| 87107-60330 |
XZB40,50..STD |
2 | ||
| 87107-60330 |
XZB40,50..STD..(5F,6FC) |
2 | ||
| 87120 - HEATER ASSY, REAR | ||||
| 87110-36491 |
XZB40,50..STD..(5F,6FC) |
2 | ||
| 87110-36A80 |
XZB40,50..STD |
2 | ||
| 87120 - HEATER ASSY, REAR | ||||
| 87110-36491 |
XZB40,50..STD..(5F,6FC) |
2 | ||
| 87110-36A80 |
XZB40,50..STD |
2 | ||
| 87120 - HEATER ASSY, REAR | ||||
| 87110-36491 |
XZB40,50..STD..(5F,6FC) |
2 | ||
| 87110-36A80 |
XZB40,50..STD |
2 | ||
| 87121A - BRACKET, HEATER | ||||
| 87121-36130 |
XZB40,50..STD |
2 | ||
| 87121A - BRACKET, HEATER | ||||
| 87121-36130 |
XZB40,50..STD |
2 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-36250 |
XZB40,50..STD..(5F,6FC) |
2 | ||
| 87138-36250 |
XZB40,50..STD |
2 | ||
| 87249 - PIPE, WATER | ||||
| 87248-36270 |
XZB40,50..STD NO.2 |
2 | ||
| 87248-36270 |
XZB40,50..STD..(5F,6FC) NO.2 |
2 | ||
| 87248-36260 |
XZB40,50..STD..(5F,6FC) NO.1 |
2 | ||
| 87248-36260 |
XZB40,50..STD NO.1 |
2 | ||
| 87249 - PIPE, WATER | ||||
| 87248-36270 |
XZB40,50..STD NO.2 |
2 | ||
| 87248-36270 |
XZB40,50..STD..(5F,6FC) NO.2 |
2 | ||
| 87248-36260 |
XZB40,50..STD..(5F,6FC) NO.1 |
2 | ||
| 87248-36260 |
XZB40,50..STD NO.1 |
2 | ||
| 87344C - WIRE, HEATER | ||||
| 87387-36010 |
XZB40,50..STD |
2 | ||
| 87441A - FILTER, HEATER AIR | ||||
| 87441-36020 |
XZB40,50..STD |
2 | ||
| 87441-36020 |
XZB40,50..STD..(5F,6FC) |
2 | ||
| Common parts | ||||
| 90119-06923 | ||||
| 90301-15015 | ||||
| 91651-40625 | ||||
