XZB40-BKMSY (2004)
Toyota Coaster
(0408- )STD

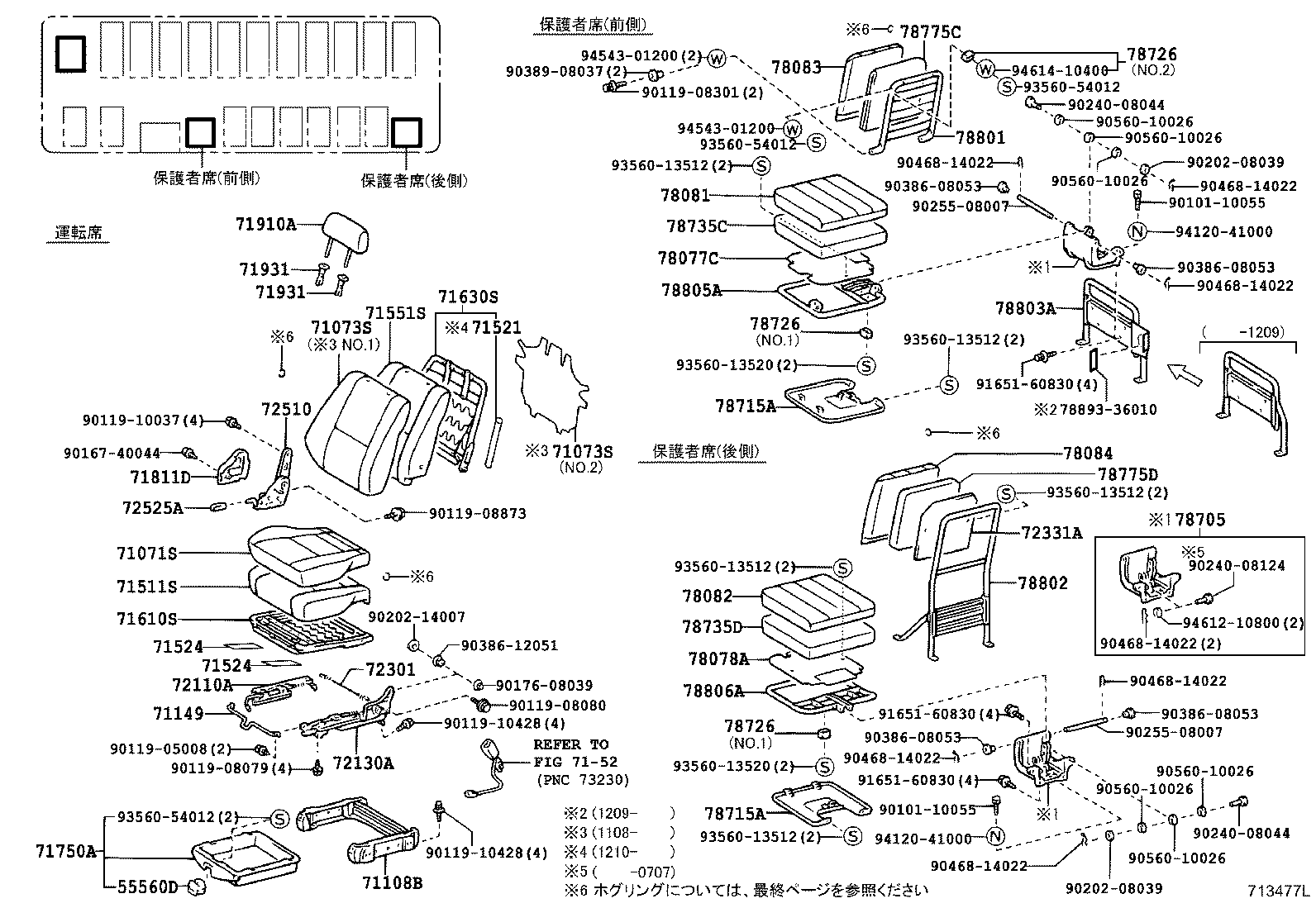

ｳﾝﾃﾝｾｷ & ﾎｺﾞｼｬｾｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55560D - LOCK ASSY, SEAT UNDER TRAY | ||||
| 55560-95J00E0 |
BB4#,HDB5#,HZB4#,5# GREIGE,TRIM4# |
1 | ||
| 72250-36010B3 |
BZB40,50,XZB4#,5# MD.CHARCOAL,TRIM1# |
1 | ||
| 72250-36010B3 |
BZB40,50,XZB4#,5# MD.CHARCOAL,TRIM1# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-36012B0 |
BZB40,50..STD;XZB40,50..(26S,29S,39S,49S)..(DX,LX,STD)..CBU ｼ-ﾄ = TYPE A-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71071-36012B7 |
XZB50..(LX,STD)..CBU;XZB40..(DX,LX,STD)..CBU ｼ-ﾄ = TYPE A-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71071-36012B7 |
XZB40,50..LX,STD ｼ-ﾄ = TYPE A-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-36011B0 |
BZB40,50..STD;XZB40,50..(26S,29S,39S,49S)..(DX,LX,STD)..CBU ｼ-ﾄ = TYPE A-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71073-36011B4 |
BZB40,50..STD;XZB50..(LX,STD)..CBU;XZB40..(DX,LX,STD)..CBU ｼ-ﾄ = TYPE A-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71073-36200B1 |
XZB40,50..(DX,LX,STD)..CBU ｱﾘ(ﾋﾞﾆ-ﾙ ﾚｻﾞ- ｼ-ﾄ),MD.CHARCOAL,TRIM1#,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 71073-36220B1 |
XZB40,50..(DX,LX,STD)..CBU ｱﾘ(ﾋﾞﾆ-ﾙ ﾚｻﾞ- ｼ-ﾄ),MD.CHARCOAL,TRIM1#,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 71073-36200B1 |
XZB40,50..(26S,29S,39S,49S)..(LX,STD) ｼ-ﾄ = TYPE A-*104,MD.CHARCOAL,TRIM1#,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 71073-36220B1 |
XZB40,50..(26S,29S,39S,49S)..(LX,STD) ｼ-ﾄ = TYPE A-*104,MD.CHARCOAL,TRIM1#,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-36011B0 |
BZB40,50..STD;XZB40,50..(26S,29S,39S,49S)..(DX,LX,STD)..CBU ｼ-ﾄ = TYPE A-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71073-36011B4 |
BZB40,50..STD;XZB50..(LX,STD)..CBU;XZB40..(DX,LX,STD)..CBU ｼ-ﾄ = TYPE A-*104,MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 71073-36200B1 |
XZB40,50..(DX,LX,STD)..CBU ｱﾘ(ﾋﾞﾆ-ﾙ ﾚｻﾞ- ｼ-ﾄ),MD.CHARCOAL,TRIM1#,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 71073-36220B1 |
XZB40,50..(DX,LX,STD)..CBU ｱﾘ(ﾋﾞﾆ-ﾙ ﾚｻﾞ- ｼ-ﾄ),MD.CHARCOAL,TRIM1#,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 71073-36200B1 |
XZB40,50..(26S,29S,39S,49S)..(LX,STD) ｼ-ﾄ = TYPE A-*104,MD.CHARCOAL,TRIM1#,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 71073-36220B1 |
XZB40,50..(26S,29S,39S,49S)..(LX,STD) ｼ-ﾄ = TYPE A-*104,MD.CHARCOAL,TRIM1#,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 71108B - LEG SUB-ASSY, FRONT SEAT, RH | ||||
| 71108-36010E0 |
BB4#,HDB5#,HZB4#,5# GREIGE,TRIM4# |
1 | ||
| 71108-36011C0 |
XZB40,50..(26S,39S,49S)..(DX,STD)..(5F,6FC) ｼ-ﾄ = TYPE A OR TYPE B-*104,BLACK,TRIM1# |
1 | ||
| 71108-36011C0 |
BZB40,50,XZB4#,5# BLACK,TRIM1# |
1 | ||
| 71149 - WIRE, FRONT SEAT CUSHION CONNECTING | ||||
| 71149-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 71149-36010 |
BZB40,50,XZB4#,5# |
1 | ||
| 71149-36010 |
BZB40,50,XZB4#,5# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-36010 |
BB4#,55,HDB5#,HZB4#,5# |
1 | ||
| 71501-36011 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 71501-36011 |
BZB40,50,XZB4#,5# |
1 | ||
| 71521 - PAD, FRONT SEAT CUSHION SILENCER, A | ||||
| 71521-60030 |
BZB40,50,XZB4#,5# |
2 | ||
| 71521-60030 |
BZB40,50,XZB4#,5# |
2 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 71524-36010 |
BZB40,50,XZB4#,5# |
2 | ||
| 71524-36010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
2 | ||
| 71524 - PAD, FRONT SEAT CUSHION SILENCER, D | ||||
| 71524-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
2 | ||
| 71524-36010 |
BZB40,50,XZB4#,5# |
2 | ||
| 71524-36010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
2 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-36010 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 71551-36010 |
XZB40..6FC..IV5;XZB50..(LX,STD)..(5F,6FC);BZB40,50,XZB46,56..LX..(5F,6FC);XZB40..(DX,LX,STD)..(5F,6FC)..CBU |
1 | ||
| 71551-36010 |
BZB40,50,XZB4#,50,56 |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-36020 |
BZB40,50,XZB4#,5# |
1 | ||
| 71610-36010 |
BB4#,55,HDB5#,HZB4#,5# |
1 | ||
| 71610-36020 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-36030 |
BB4#,HDB50,HZB40,5# |
1 | ||
| 71630-36090 |
XZB40,50..26S,29S,39S,49S |
1 | ||
| 71630-36051 |
XZB40..6FC..IV5;XZB50..(LX,STD)..(5F,6FC);BZB40,50,XZB4#,56..(DX,LX,STD)..(5F,6FC)..CBU |
1 | ||
| 71630-36090 |
BZB40,50,XZB4#,50,56..DX,LX,STD |
1 | ||
| 71750A - TRAY ASSY, FRONT SEAT UNDER | ||||
| 71750-36010B0 |
BZB40,50,XZB4#,5# MD.CHARCOAL,TRIM1# |
1 | ||
| 71750-36010E0 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 GREIGE,TRIM4# |
1 | ||
| 71750-36010B0 |
BZB40,50,XZB4#,5# MD.CHARCOAL,TRIM1# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-20160B0 |
BZB40,50,XZB4#,5# MD.CHARCOAL,TRIM1# |
1 | ||
| 71811-20160E0 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 GREIGE,TRIM4# |
1 | ||
| 71811-20160B0 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU MD.CHARCOAL,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-60040E2 |
BB4#,5#,HDB50,HZB40,5# GREIGE,TRIM4# |
1 | ||
| 71910-60500B4 |
BZB40,50,XZB4#,50,56 ｼ-ﾄ = TYPE A OR TYPE C-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71910-60500B1 |
BZB40,50,XZB4#,50,56 ｼ-ﾄ = TYPE A OR TYPE C-*104,MD.CHARCOAL,TRIM1# |
1 | ||
| 71910-60040B1 |
XZB40..6FC..IV5;XZB50..(LX,STD)..(5F,6FC);BZB40,50,XZB4#,56..(DX,LX,STD)..(5F,6FC)..CBU MD.CHARCOAL,TRIM1# |
1 | ||
| 71910-60500B1 |
BZB40,50,XZB4#,50,56..DX,LX,STD MD.CHARCOAL,TRIM1# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-10020E4 |
BB4#,HDB5#,HZB4#,5# ﾛｯｸ無,GREIGE,TRIM4# |
1 | ||
| 71930-10070E4 |
BB4#,HDB5#,HZB4#,5# ﾛｯｸ付,GREIGE,TRIM4# |
1 | ||
| 71930-44010B3 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);BZB40,50,XZB4#,51,56..(5F,6FC)..CBU ﾛｯｸ付,MD.CHARCOAL,TRIM1# |
1 | ||
| 71931-42020B1 |
BZB40,50,XZB4#,5# ﾛｯｸ付(ﾎﾞﾀﾝ無し),MD.CHARCOAL,TRIM1# |
1 | ||
| 71930-52030B8 |
BZB40,50,XZB4#,5# ﾛｯｸ付(ﾎﾞﾀﾝ有り),MD.CHARCOAL,TRIM1# |
1 | ||
| 71930-52030B8 |
BZB40,50,XZB4#,5# ﾛｯｸ付(ﾎﾞﾀﾝ有り),MD.CHARCOAL,TRIM1# |
1 | ||
| 71931-12040P9 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);BZB40,50,XZB4#,51,56..(5F,6FC)..CBU ﾛｯｸ無,MD.CHARCOAL,TRIM1# |
1 | ||
| 71931-42020B1 |
BZB40,50,XZB4#,5# ﾛｯｸ付(ﾎﾞﾀﾝ無し),MD.CHARCOAL,TRIM1# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-10020E4 |
BB4#,HDB5#,HZB4#,5# ﾛｯｸ無,GREIGE,TRIM4# |
1 | ||
| 71930-10070E4 |
BB4#,HDB5#,HZB4#,5# ﾛｯｸ付,GREIGE,TRIM4# |
1 | ||
| 71930-44010B3 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);BZB40,50,XZB4#,51,56..(5F,6FC)..CBU ﾛｯｸ付,MD.CHARCOAL,TRIM1# |
1 | ||
| 71931-42020B1 |
BZB40,50,XZB4#,5# ﾛｯｸ付(ﾎﾞﾀﾝ無し),MD.CHARCOAL,TRIM1# |
1 | ||
| 71930-52030B8 |
BZB40,50,XZB4#,5# ﾛｯｸ付(ﾎﾞﾀﾝ有り),MD.CHARCOAL,TRIM1# |
1 | ||
| 71930-52030B8 |
BZB40,50,XZB4#,5# ﾛｯｸ付(ﾎﾞﾀﾝ有り),MD.CHARCOAL,TRIM1# |
1 | ||
| 71931-12040P9 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);BZB40,50,XZB4#,51,56..(5F,6FC)..CBU ﾛｯｸ無,MD.CHARCOAL,TRIM1# |
1 | ||
| 71931-42020B1 |
BZB40,50,XZB4#,5# ﾛｯｸ付(ﾎﾞﾀﾝ無し),MD.CHARCOAL,TRIM1# |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-36010 |
BB4#,55,HDB5#,HZB4#,5# |
1 | ||
| 72110-36010 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 72110-36010 |
BZB40,50,XZB4#,5# |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-36010 |
BB4#,55,HDB5#,HZB4#,5# |
1 | ||
| 72130-36011 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 72130-36011 |
BZB40,50,XZB4#,5# |
1 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-60020 |
BB4#,HDB5#,HZB4#,5# |
1 | ||
| 72301-60020 |
BZB40,50,XZB4#,5# |
1 | ||
| 72301-60020 |
XZB40..6FC..IV5;XZB50..WC..(5F,6FC);XZB40..(5F,6FC)..CBU;BZB40,50,XZB46,51,56..(EX,LX)..(5F,6FC)..CBU |
1 | ||
| 72331A - BOARD, ASSISTANT SEAT, BACK | ||||
| 78851-36010 |
XZB40,50..STD..(5F,6FC) |
1 | ||
| 78851-36010 |
XZB40,50..STD |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-36010 |
BB4#,55,HDB5#,HZB4#,5# |
1 | ||
| 72510-36030 |
XZB40,50..STD..(5F,6FC) |
1 | ||
| 72510-36030 |
XZB40,50..STD |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-60030B2 |
BZB40,50,XZB4#,5# MD.CHARCOAL,TRIM1# |
1 | ||
| 72525-60030B2 |
BZB40,50,XZB4#,5# MD.CHARCOAL,TRIM1# |
1 | ||
| 78077C - BOARD SUB-ASSY, ASSISTANT SEAT CUSHION, NO.1 | ||||
| 78077-36020 |
XZB40,50..STD..(5F,6FC) |
1 | ||
| 78077-36020 |
XZB40,50..STD |
1 | ||
| 78078A - BOARD SUB-ASSY, ASSISTANT SEAT CUSHION, NO.2 | ||||
| 78077-36020 |
XZB40,50..STD |
1 | ||
| 78077-36020 |
XZB40,50..STD..(5F,6FC) |
1 | ||
| 78081 - COVER SUB-ASSY, ASSISTANT SEAT CUSHION, NO.1 | ||||
| 78081-36022E1 |
BZB40,50,XZB40,50..STD ORANGE,TRIM1# |
1 | ||
| 78081-36051E0 |
XZB40,50..STD ORANGE,TRIM1# |
1 | ||
| 78081-36021E0 |
BZB40,50,XZB40,50..STD GREIGE,TRIM1# |
1 | ||
| 78081-36051E0 |
XZB40,50..STD ORANGE,TRIM1# |
1 | ||
| 78081-36050E0 |
XZB40,50..STD ORANGE,TRIM1# |
1 | ||
| 78082 - COVER SUB-ASSY, ASSISTANT SEAT CUSHION, NO.2 | ||||
| 78081-36060E0 |
XZB40,50..STD ORANGE,TRIM1# |
1 | ||
| 78081-36011E0 |
BZB40,50,XZB40,50..STD GREIGE,TRIM1# |
1 | ||
| 78081-36012E1 |
BZB40,50,XZB40,50..STD ORANGE,TRIM1# |
1 | ||
| 78081-36060E0 |
XZB40,50..STD ORANGE,TRIM1# |
1 | ||
| 78083 - COVER SUB-ASSY, ASSISTANT SEAT BACK, NO.1 | ||||
| 78073-36140E0 |
XZB40,50..STD ORANGE,TRIM1# |
1 | ||
| 78073-36060E0 |
BZB40,50,XZB40,50..STD ORANGE,TRIM1# |
1 | ||
| 78073-36140E0 |
XZB40,50..STD ORANGE,TRIM1# |
1 | ||
| 78073-36061E1 |
BZB40,50,XZB40,50..STD ORANGE,TRIM1# |
1 | ||
| 78084 - COVER SUB-ASSY, ASSISTANT SEAT BACK, NO.2 | ||||
| 78083-36011E1 |
BZB40,50,XZB40,50..STD ORANGE,TRIM1# |
1 | ||
| 78083-36030E0 |
XZB40,50..STD ORANGE,TRIM1# |
1 | ||
| 78083-36010E0 |
BZB40,50,XZB40,50..STD ORANGE,TRIM1# |
1 | ||
| 78083-36030E0 |
XZB40,50..STD ORANGE,TRIM1# |
1 | ||
| 78705 - BRACKET SUB-ASSY, SUB SEAT CUSHION | ||||
| 78705-36011B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
2 | ||
| 78705-36011B0 |
XZB40,50..STD..(5F,6FC) MD.CHARCOAL,TRIM1# |
2 | ||
| 78715A - PANEL, ASSISTANT SEAT CUSHION | ||||
| 78715-36010B1 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
2 | ||
| 78715-36010B1 |
BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
2 | ||
| 78715A - PANEL, ASSISTANT SEAT CUSHION | ||||
| 78715-36010B1 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
2 | ||
| 78715-36010B1 |
BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
2 | ||
| 78726 - CUSHION, SUB SEAT CUSHION FRAME | ||||
| 78726-36010 |
XZB40,50..STD..(5F,6FC) NO.2 |
1 | ||
| 78726-36010 |
XZB40,50..STD NO.2 |
1 | ||
| 78726-90B00 |
XZB40,50..STD NO.1 |
4 | ||
| 78726-90B00 |
XZB40,50..STD..(5F,6FC) NO.1 |
4 | ||
| 78726 - CUSHION, SUB SEAT CUSHION FRAME | ||||
| 78726-36010 |
XZB40,50..STD..(5F,6FC) NO.2 |
1 | ||
| 78726-36010 |
XZB40,50..STD NO.2 |
1 | ||
| 78726-90B00 |
XZB40,50..STD NO.1 |
4 | ||
| 78726-90B00 |
XZB40,50..STD..(5F,6FC) NO.1 |
4 | ||
| 78726 - CUSHION, SUB SEAT CUSHION FRAME | ||||
| 78726-36010 |
XZB40,50..STD..(5F,6FC) NO.2 |
1 | ||
| 78726-36010 |
XZB40,50..STD NO.2 |
1 | ||
| 78726-90B00 |
XZB40,50..STD NO.1 |
4 | ||
| 78726-90B00 |
XZB40,50..STD..(5F,6FC) NO.1 |
4 | ||
| 78735C - PAD, ASSISTANT SEAT CUSHION, NO.1 | ||||
| 78735-36011 |
XZB40,50..STD |
1 | ||
| 78735-36011 |
XZB40,50..STD..(5F,6FC) |
1 | ||
| 78735D - PAD, ASSISTANT SEAT CUSHION, NO.2 | ||||
| 78735-36011 |
XZB40,50..STD..(5F,6FC) |
1 | ||
| 78735-36011 |
XZB40,50..STD |
1 | ||
| 78775C - PAD, ASSISTANT SEAT BACK, NO.1 | ||||
| 78775-36040 |
XZB40,50..STD |
1 | ||
| 78775-36040 |
XZB40,50..STD..(5F,6FC) |
1 | ||
| 78775D - PAD, ASSISTANT SEAT BACK, NO.2 | ||||
| 78775-36050 |
XZB40,50..STD..(5F,6FC) |
1 | ||
| 78775-36050 |
XZB40,50..STD |
1 | ||
| 78801 - FRAME SUB-ASSY, ASSISTANT SEAT, NO.1 | ||||
| 78703-36030B1 |
BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 78703-36030B1 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 78802 - FRAME SUB-ASSY, ASSISTANT SEAT, NO.2 | ||||
| 78802-36010B1 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 78802-36010B1 |
BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 78803A - LEG SUB-ASSY, SUB SEAT, RH | ||||
| 78803-36010B1 |
BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 78803-36020B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 78803-36020B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 78805A - FRAME SUB-ASSY, ASSISTANT SEAT CUSHION, NO.1 | ||||
| 78701-36020B1 |
BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 78701-36020B1 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 78806A - FRAME SUB-ASSY, ASSISTANT SEAT CUSHION, NO.2 | ||||
| 78805-36020B1 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 78805-36020B1 |
BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| Common parts | ||||
| 78893-36010 | ||||
| 90101-10055 | ||||
| 90119-05008 | ||||
| 90119-08079 | ||||
| 90119-08080 | ||||
| 90119-08301 | ||||
| 90119-08873 | ||||
| 90119-10037 | ||||
| 90119-10428 | ||||
| 90167-40044 | ||||
| 90176-08039 | ||||
| 90202-08039 | ||||
| 90202-14007 | ||||
| 90240-08044 | ||||
| 90240-08124 | ||||
| 90255-08007 | ||||
| 90386-08053 | ||||
| 90386-12051 | ||||
| 90389-08037 | ||||
| 90468-14022 | ||||
| 90560-10026 | ||||
| 91651-60830 | ||||
| 93560-13512 | ||||
| 93560-13520 | ||||
| 93560-54012 | ||||
| 94120-41000 | ||||
| 94543-01200 | ||||
| 94612-10800 | ||||
| 94614-10400 | ||||
| Linked diagrams | ||||
| 7152 | ||||

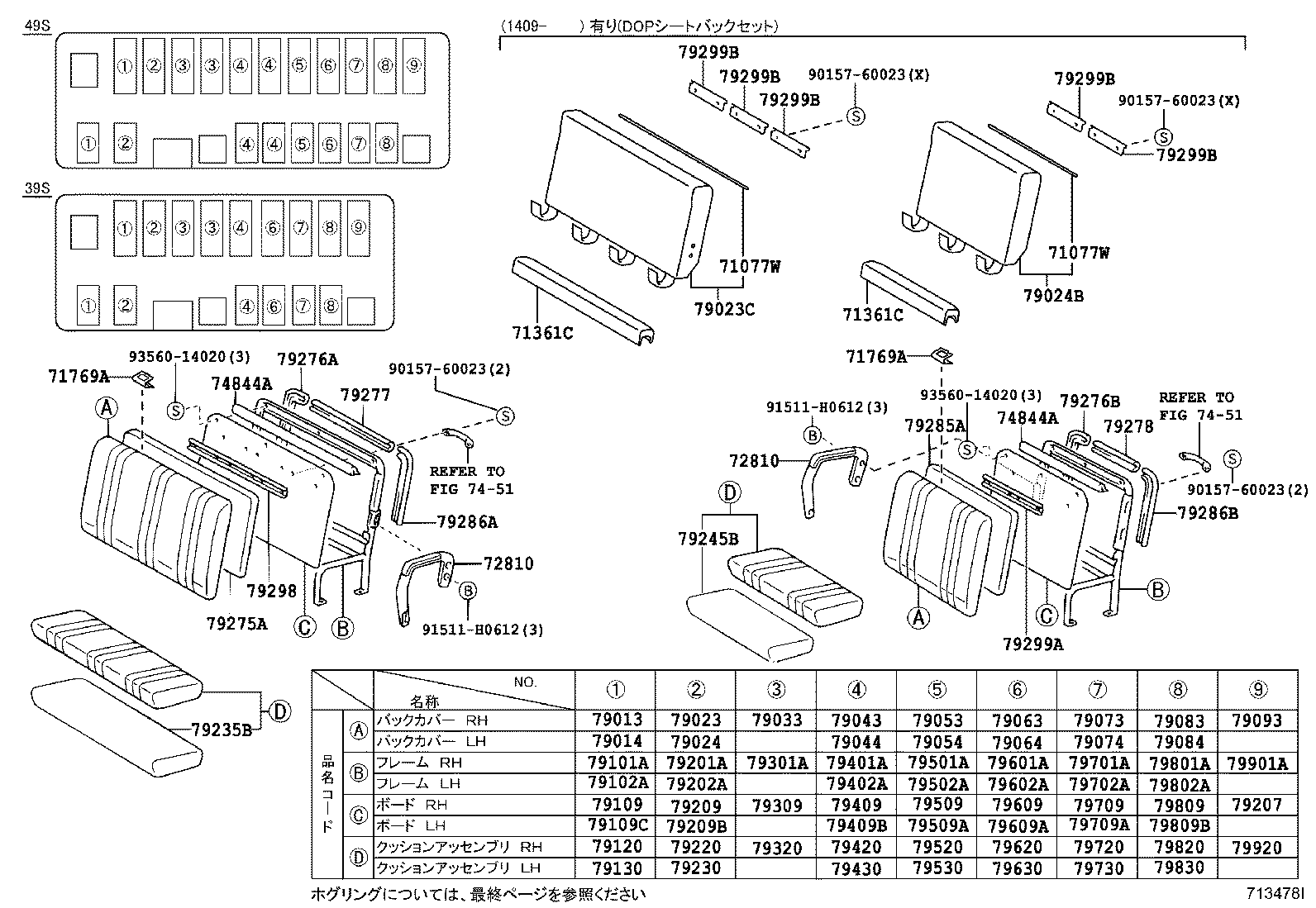

(0408-1501)STD
ﾘﾔｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71077W - WIRE, REAR SEAT BACK COVER | ||||
| 71291-36010 |
XZB40..STD 右側 |
8 | ||
| 71291-36020 |
XZB40..STD 左側 |
4 | ||
| 71077W - WIRE, REAR SEAT BACK COVER | ||||
| 71291-36010 |
XZB40..STD 右側 |
8 | ||
| 71291-36020 |
XZB40..STD 左側 |
4 | ||
| 71361C - PAD, PASSENGER SEAT BACK | ||||
| 79277-36030 |
XZB40..STD 右側 |
8 | ||
| 79278-36030 |
XZB40..STD 左側 |
4 | ||
| 71361C - PAD, PASSENGER SEAT BACK | ||||
| 79277-36030 |
XZB40..STD 右側 |
8 | ||
| 79278-36030 |
XZB40..STD 左側 |
4 | ||
| 71769A - CLIP, REAR SEAT BACK BOARD | ||||
| 71769-36010 |
BZB40,50,XZB40,50..STD |
5 | ||
| 71769-36010 |
XZB40,50..STD |
5 | ||
| 71769A - CLIP, REAR SEAT BACK BOARD | ||||
| 71769-36010 |
BZB40,50,XZB40,50..STD |
5 | ||
| 71769-36010 |
XZB40,50..STD |
5 | ||
| 72810 - ARMREST ASSY, JUNIOR SEAT | ||||
| 72810-36020E0 |
BZB40,50,XZB40,50..STD ORANGE,TRIM1#,右側 |
1 | ||
| 72820-36010E0 |
BZB40,50,XZB40,50..STD ORANGE,TRIM1#,左側 |
1 | ||
| 72820-36010E0 |
XZB40,50..STD ORANGE,TRIM1#,左側 |
1 | ||
| 72810-36020E0 |
XZB40,50..STD ORANGE,TRIM1#,右側 |
1 | ||
| 72810-36020E1 |
XZB40,50..STD ORANGE,TRIM1#,右側 |
1 | ||
| 72820-36010E1 |
XZB40,50..STD ORANGE,TRIM1#,左側 |
1 | ||
| 72810 - ARMREST ASSY, JUNIOR SEAT | ||||
| 72810-36020E0 |
BZB40,50,XZB40,50..STD ORANGE,TRIM1#,右側 |
1 | ||
| 72820-36010E0 |
BZB40,50,XZB40,50..STD ORANGE,TRIM1#,左側 |
1 | ||
| 72820-36010E0 |
XZB40,50..STD ORANGE,TRIM1#,左側 |
1 | ||
| 72810-36020E0 |
XZB40,50..STD ORANGE,TRIM1#,右側 |
1 | ||
| 72810-36020E1 |
XZB40,50..STD ORANGE,TRIM1#,右側 |
1 | ||
| 72820-36010E1 |
XZB40,50..STD ORANGE,TRIM1#,左側 |
1 | ||
| 74844A - ORNAMENT, FRONT SEAT BACK PANEL, A | ||||
| 74843-36010B0 |
BZB40,50,XZB40,50..STD ﾚﾌﾄ,MD.CHARCOAL,TRIM1# |
1 | ||
| 74844-36010B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1#,右側 |
1 | ||
| 74844-36010B0 |
BZB40,50,XZB40,50..STD ﾗｲﾄ,MD.CHARCOAL,TRIM1# |
1 | ||
| 74843-36010B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1#,左側 |
1 | ||
| 74844A - ORNAMENT, FRONT SEAT BACK PANEL, A | ||||
| 74843-36010B0 |
BZB40,50,XZB40,50..STD ﾚﾌﾄ,MD.CHARCOAL,TRIM1# |
1 | ||
| 74844-36010B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1#,右側 |
1 | ||
| 74844-36010B0 |
BZB40,50,XZB40,50..STD ﾗｲﾄ,MD.CHARCOAL,TRIM1# |
1 | ||
| 74843-36010B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1#,左側 |
1 | ||
| 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79023-36240E0 |
XZB40,50..STD ORANGE,TRIM1# |
1 | ||
| 79023-36141E1 |
BZB40,50,XZB40,50..STD ORANGE,TRIM1# |
1 | ||
| 79023-36241E0 |
XZB40,50..STD ｼ-ﾄ = TYPE A-*104,ORANGE,TRIM1# |
1 | ||
| 79023-36140E0 |
BZB40,50,XZB40,50..STD GREIGE,TRIM1# |
1 | ||
| 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79024-36060E0 |
BZB40,50,XZB40,50..STD ｼ-ﾄ = TYPE A-*104,GREIGE,TRIM1# |
1 | ||
| 79024-36061E1 |
BZB40,50,XZB40,50..STD ｼ-ﾄ = TYPE A-*104,ORANGE,TRIM1# |
1 | ||
| 79024-36090E0 |
XZB40,50..STD ORANGE,TRIM1# |
1 | ||
| 79024-36091E0 |
XZB40,50..STD ｼ-ﾄ = TYPE A-*104,ORANGE,TRIM1# |
1 | ||
| 79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79023-36140E0 |
BZB40,50,XZB40,50..STD ｼ-ﾄ = TYPE A-*104,GREIGE,TRIM1# |
1 | ||
| 79023-36141E1 |
BZB40,50,XZB40,50..STD ｼ-ﾄ = TYPE A-*104,ORANGE,TRIM1# |
1 | ||
| 79023-36241E0 |
XZB40,50..STD ｼ-ﾄ = TYPE A-*104,ORANGE,TRIM1# |
1 | ||
| 79023-36240E0 |
XZB40,50..STD ORANGE,TRIM1# |
1 | ||
| 79023C - COVER SUB-ASSY, JUNIOR SEAT BACK, RH | ||||
| 79023-36300E0 |
XZB40..STD ORANGE,TRIM1# |
8 | ||
| 79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79024-36060E0 |
BZB40,50,XZB40,50..STD ｼ-ﾄ = TYPE A-*104,GREIGE,TRIM1# |
1 | ||
| 79024-36061E1 |
BZB40,50,XZB40,50..STD ｼ-ﾄ = TYPE A-*104,ORANGE,TRIM1# |
1 | ||
| 79024-36090E0 |
XZB40,50..STD ORANGE,TRIM1# |
1 | ||
| 79024-36090E0 |
XZB40,50..STD ｼ-ﾄ = TYPE A-*104,ORANGE,TRIM1# |
1 | ||
| 79024B - COVER SUB-ASSY, JUNIOR SEAT BACK, LH | ||||
| 79024-36110E0 |
XZB40..STD ORANGE,TRIM1# |
4 | ||
| 79033 - COVER SUB-ASSY, NO.3 SEAT BACK, RH | ||||
| 79023-36141E1 |
BZB40,50,XZB40,50..STD ｼ-ﾄ = TYPE A-*104,ORANGE,TRIM1# |
1 | ||
| 79023-36140E0 |
BZB40,50,XZB40,50..STD ｼ-ﾄ = TYPE A-*104,GREIGE,TRIM1# |
1 | ||
| 79023-36240E0 |
XZB40,50..STD ORANGE,TRIM1# |
1 | ||
| 79023-36241E0 |
XZB40,50..STD ｼ-ﾄ = TYPE A-*104,ORANGE,TRIM1# |
1 | ||
| 79043 - COVER SUB-ASSY, NO.4 SEAT BACK, RH | ||||
| 79023-36140E0 |
BZB40,50,XZB40,50..STD ｼ-ﾄ = TYPE A-*104,GREIGE,TRIM1# |
1 | ||
| 79023-36141E1 |
BZB40,50,XZB40,50..STD ｼ-ﾄ = TYPE A-*104,ORANGE,TRIM1# |
1 | ||
| 79023-36241E0 |
XZB40,50..STD ｼ-ﾄ = TYPE A-*104,ORANGE,TRIM1# |
1 | ||
| 79023-36240E0 |
XZB40,50..STD ORANGE,TRIM1# |
1 | ||
| 79044 - COVER SUB-ASSY, NO.4 SEAT BACK, LH | ||||
| 79024-36060E0 |
BZB40,50,XZB40,50..STD ｼ-ﾄ = TYPE A-*104,GREIGE,TRIM1# |
1 | ||
| 79024-36061E1 |
BZB40,50,XZB40,50..STD ｼ-ﾄ = TYPE A-*104,ORANGE,TRIM1# |
1 | ||
| 79024-36091E0 |
XZB40,50..STD ｼ-ﾄ = TYPE A-*104,ORANGE,TRIM1# |
1 | ||
| 79024-36090E0 |
XZB40,50..STD ORANGE,TRIM1# |
1 | ||
| 79063 - COVER SUB-ASSY, NO.6 SEAT BACK, RH | ||||
| 79023-36140E0 |
BZB40,50,XZB40,50..STD ｼ-ﾄ = TYPE A-*104,GREIGE,TRIM1# |
1 | ||
| 79023-36141E1 |
BZB40,50,XZB40,50..STD ｼ-ﾄ = TYPE A-*104,ORANGE,TRIM1# |
1 | ||
| 79023-36241E0 |
XZB40,50..STD ｼ-ﾄ = TYPE A-*104,ORANGE,TRIM1# |
1 | ||
| 79023-36240E0 |
XZB40,50..STD ORANGE,TRIM1# |
1 | ||
| 79064 - COVER SUB-ASSY, NO.6 SEAT BACK, LH | ||||
| 79024-36061E1 |
BZB40,50,XZB40,50..STD ｼ-ﾄ = TYPE A-*104,ORANGE,TRIM1# |
1 | ||
| 79024-36060E0 |
BZB40,50,XZB40,50..STD ｼ-ﾄ = TYPE A-*104,GREIGE,TRIM1# |
1 | ||
| 79024-36091E0 |
XZB40,50..STD ｼ-ﾄ = TYPE A-*104,ORANGE,TRIM1# |
1 | ||
| 79024-36090E0 |
XZB40,50..STD ORANGE,TRIM1# |
1 | ||
| 79073 - COVER SUB-ASSY, NO.7 SEAT BACK, RH | ||||
| 79023-36140E0 |
BZB40,50,XZB40,50..STD ｼ-ﾄ = TYPE A-*104,GREIGE,TRIM1# |
1 | ||
| 79023-36141E1 |
BZB40,50,XZB40,50..STD ｼ-ﾄ = TYPE A-*104,ORANGE,TRIM1# |
1 | ||
| 79023-36240E0 |
XZB40,50..STD ORANGE,TRIM1# |
1 | ||
| 79023-36241E0 |
XZB40,50..STD ｼ-ﾄ = TYPE A-*104,ORANGE,TRIM1# |
1 | ||
| 79074 - COVER SUB-ASSY, NO.7 SEAT BACK, LH | ||||
| 79024-36060E0 |
BZB40,50,XZB40,50..STD ｼ-ﾄ = TYPE A-*104,GREIGE,TRIM1# |
1 | ||
| 79024-36061E1 |
BZB40,50,XZB40,50..STD ｼ-ﾄ = TYPE A-*104,ORANGE,TRIM1# |
1 | ||
| 79024-36090E0 |
XZB40,50..STD ORANGE,TRIM1# |
1 | ||
| 79024-36091E0 |
XZB40,50..STD ｼ-ﾄ = TYPE A-*104,ORANGE,TRIM1# |
1 | ||
| 79083 - COVER SUB-ASSY, NO.8 SEAT BACK, RH | ||||
| 79023-36140E0 |
BZB40,50,XZB40,50..STD ｼ-ﾄ = TYPE A-*104,GREIGE,TRIM1# |
1 | ||
| 79023-36240E0 |
XZB40,50..STD ORANGE,TRIM1# |
1 | ||
| 79023-36141E1 |
BZB40,50,XZB40,50..STD ｼ-ﾄ = TYPE A-*104,ORANGE,TRIM1# |
1 | ||
| 79023-36241E0 |
XZB40,50..STD ｼ-ﾄ = TYPE A-*104,ORANGE,TRIM1# |
1 | ||
| 79084 - COVER SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79024-36061E1 |
BZB40,50,XZB40,50..STD ｼ-ﾄ = TYPE A-*104,ORANGE,TRIM1# |
1 | ||
| 79024-36060E0 |
XZB40,50..STD ｼ-ﾄ = TYPE A-*104,GREIGE,TRIM1# |
1 | ||
| 79024-36090E0 |
XZB40,50..STD ORANGE,TRIM1# |
1 | ||
| 79024-36090E0 |
XZB40,50..STD ｼ-ﾄ = TYPE A-*104,ORANGE,TRIM1# |
1 | ||
| 79093 - COVER SUB-ASSY, NO.9 SEAT BACK, RH | ||||
| 79023-36140E0 |
BZB40,50,XZB40,50..STD GREIGE,TRIM1# |
1 | ||
| 79023-36240E0 |
XZB40,50..STD ORANGE,TRIM1# |
1 | ||
| 79023-36141E1 |
BZB40,50,XZB40,50..STD ORANGE,TRIM1# |
1 | ||
| 79023-36240E0 |
XZB40,50..STD ｼ-ﾄ = TYPE A-*104,ORANGE,TRIM1# |
1 | ||
| 79101A - FRAME SUB-ASSY, NO.1 JUNIOR SEAT, RH | ||||
| 79101-36160B0 |
BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79101-36161B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79102A - FRAME SUB-ASSY, NO.1 JUNIOR SEAT, LH | ||||
| 79102-36190B0 |
BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79102-36191B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79109 - BOARD SUB-ASSY, NO.1 SEAT BACK | ||||
| 79207-36060A0 |
BZB40,50,XZB40,50..STD IVORY,TRIM1# |
1 | ||
| 79207-36190A0 |
XZB40,50..STD IVORY,TRIM1# |
1 | ||
| 79109C - BOARD SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79208-36030A0 |
XZB40,50..STD..(5F,6FC) IVORY,TRIM1# |
1 | ||
| 79208-36110A0 |
XZB40,50..STD IVORY,TRIM1# |
1 | ||
| 79120 - CUSHION ASSY, NO.1 SEAT, RH | ||||
| 79120-36031B1 |
BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79120-36670B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79120-36030B2 |
BZB40,50,XZB40,50..STD MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 79120-36670B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79130 - CUSHION ASSY, NO.1 SEAT, LH | ||||
| 79130-36010B2 |
BZB40,50,XZB40,50..STD MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 79130-36D40B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79130-36D40B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79130-36011B1 |
BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79201A - FRAME SUB-ASSY, NO.2 JUNIOR SEAT, RH | ||||
| 79101-36161B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79101-36160B0 |
BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79202A - FRAME SUB-ASSY, NO.2 JUNIOR SEAT, LH | ||||
| 79202-36030B0 |
BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79202-36160B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79202-36160B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79207 - BOARD SUB-ASSY, JUNIOR SEAT BACK, RH | ||||
| 79207-36130A0 |
XZB40,50..STD IVORY,TRIM1# |
1 | ||
| 79207-36060A0 |
BZB40,50,XZB40,50..STD IVORY,TRIM1# |
1 | ||
| 79207-36130A0 |
XZB40,50..STD IVORY,TRIM1# |
1 | ||
| 79209 - BOARD SUB-ASSY, NO.2 SEAT BACK | ||||
| 79207-36060A0 |
BZB40,50,XZB40,50..STD IVORY,TRIM1# |
1 | ||
| 79207-36190A0 |
XZB40,50..STD IVORY,TRIM1# |
1 | ||
| 79209B - BOARD SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79208-36030A0 |
XZB40,50..STD..(5F,6FC) IVORY,TRIM1# |
1 | ||
| 79208-36100A0 |
XZB40,50..STD IVORY,TRIM1# |
1 | ||
| 79208-36100A0 |
XZB40,50..STD IVORY,TRIM1# |
1 | ||
| 79220 - CUSHION ASSY, NO.2 SEAT, RH | ||||
| 79120-36030B2 |
BZB40,50,XZB40,50..STD MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 79120-36670B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79120-36670B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79120-36031B1 |
BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79230 - CUSHION ASSY, NO.2 SEAT, LH | ||||
| 79130-36011B1 |
BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79130-36010B2 |
BZB40,50,XZB40,50..STD MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 79130-36D40B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79130-36D40B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79235B - PAD, JUNIOR SEAT CUSHION, RH | ||||
| 79235-90B01 |
BZB40,50,XZB40,50..STD |
1 | ||
| 79235-36090 |
XZB40,50..STD |
1 | ||
| 79235-36090 |
XZB40,50..STD |
1 | ||
| 79245B - PAD, JUNIOR SEAT CUSHION, LH | ||||
| 79245-90B00 |
BZB40,50,XZB40,50..STD..(5F,6FC) |
1 | ||
| 79245-36060 |
XZB40,50..STD |
1 | ||
| 79245-36060 |
XZB40,50..STD |
1 | ||
| 79275A - PAD, JUNIOR SEAT BACK, RH | ||||
| 79275-36061 |
XZB40,50..STD |
1 | ||
| 79275-36060 |
XZB40,50..STD |
1 | ||
| 79275-36060 |
XZB40,50..STD ｻｲｺｳﾚﾂ ｼｰﾄﾖｳ |
1 | ||
| 79275-36050 |
BZB40,50,XZB40,50..STD |
1 | ||
| 79276A - PAD, JUNIOR SEAT BACK SAFETY, RH | ||||
| 79276-36031 |
XZB40,50..STD |
1 | ||
| 79276-36030 |
BZB40,50,XZB40,50..STD |
1 | ||
| 79276-36030 |
XZB40,50..STD ｻｲｺｳﾚﾂ ｼｰﾄﾖｳ |
1 | ||
| 79276B - PAD, JUNIOR SEAT BACK SAFETY, RH | ||||
| 79276-36040 |
XZB40,50..STD ﾘﾔ NO.2 ｼｰﾄ OR ｻｲｺｳﾚﾂ ｼｰﾄﾖｳ |
1 | ||
| 79276-36040 |
XZB40,50..STD..(5F,6FC) |
1 | ||
| 79276-36041 |
XZB40,50..STD |
1 | ||
| 79277 - PAD, JUNIOR SEAT BACK SAFETY, A | ||||
| 79277-36020 |
BZB40,50,XZB40,50..STD |
1 | ||
| 79277-36020 |
XZB40,50..STD ｻｲｺｳﾚﾂ ｼｰﾄﾖｳ |
1 | ||
| 79277-36021 |
XZB40,50..STD |
1 | ||
| 79278 - PAD, JUNIOR SEAT BACK SAFETY, B | ||||
| 79278-36020 |
XZB40,50..STD..(5F,6FC) |
1 | ||
| 79278-36021 |
XZB40,50..STD |
1 | ||
| 79278-36020 |
XZB40,50..STD ﾘﾔ NO.2 ｼｰﾄ OR ｻｲｺｳﾚﾂ ｼｰﾄﾖｳ |
1 | ||
| 79285A - PAD, JUNIOR SEAT BACK, LH | ||||
| 79285-36020 |
BZB40,50,XZB40,50..STD..(5F,6FC) |
1 | ||
| 79285-36051 |
XZB40,50..STD |
1 | ||
| 79285-36050 |
XZB40,50..STD |
1 | ||
| 79285-36050 |
XZB40,50..STD ﾘﾔ NO.2 ｼｰﾄ OR ｻｲｺｳﾚﾂ ｼｰﾄﾖｳ |
1 | ||
| 79286A - PAD, JUNIOR SEAT BACK SAFETY, LH | ||||
| 79286-36040 |
BZB40,50,XZB40,50..STD |
1 | ||
| 79286-36040 |
XZB40,50..STD ｻｲｺｳﾚﾂ ｼｰﾄﾖｳ |
1 | ||
| 79286-36041 |
XZB40,50..STD |
1 | ||
| 79286B - PAD, JUNIOR SEAT BACK SAFETY, LH | ||||
| 79286-36030 |
XZB40,50..STD..(5F,6FC) |
1 | ||
| 79286-36030 |
XZB40,50..STD ﾘﾔ NO.2 ｼｰﾄ OR ｻｲｺｳﾚﾂ ｼｰﾄﾖｳ |
1 | ||
| 79286-36031 |
XZB40,50..STD |
1 | ||
| 79298 - REINFORCEMENT, JUNIOR SEAT ASSIST SET, RH | ||||
| 79299-90B00 |
XZB40,50..STD |
1 | ||
| 79299-90B00 |
BZB40,50,XZB40,50..STD |
1 | ||
| 79299A - REINFORCEMENT, JUNIOR SEAT ASSIST SET, LH | ||||
| 79298-90B00 |
XZB40,50..STD..(5F,6FC) |
1 | ||
| 79298-90B00 |
XZB40,50..STD |
1 | ||
| 79299B - REINFORCE, JUNIOR SEAT ASSIST SET | ||||
| 79299-36020E0 |
XZB40..STD ORANGE,TRIM1# |
32 | ||
| 79299B - REINFORCE, JUNIOR SEAT ASSIST SET | ||||
| 79299-36020E0 |
XZB40..STD ORANGE,TRIM1# |
32 | ||
| 79299B - REINFORCE, JUNIOR SEAT ASSIST SET | ||||
| 79299-36020E0 |
XZB40..STD ORANGE,TRIM1# |
32 | ||
| 79299B - REINFORCE, JUNIOR SEAT ASSIST SET | ||||
| 79299-36020E0 |
XZB40..STD ORANGE,TRIM1# |
32 | ||
| 79299B - REINFORCE, JUNIOR SEAT ASSIST SET | ||||
| 79299-36020E0 |
XZB40..STD ORANGE,TRIM1# |
32 | ||
| 79301A - FRAME SUB-ASSY, NO.3 JUNIOR SEAT, RH | ||||
| 79101-36161B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79101-36160B0 |
BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79309 - BOARD SUB-ASSY, NO.3 SEAT BACK | ||||
| 79207-36190A0 |
XZB40,50..STD IVORY,TRIM1# |
1 | ||
| 79207-36060A0 |
BZB40,50,XZB40,50..STD IVORY,TRIM1# |
1 | ||
| 79320 - CUSHION ASSY, NO.3 SEAT, RH | ||||
| 79120-36670B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79120-36031B1 |
BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79120-36030B2 |
BZB40,50,XZB40,50..STD MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 79120-36670B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79401A - FRAME SUB-ASSY, NO.4 JUNIOR SEAT, RH | ||||
| 79101-36161B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79101-36160B0 |
BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79402A - FRAME SUB-ASSY, NO.4 JUNIOR SEAT, LH | ||||
| 79202-36030B0 |
BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79202-36031B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79409 - BOARD SUB-ASSY, NO.4 SEAT BACK | ||||
| 79207-36060A0 |
BZB40,50,XZB40,50..STD IVORY,TRIM1# |
1 | ||
| 79207-36190A0 |
XZB40,50..STD IVORY,TRIM1# |
1 | ||
| 79409B - BOARD SUB-ASSY, NO.4 SEAT BACK, LH | ||||
| 79208-36030A0 |
XZB40,50..STD..(5F,6FC) IVORY,TRIM1# |
1 | ||
| 79208-36110A0 |
XZB40,50..STD IVORY,TRIM1# |
1 | ||
| 79420 - CUSHION ASSY, NO.4 SEAT, RH | ||||
| 79120-36031B1 |
BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79120-36670B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79120-36030B2 |
BZB40,50,XZB40,50..STD MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 79120-36670B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79430 - CUSHION ASSY, NO.4 SEAT, LH | ||||
| 79130-36011B1 |
BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79130-36D40B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79130-36D40B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79130-36010B2 |
BZB40,50,XZB40,50..STD MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 79601A - FRAME SUB-ASSY, NO.6 JUNIOR SEAT, RH | ||||
| 79201-36121B0 |
XZB40..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79201-36120B0 |
BZB40,XZB40..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79602A - FRAME SUB-ASSY, NO.6 JUNIOR SEAT, LH | ||||
| 79402-36050B0 |
XZB40..STD..(5F,6FC) MD.CHARCOAL,TRIM1# |
1 | ||
| 79402-36051B0 |
XZB40..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79609 - BOARD SUB-ASSY, NO.6 SEAT BACK, RH | ||||
| 79207-36060A0 |
BZB40,50,XZB40,50..STD IVORY,TRIM1# |
1 | ||
| 79207-36190A0 |
XZB40,50..STD IVORY,TRIM1# |
1 | ||
| 79609A - BOARD SUB-ASSY, NO.6 SEAT BACK, LH | ||||
| 79208-36030A0 |
XZB40,50..STD..(5F,6FC) IVORY,TRIM1# |
1 | ||
| 79208-36110A0 |
XZB40,50..STD IVORY,TRIM1# |
1 | ||
| 79620 - CUSHION ASSY, NO.6 SEAT, RH | ||||
| 79120-36030B2 |
BZB40,50,XZB40,50..STD MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 79120-36670B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79120-36031B1 |
BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79120-36670B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79630 - CUSHION ASSY, NO.6 SEAT, LH | ||||
| 79130-36011B1 |
BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79130-36010B2 |
BZB40,50,XZB40,50..STD MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 79130-36D40B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79130-36D40B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79701A - FRAME SUB-ASSY, NO.7 JUNIOR SEAT, RH | ||||
| 79101-36160B0 |
BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79101-36161B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79702A - FRAME SUB-ASSY, NO.7 JUNIOR SEAT, LH | ||||
| 79502-36040B0 |
XZB40..STD..(5F,6FC) MD.CHARCOAL,TRIM1# |
1 | ||
| 79502-36041B0 |
XZB40..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79709 - BOARD SUB-ASSY, NO.7 SEAT BACK, RH | ||||
| 79207-36060A0 |
BZB40,50,XZB40,50..STD IVORY,TRIM1# |
1 | ||
| 79207-36190A0 |
XZB40,50..STD IVORY,TRIM1# |
1 | ||
| 79709A - BOARD SUB-ASSY, NO.7 SEAT BACK, LH | ||||
| 79208-36110A0 |
XZB40,50..STD IVORY,TRIM1# |
1 | ||
| 79208-36030A0 |
XZB40,50..STD..(5F,6FC) IVORY,TRIM1# |
1 | ||
| 79720 - CUSHION ASSY, NO.7 SEAT, RH | ||||
| 79120-36030B2 |
BZB40,50,XZB40,50..STD MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 79120-36670B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79120-36670B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79120-36031B1 |
BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79730 - CUSHION ASSY, NO.7 SEAT, LH | ||||
| 79130-36011B1 |
BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79130-36D40B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79130-36D40B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79130-36010B2 |
BZB40,50,XZB40,50..STD MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 79801A - FRAME SUB-ASSY, NO.8 JUNIOR SEAT, RH | ||||
| 79101-36161B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79101-36160B0 |
BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79802A - FRAME SUB-ASSY, NO.8 JUNIOR SEAT, LH | ||||
| 79202-36160B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79202-36030B0 |
BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79202-36160B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79809 - BOARD SUB-ASSY, NO.8 SEAT BACK | ||||
| 79207-36060A0 |
BZB40,50,XZB40,50..STD IVORY,TRIM1# |
1 | ||
| 79207-36190A0 |
XZB40,50..STD IVORY,TRIM1# |
1 | ||
| 79809B - BOARD SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79208-36100A0 |
XZB40,50..STD IVORY,TRIM1# |
1 | ||
| 79208-36100A0 |
XZB40,50..STD IVORY,TRIM1# |
1 | ||
| 79208-36030A0 |
BZB40,50,XZB40,50..STD IVORY,TRIM1# |
1 | ||
| 79820 - CUSHION ASSY, NO.8 SEAT, RH | ||||
| 79120-36031B1 |
BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79120-36670B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79120-36030B2 |
BZB40,50,XZB40,50..STD MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 79120-36670B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79830 - CUSHION ASSY, NO.8 SEAT, LH | ||||
| 79130-36010B2 |
BZB40,50,XZB40,50..STD MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 79130-36011B1 |
BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79130-36D40B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79130-36D40B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79901A - FRAME SUB-ASSY, NO.9 JUNIOR SEAT, RH | ||||
| 79101-36370B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79101-36370B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79101-36160B0 |
BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79920 - CUSHION ASSY, NO.9 SEAT, RH | ||||
| 79120-36670B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79120-36031B1 |
BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79120-36670B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79120-36030B2 |
BZB40,50,XZB40,50..STD MEDIUM CHARCOAL,TRIM1# |
1 | ||
| Common parts | ||||
| 90157-60023 | ||||
| 91511-H0612 | ||||
| 93560-14020 | ||||
| Linked diagrams | ||||
| 7451 | ||||

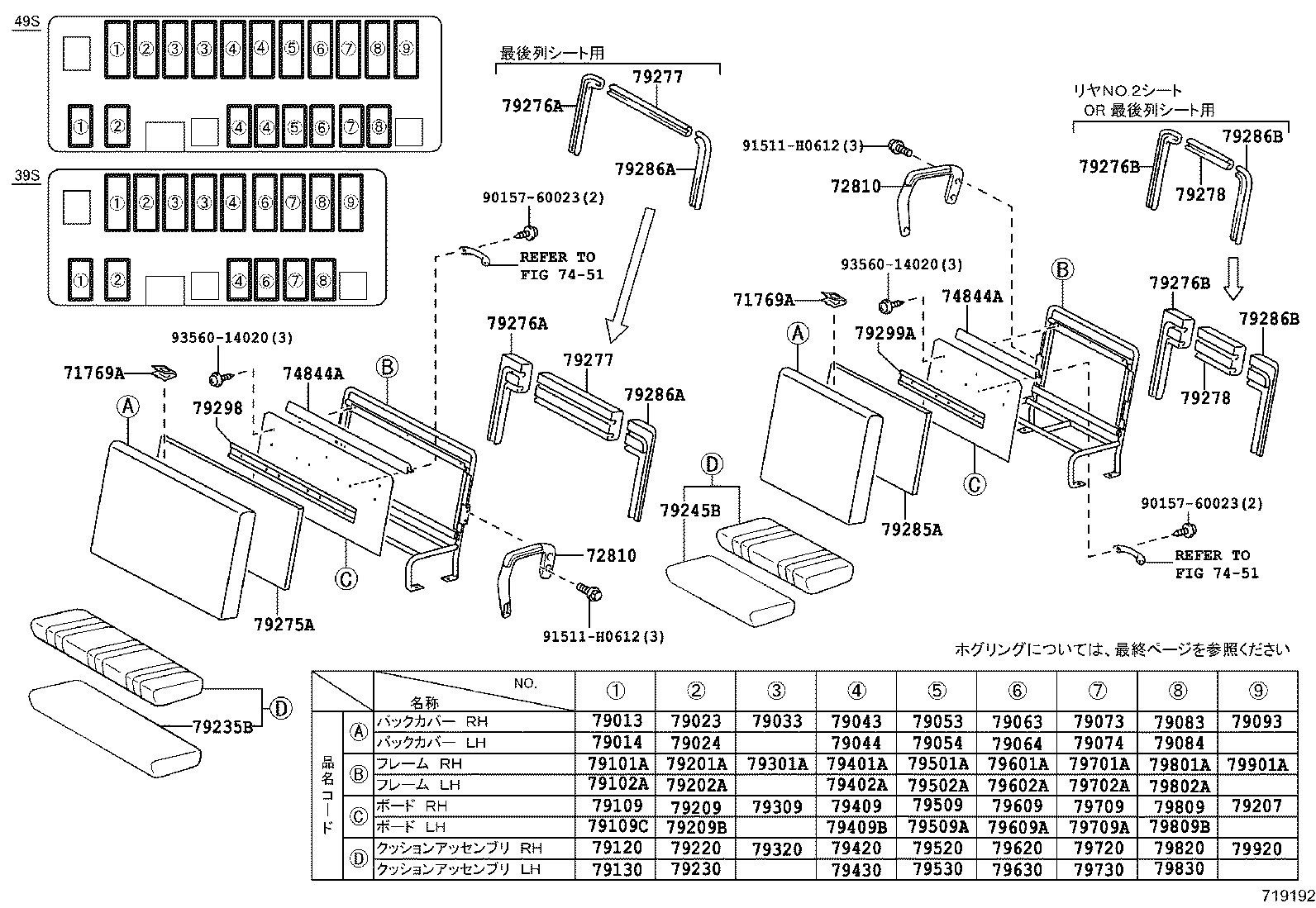

(1501- )STD
ﾘﾔｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71769A - CLIP, REAR SEAT BACK BOARD | ||||
| 71769-36010 |
BZB40,50,XZB40,50..STD |
5 | ||
| 71769-36010 |
XZB40,50..STD |
5 | ||
| 71769A - CLIP, REAR SEAT BACK BOARD | ||||
| 71769-36010 |
BZB40,50,XZB40,50..STD |
5 | ||
| 71769-36010 |
XZB40,50..STD |
5 | ||
| 72810 - ARMREST ASSY, JUNIOR SEAT | ||||
| 72810-36020E0 |
BZB40,50,XZB40,50..STD ORANGE,TRIM1#,右側 |
1 | ||
| 72820-36010E0 |
BZB40,50,XZB40,50..STD ORANGE,TRIM1#,左側 |
1 | ||
| 72820-36010E0 |
XZB40,50..STD ORANGE,TRIM1#,左側 |
1 | ||
| 72810-36020E0 |
XZB40,50..STD ORANGE,TRIM1#,右側 |
1 | ||
| 72810-36020E1 |
XZB40,50..STD ORANGE,TRIM1#,右側 |
1 | ||
| 72820-36010E1 |
XZB40,50..STD ORANGE,TRIM1#,左側 |
1 | ||
| 72810 - ARMREST ASSY, JUNIOR SEAT | ||||
| 72810-36020E0 |
BZB40,50,XZB40,50..STD ORANGE,TRIM1#,右側 |
1 | ||
| 72820-36010E0 |
BZB40,50,XZB40,50..STD ORANGE,TRIM1#,左側 |
1 | ||
| 72820-36010E0 |
XZB40,50..STD ORANGE,TRIM1#,左側 |
1 | ||
| 72810-36020E0 |
XZB40,50..STD ORANGE,TRIM1#,右側 |
1 | ||
| 72810-36020E1 |
XZB40,50..STD ORANGE,TRIM1#,右側 |
1 | ||
| 72820-36010E1 |
XZB40,50..STD ORANGE,TRIM1#,左側 |
1 | ||
| 74844A - ORNAMENT, FRONT SEAT BACK PANEL, A | ||||
| 74843-36010B0 |
BZB40,50,XZB40,50..STD ﾚﾌﾄ,MD.CHARCOAL,TRIM1# |
1 | ||
| 74844-36010B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1#,右側 |
1 | ||
| 74844-36010B0 |
BZB40,50,XZB40,50..STD ﾗｲﾄ,MD.CHARCOAL,TRIM1# |
1 | ||
| 74843-36010B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1#,左側 |
1 | ||
| 74844A - ORNAMENT, FRONT SEAT BACK PANEL, A | ||||
| 74843-36010B0 |
BZB40,50,XZB40,50..STD ﾚﾌﾄ,MD.CHARCOAL,TRIM1# |
1 | ||
| 74844-36010B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1#,右側 |
1 | ||
| 74844-36010B0 |
BZB40,50,XZB40,50..STD ﾗｲﾄ,MD.CHARCOAL,TRIM1# |
1 | ||
| 74843-36010B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1#,左側 |
1 | ||
| 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79023-36240E0 |
XZB40,50..STD ORANGE,TRIM1# |
1 | ||
| 79023-36141E1 |
BZB40,50,XZB40,50..STD ORANGE,TRIM1# |
1 | ||
| 79023-36241E0 |
XZB40,50..STD ｼ-ﾄ = TYPE A-*104,ORANGE,TRIM1# |
1 | ||
| 79023-36140E0 |
BZB40,50,XZB40,50..STD GREIGE,TRIM1# |
1 | ||
| 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79024-36060E0 |
BZB40,50,XZB40,50..STD ｼ-ﾄ = TYPE A-*104,GREIGE,TRIM1# |
1 | ||
| 79024-36061E1 |
BZB40,50,XZB40,50..STD ｼ-ﾄ = TYPE A-*104,ORANGE,TRIM1# |
1 | ||
| 79024-36090E0 |
XZB40,50..STD ORANGE,TRIM1# |
1 | ||
| 79024-36091E0 |
XZB40,50..STD ｼ-ﾄ = TYPE A-*104,ORANGE,TRIM1# |
1 | ||
| 79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79023-36140E0 |
BZB40,50,XZB40,50..STD ｼ-ﾄ = TYPE A-*104,GREIGE,TRIM1# |
1 | ||
| 79023-36141E1 |
BZB40,50,XZB40,50..STD ｼ-ﾄ = TYPE A-*104,ORANGE,TRIM1# |
1 | ||
| 79023-36241E0 |
XZB40,50..STD ｼ-ﾄ = TYPE A-*104,ORANGE,TRIM1# |
1 | ||
| 79023-36240E0 |
XZB40,50..STD ORANGE,TRIM1# |
1 | ||
| 79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79024-36060E0 |
BZB40,50,XZB40,50..STD ｼ-ﾄ = TYPE A-*104,GREIGE,TRIM1# |
1 | ||
| 79024-36061E1 |
BZB40,50,XZB40,50..STD ｼ-ﾄ = TYPE A-*104,ORANGE,TRIM1# |
1 | ||
| 79024-36090E0 |
XZB40,50..STD ORANGE,TRIM1# |
1 | ||
| 79024-36090E0 |
XZB40,50..STD ｼ-ﾄ = TYPE A-*104,ORANGE,TRIM1# |
1 | ||
| 79033 - COVER SUB-ASSY, NO.3 SEAT BACK, RH | ||||
| 79023-36141E1 |
BZB40,50,XZB40,50..STD ｼ-ﾄ = TYPE A-*104,ORANGE,TRIM1# |
1 | ||
| 79023-36140E0 |
BZB40,50,XZB40,50..STD ｼ-ﾄ = TYPE A-*104,GREIGE,TRIM1# |
1 | ||
| 79023-36240E0 |
XZB40,50..STD ORANGE,TRIM1# |
1 | ||
| 79023-36241E0 |
XZB40,50..STD ｼ-ﾄ = TYPE A-*104,ORANGE,TRIM1# |
1 | ||
| 79043 - COVER SUB-ASSY, NO.4 SEAT BACK, RH | ||||
| 79023-36140E0 |
BZB40,50,XZB40,50..STD ｼ-ﾄ = TYPE A-*104,GREIGE,TRIM1# |
1 | ||
| 79023-36141E1 |
BZB40,50,XZB40,50..STD ｼ-ﾄ = TYPE A-*104,ORANGE,TRIM1# |
1 | ||
| 79023-36241E0 |
XZB40,50..STD ｼ-ﾄ = TYPE A-*104,ORANGE,TRIM1# |
1 | ||
| 79023-36240E0 |
XZB40,50..STD ORANGE,TRIM1# |
1 | ||
| 79044 - COVER SUB-ASSY, NO.4 SEAT BACK, LH | ||||
| 79024-36060E0 |
BZB40,50,XZB40,50..STD ｼ-ﾄ = TYPE A-*104,GREIGE,TRIM1# |
1 | ||
| 79024-36061E1 |
BZB40,50,XZB40,50..STD ｼ-ﾄ = TYPE A-*104,ORANGE,TRIM1# |
1 | ||
| 79024-36091E0 |
XZB40,50..STD ｼ-ﾄ = TYPE A-*104,ORANGE,TRIM1# |
1 | ||
| 79024-36090E0 |
XZB40,50..STD ORANGE,TRIM1# |
1 | ||
| 79063 - COVER SUB-ASSY, NO.6 SEAT BACK, RH | ||||
| 79023-36140E0 |
BZB40,50,XZB40,50..STD ｼ-ﾄ = TYPE A-*104,GREIGE,TRIM1# |
1 | ||
| 79023-36141E1 |
BZB40,50,XZB40,50..STD ｼ-ﾄ = TYPE A-*104,ORANGE,TRIM1# |
1 | ||
| 79023-36241E0 |
XZB40,50..STD ｼ-ﾄ = TYPE A-*104,ORANGE,TRIM1# |
1 | ||
| 79023-36240E0 |
XZB40,50..STD ORANGE,TRIM1# |
1 | ||
| 79064 - COVER SUB-ASSY, NO.6 SEAT BACK, LH | ||||
| 79024-36061E1 |
BZB40,50,XZB40,50..STD ｼ-ﾄ = TYPE A-*104,ORANGE,TRIM1# |
1 | ||
| 79024-36060E0 |
BZB40,50,XZB40,50..STD ｼ-ﾄ = TYPE A-*104,GREIGE,TRIM1# |
1 | ||
| 79024-36091E0 |
XZB40,50..STD ｼ-ﾄ = TYPE A-*104,ORANGE,TRIM1# |
1 | ||
| 79024-36090E0 |
XZB40,50..STD ORANGE,TRIM1# |
1 | ||
| 79073 - COVER SUB-ASSY, NO.7 SEAT BACK, RH | ||||
| 79023-36140E0 |
BZB40,50,XZB40,50..STD ｼ-ﾄ = TYPE A-*104,GREIGE,TRIM1# |
1 | ||
| 79023-36141E1 |
BZB40,50,XZB40,50..STD ｼ-ﾄ = TYPE A-*104,ORANGE,TRIM1# |
1 | ||
| 79023-36240E0 |
XZB40,50..STD ORANGE,TRIM1# |
1 | ||
| 79023-36241E0 |
XZB40,50..STD ｼ-ﾄ = TYPE A-*104,ORANGE,TRIM1# |
1 | ||
| 79074 - COVER SUB-ASSY, NO.7 SEAT BACK, LH | ||||
| 79024-36060E0 |
BZB40,50,XZB40,50..STD ｼ-ﾄ = TYPE A-*104,GREIGE,TRIM1# |
1 | ||
| 79024-36061E1 |
BZB40,50,XZB40,50..STD ｼ-ﾄ = TYPE A-*104,ORANGE,TRIM1# |
1 | ||
| 79024-36090E0 |
XZB40,50..STD ORANGE,TRIM1# |
1 | ||
| 79024-36091E0 |
XZB40,50..STD ｼ-ﾄ = TYPE A-*104,ORANGE,TRIM1# |
1 | ||
| 79083 - COVER SUB-ASSY, NO.8 SEAT BACK, RH | ||||
| 79023-36140E0 |
BZB40,50,XZB40,50..STD ｼ-ﾄ = TYPE A-*104,GREIGE,TRIM1# |
1 | ||
| 79023-36240E0 |
XZB40,50..STD ORANGE,TRIM1# |
1 | ||
| 79023-36141E1 |
BZB40,50,XZB40,50..STD ｼ-ﾄ = TYPE A-*104,ORANGE,TRIM1# |
1 | ||
| 79023-36241E0 |
XZB40,50..STD ｼ-ﾄ = TYPE A-*104,ORANGE,TRIM1# |
1 | ||
| 79084 - COVER SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79024-36061E1 |
BZB40,50,XZB40,50..STD ｼ-ﾄ = TYPE A-*104,ORANGE,TRIM1# |
1 | ||
| 79024-36060E0 |
XZB40,50..STD ｼ-ﾄ = TYPE A-*104,GREIGE,TRIM1# |
1 | ||
| 79024-36090E0 |
XZB40,50..STD ORANGE,TRIM1# |
1 | ||
| 79024-36090E0 |
XZB40,50..STD ｼ-ﾄ = TYPE A-*104,ORANGE,TRIM1# |
1 | ||
| 79093 - COVER SUB-ASSY, NO.9 SEAT BACK, RH | ||||
| 79023-36140E0 |
BZB40,50,XZB40,50..STD GREIGE,TRIM1# |
1 | ||
| 79023-36240E0 |
XZB40,50..STD ORANGE,TRIM1# |
1 | ||
| 79023-36141E1 |
BZB40,50,XZB40,50..STD ORANGE,TRIM1# |
1 | ||
| 79023-36240E0 |
XZB40,50..STD ｼ-ﾄ = TYPE A-*104,ORANGE,TRIM1# |
1 | ||
| 79101A - FRAME SUB-ASSY, NO.1 JUNIOR SEAT, RH | ||||
| 79101-36160B0 |
BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79101-36161B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79102A - FRAME SUB-ASSY, NO.1 JUNIOR SEAT, LH | ||||
| 79102-36190B0 |
BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79102-36191B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79109 - BOARD SUB-ASSY, NO.1 SEAT BACK | ||||
| 79207-36060A0 |
BZB40,50,XZB40,50..STD IVORY,TRIM1# |
1 | ||
| 79207-36190A0 |
XZB40,50..STD IVORY,TRIM1# |
1 | ||
| 79109C - BOARD SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79208-36030A0 |
XZB40,50..STD..(5F,6FC) IVORY,TRIM1# |
1 | ||
| 79208-36110A0 |
XZB40,50..STD IVORY,TRIM1# |
1 | ||
| 79120 - CUSHION ASSY, NO.1 SEAT, RH | ||||
| 79120-36031B1 |
BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79120-36670B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79120-36030B2 |
BZB40,50,XZB40,50..STD MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 79120-36670B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79130 - CUSHION ASSY, NO.1 SEAT, LH | ||||
| 79130-36010B2 |
BZB40,50,XZB40,50..STD MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 79130-36D40B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79130-36D40B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79130-36011B1 |
BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79201A - FRAME SUB-ASSY, NO.2 JUNIOR SEAT, RH | ||||
| 79101-36161B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79101-36160B0 |
BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79202A - FRAME SUB-ASSY, NO.2 JUNIOR SEAT, LH | ||||
| 79202-36030B0 |
BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79202-36160B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79202-36160B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79207 - BOARD SUB-ASSY, JUNIOR SEAT BACK, RH | ||||
| 79207-36130A0 |
XZB40,50..STD IVORY,TRIM1# |
1 | ||
| 79207-36060A0 |
BZB40,50,XZB40,50..STD IVORY,TRIM1# |
1 | ||
| 79207-36130A0 |
XZB40,50..STD IVORY,TRIM1# |
1 | ||
| 79209 - BOARD SUB-ASSY, NO.2 SEAT BACK | ||||
| 79207-36060A0 |
BZB40,50,XZB40,50..STD IVORY,TRIM1# |
1 | ||
| 79207-36190A0 |
XZB40,50..STD IVORY,TRIM1# |
1 | ||
| 79209B - BOARD SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79208-36100A0 |
XZB40,50..STD IVORY,TRIM1# |
1 | ||
| 79208-36100A0 |
XZB40,50..STD IVORY,TRIM1# |
1 | ||
| 79208-36030A0 |
XZB40,50..STD..(5F,6FC) IVORY,TRIM1# |
1 | ||
| 79220 - CUSHION ASSY, NO.2 SEAT, RH | ||||
| 79120-36030B2 |
BZB40,50,XZB40,50..STD MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 79120-36670B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79120-36670B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79120-36031B1 |
BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79230 - CUSHION ASSY, NO.2 SEAT, LH | ||||
| 79130-36011B1 |
BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79130-36010B2 |
BZB40,50,XZB40,50..STD MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 79130-36D40B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79130-36D40B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79235B - PAD, JUNIOR SEAT CUSHION, RH | ||||
| 79235-90B01 |
BZB40,50,XZB40,50..STD |
1 | ||
| 79235-36090 |
XZB40,50..STD |
1 | ||
| 79235-36090 |
XZB40,50..STD |
1 | ||
| 79245B - PAD, JUNIOR SEAT CUSHION, LH | ||||
| 79245-90B00 |
BZB40,50,XZB40,50..STD..(5F,6FC) |
1 | ||
| 79245-36060 |
XZB40,50..STD |
1 | ||
| 79245-36060 |
XZB40,50..STD |
1 | ||
| 79275A - PAD, JUNIOR SEAT BACK, RH | ||||
| 79275-36061 |
XZB40,50..STD |
1 | ||
| 79275-36060 |
XZB40,50..STD |
1 | ||
| 79275-36060 |
XZB40,50..STD ｻｲｺｳﾚﾂ ｼｰﾄﾖｳ |
1 | ||
| 79275-36050 |
BZB40,50,XZB40,50..STD |
1 | ||
| 79276A - PAD, JUNIOR SEAT BACK SAFETY, RH | ||||
| 79276-36031 |
XZB40,50..STD |
1 | ||
| 79276-36030 |
BZB40,50,XZB40,50..STD |
1 | ||
| 79276-36030 |
XZB40,50..STD ｻｲｺｳﾚﾂ ｼｰﾄﾖｳ |
1 | ||
| 79276A - PAD, JUNIOR SEAT BACK SAFETY, RH | ||||
| 79276-36031 |
XZB40,50..STD |
1 | ||
| 79276-36030 |
BZB40,50,XZB40,50..STD |
1 | ||
| 79276-36030 |
XZB40,50..STD ｻｲｺｳﾚﾂ ｼｰﾄﾖｳ |
1 | ||
| 79276B - PAD, JUNIOR SEAT BACK SAFETY, RH | ||||
| 79276-36040 |
XZB40,50..STD ﾘﾔ NO.2 ｼｰﾄ OR ｻｲｺｳﾚﾂ ｼｰﾄﾖｳ |
1 | ||
| 79276-36040 |
XZB40,50..STD..(5F,6FC) |
1 | ||
| 79276-36041 |
XZB40,50..STD |
1 | ||
| 79276B - PAD, JUNIOR SEAT BACK SAFETY, RH | ||||
| 79276-36040 |
XZB40,50..STD ﾘﾔ NO.2 ｼｰﾄ OR ｻｲｺｳﾚﾂ ｼｰﾄﾖｳ |
1 | ||
| 79276-36040 |
XZB40,50..STD..(5F,6FC) |
1 | ||
| 79276-36041 |
XZB40,50..STD |
1 | ||
| 79277 - PAD, JUNIOR SEAT BACK SAFETY, A | ||||
| 79277-36020 |
BZB40,50,XZB40,50..STD |
1 | ||
| 79277-36020 |
XZB40,50..STD ｻｲｺｳﾚﾂ ｼｰﾄﾖｳ |
1 | ||
| 79277-36021 |
XZB40,50..STD |
1 | ||
| 79277 - PAD, JUNIOR SEAT BACK SAFETY, A | ||||
| 79277-36020 |
BZB40,50,XZB40,50..STD |
1 | ||
| 79277-36020 |
XZB40,50..STD ｻｲｺｳﾚﾂ ｼｰﾄﾖｳ |
1 | ||
| 79277-36021 |
XZB40,50..STD |
1 | ||
| 79278 - PAD, JUNIOR SEAT BACK SAFETY, B | ||||
| 79278-36020 |
XZB40,50..STD..(5F,6FC) |
1 | ||
| 79278-36021 |
XZB40,50..STD |
1 | ||
| 79278-36020 |
XZB40,50..STD ﾘﾔ NO.2 ｼｰﾄ OR ｻｲｺｳﾚﾂ ｼｰﾄﾖｳ |
1 | ||
| 79278 - PAD, JUNIOR SEAT BACK SAFETY, B | ||||
| 79278-36020 |
XZB40,50..STD..(5F,6FC) |
1 | ||
| 79278-36021 |
XZB40,50..STD |
1 | ||
| 79278-36020 |
XZB40,50..STD ﾘﾔ NO.2 ｼｰﾄ OR ｻｲｺｳﾚﾂ ｼｰﾄﾖｳ |
1 | ||
| 79285A - PAD, JUNIOR SEAT BACK, LH | ||||
| 79285-36020 |
BZB40,50,XZB40,50..STD..(5F,6FC) |
1 | ||
| 79285-36051 |
XZB40,50..STD |
1 | ||
| 79285-36050 |
XZB40,50..STD |
1 | ||
| 79285-36050 |
XZB40,50..STD ﾘﾔ NO.2 ｼｰﾄ OR ｻｲｺｳﾚﾂ ｼｰﾄﾖｳ |
1 | ||
| 79286A - PAD, JUNIOR SEAT BACK SAFETY, LH | ||||
| 79286-36040 |
BZB40,50,XZB40,50..STD |
1 | ||
| 79286-36040 |
XZB40,50..STD ｻｲｺｳﾚﾂ ｼｰﾄﾖｳ |
1 | ||
| 79286-36041 |
XZB40,50..STD |
1 | ||
| 79286A - PAD, JUNIOR SEAT BACK SAFETY, LH | ||||
| 79286-36040 |
BZB40,50,XZB40,50..STD |
1 | ||
| 79286-36040 |
XZB40,50..STD ｻｲｺｳﾚﾂ ｼｰﾄﾖｳ |
1 | ||
| 79286-36041 |
XZB40,50..STD |
1 | ||
| 79286B - PAD, JUNIOR SEAT BACK SAFETY, LH | ||||
| 79286-36030 |
XZB40,50..STD..(5F,6FC) |
1 | ||
| 79286-36030 |
XZB40,50..STD ﾘﾔ NO.2 ｼｰﾄ OR ｻｲｺｳﾚﾂ ｼｰﾄﾖｳ |
1 | ||
| 79286-36031 |
XZB40,50..STD |
1 | ||
| 79286B - PAD, JUNIOR SEAT BACK SAFETY, LH | ||||
| 79286-36030 |
XZB40,50..STD..(5F,6FC) |
1 | ||
| 79286-36030 |
XZB40,50..STD ﾘﾔ NO.2 ｼｰﾄ OR ｻｲｺｳﾚﾂ ｼｰﾄﾖｳ |
1 | ||
| 79286-36031 |
XZB40,50..STD |
1 | ||
| 79298 - REINFORCEMENT, JUNIOR SEAT ASSIST SET, RH | ||||
| 79299-90B00 |
XZB40,50..STD |
1 | ||
| 79299-90B00 |
BZB40,50,XZB40,50..STD |
1 | ||
| 79299A - REINFORCEMENT, JUNIOR SEAT ASSIST SET, LH | ||||
| 79298-90B00 |
XZB40,50..STD..(5F,6FC) |
1 | ||
| 79298-90B00 |
XZB40,50..STD |
1 | ||
| 79301A - FRAME SUB-ASSY, NO.3 JUNIOR SEAT, RH | ||||
| 79101-36161B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79101-36160B0 |
BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79309 - BOARD SUB-ASSY, NO.3 SEAT BACK | ||||
| 79207-36190A0 |
XZB40,50..STD IVORY,TRIM1# |
1 | ||
| 79207-36060A0 |
BZB40,50,XZB40,50..STD IVORY,TRIM1# |
1 | ||
| 79320 - CUSHION ASSY, NO.3 SEAT, RH | ||||
| 79120-36670B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79120-36031B1 |
BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79120-36030B2 |
BZB40,50,XZB40,50..STD MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 79120-36670B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79401A - FRAME SUB-ASSY, NO.4 JUNIOR SEAT, RH | ||||
| 79101-36161B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79101-36160B0 |
BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79402A - FRAME SUB-ASSY, NO.4 JUNIOR SEAT, LH | ||||
| 79202-36030B0 |
BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79202-36031B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79409 - BOARD SUB-ASSY, NO.4 SEAT BACK | ||||
| 79207-36060A0 |
BZB40,50,XZB40,50..STD IVORY,TRIM1# |
1 | ||
| 79207-36190A0 |
XZB40,50..STD IVORY,TRIM1# |
1 | ||
| 79409B - BOARD SUB-ASSY, NO.4 SEAT BACK, LH | ||||
| 79208-36030A0 |
XZB40,50..STD..(5F,6FC) IVORY,TRIM1# |
1 | ||
| 79208-36110A0 |
XZB40,50..STD IVORY,TRIM1# |
1 | ||
| 79420 - CUSHION ASSY, NO.4 SEAT, RH | ||||
| 79120-36031B1 |
BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79120-36670B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79120-36030B2 |
BZB40,50,XZB40,50..STD MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 79120-36670B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79430 - CUSHION ASSY, NO.4 SEAT, LH | ||||
| 79130-36011B1 |
BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79130-36D40B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79130-36D40B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79130-36010B2 |
BZB40,50,XZB40,50..STD MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 79601A - FRAME SUB-ASSY, NO.6 JUNIOR SEAT, RH | ||||
| 79201-36121B0 |
XZB40..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79201-36120B0 |
BZB40,XZB40..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79602A - FRAME SUB-ASSY, NO.6 JUNIOR SEAT, LH | ||||
| 79402-36050B0 |
XZB40..STD..(5F,6FC) MD.CHARCOAL,TRIM1# |
1 | ||
| 79402-36051B0 |
XZB40..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79609 - BOARD SUB-ASSY, NO.6 SEAT BACK, RH | ||||
| 79207-36060A0 |
BZB40,50,XZB40,50..STD IVORY,TRIM1# |
1 | ||
| 79207-36190A0 |
XZB40,50..STD IVORY,TRIM1# |
1 | ||
| 79609A - BOARD SUB-ASSY, NO.6 SEAT BACK, LH | ||||
| 79208-36030A0 |
XZB40,50..STD..(5F,6FC) IVORY,TRIM1# |
1 | ||
| 79208-36110A0 |
XZB40,50..STD IVORY,TRIM1# |
1 | ||
| 79620 - CUSHION ASSY, NO.6 SEAT, RH | ||||
| 79120-36030B2 |
BZB40,50,XZB40,50..STD MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 79120-36670B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79120-36031B1 |
BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79120-36670B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79630 - CUSHION ASSY, NO.6 SEAT, LH | ||||
| 79130-36011B1 |
BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79130-36010B2 |
BZB40,50,XZB40,50..STD MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 79130-36D40B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79130-36D40B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79701A - FRAME SUB-ASSY, NO.7 JUNIOR SEAT, RH | ||||
| 79101-36160B0 |
BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79101-36161B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79702A - FRAME SUB-ASSY, NO.7 JUNIOR SEAT, LH | ||||
| 79502-36040B0 |
XZB40..STD..(5F,6FC) MD.CHARCOAL,TRIM1# |
1 | ||
| 79502-36041B0 |
XZB40..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79709 - BOARD SUB-ASSY, NO.7 SEAT BACK, RH | ||||
| 79207-36060A0 |
BZB40,50,XZB40,50..STD IVORY,TRIM1# |
1 | ||
| 79207-36190A0 |
XZB40,50..STD IVORY,TRIM1# |
1 | ||
| 79709A - BOARD SUB-ASSY, NO.7 SEAT BACK, LH | ||||
| 79208-36110A0 |
XZB40,50..STD IVORY,TRIM1# |
1 | ||
| 79208-36030A0 |
XZB40,50..STD..(5F,6FC) IVORY,TRIM1# |
1 | ||
| 79720 - CUSHION ASSY, NO.7 SEAT, RH | ||||
| 79120-36030B2 |
BZB40,50,XZB40,50..STD MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 79120-36670B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79120-36670B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79120-36031B1 |
BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79730 - CUSHION ASSY, NO.7 SEAT, LH | ||||
| 79130-36011B1 |
BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79130-36D40B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79130-36D40B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79130-36010B2 |
BZB40,50,XZB40,50..STD MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 79801A - FRAME SUB-ASSY, NO.8 JUNIOR SEAT, RH | ||||
| 79101-36161B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79101-36160B0 |
BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79802A - FRAME SUB-ASSY, NO.8 JUNIOR SEAT, LH | ||||
| 79202-36160B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79202-36030B0 |
BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79202-36160B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79809 - BOARD SUB-ASSY, NO.8 SEAT BACK | ||||
| 79207-36060A0 |
BZB40,50,XZB40,50..STD IVORY,TRIM1# |
1 | ||
| 79207-36190A0 |
XZB40,50..STD IVORY,TRIM1# |
1 | ||
| 79809B - BOARD SUB-ASSY, NO.8 SEAT BACK, LH | ||||
| 79208-36100A0 |
XZB40,50..STD IVORY,TRIM1# |
1 | ||
| 79208-36100A0 |
XZB40,50..STD IVORY,TRIM1# |
1 | ||
| 79208-36030A0 |
BZB40,50,XZB40,50..STD IVORY,TRIM1# |
1 | ||
| 79820 - CUSHION ASSY, NO.8 SEAT, RH | ||||
| 79120-36031B1 |
BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79120-36670B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79120-36030B2 |
BZB40,50,XZB40,50..STD MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 79120-36670B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79830 - CUSHION ASSY, NO.8 SEAT, LH | ||||
| 79130-36010B2 |
BZB40,50,XZB40,50..STD MEDIUM CHARCOAL,TRIM1# |
1 | ||
| 79130-36011B1 |
BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79130-36D40B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79130-36D40B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79901A - FRAME SUB-ASSY, NO.9 JUNIOR SEAT, RH | ||||
| 79101-36370B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79101-36370B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79101-36160B0 |
BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79920 - CUSHION ASSY, NO.9 SEAT, RH | ||||
| 79120-36670B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79120-36031B1 |
BZB40,50,XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79120-36670B0 |
XZB40,50..STD MD.CHARCOAL,TRIM1# |
1 | ||
| 79120-36030B2 |
BZB40,50,XZB40,50..STD MEDIUM CHARCOAL,TRIM1# |
1 | ||
| Common parts | ||||
| 90157-60023 | ||||
| 91511-H0612 | ||||
| 93560-14020 | ||||
| Linked diagrams | ||||
| 7451 | ||||
(0408- )STD
ﾘﾔｼｰﾄﾄﾘﾂｹﾖｳﾌﾞﾋﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08C42 | ||||
| 91635-G0835 | ||||
| 91651-B0820 | ||||
| 91661-60835 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
