RB26V-MDZ (1984)
Toyota Coaster

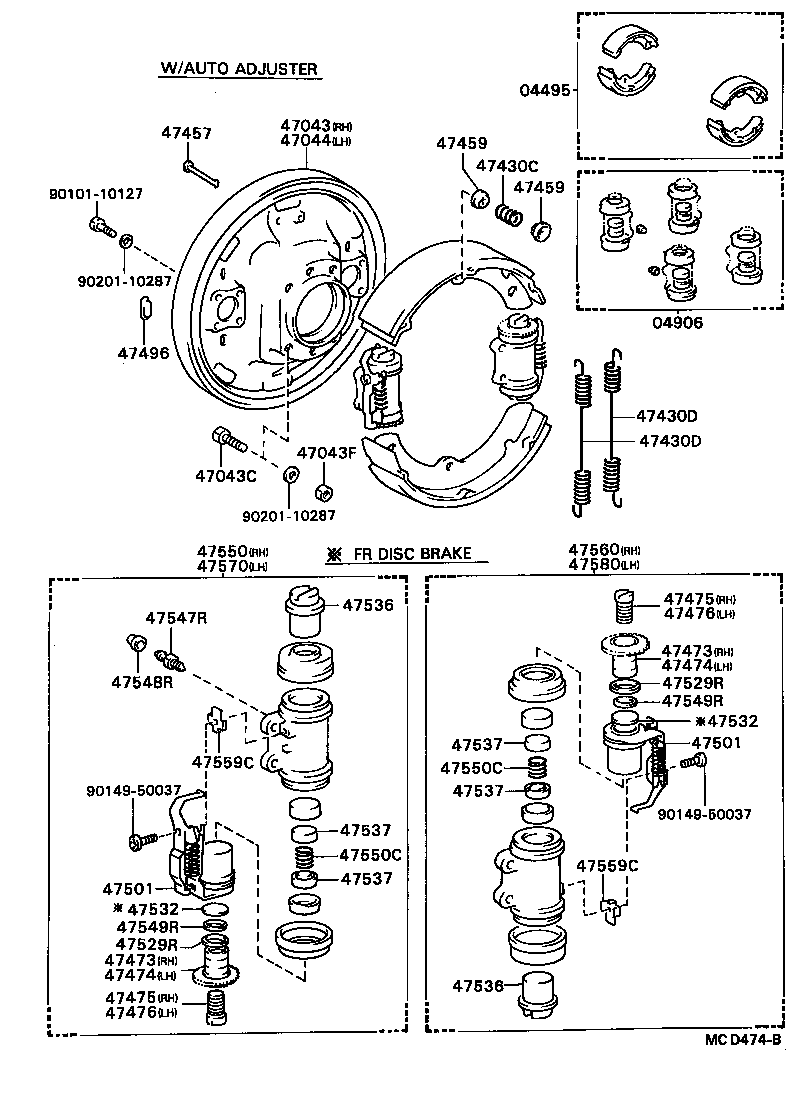

(8408- ) ; (8510- )BB21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-36080 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# FR DISC BRAKE |
1 | ||
| 04495-36120 |
BB21,23,26,31,HZB36,RB20 FR DRUM BRAKE |
1 | ||
| 04497-36090 |
BB21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD FR DRUM BRAKE,REBUILT |
1 | ||
| 04495-36090 |
BB21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD FR DRUM BRAKE |
1 | ||
| 04497-36080 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# FR DISCBRAKE,REBUILT |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-36070 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 04906-36070 |
BB21,23,26,3#,HB30,31,36,HZB36,RB2#..(DLX,STD)..5F FR DRUM BRAKE |
1 | ||
| 04906-36120 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# FR DISC BRAKE |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-36110 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90114-10019 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# *10−1.25PX31−21.5 |
12 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90170-10178 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
12 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-36110 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 47419R - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47419-35011 |
BB21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD |
2 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20012 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90507-29006 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90507-29006 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
4 | ||
| 47457 - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-60010 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
4 | ||
| 47459 - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
8 | ||
| 47459 - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
8 | ||
| 47473 - NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE) | ||||
| 47551-36130 |
BB2#,3#,HB3#,RB2# |
2 | ||
| 47506-36010 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# W/AUTO ADJUSTER |
2 | ||
| 47551-36130 |
BB21,23,26,3#,HB30,31,36,HZB36,RB2#..(DLX,STD)..5F |
2 | ||
| 47473 - NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE) | ||||
| 47551-36130 |
BB2#,3#,HB3#,RB2# |
2 | ||
| 47506-36010 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# W/AUTO ADJUSTER |
2 | ||
| 47551-36130 |
BB21,23,26,3#,HB30,31,36,HZB36,RB2#..(DLX,STD)..5F |
2 | ||
| 47474 - NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47507-36010 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# FR DISC BRAKE |
2 | ||
| 47552-36130 |
BB21,23,26,3#,HB30,31,36,HZB36,RB2#..(DLX,STD)..5F |
2 | ||
| 47552-36130 |
BB2#,3#,HB3#,RB2#..DLX,STD |
2 | ||
| 47474 - NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47507-36010 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# FR DISC BRAKE |
2 | ||
| 47552-36130 |
BB21,23,26,3#,HB30,31,36,HZB36,RB2#..(DLX,STD)..5F |
2 | ||
| 47552-36130 |
BB2#,3#,HB3#,RB2#..DLX,STD |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36060 |
BB2#,3#,HB3#,RB2# FR DISC BRAKE |
2 | ||
| 47553-36060 |
BB21,23,26,3#,HB30,31,36,HZB36,RB2#..(DLX,STD)..5F FR DRUM BRAKE |
2 | ||
| 47508-36010 |
BB2#,3#,HB3#,RB2# FR DRUM BRAKE |
2 | ||
| 47553-36070 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# FR DISC BRAKE |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36060 |
BB2#,3#,HB3#,RB2# FR DISC BRAKE |
2 | ||
| 47553-36060 |
BB21,23,26,3#,HB30,31,36,HZB36,RB2#..(DLX,STD)..5F FR DRUM BRAKE |
2 | ||
| 47508-36010 |
BB2#,3#,HB3#,RB2# FR DRUM BRAKE |
2 | ||
| 47553-36070 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# FR DISC BRAKE |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36070 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# FR DISC BRAKE |
2 | ||
| 47554-36060 |
BB2#,3#,HB3#,RB2# FR DISC BRAKE |
2 | ||
| 47554-36060 |
BB21,23,26,3#,HB30,31,36,HZB36,RB2#..(DLX,STD)..5F FR DRUM BRAKE |
2 | ||
| 47509-36010 |
BB2#,3#,HB3#,RB2# |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36070 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# FR DISC BRAKE |
2 | ||
| 47554-36060 |
BB2#,3#,HB3#,RB2# FR DISC BRAKE |
2 | ||
| 47554-36060 |
BB21,23,26,3#,HB30,31,36,HZB36,RB2#..(DLX,STD)..5F FR DRUM BRAKE |
2 | ||
| 47509-36010 |
BB2#,3#,HB3#,RB2# |
2 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-36010 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
4 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47536-36040 |
BB2#,3#,HB3#,RB2#..DLX,STD FR DRUM BRAKE |
4 | ||
| 47536-36040 |
BB21,23,26,3#,HB30,31,36,HZB36,RB2#..(DLX,STD)..5F FR DRUM BRAKE |
4 | ||
| 47051-36070 |
BB2#,3#,HB3#,RB2# FR DISC BRAKE |
4 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47536-36040 |
BB2#,3#,HB3#,RB2#..DLX,STD FR DRUM BRAKE |
4 | ||
| 47536-36040 |
BB21,23,26,3#,HB30,31,36,HZB36,RB2#..(DLX,STD)..5F FR DRUM BRAKE |
4 | ||
| 47051-36070 |
BB2#,3#,HB3#,RB2# FR DISC BRAKE |
4 | ||
| 47537 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-30011 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
8 | ||
| 47537 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-30011 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
8 | ||
| 47537 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-30011 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
8 | ||
| 47537 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-30011 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
8 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-12010 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-36120 |
BB2#,3#,HB3#,RB2#..DLX,STD FR DRUM BRAKE |
1 | ||
| 47550-39296 |
BB2#,3#,HB3#,RB2# FR DISC BRAKE |
1 | ||
| 47550-36120 |
BB21,23,26,3#,HB30,31,36,HZB36,RB2#..(DLX,STD)..5F FR DRUM BRAKE |
1 | ||
| 47550-36150 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# FR DISC BRAKE |
1 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90501-08122 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
4 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90501-08122 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
4 | ||
| 47556 - SPRING, ADJUSTER LOCK(FOR REAR BRAKE) | ||||
| 47555-36051 |
BB21,23,26,3#,HB30,31,36,HZB36,RB2#..(DLX,STD)..5F |
4 | ||
| 47555-36050 |
BB2#,3#,HB3#,RB2#..(DLX,STD)..5F |
4 | ||
| 47555-36050 |
BB2#,3#,HB3#,RB2# |
4 | ||
| 47555-36040 |
BB2#,3#,HB3#,RB2# |
4 | ||
| 47556 - SPRING, ADJUSTER LOCK(FOR REAR BRAKE) | ||||
| 47555-36051 |
BB21,23,26,3#,HB30,31,36,HZB36,RB2#..(DLX,STD)..5F |
4 | ||
| 47555-36050 |
BB2#,3#,HB3#,RB2#..(DLX,STD)..5F |
4 | ||
| 47555-36050 |
BB2#,3#,HB3#,RB2# |
4 | ||
| 47555-36040 |
BB2#,3#,HB3#,RB2# |
4 | ||
| 47560 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER) | ||||
| 47560-36150 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# FR DISC BRAKE |
1 | ||
| 47560-39126 |
BB2#,3#,HB3#,RB2# FR DISC BRAKE |
1 | ||
| 47560-36120 |
BB21,23,26,3#,HB30,31,36,HZB36,RB2#..(DLX,STD)..5F FR DRUM BRAKE |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-36120 |
BB21,23,26,3#,HB30,31,36,HZB36,RB2#..(DLX,STD)..5F FR DRUM BRAKE |
1 | ||
| 47570-36150 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# FR DISC BRAKE |
1 | ||
| 47570-39126 |
BB2#,3#,HB3#,RB2# FR DISC BRAKE |
1 | ||
| 47580 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER) | ||||
| 47580-39116 |
BB2#,3#,HB3#,RB2# FR DISC BRAKE |
1 | ||
| 47580-36120 |
BB21,23,26,3#,HB30,31,36,HZB36,RB2#..(DLX,STD)..5F FR DRUM BRAKE |
1 | ||
| 47580-36150 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# FR DISC BRAKE |
1 | ||
| Common parts | ||||
| 90101-10127 | ||||
| 90159-50146 | ||||
| 90159-50170 | ||||
| 90201-10287 | ||||

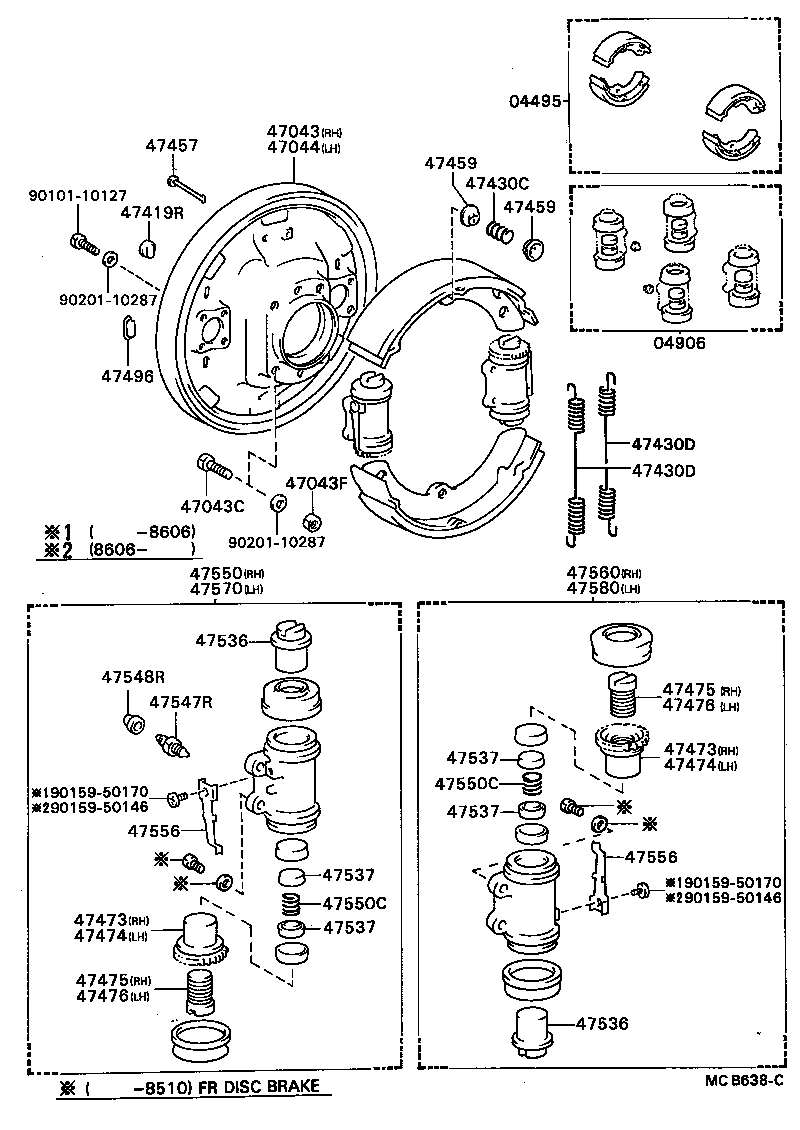

(8510- )
FR DISC BRAKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-36080 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# FR DISC BRAKE |
1 | ||
| 04495-36120 |
BB21,23,26,31,HZB36,RB20 FR DRUM BRAKE |
1 | ||
| 04497-36090 |
BB21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD FR DRUM BRAKE,REBUILT |
1 | ||
| 04495-36090 |
BB21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD FR DRUM BRAKE |
1 | ||
| 04497-36080 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# FR DISCBRAKE,REBUILT |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-36070 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 04906-36070 |
BB21,23,26,3#,HB30,31,36,HZB36,RB2#..(DLX,STD)..5F FR DRUM BRAKE |
1 | ||
| 04906-36120 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# FR DISC BRAKE |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-36110 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90114-10019 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# *10−1.25PX31−21.5 |
12 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90170-10178 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
12 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-36110 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20012 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90507-29006 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90507-29006 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
4 | ||
| 47457 - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-60010 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
4 | ||
| 47459 - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
8 | ||
| 47459 - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
8 | ||
| 47473 - NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE) | ||||
| 47551-36130 |
BB2#,3#,HB3#,RB2# |
2 | ||
| 47506-36010 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# W/AUTO ADJUSTER |
2 | ||
| 47551-36130 |
BB21,23,26,3#,HB30,31,36,HZB36,RB2#..(DLX,STD)..5F |
2 | ||
| 47473 - NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE) | ||||
| 47551-36130 |
BB2#,3#,HB3#,RB2# |
2 | ||
| 47506-36010 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# W/AUTO ADJUSTER |
2 | ||
| 47551-36130 |
BB21,23,26,3#,HB30,31,36,HZB36,RB2#..(DLX,STD)..5F |
2 | ||
| 47474 - NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47507-36010 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# FR DISC BRAKE |
2 | ||
| 47552-36130 |
BB21,23,26,3#,HB30,31,36,HZB36,RB2#..(DLX,STD)..5F |
2 | ||
| 47552-36130 |
BB2#,3#,HB3#,RB2#..DLX,STD |
2 | ||
| 47474 - NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47507-36010 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# FR DISC BRAKE |
2 | ||
| 47552-36130 |
BB21,23,26,3#,HB30,31,36,HZB36,RB2#..(DLX,STD)..5F |
2 | ||
| 47552-36130 |
BB2#,3#,HB3#,RB2#..DLX,STD |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36060 |
BB2#,3#,HB3#,RB2# FR DISC BRAKE |
2 | ||
| 47553-36060 |
BB21,23,26,3#,HB30,31,36,HZB36,RB2#..(DLX,STD)..5F FR DRUM BRAKE |
2 | ||
| 47508-36010 |
BB2#,3#,HB3#,RB2# FR DRUM BRAKE |
2 | ||
| 47553-36070 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# FR DISC BRAKE |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36060 |
BB2#,3#,HB3#,RB2# FR DISC BRAKE |
2 | ||
| 47553-36060 |
BB21,23,26,3#,HB30,31,36,HZB36,RB2#..(DLX,STD)..5F FR DRUM BRAKE |
2 | ||
| 47508-36010 |
BB2#,3#,HB3#,RB2# FR DRUM BRAKE |
2 | ||
| 47553-36070 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# FR DISC BRAKE |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36070 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# FR DISC BRAKE |
2 | ||
| 47554-36060 |
BB2#,3#,HB3#,RB2# FR DISC BRAKE |
2 | ||
| 47554-36060 |
BB21,23,26,3#,HB30,31,36,HZB36,RB2#..(DLX,STD)..5F FR DRUM BRAKE |
2 | ||
| 47509-36010 |
BB2#,3#,HB3#,RB2# |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36070 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# FR DISC BRAKE |
2 | ||
| 47554-36060 |
BB2#,3#,HB3#,RB2# FR DISC BRAKE |
2 | ||
| 47554-36060 |
BB21,23,26,3#,HB30,31,36,HZB36,RB2#..(DLX,STD)..5F FR DRUM BRAKE |
2 | ||
| 47509-36010 |
BB2#,3#,HB3#,RB2# |
2 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-36010 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
4 | ||
| 47501 - PISTON SUB-ASSY, REAR WHEEL BRAKE CYLINDER | ||||
| 47502-36041 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# FR DISC BRAKE,LH |
2 | ||
| 47501-36041 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# FR DISC BRAKE,RH |
2 | ||
| 47501 - PISTON SUB-ASSY, REAR WHEEL BRAKE CYLINDER | ||||
| 47502-36041 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# FR DISC BRAKE,LH |
2 | ||
| 47501-36041 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# FR DISC BRAKE,RH |
2 | ||
| 47529R - SEAL, REAR WHEEL BRAKE CYLINDER ADJUST NUT DUST | ||||
| 47529-36010 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
4 | ||
| 47529R - SEAL, REAR WHEEL BRAKE CYLINDER ADJUST NUT DUST | ||||
| 47529-36010 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
4 | ||
| 47532 - INSERT, REAR WHEEL CYLINDER PISTON | ||||
| 47532-36020 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
4 | ||
| 47532 - INSERT, REAR WHEEL CYLINDER PISTON | ||||
| 47532-36020 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
4 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47536-36040 |
BB2#,3#,HB3#,RB2#..DLX,STD FR DRUM BRAKE |
4 | ||
| 47536-36040 |
BB21,23,26,3#,HB30,31,36,HZB36,RB2#..(DLX,STD)..5F FR DRUM BRAKE |
4 | ||
| 47051-36070 |
BB2#,3#,HB3#,RB2# FR DISC BRAKE |
4 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47536-36040 |
BB2#,3#,HB3#,RB2#..DLX,STD FR DRUM BRAKE |
4 | ||
| 47536-36040 |
BB21,23,26,3#,HB30,31,36,HZB36,RB2#..(DLX,STD)..5F FR DRUM BRAKE |
4 | ||
| 47051-36070 |
BB2#,3#,HB3#,RB2# FR DISC BRAKE |
4 | ||
| 47537 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-30011 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
8 | ||
| 47537 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-30011 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
8 | ||
| 47537 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-30011 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
8 | ||
| 47537 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-30011 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
8 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-12010 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
2 | ||
| 47549R - SEAT, REAR BRAKE AUTOMATIC ADJUST NUT | ||||
| 47549-36010 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
4 | ||
| 47549R - SEAT, REAR BRAKE AUTOMATIC ADJUST NUT | ||||
| 47549-36010 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
4 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-36120 |
BB2#,3#,HB3#,RB2#..DLX,STD FR DRUM BRAKE |
1 | ||
| 47550-39296 |
BB2#,3#,HB3#,RB2# FR DISC BRAKE |
1 | ||
| 47550-36120 |
BB21,23,26,3#,HB30,31,36,HZB36,RB2#..(DLX,STD)..5F FR DRUM BRAKE |
1 | ||
| 47550-36150 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# FR DISC BRAKE |
1 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90501-08122 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
4 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90501-08122 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
4 | ||
| 47559C - SPRING, REAR AUTOMATIC ADJUST LEVER SUPPORT | ||||
| 47559-36010 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
4 | ||
| 47559C - SPRING, REAR AUTOMATIC ADJUST LEVER SUPPORT | ||||
| 47559-36010 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
4 | ||
| 47560 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER) | ||||
| 47560-36150 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# FR DISC BRAKE |
1 | ||
| 47560-39126 |
BB2#,3#,HB3#,RB2# FR DISC BRAKE |
1 | ||
| 47560-36120 |
BB21,23,26,3#,HB30,31,36,HZB36,RB2#..(DLX,STD)..5F FR DRUM BRAKE |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-36120 |
BB21,23,26,3#,HB30,31,36,HZB36,RB2#..(DLX,STD)..5F FR DRUM BRAKE |
1 | ||
| 47570-36150 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# FR DISC BRAKE |
1 | ||
| 47570-39126 |
BB2#,3#,HB3#,RB2# FR DISC BRAKE |
1 | ||
| 47580 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER) | ||||
| 47580-39116 |
BB2#,3#,HB3#,RB2# FR DISC BRAKE |
1 | ||
| 47580-36120 |
BB21,23,26,3#,HB30,31,36,HZB36,RB2#..(DLX,STD)..5F FR DRUM BRAKE |
1 | ||
| 47580-36150 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# FR DISC BRAKE |
1 | ||
| Common parts | ||||
| 90101-10127 | ||||
| 90149-50037 | ||||
| 90201-10287 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
