RB20-MRZ (1982)

Toyota Coaster

Production May 1982 - Oct 1985
Engine 22R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )

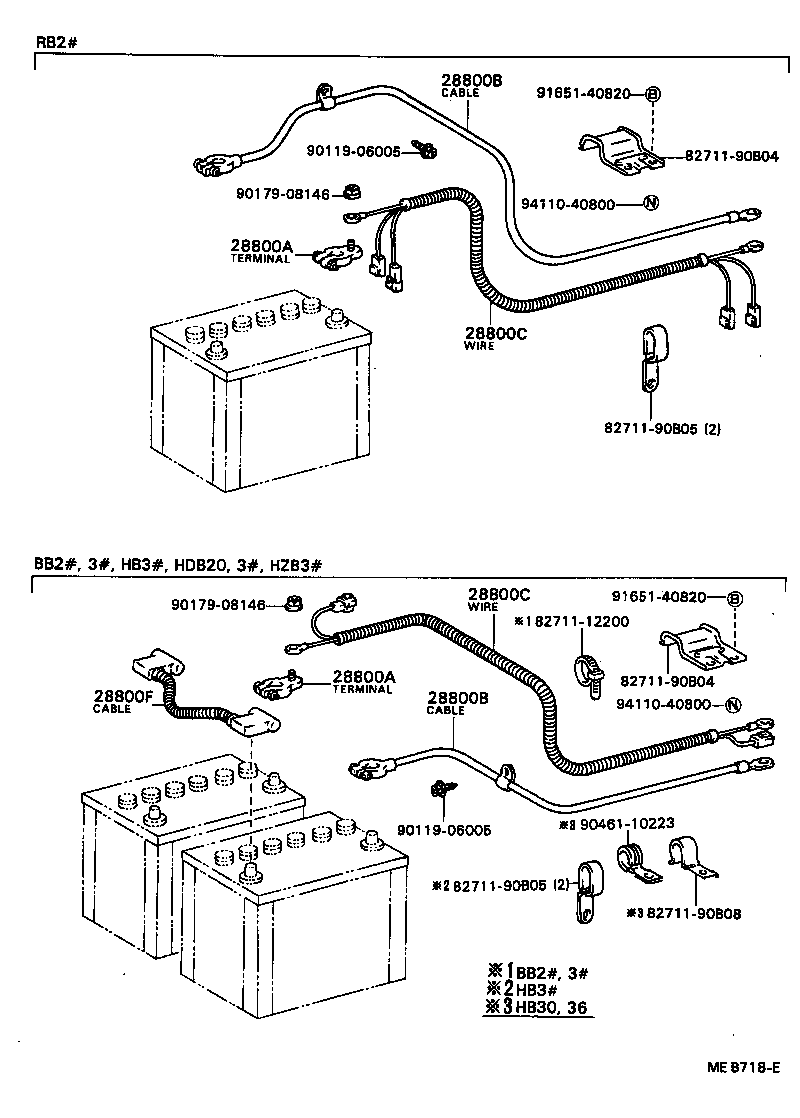

Click highlighted areas on diagram

diagram 28800A 28800A 28800B 28800B 28800C 28800C 28800F 8271112200 8271190B04 8271190B04 8271190B05 8271190B05 8271190B08 9011906005 9011906005 9017908146 9017908146 9046110223 9165140820 9165140820 9411040800 9411040800
Part # Description Qty Price
28800A - TERMINAL, BATTERY POSITIVE
90982-05005

12HT,22R,3B,2H..BB2#,3#,HB3#,RB2#

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05005

12HT,22R,3B,2H..BB2#,3#,HB3#,RB2#

 1
28800B - CABLE, BATTERY TO GROUND
90982-02233

22R..RB2#

 1
28800B - CABLE, BATTERY TO GROUND
90982-02233

22R..RB2#

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82113-90B06

22R..RB2#

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82113-90B06

22R..RB2#

 1
Common parts
82711-12200
82711-90B04
82711-90B05
82711-90B08
90119-06005
90179-08146
90461-10223
91651-40820
94110-40800
