RB20-MRZ (1982)

Toyota Coaster

Production May 1982 - Oct 1985
Engine 22R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

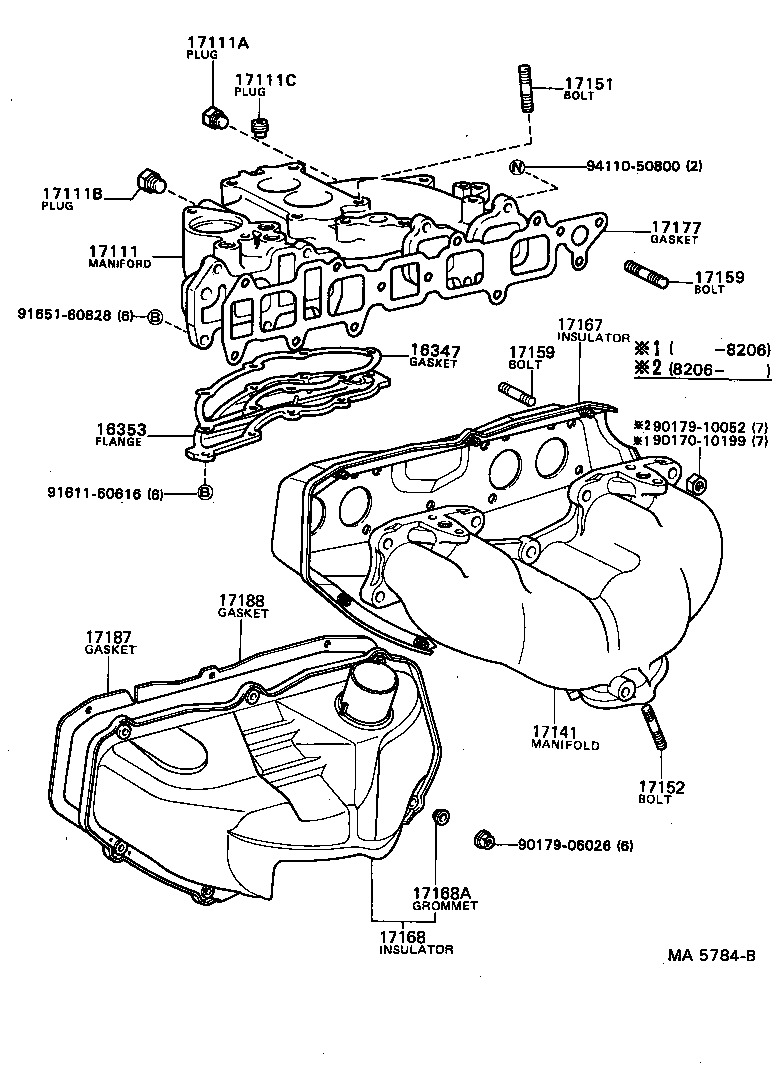

(8205-8208)22R

Click highlighted areas on diagram

diagram 16347 16353 17111 17111A 17111B 17111C 17141 17151 17152 17159 17159 17167 17168 17168A 17177 17187 17188 9017010199 9017906026 9017910052 9161160616 9165160828 9411050800
Part # Description Qty Price
16347 - GASKET, WATER BY-PASS
16347-35010

22R..RB20

 1
16353 - FLANGE, WATER BY-PASS
16353-35010

22R..RB20

 1
17111 - MANIFOLD, INTAKE
17111-35012

22R..RB20

 1
17111A - PLUG, NO.1
90345-51025

22R..RB2#

 1
17111B - PLUG, NO.2
90345-53007

22R..RB2#

 1
17111C - PLUG, NO.3
90340-16002

22R..RB2#

 1
17141 - MANIFOLD, EXHAUST
17141-35060

22R..RB20

 1
17141-38012

22R..RB20

 1
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-08051

22R..RB2#

L=40,S=11&11

 2
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10058

22R..RB20

L=46.5,S=14&20

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08013

22R..RB20

L=34.5,S=9&16

 2
90116-10011

22R..RB20

L=42,S=12&25

 4
90116-10317

22R..RB20

L=36,S=13&13

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08013

22R..RB20

L=34.5,S=9&16

 2
90116-10011

22R..RB20

L=42,S=12&25

 4
90116-10317

22R..RB20

L=36,S=13&13

 3
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-35021

22R..RB20

 1
17167-35060

22R..RB20

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-35030

22R..RB2#

 1
17168A - GROMMET(FOR EXHAUST MANIFOLD HEAT INSULATOR)
90480-11001

22R..RB2#

OD=11.5

 2
90480-12001

22R..RB2#

OD=12.5

 4
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-35021

22R..RB20

 1
17177-35011

22R..RB20

 1
17177-35020

22R..RB20

 1
17187 - GASKET, HEAT INSULATOR, NO.1
17187-38020

22R..RB2#

 1
17188 - GASKET, HEAT INSULATOR, NO.2
17188-38010

22R..RB2#

 1
Common parts
90170-10199
90179-06026
90179-10052
91611-60616
91651-60828
94110-50800

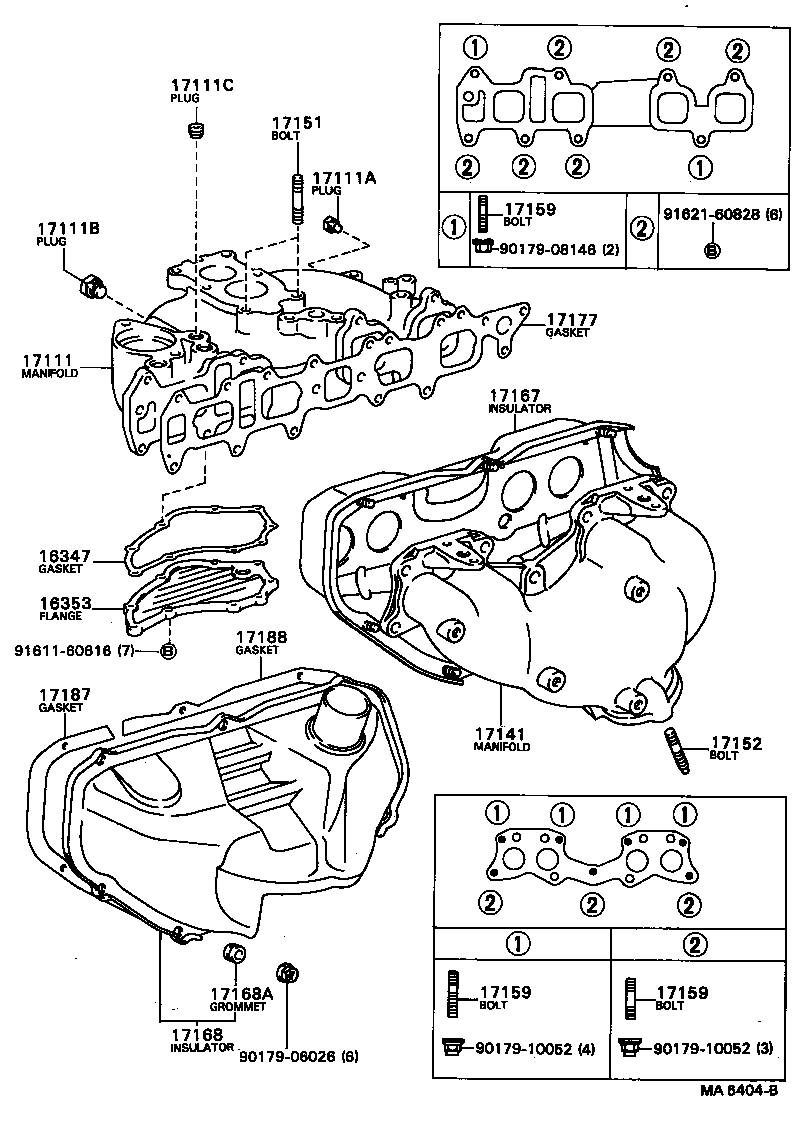

(8208-8408)22R

Click highlighted areas on diagram

diagram 16347 16353 17111 17111A 17111B 17111C 17141 17151 17152 17159 17159 17159 17167 17168 17168A 17177 17187 17188 9017906026 9017908146 9017910052 9017910052 9161160616 9162160828
Part # Description Qty Price
16347 - GASKET, WATER BY-PASS
16347-35010

22R..RB20

 1
16353 - FLANGE, WATER BY-PASS
16353-35010

22R..RB20

 1
17111 - MANIFOLD, INTAKE
17111-35012

22R..RB20

 1
17111A - PLUG, NO.1
90345-51025

22R..RB2#

 1
17111B - PLUG, NO.2
90345-53007

22R..RB2#

 1
17111C - PLUG, NO.3
90340-16002

22R..RB2#

 1
17141 - MANIFOLD, EXHAUST
17141-35060

22R..RB20

 1
17141-38012

22R..RB20

 1
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-08051

22R..RB2#

L=40,S=11&11

 2
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10058

22R..RB20

L=46.5,S=14&20

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08013

22R..RB20

L=34.5,S=9&16

 2
90116-10011

22R..RB20

L=42,S=12&25

 4
90116-10317

22R..RB20

L=36,S=13&13

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08013

22R..RB20

L=34.5,S=9&16

 2
90116-10011

22R..RB20

L=42,S=12&25

 4
90116-10317

22R..RB20

L=36,S=13&13

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08013

22R..RB20

L=34.5,S=9&16

 2
90116-10011

22R..RB20

L=42,S=12&25

 4
90116-10317

22R..RB20

L=36,S=13&13

 3
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-35021

22R..RB20

 1
17167-35060

22R..RB20

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-35030

22R..RB2#

 1
17168A - GROMMET(FOR EXHAUST MANIFOLD HEAT INSULATOR)
90480-11001

22R..RB2#

OD=11.5

 2
90480-12001

22R..RB2#

OD=12.5

 4
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-35021

22R..RB20

 1
17177-35011

22R..RB20

 1
17177-35020

22R..RB20

 1
17187 - GASKET, HEAT INSULATOR, NO.1
17187-38020

22R..RB2#

 1
17188 - GASKET, HEAT INSULATOR, NO.2
17188-38010

22R..RB2#

 1
Common parts
90179-06026
90179-08146
90179-10052
91611-60616
91621-60828

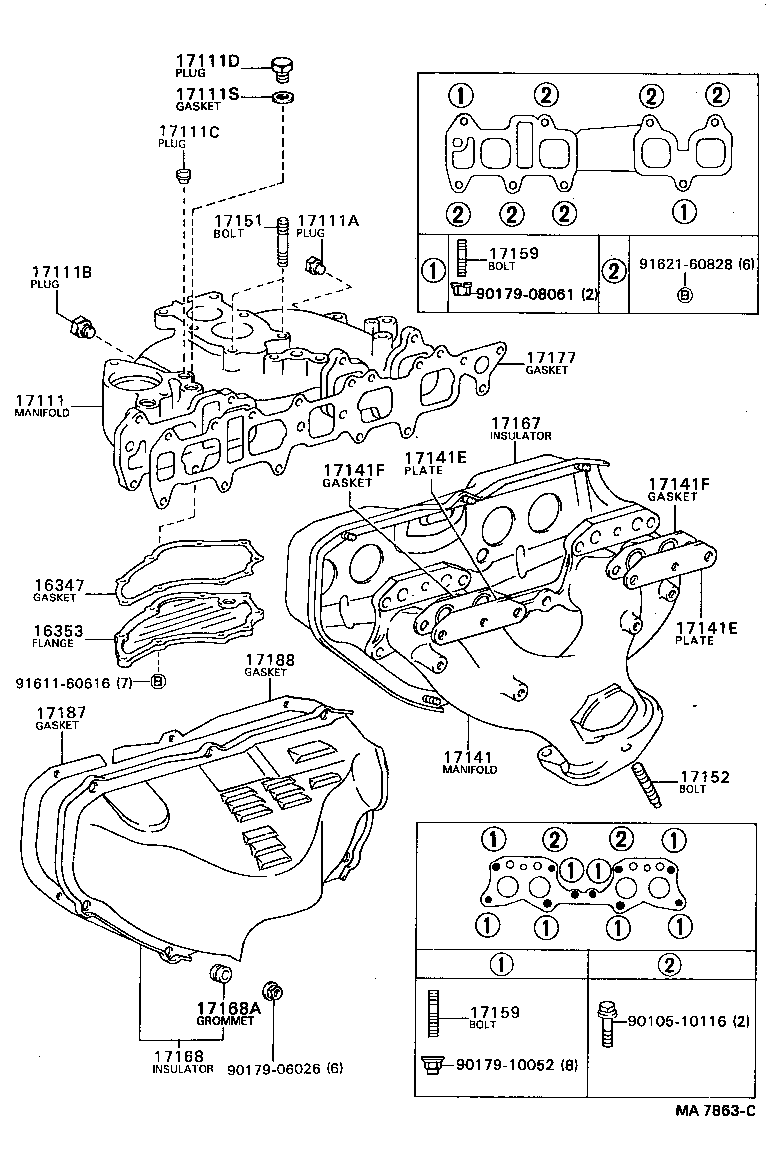

(8408- )22R

Click highlighted areas on diagram

diagram 16347 16353 17111 17111A 17111B 17111C 17111D 17111S 17141 17141E 17141E 17141F 17141F 17151 17152 17159 17159 17167 17168 17168A 17177 17187 17188 3017908061 9010510116 9017906026 9017910052 9161160616 9162160828
Part # Description Qty Price
16347 - GASKET, WATER BY-PASS
16347-35010

22R..RB20

 1
16353 - FLANGE, WATER BY-PASS
16353-35010

22R..RB20

 1
17111 - MANIFOLD, INTAKE
17111-35012

22R..RB20

 1
17111A - PLUG, NO.1
90345-51025

22R..RB2#

 1
17111B - PLUG, NO.2
90345-53007

22R..RB2#

 1
17111C - PLUG, NO.3
90340-16002

22R..RB2#

 1
17141 - MANIFOLD, EXHAUST
17141-35060

22R..RB20

 1
17141-38012

22R..RB20

 1
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-08051

22R..RB2#

L=40,S=11&11

 2
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10058

22R..RB20

L=46.5,S=14&20

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08013

22R..RB20

L=34.5,S=9&16

 2
90116-10011

22R..RB20

L=42,S=12&25

 4
90116-10317

22R..RB20

L=36,S=13&13

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08013

22R..RB20

L=34.5,S=9&16

 2
90116-10011

22R..RB20

L=42,S=12&25

 4
90116-10317

22R..RB20

L=36,S=13&13

 3
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-35021

22R..RB20

 1
17167-35060

22R..RB20

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-35030

22R..RB2#

 1
17168A - GROMMET(FOR EXHAUST MANIFOLD HEAT INSULATOR)
90480-11001

22R..RB2#

OD=11.5

 2
90480-12001

22R..RB2#

OD=12.5

 4
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-35021

22R..RB20

 1
17177-35011

22R..RB20

 1
17177-35020

22R..RB20

 1
17187 - GASKET, HEAT INSULATOR, NO.1
17187-38020

22R..RB2#

 1
17188 - GASKET, HEAT INSULATOR, NO.2
17188-38010

22R..RB2#

 1
Common parts
30179-08061
90105-10116
90179-06026
90179-10052
91611-60616
91621-60828
