RB20-MRK (1982)

Toyota Coaster

Production May 1982 - Jan 1993
Engine 22R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

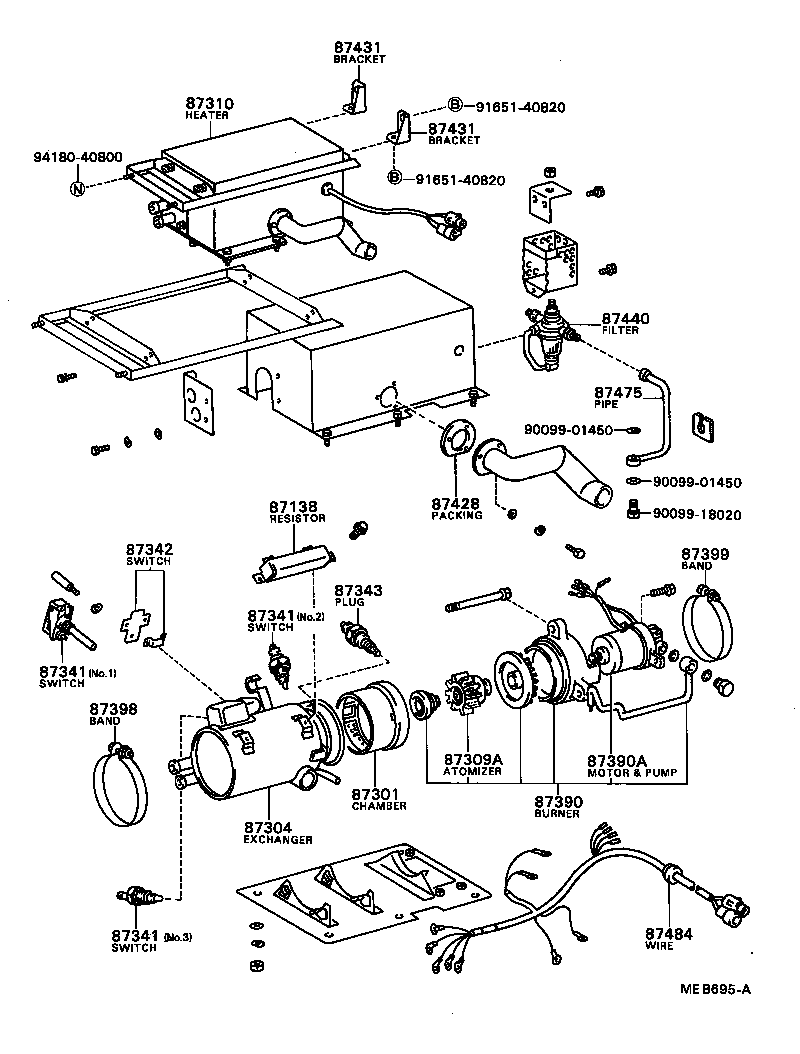

ILLUST NO. 3 OF 4(8205- )

Click highlighted areas on diagram

RR HEATER

diagram 87138 87301 87304 87309A 87310 87341 87341 87341 87342 87343 87390 87390A 87398 87399 87428 87431 87431 87440 87475 87484 9009901450 9009901450 9009918020 9165140820 9165140820 9418040800
Part # Description Qty Price
87138 - RESISTOR, HEATER BLOWER
87138-90B00

RB2#

 1
87138-90B13

RB20

 1
87138-90B01

BB20,21,23,26,3#,HB30,31,36..DLX,STD

 1
Common parts
90099-01450
90099-18020
91651-40820
94180-40800

ILLUST NO. 1 OF 4(8205-8510)

Click highlighted areas on diagram

FR HEATER

diagram 87104 87105 87107 87110 87116 8712410010 87138 87188 8889595715 8889922090 9009902133 9009902134 9009902135 9009904978 9009905164 9011908203 9048001081 9166540620 9671119016
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-90B01

BB20,21,23,26,3#,HB30,31,36,HDB30,HZB30,36..DLX,STD

 1
87104-90B00

RB2#

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-14030

BB20,21,23,3#,HB30,31,36,HDB30,HZB30,RB2#..DLX,STD

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-90B03

BB2#,3#,HB3#,RB2#..DLX,STD

 1
87107-90B03

RB2#

 1
87107-90B00

BB20,30,HB30,RB20..DLX,STD

 1
87107-90B04

BB2#,3#,HB3#,HDB20,3#,HZB3#

 1
87110 - HEATER ASSY
87110-90B02

BB2#,3#,HB3#..DLX,STD

 1
87110-90B14

RB2#

 1
87110-90B00

RB2#

 1
87110-90B16

BB21,23,26,3#,HB30,31,36,HDB30,HZB30,36..DLX,STD

 1
87116 - SPRING, HEATER CASE FASTENING
87116-14010

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 7
87138 - RESISTOR, HEATER BLOWER
87138-90B00

RB2#

 1
87138-90B13

RB20

 1
87138-90B01

BB20,21,23,26,3#,HB30,31,36..DLX,STD

 1
87188 - PACKING, HEATER BLOWER MOTOR
87127-14010

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
Common parts
87124-10010
88895-95715
88899-22090
90099-02133
90099-02134
90099-02135
90099-04978
90099-05164
90119-08203
90480-01081
91665-40620
96711-19016

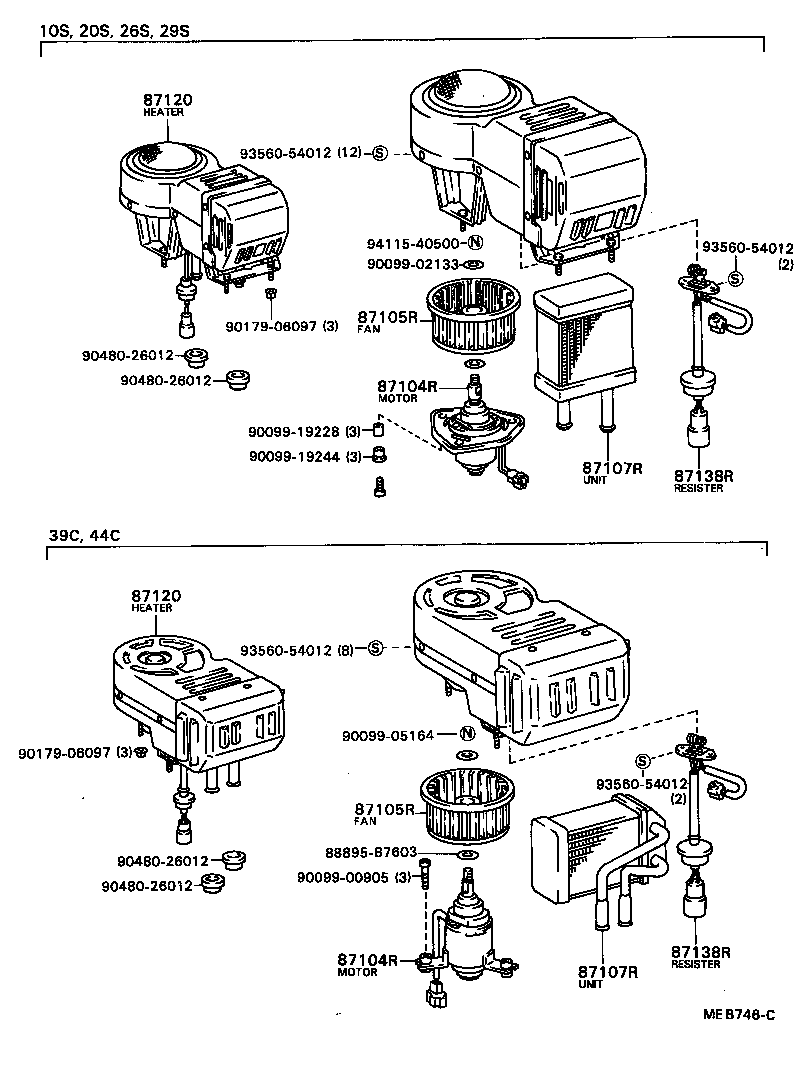

ILLUST NO. 2 OF 4(8205- )

Click highlighted areas on diagram

RR HEATER

diagram 87104R 87104R 87105R 87105R 87107R 87107R 87120 87120 87138R 87138R 8889587603 9009900905 9009902133 9009905164 9009919228 9009919244 9017906097 9017906097 9048026012 9048026012 9048026012 9048026012 9356054012 9356054012 9356054012 9356054012 9411540500
Part # Description Qty Price
87104R - MOTOR SUB-ASSY, REAR HEATER BLOWER
87104-87003

RB20..39C

 2
87104R - MOTOR SUB-ASSY, REAR HEATER BLOWER
87104-87003

RB20..39C

 2
87105R - FAN SUB-ASSY, REAR HEATER BLOWER
87105-87002

BB20,21,30,31,RB20..39C,44C

 2
87105R - FAN SUB-ASSY, REAR HEATER BLOWER
87105-87002

BB20,21,30,31,RB20..39C,44C

 2
87107R - UNIT SUB-ASSY, REAR HEATER
87107-90B01

BB20,21,30,31,RB20..39C,44C

 2
87107R - UNIT SUB-ASSY, REAR HEATER
87107-90B01

BB20,21,30,31,RB20..39C,44C

 2
87120 - HEATER ASSY, REAR
87110-90B11

RB20..39C

 2
87120 - HEATER ASSY, REAR
87110-90B11

RB20..39C

 2
87138R - RESISTOR, REAR HEATER BLOWER
87138-90B11

RB20..39C

 2
87138R - RESISTOR, REAR HEATER BLOWER
87138-90B11

RB20..39C

 2
Common parts
88895-87603
90099-00905
90099-02133
90099-05164
90099-19228
90099-19244
90179-06097
90480-26012
93560-54012
94115-40500

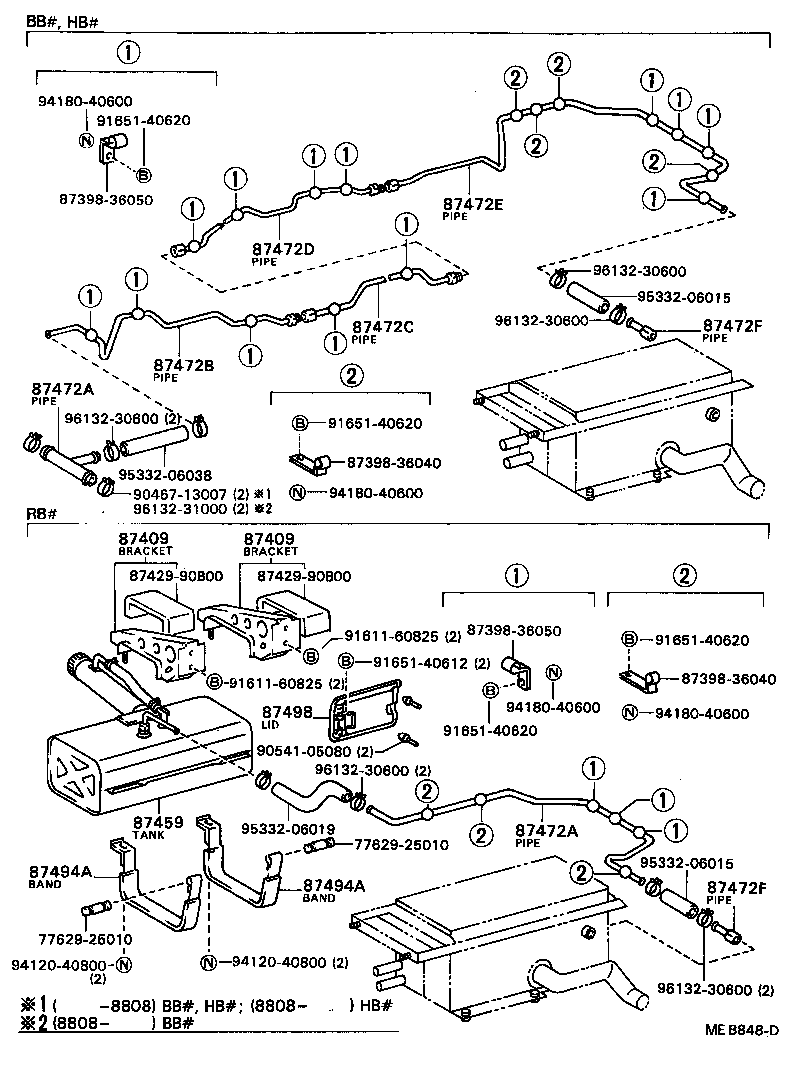

ILLUST NO. 4 OF 4(8205- )

Click highlighted areas on diagram

COMBUSTION HEATER

diagram 7762925010 7762925010 8739836040 8739836040 8739836050 8739836050 87409 87409 8742990B00 8742990B00 87459 87472A 87472A 87472B 87472C 87472D 87472E 87472F 87472F 87494A 87494A 87498 9046713007 9054105080 9161160825 9161160825 9165140612 9165140620 9165140620 9165140620 9165140620 9412040800 9412040800 9418040600 9418040600 9418040600 9418040600 9533206015 9533206015 9533206019 9533206038 9613230600 9613230600 9613230600 9613230600 9613230600 9613231000
Part # Description Qty Price
87472A - PIPE, HEATER FUEL, NO.1
87472-90B16

HDB20,3#

W/*HP & *CH

 1
87472A - PIPE, HEATER FUEL, NO.1
87472-90B16

HDB20,3#

W/*HP & *CH

 1
87472F - PIPE, HEATER FUEL, NO.6
87472-90B04

BB2#,3#,HB3#,HDB3#,HZB3#,RB2#

W/*HP & *CH

 1
87472F - PIPE, HEATER FUEL, NO.6
87472-90B04

BB2#,3#,HB3#,HDB3#,HZB3#,RB2#

W/*HP & *CH

 1
Common parts
77629-25010
87398-36040
87398-36050
87429-90B00
90467-13007
90541-05080
91611-60825
91651-40612
91651-40620
94120-40800
94180-40600
95332-06015
95332-06019
95332-06038
96132-30600
96132-31000

ILLUST NO. 1 OF 4(8510- )

Click highlighted areas on diagram

FR HEATER

diagram 87104 87105 87107 87110 87116 8712410010 87138 87188 8729130320 8856912170 8857817020 8889120090 9009001340 9009900968 9009902133 9009904978 9009905164 9011908203 9048001081 9166540620 9331513008 9331914008 9354015010 9354015016 9676119016
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-90B01

BB20,21,23,26,3#,HB30,31,36,HDB30,HZB30,36..DLX,STD

 1
87104-90B00

RB2#

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-14030

BB20,21,23,3#,HB30,31,36,HDB30,HZB30,RB2#..DLX,STD

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-90B03

BB2#,3#,HB3#,RB2#..DLX,STD

 1
87107-90B03

RB2#

 1
87107-90B00

BB20,30,HB30,RB20..DLX,STD

 1
87107-90B04

BB2#,3#,HB3#,HDB20,3#,HZB3#

 1
87110 - HEATER ASSY
87110-90B02

BB2#,3#,HB3#..DLX,STD

 1
87110-90B14

RB2#

 1
87110-90B00

RB2#

 1
87110-90B16

BB21,23,26,3#,HB30,31,36,HDB30,HZB30,36..DLX,STD

 1
87116 - SPRING, HEATER CASE FASTENING
87116-14010

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 7
87138 - RESISTOR, HEATER BLOWER
87138-90B00

RB2#

 1
87138-90B13

RB20

 1
87138-90B01

BB20,21,23,26,3#,HB30,31,36..DLX,STD

 1
87188 - PACKING, HEATER BLOWER MOTOR
87127-14010

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
Common parts
87124-10010
87291-30320
88569-12170
88578-17020
88891-20090
90090-01340
90099-00968
90099-02133
90099-04978
90099-05164
90119-08203
90480-01081
91665-40620
93315-13008
93319-14008
93540-15010
93540-15016
96761-19016

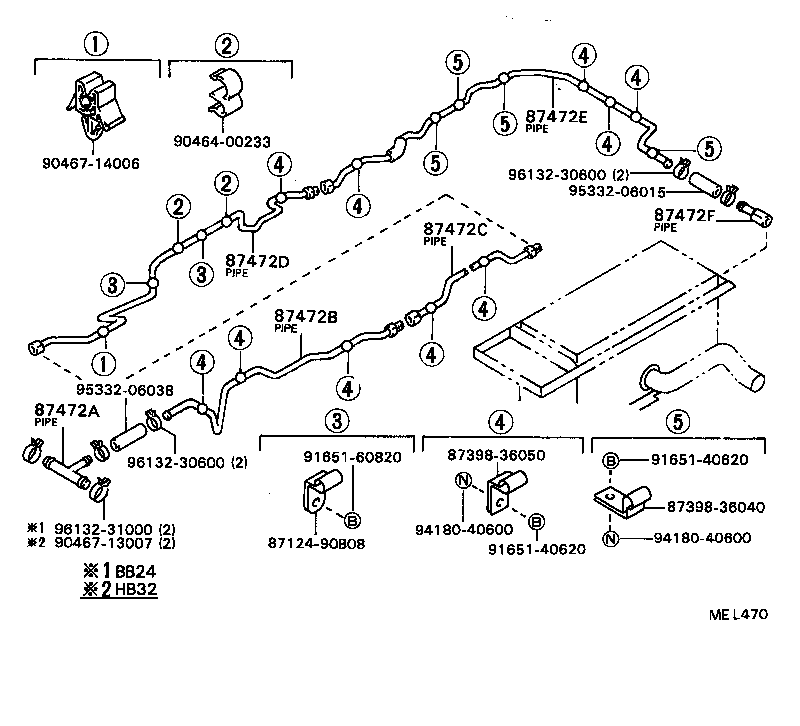

ILLUST NO. 4 OF 4(8808- )

Click highlighted areas on diagram

COMBUSTION HEATER

diagram 8712490B08 8739836040 8739836050 87472A 87472B 87472C 87472D 87472E 87472F 9046400233 9046713007 9046714006 9165140620 9165140620 9165160820 9418040600 9418040600 9533206015 9533206038 9613230600 9613230600 9613231000
Part # Description Qty Price
87472A - PIPE, HEATER FUEL, NO.1
87472-90B16

HDB20,3#

W/*HP & *CH

 1
87472F - PIPE, HEATER FUEL, NO.6
87472-90B04

BB2#,3#,HB3#,HDB3#,HZB3#,RB2#

W/*HP & *CH

 1
Common parts
87124-90B08
87398-36040
87398-36050
90464-00233
90467-13007
90467-14006
91651-40620
91651-60820
94180-40600
95332-06015
95332-06038
96132-30600
96132-31000
