RB20-MRK (1982)
Toyota Coaster

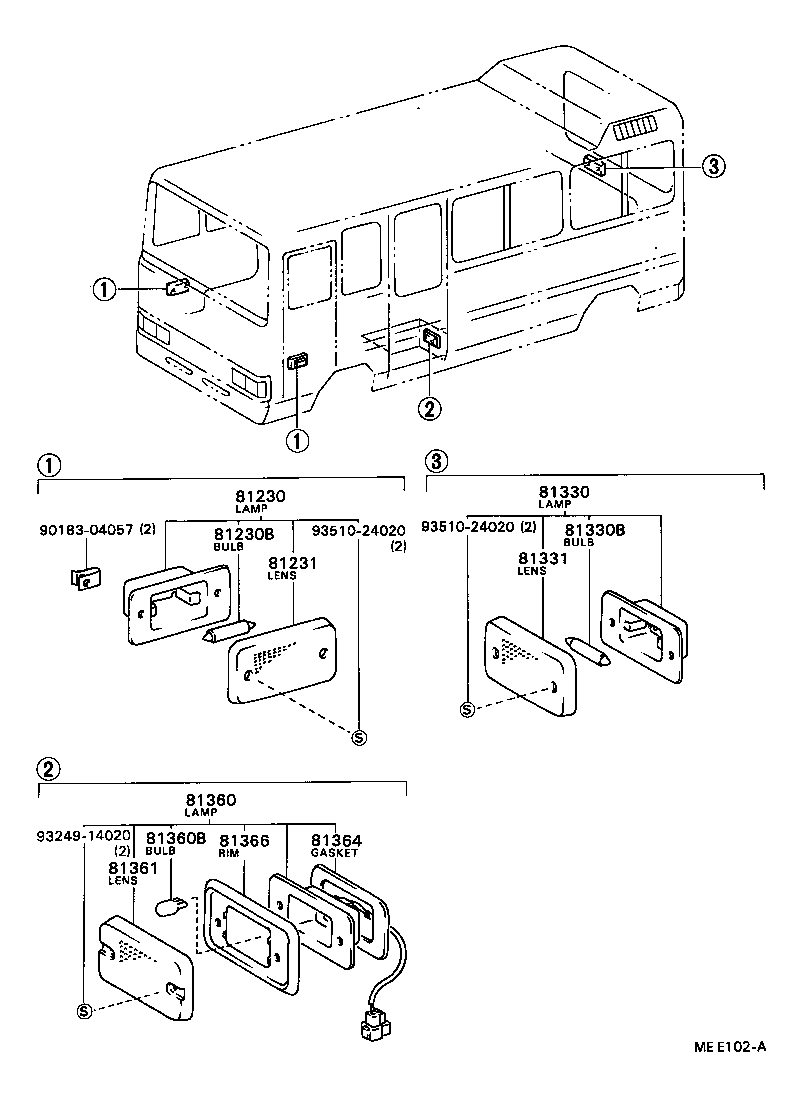

ILLUST NO. 1 OF 2(8205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81230 - LAMP ASSY, COURTESY | ||||
| 81230-90B00 |
HDB20,3#,HZB30,31 |
1 | ||
| 81230B - BULB(FOR COURTESY LAMP) | ||||
| 90981-16013 |
HDB20,3#,HZB30,31 24V 5W,24V 5W |
1 | ||
| 81231 - LENS, COURTESY LAMP | ||||
| 81231-30080 |
HDB20,3#,HZB30,31 |
1 | ||
| 81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1 | ||||
| 81230-90B00 |
HDB20,3#,HZB30,31 |
1 | ||
| 81330B - BULB, LUGGAGE COMPARTMENT LAMP | ||||
| 90981-16013 |
HDB20,3#,HZB30,31 24V 5W,24V 5W |
1 | ||
| 81331 - LENS, LUGGAGE COMPARTMENT LAMP | ||||
| 81231-30080 |
HDB20,3#,HZB30,31 |
1 | ||
| 81360 - LAMP ASSY, STEP OR SPOT | ||||
| 81380-90B01 |
BB2#,3#,HB3#,HDB20,3#,HZB3# |
1 | ||
| 81380-90B00 |
RB2# |
1 | ||
| 81360B - BULB, STEP OR SPOT LAMP | ||||
| 99132-12050 |
RB2# 12V 5W,12V 5W |
1 | ||
| 99134-12030 |
BB2#,3#,HB3#,HDB20,3#,HZB3# 24V 3W,24V 3W |
1 | ||
| 81361 - LENS, STEP LAMP | ||||
| 81361-90511 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 81364 - GASKET, STEP LAMP | ||||
| 81364-90501 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 81366 - RIM, STEP LAMP | ||||
| 81236-30010 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| Common parts | ||||
| 90183-04057 | ||||
| 93249-14020 | ||||
| 93510-24020 | ||||

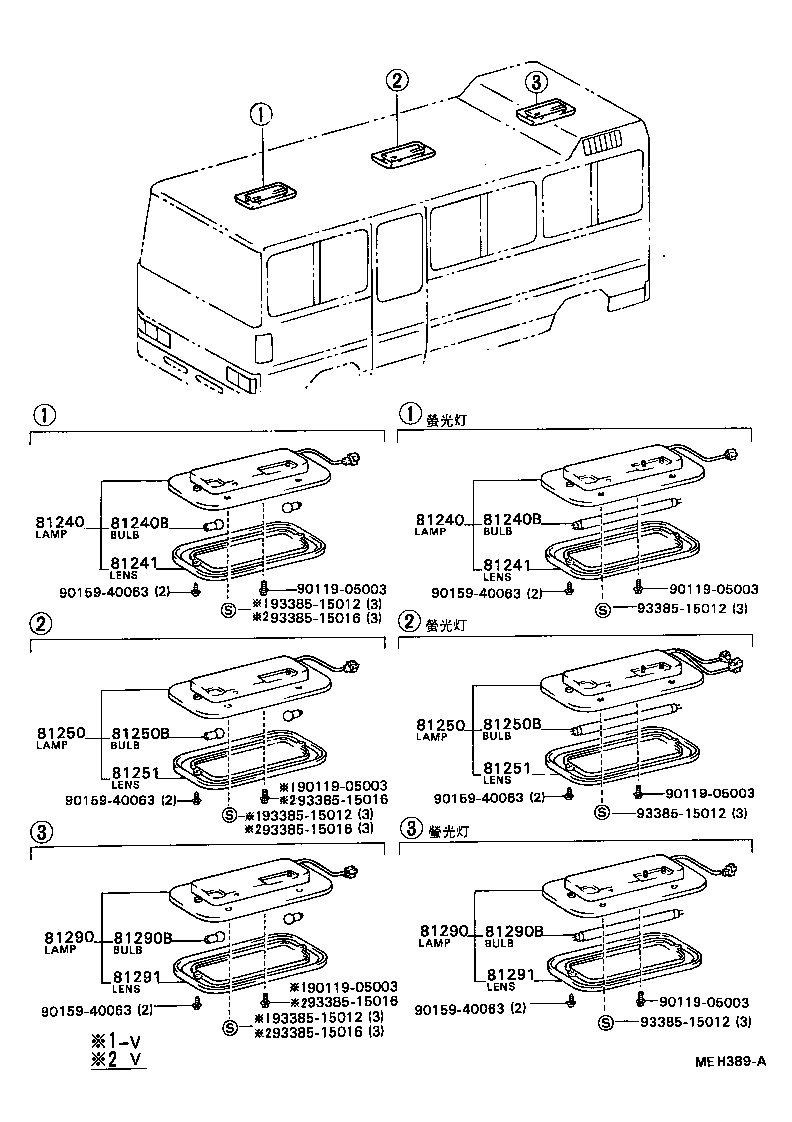

ILLUST NO. 1 OF 2(8205- )DLX,EX,STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81240 - LAMP ASSY, ROOM, NO.1 | ||||
| 81240-90B03 |
BB2#,3#,HB3#..DLX,STD |
1 | ||
| 81240-90B02 |
RB2# |
1 | ||
| 81240 - LAMP ASSY, ROOM, NO.1 | ||||
| 81240-90B03 |
BB2#,3#,HB3#..DLX,STD |
1 | ||
| 81240-90B02 |
RB2# |
1 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 99132-11100 |
RB2# 12V 10W,12V 10W |
2 | ||
| 99134-11120 |
BB2#,3#,HB3#..DLX,STD 24V 12W,24V 12W |
2 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 99132-11100 |
RB2# 12V 10W,12V 10W |
2 | ||
| 99134-11120 |
BB2#,3#,HB3#..DLX,STD 24V 12W,24V 12W |
2 | ||
| 81241 - LENS, ROOM LAMP, NO.1 | ||||
| 81241-90B00 |
BB2#,3#,HB3#,RB2#..DLX,STD |
1 | ||
| 81241-90B00 |
BB21,23,26,31,HB30,31,36,RB20..DLX,STD |
1 | ||
| 81241 - LENS, ROOM LAMP, NO.1 | ||||
| 81241-90B00 |
BB2#,3#,HB3#,RB2#..DLX,STD |
1 | ||
| 81241-90B00 |
BB21,23,26,31,HB30,31,36,RB20..DLX,STD |
1 | ||
| 81250 - LAMP ASSY, ROOM, NO.2 | ||||
| 81240-90B07 |
BB2#,3#,HB36 |
1 | ||
| 81240-90B02 |
RB20 |
1 | ||
| 81250 - LAMP ASSY, ROOM, NO.2 | ||||
| 81240-90B07 |
BB2#,3#,HB36 |
1 | ||
| 81240-90B02 |
RB20 |
1 | ||
| 81250B - BULB, ROOM LAMP, NO.2 | ||||
| 99134-11120 |
BB2#,3#,HB3#..DLX,STD 24V 12W,24V 12W |
2 | ||
| 99132-11100 |
RB2# 12V 10W,12V 10W |
2 | ||
| 81250B - BULB, ROOM LAMP, NO.2 | ||||
| 99134-11120 |
BB2#,3#,HB3#..DLX,STD 24V 12W,24V 12W |
2 | ||
| 99132-11100 |
RB2# 12V 10W,12V 10W |
2 | ||
| 81251 - LENS, ROOM LAMP, NO.2 | ||||
| 81241-90B00 |
BB2#,3#,HB3#,RB2#..DLX,STD |
1 | ||
| 81241-90B00 |
BB21,23,26,31,HB30,31,36,RB20..DLX,STD |
1 | ||
| 81251 - LENS, ROOM LAMP, NO.2 | ||||
| 81241-90B00 |
BB2#,3#,HB3#,RB2#..DLX,STD |
1 | ||
| 81241-90B00 |
BB21,23,26,31,HB30,31,36,RB20..DLX,STD |
1 | ||
| 81290 - LAMP ASSY, ROOM, NO.3 | ||||
| 81240-90B02 |
RB20 |
1 | ||
| 81290 - LAMP ASSY, ROOM, NO.3 | ||||
| 81240-90B02 |
RB20 |
1 | ||
| 81290B - BULB, ROOM LAMP, NO.3 | ||||
| 99134-11120 |
BB2#,3#,HB3#..DLX,STD 24V 12W,24V 12W |
2 | ||
| 99132-11100 |
RB2# 12V 10W,12V 10W |
2 | ||
| 81290B - BULB, ROOM LAMP, NO.3 | ||||
| 99134-11120 |
BB2#,3#,HB3#..DLX,STD 24V 12W,24V 12W |
2 | ||
| 99132-11100 |
RB2# 12V 10W,12V 10W |
2 | ||
| 81291 - LENS, ROOM LAMP, NO.3(FOR REAR) | ||||
| 81241-90B00 |
BB20,21,23,26,3#,HB30,31,36,HDB30,HZB30,36,RB2#..DLX,STD |
1 | ||
| 81291 - LENS, ROOM LAMP, NO.3(FOR REAR) | ||||
| 81241-90B00 |
BB20,21,23,26,3#,HB30,31,36,HDB30,HZB30,36,RB2#..DLX,STD |
1 | ||
| Common parts | ||||
| 90119-05003 | ||||
| 90159-40063 | ||||
| 93385-15012 | ||||
| 93385-15016 | ||||
