RB20-MRK (1982)

Toyota Coaster

Production May 1982 - Jan 1993
Engine 22R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8205- )

Click highlighted areas on diagram

diagram 4561914010 78111 78117 78117 78120 78120B 78120B 78120E 78127 78189 78410 9165140614 9165140620 9411040800 9616000600
Part # Description Qty Price
78111 - PEDAL, ACCELERATOR
78010-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
78117 - CUSHION (FOR ACCELERATOR ROD)
90541-06036

BB2#,31,HDB20,3#,HZB3#

W/*EB

 1
90541-06008

BB2#,3#,HB3#,HDB20,3#,HZB3#

W/*EB

 1
90541-11001

BB20,21,26,3#,RB2#

 1
78117 - CUSHION (FOR ACCELERATOR ROD)
90541-06036

BB2#,31,HDB20,3#,HZB3#

W/*EB

 1
90541-06008

BB2#,3#,HB3#,HDB20,3#,HZB3#

W/*EB

 1
90541-11001

BB20,21,26,3#,RB2#

 1
78120 - ROD, ACCELERATOR LINK
78120-90B03

BB21,31,RB20..39C,44C

W/ACCELERATOR INTER LOCK

 1
78120B - BUSH (FOR ACCELERATOR LINK ROD)
90386-08155

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 2
78120B - BUSH (FOR ACCELERATOR LINK ROD)
90386-08155

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 2
78120E - SPRING, TENSION (FOR ACCELERATOR LINK ROD)
90508-26042

BB2#,3#,HB3#,RB2#

 1
90508-23110

BB24,HB32,HDB20,3#,HZB3#

 1
90508-26042

BB21,23,26,3#,HB30,31,RB2#

 1
78127 - BUSH, ACCELERATOR PEDAL, NO.2
78127-20010

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
78410 - CABLE ASSY, THROTTLE CONTROL
78410-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
Common parts
45619-14010
91651-40614
91651-40620
94110-40800
96160-00600

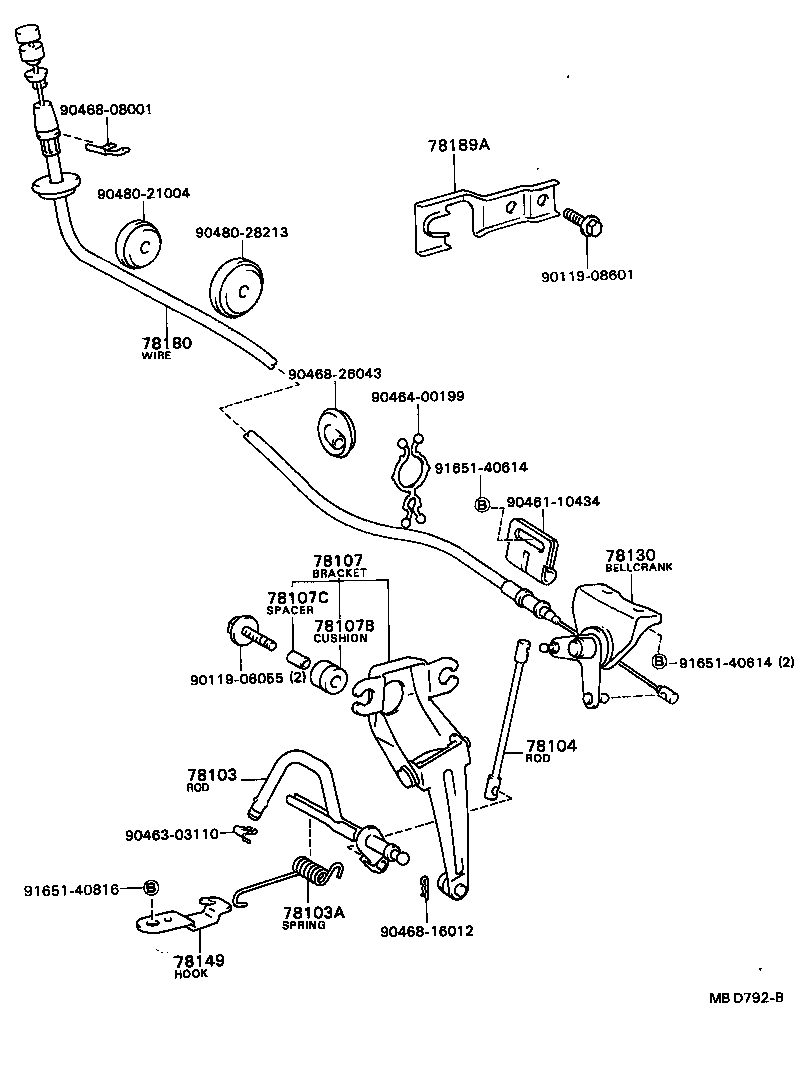

ILLUST NO. 2 OF 2(8205- )RB2#

Click highlighted areas on diagram

diagram 78103 78103A 78104 78107 78107B 78107C 78130 78149 78180 78189A 9011906055 9011908601 9046110434 9046303110 9046400199 9046808001 9046816012 9046826043 9048021004 9048028213 9165140614 9165140614 9165140816
Part # Description Qty Price
78103 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1
78103-90B00

RB20

 1
78103-60020

HDB20,3#,HZB3#

 1
78103A - SPRING (FOR ACCELERATOR CONNECTING ROD, NO.1)
90508-14407

RB2#

 1
78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2
78104-90B01

RB20

 1
78104-60010

HDB20,3#,HZB3#

 1
78104-90B00

RB20

 1
78107 - BRACKET SUB-ASSY, ACCELERATOR TORQUE ROD
78170-90B00

RB2#

 1
78107B - CUSHION (FOR ACCELERATOR TORQUE ROD BRACKET)
90540-09001

RB2#

 2
78107C - SPACER (FOR ACCELERATOR TORQUE ROD BRACKET)
90560-06238

RB2#

 2
78130 - BELLCRANK ASSY, ACCELERATOR
78160-90B00

RB2#

 1
78149 - HOOK, ACCELERATOR TORQUE ROD SPRING
78149-20060

RB2#

 1
78180 - WIRE ASSY, ACCELERATOR
78180-90B05

BB2#,3#

 1
78180-90B14

HDB20,3#,HZB3#

 1
78180-90B02

RB2#

 1
78189A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.2
78189-90B00

BB23,24,HB3#,HDB20,3#,HZB3#,RB2#

 1
Common parts
90119-06055
90119-08601
90461-10434
90463-03110
90464-00199
90468-08001
90468-16012
90468-26043
90480-21004
90480-28213
91651-40614
91651-40816

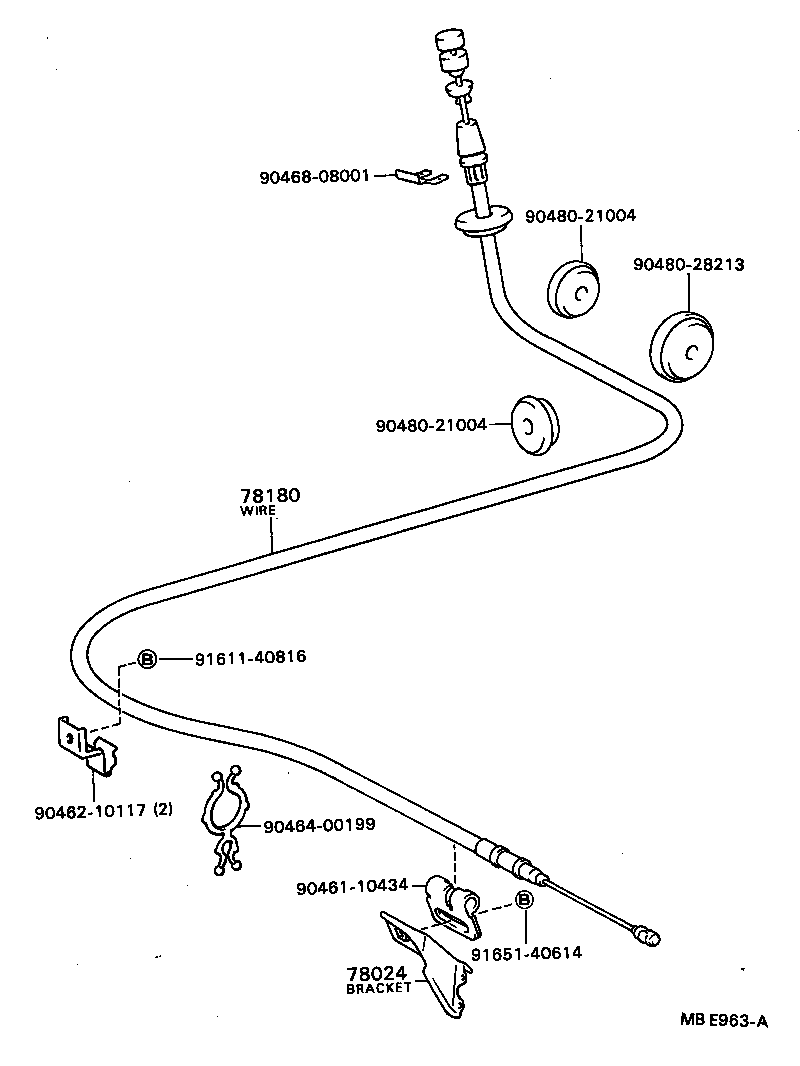

ILLUST NO. 2 OF 2(8302- )BB21,26,3#

Click highlighted areas on diagram

diagram 78024 78180 9046110434 9046210117 9046400199 9046808001 9048021004 9048021004 9048028213 9161140816 9165140614
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-60010

HDB20,3#,HZB3#

 1
78184-90B02

BB21,26,3#

 1
78180 - WIRE ASSY, ACCELERATOR
78180-90B05

BB2#,3#

 1
78180-90B14

HDB20,3#,HZB3#

 1
78180-90B02

RB2#

 1
Common parts
90461-10434
90462-10117
90464-00199
90468-08001
90480-21004
90480-28213
91611-40816
91651-40614

ILLUST NO. 2 OF 2(9001- )HDB20,3#,HZB3#

Click highlighted areas on diagram

diagram 78024 78103 78104 78169 78180 78189A 78195 9011608208 9011908601 9017908053 9038608044 9038608077 9046400366 9046808001 9048021004 9048027005 9048028213 9050816134 91511B0812 91511B0812 91511B0812 9414140840 9451140800 9461140800 9461140800 9538102518
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-60010

HDB20,3#,HZB3#

 1
78184-90B02

BB21,26,3#

 1
78103 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1
78103-90B00

RB20

 1
78103-60020

HDB20,3#,HZB3#

 1
78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2
78104-90B01

RB20

 1
78104-60010

HDB20,3#,HZB3#

 1
78104-90B00

RB20

 1
78169 - HANGER, ACCELERATOR SPRING
78169-60010

HDB20,3#,HZB3#

 1
78180 - WIRE ASSY, ACCELERATOR
78180-90B05

BB2#,3#

 1
78180-90B14

HDB20,3#,HZB3#

 1
78180-90B02

RB2#

 1
78189A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.2
78189-90B00

BB23,24,HB3#,HDB20,3#,HZB3#,RB2#

 1
78195 - BRACKET, ACCELERATOR LINK
78195-60010

HDB20,3#,HZB3#

 1
78195-60011

HDB20,3#,HZB3#

 1
Common parts
90116-08208
90119-08601
90179-08053
90386-08044
90386-08077
90464-00366
90468-08001
90480-21004
90480-27005
90480-28213
90508-16134
91511-B0812
94141-40840
94511-40800
94611-40800
95381-02518
