RB20-MRK (1982)

Toyota Coaster

Production May 1982 - Jan 1993
Engine 22R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8510- )BB24,HB31,32,HDB20,3#,HZB31

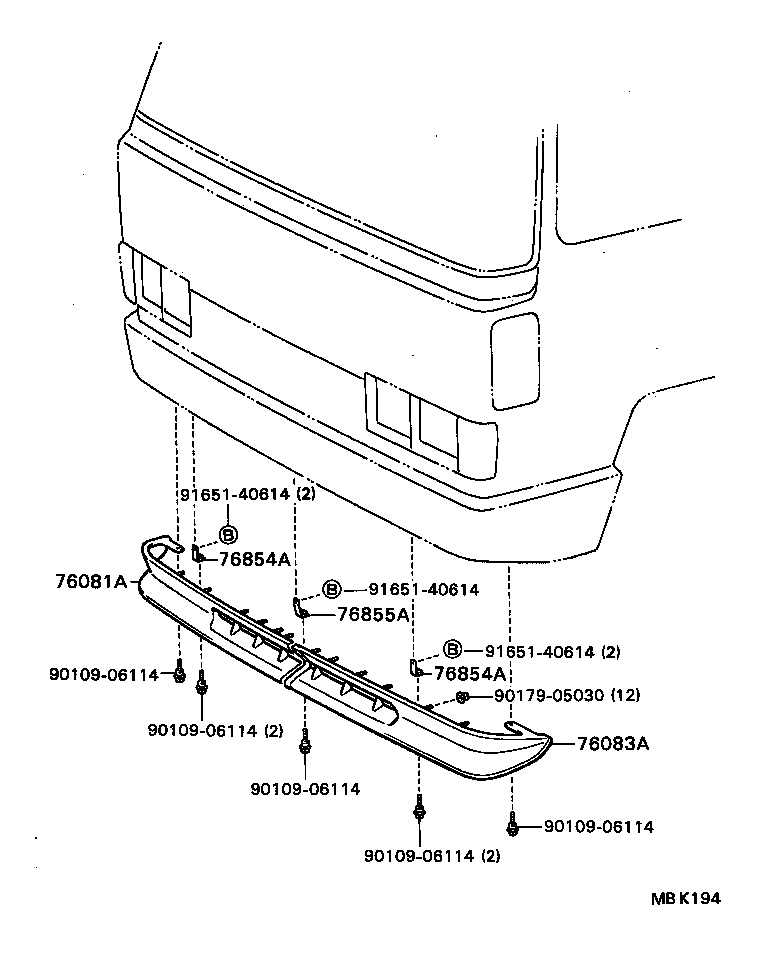

Click highlighted areas on diagram

diagram 76081A 76083A 76854A 76854A 76855A 9010906114 9010906114 9010906114 9010906114 9010906114 9017905030 9165140614 9165140614 9165140614
Part # Description Qty Price
76081A - SPOILER SUB-ASSY, FRONT RH
76081-90B00

BB24,HB31,32,HDB20,3#,HZB31

 1
76083A - SPOILER SUB-ASSY, FRONT LH
76083-90B00

BB24,HB31,32,HDB20,3#,HZB31

 1
76854A - RETAINER, FRONT SPOILER, NO.2
76854-90B00

BB24,HB31,32,HDB20,3#,HZB31

 4
76854A - RETAINER, FRONT SPOILER, NO.2
76854-90B00

BB24,HB31,32,HDB20,3#,HZB31

 4
76855A - RETAINER, FR SPOILER, NO.3
76855-90B00

BB24,HB31,32,HDB20,3#,HZB31

 1
Common parts
90109-06114
90179-05030
91651-40614
