RB20-MRK (1982)

Toyota Coaster

Production May 1982 - Jan 1993
Engine 22R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )BB30,31 ; (8205- )BB20,21,26,36,HB30,36,HZB30,RB2#..WOC ; (8401- )

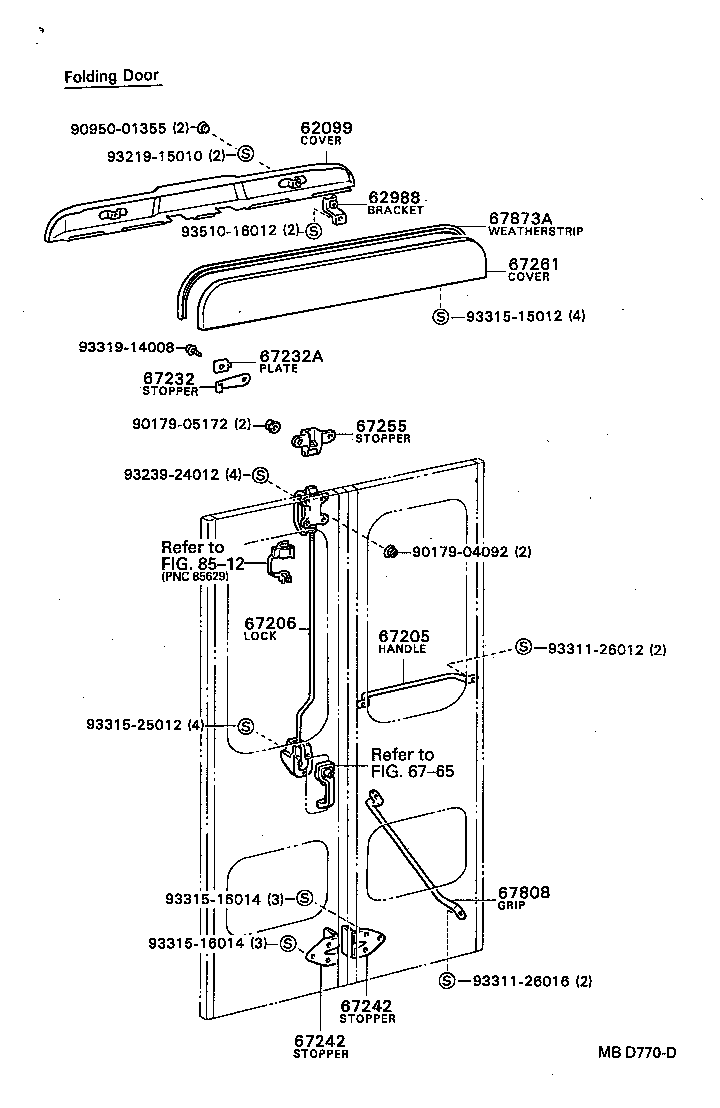

Click highlighted areas on diagram

diagram 62099 62988 67205 67206 67232 67232A 67242 67242 67255 67261 6765 67808 67873A 8512 9017904092 9017905172 9095001355 9321915010 9323924012 9331126012 9331126016 9331515012 9331516014 9331516014 9331525012 9331914008 9351016012
Part # Description Qty Price
62099 - COVER SUB-ASSY, CENTER DOOR LOCK
62099-90B0208

BB21,26,31,HB30,36,RB20..WOC

IVORY,IVORY

 1
62099-90B02

BB2#,3#,HB30,36,RB2#..WOC

 1
67205 - HANDLE SUB-ASSY, CENTER DOOR INSIDE PULL
74642-90B00

BB20,21,30,31,RB20..39C,44C

 1
74642-90B00

HDB20,3#,HZB3#

 1
67206 - LOCK SUB-ASSY, CENTER DOOR INSIDE HANDLE
69302-90B00

BB2#,3#,HB3#,HDB3#,HZB3#,RB2#

 1
67232 - STOPPER, CENTER DOOR OPEN
67232-90506

BB21,23,26,3#,HB30,31,36,RB2#..DLX,STD

 1
67232A - PLATE, CENTER DOOR OPEN STOPPER
67277-90501

BB21,23,26,3#,HB30,31,36,RB2#..DLX,STD

 1
67242 - STOPPER, CENTER DOOR, LOWER
67254-90B00

BB2#,3#,HB3#,HDB3#,HZB3#,RB2#

 2
67242 - STOPPER, CENTER DOOR, LOWER
67254-90B00

BB2#,3#,HB3#,HDB3#,HZB3#,RB2#

 2
67255 - STOPPER, CENTER INSIDE LOCK
69405-90B00

BB21,26,3#,HB30,31,36,HDB3#,HZB3#,RB2#

 1
67261 - COVER, CENTER DOOR SLIDE RAIL
67207-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
67808 - GRIP SUB-ASSY, CENTER DOOR, INSIDE
74649-90B00

BB20,21,30,31,RB20..39C,44C

 1
67873A - WEATHERSTRIP, CENTER DOOR, UPPER NO.1
67873-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
Common parts
90179-04092
90179-05172
90950-01355
93219-15010
93239-24012
93311-26012
93311-26016
93315-15012
93315-16014
93315-25012
93319-14008
93510-16012
Linked diagrams
6765
8512
