RB20-MRK (1982)

Toyota Coaster

Production May 1982 - Jan 1993
Engine 22R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

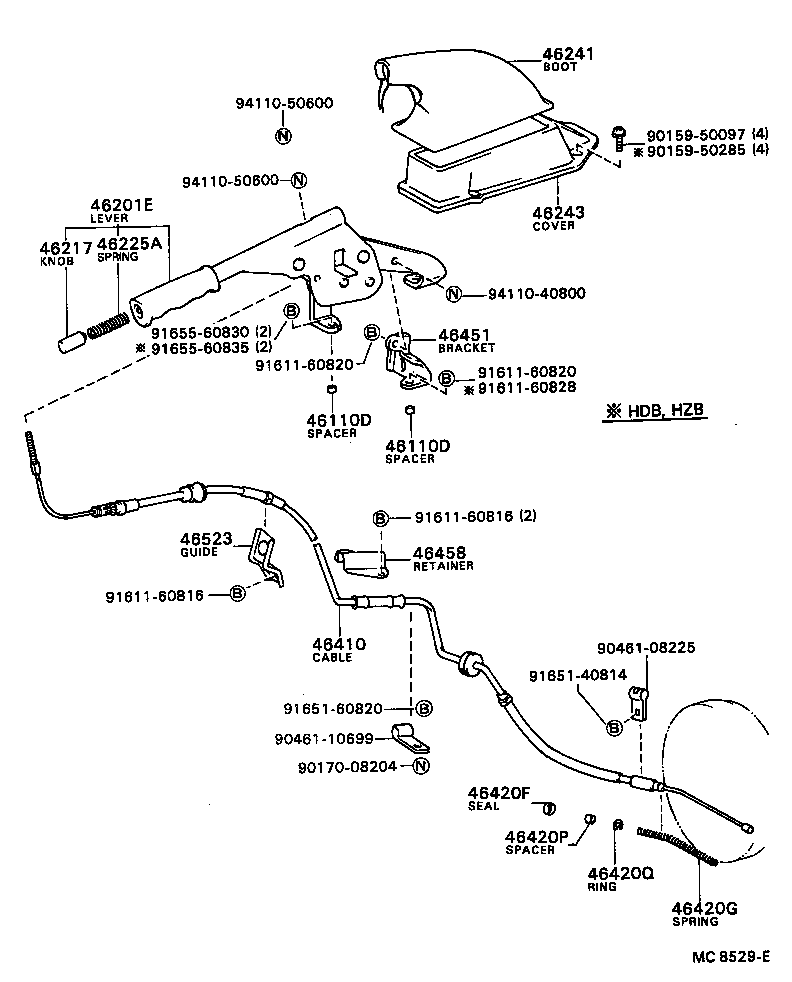

ILLUST NO. 1 OF 2(8205- )

Click highlighted areas on diagram

diagram 46110D 46110D 46201E 46217 46225A 46241 46243 46410 46420F 46420G 46420P 46420Q 46451 46458 46523 9015950097 9015950285 9017008204 9046108225 9046110699 9161160816 9161160816 9161160820 9161160820 9161160828 9165140814 9165160820 9165560830 9165560835 9411040800 9411050600 9411050600
Part # Description Qty Price
46110D - SPACER(FOR PARKING BRAKE HANDLE)
90560-08002

BB2#,31,HB3#,RB20

 3
90560-08002

BB2#,3#,HB3#,RB2#

 3
90560-08075

HDB20,3#,HZB3#

 3
46110D - SPACER(FOR PARKING BRAKE HANDLE)
90560-08002

BB2#,31,HB3#,RB20

 3
90560-08002

BB2#,3#,HB3#,RB2#

 3
90560-08075

HDB20,3#,HZB3#

 3
46201E - LEVER SUB-ASSY, PARKING BRAKE
46210-3601006

BB2#,31,HB3#,RB20

SABLE,SABLE

 1
46210-3603006

BB2#,31,HB3#,HDB20,3#,HZB3#,RB20

SABLE,SABLE

 1
46210-3601002

BB2#,3#,HB3#,RB2#

DARK WINE,DARK WINE

 1
46217 - KNOB, PARKING BRAKE RELEASE ROD
46217-1002002

BB2#,3#,HB3#,RB2#

DARK WINE,RED/MAROON

 1
46217-1002010

BB2#,31,HB3#,RB20

BROWN,SABLE

 1
46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)
90501-10139

BB2#,31,HB3#,RB20

 1
90501-10745

BB2#,3#,HB3#,RB2#

 1
46241 - BOOT, PARKING BRAKE LEVER
46241-3601006

BB2#,31,HB3#,HDB20,3#,HZB3#,RB20

SABLE,SABLE

 1
46241-3601002

BB2#,3#,HB3#,RB2#

DARK WINE,DARK WINE

 1
46243 - COVER, PARKING BRAKE LEVER
46243-3601002

BB2#,3#,HB3#,RB2#

DARK WINE,DARK WINE

 1
46243-3601006

BB2#,31,HB3#,HDB20,3#,HZB3#,RB20

SABLE,SABLE

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-36250

RB2#

 1
46410-36260

BB2#,3#

 1
46410-36261

BB2#,3#

 1
46410-36251

RB2#

 1
46420F - SEAL, DUST(FOR PARKING BRAKE CABLE)
90303-10001

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
46420G - SPRING(FOR PARKING CABLE INNER WIRE SET)
90501-14021

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
46420P - SPACER, PARKING BRAKE
90560-08002

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
46420Q - RING, E(FOR PARKING BRAKE CABLE)
96160-00700

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
46451 - BRACKET, CABLE SUPPORT
46451-36030

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
46458 - RETAINER, CABLE
46458-36010

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
46523 - GUIDE, PARKING BRAKE CABLE
46523-36010

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
Common parts
90159-50097
90159-50285
90170-08204
90461-08225
90461-10699
91611-60816
91611-60820
91611-60828
91651-40814
91651-60820
91655-60830
91655-60835
94110-40800
94110-50600

ILLUST NO. 2 OF 2(8205- )

Click highlighted areas on diagram

diagram 46501 46501A 46506 46520 46540 46550 46550A 46550A 46550C 46550C 46550E 46555 46556 46577 46601 9010110470 9017911005 9020111013 9453101000 9461311200
Part # Description Qty Price
46501 - DRUM SUB-ASSY, PARKING BRAKE
46501-36190

BB2#,31,HDB3#,HZB3#,RB20..5F

 1
46501-36030

BB2#,3#,RB20

 1
46501-36070

BB2#,3#,RB2#

 1
46501-36120

BB2#,3#,HB3#,RB2#..5F

 1
46501A - BOLT, SERRATION(FOR PARKING BRAKE DRUM)
90114-11124

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 4
46506 - ADJUSTER SUB-ASSY, PARKING BRAKE SHOE, RH OR CENTER
46506-36020

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
46520 - PLATE SUB-ASSY, PARKING BRAKE
46503-36021

BB2#,3#,HB3#,RB2#

 1
46503-36020

BB2#,3#,HB30,RB20

 1
46503-36022

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1
46540-36010

BB2#,HDB3#,HZB3#,RB20..5F

 1
46530-36020

BB2#,3#,HB30,RB20

 1
46540-36010

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2
46530-36020

BB2#,3#,HB30,RB20

 1
46550-36010

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
46550-36010

BB2#,HDB3#,HZB3#,RB20..5F

 1
46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN)
90506-18012

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 2
46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN)
90506-18012

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 2
46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE)
90213-06002

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 2
90213-06003

BB2#,3#,HB31,HDB20,3#,HZB3#,RB2#

 2
46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE)
90213-06002

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 2
90213-06003

BB2#,3#,HB31,HDB20,3#,HZB3#,RB2#

 2
46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN)
90506-14048

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
46555 - SPRING, BRAKE SHOE HOLD DOWN
46555-35010

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 2
46556 - PIN, SHOE HOLD DOWN SPRING
46556-35010

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 2
46577 - COVER, ADJUSTING CAM HOLE
46577-36010

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
46601 - LEVER SUB-ASSY, PARKING BRAKE SHOE
46601-25010

BB20,21,30,31,HB30,RB20

 1
46601-25011

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
Common parts
90101-10470
90179-11005
90201-11013
94531-01000
94613-11200
