RB20-MRK (1982)

Toyota Coaster

Production May 1982 - Jan 1993
Engine 22R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

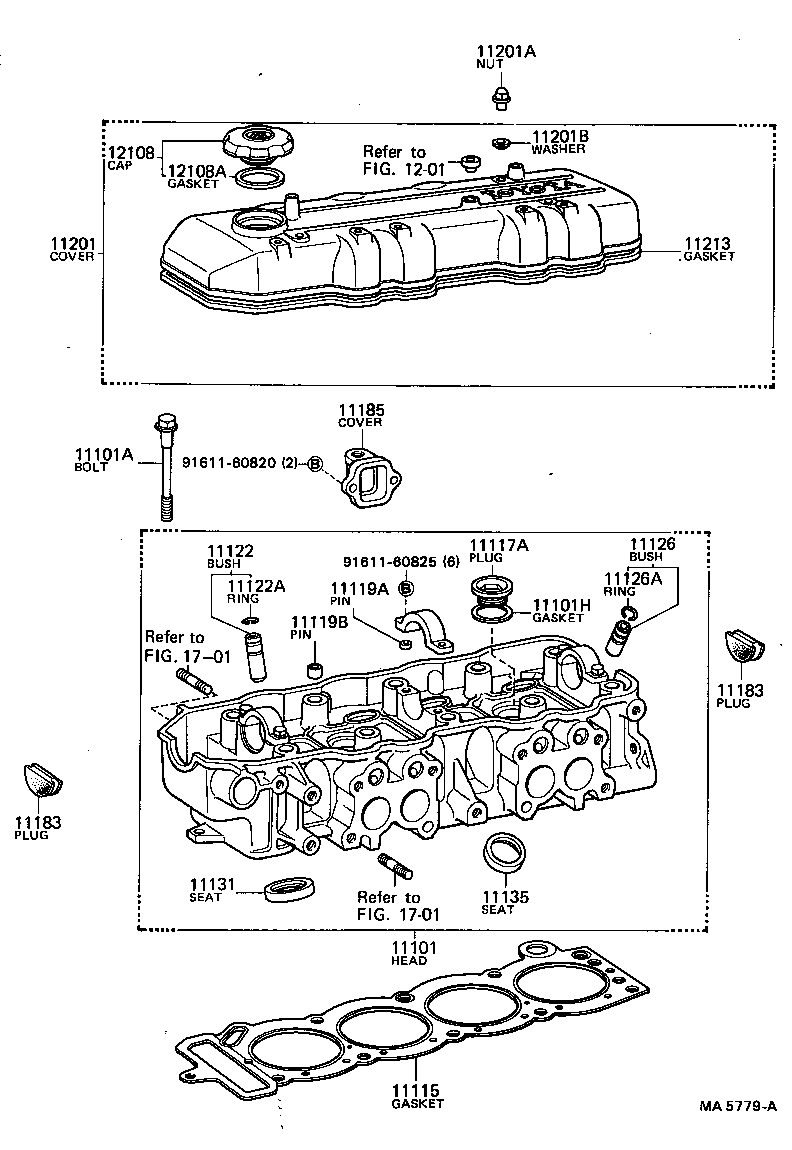

(8205-8206)22R

Click highlighted areas on diagram

diagram 11101 11101A 11101H 11115 11117A 11119A 11119B 11122 11122A 11126 11126A 11131 11135 11183 11183 11185 11201 11201A 11201B 11213 1201 12108 12108A 1701 1701 9161160820 9161160825
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-39415

22R..RB20

 1
11101-35030

22R..RB20

 1
11101-35060

22R..RB2#

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02058

22R..RB20

*12-1.25PX166.5-21

 10
90105-12092

22R..RB2#

 10
11101H - GASKET(FOR CYLINDER HEAD SCREW PLUG)
90430-33133

22R..RB2#

 2
90430-32222

22R..RB20

 2
11115 - GASKET, CYLINDER HEAD
11115-35020

22R..RB2#

 1
11115-35010

22R..RB20

 1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90341-32070

22R..RB2#

 2
11119A - PIN, STRAIGHT, NO.1
90253-11021

22R..RB2#

長さ=8,外径=11,L=8,OD=11

 6
11119B - PIN, STRAIGHT, NO.2
90253-16020

22R..RB2#

長さ=16,外径=15.5,L=16,OD=15.5

 5
11122 - BUSH, INTAKE VALVE GUIDE
11123-35020

22R..RB2#

O/S 0.05,O/S 0.05

 4
11122-38021

22R..RB20

STD,STD

 4
11122-35020

22R..RB2#

STD,STD

 4
11123-38021

22R..RB20

O/S 0.05,O/S 0.05

 4
11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
90520-12049

22R..RB2#

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11122-38021

22R..RB2#

STD,STD

 4
11123-38021

22R..RB2#

O/S 0.05,O/S 0.05

 4
11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
90520-12049

22R..RB2#

 4
11131 - SEAT, INTAKE VALVE
11131-35010

22R..RB2#

STD,STD

 4
11132-35010

22R..RB2#

O/S 0.03,O/S 0.03

 4
11135 - SEAT, EXHAUST VALVE
11135-35010

22R..RB2#

STD,STD

 4
11136-35010

22R..RB2#

O/S 0.03,O/S 0.03

 4
11183 - PLUG, SEMICIRCULAR
11183-38010

22R..RB2#

 2
11183 - PLUG, SEMICIRCULAR
11183-38010

22R..RB2#

 2
11185 - COVER, CYLINDER HEAD SIDE
11184-35010

22R..RB2#

 1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-35030

22R..RB2#

 1
11201-35031

22R..RB2#

 1
11201-39235

22R..RB20

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90176-08007

22R..RB2#

 4
90176-08041

22R..RB20

 4
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-08026

22R..RB2#

 4
90210-08023

22R..RB2#

 4
90210-08002

22R..RB20

 4
11213 - GASKET, CYLINDER HEAD COVER
11213-35010

22R..RB2#

 1
11213-38010

22R..RB20

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-70010

22R..RB2#

 1
12180-13010

22R..RB20

 1
12180-62010

22R..RB20

 1
12180-13030

22R..RB2#

 1
12180-13010

22R..RB20

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

22R..RB2#

 1
Common parts
91611-60820
91611-60825
Linked diagrams
1201
1701

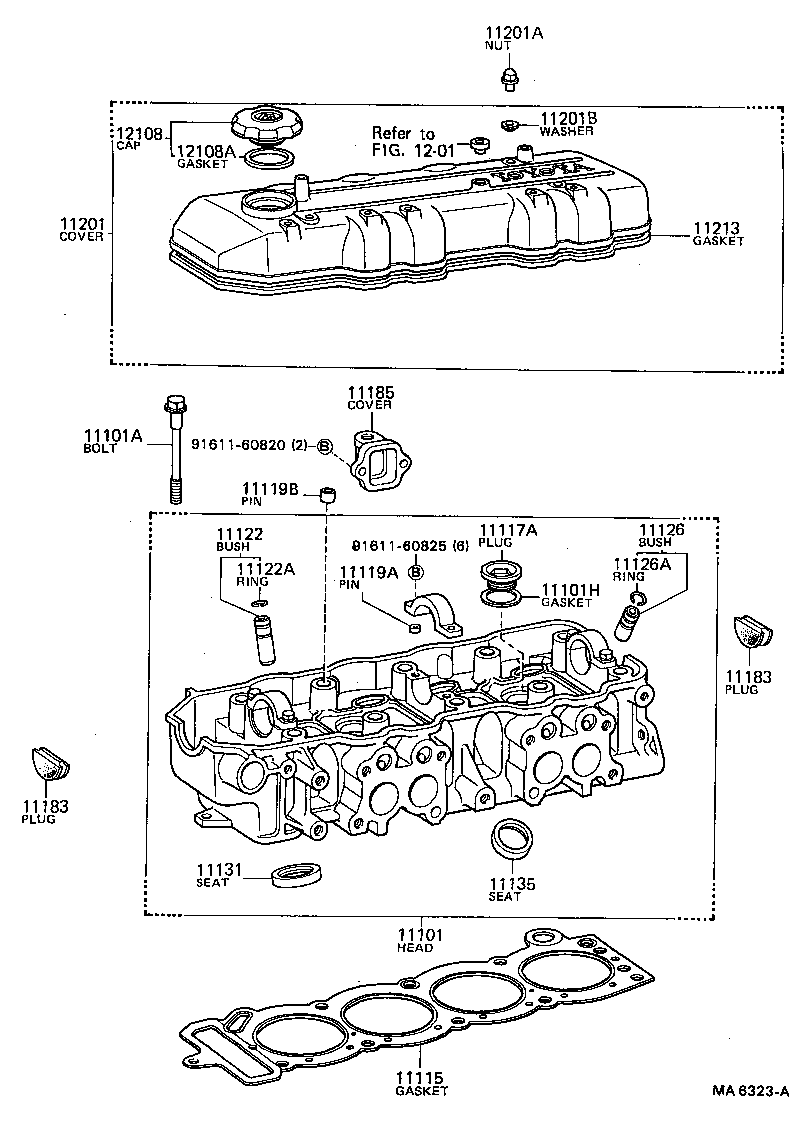

(8206-8408)22R

Click highlighted areas on diagram

diagram 11101 11101A 11101H 11115 11117A 11119A 11119B 11122 11122A 11126 11126A 11131 11135 11183 11183 11185 11201 11201A 11201B 11213 1201 12108 12108A 9161160820 9161160825
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-39415

22R..RB20

 1
11101-35030

22R..RB20

 1
11101-35060

22R..RB2#

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02058

22R..RB20

*12-1.25PX166.5-21

 10
90105-12092

22R..RB2#

 10
11101H - GASKET(FOR CYLINDER HEAD SCREW PLUG)
90430-33133

22R..RB2#

 2
90430-32222

22R..RB20

 2
11115 - GASKET, CYLINDER HEAD
11115-35020

22R..RB2#

 1
11115-35010

22R..RB20

 1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90341-32070

22R..RB2#

 2
11119A - PIN, STRAIGHT, NO.1
90253-11021

22R..RB2#

長さ=8,外径=11,L=8,OD=11

 6
11119B - PIN, STRAIGHT, NO.2
90253-16020

22R..RB2#

長さ=16,外径=15.5,L=16,OD=15.5

 5
11122 - BUSH, INTAKE VALVE GUIDE
11123-35020

22R..RB2#

O/S 0.05,O/S 0.05

 4
11122-38021

22R..RB20

STD,STD

 4
11122-35020

22R..RB2#

STD,STD

 4
11123-38021

22R..RB20

O/S 0.05,O/S 0.05

 4
11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
90520-12049

22R..RB2#

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11122-38021

22R..RB2#

STD,STD

 4
11123-38021

22R..RB2#

O/S 0.05,O/S 0.05

 4
11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
90520-12049

22R..RB2#

 4
11131 - SEAT, INTAKE VALVE
11131-35010

22R..RB2#

STD,STD

 4
11132-35010

22R..RB2#

O/S 0.03,O/S 0.03

 4
11135 - SEAT, EXHAUST VALVE
11135-35010

22R..RB2#

STD,STD

 4
11136-35010

22R..RB2#

O/S 0.03,O/S 0.03

 4
11183 - PLUG, SEMICIRCULAR
11183-38010

22R..RB2#

 2
11183 - PLUG, SEMICIRCULAR
11183-38010

22R..RB2#

 2
11185 - COVER, CYLINDER HEAD SIDE
11184-35010

22R..RB2#

 1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-35030

22R..RB2#

 1
11201-35031

22R..RB2#

 1
11201-39235

22R..RB20

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90176-08007

22R..RB2#

 4
90176-08041

22R..RB20

 4
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-08026

22R..RB2#

 4
90210-08023

22R..RB2#

 4
90210-08002

22R..RB20

 4
11213 - GASKET, CYLINDER HEAD COVER
11213-35010

22R..RB2#

 1
11213-38010

22R..RB20

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-70010

22R..RB2#

 1
12180-13010

22R..RB20

 1
12180-62010

22R..RB20

 1
12180-13030

22R..RB2#

 1
12180-13010

22R..RB20

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

22R..RB2#

 1
Common parts
91611-60820
91611-60825
Linked diagrams
1201

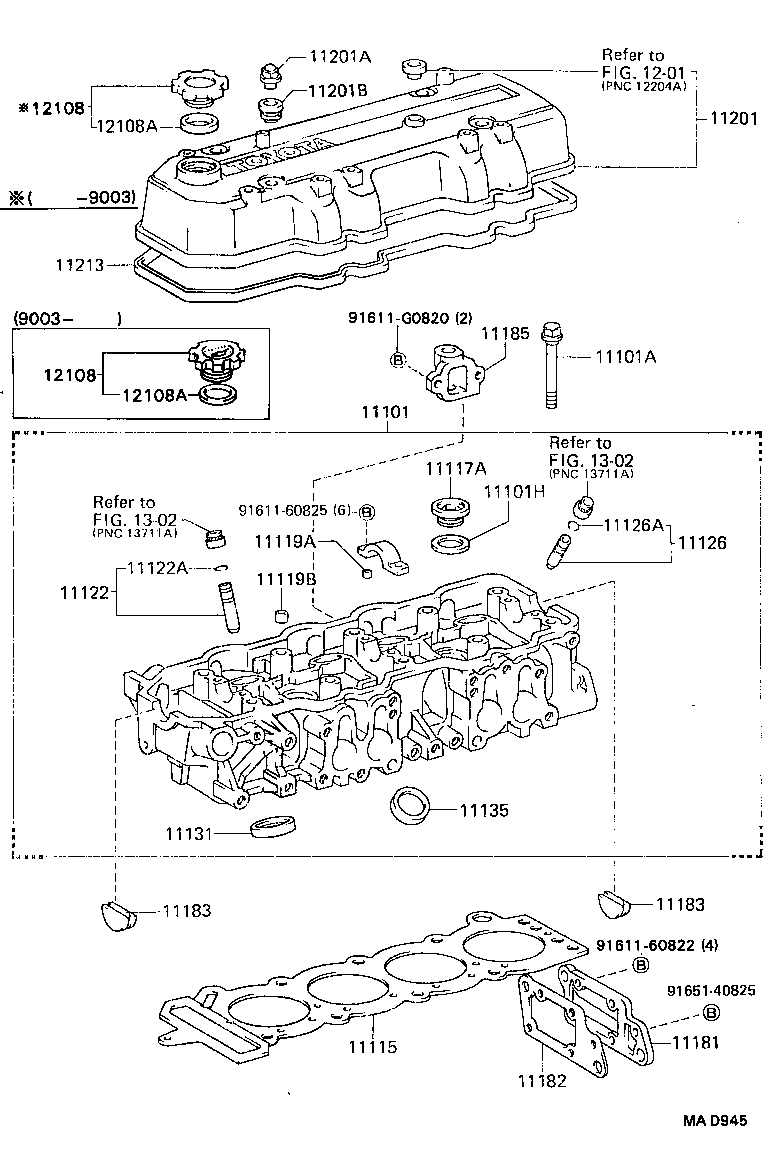

(8408- )22R

Click highlighted areas on diagram

diagram 11101 11101A 11101H 11115 11117A 11119A 11119B 11122 11122A 11126 11126A 11131 11135 11181 11182 11183 11183 11185 11201 11201A 11201B 11213 1201 12108 12108 12108A 12108A 1302 1302 9161160822 9161160825 91611G0820 9165140825
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-39415

22R..RB20

 1
11101-35030

22R..RB20

 1
11101-35060

22R..RB2#

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02058

22R..RB20

*12-1.25PX166.5-21

 10
90105-12092

22R..RB2#

 10
11101H - GASKET(FOR CYLINDER HEAD SCREW PLUG)
90430-33133

22R..RB2#

 2
90430-32222

22R..RB20

 2
11115 - GASKET, CYLINDER HEAD
11115-35020

22R..RB2#

 1
11115-35010

22R..RB20

 1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90341-32070

22R..RB2#

 2
11119A - PIN, STRAIGHT, NO.1
90253-11021

22R..RB2#

長さ=8,外径=11,L=8,OD=11

 6
11119B - PIN, STRAIGHT, NO.2
90253-16020

22R..RB2#

長さ=16,外径=15.5,L=16,OD=15.5

 5
11122 - BUSH, INTAKE VALVE GUIDE
11123-35020

22R..RB2#

O/S 0.05,O/S 0.05

 4
11122-38021

22R..RB20

STD,STD

 4
11122-35020

22R..RB2#

STD,STD

 4
11123-38021

22R..RB20

O/S 0.05,O/S 0.05

 4
11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
90520-12049

22R..RB2#

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11122-38021

22R..RB2#

STD,STD

 4
11123-38021

22R..RB2#

O/S 0.05,O/S 0.05

 4
11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
90520-12049

22R..RB2#

 4
11131 - SEAT, INTAKE VALVE
11131-35010

22R..RB2#

STD,STD

 4
11132-35010

22R..RB2#

O/S 0.03,O/S 0.03

 4
11135 - SEAT, EXHAUST VALVE
11135-35010

22R..RB2#

STD,STD

 4
11136-35010

22R..RB2#

O/S 0.03,O/S 0.03

 4
11181 - PLATE, CYLINDER HEAD, REAR
11181-35050

22R..RB2#

 1
11182 - GASKET, CYLINDER HEAD REAR PLATE
11182-35031

22R..RB2#

 1
11182-35050

22R..RB20

 1
11182-35040

22R..RB2#

 1
11183 - PLUG, SEMICIRCULAR
11183-38010

22R..RB2#

 2
11183 - PLUG, SEMICIRCULAR
11183-38010

22R..RB2#

 2
11185 - COVER, CYLINDER HEAD SIDE
11184-35010

22R..RB2#

 1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-35030

22R..RB2#

 1
11201-35031

22R..RB2#

 1
11201-39235

22R..RB20

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90176-08007

22R..RB2#

 4
90176-08041

22R..RB20

 4
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-08026

22R..RB2#

 4
90210-08023

22R..RB2#

 4
90210-08002

22R..RB20

 4
11213 - GASKET, CYLINDER HEAD COVER
11213-35010

22R..RB2#

 1
11213-38010

22R..RB20

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-70010

22R..RB2#

 1
12180-13010

22R..RB20

 1
12180-62010

22R..RB20

 1
12180-13030

22R..RB2#

 1
12180-13010

22R..RB20

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-70010

22R..RB2#

 1
12180-13010

22R..RB20

 1
12180-62010

22R..RB20

 1
12180-13030

22R..RB2#

 1
12180-13010

22R..RB20

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

22R..RB2#

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

22R..RB2#

 1
Common parts
91611-60822
91611-60825
91611-G0820
91651-40825
Linked diagrams
1201
1302
