RB20-MR2 (1982)

Toyota Coaster

Production May 1982 - Oct 1985
Engine 22R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

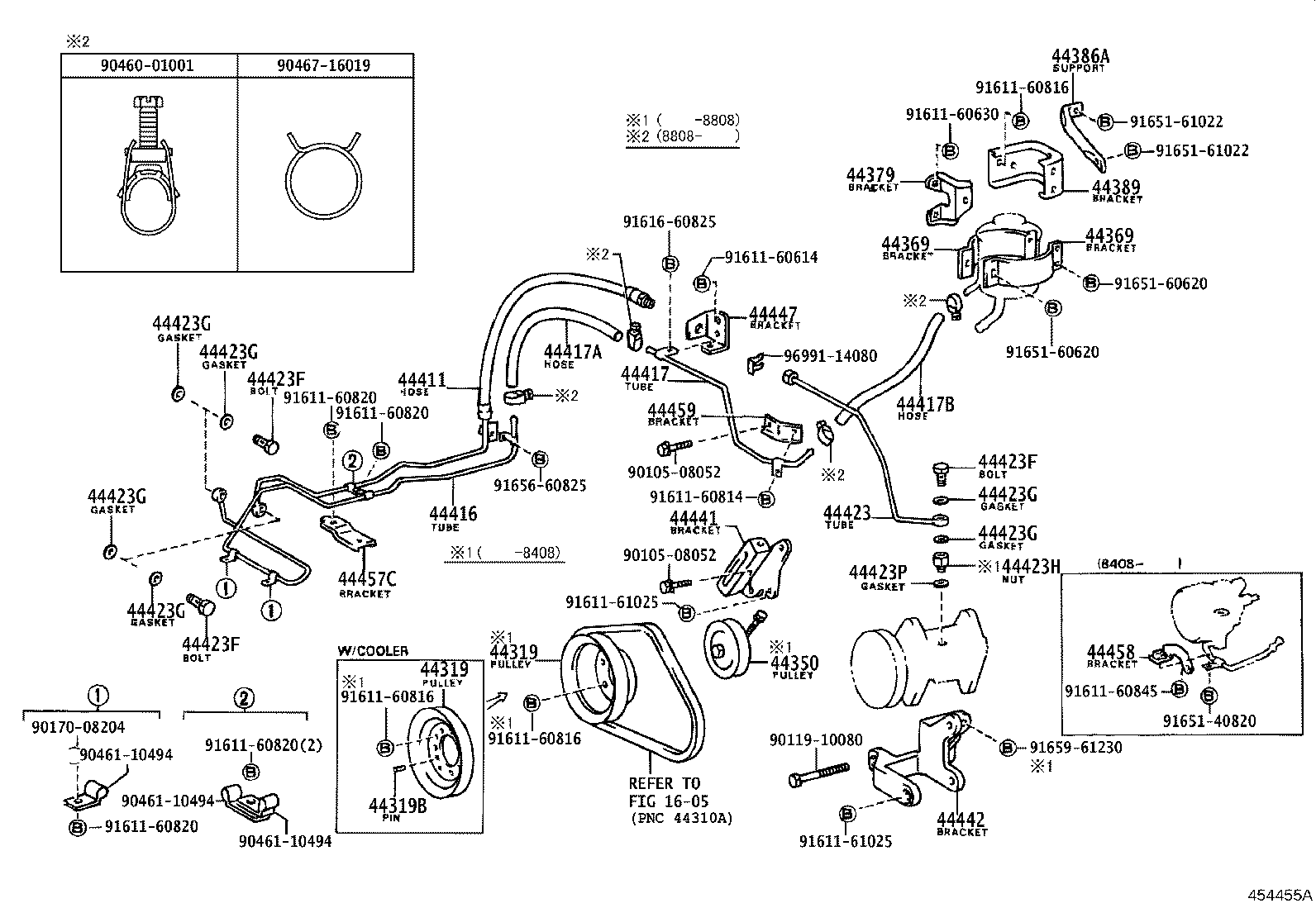

(8205- )BB20,21,26,3#

Click highlighted areas on diagram

diagram 1605 44319 44319 44319B 44350 44369 44369 44379 44386A 44389 44411 44416 44417 44417A 44417B 44423 44423F 44423F 44423F 44423G 44423G 44423G 44423G 44423G 44423G 44423H 44423P 44441 44442 44447 44457C 44458 44459 9010508052 9010508052 9011910080 9017008204 9046001001 9046110494 9046110494 9046110494 9046716019 9161160614 9161160630 9161160814 9161160816 9161160816 9161160816 9161160820 9161160820 9161160820 9161160820 9161160845 9161161025 9161161025 9161660825 9165140820 9165160620 9165160620 9165161022 9165161022 9165660825 9165961230 9699114080
Part # Description Qty Price
44319 - PULLEY, VANE PUMP DRIVE
44319-36040

RB2#

 1
44319 - PULLEY, VANE PUMP DRIVE
44319-36040

RB2#

 1
44350 - PULLEY ASSY, POWER STEERING IDLE
44350-36020

RB20

 1
44369 - BRACKET, OIL RESERVOIR, NO.1
44369-36010

BB20,21,26,3#,HB30,31,36

 2
44369 - BRACKET, OIL RESERVOIR, NO.1
44369-36010

BB20,21,26,3#,HB30,31,36

 2
44379 - BRACKET, OIL RESERVOIR, NO.2
44379-36040

BB20,21,26,3#

 1
44379-36060

RB2#

 1
44386A - SUPPORT, OIL RESERVOIR
44386-36040

BB20,21,26,3#

 1
44386-36060

RB20

 1
44389 - BRACKET, OIL RESERVOIR, NO.3
44389-36030

BB20,21,26,3#

 1
44411 - HOSE, PRESSURE FEED
44411-36080

RB20

 1
44411-36081

RB2#

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-36050

RB2#

 1
44417B - HOSE, RETURN TUBE(FOR RETURN TUBE TO VANE PUMP)
90445-18109

RB2#

 1
44423 - TUBE, OIL PUMP TO GEAR BOX
44423-36070

RB2#

 1
44423F - BOLT, UNION
90401-16004

RB20

PUMP SIDE

 1
90401-14003

BB2#,3#,RB2#

GEAR HOUSING SIDE

 2
90401-14003

RB20

GEAR HOUSING SIDE

 2
90401-16004

BB2#,3#,RB2#

PUMP SIDE

 1
44423F - BOLT, UNION
90401-16004

RB20

PUMP SIDE

 1
90401-14003

BB2#,3#,RB2#

GEAR HOUSING SIDE

 2
90401-14003

RB20

GEAR HOUSING SIDE

 2
90401-16004

BB2#,3#,RB2#

PUMP SIDE

 1
44423F - BOLT, UNION
90401-16004

RB20

PUMP SIDE

 1
90401-14003

BB2#,3#,RB2#

GEAR HOUSING SIDE

 2
90401-14003

RB20

GEAR HOUSING SIDE

 2
90401-16004

BB2#,3#,RB2#

PUMP SIDE

 1
44423G - GASKET, UNION BOLT
90430-14235

RB20

 4
90430-16168

RB20

PUMP SIDE

 2
90430-16168

BB2#,3#,RB2#

PUMP SIDE

 2
90430-14235

BB2#,3#,RB2#

GEAR HOUSING SIDE

 4
44423G - GASKET, UNION BOLT
90430-14235

RB20

 4
90430-16168

RB20

PUMP SIDE

 2
90430-16168

BB2#,3#,RB2#

PUMP SIDE

 2
90430-14235

BB2#,3#,RB2#

GEAR HOUSING SIDE

 4
44423G - GASKET, UNION BOLT
90430-14235

RB20

 4
90430-16168

RB20

PUMP SIDE

 2
90430-16168

BB2#,3#,RB2#

PUMP SIDE

 2
90430-14235

BB2#,3#,RB2#

GEAR HOUSING SIDE

 4
44423G - GASKET, UNION BOLT
90430-14235

RB20

 4
90430-16168

RB20

PUMP SIDE

 2
90430-16168

BB2#,3#,RB2#

PUMP SIDE

 2
90430-14235

BB2#,3#,RB2#

GEAR HOUSING SIDE

 4
44423G - GASKET, UNION BOLT
90430-14235

RB20

 4
90430-16168

RB20

PUMP SIDE

 2
90430-16168

BB2#,3#,RB2#

PUMP SIDE

 2
90430-14235

BB2#,3#,RB2#

GEAR HOUSING SIDE

 4
44423G - GASKET, UNION BOLT
90430-14235

RB20

 4
90430-16168

RB20

PUMP SIDE

 2
90430-16168

BB2#,3#,RB2#

PUMP SIDE

 2
90430-14235

BB2#,3#,RB2#

GEAR HOUSING SIDE

 4
44441 - BRACKET, PUMP, FRONT
44441-36060

RB2#

 1
44442 - BRACKET, PUMP, REAR
44442-36050

RB20..WOC

 1
44447 - BRACKET, POWER STEERING OIL COOLER TUBE SUPPORT
44447-36070

RB20

 1
Common parts
90105-08052
90119-10080
90170-08204
90460-01001
90461-10494
90467-16019
91611-60614
91611-60630
91611-60814
91611-60816
91611-60820
91611-60845
91611-61025
91616-60825
91651-40820
91651-60620
91651-61022
91656-60825
91659-61230
96991-14080
Linked diagrams
1605

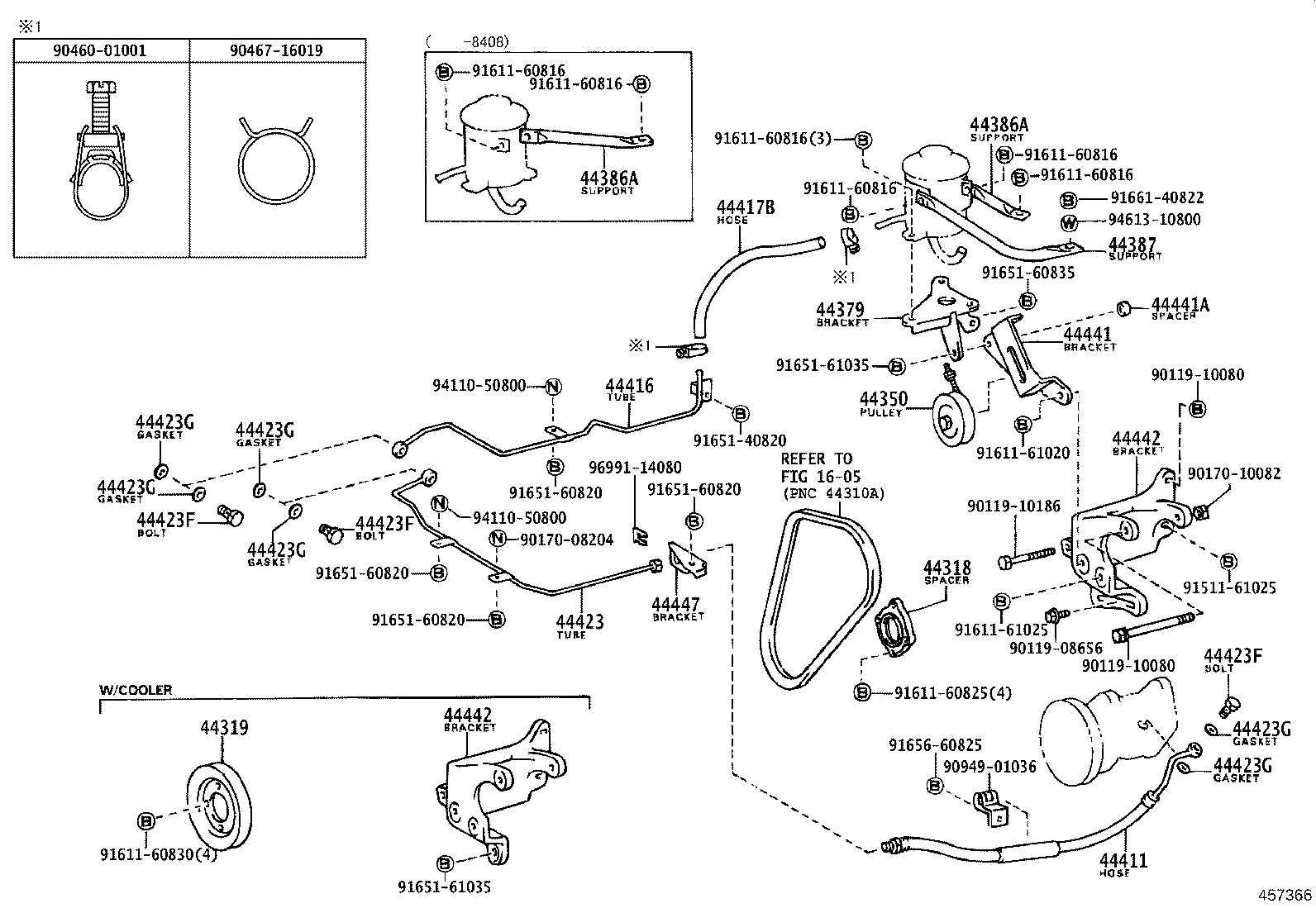

(8205- )RB2#

Click highlighted areas on diagram

diagram 1605 44318 44319 44350 44379 44386A 44386A 44387 44411 44416 44417B 44423 44423F 44423F 44423F 44423G 44423G 44423G 44423G 44423G 44423G 44441 44441A 44442 44442 44447 9011908656 9011910080 9011910080 9011910186 9017008204 9017010082 9046001001 9046716019 9094901036 9151161025 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9161160825 9161160830 9161161020 9161161025 9165140820 9165160820 9165160820 9165160820 9165160820 9165160835 9165161035 9165161035 9165660825 9166140822 9411050800 9411050800 9461310800 9699114080
Part # Description Qty Price
44319 - PULLEY, VANE PUMP DRIVE
44319-36040

RB2#

 1
44350 - PULLEY ASSY, POWER STEERING IDLE
44350-36020

RB20

 1
44379 - BRACKET, OIL RESERVOIR, NO.2
44379-36040

BB20,21,26,3#

 1
44379-36060

RB2#

 1
44386A - SUPPORT, OIL RESERVOIR
44386-36040

BB20,21,26,3#

 1
44386-36060

RB20

 1
44386A - SUPPORT, OIL RESERVOIR
44386-36040

BB20,21,26,3#

 1
44386-36060

RB20

 1
44411 - HOSE, PRESSURE FEED
44411-36080

RB20

 1
44411-36081

RB2#

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-36050

RB2#

 1
44417B - HOSE, RETURN TUBE(FOR RETURN TUBE TO VANE PUMP)
90445-18109

RB2#

 1
44423 - TUBE, OIL PUMP TO GEAR BOX
44423-36070

RB2#

 1
44423F - BOLT, UNION
90401-16004

RB20

PUMP SIDE

 1
90401-14003

BB2#,3#,RB2#

GEAR HOUSING SIDE

 2
90401-14003

RB20

GEAR HOUSING SIDE

 2
90401-16004

BB2#,3#,RB2#

PUMP SIDE

 1
44423F - BOLT, UNION
90401-16004

RB20

PUMP SIDE

 1
90401-14003

BB2#,3#,RB2#

GEAR HOUSING SIDE

 2
90401-14003

RB20

GEAR HOUSING SIDE

 2
90401-16004

BB2#,3#,RB2#

PUMP SIDE

 1
44423F - BOLT, UNION
90401-16004

RB20

PUMP SIDE

 1
90401-14003

BB2#,3#,RB2#

GEAR HOUSING SIDE

 2
90401-14003

RB20

GEAR HOUSING SIDE

 2
90401-16004

BB2#,3#,RB2#

PUMP SIDE

 1
44423G - GASKET, UNION BOLT
90430-14235

RB20

 4
90430-16168

RB20

PUMP SIDE

 2
90430-16168

BB2#,3#,RB2#

PUMP SIDE

 2
90430-14235

BB2#,3#,RB2#

GEAR HOUSING SIDE

 4
44423G - GASKET, UNION BOLT
90430-14235

RB20

 4
90430-16168

RB20

PUMP SIDE

 2
90430-16168

BB2#,3#,RB2#

PUMP SIDE

 2
90430-14235

BB2#,3#,RB2#

GEAR HOUSING SIDE

 4
44423G - GASKET, UNION BOLT
90430-14235

RB20

 4
90430-16168

RB20

PUMP SIDE

 2
90430-16168

BB2#,3#,RB2#

PUMP SIDE

 2
90430-14235

BB2#,3#,RB2#

GEAR HOUSING SIDE

 4
44423G - GASKET, UNION BOLT
90430-14235

RB20

 4
90430-16168

RB20

PUMP SIDE

 2
90430-16168

BB2#,3#,RB2#

PUMP SIDE

 2
90430-14235

BB2#,3#,RB2#

GEAR HOUSING SIDE

 4
44423G - GASKET, UNION BOLT
90430-14235

RB20

 4
90430-16168

RB20

PUMP SIDE

 2
90430-16168

BB2#,3#,RB2#

PUMP SIDE

 2
90430-14235

BB2#,3#,RB2#

GEAR HOUSING SIDE

 4
44423G - GASKET, UNION BOLT
90430-14235

RB20

 4
90430-16168

RB20

PUMP SIDE

 2
90430-16168

BB2#,3#,RB2#

PUMP SIDE

 2
90430-14235

BB2#,3#,RB2#

GEAR HOUSING SIDE

 4
44441 - BRACKET, PUMP, FRONT
44441-36060

RB2#

 1
44441A - SPACER(FOR PUMP BRACKET, FRONT)
90560-10019

RB20..WOC

 1
90560-10019

RB2#

 1
44442 - BRACKET, PUMP, REAR
44442-36050

RB20..WOC

 1
44442 - BRACKET, PUMP, REAR
44442-36050

RB20..WOC

 1
44447 - BRACKET, POWER STEERING OIL COOLER TUBE SUPPORT
44447-36070

RB20

 1
Common parts
90119-08656
90119-10080
90119-10186
90170-08204
90170-10082
90460-01001
90467-16019
90949-01036
91511-61025
91611-60816
91611-60825
91611-60830
91611-61020
91611-61025
91651-40820
91651-60820
91651-60835
91651-61035
91656-60825
91661-40822
94110-50800
94613-10800
96991-14080
Linked diagrams
1605
