RB20-MR (1982)
Toyota Coaster
ILLUST NO. 1 OF 5(8205- )BB2#,3#,RB2#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-14030 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 83530-14010 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-14030 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 83530-14010 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-36010 |
BB2#,3#,RB2# |
1 | ||
| 84210-60021 |
BB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F |
1 | ||
| 84210-36010 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-36010 |
BB2#,3#,RB2# |
1 | ||
| 84210-60021 |
BB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F |
1 | ||
| 84210-36010 |
BB2#,3#,HB3#,RB2# |
1 | ||
| Common parts | ||||
| 19877-66010 | ||||
| 28622-57010 | ||||
| 28623-54010 | ||||
| 82711-36020 | ||||
| 82711-36080 | ||||
| 90116-06275 | ||||
| 90179-05015 | ||||
| 90179-06158 | ||||
| 90189-05006 | ||||
| 90201-10042 | ||||
| 90430-12221 | ||||
| 90430-18007 | ||||
| 94613-10601 | ||||
ILLUST NO. 2 OF 5(8205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-39175 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 84160 - SWITCH ASSY, ROOM LAMP | ||||
| 84170-90B00 |
BB2#,3#,HB30,RB20 |
2 | ||
| 84170-90B01 |
BB2#,3#,HB3#,HDB3#,HZB3#,RB2# |
2 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-36200 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-39155 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 84335 - SWITCH ASSY, PARKING LAMP | ||||
| 84330-36040 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-14021 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-36120 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-22030 |
RB2# |
1 | ||
| 84732-90B02 |
RB2# |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
RB2# 14V 1.4W |
1 | ||
| 84732A - SWITCH, REAR HEATER BLOWER | ||||
| 84732-90B00 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 84732-90B04 |
BB21,31,RB20..STD |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12101 |
RB20..STD |
1 | ||
| 85500-95J00 |
RB20..STD |
1 | ||
| 85500-90B03 |
RB20..STD |
1 | ||
| 86690 - BUZZER ASSY, SPEED INDICATOR | ||||
| 86650-22090 |
RB2# |
1 | ||
| 87280 - SWITCH ASSY, HETER PUMP | ||||
| 87280-90B00 |
RB2#..10S,26S |
1 | ||
| 87280B - BULB (FOR HEATER PUMP SWITCH) | ||||
| 90981-16022 |
RB2#..10S,26S |
1 | ||
| 87290 - SWITCH ASSY, HEATER | ||||
| 87290-90B00 |
RB2#..10S,26S |
1 | ||
| 87290B - BULB (FOR HEATER SWITCH) | ||||
| 90981-16022 |
RB2#..10S,26S 24V 1.4W |
1 | ||
| Common parts | ||||
| 90170-09167 | ||||
| 90201-09351 | ||||
| 90202-10007 | ||||
| 90461-07028 | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
| 93315-14012 | ||||
| 93319-13012 | ||||
| 93319-14010 | ||||
| 93319-15012 | ||||
| 93540-45012 | ||||
| 93566-14512 | ||||
ILLUST NO. 3 OF 5(8205-8408)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-16010 |
RB2# |
1 | ||
| 81980-12070 |
RB20 |
1 | ||
| 81980-22060 |
RB2# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# 10A |
1 | ||
| 90982-09004 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# 20A,黄 |
1 | ||
| 90982-09005 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# 7.5A |
1 | ||
| 90982-09003 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# 15A |
1 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-90B00 |
BB2#,3#,HB30,RB20 |
1 | ||
| 82611-90B03 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 82611-90B01 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
BB21,RB20..26S;BB20,23,24,26,30,31,HB3#,HDB20,3#,HZB3#,RB26 30A,30A |
3 | ||
| 82650-35010 |
BB2#,3#,HB30,RB20 20A |
2 | ||
| 83650 - FUSEE | ||||
| 90986-01003 |
BB2#,3#,HB3#,RB2# |
2 | ||
| 90986-01005 |
BB2#,31,HDB20,3#,HZB3#,RB20 |
2 | ||
| 83650 - FUSEE | ||||
| 90986-01003 |
BB2#,3#,HB3#,RB2# |
2 | ||
| 90986-01005 |
BB2#,31,HDB20,3#,HZB3#,RB20 |
2 | ||
| 83651 - CLAMP, FUSEE | ||||
| 62199-90P80 |
BB2#,31,HDB20,3#,HZB3#,RB20 |
2 | ||
| 81713-90500 |
BB2#,3#,HB3#,RB2# |
2 | ||
| 83651 - CLAMP, FUSEE | ||||
| 62199-90P80 |
BB2#,31,HDB20,3#,HZB3#,RB20 |
2 | ||
| 81713-90500 |
BB2#,3#,HB3#,RB2# |
2 | ||
| 84095 - BRACKET SUB-ASSY, HAND BRAKE SIGNAL SWITCH | ||||
| 84956-36030 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-22072 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84380-20010 |
RB2# |
1 | ||
| 85909C - BRACKET SUB-ASSY, RELAY, NO.1 | ||||
| 85909-90B00 |
BB2#,3#,HB30,RB20..DLX,EX,STD |
1 | ||
| 85909-90B08 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 85913-30020 |
RB2# FR HEATER |
1 | ||
| 90987-02004 |
RB2# RR HEATER |
1 | ||
| 90987-02004 |
RB20 |
2 | ||
| 90987-04002 |
RB2# FR HEATER |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
RB2# HEAD |
1 | ||
| 90987-01003 |
RB20 |
2 | ||
| 90987-01003 |
RB2# TAIL |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
RB2# HEAD |
1 | ||
| 90987-01003 |
RB20 |
2 | ||
| 90987-01003 |
RB2# TAIL |
1 | ||
| 85924 - RELAY, IGNITION CONTROL | ||||
| 90987-02004 |
RB20 |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-90B02 |
RB2# FRONT |
1 | ||
| 85940-90A01 |
RB20 |
1 | ||
| 85940-90B03 |
BB21,23,26,3#,HB30,31,36,HDB30,HZB30,36..DLX,STD FRONT |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-03001 |
RB20..26S |
1 | ||
| Common parts | ||||
| 90119-06068 | ||||
| 90179-06164 | ||||
| 90179-08026 | ||||
| 91611-40612 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 93312-15016 | ||||
| 93510-14014 | ||||
| 94120-40800 | ||||
| 94120-41000 | ||||

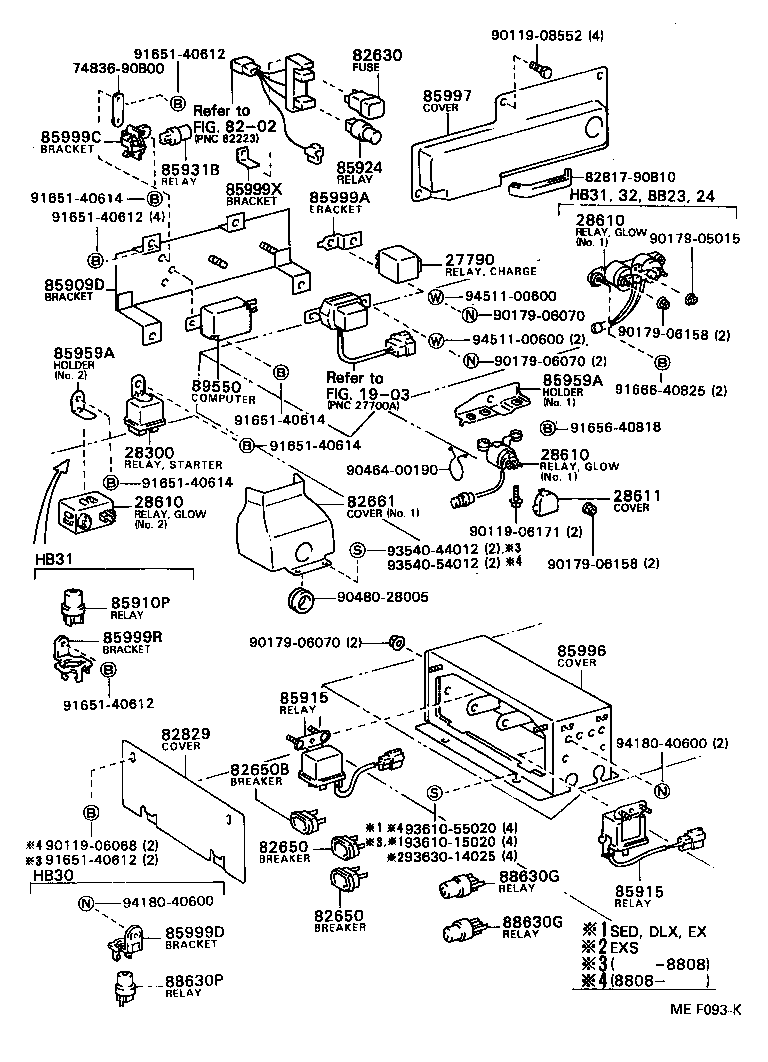

ILLUST NO. 4 OF 5(8205-8408)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27790 - RELAY ASSY, CHARGE LAMP | ||||
| 27790-35020 |
22R..RB20 |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82630-90B00 |
BB2#,3#,HB30,RB20..20S,26S,29S,39C |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
BB21,RB20..26S;BB20,23,24,26,30,31,HB3#,HDB20,3#,HZB3#,RB26 30A,30A |
3 | ||
| 82650-35010 |
BB2#,3#,HB30,RB20 20A |
2 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
BB21,RB20..26S;BB20,23,24,26,30,31,HB3#,HDB20,3#,HZB3#,RB26 30A,30A |
3 | ||
| 82650-35010 |
BB2#,3#,HB30,RB20 20A |
2 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
BB21,RB20..26S;BB20,23,24,26,30,31,HB3#,HDB20,3#,HZB3#,RB26 30A,30A |
3 | ||
| 82650-35010 |
BB2#,3#,HB30,RB20 20A |
2 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
BB21,RB20..26S;BB20,23,24,26,30,31,HB3#,HDB20,3#,HZB3#,RB26 30A,30A |
3 | ||
| 82650-35010 |
BB2#,3#,HB30,RB20 20A |
2 | ||
| 82650B - BREAKER ASSY, WIRING CIRCUIT, NO.3 | ||||
| 82650-20011 |
BB2#,3#,HB3#,RB2#..10S,20S,26S,29S 30A |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-90B0302 |
BB2#,3#,HB3#,RB2# NO.1,DARK WINE,DARK WINE |
1 | ||
| 82661-90B00 |
BB2#,3#,HB30,RB20 NO.1 |
1 | ||
| 82661-90B05 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# NO.2 |
1 | ||
| 82661-90B0306 |
BB2#,31,HB3#,HDB20,3#,HZB3#,RB20 NO.1,SABLE,BROWN |
1 | ||
| 82829 - COVER, RELAY | ||||
| 82829-90B0002 |
BB2#,3#,HB3#,RB20..10S,20S,26S,29S,44C DARK WINE,DARK WINE |
1 | ||
| 82829-90B0006 |
BB2#,31,HB3#,RB20..10S,20S,26S,29S,44C SABLE,BROWN |
1 | ||
| 82829-90B0002 |
BB2#,3#,HB30,RB20..20S,26S,29S,39C DARK WINE,DARK WINE |
1 | ||
| 85909D - BRACKET SUB-ASSY, RELAY, NO.2 | ||||
| 85909-90B05 |
BB21,31,HB30,RB20 |
1 | ||
| 85909-90B02 |
BB2#,3#,HB30,RB20 |
1 | ||
| 85909-90B10 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 85909-90B10 |
HB3#,RB20 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 85913-30020 |
RB2# FR HEATER |
1 | ||
| 90987-02004 |
RB2# RR HEATER |
1 | ||
| 90987-02004 |
RB20 |
2 | ||
| 90987-04002 |
RB2# FR HEATER |
1 | ||
| 85910G - RELAY, HEATER PUMP | ||||
| 90987-02004 |
RB2#..10S,26S NO.1 |
2 | ||
| 90987-02004 |
RB2#..10S,26S NO.2 |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 85915-90B00 |
RB2#..10S,26S |
2 | ||
| 85915-90B01 |
BB21..26S;BB23,24,26,3#,HB3#,HDB20,3#,HZB3# |
2 | ||
| 85915 - RELAY, MAIN | ||||
| 85915-90B00 |
RB2#..10S,26S |
2 | ||
| 85915-90B01 |
BB21..26S;BB23,24,26,3#,HB3#,HDB20,3#,HZB3# |
2 | ||
| 85996 - COVER, COMBINATION RELAY | ||||
| 82805-90B0002 |
BB2#,3#,HB30,RB20..20S,26S,29S,39C DARK WINE,DARK WINE |
1 | ||
| 82805-90B0002 |
BB2#,3#,HB3#,RB2#..10S,20S,26S,29S,44C DARK WINE,DARK WINE |
1 | ||
| 82805-90B0006 |
BB21,RB20..26S;BB23,24,26,31,HB3#,HDB20,3#,HZB3# SABLE,BROWN |
1 | ||
| 85997 - COVER, RELAY BRACKET | ||||
| 85997-90B00 |
BB20,30,HB30,RB20..(26S,29S)..WOC |
1 | ||
| 85997-90B04 |
BB2#,3#,HB30,RB20..(26S,29S)..WOC |
1 | ||
| 85997-90B1306 |
BB2#,31,HB3#,HDB20,3#,HZB3#,RB20 SABLE,SABLE |
1 | ||
| 85997-90B1302 |
BB2#,3#,HB3#,RB2# DARK WINE,DARK WINE |
1 | ||
| 85997-90B07 |
BB21,31,HB30,RB20..(26S,29S)..WOC W/GLIDE AUTO DOOR |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-22070 |
RB20 |
1 | ||
| 85999-22070 |
RB20 |
1 | ||
| 85999E - BRACKET, RELAY, NO.5 | ||||
| 85999-12050 |
BB2#,3#,HB30,36,HDB3#,HZB3#,RB2#..10S,20S,26S,29S |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-02004 |
RB20..26S |
2 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-02004 |
RB20..26S |
2 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-36012 |
RB2# |
1 | ||
| 89550-36013 |
RB20 |
1 | ||
| Common parts | ||||
| 82817-90B09 | ||||
| 90119-06142 | ||||
| 90179-06070 | ||||
| 90179-06158 | ||||
| 90461-10275 | ||||
| 90464-00190 | ||||
| 90480-28005 | ||||
| 90480-40507 | ||||
| 90950-01119 | ||||
| 90950-01347 | ||||
| 91611-40612 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91651-40816 | ||||
| 93540-44012 | ||||
| 93610-15020 | ||||
| 93630-14025 | ||||
| 94180-40600 | ||||
| 94511-00600 | ||||
| Linked diagrams | ||||
| 1903 | ||||
ILLUST NO. 5 OF 5(8205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-39356 |
BB2#,31,HDB20,3#,HZB3#,RB20 |
1 | ||
| 83320-39355 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
2 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
2 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-12091 |
RB2# |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-12091 |
RB2# |
1 | ||
| 83399 - BRACKET, VACUUM SWITCH | ||||
| 83399-22011 |
RB2# |
1 | ||
| 84230E - SWITCH ASSY, COURTESY LAMP (FOR CENTER DOOR INDICATOR) | ||||
| 84230-14041 |
BB2#,3#,HB30,32,36,HDB3#,HZB3#,RB2# |
1 | ||
| 84230-14041 |
BB2#,3#,RB20..STD |
1 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84230-16020 |
BB2#,HB3#,HDB20,3#,HZB3#,RB2# FR |
1 | ||
| 84230-14041 |
BB21,31,HB30,RB20..20S,26S,29S RR |
1 | ||
| 84230-16020 |
BB21,31,HB30,RB20..20S,26S,29S FR |
1 | ||
| 84230-14041 |
BB2#,HB3#,HDB20,3#,HZB3#,RB2# RR |
1 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84230-16020 |
BB2#,HB3#,HDB20,3#,HZB3#,RB2# FR |
1 | ||
| 84230-14041 |
BB21,31,HB30,RB20..20S,26S,29S RR |
1 | ||
| 84230-16020 |
BB21,31,HB30,RB20..20S,26S,29S FR |
1 | ||
| 84230-14041 |
BB2#,HB3#,HDB20,3#,HZB3#,RB2# RR |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-90B02 |
RB2# FRONT |
1 | ||
| 85940-90A01 |
RB20 |
1 | ||
| 85940-90B03 |
BB21,23,26,3#,HB30,31,36,HDB30,HZB30,36..DLX,STD FRONT |
1 | ||
| 86651 - BUZZER ASSY, BACK | ||||
| 86650-95406 |
RB2# |
1 | ||
| 86650-95409 |
RB20 |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89620-36020 |
RB2# |
1 | ||
| Common parts | ||||
| 82819-90305 | ||||
| 90119-06067 | ||||
| 90119-08103 | ||||
| 90159-40155 | ||||
| 90179-06026 | ||||
| 90201-10378 | ||||
| 90464-00154 | ||||
| 91611-61025 | ||||
| 91651-40616 | ||||
| 91656-40618 | ||||
| 93229-23008 | ||||
| 93229-53010 | ||||
| 93249-23008 | ||||
| 93385-15020 | ||||
| 94180-40600 | ||||
| 96711-19010 | ||||
ILLUST NO. 3 OF 5(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-16010 |
RB2# |
1 | ||
| 81980-12070 |
RB20 |
1 | ||
| 81980-22060 |
RB2# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# 10A |
1 | ||
| 90982-09004 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# 20A,黄 |
1 | ||
| 90982-09005 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# 7.5A |
1 | ||
| 90982-09003 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# 15A |
1 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-90B00 |
BB2#,3#,HB30,RB20 |
1 | ||
| 82611-90B03 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 82611-90B01 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
BB21,RB20..26S;BB20,23,24,26,30,31,HB3#,HDB20,3#,HZB3#,RB26 30A,30A |
3 | ||
| 82650-35010 |
BB2#,3#,HB30,RB20 20A |
2 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-90B0302 |
BB2#,3#,HB3#,RB2# NO.1,DARK WINE,DARK WINE |
1 | ||
| 82661-90B00 |
BB2#,3#,HB30,RB20 NO.1 |
1 | ||
| 82661-90B05 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# NO.2 |
1 | ||
| 82661-90B0306 |
BB2#,31,HB3#,HDB20,3#,HZB3#,RB20 NO.1,SABLE,BROWN |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01003 |
BB2#,3#,HB3#,RB2# |
2 | ||
| 90986-01005 |
BB2#,31,HDB20,3#,HZB3#,RB20 |
2 | ||
| 83650 - FUSEE | ||||
| 90986-01003 |
BB2#,3#,HB3#,RB2# |
2 | ||
| 90986-01005 |
BB2#,31,HDB20,3#,HZB3#,RB20 |
2 | ||
| 83651 - CLAMP, FUSEE | ||||
| 62199-90P80 |
BB2#,31,HDB20,3#,HZB3#,RB20 |
2 | ||
| 81713-90500 |
BB2#,3#,HB3#,RB2# |
2 | ||
| 83651 - CLAMP, FUSEE | ||||
| 62199-90P80 |
BB2#,31,HDB20,3#,HZB3#,RB20 |
2 | ||
| 81713-90500 |
BB2#,3#,HB3#,RB2# |
2 | ||
| 84095 - BRACKET SUB-ASSY, HAND BRAKE SIGNAL SWITCH | ||||
| 84956-36030 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-22072 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84380-20010 |
RB2# |
1 | ||
| 85909C - BRACKET SUB-ASSY, RELAY, NO.1 | ||||
| 85909-90B00 |
BB2#,3#,HB30,RB20..DLX,EX,STD |
1 | ||
| 85909-90B08 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 85913-30020 |
RB2# FR HEATER |
1 | ||
| 90987-02004 |
RB2# RR HEATER |
1 | ||
| 90987-02004 |
RB20 |
2 | ||
| 90987-04002 |
RB2# FR HEATER |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 85913-30020 |
RB2# FR HEATER |
1 | ||
| 90987-02004 |
RB2# RR HEATER |
1 | ||
| 90987-02004 |
RB20 |
2 | ||
| 90987-04002 |
RB2# FR HEATER |
1 | ||
| 85910G - RELAY, HEATER PUMP | ||||
| 90987-02004 |
RB2#..10S,26S NO.1 |
2 | ||
| 90987-02004 |
RB2#..10S,26S NO.2 |
1 | ||
| 85910G - RELAY, HEATER PUMP | ||||
| 90987-02004 |
RB2#..10S,26S NO.1 |
2 | ||
| 90987-02004 |
RB2#..10S,26S NO.2 |
1 | ||
| 85910G - RELAY, HEATER PUMP | ||||
| 90987-02004 |
RB2#..10S,26S NO.1 |
2 | ||
| 90987-02004 |
RB2#..10S,26S NO.2 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
RB2# HEAD |
1 | ||
| 90987-01003 |
RB20 |
2 | ||
| 90987-01003 |
RB2# TAIL |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
RB2# HEAD |
1 | ||
| 90987-01003 |
RB20 |
2 | ||
| 90987-01003 |
RB2# TAIL |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-90B02 |
RB2# FRONT |
1 | ||
| 85940-90A01 |
RB20 |
1 | ||
| 85940-90B03 |
BB21,23,26,3#,HB30,31,36,HDB30,HZB30,36..DLX,STD FRONT |
1 | ||
| 85999E - BRACKET, RELAY, NO.5 | ||||
| 85999-12050 |
BB2#,3#,HB30,36,HDB3#,HZB3#,RB2#..10S,20S,26S,29S |
1 | ||
| 85999H - BRACKET, RELAY | ||||
| 85999-12050 |
BB2#,3#,HB3#,RB2#..10S,20S,26S,29S |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-03001 |
RB20..26S |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06068 | ||||
| 90179-06164 | ||||
| 90179-08026 | ||||
| 91611-60612 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91651-40616 | ||||
| 93312-15016 | ||||
| 93510-14014 | ||||
| 93560-55016 | ||||
| 94120-40800 | ||||
| 94120-41000 | ||||
ILLUST NO. 4 OF 5(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27790 - RELAY ASSY, CHARGE LAMP | ||||
| 27790-35020 |
22R..RB20 |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82630-90B00 |
BB2#,3#,HB30,RB20..20S,26S,29S,39C |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
BB21,RB20..26S;BB20,23,24,26,30,31,HB3#,HDB20,3#,HZB3#,RB26 30A,30A |
3 | ||
| 82650-35010 |
BB2#,3#,HB30,RB20 20A |
2 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
BB21,RB20..26S;BB20,23,24,26,30,31,HB3#,HDB20,3#,HZB3#,RB26 30A,30A |
3 | ||
| 82650-35010 |
BB2#,3#,HB30,RB20 20A |
2 | ||
| 82650B - BREAKER ASSY, WIRING CIRCUIT, NO.3 | ||||
| 82650-20011 |
BB2#,3#,HB3#,RB2#..10S,20S,26S,29S 30A |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-90B0302 |
BB2#,3#,HB3#,RB2# NO.1,DARK WINE,DARK WINE |
1 | ||
| 82661-90B00 |
BB2#,3#,HB30,RB20 NO.1 |
1 | ||
| 82661-90B05 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# NO.2 |
1 | ||
| 82661-90B0306 |
BB2#,31,HB3#,HDB20,3#,HZB3#,RB20 NO.1,SABLE,BROWN |
1 | ||
| 82829 - COVER, RELAY | ||||
| 82829-90B0002 |
BB2#,3#,HB3#,RB20..10S,20S,26S,29S,44C DARK WINE,DARK WINE |
1 | ||
| 82829-90B0006 |
BB2#,31,HB3#,RB20..10S,20S,26S,29S,44C SABLE,BROWN |
1 | ||
| 82829-90B0002 |
BB2#,3#,HB30,RB20..20S,26S,29S,39C DARK WINE,DARK WINE |
1 | ||
| 85909D - BRACKET SUB-ASSY, RELAY, NO.2 | ||||
| 85909-90B05 |
BB21,31,HB30,RB20 |
1 | ||
| 85909-90B02 |
BB2#,3#,HB30,RB20 |
1 | ||
| 85909-90B10 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 85909-90B10 |
HB3#,RB20 |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 85915-90B00 |
RB2#..10S,26S |
2 | ||
| 85915-90B01 |
BB21..26S;BB23,24,26,3#,HB3#,HDB20,3#,HZB3# |
2 | ||
| 85915 - RELAY, MAIN | ||||
| 85915-90B00 |
RB2#..10S,26S |
2 | ||
| 85915-90B01 |
BB21..26S;BB23,24,26,3#,HB3#,HDB20,3#,HZB3# |
2 | ||
| 85924 - RELAY, IGNITION CONTROL | ||||
| 90987-02004 |
RB20 |
1 | ||
| 85996 - COVER, COMBINATION RELAY | ||||
| 82805-90B0002 |
BB2#,3#,HB30,RB20..20S,26S,29S,39C DARK WINE,DARK WINE |
1 | ||
| 82805-90B0002 |
BB2#,3#,HB3#,RB2#..10S,20S,26S,29S,44C DARK WINE,DARK WINE |
1 | ||
| 82805-90B0006 |
BB21,RB20..26S;BB23,24,26,31,HB3#,HDB20,3#,HZB3# SABLE,BROWN |
1 | ||
| 85997 - COVER, RELAY BRACKET | ||||
| 85997-90B00 |
BB20,30,HB30,RB20..(26S,29S)..WOC |
1 | ||
| 85997-90B04 |
BB2#,3#,HB30,RB20..(26S,29S)..WOC |
1 | ||
| 85997-90B1306 |
BB2#,31,HB3#,HDB20,3#,HZB3#,RB20 SABLE,SABLE |
1 | ||
| 85997-90B1302 |
BB2#,3#,HB3#,RB2# DARK WINE,DARK WINE |
1 | ||
| 85997-90B07 |
BB21,31,HB30,RB20..(26S,29S)..WOC W/GLIDE AUTO DOOR |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-22070 |
RB20 |
1 | ||
| 85999-22070 |
RB20 |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-02004 |
RB20..26S |
2 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-02004 |
RB20..26S |
2 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-36012 |
RB2# |
1 | ||
| 89550-36013 |
RB20 |
1 | ||
| Common parts | ||||
| 74836-90B00 | ||||
| 82817-90B10 | ||||
| 90119-06068 | ||||
| 90119-06171 | ||||
| 90119-08552 | ||||
| 90179-05015 | ||||
| 90179-06070 | ||||
| 90179-06158 | ||||
| 90464-00190 | ||||
| 90480-28005 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91656-40818 | ||||
| 91666-40825 | ||||
| 93540-44012 | ||||
| 93540-54012 | ||||
| 93610-15020 | ||||
| 93610-55020 | ||||
| 93630-14025 | ||||
| 94180-40600 | ||||
| 94511-00600 | ||||
| Linked diagrams | ||||
| 1903 | ||||
| 8202 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
