RB20-MR (1982)
Toyota Coaster

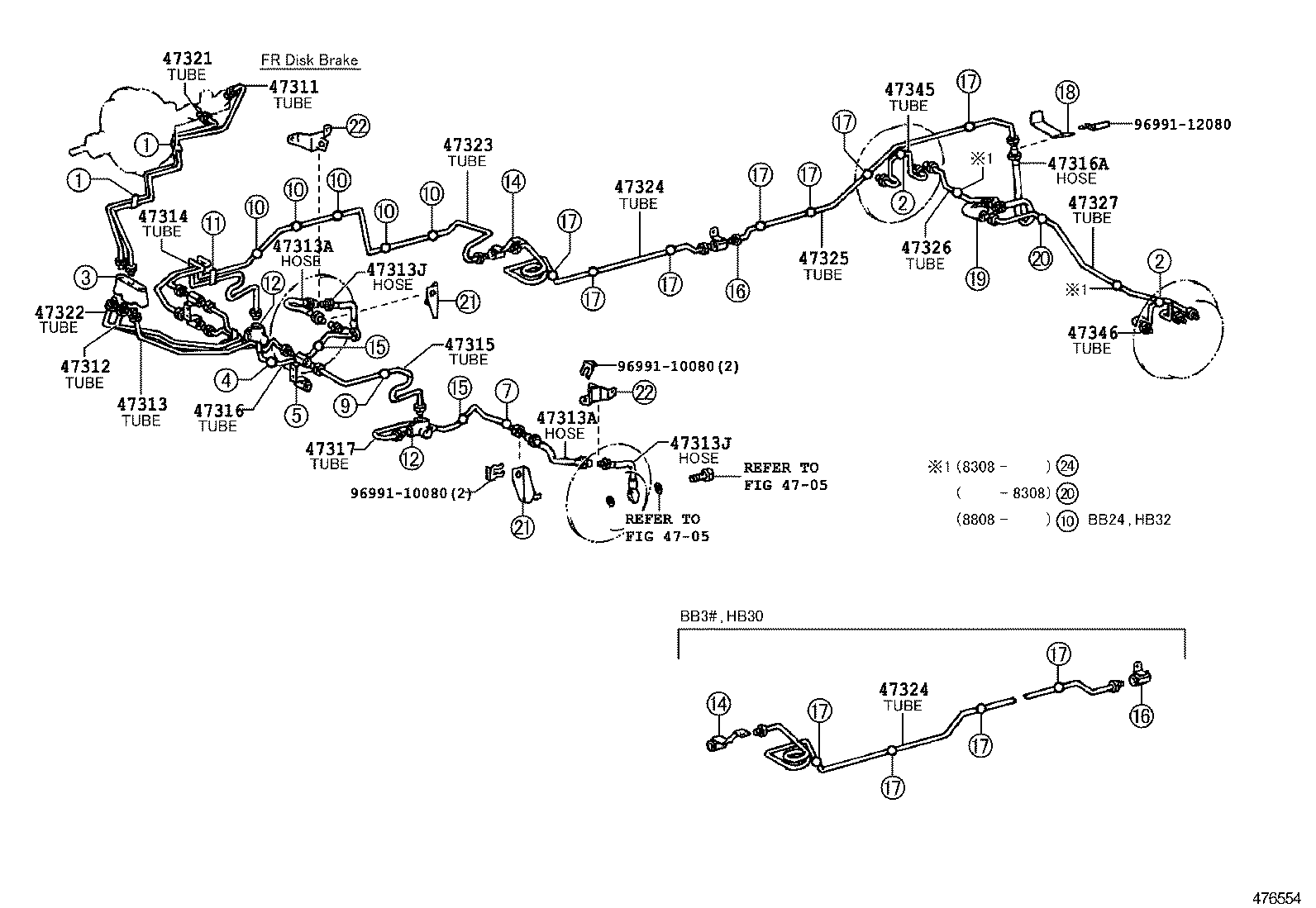

ILLUST NO. 1 OF 2(8205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-36340 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 47311-36340 |
BB2#,HDB20,RB2# |
1 | ||
| 47311-36240 |
BB2#,3#,HB30,RB20 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-36210 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-36130 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02531 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
2 | ||
| 96950-33205 |
BB2#,3#,HB3#,RB2# |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02531 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
2 | ||
| 96950-33205 |
BB2#,3#,HB3#,RB2# |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02536 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
2 | ||
| 90947-02434 |
BB2#,3#,HB3#,RB2# |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02536 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
2 | ||
| 90947-02434 |
BB2#,3#,HB3#,RB2# |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-36160 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# FR DISC BRAKE |
1 | ||
| 47314-36150 |
BB20,21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD FR DRUM BRAKE |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-36140 |
BB20,21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD FR DRUM BRAKE |
1 | ||
| 47315-36150 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# FR DISC BRAKE |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-36220 |
BB2#,3#,HB3#,RB2# FR DISC BRAKE |
1 | ||
| 47316-36251 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# FR DISC BRAKE |
1 | ||
| 47316-36210 |
BB20,21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD FR DRUM BRAKE |
1 | ||
| 47316-36220 |
BB2#,3#,RB2# FR DISC BRAKE |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96912-34005 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 90947-02530 |
BB21,23,26,3#,HB30,31,36,HDB30,HZB30,36,RB2# |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-36100 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# FR DISC BRAKE |
1 | ||
| 47317-36090 |
BB20,21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD FR DRUM BRAKE |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-36140 |
BB2#,3#,HB30,RB20 |
1 | ||
| 47321-36240 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 47321-36240 |
BB2#,HDB20,RB2# |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-36100 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-36031 |
BB21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD FR DRUM BRAKE |
1 | ||
| 47323-36030 |
BB2#,3#,HB3#,RB2#..DLX,STD FR DRUM BRAKE |
1 | ||
| 47323-36040 |
BB2#,3#,HB3#,RB2# FR DISC BRAKE |
1 | ||
| 47323-36041 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# FR DISC BRAKE |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-36050 |
BB2#,RB2# |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-36050 |
BB2#,RB2# |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-36111 |
BB21,23,26,31,HDB30,HZB30,RB20 |
1 | ||
| 47325-36110 |
BB20,21,23,26,3#,HB30,31,36,HDB30,HZB30,36,RB2# |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-36060 |
BB2#,3#,HB30,RB20 |
1 | ||
| 47326-36061 |
BB21,31,HB30,RB20 |
1 | ||
| 47326-36062 |
BB21,23,26,3#,HB30,31,36,HDB30,HZB30,36,RB2# |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-36080 |
BB2#,3#,HB30,RB20 |
1 | ||
| 47327-36081 |
BB21,31,HB30,RB20 |
1 | ||
| 47327-36082 |
BB21,23,26,3#,HB30,31,36,HDB30,HZB30,36,RB2# |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-36040 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 47345-36020 |
BB2#,3#,HB30,RB20 |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47345-36040 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 47345-36020 |
BB2#,3#,HB30,RB20 |
1 | ||
| Common parts | ||||
| 96991-10080 | ||||
| 96991-12080 | ||||
| Linked diagrams | ||||
| 4705 | ||||

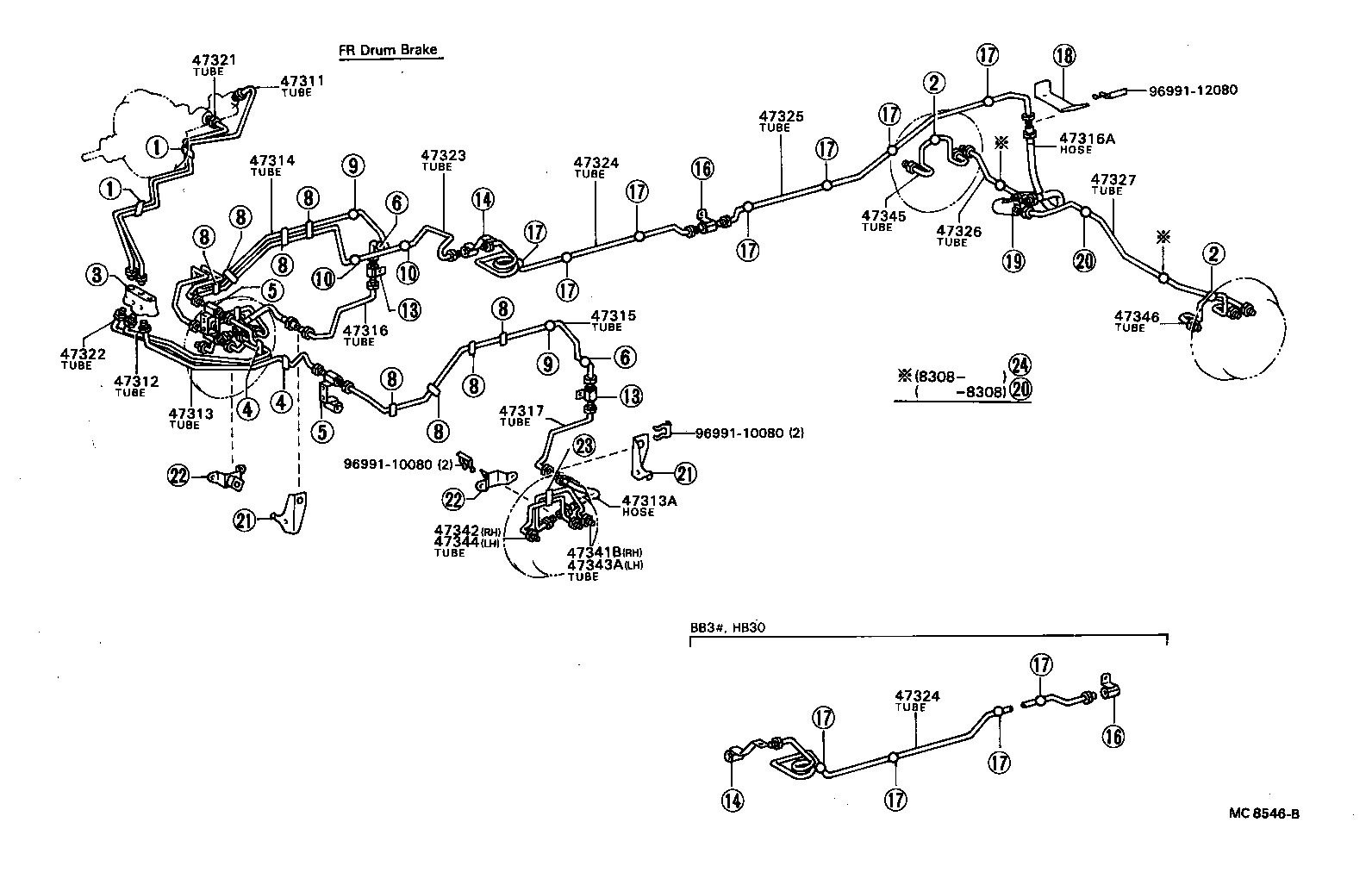

ILLUST NO. 1 OF 2(8205- )BB20,21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD ; (9001- )HZB30..WOC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-36340 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 47311-36340 |
BB2#,HDB20,RB2# |
1 | ||
| 47311-36240 |
BB2#,3#,HB30,RB20 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-36210 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-36130 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02531 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
2 | ||
| 96950-33205 |
BB2#,3#,HB3#,RB2# |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-36160 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# FR DISC BRAKE |
1 | ||
| 47314-36150 |
BB20,21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD FR DRUM BRAKE |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-36140 |
BB20,21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD FR DRUM BRAKE |
1 | ||
| 47315-36150 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# FR DISC BRAKE |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-36220 |
BB2#,3#,HB3#,RB2# FR DISC BRAKE |
1 | ||
| 47316-36251 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# FR DISC BRAKE |
1 | ||
| 47316-36210 |
BB20,21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD FR DRUM BRAKE |
1 | ||
| 47316-36220 |
BB2#,3#,RB2# FR DISC BRAKE |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96912-34005 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 90947-02530 |
BB21,23,26,3#,HB30,31,36,HDB30,HZB30,36,RB2# |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-36100 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# FR DISC BRAKE |
1 | ||
| 47317-36090 |
BB20,21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD FR DRUM BRAKE |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-36140 |
BB2#,3#,HB30,RB20 |
1 | ||
| 47321-36240 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 47321-36240 |
BB2#,HDB20,RB2# |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-36100 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-36031 |
BB21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD FR DRUM BRAKE |
1 | ||
| 47323-36030 |
BB2#,3#,HB3#,RB2#..DLX,STD FR DRUM BRAKE |
1 | ||
| 47323-36040 |
BB2#,3#,HB3#,RB2# FR DISC BRAKE |
1 | ||
| 47323-36041 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# FR DISC BRAKE |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-36050 |
BB2#,RB2# |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-36050 |
BB2#,RB2# |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-36111 |
BB21,23,26,31,HDB30,HZB30,RB20 |
1 | ||
| 47325-36110 |
BB20,21,23,26,3#,HB30,31,36,HDB30,HZB30,36,RB2# |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-36060 |
BB2#,3#,HB30,RB20 |
1 | ||
| 47326-36061 |
BB21,31,HB30,RB20 |
1 | ||
| 47326-36062 |
BB21,23,26,3#,HB30,31,36,HDB30,HZB30,36,RB2# |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-36080 |
BB2#,3#,HB30,RB20 |
1 | ||
| 47327-36081 |
BB21,31,HB30,RB20 |
1 | ||
| 47327-36082 |
BB21,23,26,3#,HB30,31,36,HDB30,HZB30,36,RB2# |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47341-36051 |
BB21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD |
1 | ||
| 47341-36050 |
BB2#,3#,HB30,RB20..DLX,STD |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47342-36040 |
BB2#,3#,HB30,RB20..DLX,STD |
1 | ||
| 47342-36041 |
BB21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47343-36031 |
BB21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD |
1 | ||
| 47343-36030 |
BB2#,3#,HB30,RB20..DLX,STD |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47342-36041 |
BB21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD |
1 | ||
| 47342-36040 |
BB2#,3#,HB30,RB20..DLX,STD |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-36040 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 47345-36020 |
BB2#,3#,HB30,RB20 |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47345-36040 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 47345-36020 |
BB2#,3#,HB30,RB20 |
1 | ||
| Common parts | ||||
| 96991-10080 | ||||
| 96991-12080 | ||||

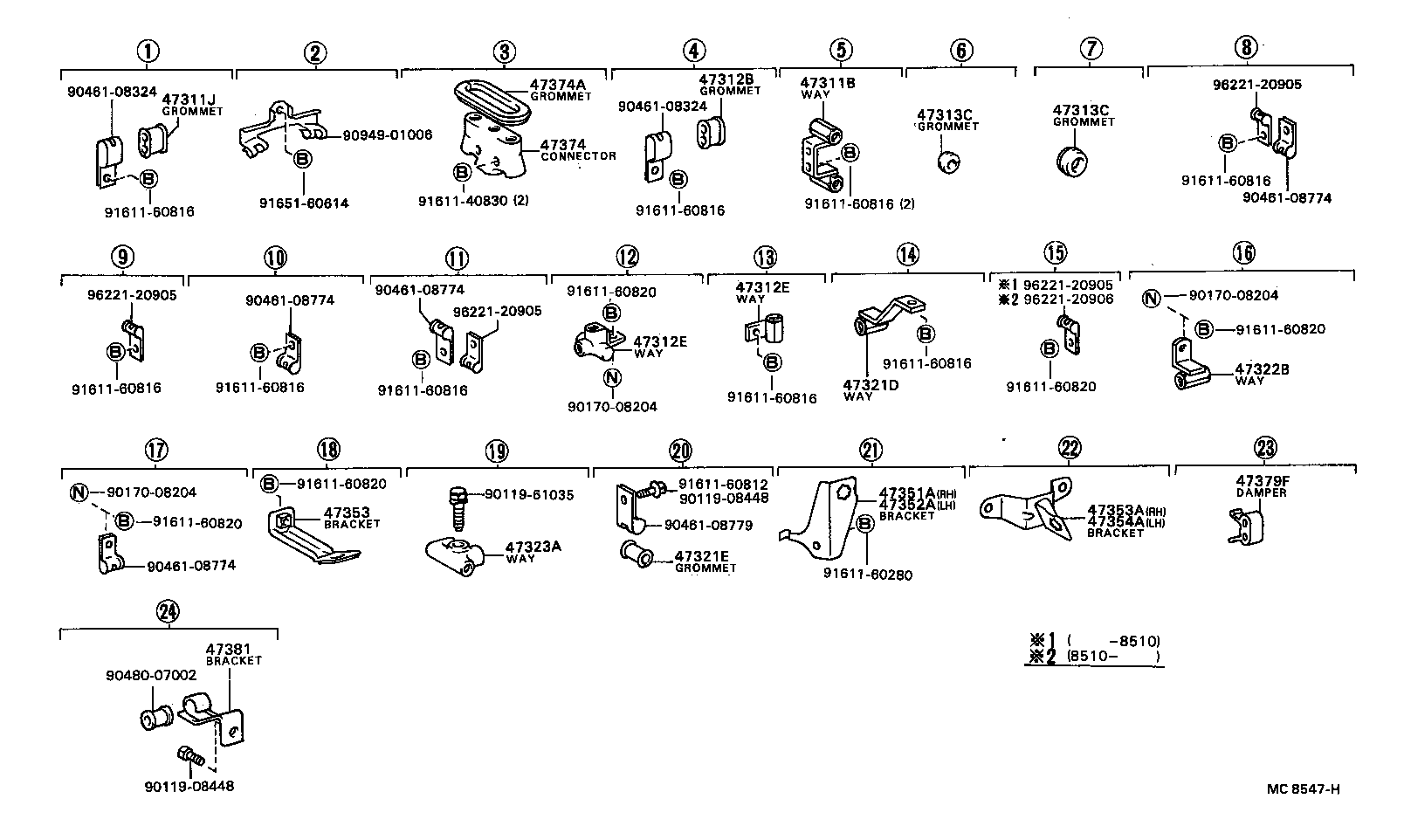

ILLUST NO. 2 OF 2(8205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-12010 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
2 | ||
| 47311J - GROMMET, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90480-01107 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
2 | ||
| 47312B - GROMMET, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90480-01071 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
2 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10015 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# FR DISC BRAKE |
2 | ||
| 90412-10063 |
BB20,21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD FR DRUM BRAKE |
2 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10015 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# FR DISC BRAKE |
2 | ||
| 90412-10063 |
BB20,21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD FR DRUM BRAKE |
2 | ||
| 47313C - GROMMET, NO.3(FOR FRONT BRAKE TUBE) | ||||
| 90480-18330 |
BB20,21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD FR DRUM BRAKE |
2 | ||
| 90480-30207 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# FR DISC BRAKE |
2 | ||
| 47313C - GROMMET, NO.3(FOR FRONT BRAKE TUBE) | ||||
| 90480-18330 |
BB20,21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD FR DRUM BRAKE |
2 | ||
| 90480-30207 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# FR DISC BRAKE |
2 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-12011 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 47321E - GROMMET(FOR REAR BRAKE TUBE) | ||||
| 90480-08343 |
BB2#,3#,HB30,RB20 |
3 | ||
| 90480-08343 |
BB21,26,3#,HB30,31,36,RB2# |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90412-12054 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 90413-10001 |
BB20,21,23,26,3#,HB30,31,36,HDB30,HZB30,36,RB2# |
1 | ||
| 47351A - BRACKET, FLEXIBLE HOSE, FRONT RH NO.1 | ||||
| 47351-36090 |
BB20,21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD FR DRUM BRAKE |
1 | ||
| 47352-36090 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# FR DISC BRAKE |
1 | ||
| 47352A - BRACKET, FLEXIBLE HOSE, FRONT LH NO.1 | ||||
| 47352-36090 |
BB20,21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD FR DRUM BRAKE |
1 | ||
| 47351-36090 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# FR DISC BRAKE |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47353-36110 |
BB20,21,23,26,3#,HB30,31,36,HDB30,HZB30,36,RB2# |
1 | ||
| 47353A - BRACKET, FLEXIBLE HOSE, FRONT RH NO.2 | ||||
| 47353-36100 |
BB20,21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD FR DRUM BRAKE |
1 | ||
| 47354-36030 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# FR DISC BRAKE |
1 | ||
| 47354A - BRACKET, FLEXIBLE HOSE, FRONT LH NO.2 | ||||
| 47354-36030 |
BB20,21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD FR DRUM BRAKE |
1 | ||
| 47353-36100 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# FR DISC BRAKE |
1 | ||
| 47374 - CONNECTOR, TUBE | ||||
| 47374-36030 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 47374A - GROMMET(FOR TUBE CONNECTOR) | ||||
| 90480-01352 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 47379F - DAMPER, TUBE(FOR FRONT) | ||||
| 47379-36010 |
BB21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD |
2 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-36040 |
BB21,26,3#,HB3#,HDB30,HZB30,36,RB2# |
2 | ||
| Common parts | ||||
| 90119-08448 | ||||
| 90119-61035 | ||||
| 90170-08204 | ||||
| 90461-08324 | ||||
| 90461-08774 | ||||
| 90461-08779 | ||||
| 90480-07002 | ||||
| 90949-01006 | ||||
| 91611-40830 | ||||
| 91611-60280 | ||||
| 91611-60812 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 91651-60614 | ||||
| 96221-20905 | ||||
| 96221-20906 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
