RB20-MDZR (1982)

Toyota Coaster

Production May 1982 - Jan 1993
Engine 22R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

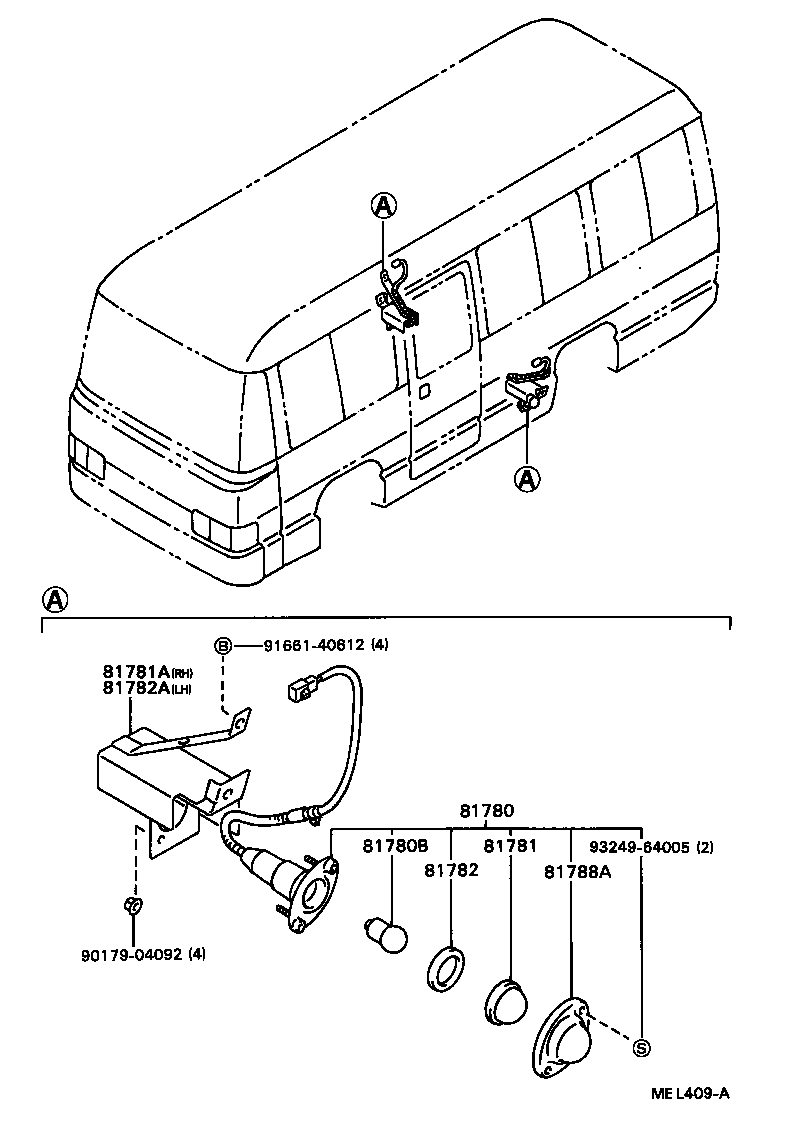

Click highlighted areas on diagram

diagram 81780 81780B 81781 81781A 81782 81782A 81788A 9017904092 9166140612 9324964005
Part # Description Qty Price
81780 - LAMP ASSY, REAR WHEEL
81780-90B00

RB20..WC

 2
81780B - BULB, REAR WHEEL LAMP
99132-12100

RB20..WC

12V 10W

 2
81781 - LENS, REAR WHEEL LAMP
81271-10010

BB2#,31,HB3#,HDB20,3#,HZB3#,RB20..DLX,EX,EXS,SULNG

 2
81781A - BRACKET, REAR WHEEL LAMP, RH
81781-90B00

BB2#,31,HB3#,HDB20,3#,HZB3#,RB20..DLX,EX,EXS,SULNG

 1
81782 - GASKET, REAR WHEEL LAMP
81272-10010

BB2#,31,HB3#,HDB20,3#,HZB3#,RB20..DLX,EX,EXS,SULNG

 2
81782A - BRACKET, REAR WHEEL LAMP, LH
81782-90B00

BB2#,31,HB3#,HDB20,3#,HZB3#,RB20..DLX,EX,EXS,SULNG

 1
81788A - COVER, REAR WHEEL LAMP
81278-10011

BB2#,31,HB3#,HDB20,3#,HZB3#,RB20..DLX,EX,EXS,SULNG

 2
Common parts
90179-04092
91661-40612
93249-64005
