RB20-MDZ (1982)

Toyota Coaster

Production May 1982 - Oct 1985
Engine 22R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )

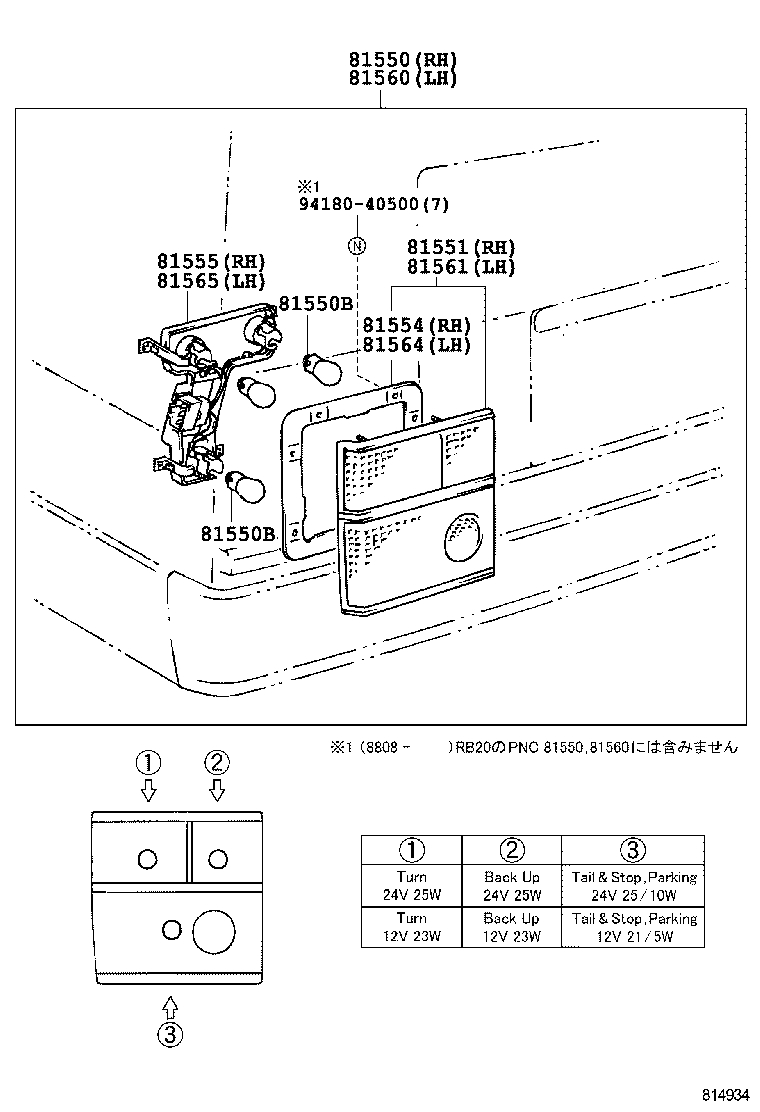

Click highlighted areas on diagram

diagram 81550 81550B 81550B 81551 81554 81555 81560 81561 81564 81565 9418040500
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-39705

RB2#

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

RB2#

12V 21/5W

 2
99132-11230

RB2#

12V 23W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

RB2#

12V 21/5W

 2
99132-11230

RB2#

12V 23W

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81554-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-39665

RB2#

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81554-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81565-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
Common parts
94180-40500
