RB20-MDZ (1982)

Toyota Coaster

Production May 1982 - Oct 1985
Engine 22R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )

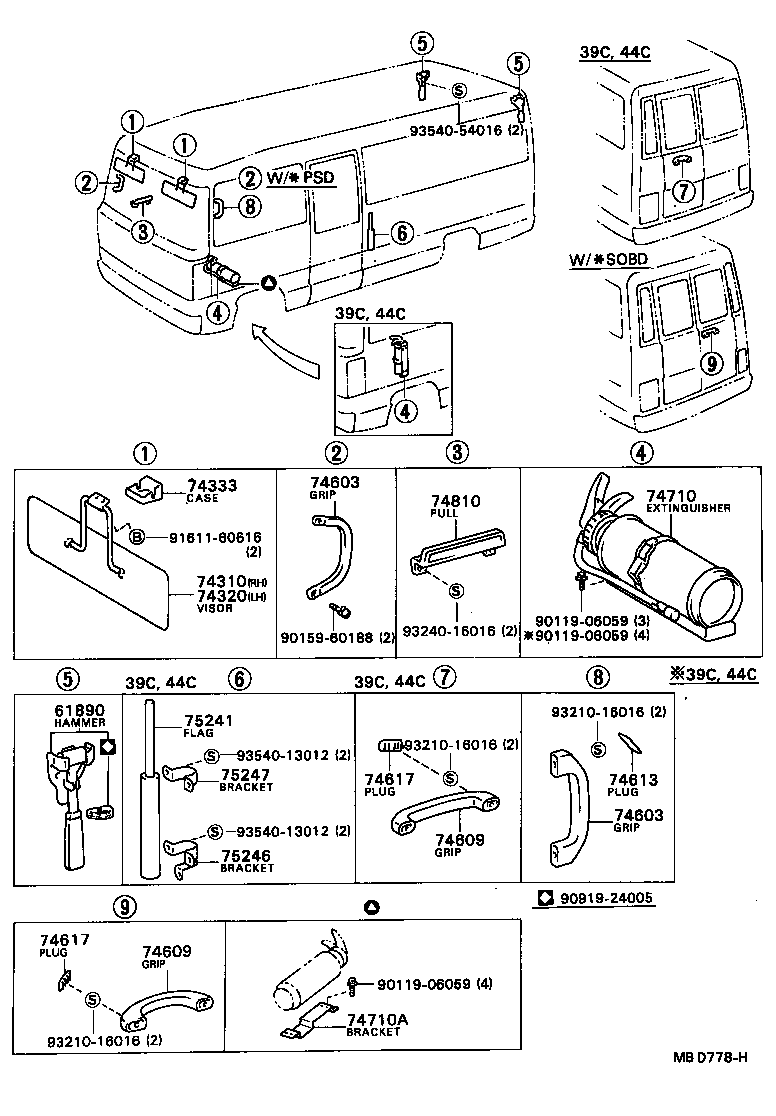

Click highlighted areas on diagram

diagram 61890 74310 74320 74333 74603 74603 74609 74609 74613 74617 74617 74710 74710A 74810 75241 75246 75247 9011906059 9011906059 9011906059 9015960188 9091924005 9161160616 9321016016 9321016016 9321016016 9324016016 9354013012 9354013012 9354054016
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-90B00

BB2#,3#,HB3#,RB2#..DLX,STD

 1
74333 - CASE, VISOR
74333-90B00

BB2#,3#,HB3#,RB2#..DLX,STD

 1
74603 - GRIP SUB-ASSY, ASSIST, FRONT
74610-1002008

BB2#,3#,HB3#,HDB3#,HZB3#,RB2#..10S,20S,26S,29S

LH,IVORY,IVORY

 1
74610-90B00

BB2#,3#,HB3#,RB2#

RH

 1
74603 - GRIP SUB-ASSY, ASSIST, FRONT
74610-1002008

BB2#,3#,HB3#,HDB3#,HZB3#,RB2#..10S,20S,26S,29S

LH,IVORY,IVORY

 1
74610-90B00

BB2#,3#,HB3#,RB2#

RH

 1
74609 - GRIP ASSY, BACK DOOR ASSIST
74610-1002008

BB21,31,HB30,RB20..(DLX,STD)..(26S,29S)

W/*SOBD,IVORY,IVORY

 1
74610-1002008

BB21,31,HB30,RB20..20S,26S,29S

W/*SOBD,IVORY,IVORY

 1
74609 - GRIP ASSY, BACK DOOR ASSIST
74610-1002008

BB21,31,HB30,RB20..(DLX,STD)..(26S,29S)

W/*SOBD,IVORY,IVORY

 1
74610-1002008

BB21,31,HB30,RB20..20S,26S,29S

W/*SOBD,IVORY,IVORY

 1
74613 - PLUG, ASSIST GRIP
74617-1401008

BB2#,3#,HB3#,HDB3#,HZB3#,RB2#..10S,20S,26S,29S

IVORY,IVORY

 2
74617 - PLUG, BACK DOOR ASSIST GRIP
74617-1401008

BB21,31,HB30,RB20..20S,26S,29S

W/*SOBD,IVORY,IVORY

 2
74617-1401008

BB21,31,HB30,RB20..(DLX,STD)..(26S,29S)

W/*SOBD,IVORY,IVORY

 2
74617 - PLUG, BACK DOOR ASSIST GRIP
74617-1401008

BB21,31,HB30,RB20..20S,26S,29S

W/*SOBD,IVORY,IVORY

 2
74617-1401008

BB21,31,HB30,RB20..(DLX,STD)..(26S,29S)

W/*SOBD,IVORY,IVORY

 2
74710 - EXTINGUISHER ASSY
74710-90B00

BB20,21,23,24,30,31,HB30,31,32,RB20..20S,26S,29S

 1
74810 - PULL ASSY, DOOR, INSIDE
69271-90B00

BB2#,3#,HB3#,RB2#

 1
Common parts
90119-06059
90159-60188
90919-24005
91611-60616
93210-16016
93240-16016
93540-13012
93540-54016
