RB20-MDZ (1982)
Toyota Coaster

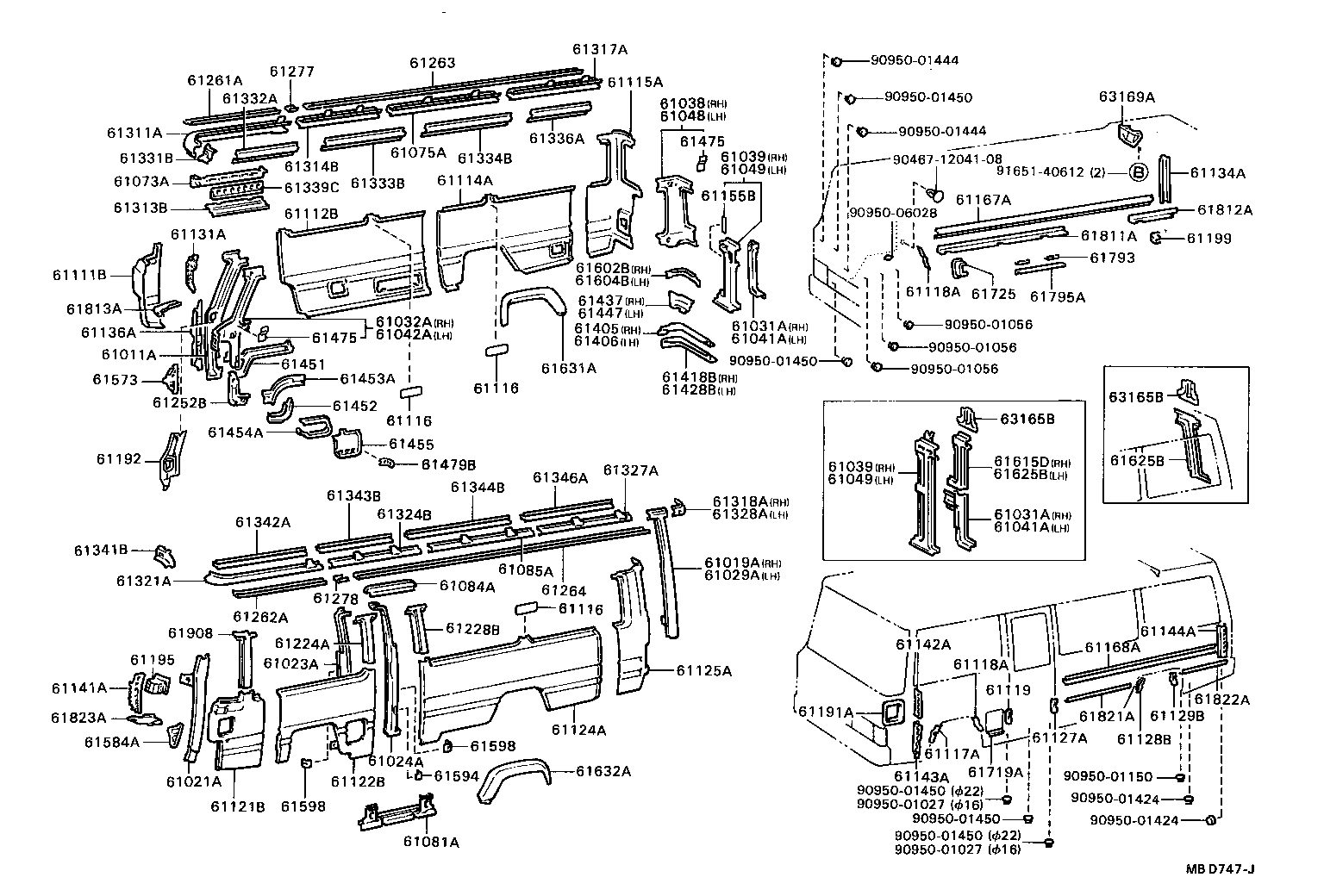

ILLUST NO. 1 OF 3(8205- )BB2#,HDB20,RB2#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61011A - PILLAR SUB-ASSY, NO.1 RH | ||||
| 61011-90B00 |
BB20,21,23,30,31,HB30,31,RB20..(DLX,STD)..(26S,29S) |
1 | ||
| 61011-90B01 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#..DLX,EX,EXS,SULNG W/ACCELERATOR INTER LOCK |
1 | ||
| 61019A - PILLAR SUB-ASSY, NO.9 RH | ||||
| 61019-90B00 |
BB2#,3#,HB30,RB20..(26S,29S)..WOC |
1 | ||
| 61021A - PILLAR SUB-ASSY, NO.1 LH | ||||
| 61021-90B02 |
BB2#,3#,HB3#,HDB3#,HZB3#,RB2#..10S,20S,26S,29S |
1 | ||
| 61023A - PILLAR SUB-ASSY, NO.3 LH | ||||
| 61023-90B00 |
BB20,21,26,3#,HB30,36,HZB30,RB2#..(10S,26S,29S)..WOC |
1 | ||
| 61023-90B01 |
BB21,31,HB30,RB20..(26S,29S)..WOC W/GLIDE DOOR |
1 | ||
| 61024A - PILLAR SUB-ASSY, NO.4 LH | ||||
| 61024-90B01 |
BB21,31,HB30,RB20..(26S,29S)..WOC W/GLIDE DOOR |
1 | ||
| 61024-90B00 |
BB20,21,26,3#,HB30,36,HZB30,RB2#..(10S,26S,29S)..WOC |
1 | ||
| 61029A - PILLAR SUB-ASSY, NO.9 LH | ||||
| 61029-90B00 |
BB2#,3#,HB30,RB20..WOC |
1 | ||
| 61031A - PILLAR SUB-ASSY, NO.10 RH | ||||
| 61031-90B03 |
BB21,31,HB30,RB20..(DLX,STD)..(26S,29S) W/*SOBD |
1 | ||
| 61031-90B00 |
BB20,21,23,30,31,HB30,31,32,HDB20,3#,HZB30,31,RB20..DLX,EX,EXS,SULNG |
1 | ||
| 61031A - PILLAR SUB-ASSY, NO.10 RH | ||||
| 61031-90B03 |
BB21,31,HB30,RB20..(DLX,STD)..(26S,29S) W/*SOBD |
1 | ||
| 61031-90B00 |
BB20,21,23,30,31,HB30,31,32,HDB20,3#,HZB30,31,RB20..DLX,EX,EXS,SULNG |
1 | ||
| 61032A - PILLAR SUB-ASSY, NO.1 INNER, RH | ||||
| 61032-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 61038 - PILLAR SUB-ASSY, NO.9 INNER, RH | ||||
| 61038-90B10 |
BB21,31,HB30,RB20..(26S,29S)..WOC W/*SOBD |
1 | ||
| 61038-90B00 |
BB2#,3#,HB30,RB20..(26S,29S)..WOC |
1 | ||
| 61039 - PILLAR SUB-ASSY, NO.10 INNER, RH | ||||
| 61039-90B01 |
BB20,HB30,RB20..DLX W/FOLDING SEAT |
1 | ||
| 61039-90B00 |
BB20,21,23,30,31,HB30,31,HDB30,HZB30,RB20..(DLX,STD)..(26S,29S) |
1 | ||
| 61039-90B01 |
BB21,31,HB30,RB20..(DLX,STD)..(26S,29S) W/O RR SEAT |
1 | ||
| 61039-90B01 |
BB2#,3#,HB30,RB20..(DLX,STD)..(26S,29S) W/FOLDING SEAT OR W/O RR SEAT |
1 | ||
| 61039-90B02 |
BB21,31,HB30,RB20..(26S,29S)..WOC W/*SOBD |
1 | ||
| 61039 - PILLAR SUB-ASSY, NO.10 INNER, RH | ||||
| 61039-90B01 |
BB20,HB30,RB20..DLX W/FOLDING SEAT |
1 | ||
| 61039-90B00 |
BB20,21,23,30,31,HB30,31,HDB30,HZB30,RB20..(DLX,STD)..(26S,29S) |
1 | ||
| 61039-90B01 |
BB21,31,HB30,RB20..(DLX,STD)..(26S,29S) W/O RR SEAT |
1 | ||
| 61039-90B01 |
BB2#,3#,HB30,RB20..(DLX,STD)..(26S,29S) W/FOLDING SEAT OR W/O RR SEAT |
1 | ||
| 61039-90B02 |
BB21,31,HB30,RB20..(26S,29S)..WOC W/*SOBD |
1 | ||
| 61041A - PILLAR SUB-ASSY, NO.10, LH | ||||
| 61041-90B02 |
BB21,31,HB30,RB20..20S,26S,29S W/*SOBD |
1 | ||
| 61041-90B02 |
BB21,31,HB30,RB20..(DLX,STD)..(26S,29S) W/*SOBD |
1 | ||
| 61249-90B00 |
BB20,21,23,24,30,31,HB30,31,32,HDB3#,HZB30,31,RB20..20S,26S,29S |
1 | ||
| 61041A - PILLAR SUB-ASSY, NO.10, LH | ||||
| 61041-90B02 |
BB21,31,HB30,RB20..20S,26S,29S W/*SOBD |
1 | ||
| 61041-90B02 |
BB21,31,HB30,RB20..(DLX,STD)..(26S,29S) W/*SOBD |
1 | ||
| 61249-90B00 |
BB20,21,23,24,30,31,HB30,31,32,HDB3#,HZB30,31,RB20..20S,26S,29S |
1 | ||
| 61042A - PILLAR SUB-ASSY, NO.1 INNER, LH | ||||
| 61042-90B02 |
BB2#,3#,HB3#,HDB3#,HZB3#,RB2#..10S,20S,26S,29S |
1 | ||
| 61048 - PILLAR SUB-ASSY, NO.9 INNER, LH | ||||
| 61048-90B12 |
BB2#,3#,HB30,RB20..DLX..WOC |
1 | ||
| 61048-90B05 |
BB21,31,HB30,RB20..(26S,29S)..WOC W/*SOBD |
1 | ||
| 61049 - PILLAR SUB-ASSY, NO.10 INNER, LH | ||||
| 61049-90B01 |
BB20,30,HB30,RB20..DLX,EX,EXS W/FOLDING SEAT |
1 | ||
| 61049-90B02 |
BB21,31,HB30,RB20..(26S,29S)..WOC W/*SOBD |
1 | ||
| 61049-90B00 |
BB20,21,23,30,31,HB30,31,HZB30,RB20..(DLX,STD)..(26S,29S) |
1 | ||
| 61049-90B01 |
BB2#,3#,HB30,RB20..20S,26S,29S W/FOLDING SEAT OR W/O RR SEAT |
1 | ||
| 61049 - PILLAR SUB-ASSY, NO.10 INNER, LH | ||||
| 61049-90B01 |
BB20,30,HB30,RB20..DLX,EX,EXS W/FOLDING SEAT |
1 | ||
| 61049-90B02 |
BB21,31,HB30,RB20..(26S,29S)..WOC W/*SOBD |
1 | ||
| 61049-90B00 |
BB20,21,23,30,31,HB30,31,HZB30,RB20..(DLX,STD)..(26S,29S) |
1 | ||
| 61049-90B01 |
BB2#,3#,HB30,RB20..20S,26S,29S W/FOLDING SEAT OR W/O RR SEAT |
1 | ||
| 61073A - PANEL SUB-ASSY, FRONT VENTILATOR, RH | ||||
| 61073-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 61075A - RAIL SUB-ASSY, NO.3 UPPER OUTER, RH | ||||
| 61075-90B02 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#..HRF |
1 | ||
| 61081A - RAIL SUB-ASSY, NO.2 LOWER OUTER, LH | ||||
| 61081-90B03 |
BB21,31,HB30,RB20..(26S,29S)..WOC W/GLIDE DOOR |
1 | ||
| 61081-90B01 |
BB20,21,30,31,HB30,HZB30,RB20..DLX..WOC |
1 | ||
| 61085A - RAIL SUB-ASSY, NO.3 UPPER OUTER, LH | ||||
| 61085-90B02 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#..HRF |
1 | ||
| 61111B - PANEL, NO.1 SIDE, RH | ||||
| 61111-90B00 |
BB20,21,30,31,HB30,31,RB20 |
1 | ||
| 61112B - PANEL, NO.2 SIDE, RH | ||||
| 61112-90B00 |
BB20,21,26,3#,HB30,36,HZB30,RB2#..WOC |
1 | ||
| 61114A - PANEL, NO.3 SIDE, RH | ||||
| 61114-90B00 |
BB2#,RB2# |
1 | ||
| 61114-90B01 |
RB2#..10S,26S W/*CH |
1 | ||
| 61115A - PANEL, NO.4 SIDE, RH | ||||
| 61115-90B05 |
BB21,31,HB30,RB20..(DLX,STD)..HRF W/*SOBD |
1 | ||
| 61115-90B05 |
BB21,31,HB30,RB20..HRF W/*SOBD |
1 | ||
| 61115-90B01 |
BB20,21,30,31,HB30,31,RB20..HRF |
1 | ||
| 61117A - GUSSET, SIDE PANEL RELIEF, NO.1 | ||||
| 61117-90B00 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 61118A - GUSSET, SIDE PANEL RELIEF, NO.2 | ||||
| 61118-90B00 |
BB2#,3#,HB3#,RB2# LH |
1 | ||
| 61117-90B00 |
BB2#,3#,HB3#,RB2# RH |
1 | ||
| 61118A - GUSSET, SIDE PANEL RELIEF, NO.2 | ||||
| 61118-90B00 |
BB2#,3#,HB3#,RB2# LH |
1 | ||
| 61117-90B00 |
BB2#,3#,HB3#,RB2# RH |
1 | ||
| 61119 - GUSSET, SIDE PANEL RELIEF, NO.3 | ||||
| 61119-90B01 |
BB21,31,HB30,RB20..(26S,29S)..WOC W/GLIDE DOOR |
1 | ||
| 61121B - PANEL, NO.1 SIDE, LH | ||||
| 61121-90B00 |
BB20,21,30,31,HB30,RB20 |
1 | ||
| 61122B - PANEL, NO.2 SIDE, LH | ||||
| 61122-90B00 |
BB20,21,26,3#,HB30,36,HZB30,RB2#..(10S,26S,29S)..WOC W/FOLDING DOOR |
1 | ||
| 61124A - PANEL, NO.3 SIDE, LH | ||||
| 61124-90B01 |
BB21,RB20..26S..WOC W/GLIDE DOOR |
1 | ||
| 61124-90B00 |
BB20,21,26,RB2#..(10S,26S)..WOC |
1 | ||
| 61125A - PANEL, NO.4 SIDE, LH | ||||
| 61125-90B03 |
BB21,31,HB30,RB20..HRF W/*SOBD |
1 | ||
| 61125-90B01 |
BB20,21,30,31,HB30,31,RB20..HRF |
1 | ||
| 61125-90B03 |
BB21,31,HB30,RB20..(DLX,STD)..HRF W/*SOBD |
1 | ||
| 61127A - GUSSET, SIDE PANEL RELIEF, NO.4 | ||||
| 61127-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# LH |
1 | ||
| 61128B - GUSSET, SIDE PANEL RELIEF, NO.5 | ||||
| 61129-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# LH |
1 | ||
| 61128-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# RH |
1 | ||
| 61129B - GUSSET, SIDE PANEL RELIEF, NO.6 | ||||
| 61128-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# LH |
1 | ||
| 61129-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# RH |
1 | ||
| 61131A - STRENGTH, SIDE PANEL, NO.1 RH | ||||
| 61131-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 61134A - STRENGTH, SIDE PANEL, NO.3 UPPER RH | ||||
| 61134-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 61136A - PANEL, FRONT SIDE END, RH | ||||
| 61136-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 61141A - STRENGTH, SIDE PANEL, NO.1 LH | ||||
| 61141-90B00 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 61142A - STRENGTH, SIDE PANEL, NO.2 UPPER LH | ||||
| 61142-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 61143A - STRENGTH, SIDE PANEL, NO.2 LOWER LH | ||||
| 61143-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 61144A - STRENGTH, SIDE PANEL, NO.3 UPPER LH | ||||
| 61144-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 61167A - STIFFENER, SIDE PANEL, LOWER RH | ||||
| 61167-90B00 |
BB2#,HDB20,RB2# |
1 | ||
| 61168A - STIFFENER, SIDE PANEL, LOWER LH | ||||
| 61168-90B00 |
BB2#,HDB20,RB2# |
1 | ||
| 61191A - REINFORCEMENT, SIDE LOWER WINDOW | ||||
| 61191-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 61195 - RETAINER, OUTER SIDE MIRROR, LH | ||||
| 61195-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 61199 - BRACKET, SIDE PANEL TO REAR MUDGUARD | ||||
| 61199-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
2 | ||
| 61224A - PILLAR, NO.3 OUTER, UPPER LH | ||||
| 61224-90B01 |
BB21,31,HB30,RB20..(26S,29S)..WOC W/GLIDE DOOR |
1 | ||
| 61228B - PILLAR, NO.4 OUTER, UPPER LH | ||||
| 61228-90B01 |
BB21,31,HB30,RB20..(26S,29S)..WOC W/GLIDE DOOR |
1 | ||
| 61252B - PILLAR, NO.1 INNER, LOWER RH | ||||
| 61252-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 61261A - CHANNEL, ROOF DRIP SIDE, FRONT RH | ||||
| 61356-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 61262A - CHANNEL, ROOF DRIP SIDE, FRONT LH | ||||
| 61366-90B01 |
BB2#,HDB20,RB2# |
1 | ||
| 61263 - CHANNEL, ROOF DRIP, REAR RH | ||||
| 61358-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 61264 - CHANNEL, ROOF DRIP, REAR LH | ||||
| 61368-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 61277 - JOINT, ROOF DRIP CHANNEL, FRONT RH | ||||
| 61359-90B00 |
BB2#,HDB20,RB2# |
1 | ||
| 61278 - JOINT, ROOF DRIP CHANNEL, FRONT LH | ||||
| 61359-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 61311A - RAIL, NO.1 UPPER OUTER, RH | ||||
| 61077-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#..HRF |
1 | ||
| 61313B - RAIL, NO.1 UPPER OUTER, LOWER RH | ||||
| 61313-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 61314B - RAIL, NO.2 UPPER OUTER, RH | ||||
| 61078-90B01 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#..HRF |
1 | ||
| 61317A - RAIL, NO.3 UPPER OUTER, RH | ||||
| 61079-90B00 |
BB2#,HDB20,RB2#..HRF |
1 | ||
| 61318A - RAIL, NO.6 UPPER OUTER, RH | ||||
| 61318-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 61321A - RAIL, NO.1 UPPER OUTER, LH | ||||
| 61408-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#..HRF |
1 | ||
| 61324B - RAIL, NO.2 UPPER OUTER, LH | ||||
| 61088-90B02 |
BB21,31,HB30,RB20..HRF..WOC W/GLIDE DOOR |
1 | ||
| 61088-90B01 |
BB20,21,26,3#,HB30,36,RB2#..HRF..WOC |
1 | ||
| 61327A - RAIL, NO.5 UPPER OUTER, LH | ||||
| 61089-90B00 |
BB2#,HDB20,RB2#..HRF |
1 | ||
| 61328A - RAIL, NO.6 UPPER OUTER, LH | ||||
| 61328-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 61331B - RAIL, NO.1 UPPER INNER, FRONT RH | ||||
| 61331-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 61332A - RAIL, NO.1 UPPER INNER, REAR RH | ||||
| 61332-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 61333B - RAIL, NO.2 UPPER INNER, RH | ||||
| 61333-90B00 |
BB2#,3#,HB3#,HDB3#,HZB3#,RB2# |
1 | ||
| 61334B - RAIL, NO.3 UPPER INNER, RH | ||||
| 61334-90B00 |
BB20,21,23,24,30,31,HB30,31,32,HDB3#,HZB3#,RB20 |
1 | ||
| 61336A - RAIL, NO.5 UPPER INNER, RH | ||||
| 61336-90B00 |
BB2#,RB2# |
1 | ||
| 61339C - RAIL, NO.1 UPPER, INNER LOWER | ||||
| 61339-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 61341B - RAIL, NO.1 UPPER INNER, FRONT LH | ||||
| 61341-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 61342A - RAIL, NO.1 UPPER INNER, REAR LH | ||||
| 61342-90B00 |
BB2#,3#,HB3#,HDB3#,HZB3#,RB2#..DLX,EX,EXS,STD |
1 | ||
| 61343B - RAIL, NO.2 UPPER INNER, LH | ||||
| 61343-90B03 |
BB21,31,HB30,RB20..(26S,29S)..WOC W/GLIDE DOOR |
1 | ||
| 61344B - RAIL, NO.3 UPPER INNER, LH | ||||
| 61344-90B00 |
BB20,21,23,24,30,31,HB30,31,32,HDB3#,HZB30,31,RB20..DLX,EX,EXS,STD |
1 | ||
| 61346A - RAIL, NO.5 UPPER INNER, LH | ||||
| 61346-90B00 |
BB2#,RB2# |
1 | ||
| 61405 - RAIL SUB-ASSY, NO.7 LOWER INNER, LOWER RH | ||||
| 61405-90B00 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 61406 - RAIL SUB-ASSY, NO.7 LOWER INNER, LOWER LH | ||||
| 61406-90B00 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 61418B - RAIL, NO.8 LOWER OUTER, RH | ||||
| 61418-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 61428B - RAIL, NO.8 LOWER OUTER, LH | ||||
| 61428-90B00 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 61437 - RAIL, NO.7 LOWER INNER, RH | ||||
| 61437-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 61447 - RAIL, NO.7 LOWER INNER, LH | ||||
| 61447-90B00 |
BB2#,3#,HB3#,HDB3#,HZB3#,RB2#..10S,20S,26S,29S,44C |
1 | ||
| 61451 - PANEL, ROCKER, OUTER RH | ||||
| 61451-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 61452 - PANEL, ROCKER INNER, FRONT RH | ||||
| 61452-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 61453A - PANEL, ROCKER INNER, REAR RH | ||||
| 61453-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 61454A - PANEL, FRONT DOOR STEP, RH | ||||
| 61454-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 61455 - PANEL, FRONT DOOR STEP SIDE, RH | ||||
| 61455-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 61573 - EXTENSION, FLOOR PANEL, NO.1 | ||||
| 61573-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 61584A - EXTENSION, FLOOR PANEL, NO.2 LH | ||||
| 61584-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 61604B - STRENGTH SUB-ASSY, REAR CORNER, INNER LH | ||||
| 61602-90B02 |
BB21,31,HB30,RB20..(DLX,STD)..(26S,29S) W/*SOBD |
1 | ||
| 61604-90B00 |
BB20,21,23,24,30,31,HB30,31,32,HDB3#,HZB30,31,RB20..20S,26S,29S |
1 | ||
| 61615D - PILLAR, NO.10 OUTER, UPPER RH | ||||
| 61615-90B00 |
BB21,31,HB30,RB20..20S,26S,29S W/*SOBD |
1 | ||
| 61615-90B00 |
BB21,31,HB30,RB20..(DLX,STD)..(26S,29S) W/*SOBD |
1 | ||
| 61625B - PILLAR, NO.10 OUTER, UPPER LH | ||||
| 61625-90B00 |
BB21,31,HB30,RB20..20S,26S,29S W/*SOBD |
1 | ||
| 61625-90B00 |
BB21,31,HB30,RB20..(DLX,STD)..(26S,29S) W/*SOBD |
1 | ||
| 61625B - PILLAR, NO.10 OUTER, UPPER LH | ||||
| 61625-90B00 |
BB21,31,HB30,RB20..20S,26S,29S W/*SOBD |
1 | ||
| 61625-90B00 |
BB21,31,HB30,RB20..(DLX,STD)..(26S,29S) W/*SOBD |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-90B02 |
BB2#,3#,HB3#,RB2#..10S,20S,26S,29S,44C |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61631-90B02 |
BB2#,3#,HB3#,RB2#..10S,20S,26S,29S,44C |
1 | ||
| 61719A - STIFFENER, BATTERY SERVICE HOLE | ||||
| 61719-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 61725 - BOX, FUEL INLET | ||||
| 61731-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 61731-90B00 |
RB20..26S W/*CH |
2 | ||
| 61811A - RAIL, DUSTPROOF, FRONT RH | ||||
| 61811-90B00 |
BB2#,HDB20,RB2# |
1 | ||
| 61812A - RAIL, DUSTPROOF, REAR RH | ||||
| 61812-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 61813A - PLATE, DUSTPROOF, NO.1 RH | ||||
| 61813-90B00 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 61821A - RAIL, DUSTPROOF, FRONT LH | ||||
| 61821-90B00 |
BB2#,HDB20,RB2# |
1 | ||
| 61822A - RAIL, DUSTPROOF, REAR LH | ||||
| 61822-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 61823A - PANEL, DUSTPROOF, NO.1 LH | ||||
| 61823-90B00 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 61908 - PILLAR SUB-ASSY, NO.1 OUTER, UPPER LH | ||||
| 61908-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| Common parts | ||||
| 90467-1204108 | ||||
| 90950-01027 | ||||
| 90950-01056 | ||||
| 90950-01150 | ||||
| 90950-01424 | ||||
| 90950-01444 | ||||
| 90950-01450 | ||||
| 90950-06028 | ||||
| 91651-40612 | ||||

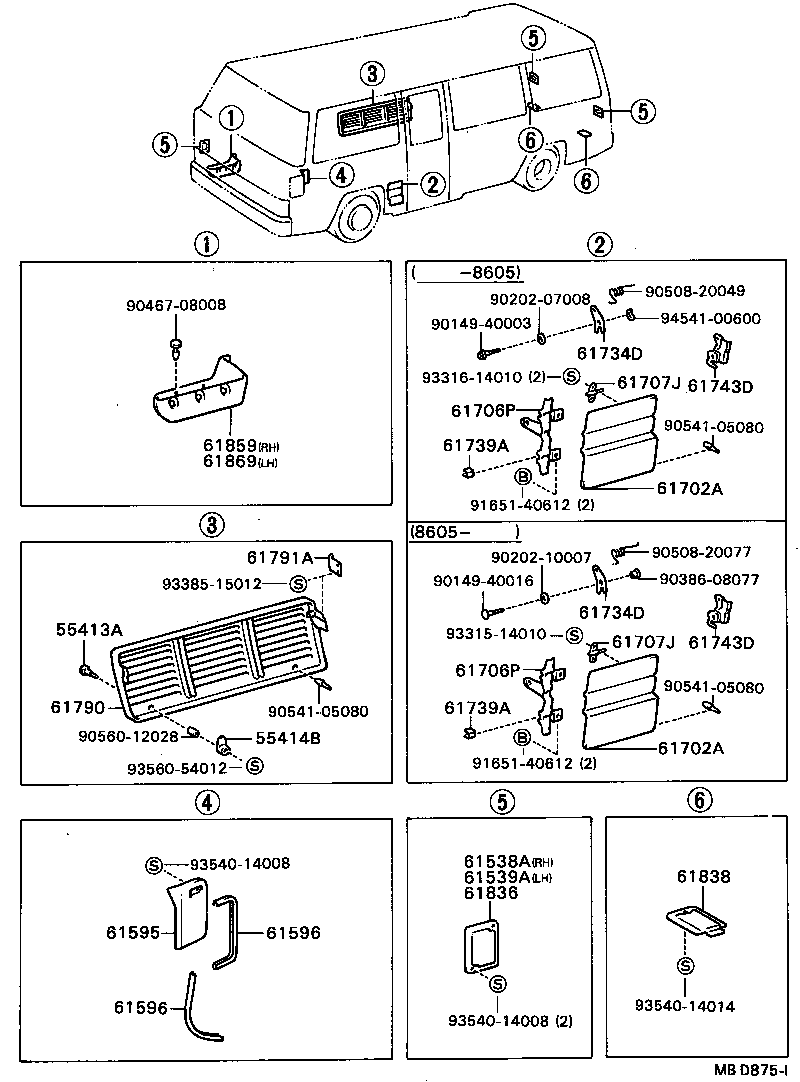

ILLUST NO. 3 OF 3(8205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61538A - COVER, BACK CORNER HOLE, RH | ||||
| 61836-90B00 |
BB21,31,HB30,RB20..(DLX,STD)..(26S,29S) W/*SOBD |
1 | ||
| 61539A - COVER, BACK CORNER HOLE, LH | ||||
| 61836-90B00 |
BB21,31,HB30,RB20..(DLX,STD)..(26S,29S) W/*SOBD |
1 | ||
| 61702A - COVER SUB-ASSY, BATTERY SERVICE HOLE, LH | ||||
| 61702-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 61702A - COVER SUB-ASSY, BATTERY SERVICE HOLE, LH | ||||
| 61702-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 61706P - HINGE SUB-ASSY, BATTERY COVER, LH | ||||
| 61706-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 61706P - HINGE SUB-ASSY, BATTERY COVER, LH | ||||
| 61706-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 61707J - BRACKET SUB-ASSY, BATTERY COVER LOCK | ||||
| 61707-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 61707J - BRACKET SUB-ASSY, BATTERY COVER LOCK | ||||
| 61707-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 61734D - LEVER, BATTERY COVER LOCK | ||||
| 61734-90B00 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 61734D - LEVER, BATTERY COVER LOCK | ||||
| 61734-90B00 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 61739A - CUSHION, BATTERY COVER STOPPER | ||||
| 61739-90B00 |
BB20,21,26,3#,HB30,31,36,HDB20,3#,HZB3#,RB2# |
1 | ||
| 61739A - CUSHION, BATTERY COVER STOPPER | ||||
| 61739-90B00 |
BB20,21,26,3#,HB30,31,36,HDB20,3#,HZB3#,RB2# |
1 | ||
| 61743D - HINGE, BATTERY COVER LOCK, LH | ||||
| 61743-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 61743D - HINGE, BATTERY COVER LOCK, LH | ||||
| 61743-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 61836 - COVER, PILLAR INNER SERVICE HOLE | ||||
| 61836-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
2 | ||
| 61838 - COVER, RAIL LOWER INNER SERVICE HOLE | ||||
| 61838-90B00 |
BB2#,3#,HB3#,RB2# |
2 | ||
| 61859 - COVER, FRONT DOOR STEP, RH | ||||
| 61859-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| Common parts | ||||
| 90149-40003 | ||||
| 90149-40016 | ||||
| 90202-07008 | ||||
| 90202-10007 | ||||
| 90386-08077 | ||||
| 90467-08008 | ||||
| 90508-20049 | ||||
| 90508-20077 | ||||
| 90541-05080 | ||||
| 90560-12028 | ||||
| 91651-40612 | ||||
| 93315-14010 | ||||
| 93316-14010 | ||||
| 93385-15012 | ||||
| 93540-14008 | ||||
| 93540-14014 | ||||
| 93560-54012 | ||||
| 94541-00600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
