RB20-MDR (1982)
Toyota Coaster

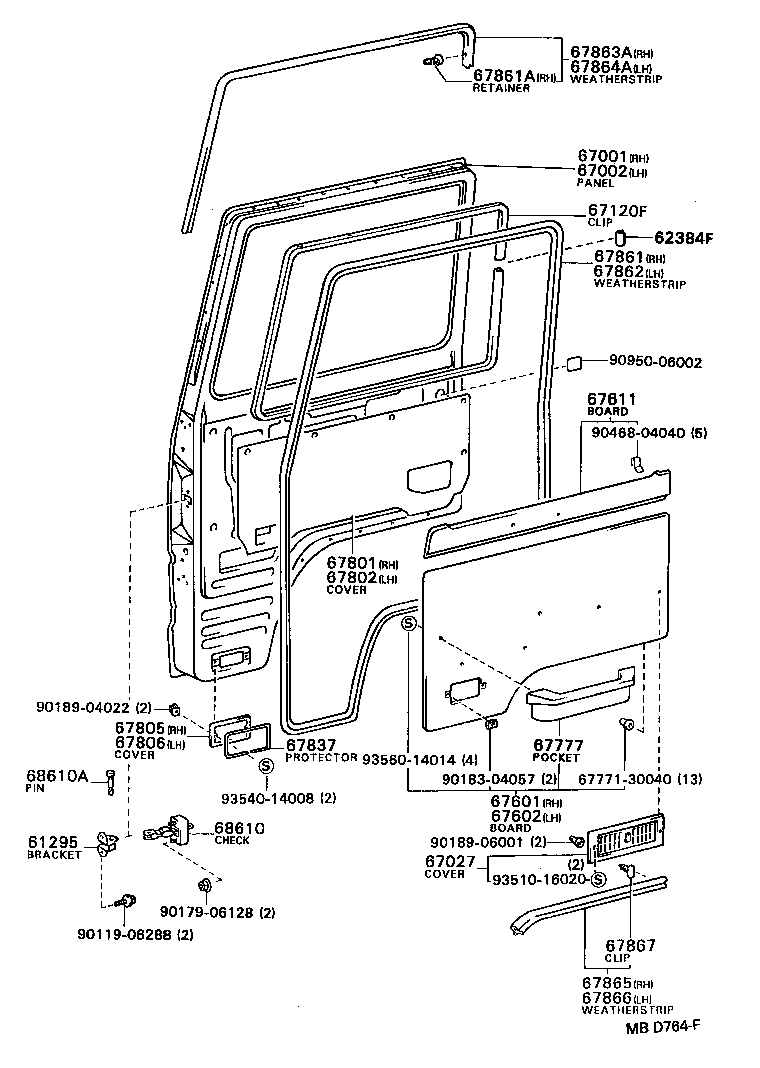

ILLUST NO. 1 OF 2(8205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61295 - BRACKET, FRONT DOOR CHECK ARM | ||||
| 61295-90B01 |
BB2#,31,HB3#,RB20 |
1 | ||
| 61295-90B00 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 62384F - CAP,FRONT DOOR WINDOW | ||||
| 62384-90B0008 |
BB2#,3#,HB31,RB2# IVORY,IVORY |
1 | ||
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-90B03 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 67001-90B11 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 67027 - COVER SUB-ASSY, DOOR VENTILATING HOLE | ||||
| 68300-9540002 |
BB2#,3#,HB3#,RB2# DARK WINE |
1 | ||
| 68300-9540016 |
BB2#,31,HB3#,HDB3#,HZB3#,RB20 SABLE,SABLE |
1 | ||
| 67120F - CLIP, FRONT DOOR WINDOW OUTER SASH | ||||
| 62375-90B00 |
BB2#,3#,HB3#,RB2# RH |
1 | ||
| 62375-90B02 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# RH |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-90B02 |
BB20,21,30,31,HB30,31,RB20..DLX |
1 | ||
| 67610-90B0206 |
BB21,23,31,HB30,31,HDB30,HZB30,36,RB20..DLX SABLE,SABLE |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67777-2204050 |
BB2#,31,HB3#,HDB3#,HZB3#,RB20 SABLE,SABLE |
1 | ||
| 67777-2204002 |
BB2#,3#,HB3#,RB2# DARK WINE,RED/MAROON |
1 | ||
| 67801 - COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 RH | ||||
| 67801-90B00 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 67805 - COVER SUB-ASSY, FRONT DOOR HOLE, NO.2 RH | ||||
| 61791-90A00 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 61791-90B01 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 67837 - PROTECTOR, FRONT DOOR SERVICE HOLE COVER | ||||
| 67837-90B00 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP) | ||||
| 67868-30040 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
19 | ||
| 67868-30040 |
BB2#,3#,HB3#,RB2# |
15 | ||
| 67863A - WEATHERSTRIP, FRONT DOOR, UPPER RH | ||||
| 67863-90B02 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 67863-90B00 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-90B01 |
BB2#,31,HB3#,RB20 |
1 | ||
| 68610-90B00 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 68610A - PIN(FOR FRONT DOOR CHECK) | ||||
| 68617-90K00 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 68617-30010 |
BB2#,3#,HB3#,RB2# |
1 | ||
| Common parts | ||||
| 67771-30040 | ||||
| 90119-06288 | ||||
| 90179-06128 | ||||
| 90183-04057 | ||||
| 90189-04022 | ||||
| 90189-06001 | ||||
| 90468-04040 | ||||
| 90950-06002 | ||||
| 93510-16020 | ||||
| 93540-14008 | ||||
| 93560-14014 | ||||
ILLUST NO. 2 OF 2(8205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62275A - COVER, FRONT DOOR WINDOW, UPPER | ||||
| 62275-90B00 |
BB21,HB30,31,RB20..DLX..WC W/SIDE WINDOW *TL GLASS |
1 | ||
| 62275-90B00 |
BB21,23,26,3#,HB30,31,36,RB2#..DLX W/SIDE WINDOW *TL GLASS |
1 | ||
| 62285A - COVER, FRONT DOOR WINDOW, LOWER | ||||
| 62285-90B00 |
BB21,HB30,31,RB20..DLX..WC W/SIDE WINDOW *TL GLASS |
1 | ||
| 62285-90B00 |
BB21,23,26,3#,HB30,31,36,RB2#..DLX W/SIDE WINDOW *TL GLASS |
1 | ||
| 62385A - SEAL, FRONT DOOR WINDOW, NO.1 | ||||
| 62385-90B00 |
BB21,HB30,RB20..DLX..WC W/SIDE WINDOW *TL GLASS |
1 | ||
| 62385-90B01 |
BB21,HB30,31,RB20..DLX..WC W/SIDE WINDOW *TL GLASS |
1 | ||
| 62385-90B02 |
BB21,HB30,31,RB20..DLX..WC W/SIDE WINDOW *TL GLASS |
1 | ||
| 62385-90B02 |
BB21,23,26,3#,HB30,36,RB2#..DLX W/SIDE WINDOW *TL GLASS |
1 | ||
| 62385-90B03 |
BB21,23,26,3#,HB30,RB2# |
1 | ||
| 62386A - SEAL, FRONT DOOR WINDOW, NO.2 | ||||
| 62386-90B00 |
BB21,HB30,RB20..DLX..WC W/SIDE WINDOW *TL GLASS |
1 | ||
| 62388-90B01 |
BB21,HB30,31,RB20..DLX..WC W/SIDE WINDOW *TL GLASS |
1 | ||
| 62388-90B01 |
BB21,23,26,3#,HB30,36,RB2#..DLX W/SIDE WINDOW *TL GLASS |
1 | ||
| 62386-90B01 |
BB21,HB30,31,RB20..DLX..WC W/SIDE WINDOW *TL GLASS |
1 | ||
| 62411G - RUN, FRONT DOOR WINDOW, FRONT | ||||
| 62411-90B00 |
BB2#,3#,HB3#,RB2# RH |
1 | ||
| 62415-90B00 |
BB2#,31,HDB20,3#,HZB3#,RB2# RH |
1 | ||
| 62415-90B00 |
BB2#,3#,HB3#,RB2# RH |
1 | ||
| 62415-90B01 |
BB2#,3#,HB3#,RB2# RH |
1 | ||
| 62412C - RUN, FRONT DOOR WINDOW, FRONT UPPER | ||||
| 62412-90B01 |
BB2#,3#,HB3#,RB2# RH |
1 | ||
| 62412-90B00 |
BB2#,31,HDB20,3#,HZB3#,RB2# RH |
1 | ||
| 62412-90B00 |
BB2#,3#,HB3#,RB2# RH |
1 | ||
| 62413B - RUN, FRONT DOOR WINDOW, FRONT LOWER | ||||
| 62413-90B00 |
BB2#,3#,HB3#,RB2# L=260 |
1 | ||
| 62472-90B02 |
BB2#,3#,HB3#,RB2# L=40 |
1 | ||
| 62413-36040 |
BB2#,31,HDB20,3#,HZB3#,RB2# L=260 |
1 | ||
| 62413-90B01 |
BB2#,3#,HB3#,RB2# L=260 |
1 | ||
| 62921-90500 |
BB2#,3#,HB3#,RB2# L=40 |
1 | ||
| 62472-36060 |
BB2#,31,HDB20,3#,HZB3#,RB2# L=40 |
1 | ||
| 62413B - RUN, FRONT DOOR WINDOW, FRONT LOWER | ||||
| 62413-90B00 |
BB2#,3#,HB3#,RB2# L=260 |
1 | ||
| 62472-90B02 |
BB2#,3#,HB3#,RB2# L=40 |
1 | ||
| 62413-36040 |
BB2#,31,HDB20,3#,HZB3#,RB2# L=260 |
1 | ||
| 62413-90B01 |
BB2#,3#,HB3#,RB2# L=260 |
1 | ||
| 62921-90500 |
BB2#,3#,HB3#,RB2# L=40 |
1 | ||
| 62472-36060 |
BB2#,31,HDB20,3#,HZB3#,RB2# L=40 |
1 | ||
| 62415B - RUN, FRONT DOOR WINDOW, REAR | ||||
| 62415-90B00 |
BB2#,3#,HB3#,RB2# RH |
1 | ||
| 62415-90B01 |
BB2#,3#,HB3#,RB2# RH |
1 | ||
| 62415-90B00 |
BB2#,31,HDB20,3#,HZB3#,RB2# RH |
1 | ||
| 62416B - RUN, FRONT DOOR WINDOW, REAR UPPER | ||||
| 62416-90B00 |
BB2#,3#,HB3#,RB2# RH |
1 | ||
| 62416-90B00 |
BB2#,31,HDB20,3#,HZB3#,RB2# RH |
1 | ||
| 62416-90B01 |
BB2#,3#,HB3#,RB2# RH |
1 | ||
| 62417A - RUN, FRONT DOOR WINDOW, REAR LOWER | ||||
| 62472-90B02 |
BB2#,3#,HB3#,RB2# L=40 |
1 | ||
| 62417-36020 |
BB2#,31,HDB20,3#,HZB3#,RB2# L=145 |
1 | ||
| 62472-36060 |
BB2#,31,HDB20,3#,HZB3#,RB2# L=40 |
1 | ||
| 62417-90B00 |
BB2#,3#,HB3#,RB2# L=145 |
1 | ||
| 62417-90B01 |
BB2#,3#,HB3#,RB2# L=145 |
1 | ||
| 62921-90500 |
BB2#,3#,HB3#,RB2# L=40 |
1 | ||
| 62417A - RUN, FRONT DOOR WINDOW, REAR LOWER | ||||
| 62472-90B02 |
BB2#,3#,HB3#,RB2# L=40 |
1 | ||
| 62417-36020 |
BB2#,31,HDB20,3#,HZB3#,RB2# L=145 |
1 | ||
| 62472-36060 |
BB2#,31,HDB20,3#,HZB3#,RB2# L=40 |
1 | ||
| 62417-90B00 |
BB2#,3#,HB3#,RB2# L=145 |
1 | ||
| 62417-90B01 |
BB2#,3#,HB3#,RB2# L=145 |
1 | ||
| 62921-90500 |
BB2#,3#,HB3#,RB2# L=40 |
1 | ||
| 62722 - WEATHERSTRIP, FRONT DOOR WINDOW WATER PROOF | ||||
| 62359-90B02 |
BB2#,3#,HB3#,RB2# RH,RR |
1 | ||
| 62359-90B01 |
BB2#,3#,HB3#,RB2# RH,RR |
1 | ||
| 62359-90B00 |
BB2#,3#,HB30,RB20 |
1 | ||
| 62339-90B01 |
BB2#,3#,HB3#,RB2# RH,FR |
1 | ||
| 62339-90B00 |
BB2#,3#,HB3#,RB2# RH,FR |
1 | ||
| 62723 - WEATHERSTRIP, FRONT DOOR WINDOW WATER PROOF, UPPER | ||||
| 62358-90B00 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 62724 - WEATHERSTRIP, WATER PROOF | ||||
| 62724-90740 |
BB2#,3#,HB3#,RB2# UPR |
3 | ||
| 62725-90740 |
BB2#,3#,HB3#,RB2# LWR |
1 | ||
| 62724-90740 |
BB2#,3#,HB3#,RB2# |
4 | ||
| 62724 - WEATHERSTRIP, WATER PROOF | ||||
| 62724-90740 |
BB2#,3#,HB3#,RB2# UPR |
3 | ||
| 62725-90740 |
BB2#,3#,HB3#,RB2# LWR |
1 | ||
| 62724-90740 |
BB2#,3#,HB3#,RB2# |
4 | ||
| 62724 - WEATHERSTRIP, WATER PROOF | ||||
| 62725-90740 |
BB2#,3#,HB3#,RB2# LWR |
1 | ||
| 62724-90740 |
BB2#,3#,HB3#,RB2# |
4 | ||
| 62724-90740 |
BB2#,3#,HB3#,RB2# UPR |
3 | ||
| 62724 - WEATHERSTRIP, WATER PROOF | ||||
| 62725-90740 |
BB2#,3#,HB3#,RB2# LWR |
1 | ||
| 62724-90740 |
BB2#,3#,HB3#,RB2# |
4 | ||
| 62724-90740 |
BB2#,3#,HB3#,RB2# UPR |
3 | ||
| 67120 - SASH ASSY, FRONT DOOR OUTER | ||||
| 62035-90B04 |
BB2#,3#,HB3#,RB2#..DLX,EX,STD RH |
1 | ||
| 62035-90B04 |
BB21,23,26,31,RB20 RH |
1 | ||
| 62035-90B02 |
BB2#,3#,HB3#,RB2#..DLX,EX,STD RH |
1 | ||
| 62035-90B00 |
BB2#,3#,HB30,RB20..DLX,EX,STD |
1 | ||
| 67120B - PIECE, FRONT DOOR WINDOW WATER PROOF | ||||
| 62297-90B00 |
BB2#,3#,HB30,RB20 |
1 | ||
| 62297-90B00 |
BB2#,3#,HB3#,RB2# 20 X 20 |
1 | ||
| 62297-90B00 |
BB2#,3#,HB3#,RB2# 20 X 20 |
2 | ||
| 67120C - PIECE, FRONT WINDOW WATER PROOF | ||||
| 62298-90B00 |
BB2#,3#,HB30,RB20 28 X 15 |
2 | ||
| 62298-90B00 |
BB2#,3#,HB3#,RB2# 28 X 15 |
1 | ||
| 62296-90B01 |
BB2#,3#,HB3#,RB2# 25.5 X 15 |
1 | ||
| 62298-90B01 |
BB2#,3#,HB3#,RB2# 17.5 X 15 |
2 | ||
| 67120E - STOPPER, FRONT DOOR WINDOW, REAR | ||||
| 62393-90B00 |
BB20,30,HB30,RB20 |
2 | ||
| 62393-90B00 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 67121 - SASH, FRONT DOOR INNER, FRONT | ||||
| 62337-90B00 |
BB2#,3#,HB3#,RB2#..DLX,EX,STD RH |
1 | ||
| 62337-90B00 |
BB21,23,26,31,RB20 RH |
1 | ||
| 67121A - WEATHERSTRIP, FRONT DOOR INNER, FRONT NO.1 | ||||
| 62355-90B00 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 67121B - WEATHERSTRIP, FRONT DOOR INNER, FRONT NO.2 | ||||
| 62357-90B00 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 67121C - GUIDE, FRONT DOOR SASH | ||||
| 62744-90740 |
BB2#,3#,HB3#,RB2# LWR |
2 | ||
| 62219-90B00 |
BB2#,3#,HB3#,RB2# UPR |
1 | ||
| 67121C - GUIDE, FRONT DOOR SASH | ||||
| 62744-90740 |
BB2#,3#,HB3#,RB2# LWR |
2 | ||
| 62219-90B00 |
BB2#,3#,HB3#,RB2# UPR |
1 | ||
| 67121C - GUIDE, FRONT DOOR SASH | ||||
| 62744-90740 |
BB2#,3#,HB3#,RB2# LWR |
2 | ||
| 62219-90B00 |
BB2#,3#,HB3#,RB2# UPR |
1 | ||
| 67121H - STOPPER, FRONT DOOR WINDOW | ||||
| 62747-90740 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 67122 - SASH, FRONT DOOR INNER, REAR | ||||
| 62338-90B00 |
BB2#,3#,HB30,RB20..DLX,EX,STD |
1 | ||
| 62338-90B02 |
BB2#,3#,HB3#,RB2#..DLX,EX,STD RH |
1 | ||
| 62338-90B02 |
BB21,23,26,31,RB20 RH |
1 | ||
| 67122A - WEATHERSTRIP, FRONT DOOR INNER, REAR NO.1 | ||||
| 62356-90B00 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 67122B - WEATHERSTRIP, FRONT DOOR INNER, REAR NO.2 | ||||
| 62357-90B00 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 67122D - GUIDE, FRONT DOOR SASH | ||||
| 62744-90740 |
BB2#,3#,HB3#,RB2# |
2 | ||
| 67122D - GUIDE, FRONT DOOR SASH | ||||
| 62744-90740 |
BB2#,3#,HB3#,RB2# |
2 | ||
| 67123 - SASH, FRONT DOOR WINDOW INNER, CENTER | ||||
| 62396-90B00 |
BB2#,3#,HB30,RB20..DLX,STD RR |
1 | ||
| 62396-90B01 |
BB21,HB30,RB20..DLX..WC RR,W/SIDE WINDOW *TL GLASS |
1 | ||
| 62396-90B03 |
BB21,HB30,31,RB20..DLX..WC RR,W/SIDE WINDOW *TL GLASS |
1 | ||
| 62395-90B01 |
BB21,HB30,31,RB20..DLX..WC FR,W/SIDE WINDOW *TL GLASS |
1 | ||
| 62395-90B00 |
BB20,21,23,26,3#,HB30,31,36,RB2#..DLX,STD FR |
1 | ||
| 62396-90B02 |
BB21,23,26,3#,HB30,31,36,RB2#..DLX,STD RR,RH |
1 | ||
| 62395-90B01 |
BB21,23,26,3#,HB30,31,36,RB2#..DLX FR,W/SIDE WINDOW *TL GLASS |
1 | ||
| 62396-90B03 |
BB21,23,26,3#,HB30,31,36,RB2#..DLX RR,W/SIDE WINDOW *TL GLASS |
1 | ||
| 67123 - SASH, FRONT DOOR WINDOW INNER, CENTER | ||||
| 62396-90B00 |
BB2#,3#,HB30,RB20..DLX,STD RR |
1 | ||
| 62396-90B01 |
BB21,HB30,RB20..DLX..WC RR,W/SIDE WINDOW *TL GLASS |
1 | ||
| 62396-90B03 |
BB21,HB30,31,RB20..DLX..WC RR,W/SIDE WINDOW *TL GLASS |
1 | ||
| 62395-90B01 |
BB21,HB30,31,RB20..DLX..WC FR,W/SIDE WINDOW *TL GLASS |
1 | ||
| 62395-90B00 |
BB20,21,23,26,3#,HB30,31,36,RB2#..DLX,STD FR |
1 | ||
| 62396-90B02 |
BB21,23,26,3#,HB30,31,36,RB2#..DLX,STD RR,RH |
1 | ||
| 62395-90B01 |
BB21,23,26,3#,HB30,31,36,RB2#..DLX FR,W/SIDE WINDOW *TL GLASS |
1 | ||
| 62396-90B03 |
BB21,23,26,3#,HB30,31,36,RB2#..DLX RR,W/SIDE WINDOW *TL GLASS |
1 | ||
| 67124 - LOCK, FRONT DOOR WINDOW, FRONT | ||||
| 62370-90B01 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 62010-90740 |
BB2#,3#,HB30,RB20 |
1 | ||
| 67125 - LOCK, FRONT DOOR WINDOW, REAR | ||||
| 62370-90B01 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 62010-90740 |
BB2#,3#,HB30,RB20 |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 62315-90B01 |
BB20,21,23,24,30,31,HB30,31,32,RB20..DLX,EX,EXS *TT,厚さ=4.0,FR,*TT,T=4.0 |
1 | ||
| 62317-90B01 |
BB20,21,23,24,30,31,HB30,31,32,RB20..DLX,EX,EXS *TT,厚さ=4.0,RR,*TT,T=4.0 |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 62315-90B01 |
BB20,21,23,24,30,31,HB30,31,32,RB20..DLX,EX,EXS *TT,厚さ=4.0,FR,*TT,T=4.0 |
1 | ||
| 62317-90B01 |
BB20,21,23,24,30,31,HB30,31,32,RB20..DLX,EX,EXS *TT,厚さ=4.0,RR,*TT,T=4.0 |
1 | ||
| Common parts | ||||
| 90157-40001 | ||||
| 93219-63012 | ||||
| 93229-24012 | ||||
| 93239-24008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
