RB20-MD (1982)
Toyota Coaster
ILLUST NO. 1 OF 2(8205-8408)CBU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-36031 |
RB2#..CBU |
1 | ||
| 04443-36030 |
RB20..CBU |
1 | ||
| 04443-36032 |
RB2# |
1 | ||
| 44601 - BAND SUB-ASSY, BOOSTER BODY | ||||
| 44605-36120 |
BB2#,3#,HB30,RB20..CBU |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-36120 |
BB2#,3#,HB30,RB20..CBU |
1 | ||
| 44606-36240 |
BB2#,HDB20,RB2# |
1 | ||
| 44606-36240 |
BB2#,3#,HB3#,RB2#..CBU |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-36211 |
RB2#..CBU |
1 | ||
| 44610-36210 |
RB20..CBU |
1 | ||
| 44618 - SEAL, BOOSTER BODY | ||||
| 44621-28120 |
BB2#,3#,HB3#,RB2#..CBU |
1 | ||
| 44621-14170 |
BB2#,3#,HB30,RB20..CBU |
1 | ||
| 44621-28120 |
BB2#,RB2# |
1 | ||
| 44626 - RETAINER, BOOSTER ROD CUP | ||||
| 44626-60010 |
BB2#,3#,HB30,RB20..CBU |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-28120 |
BB2#,3#,HB3#,RB2#..CBU |
1 | ||
| 44628-28120 |
BB2#,RB2# |
1 | ||
| 44629-30090 |
BB2#,3#,HB30,RB20..CBU |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-36240 |
BB2#,3#,HB3#,RB2#..CBU |
1 | ||
| 44642-36240 |
BB2#,RB2# |
1 | ||
| 44642-36120 |
BB2#,3#,HB30,RB20..CBU |
1 | ||
| 44643 - RETAINER, DIAPHRAGM | ||||
| 44643-60010 |
BB2#,3#,HB30,RB20..CBU |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44628-60010 |
BB2#,3#,HB30,RB20..CBU |
1 | ||
| 44657A - RING, SNAP(FOR BOOSTER AIR VALVE STOPPER) | ||||
| 96150-01600 |
BB2#,3#,HB30,RB20..CBU |
1 | ||
| 44662 - RETAINER, REACTION, NO.1 | ||||
| 44662-36120 |
BB2#,3#,HB30,RB20..CBU |
1 | ||
| 44662A - RETAINER, REACTION, NO.2 | ||||
| 44663-60010 |
BB2#,3#,HB30,RB20..CBU |
1 | ||
| 44662B - LEVER, REACTION | ||||
| 44661-60010 |
BB2#,3#,HB30,RB20..CBU |
3 | ||
| 44662C - PLATE, REACTION, NO.1 | ||||
| 44653-36160 |
BB2#,3#,HB30,RB20..CBU |
1 | ||
| 44662E - ROLLER(FOR REACTION LEVER) | ||||
| 44667-36120 |
BB2#,3#,HB30,RB20..CBU |
3 | ||
| 44662F - WASHER(FOR REACTION LEVER) | ||||
| 90201-19272 |
BB2#,3#,HB30,RB20..CBU |
1 | ||
| 44662G - RING, SNAP(FOR REACTION RETAINER) | ||||
| 96150-01800 |
BB2#,3#,HB30,RB20..CBU |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
RB20..CBU |
1 | ||
| 44697 - SCREW, BOOSTER BAND SET | ||||
| 44681-30170 |
BB2#,3#,HB30,RB20..CBU |
1 | ||
| 44697A - NUT(FOR BOOSTER BAND SET) | ||||
| 44686-30030 |
BB2#,3#,HB30,RB20..CBU |
1 | ||
| 44730Q - VALVE ASSY, VACUUM CHECK, NO.2 | ||||
| 44730-20060 |
RB2#..CBU |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 93319-14008 | ||||
| 94110-70600 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 4702 | ||||

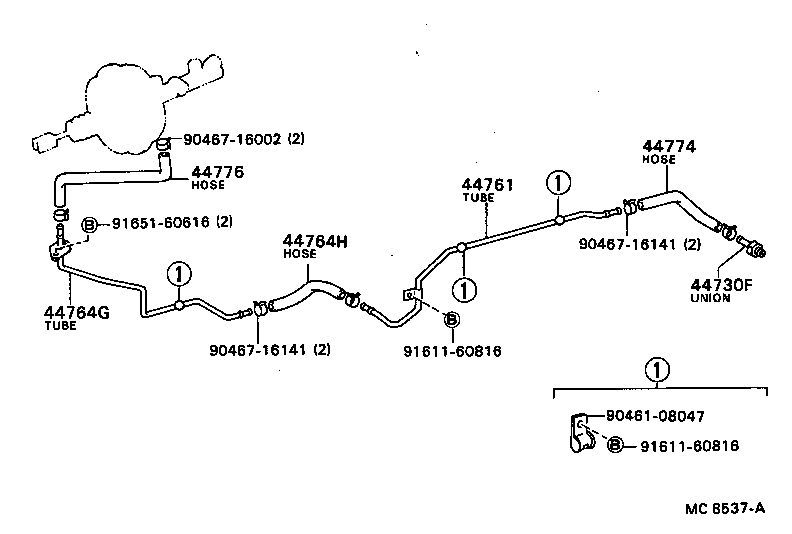

ILLUST NO. 2 OF 2(8205- )RB2#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51319 |
RB2# |
1 | ||
| 90404-51237 |
RB2# |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-36080 |
RB2#..CBU |
1 | ||
| 44764G - TUBE, CONNECTOR TO BRAKE BOOSTER | ||||
| 44764-36260 |
RB2#..CBU |
1 | ||
| 44764H - HOSE(FOR CONNECTOR TO BRAKE BOOSTER TUBE) | ||||
| 90445-17033 |
RB20..CBU |
1 | ||
| 95441-09220 |
RB2#..CBU |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-36040 |
BB20,21,26,3#..CBU |
1 | ||
| 44774-36070 |
RB2#..CBU |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-36010 |
BB2#,HDB20,RB2# |
1 | ||
| 44776-36010 |
BB21,26,RB2#..CBU |
1 | ||
| Common parts | ||||
| 90461-08047 | ||||
| 90467-16002 | ||||
| 90467-16141 | ||||
| 91611-60816 | ||||
| 91651-60616 | ||||
ILLUST NO. 1 OF 2(8408-8510)CBU ; (8510- )BB2#,HDB20,RB2#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-36031 |
RB2#..CBU |
1 | ||
| 04443-36030 |
RB20..CBU |
1 | ||
| 04443-36032 |
RB2# |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-36120 |
BB2#,3#,HB30,RB20..CBU |
1 | ||
| 44606-36240 |
BB2#,HDB20,RB2# |
1 | ||
| 44606-36240 |
BB2#,3#,HB3#,RB2#..CBU |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-36211 |
RB2#..CBU |
1 | ||
| 44610-36210 |
RB20..CBU |
1 | ||
| 44618 - SEAL, BOOSTER BODY | ||||
| 44621-28120 |
BB2#,3#,HB3#,RB2#..CBU |
1 | ||
| 44621-14170 |
BB2#,3#,HB30,RB20..CBU |
1 | ||
| 44621-28120 |
BB2#,RB2# |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-28120 |
BB2#,3#,HB3#,RB2#..CBU |
1 | ||
| 44628-28120 |
BB2#,RB2# |
1 | ||
| 44629-30090 |
BB2#,3#,HB30,RB20..CBU |
1 | ||
| 44635 - RETAINER, HYDRAULIC VALVE | ||||
| 44635-36240 |
BB2#,3#,HB3#,RB2#..CBU |
1 | ||
| 44635-36240 |
BB2#,RB2# |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-36240 |
BB2#,3#,HB3#,RB2#..CBU |
1 | ||
| 44642-36240 |
BB2#,RB2# |
1 | ||
| 44642-36120 |
BB2#,3#,HB30,RB20..CBU |
1 | ||
| 44730Q - VALVE ASSY, VACUUM CHECK, NO.2 | ||||
| 44730-20060 |
RB2#..CBU |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
